4.3.4 Flink-流处理框架-Flink CDC数据实时数据同步-Flink CDC实操-DataStream方式-自定义反序列化器实现

目录

1.写在前面

2.Maven依赖

3.代码实现

3.1 自定义反序列化器 CustomerDeserialization

3.2 主函数 FlinkCDCWithCustomerDeserialization

 4.集群测试

4.1 环境准备

4.2 查看任务结果

---

1.写在前面

Flink CDC有两种实现方式，一种是DataStream，另一种是FlinkSQL方式。

• DataStream方式：优点是可以应用于多库多表，缺点是需要自定义反序列化器（灵活）
• FlinkSQL方式：优点是不需要自定义反序列化器，缺点是只能应用于单表查询

2.Maven依赖

<dependencies>
    <dependency>
        <groupId>org.apache.flink</groupId>
        <artifactId>flink-java</artifactId>
        <version>1.12.7</version>
    </dependency>

    <dependency>
        <groupId>org.apache.flink</groupId>
        <artifactId>flink-streaming-java_2.12</artifactId>
        <version>1.12.7</version>
    </dependency>

    <dependency>
        <groupId>org.apache.flink</groupId>
        <artifactId>flink-clients_2.12</artifactId>
        <version>1.12.7</version>
    </dependency>

    <dependency>
        <groupId>org.apache.hadoop</groupId>
        <artifactId>hadoop-client</artifactId>
        <version>2.7.7</version>
    </dependency>

    <dependency>
        <groupId>mysql</groupId>
        <artifactId>mysql-connector-java</artifactId>
        <version>5.1.49</version>
    </dependency>

    <dependency>
        <groupId>com.alibaba.ververica</groupId>
        <artifactId>flink-connector-mysql-cdc</artifactId>
        <version>1.2.0</version>
    </dependency>

    <dependency>
        <groupId>com.alibaba</groupId>
        <artifactId>fastjson</artifactId>
        <version>1.2.75</version>
    </dependency>

    <dependency>
        <groupId>org.apache.flink</groupId>
        <artifactId>flink-table-planner-blink_2.12</artifactId>
        <version>1.12.7</version>
    </dependency>
</dependencies>

<build>
    <plugins>
        <plugin>
            <groupId>org.apache.maven.plugins</groupId>
            <artifactId>maven-assembly-plugin</artifactId>
            <version>3.0.0</version>
            <configuration>
                <descriptorRefs>
                    <descriptorRef>jar-with-dependencies</descriptorRef>
                </descriptorRefs>
            </configuration>
            <executions>
                <execution>
                    <id>make-assembly</id>
                    <phase>package</phase>
                    <goals>
                        <goal>single</goal>
                    </goals>
                </execution>
            </executions>
        </plugin>
        <plugin>
            <groupId>org.apache.maven.plugins</groupId>
            <artifactId>maven-compiler-plugin</artifactId>
            <configuration>
                <source>8</source>
                <target>8</target>
            </configuration>
        </plugin>
    </plugins>
</build>

3.代码实现

3.1 自定义反序列化器 CustomerDeserialization

import com.alibaba.fastjson.JSONObject;
import com.alibaba.ververica.cdc.debezium.DebeziumDeserializationSchema;
import io.debezium.data.Envelope;
import org.apache.flink.api.common.typeinfo.BasicTypeInfo;
import org.apache.flink.api.common.typeinfo.TypeInformation;
import org.apache.flink.util.Collector;
import org.apache.kafka.connect.data.Field;
import org.apache.kafka.connect.data.Schema;
import org.apache.kafka.connect.data.Struct;
import org.apache.kafka.connect.source.SourceRecord;

import java.util.List;

public class CustomerDeserialization implements DebeziumDeserializationSchema<String> {

    /**
     * 封装的数据格式
     * {
     * "database":"",
     * "tableName":"",
     * "before":{"id":"","tm_name":""....},
     * "after":{"id":"","tm_name":""....},
     * "type":"c u d",
     * //"ts":156456135615
     * }
     */
    @Override
    public void deserialize(SourceRecord sourceRecord, Collector<String> collector) throws Exception {

        //1.创建JSON对象用于存储最终数据
        JSONObject result = new JSONObject();

        //2.获取库名&表名
        String topic = sourceRecord.topic();
        String[] fields = topic.split("\\.");
        String database = fields[1];
        String tableName = fields[2];

        Struct value = (Struct) sourceRecord.value();
        //3.获取"before"数据
        Struct before = value.getStruct("before");
        JSONObject beforeJson = new JSONObject();
        if (before != null) {
            Schema beforeSchema = before.schema();
            List<Field> beforeFields = beforeSchema.fields();
            for (Field field : beforeFields) {
                Object beforeValue = before.get(field);
                beforeJson.put(field.name(), beforeValue);
            }
        }

        //4.获取"after"数据
        Struct after = value.getStruct("after");
        JSONObject afterJson = new JSONObject();
        if (after != null) {
            Schema afterSchema = after.schema();
            List<Field> afterFields = afterSchema.fields();
            for (Field field : afterFields) {
                Object afterValue = after.get(field);
                afterJson.put(field.name(), afterValue);
            }
        }

        //5.获取操作类型  CREATE UPDATE DELETE
        Envelope.Operation operation = Envelope.operationFor(sourceRecord);
        String type = operation.toString().toLowerCase();
        if ("create".equals(type)) {
            type = "insert";
        }

        //6.将字段写入JSON对象
        result.put("database", database);
        result.put("tableName", tableName);
        result.put("before", beforeJson);
        result.put("after", afterJson);
        result.put("type", type);

        //7.输出数据
        collector.collect(result.toJSONString());

    }

    @Override
    public TypeInformation<String> getProducedType() {
        return BasicTypeInfo.STRING_TYPE_INFO;
    }
}

3.2 主函数 FlinkCDCWithCustomerDeserialization

import com.alibaba.ververica.cdc.connectors.mysql.MySQLSource;
import com.alibaba.ververica.cdc.connectors.mysql.table.StartupOptions;
import com.alibaba.ververica.cdc.debezium.DebeziumSourceFunction;
import com.alibaba.ververica.cdc.debezium.StringDebeziumDeserializationSchema;
import org.apache.flink.runtime.state.filesystem.FsStateBackend;
import org.apache.flink.streaming.api.CheckpointingMode;
import org.apache.flink.streaming.api.datastream.DataStreamSource;
import org.apache.flink.streaming.api.environment.StreamExecutionEnvironment;

public class FlinkCDCWithCustomerDeserialization {

    public static void main(String[] args) throws Exception {

        //1.获取执行环境
        StreamExecutionEnvironment env = StreamExecutionEnvironment.getExecutionEnvironment();
        env.setParallelism(1);

        //2.通过FlinkCDC构建SourceFunction并读取数据
        DebeziumSourceFunction<String> sourceFunction = MySQLSource.<String>builder()
                .hostname("192.168.0.111")
                .port(3306)
                .username("root")
                .password("Gmt123456@")
                .databaseList("gmall2021")
                .tableList("gmall2021.base_trademark")   //如果不添加该参数,则消费指定数据库中所有表的数据.如果指定,指定方式为db.table
                .deserializer(new CustomerDeserialization())
                .startupOptions(StartupOptions.initial())
                .build();
        DataStreamSource<String> streamSource = env.addSource(sourceFunction);

        //3.打印数据
        streamSource.print();

        //4.启动任务
        env.execute("FlinkCDCWithCustomerDeserialization");

    }

}

 4.集群测试

4.1 环境准备

1. 启动ha-hadoop集群：sh ha-hadoop.sh start

2. 创建作业归档目录，只需要创建一次：hdfs dfs -mkdir /flink-jobhistory

3. 启动Flink集群和任务历史服务

   1. start-cluster.sh
   2. historyserver.sh start
4. 运行该Flink任务：/opt/software/flink-1.12.7/bin/flink run -m yarn-cluster -ys 1 -ynm gmall-flink-cdc -c com.ucas.FlinkCDCWithCustomerDeserialization -d /root/mySoftware/gmall-flink-cdc.jar

4.2 查看任务结果

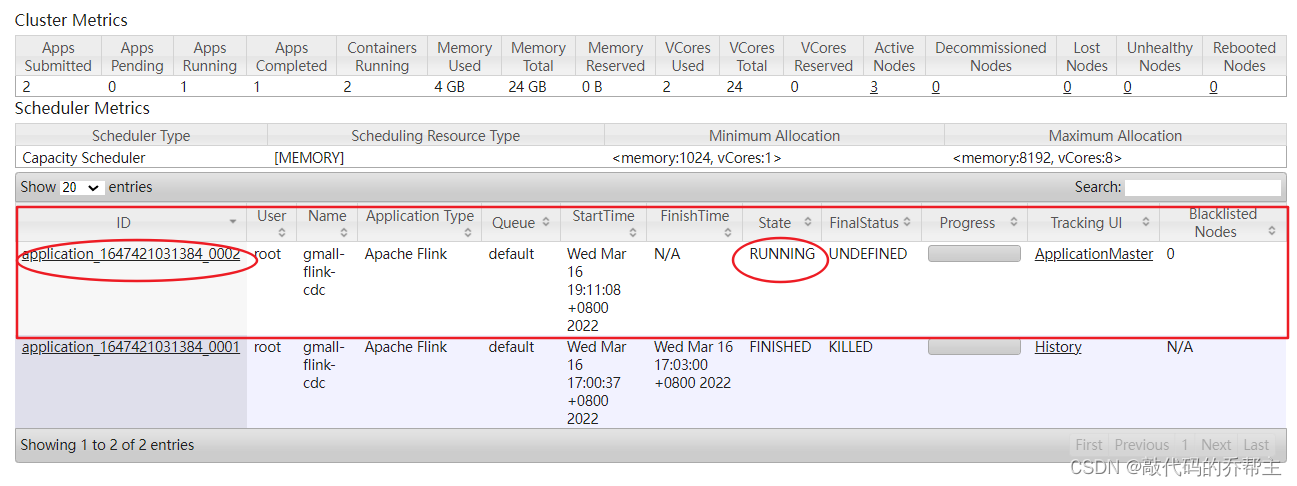

（1）打开yarn，查看任务：http://192.168.0.112:8088/cluster/apps，并且通过id点击进去

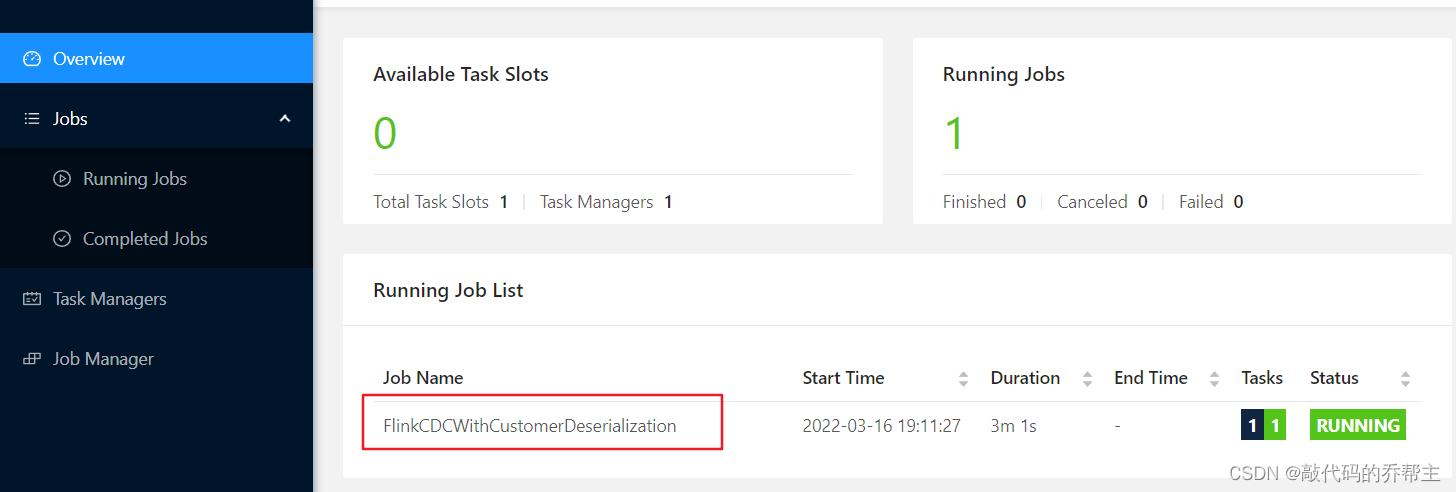

​（2）点击Tracking URL，进入FlinkWeb界面

​

​

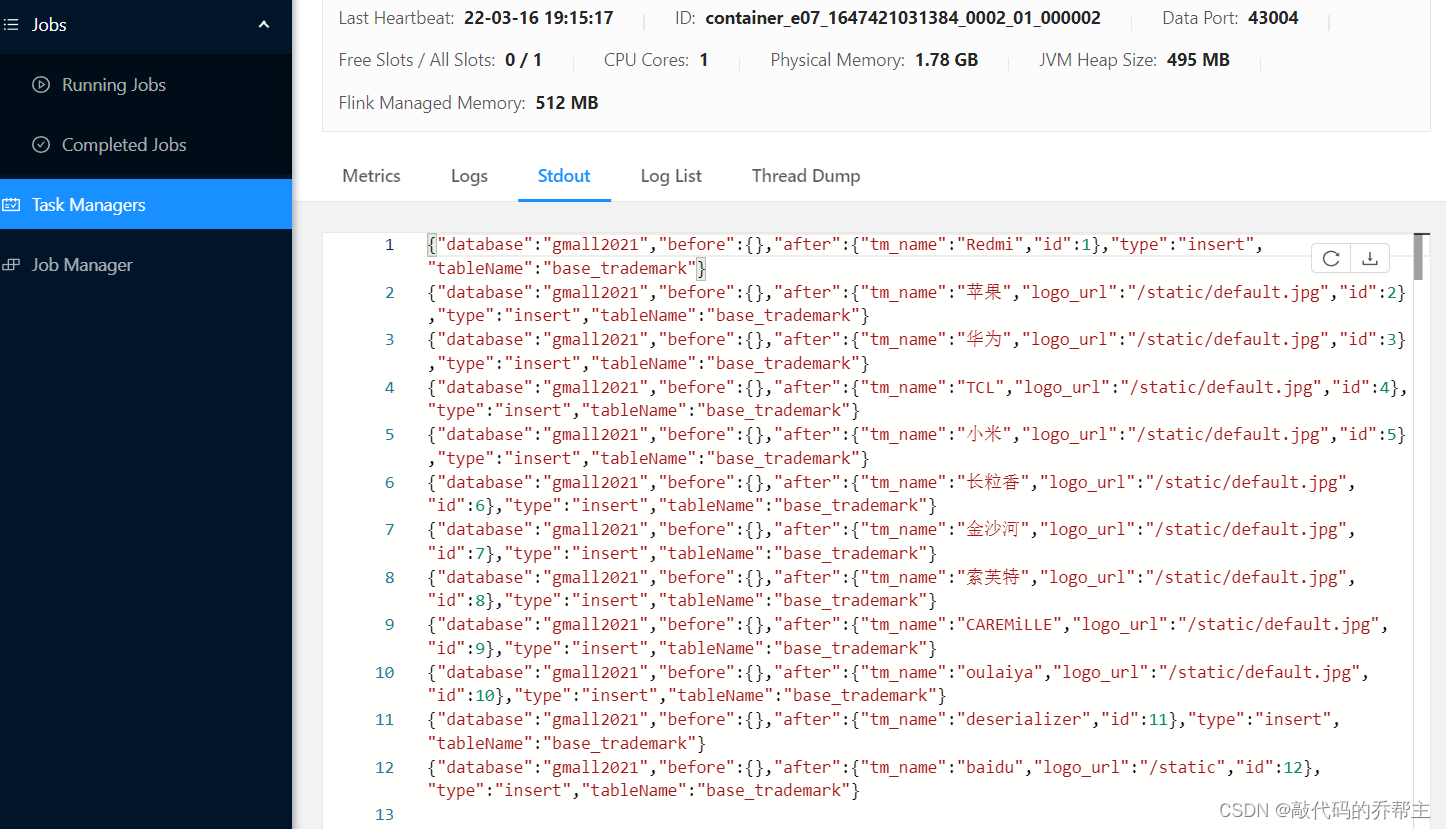

 （3） 打开左侧TaskManagers中的Stdout查看控制台输出信息

​
