apache+nagios+pnp4nagios配置(pnp4nagios安装配置篇)

配置pnp4nagios

下载地址：

Rrtool地址：httposs.oetiker.chrrdtool

Pnp地址：http://docs.pnp4nagios.org/

需要 rrtool 支持

yum install rrdtool gd gd-devel php-gd

安装pnp4nagios



tar zxvf pnp4nagios-0.6.21.tar.gz
cd pnp4nagios-0.6.21
./configure

报错

configure:error: Perl Module Time::HiRes not available



解决方法

yum installperl-Time-HiRes

make
make install
make install-config
make install-init
make install-webconf  //apache服务器需要

安装目录： /usr/local/pnp4nagios

创建配置文件



cd  /usr/local/pnp4nagios/etc
mv misccommands.cfg-sample  misccommands.cfg
mv nagios.cfg-sample nagios.cfg
mv rra.cfg-sample rra.cfg
cd /usr/local/pnp4nagios/etc/pages/
mv web_traffic.cfg-sample web_traffic.cfg
cd ../check_commands
mv check_all_local_disks.cfg-sample  check_all_local_disks.cfg
mv check_nrpe.cfg-sample  check_nrpe.cfg
mv check_nwstat.cfg-sample  check_nwstat.cfg

重启服务

service npcd restart

修改nagios.cfg


process_performance_data=1                             //由0改为1
host_perfdata_command=process-host-perfdata            //前面的注释拿掉
service_perfdata_command=process-service-perfdata      //注释拿掉

修改commands.cfg

# 'process-host-perfdata' command definition
define command{
	command_name	process-host-perfdata
	command_line	/usr/local/pnp4nagios/libexec/process_perfdata.pl  -d HOSTPERFDATA
	}


# 'process-service-perfdata' command definition
define command{
	command_name	process-service-perfdata
	command_line	/usr/local/pnp4nagios/libexec/process_perfdata.pl
	}

修改配置文件templates.cfg,添加以下内容


define host {
       name       hosts-pnp
       register   0
       action_url /pnp4nagios/graph?host=$HOSTNAME$
       process_perf_data              1
}
define service {
       name       srv-pnp
       register   0
       action_url /pnp4nagios/graph?host=$HOSTNAME$&srv=$SERVICEDESC$
       process_perf_data              1
}

修改服务器配置文件localhost.cfg


define host{
       use                    linux-server,hosts-pnp
       host_name              localhost
       alias                  localhost
       address                127.0.0.1
       }

define service{
       use                            local-service,srv-pnp
       host_name                      localhost
       service_description            PING
       check_command                   check_ping!100.0,20%!500.0,60%
       }

配置apache



pnp4nagios4.10版本apache至此不需要做任何配置，直接就可以访问了，升级到0.6后发现必须rewrite了

安装pnp4nagios 时使用make install-webconf

这个会在/etc/httpd/ conf.d/中生成pnp4nagios.conf文件将其复制到http.conf文件中

# SAMPLE CONFIG SNIPPETS FOR APACHE WEBSERVER

Alias /pnp4nagios"/usr/local/pnp4nagios/share"

<Directory"/usr/local/pnp4nagios/share">
     AllowOverride None
     Order allow,deny
     Allow from all
     #
     # Use the same value as defined in nagios.conf
     #
     AuthName "Nagios Access"
     AuthType Basic
     AuthUserFile/usr/local/nagios/etc/htpasswd.users //根据自身配置路径设置
     Require valid-user
         <IfModulemod_rewrite.c>
                   #Turn on URL rewriting
                   RewriteEngineOn
                   OptionssymLinksIfOwnerMatch
                   #Installation directory
                   RewriteBase/pnp4nagios/
                   #Protect application and system files from being viewed
                   RewriteRule"^(?:application|modules|system)/" - [F]
                   #Allow any files or directories that exist to be displayed directly
                   RewriteCond"%{REQUEST_FILENAME}" !-f
                   RewriteCond"%{REQUEST_FILENAME}" !-d
                   #Rewrite all other URLs to index.php/URL
                   RewriteRule"^.*$" "index.php/$0" [PT]
         </IfModule>
</Directory>

修改/etc/nagios/cgi.cfg里的用户名是无效的

#default_user_name=guest

设置项，取消注释，修改为

default_user_name=nagiosadmin

重启 nagios 和apache

service nagios restart
service httpd restart

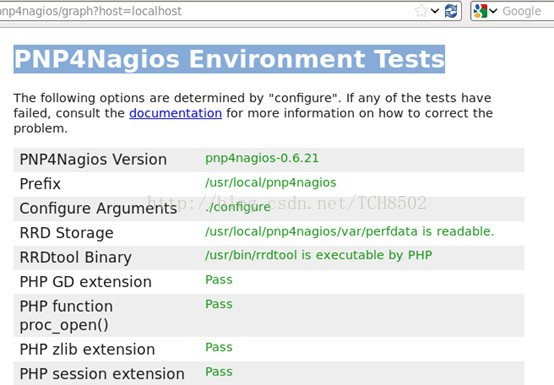

进入后点击小太阳出现PNP4Nagios Environment Tests

将/usr/local/pnp4nagios/share 中的install.php 删除即可

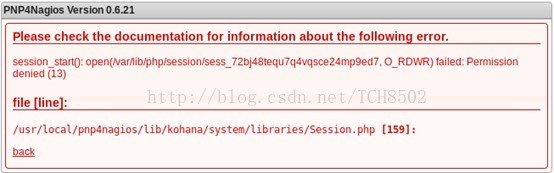

点击小太阳出现

Please check the documentation for information about the followingerror.



session_start():open(/var/lib/php/session/sess_4m6ehg7pt0d113hvoni3es4c62, O_RDWR) failed: Permissiondenied (13)

file [line]:



/usr/local/pnp4nagios/lib/kohana/system/libraries/Session.php[159]:



Back

解决方案：

默认的php是apache的组，而我的httpd.conf中将httpd的服务改成了nagios用户和组

所以将php权限改为nagios 即可

cd /var/lib
chown -R nagios.nagios php/

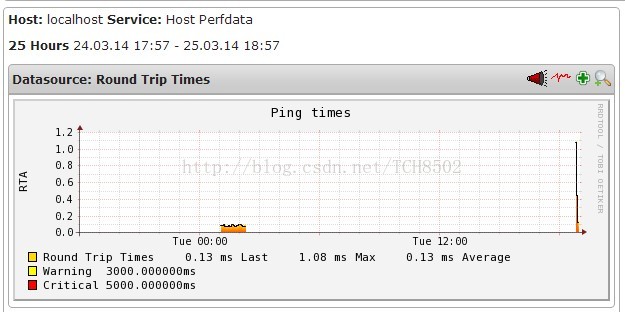

pnp4nagios 配置成功
