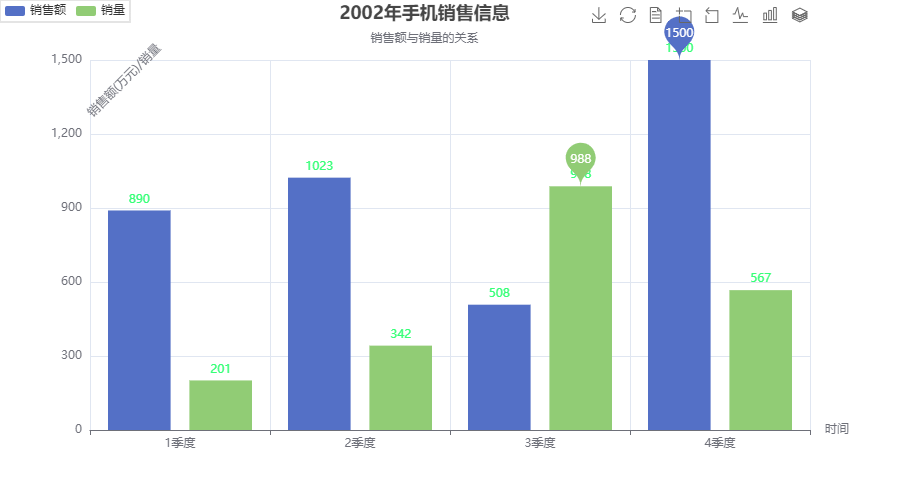

1. Python柱状图
from pyecharts.charts import Bar
from pyecharts import options
# 1.创建图表对象
bar = Bar()
# 2.添加数据
# 2.1 添加x轴上的数据
bar.add_xaxis(['1季度', '2季度', '3季度', '4季度'])
# 2.2添加y轴上的数据(x轴与y轴上的数据内容和顺序需保持一致)
bar.add_yaxis('销售额', [890, 1023, 508, 1500],
# color='red',
# bar_width=30,
bar_max_width=100,
bar_min_width=40,
)
bar.add_yaxis('销量', [201, 342, 988, 567])
# 3.柱状图相关配置
# 3.1 全局配置
bar.set_global_opts(
# 设置标题
title_opts=options.TitleOpts(
title='2002年手机销售信息',
title_link='https://www.baidu.com',
title_target='blank',
subtitle='销售额与销量的关系',
pos_right='300',
text_align='center'
),
# 设置图例
legend_opts=options.LegendOpts(
is_show=True,
# pos_right=90,
pos_left=0,
item_width=20,
item_height=10
),
# 设置工具箱
toolbox_opts=options.ToolboxOpts(
is_show=True,
pos_left='65%',
),
# 设置区域缩放工具条
# datazoom_opts=options.DataZoomOpts(
# is_show=True
# ),
# x、y轴的配置
xaxis_opts=options.AxisOpts(
name='时间'
),
yaxis_opts=options.AxisOpts(
name='销售额(万元)/销量',
name_gap=-55,
name_rotate=45,
)
)
# 3.2 系列配置
bar.set_series_opts(
label_opts=options.LabelOpts(
is_show=True,
position='top',
rotate=0,
color='#36ff77'
),
markpoint_opts=options.MarkPointOpts(
data=[options.MarkPointItem(name='最大值', type_='max')]
)
)
# 3.3 数据配置
# 数据配置只能在添加数据的时候设置
# 4.渲染图表(生成图表)
bar.render('files/01柱状图.html')

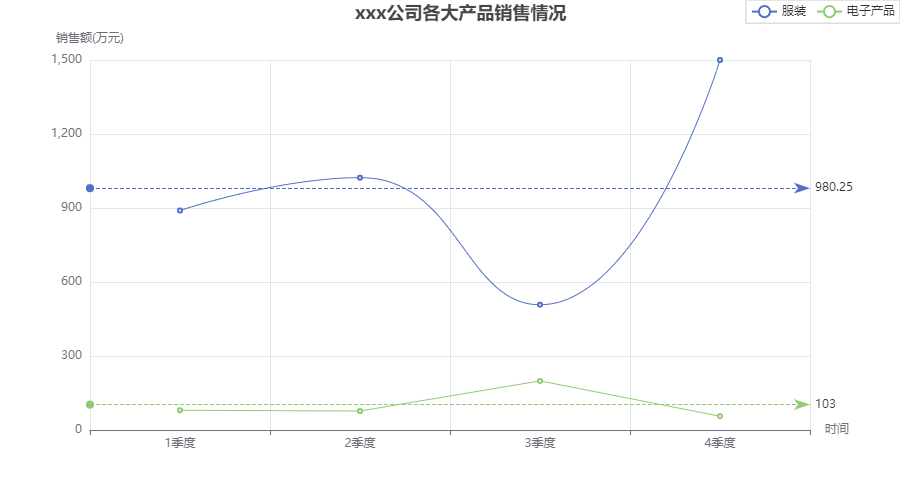

2. Python折线图
from pyecharts.charts import Line
from pyecharts import options
# 1.创建折线图对象
line = Line()
# 2.添加数据
line.add_xaxis(['1季度', '2季度', '3季度', '4季度'])
line.add_yaxis('服装', [890, 1023, 508, 1500],
is_smooth=True,)
line.add_yaxis('电子产品', [80, 77, 199, 56])
# 3.图标设置
line.set_global_opts(
title_opts=options.TitleOpts(
title='xxx公司各大产品销售情况',
pos_left='350',
),
legend_opts=options.LegendOpts(
pos_right=0
),
yaxis_opts=options.AxisOpts(
name='销售额(万元)'
),
xaxis_opts = options.AxisOpts(
name='时间'
)
)
line.set_series_opts(
label_opts=options.LabelOpts(
is_show=False,
),
markline_opts=options.MarkLineOpts(
data=[options.MarkLineItem(name='平均销售额', type_='average')]
)
)
# 4.渲染图表(生成图表)
line.render('files/02折线图.html')
3. Python饼图
from pyecharts.charts import Pie
from pyecharts import options
# 1.创建饼图对象
pie = Pie()
# 2.添加数据
pie.add(
'手机销量',
[('Apple', 890), ('小米', 666), ('华为', 500), ('oppo', 120), ('魅族', 175)],
# 分别设置圆的内圆半径和外圆半径
radius=('30%', '70%'),
# 让外圆环不规则
rosetype='radius'
)
# 3.图表设置
pie.set_global_opts(
legend_opts=options.LegendOpts(
is_show=False
),
title_opts=options.TitleOpts(
title='xx商城6月手机销量百分比',
pos_left='350'
)
)
pie.set_series_opts(
label_opts=options.LabelOpts(
# {b} - 数据名称、
# {d} - 百分比比值
formatter='{b}({d}%)'
)
)
# 4.渲染图表(生成图表)
pie.render('files/03饼图.html')
4. Python地图
from pyecharts.charts import Map
from pyecharts import options

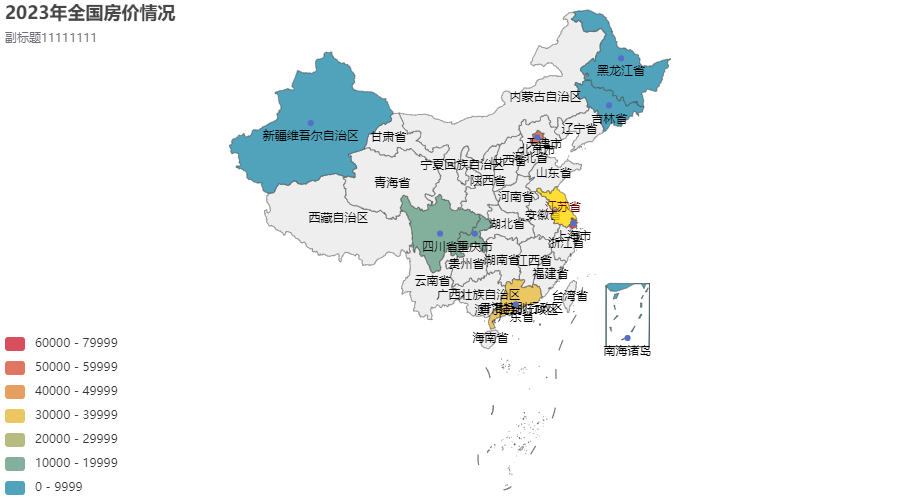

# 一、中国地图========================
# 1. 创建地图对象
map1 = Map()
# 2.添加数据
map1.add(
'房价',
[('南海诸岛', 2000), ('重庆市', 19000), ('广东省', 39500), ('四川省', 18000),
('北京市', 52000), ('上海市', 65000), ('新疆维吾尔自治区', 4500), ('吉林省', 7000), ('黑龙江省', 3800)],
# 地图默认大小
zoom=1.2,
# 地图最小最大缩放比
min_scale_limit=1.2,
max_scale_limit=2
)
# 3.添加配置
map1.set_global_opts(
visualmap_opts=options.VisualMapOpts(
is_show=True,
min_=0,
max_=70000,
# 让颜色分段
is_piecewise=True,
pieces=[
{'min': 0, 'max': 9999},
{'min': 10000, 'max': 19999},
{'min': 20000, 'max': 29999},
{'min': 30000, 'max': 39999},
{'min': 40000, 'max': 49999},
{'min': 50000, 'max': 59999},
{'min': 60000, 'max': 79999},
],
),
legend_opts=options.LegendOpts(
is_show=False
),
title_opts=options.TitleOpts(
title='2023年全国房价情况',
subtitle='副标题11111111'
)
)
# 4.渲染地图
map1.render('files/04中国地图.html')
# 二、四川地图========================
map2 = Map()
map2.add(
'房价',
[('成都市', 12000), ('乐山市', 6500)],
maptype='四川'
)
map2.render('files/04四川地图.html')
# 三、成都市地图========================
map3 = Map()
map3.add(
'房价',
[('青羊区', 12000), ('武侯区', 6500)],
maptype='成都'
)
map3.render('files/04成都地图.html')
# 四、世界地图========================
map4 = Map()
map4.add(
'房价',
[('China', 10000), ('Russia', 9000)],
maptype='world'
)
map4.set_global_opts(
legend_opts=options.LegendOpts(
is_show=False
)
)
map4.set_series_opts(
label_opts=options.LabelOpts(
is_show=False
)
)
map4.render('files/04世界地图.html')
5. Python词云
from pyecharts.charts import WordCloud
from pyecharts import options
# 1.创建词云图表
wc = WordCloud()
# 2.添加数据
wc.add(
'',
[('王者荣耀', 88985), ('英雄联盟', 77900), ('开心消消乐', 5896), ('羊了个羊', 758),
('飞机大战', 35000), ('刀塔', 3362), ('魔兽世界', 4887), ('红色警戒', 52662),
('节奏大师', 99), ('CS1.5', 5555), ('地球帝国', 3685), ('超级玛丽', 620),
('街头篮球', 800), ('传奇', 69870), ('魔兽争霸', 1562), ('魂斗罗', 756)],
shape='star',
# shape词云的形状,默认是 circle(圆形),可选的参数有:
# cardioid(心形)
# diamond(菱形 正方形)
# triangle-forward 、 triangle(三角形)
# star(星形)
# pentagon(五边形)
# word_size_range=[50, 200]
)
wc.render('files/05词云.html')
6. 基于Excel数据制作图表
import openpyxl
from pyecharts.charts import Bar, Pie
# 1.提取Excel中的数据
wb = openpyxl.open('files/全国大学.xlsx')
sheet = wb.active
data = {}
max_r = sheet.max_row
for r in range(2, max_r+1):
value = sheet.cell(r, 3).value
if value not in data:
data[value] = 1
else:
data[value] += 1
# print(data)

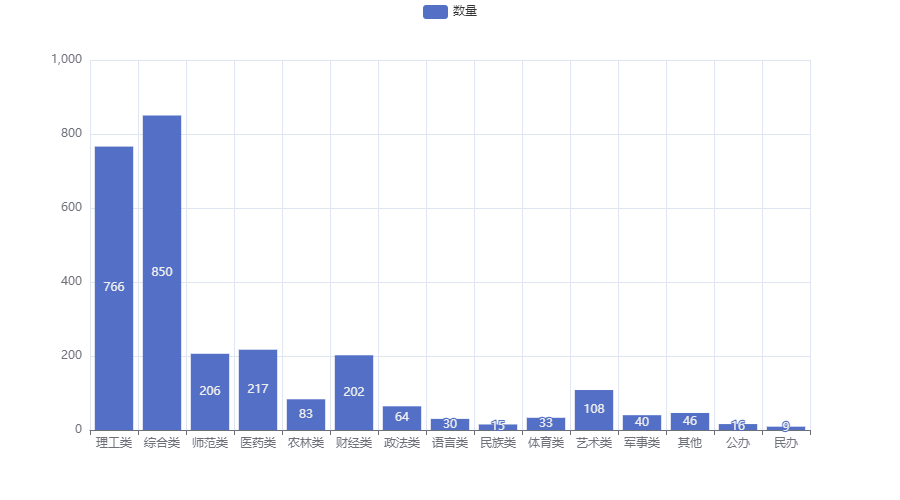

# 2.创建柱状图
x_data = []
y_data = []
for key in data:
x_data.append(key)
y_data.append(data[key])
bar = Bar()
bar.add_xaxis(x_data)
bar.add_yaxis('数量', y_data)
bar.render('files/06全国大学柱状图示例.html')
# 3.创建饼图
pie_data = []
for x in data:
pie_data.append((x, data[x]))
pie = Pie()
pie.add('数量', pie_data)
pie.render('files/06全国大学饼图示例.html')
7. 利用cpca提取省市区
import cpca
data = '徐汇区虹漕路461号58号楼5楼64号'
place_list = list()
place_list.append(data)
print(place_list)
integrity_place = cpca.transform(place_list)
# print(integrity_place)
# 省 市 区 地址 adcode
# 0 广东省 广州市 None 新溪项目河涌整治景观提升设计招标 440100
print(integrity_place['省'][0] + integrity_place['市'][0] + integrity_place['区'][0] + integrity_place['地址'][0] + ',区号' + integrity_place['adcode'][0])
