前言：feature2的架构已经出来好久了，对大概的流程其实也是一知半解，就知道大概的一个处理流程，但是对代码的整理flow还没有仔细追过。
一、request的处理流程
下面是这个流程图是chi到feature graph真正开始处理之前的流程。因为涉及到状态基转换的流程太绕了，我就放在后面单独的分析一下。
其实这里面有好多的状态基转换，这次就主要分析下ChiFeature2UsecaseRequestObjectState这个状态基的转换，我感觉这个状态基清楚了这个feature的process flow就可以流转起来了，因为feature2是支持多个feature处理的，我们从浅入深，先从单个的feature开始分析，然后在多个feature处理开始分析。
关键log：
CamX : [CONFIG][HAL ] camxhal3.cpp:1323 process_capture_request() frame_number 0, settings 0xb400007290614500, num_output_buffers 1
CamX : [CONFIG][HAL ] camxhal3.cpp:1341 process_capture_request() output_buffers[0] : 0xb4000071004f6750, buffer: 0xb4000071004f3ac8, status: 00000000, stream: 0xb4000072a050f648
CamX : [ INFO][HAL ] camxhaldevice.cpp:1532 ProcessCaptureRequest() CHIModule: Original framework framenumber 0 contains 1 output buffers //camx收到fw下发的request
CHIUSECASE: [INFO ] chxusecase.cpp:452 ProcessCaptureRequest() Setting m_nextAppResultFrame from: 9223372036854775807 to: 0 //进入feature2的入口
CHIUSECASE: [INFO ] chifeature2wrapper.cpp:506 ExecuteProcessRequest() ExecuteProcessRequest frameNumber 0 //正式开始feature2的处理流程
CHIUSECASE: [INFO ] chxmetadata.cpp:1820 GetFreeHolder() [CMB_DEBUG] Get Buffer index 0 from client 0 subclient 0 frameNumber 0 handle 0xb4000071e04d6290 0xb400007250503530
CHIUSECASE: [INFO ] chifeature2utils.h:1372 GetMCCResult() MCC Result: isValid = 0, isFusion=0, masterCameraId = 0, numActiveCameras = 0, activeMap = 0x1
CHIUSECASE: [INFO ] chifeature2usecaserequestobject.cpp:339 Initialize() URO:0_Created for usecasemode:0 //创建requestobject
CHIUSECASE: [INFO ] chitargetbuffermanager.cpp:536 SetupTargetBuffer() [FWK_34_TBM]_TBM Info: MinCnt:8 MaxCnt:8 ProdQ:0 ConsumerQ:0[FWK_34_TBM]_TargetBuffer Info: seqId:0 pTargetBufferInfo:0xb4000070f0733650 targetIndex:0 type:2[FWK_34_TBM]_Buffer Info: metadata:0x0 phBuffer:0xb4000071004f3ac8 releaseFence:0x0(0) 0 refCount=1
CHIUSECASE: [INFO ] chifeature2wrapper.cpp:1558 CreateUsecaseRequestObject() frame_number=0 pUsecaseRequestObject=0xb4000071404f2ca0
CHIUSECASE: [INFO ] chifeature2graphselector.cpp:2431 GetCaptureIntentForRequest() Capture Intent value 1
CHIUSECASE: [INFO ] chifeature2graphselector.cpp:2502 GetCaptureIntentForRequest() Capture Intent value returned 1
CHIUSECASE: [INFO ] chifeature2graphselector.cpp:2522 GetNoiseReductionMode() Noise Reduction Mode 1 //设置一些属性
CHIUSECASE: [INFO ] chifeature2graphselector.cpp:2553 GetSceneMode() Scene Mode 1
CHIUSECASE: [INFO ] chxextensionmodule.cpp:5065 IsHWMFNRSupported() Platform support HW MFNR: 0
CHIUSECASE: [INFO ] chifeature2graphselector.cpp:263 SearchFeatureGraphinTable() descriptorName:RTRawHDRBayer2YUVJPEG
CHIUSECASE: [INFO ] chifeature2graphselector.cpp:504 SearchFeatureGraphinTable() Not match capture intent:1
CHIUSECASE: [INFO ] chifeature2graphselector.cpp:263 SearchFeatureGraphinTable() descriptorName:RTBayer2YUVSWMFJPEG
CHIUSECASE: [INFO ] chifeature2graphselector.cpp:499 SearchFeatureGraphinTable() Not match customVendorTag:0
CHIUSECASE: [INFO ] chifeature2graphselector.cpp:263 SearchFeatureGraphinTable() descriptorName:RTBayer2YUVCDSJPEG
CHIUSECASE: [INFO ] chifeature2graphselector.cpp:504 SearchFeatureGraphinTable() Not match capture intent:1
CHIUSECASE: [INFO ] chifeature2graphselector.cpp:263 SearchFeatureGraphinTable() descriptorName:MultiCameraMFNRBokehSuperGraph
CHIUSECASE: [INFO ] chifeature2graphselector.cpp:504 SearchFeatureGraphinTable() Not match capture intent:1
CHIUSECASE: [INFO ] chifeature2graphselector.cpp:263 SearchFeatureGraphinTable() descriptorName:MultiCameraHDRGraph
CHIUSECASE: [INFO ] chifeature2graphselector.cpp:504 SearchFeatureGraphinTable() Not match capture intent:1
CHIUSECASE: [INFO ] chifeature2graphselector.cpp:263 SearchFeatureGraphinTable() descriptorName:MultiCameraMFNRFusionSuperGraph
CHIUSECASE: [INFO ] chifeature2graphselector.cpp:504 SearchFeatureGraphinTable() Not match capture intent:1
CHIUSECASE: [INFO ] chifeature2graphselector.cpp:263 SearchFeatureGraphinTable() descriptorName:RTBayer2YUVSWMFAIDenoiserJPEG
CHIUSECASE: [INFO ] chifeature2graphselector.cpp:499 SearchFeatureGraphinTable() Not match customVendorTag:0
CHIUSECASE: [INFO ] chifeature2graphselector.cpp:263 SearchFeatureGraphinTable() descriptorName:RealtimeFG
CHIUSECASE: [INFO ] chifeature2graphselector.cpp:329 SearchFeatureGraphinTable() SingleZone: cameraid:0, descriptor:RealtimeFG
CHIUSECASE: [INFO ] chifeature2graphselector.cpp:467 SearchFeatureGraphinTable() MatchFound:isMulti:0 physicalCameraId:0 ---> RealtimeFG, flags:0, pDesc:0xb4000070a04d4f30
CHIUSECASE: [INFO ] chifeature2graphselector.cpp:1829 SelectFeatureGraphforRequestFromTable() Selected feature graph : RealtimeFG //为这一帧选择对应的graph去执行
CHIUSECASE: [INFO ] chifeature2graphselector.cpp:2323 AddCustomFeatureGraphNodeHints() Feature hint for RealTime: 0 is 0 //依赖的帧数
CHIUSECASE: [INFO ] chifeature2graph.cpp:741 Initialize() Graph-URO:0_Graph:RealtimeFG created with features: //创建graph
CHIUSECASE: [INFO ] chifeature2graph.cpp:753 Initialize() featureName = RealTime_0 featureId 0
CHIUSECASE: [INFO ] chifeature2graph.cpp:908 Initialize() Graph-URO:0_Graph:RealtimeFG: External port {Raw_Callback: 0, {0, 0}, {0, 0, 4, 3, 0}} not connected

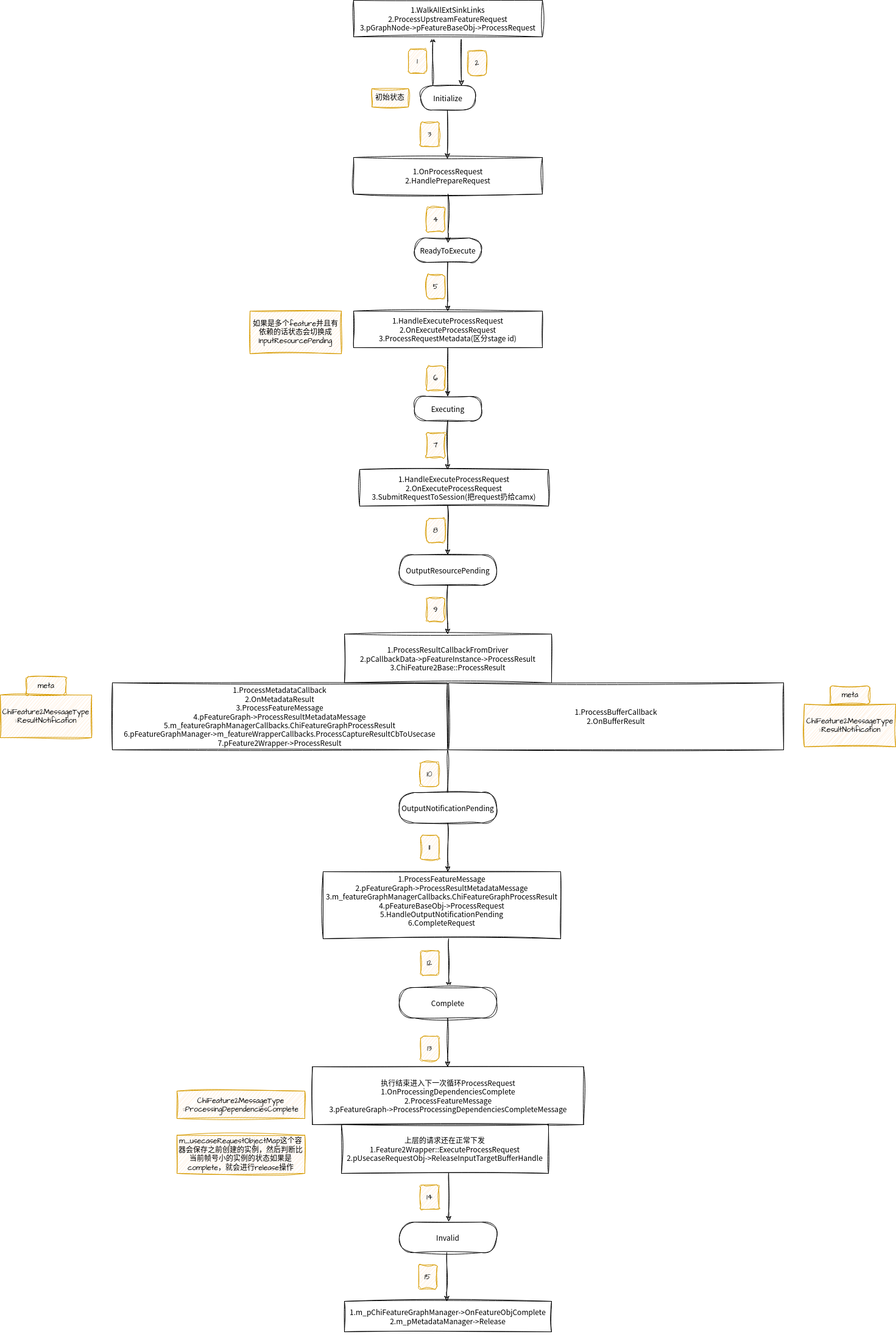

这下面的是对应的状态基的转换，以及对应状态执行的函数，我就画了一个只有一个feature的处理的流程，从feature接收到reuest请求到camx把meta，buffer返回的流程
关键log：
CHIUSECASE: [INFO ] chifeature2graph.cpp:1068 WalkAllExtSinkLinks() Graph-URO:0_Graph:RealtimeFG: Walking 6 sink links
CHIUSECASE: [INFO ] chifeature2requestobject.cpp:199 InitializeRequestInfo() FRO-URO:0_RealtimeFG:RealTime_0: Created for numRequests:1
CHIUSECASE: [INFO ] chifeature2graph.cpp:1571 ProcessUpstreamFeatureRequest() Graph-URO:0_Graph:RealtimeFG_Feature:RealTime: Submitting Feature Request Object with numRequests=1
CHIUSECASE: [INFO ] chifeature2base.cpp:413 OnProcessRequest() FRO-URO:0_RealtimeFG:RealTime_0 requestState:Initialized, requestId:0
CHIUSECASE: [INFO ] chifeature2requestobject.cpp:552 SetCurRequestState() FRO-URO:0_RealtimeFG:RealTime_0: FeatureRequest State [Initialized]->[ReadyToExecute] for RequestIndex:0 //改变状态
CHIUSECASE: [INFO ] chifeature2base.cpp:5808 CanRequestContinue() Feature2RequestState ReadyToExecute continueRequest is 1 //满足要求进行下一次循环
CHIUSECASE: [INFO ] chifeature2base.cpp:413 OnProcessRequest() FRO-URO:0_RealtimeFG:RealTime_0 requestState:ReadyToExecute, requestId:0
CHIUSECASE: [INFO ] chifeature2requestobject.cpp:552 SetCurRequestState() FRO-URO:0_RealtimeFG:RealTime_0: FeatureRequest State [ReadyToExecute]->[Executing] for RequestIndex:0//改变状态
CHIUSECASE: [INFO ] chifeature2requestobject.cpp:1134 SetConfigInfo() FRO-URO:0_RealtimeFG:RealTime_0 Max info for FRO Seq=1 Session=1 Pipeline=13 Port=7
CHIUSECASE: [INFO ] chifeature2realtime.cpp:1807 ProcessRequestMetadata() IsManualcapture = 1 isInSensorHDR3ExpCapture = 0
CHIUSECASE: [INFO ] chifeature2requestobject.cpp:961 MoveToNextProcessSequenceInfo() FRO-URO:0_RealtimeFG:RealTime_0 Move to NextProcess SequenceID:0 BatchIndex:0
CHIUSECASE: [INFO ] chifeature2base.cpp:5808 CanRequestContinue() Feature2RequestState Executing continueRequest is 1 //满足要求进行下一次循环
CHIUSECASE: [INFO ] chifeature2base.cpp:413 OnProcessRequest() FRO-URO:0_RealtimeFG:RealTime_0 requestState:Executing, requestId:0
CHIUSECASE: [INFO ] chifeature2requestobject.cpp:3117 AreInputDependenciesStatisfied() FRO-URO:0_RealtimeFG:RealTime_0: Input Dependency Satisfied for batch:0
CHIUSECASE: [INFO ] chxmetadata.cpp:1820 GetFreeHolder() [CMB_DEBUG] Get Buffer index 0 from client 2 subclient 0 frameNumber 0 handle 0xb400007150b68ed0 0xb400006fc0b882d0
CHIUSECASE: [INFO ] chitargetbuffermanager.cpp:536 SetupTargetBuffer() [SettingTargetBuffer_ZSLPreviewRaw_LT1080p]_TBM Info: MinCnt:32 MaxCnt:32 ProdQ:0 ConsumerQ:0[SettingTargetBuffer_ZSLPreviewRaw_LT1080p]_TargetBuffer Info: seqId:0 pTargetBufferInfo:0xb400007080d9f790 targetIndex:0 type:0[SettingTargetBuffer_ZSLPreviewRaw_LT1080p]_Buffer Info: metadata:0xb400007150b68ed0 phBuffer:0x0 releaseFence:0x0(0) 0 refCount=1
CHIUSECASE: [INFO ] chifeature2requestobject.cpp:1591 SetPortDescriptor() FRO-URO:0_RealtimeFG:RealTime_0 OutputConfiguration For PortName:Display_Out GID[Session:0 Pipeline:0 Port:0 Type:3] BatchIndex:0
CHIUSECASE: [INFO ] chitargetbuffermanager.cpp:536 SetupTargetBuffer() [PortTargetBuffer_RealTime:Display_Out]_TBM Info: MinCnt:0 MaxCnt:8 ProdQ:0 ConsumerQ:0[PortTargetBuffer_RealTime:Display_Out]_TargetBuffer Info: seqId:0 pTargetBufferInfo:0xb400007080d9f120 targetIndex:0 type:1[PortTargetBuffer_RealTime:Display_Out]_Buffer Info: metadata:0x0 phBuffer:0xb400006f60b9db98 releaseFence:0x0(0) 0 refCount=1
CHIUSECASE: [INFO ] chifeature2requestobject.cpp:1912 SetBufferInfo() FRO-URO:0_RealtimeFG:RealTime_0 OutputConfiguration For GID[Session:0 Pipeline:0 Port:0 Type:0] BatchIndex:0, BufferHandle:0xb400007080d9f120
CHIUSECASE: [INFO ] chifeature2requestobject.cpp:1591 SetPortDescriptor() FRO-URO:0_RealtimeFG:RealTime_0 OutputConfiguration For PortName:Raw_Out GID[Session:0 Pipeline:0 Port:1 Type:3] BatchIndex:0
CHIUSECASE: [INFO ] chitargetbuffermanager.cpp:536 SetupTargetBuffer() [PortTargetBuffer_RealTime:Raw_Out]_TBM Info: MinCnt:13 MaxCnt:32 ProdQ:0 ConsumerQ:0[PortTargetBuffer_RealTime:Raw_Out]_TargetBuffer Info: seqId:0 pTargetBufferInfo:0xb400007080da1150 targetIndex:0 type:1[PortTargetBuffer_RealTime:Raw_Out]_Buffer Info: metadata:0x0 phBuffer:0xb400007080da24a0 releaseFence:0x0(0) 0 refCount=1
CHIUSECASE: [INFO ] chifeature2requestobject.cpp:1912 SetBufferInfo() FRO-URO:0_RealtimeFG:RealTime_0 OutputConfiguration For GID[Session:0 Pipeline:0 Port:1 Type:0] BatchIndex:0, BufferHandle:0xb400007080da1150
CHIUSECASE: [INFO ] chifeature2realtime.cpp:1898 IsManualCaptureRequired() manualCapture 1 for requestID 0 //进入realtime feature
CHIUSECASE: [INFO ] chifeature2requestobject.cpp:1591 SetPortDescriptor() FRO-URO:0_RealtimeFG:RealTime_0 OutputConfiguration For PortName:rt_metadata_out GID[Session:0 Pipeline:0 Port:5 Type:3] BatchIndex:0
CHIUSECASE: [INFO ] chxmetadata.cpp:1820 GetFreeHolder() [CMB_DEBUG] Get Buffer index 1 from client 2 subclient 0 frameNumber 0 handle 0xb400007150b67f30 0xb400006fc0b834f0
CHIUSECASE: [INFO ] chitargetbuffermanager.cpp:536 SetupTargetBuffer() [MetaTargetBuffer_ZSLPreviewRaw_LT1080p]_TBM Info: MinCnt:32 MaxCnt:32 ProdQ:0 ConsumerQ:0[MetaTargetBuffer_ZSLPreviewRaw_LT1080p]_TargetBuffer Info: seqId:0 pTargetBufferInfo:0xb400007080dab8b0 targetIndex:0 type:0[MetaTargetBuffer_ZSLPreviewRaw_LT1080p]_Buffer Info: metadata:0xb400007150b67f30 phBuffer:0x0 releaseFence:0x0(0) 0 refCount=1
CHIUSECASE: [INFO ] chifeature2requestobject.cpp:1912 SetBufferInfo() FRO-URO:0_RealtimeFG:RealTime_0 OutputConfiguration For GID[Session:0 Pipeline:0 Port:5 Type:1] BatchIndex:0, BufferHandle:0xb400007080dab8b0
CHIUSECASE: [INFO ] chifeature2base.cpp:1103 SubmitRequestToSession() FRO-URO:0_RealtimeFG:RealTime_0 Submitting Request:0 with numOutputs:2 //把request发送到camx
CHIUSECASE: [INFO ] chifeature2requestobject.cpp:552 SetCurRequestState() FRO-URO:0_RealtimeFG:RealTime_0: FeatureRequest State [Executing]->[OutputResourcePending] for RequestIndex:0 //切换状态
CHIUSECASE: [INFO ] chifeature2base.cpp:5808 CanRequestContinue() Feature2RequestState OutputResourcePending continueRequest is 0
CHIUSECASE: [INFO ] chifeature2usecaserequestobject.h:216 SetRequestState() URO:0_Changing state from 0 to 2
CHIUSECASE: [INFO ] chifeature2wrapper.cpp:711 ExecuteProcessRequest() ExecuteProcessRequest frameNumber 0 SUCCESSFUL!!!! //ExecuteProcessRequest这个函数的流程走完
CHIUSECASE: [INFO ] chifeature2realtime.cpp:1898 IsManualCaptureRequired() manualCapture 1 for requestID 0
CHIUSECASE: [INFO ] chifeature2base.cpp:8055 OnPartialMetadataResult() FRO-URO:0_RealtimeFG:RealTime_0 : Request:0 for pipeline:ZSLPreviewRaw_LT1080p stageId 0 stageSequenceId 0 pMetadata 0xb400007150b67f30 //camx那边的partial meta返回
CHIUSECASE: [INFO ] chxusecase.cpp:1180 ReturnFrameworkResult() chiOriginalOverrideFrameNum: 0 frame_number: 0 resultFrameIndexF: 0 FW: 0, Buffer Count: 1 RESULT: 0xb400006eee921fd0
CHIUSECASE: [INFO ] chifeature2realtime.cpp:1898 IsManualCaptureRequired() manualCapture 1 for requestID 0
CHIUSECASE: [CONFIG ] chifeature2base.cpp:4341 ProcessResult() FRO-URO:0_RealtimeFG:RealTime_0 Result from Request:0 with metadata:0xb400006fc0b834f0
CHIUSECASE: [INFO ] chifeature2base.cpp:8170 OnMetadataResult() FRO-URO:0_RealtimeFG:RealTime_0 Result from Request:0 for pipeline:ZSLPreviewRaw_LT1080p stageId 0 stageSequenceId 0 pMetadata 0xb400007150b67f30
CHIUSECASE: [INFO ] chifeature2graph.cpp:2628 ProcessResultMetadataMessage() Graph-URO:0_Graph:RealtimeFG_Feature:RealTime_0: ExternalSink ChiFeature2MessageType::ResultNotification
CHIUSECASE: [INFO ] chifeature2graph.cpp:2669 ProcessResultMetadataMessage() Graph-URO:0_Graph:RealtimeFG_Feature:RealTime_0: ExternalSink ChiFeature2MessageType::MetadataNotification
CHIUSECASE: [INFO ] chifeature2wrapper.cpp:892 ProcessResult() Frame 0: outputMetadata: 0xb400006fc0b834f0, numOutputBuffers 0
CHIUSECASE: [INFO ] chxadvancedcamerausecase.cpp:3038 GetPipelineIdFromCamId() pipeline index 0 for camera Id 1
CHIUSECASE: [INFO ] chifeature2wrapper.cpp:912 ProcessResult() inputMeta:0x0,outputMeta:0xb400006fc0b834f0
CHIUSECASE: [INFO ] chxmetadata.cpp:2202 GetAndroidFrameworkOutputMetadata() [CMB_DEBUG_AFWO] Get framework output index 0 address 0xb400006eee921fd0 sparse 0
CHIUSECASE: [INFO ] chxusecase.cpp:1180 ReturnFrameworkResult() chiOriginalOverrideFrameNum: 0 frame_number: 0 resultFrameIndexF: 0 FW: 0, Buffer Count: 1 RESULT: 0xb400006eee921fd0
CHIUSECASE: [INFO ] chxmetadata.cpp:2237 ReleaseAndroidFrameworkOutputMetadata() [CMB_DEBUG_AFWO] Release framework output index 0
CHIUSECASE: [INFO ] chifeature2requestobject.cpp:2741 SetOutputNotifiedForPort() FRO-URO:0_RealtimeFG:RealTime_0 OutputNotified For port rt_metadata_out : GID[Session:0 Pipeline:0 Port:5 Type:1] BatchIndex:0
CHIUSECASE: [INFO ] chifeature2requestobject.cpp:2927 SetReleaseAcknowledgedForPort() FRO-URO:0_RealtimeFG:RealTime_0 Release Ack For port rt_metadata_out: GID[Session:0 Pipeline:0 Port:5 Type:1] BatchIndex:0
CHIUSECASE: [CONFIG ] chifeature2base.cpp:4351 ProcessResult() FRO-URO:0_RealtimeFG:RealTime_0 Result from Request:0 with 2 buffer(s) //返回buffer
CHIUSECASE: [INFO ] chifeature2base.cpp:7951 OnBufferResult() FRO-URO:0_RealtimeFG:RealTime_0 Result from Request:0 for port:Display_Out stageId 0 stageSequenceId 0 stream width height format 1280 720 34
CHIUSECASE: [INFO ] chifeature2requestobject.cpp:552 SetCurRequestState() FRO-URO:6_RealtimeFG:RealTime_0: FeatureRequest State [Executing]->[OutputResourcePending] for RequestIndex:0 //所有的数据返回，切换状态
CHIUSECASE: [INFO ] chifeature2base.cpp:5808 CanRequestContinue() Feature2RequestState OutputResourcePending continueRequest is 0
CHIUSECASE: [INFO ] chifeature2base.cpp:7951 OnBufferResult() FRO-URO:0_RealtimeFG:RealTime_0 Result from Request:0 for port:Raw_Out stageId 0 stageSequenceId 0 stream width height format 2592 1944 38
CHIUSECASE: [INFO ] chifeature2usecaserequestobject.h:216 SetRequestState() URO:6_Changing state from 0 to 2
CHIUSECASE: [INFO ] chifeature2requestobject.cpp:552 SetCurRequestState() FRO-URO:0_RealtimeFG:RealTime_0: FeatureRequest State [OutputResourcePending]->[OutputNotificationPending] for RequestIndex:0 //切换状态
CHIUSECASE: [INFO ] chifeature2wrapper.cpp:711 ExecuteProcessRequest() ExecuteProcessRequest frameNumber 6 SUCCESSFUL!!!!
CHIUSECASE: [INFO ] chifeature2graph.cpp:2628 ProcessResultMetadataMessage() Graph-URO:0_Graph:RealtimeFG_Feature:RealTime_0: ExternalSink ChiFeature2MessageType::ResultNotification
CHIUSECASE: [INFO ] chifeature2wrapper.cpp:892 ProcessResult() Frame 0: outputMetadata: 0x0, numOutputBuffers 1
CHIUSECASE: [INFO ] chifeature2wrapper.cpp:940 ProcessResult() Output buffer 0: phBuffer 0xb400006f60b9db98, bufferStatus 0, stream 0xb400006f70b595b8, format 34, tbm 0xb400007150b7d3d0
CHIUSECASE: [INFO ] chxusecase.cpp:1180 ReturnFrameworkResult() chiOriginalOverrideFrameNum: 0 frame_number: 0 resultFrameIndexF: 0 FW: 0, Buffer Count: 1 RESULT: 0x0
CHIUSECASE: [INFO ] chifeature2graph.cpp:2705 ProcessResultMetadataMessage() Graph-URO:0_Graph:RealtimeFG marking external output port as notified at index:0 for featureID:0 [0 0 0]
CHIUSECASE: [INFO ] chifeature2requestobject.cpp:2741 SetOutputNotifiedForPort() FRO-URO:0_RealtimeFG:RealTime_0 OutputNotified For port Display_Out : GID[Session:0 Pipeline:0 Port:0 Type:0] BatchIndex:0
CHIUSECASE: [INFO ] chifeature2requestobject.cpp:2927 SetReleaseAcknowledgedForPort() FRO-URO:0_RealtimeFG:RealTime_0 Release Ack For port Display_Out: GID[Session:0 Pipeline:0 Port:0 Type:0] BatchIndex:0
CHIUSECASE: [INFO ] chifeature2requestobject.cpp:3031 AreOutputsReleased() FRO-URO:0_RealtimeFG:RealTime_0: Outputs released for batch:0 with numRequestOutputs=2
CHIUSECASE: [INFO ] chifeature2requestobject.cpp:552 SetCurRequestState() FRO-URO:0_RealtimeFG:RealTime_0: FeatureRequest State [OutputNotificationPending]->[Complete] for RequestIndex:0 //切换状态
CHIUSECASE: [INFO ] chifeature2base.cpp:1967 CompleteRequest() FRO-URO:0_RealtimeFG:RealTime_0 All 1 requests complete, initiate cleanup
CHIUSECASE: [INFO ] chifeature2base.cpp:7619 OnProcessingDependenciesComplete() FRO-URO:0_RealtimeFG:RealTime_0 All ports are done processing; generating processing dependencies complete feature message
CHIUSECASE: [INFO ] chifeature2graph.cpp:2746 ProcessResultMetadataMessage() FRO-URO:0_RealtimeFG:RealTime_0 All FROs reported ProcessingComplete; moving URO to Complete
CHIUSECASE: [INFO ] chifeature2usecaserequestobject.h:216 SetRequestState() URO:0_Changing state from 2 to 3
CHIUSECASE: [INFO ] chifeature2usecaserequestobject.h:216 SetRequestState() URO:0_Changing state from 3 to 4
CHIUSECASE: [INFO ] chxmetadata.cpp:2237 ReleaseAndroidFrameworkOutputMetadata() [CMB_DEBUG_AFWO] Release framework output index 0
CHIUSECASE: [INFO ] chifeature2requestobject.cpp:564 SetCurRequestState() FRO-URO:0_RealtimeFG:RealTime_0: FeatureRequest State [Complete]->[Invalid] is not permitted for RequestIndex:0 //全部执行完成切换状态
CHIUSECASE: [INFO ] chifeature2requestobject.cpp:511 Destroy() FRO-URO:0_RealtimeFG:RealTime_0: Destroyed //销毁那些变量
CHIUSECASE: [INFO ] chxmetadata.cpp:2066 ReleaseHolder() [CMB_DEBUG] Release buffer 0 client 0 subclient 0, frameNum 0 refCount 16 handle 0xb400007150b60870 0xb400006fc0b78eb0
CHIUSECASE: [INFO ] chifeature2usecaserequestobject.cpp:92 Destroy() URO:0_Destroyed
然后就是还有一个多feature处理的流程，其实就是在上面的基础上多了feature与feature之间的依赖和状态的转换状态。下图是一个HDR拍照的流程四个feature的状态的转换。
这张图主要描述处理拍照这一帧的时候，四个feature从backup process到forward process的处理过程，具体两个feature之间request流转和依赖后续在更新。
关键log：
05-19 16:18:11.327 29089 29724 I CHIUSECASE: [INFO ] chifeature2graph.cpp:908 Initialize() Graph-URO:105_Graph:RTRawHDRBayer2YUVJPEG: External port {Video_Out: 0, {0, 0}, {0, 0, 3, 3, 0}} not connected
05-19 16:18:11.327 29089 29724 I CHIUSECASE: [INFO ] chifeature2graph.cpp:908 Initialize() Graph-URO:105_Graph:RTRawHDRBayer2YUVJPEG: External port {Raw_Callback: 0, {0, 0}, {0, 0, 4, 3, 0}} not connected
05-19 16:18:11.327 29089 29724 I CHIUSECASE: [INFO ] chifeature2graph.cpp:908 Initialize() Graph-URO:105_Graph:RTRawHDRBayer2YUVJPEG: External port {SensorRaw_Callback: 0, {0, 0}, {0, 0, 6, 3, 0}} not connected
05-19 16:18:11.327 29089 29724 I CHIUSECASE: [INFO ] chifeature2graph.cpp:908 Initialize() Graph-URO:105_Graph:RTRawHDRBayer2YUVJPEG: External port {YUV_Out2: 1, {0, 0}, {0, 0, 2, 3, 0}} not connected
05-19 16:18:11.327 29089 29724 I CHIUSECASE: [INFO ] chifeature2graph.cpp:908 Initialize() Graph-URO:105_Graph:RTRawHDRBayer2YUVJPEG: External port {YUV_Out: 4, {0, 0}, {0, 0, 2, 3, 0}} not connected
05-19 16:18:11.327 29089 29724 I CHIUSECASE: [INFO ] chifeature2graph.cpp:908 Initialize() Graph-URO:105_Graph:RTRawHDRBayer2YUVJPEG: External port {Thumbnail_Out: 4, {0, 0}, {0, 0, 3, 3, 0}} not connected
05-19 16:18:11.327 29089 29724 I CHIUSECASE: [INFO ] chifeature2graph.cpp:1068 WalkAllExtSinkLinks() Graph-URO:105_Graph:RTRawHDRBayer2YUVJPEG: Walking 4 sink links
05-19 16:18:11.327 29089 29724 I CHIUSECASE: [INFO ] chifeature2requestobject.cpp:199 InitializeRequestInfo() FRO-URO:105_RTRawHDRBayer2YUVJPEG:JPEG_0: Created for numRequests:1
05-19 16:18:11.327 29089 29724 I CHIUSECASE: [INFO ] chifeature2base.cpp:413 OnProcessRequest() FRO-URO:105_RTRawHDRBayer2YUVJPEG:JPEG_0 requestState:Initialized, requestId:0
05-19 16:18:11.327 29089 29724 I CHIUSECASE: [INFO ] chifeature2requestobject.cpp:552 SetCurRequestState() FRO-URO:105_RTRawHDRBayer2YUVJPEG:JPEG_0: FeatureRequest State [Initialized]->[ReadyToExecute] for RequestIndex:0 //JPEG状态切换
05-19 16:18:11.327 29089 29724 I CHIUSECASE: [INFO ] chifeature2base.cpp:413 OnProcessRequest() FRO-URO:105_RTRawHDRBayer2YUVJPEG:JPEG_0 requestState:ReadyToExecute, requestId:0
05-19 16:18:11.327 29089 29724 I CHIUSECASE: [INFO ] chifeature2requestobject.cpp:552 SetCurRequestState() FRO-URO:105_RTRawHDRBayer2YUVJPEG:JPEG_0: FeatureRequest State [ReadyToExecute]->[Executing] for RequestIndex:0 JPEG状态切换
05-19 16:18:11.327 29089 29724 I CHIUSECASE: [INFO ] chifeature2base.cpp:7809 OnExecuteProcessRequest() FRO-URO:105_RTRawHDRBayer2YUVJPEG:JPEG_0 Executing base request flow 0
05-19 16:18:11.327 29089 29724 I CHIUSECASE: [INFO ] chifeature2requestobject.cpp:1134 SetConfigInfo() FRO-URO:105_RTRawHDRBayer2YUVJPEG:JPEG_0 Max info for FRO Seq=1 Session=1 Pipeline=1 Port=4
05-19 16:18:11.328 29089 29724 I CHIUSECASE: [INFO ] chifeature2requestobject.cpp:1542 SetPortDescriptor() FRO-URO:105_RTRawHDRBayer2YUVJPEG:JPEG_0 InputDependency For PortName:YUV_In GID[Session:0 Pipeline:0 Port:0 Type:0] BatchIndex:0 InputdependencyIndex:0
05-19 16:18:11.328 29089 29724 I CHIUSECASE: [INFO ] chifeature2base.cpp:7302 PopulateDependencyPorts() FRO-URO:105_RTRawHDRBayer2YUVJPEG:JPEG_0: Set dependency on port YUV_In, requestId 0, dependencyIndex 0
05-19 16:18:11.328 29089 29724 I CHIUSECASE: [INFO ] chifeature2requestobject.cpp:1542 SetPortDescriptor() FRO-URO:105_RTRawHDRBayer2YUVJPEG:JPEG_0 InputDependency For PortName:JPEG_Input_Metadata GID[Session:0 Pipeline:0 Port:1 Type:1] BatchIndex:0 InputdependencyIndex:0
05-19 16:18:11.328 29089 29724 I CHIUSECASE: [INFO ] chifeature2base.cpp:7302 PopulateDependencyPorts() FRO-URO:105_RTRawHDRBayer2YUVJPEG:JPEG_0: Set dependency on port JPEG_Input_Metadata, requestId 0, dependencyIndex 0
05-19 16:18:11.328 29089 29724 I CHIUSECASE: [INFO ] chifeature2requestobject.cpp:2488 SetRequestInputInfo() FRO-URO:105_RTRawHDRBayer2YUVJPEG:JPEG_0 For GID[Session:0 Pipeline:0 Port:1 Type:1] BatchIndex:0 InputdependencyIndex:0 hMetadata = 0xb4000075cf2b9950
05-19 16:18:11.328 29089 29724 I CHIUSECASE: [INFO ] chifeature2requestobject.cpp:961 MoveToNextProcessSequenceInfo() FRO-URO:105_RTRawHDRBayer2YUVJPEG:JPEG_0 Move to NextProcess SequenceID:0 BatchIndex:0
05-19 16:18:11.328 29089 29724 I CHIUSECASE: [INFO ] chifeature2requestobject.cpp:552 SetCurRequestState() FRO-URO:105_RTRawHDRBayer2YUVJPEG:JPEG_0: FeatureRequest State [Executing]->[InputResourcePending] for RequestIndex:0 //JPEG状态切换
05-19 16:18:11.328 29089 29724 I CHIUSECASE: [INFO ] chifeature2graph.cpp:2235 ProcessGetInputDependencyMessage() JPEG_0 Feature:Graph-URO:105_Graph:RTRawHDRBayer2YUVJPEG: ChiFeature2MessageType::GetInputDependency for 1 batches
05-19 16:18:11.329 29089 29724 I CHIUSECASE: [INFO ] chifeature2requestobject.cpp:199 InitializeRequestInfo() FRO-URO:105_RTRawHDRBayer2YUVJPEG:Bayer2Yuv_0: Created for numRequests:1
05-19 16:18:11.329 29089 29724 I CHIUSECASE: [INFO ] chifeature2base.cpp:413 OnProcessRequest() FRO-URO:105_RTRawHDRBayer2YUVJPEG:Bayer2Yuv_0 requestState:Initialized, requestId:0
05-19 16:18:11.329 29089 29724 I CHIUSECASE: [INFO ] chifeature2requestobject.cpp:552 SetCurRequestState() FRO-URO:105_RTRawHDRBayer2YUVJPEG:Bayer2Yuv_0: FeatureRequest State [Initialized]->[ReadyToExecute] for RequestIndex:0 //Bayer2Yuv状态切换
05-19 16:18:11.329 29089 29724 I CHIUSECASE: [INFO ] chifeature2base.cpp:413 OnProcessRequest() FRO-URO:105_RTRawHDRBayer2YUVJPEG:Bayer2Yuv_0 requestState:ReadyToExecute, requestId:0
05-19 16:18:11.329 29089 29724 I CHIUSECASE: [INFO ] chifeature2requestobject.cpp:552 SetCurRequestState() FRO-URO:105_RTRawHDRBayer2YUVJPEG:Bayer2Yuv_0: FeatureRequest State [ReadyToExecute]->[Executing] for RequestIndex:0 Bayer2Yuv状态切换
05-19 16:18:11.329 29089 29724 I CHIUSECASE: [INFO ] chifeature2base.cpp:7809 OnExecuteProcessRequest() FRO-URO:105_RTRawHDRBayer2YUVJPEG:Bayer2Yuv_0 Executing base request flow 0
05-19 16:18:11.329 29089 29724 I CHIUSECASE: [INFO ] chifeature2requestobject.cpp:1134 SetConfigInfo() FRO-URO:105_RTRawHDRBayer2YUVJPEG:Bayer2Yuv_0 Max info for FRO Seq=1 Session=1 Pipeline=5 Port=3
05-19 16:18:11.329 29089 29724 I CHIUSECASE: [INFO ] chifeature2requestobject.cpp:1542 SetPortDescriptor() FRO-URO:105_RTRawHDRBayer2YUVJPEG:Bayer2Yuv_0 InputDependency For PortName:RDI_In GID[Session:0 Pipeline:0 Port:0 Type:0] BatchIndex:0 InputdependencyIndex:0
05-19 16:18:11.329 29089 29724 I CHIUSECASE: [INFO ] chifeature2base.cpp:7302 PopulateDependencyPorts() FRO-URO:105_RTRawHDRBayer2YUVJPEG:Bayer2Yuv_0: Set dependency on port RDI_In, requestId 0, dependencyIndex 0
05-19 16:18:11.329 29089 29724 I CHIUSECASE: [INFO ] chifeature2requestobject.cpp:1542 SetPortDescriptor() FRO-URO:105_RTRawHDRBayer2YUVJPEG:Bayer2Yuv_0 InputDependency For PortName:B2Y_Input_Metadata GID[Session:0 Pipeline:0 Port:1 Type:1] BatchIndex:0 InputdependencyIndex:0
05-19 16:18:11.329 29089 29724 I CHIUSECASE: [INFO ] chifeature2base.cpp:7302 PopulateDependencyPorts() FRO-URO:105_RTRawHDRBayer2YUVJPEG:Bayer2Yuv_0: Set dependency on port B2Y_Input_Metadata, requestId 0, dependencyIndex 0
05-19 16:18:11.329 29089 29724 I CHIUSECASE: [INFO ] chifeature2requestobject.cpp:2488 SetRequestInputInfo() FRO-URO:105_RTRawHDRBayer2YUVJPEG:Bayer2Yuv_0 For GID[Session:0 Pipeline:0 Port:1 Type:1] BatchIndex:0 InputdependencyIndex:0 hMetadata = 0xb4000075cf2d9070
05-19 16:18:11.329 29089 29724 I CHIUSECASE: [INFO ] chifeature2requestobject.cpp:961 MoveToNextProcessSequenceInfo() FRO-URO:105_RTRawHDRBayer2YUVJPEG:Bayer2Yuv_0 Move to NextProcess SequenceID:0 BatchIndex:0
05-19 16:18:11.329 29089 29724 I CHIUSECASE: [INFO ] chifeature2requestobject.cpp:552 SetCurRequestState() FRO-URO:105_RTRawHDRBayer2YUVJPEG:Bayer2Yuv_0: FeatureRequest State [Executing]->[InputResourcePending] for RequestIndex:0 //Bayer2Yuv状态切换
05-19 16:18:11.330 29089 29724 I CHIUSECASE: [INFO ] chifeature2graph.cpp:2235 ProcessGetInputDependencyMessage() Bayer2Yuv_0 Feature:Graph-URO:105_Graph:RTRawHDRBayer2YUVJPEG: ChiFeature2MessageType::GetInputDependency for 1 batches
05-19 16:18:11.330 29089 29724 I CHIUSECASE: [INFO ] chifeature2requestobject.cpp:199 InitializeRequestInfo() FRO-URO:105_RTRawHDRBayer2YUVJPEG:RawHDR_0: Created for numRequests:1
05-19 16:18:11.330 29089 29724 I CHIUSECASE: [INFO ] chifeature2base.cpp:413 OnProcessRequest() FRO-URO:105_RTRawHDRBayer2YUVJPEG:RawHDR_0 requestState:Initialized, requestId:0
05-19 16:18:11.330 29089 29724 I CHIUSECASE: [INFO ] chifeature2requestobject.cpp:552 SetCurRequestState() FRO-URO:105_RTRawHDRBayer2YUVJPEG:RawHDR_0: FeatureRequest State [Initialized]->[ReadyToExecute] for RequestIndex:0 //RawHDR状态切换
05-19 16:18:11.330 29089 29724 I CHIUSECASE: [INFO ] chifeature2base.cpp:413 OnProcessRequest() FRO-URO:105_RTRawHDRBayer2YUVJPEG:RawHDR_0 requestState:ReadyToExecute, requestId:0
05-19 16:18:11.330 29089 29724 I CHIUSECASE: [INFO ] chifeature2requestobject.cpp:552 SetCurRequestState() FRO-URO:105_RTRawHDRBayer2YUVJPEG:RawHDR_0: FeatureRequest State [ReadyToExecute]->[Executing] for RequestIndex:0 //RawHDR状态切换
05-19 16:18:11.330 29089 29724 I CHIUSECASE: [INFO ] chifeature2base.cpp:7809 OnExecuteProcessRequest() FRO-URO:105_RTRawHDRBayer2YUVJPEG:RawHDR_0 Executing base request flow 1
05-19 16:18:11.330 29089 29724 I CHIUSECASE: [INFO ] chifeature2requestobject.cpp:1134 SetConfigInfo() FRO-URO:105_RTRawHDRBayer2YUVJPEG:RawHDR_0 Max info for FRO Seq=2 Session=1 Pipeline=1 Port=5
05-19 16:18:11.330 29089 29724 I CHIUSECASE: [INFO ] chifeature2requestobject.cpp:1542 SetPortDescriptor() FRO-URO:105_RTRawHDRBayer2YUVJPEG:RawHDR_0 InputDependency For PortName:RAW_In0_External GID[Session:0 Pipeline:0 Port:0 Type:0] BatchIndex:0 InputdependencyIndex:0
05-19 16:18:11.330 29089 29724 I CHIUSECASE: [INFO ] chifeature2base.cpp:7302 PopulateDependencyPorts() FRO-URO:105_RTRawHDRBayer2YUVJPEG:RawHDR_0: Set dependency on port RAW_In0_External, requestId 0, dependencyIndex 0
05-19 16:18:11.330 29089 29724 I CHIUSECASE: [INFO ] chifeature2requestobject.cpp:1542 SetPortDescriptor() FRO-URO:105_RTRawHDRBayer2YUVJPEG:RawHDR_0 InputDependency For PortName:Meta_In_Internal GID[Session:0 Pipeline:0 Port:4 Type:1] BatchIndex:0 InputdependencyIndex:0
05-19 16:18:11.330 29089 29724 I CHIUSECASE: [INFO ] chifeature2base.cpp:7302 PopulateDependencyPorts() FRO-URO:105_RTRawHDRBayer2YUVJPEG:RawHDR_0: Set dependency on port Meta_In_Internal, requestId 0, dependencyIndex 0
05-19 16:18:11.331 29089 29724 I CHIUSECASE: [INFO ] chifeature2requestobject.cpp:2488 SetRequestInputInfo() FRO-URO:105_RTRawHDRBayer2YUVJPEG:RawHDR_0 For GID[Session:0 Pipeline:0 Port:4 Type:1] BatchIndex:0 InputdependencyIndex:0 hMetadata = 0xb4000075cf2d69f0
05-19 16:18:11.331 29089 29724 I CHIUSECASE: [INFO ] chifeature2requestobject.cpp:1542 SetPortDescriptor() FRO-URO:105_RTRawHDRBayer2YUVJPEG:RawHDR_0 InputDependency For PortName:RAW_In0_External GID[Session:0 Pipeline:0 Port:0 Type:0] BatchIndex:0 InputdependencyIndex:1
05-19 16:18:11.331 29089 29724 I CHIUSECASE: [INFO ] chifeature2base.cpp:7302 PopulateDependencyPorts() FRO-URO:105_RTRawHDRBayer2YUVJPEG:RawHDR_0: Set dependency on port RAW_In0_External, requestId 0, dependencyIndex 1
05-19 16:18:11.331 29089 29724 I CHIUSECASE: [INFO ] chifeature2requestobject.cpp:1542 SetPortDescriptor() FRO-URO:105_RTRawHDRBayer2YUVJPEG:RawHDR_0 InputDependency For PortName:Meta_In_Internal GID[Session:0 Pipeline:0 Port:4 Type:1] BatchIndex:0 InputdependencyIndex:1
05-19 16:18:11.331 29089 29724 I CHIUSECASE: [INFO ] chifeature2base.cpp:7302 PopulateDependencyPorts() FRO-URO:105_RTRawHDRBayer2YUVJPEG:RawHDR_0: Set dependency on port Meta_In_Internal, requestId 0, dependencyIndex 1
05-19 16:18:11.331 29089 29724 I CHIUSECASE: [INFO ] chifeature2requestobject.cpp:2488 SetRequestInputInfo() FRO-URO:105_RTRawHDRBayer2YUVJPEG:RawHDR_0 For GID[Session:0 Pipeline:0 Port:4 Type:1] BatchIndex:0 InputdependencyIndex:1 hMetadata = 0xb4000075cf2ce950
05-19 16:18:11.331 29089 29724 I CHIUSECASE: [INFO ] chifeature2requestobject.cpp:1542 SetPortDescriptor() FRO-URO:105_RTRawHDRBayer2YUVJPEG:RawHDR_0 InputDependency For PortName:RAW_In0_External GID[Session:0 Pipeline:0 Port:0 Type:0] BatchIndex:0 InputdependencyIndex:2
05-19 16:18:11.331 29089 29724 I CHIUSECASE: [INFO ] chifeature2base.cpp:7302 PopulateDependencyPorts() FRO-URO:105_RTRawHDRBayer2YUVJPEG:RawHDR_0: Set dependency on port RAW_In0_External, requestId 0, dependencyIndex 2
05-19 16:18:11.331 29089 29724 I CHIUSECASE: [INFO ] chifeature2requestobject.cpp:1542 SetPortDescriptor() FRO-URO:105_RTRawHDRBayer2YUVJPEG:RawHDR_0 InputDependency For PortName:Meta_In_Internal GID[Session:0 Pipeline:0 Port:4 Type:1] BatchIndex:0 InputdependencyIndex:2
05-19 16:18:11.331 29089 29724 I CHIUSECASE: [INFO ] chifeature2base.cpp:7302 PopulateDependencyPorts() FRO-URO:105_RTRawHDRBayer2YUVJPEG:RawHDR_0: Set dependency on port Meta_In_Internal, requestId 0, dependencyIndex 2
05-19 16:18:11.332 29089 29724 I CHIUSECASE: [INFO ] chifeature2requestobject.cpp:2488 SetRequestInputInfo() FRO-URO:105_RTRawHDRBayer2YUVJPEG:RawHDR_0 For GID[Session:0 Pipeline:0 Port:4 Type:1] BatchIndex:0 InputdependencyIndex:2 hMetadata = 0xb4000075cf2cf750
05-19 16:18:11.332 29089 29724 I CHIUSECASE: [INFO ] chifeature2requestobject.cpp:961 MoveToNextProcessSequenceInfo() FRO-URO:105_RTRawHDRBayer2YUVJPEG:RawHDR_0 Move to NextProcess SequenceID:0 BatchIndex:0
05-19 16:18:11.332 29089 29724 I CHIUSECASE: [INFO ] chifeature2requestobject.cpp:552 SetCurRequestState() FRO-URO:105_RTRawHDRBayer2YUVJPEG:RawHDR_0: FeatureRequest State [Executing]->[InputResourcePending] for RequestIndex:0 //RawHDR状态切换
05-19 16:18:11.332 29089 29724 I CHIUSECASE: [INFO ] chifeature2graph.cpp:2235 ProcessGetInputDependencyMessage() RawHDR_0 Feature:Graph-URO:105_Graph:RTRawHDRBayer2YUVJPEG: ChiFeature2MessageType::GetInputDependency for 1 batches
05-19 16:18:11.332 29089 29724 I CHIUSECASE: [INFO ] chifeature2requestobject.cpp:199 InitializeRequestInfo() FRO-URO:105_RTRawHDRBayer2YUVJPEG:RealTime_0: Created for numRequests:3
05-19 16:18:11.332 29089 29724 I CHIUSECASE: [INFO ] chifeature2base.cpp:413 OnProcessRequest() FRO-URO:105_RTRawHDRBayer2YUVJPEG:RealTime_0 requestState:Initialized, requestId:0
05-19 16:18:11.333 29089 29724 I CHIUSECASE: [INFO ] chifeature2requestobject.cpp:552 SetCurRequestState() FRO-URO:105_RTRawHDRBayer2YUVJPEG:RealTime_0: FeatureRequest State [Initialized]->[ReadyToExecute] for RequestIndex:0 //RealTime状态切换
05-19 16:18:11.333 29089 29724 I CHIUSECASE: [INFO ] chifeature2base.cpp:413 OnProcessRequest() FRO-URO:105_RTRawHDRBayer2YUVJPEG:RealTime_0 requestState:ReadyToExecute, requestId:0
05-19 16:18:11.333 29089 29724 I CHIUSECASE: [INFO ] chifeature2requestobject.cpp:552 SetCurRequestState() FRO-URO:105_RTRawHDRBayer2YUVJPEG:RealTime_0: FeatureRequest State [ReadyToExecute]->[Executing] for RequestIndex:0 //RealTime状态切换
05-19 16:18:11.333 29089 29724 I CHIUSECASE: [INFO ] chifeature2requestobject.cpp:1134 SetConfigInfo() FRO-URO:105_RTRawHDRBayer2YUVJPEG:RealTime_0 Max info for FRO Seq=1 Session=1 Pipeline=13 Port=7
05-19 16:18:11.333 29089 29724 I CHIUSECASE: [INFO ] chifeature2requestobject.cpp:961 MoveToNextProcessSequenceInfo() FRO-URO:105_RTRawHDRBayer2YUVJPEG:RealTime_0 Move to NextProcess SequenceID:0 BatchIndex:0
05-19 16:18:11.334 29089 29724 I CHIUSECASE: [INFO ] chifeature2base.cpp:413 OnProcessRequest() FRO-URO:105_RTRawHDRBayer2YUVJPEG:RealTime_0 requestState:Executing, requestId:0
05-19 16:18:11.334 29089 29724 I CHIUSECASE: [INFO ] chifeature2requestobject.cpp:3117 AreInputDependenciesStatisfied() FRO-URO:105_RTRawHDRBayer2YUVJPEG:RealTime_0: Input Dependency Satisfied for batch:0
05-19 16:18:11.334 29089 29724 I CHIUSECASE: [INFO ] chifeature2requestobject.cpp:1591 SetPortDescriptor() FRO-URO:105_RTRawHDRBayer2YUVJPEG:RealTime_0 OutputConfiguration For PortName:Display_Out GID[Session:0 Pipeline:0 Port:0 Type:3] BatchIndex:0
05-19 16:18:11.334 29089 29724 I CHIUSECASE: [INFO ] chifeature2requestobject.cpp:1912 SetBufferInfo() FRO-URO:105_RTRawHDRBayer2YUVJPEG:RealTime_0 OutputConfiguration For GID[Session:0 Pipeline:0 Port:0 Type:0] BatchIndex:0, BufferHandle:0xb4000075ff539140
05-19 16:18:11.334 29089 29724 I CHIUSECASE: [INFO ] chifeature2requestobject.cpp:1591 SetPortDescriptor() FRO-URO:105_RTRawHDRBayer2YUVJPEG:RealTime_0 OutputConfiguration For PortName:Raw_Out GID[Session:0 Pipeline:0 Port:1 Type:3] BatchIndex:0
05-19 16:18:11.334 29089 29724 I CHIUSECASE: [INFO ] chifeature2requestobject.cpp:1912 SetBufferInfo() FRO-URO:105_RTRawHDRBayer2YUVJPEG:RealTime_0 OutputConfiguration For GID[Session:0 Pipeline:0 Port:1 Type:0] BatchIndex:0, BufferHandle:0xb4000075ff4d8eb0
05-19 16:18:11.335 29089 29724 I CHIUSECASE: [INFO ] chifeature2requestobject.cpp:1591 SetPortDescriptor() FRO-URO:105_RTRawHDRBayer2YUVJPEG:RealTime_0 OutputConfiguration For PortName:rt_metadata_out GID[Session:0 Pipeline:0 Port:5 Type:3] BatchIndex:0
05-19 16:18:11.335 29089 29724 I CHIUSECASE: [INFO ] chifeature2requestobject.cpp:1912 SetBufferInfo() FRO-URO:105_RTRawHDRBayer2YUVJPEG:RealTime_0 OutputConfiguration For GID[Session:0 Pipeline:0 Port:5 Type:1] BatchIndex:0, BufferHandle:0xb4000075ff4b5830
05-19 16:18:11.335 29089 29724 I CHIUSECASE: [INFO ] chifeature2base.cpp:1107 SubmitRequestToSession() FRO-URO:105_RTRawHDRBayer2YUVJPEG:RealTime_0 Submitting Request:105 with numOutputs:2
05-19 16:18:11.335 29089 29724 I CHIUSECASE: [INFO ] chifeature2requestobject.cpp:552 SetCurRequestState() FRO-URO:105_RTRawHDRBayer2YUVJPEG:RealTime_0: FeatureRequest State [Executing]->[OutputResourcePending] for RequestIndex:0 //RealTime状态切换
05-19 16:18:11.335 29089 29724 I CHIUSECASE: [INFO ] chifeature2base.cpp:413 OnProcessRequest() FRO-URO:105_RTRawHDRBayer2YUVJPEG:RealTime_0 requestState:Initialized, requestId:1
05-19 16:18:11.335 29089 29724 I CHIUSECASE: [INFO ] chifeature2requestobject.cpp:552 SetCurRequestState() FRO-URO:105_RTRawHDRBayer2YUVJPEG:RealTime_0: FeatureRequest State [Initialized]->[ReadyToExecute] for RequestIndex:1 //RealTime状态切换
05-19 16:18:11.335 29089 29724 I CHIUSECASE: [INFO ] chifeature2base.cpp:413 OnProcessRequest() FRO-URO:105_RTRawHDRBayer2YUVJPEG:RealTime_0 requestState:ReadyToExecute, requestId:1
05-19 16:18:11.335 29089 29724 I CHIUSECASE: [INFO ] chifeature2requestobject.cpp:552 SetCurRequestState() FRO-URO:105_RTRawHDRBayer2YUVJPEG:RealTime_0: FeatureRequest State [ReadyToExecute]->[Executing] for RequestIndex:1 //RealTime状态切换
05-19 16:18:11.335 29089 29724 I CHIUSECASE: [INFO ] chifeature2requestobject.cpp:1134 SetConfigInfo() FRO-URO:105_RTRawHDRBayer2YUVJPEG:RealTime_0 Max info for FRO Seq=1 Session=1 Pipeline=13 Port=7
05-19 16:18:11.336 29089 29724 I CHIUSECASE: [INFO ] chifeature2requestobject.cpp:961 MoveToNextProcessSequenceInfo() FRO-URO:105_RTRawHDRBayer2YUVJPEG:RealTime_0 Move to NextProcess SequenceID:0 BatchIndex:1
05-19 16:18:11.336 29089 29724 I CHIUSECASE: [INFO ] chifeature2base.cpp:413 OnProcessRequest() FRO-URO:105_RTRawHDRBayer2YUVJPEG:RealTime_0 requestState:Executing, requestId:1
05-19 16:18:11.336 29089 29724 I CHIUSECASE: [INFO ] chifeature2requestobject.cpp:3117 AreInputDependenciesStatisfied() FRO-URO:105_RTRawHDRBayer2YUVJPEG:RealTime_0: Input Dependency Satisfied for batch:1
05-19 16:18:11.336 29089 29724 I CHIUSECASE: [INFO ] chifeature2requestobject.cpp:1591 SetPortDescriptor() FRO-URO:105_RTRawHDRBayer2YUVJPEG:RealTime_0 OutputConfiguration For PortName:Raw_Out GID[Session:0 Pipeline:0 Port:1 Type:3] BatchIndex:1
05-19 16:18:11.336 29089 29724 I CHIUSECASE: [INFO ] chifeature2requestobject.cpp:1912 SetBufferInfo() FRO-URO:105_RTRawHDRBayer2YUVJPEG:RealTime_0 OutputConfiguration For GID[Session:0 Pipeline:0 Port:1 Type:0] BatchIndex:1, BufferHandle:0xb4000075ff54f350
05-19 16:18:11.337 29089 29724 I CHIUSECASE: [INFO ] chifeature2requestobject.cpp:1591 SetPortDescriptor() FRO-URO:105_RTRawHDRBayer2YUVJPEG:RealTime_0 OutputConfiguration For PortName:rt_metadata_out GID[Session:0 Pipeline:0 Port:5 Type:3] BatchIndex:1
05-19 16:18:11.337 29089 29724 I CHIUSECASE: [INFO ] chifeature2requestobject.cpp:1912 SetBufferInfo() FRO-URO:105_RTRawHDRBayer2YUVJPEG:RealTime_0 OutputConfiguration For GID[Session:0 Pipeline:0 Port:5 Type:1] BatchIndex:1, BufferHandle:0xb4000075ff50c040
05-19 16:18:11.337 29089 29724 I CHIUSECASE: [INFO ] chifeature2base.cpp:1107 SubmitRequestToSession() FRO-URO:105_RTRawHDRBayer2YUVJPEG:RealTime_0 Submitting Request:106 with numOutputs:1
05-19 16:18:11.337 29089 29724 I CHIUSECASE: [INFO ] chifeature2requestobject.cpp:552 SetCurRequestState() FRO-URO:105_RTRawHDRBayer2YUVJPEG:RealTime_0: FeatureRequest State [Executing]->[OutputResourcePending] for RequestIndex:1 //RealTime状态切换
05-19 16:18:11.337 29089 29724 I CHIUSECASE: [INFO ] chifeature2base.cpp:413 OnProcessRequest() FRO-URO:105_RTRawHDRBayer2YUVJPEG:RealTime_0 requestState:Initialized, requestId:2
05-19 16:18:11.337 29089 29724 I CHIUSECASE: [INFO ] chifeature2requestobject.cpp:552 SetCurRequestState() FRO-URO:105_RTRawHDRBayer2YUVJPEG:RealTime_0: FeatureRequest State [Initialized]->[ReadyToExecute] for RequestIndex:2 //RealTime状态切换
05-19 16:18:11.337 29089 29724 I CHIUSECASE: [INFO ] chifeature2base.cpp:413 OnProcessRequest() FRO-URO:105_RTRawHDRBayer2YUVJPEG:RealTime_0 requestState:ReadyToExecute, requestId:2
05-19 16:18:11.337 29089 29724 I CHIUSECASE: [INFO ] chifeature2requestobject.cpp:552 SetCurRequestState() FRO-URO:105_RTRawHDRBayer2YUVJPEG:RealTime_0: FeatureRequest State [ReadyToExecute]->[Executing] for RequestIndex:2 //RealTime状态切换
05-19 16:18:11.337 29089 29724 I CHIUSECASE: [INFO ] chifeature2requestobject.cpp:1134 SetConfigInfo() FRO-URO:105_RTRawHDRBayer2YUVJPEG:RealTime_0 Max info for FRO Seq=1 Session=1 Pipeline=13 Port=7
05-19 16:18:11.337 29089 29724 I CHIUSECASE: [INFO ] chifeature2requestobject.cpp:961 MoveToNextProcessSequenceInfo() FRO-URO:105_RTRawHDRBayer2YUVJPEG:RealTime_0 Move to NextProcess SequenceID:0 BatchIndex:2
05-19 16:18:11.337 29089 29724 I CHIUSECASE: [INFO ] chifeature2base.cpp:413 OnProcessRequest() FRO-URO:105_RTRawHDRBayer2YUVJPEG:RealTime_0 requestState:Executing, requestId:2
05-19 16:18:11.338 29089 29724 I CHIUSECASE: [INFO ] chifeature2requestobject.cpp:3117 AreInputDependenciesStatisfied() FRO-URO:105_RTRawHDRBayer2YUVJPEG:RealTime_0: Input Dependency Satisfied for batch:2
05-19 16:18:11.338 29089 29724 I CHIUSECASE: [INFO ] chifeature2requestobject.cpp:1591 SetPortDescriptor() FRO-URO:105_RTRawHDRBayer2YUVJPEG:RealTime_0 OutputConfiguration For PortName:Raw_Out GID[Session:0 Pipeline:0 Port:1 Type:3] BatchIndex:2
05-19 16:18:11.338 29089 29724 I CHIUSECASE: [INFO ] chifeature2requestobject.cpp:1912 SetBufferInfo() FRO-URO:105_RTRawHDRBayer2YUVJPEG:RealTime_0 OutputConfiguration For GID[Session:0 Pipeline:0 Port:1 Type:0] BatchIndex:2, BufferHandle:0xb4000075ff55b470
05-19 16:18:11.338 29089 29724 I CHIUSECASE: [INFO ] chifeature2requestobject.cpp:1591 SetPortDescriptor() FRO-URO:105_RTRawHDRBayer2YUVJPEG:RealTime_0 OutputConfiguration For PortName:rt_metadata_out GID[Session:0 Pipeline:0 Port:5 Type:3] BatchIndex:2
05-19 16:18:11.338 29089 29724 I CHIUSECASE: [INFO ] chifeature2requestobject.cpp:1912 SetBufferInfo() FRO-URO:105_RTRawHDRBayer2YUVJPEG:RealTime_0 OutputConfiguration For GID[Session:0 Pipeline:0 Port:5 Type:1] BatchIndex:2, BufferHandle:0xb4000075ff54e670
05-19 16:18:11.339 29089 29724 I CHIUSECASE: [INFO ] chifeature2base.cpp:1107 SubmitRequestToSession() FRO-URO:105_RTRawHDRBayer2YUVJPEG:RealTime_0 Submitting Request:107 with numOutputs:1
05-19 16:18:11.339 29089 29724 I CHIUSECASE: [INFO ] chifeature2requestobject.cpp:552 SetCurRequestState() FRO-URO:105_RTRawHDRBayer2YUVJPEG:RealTime_0: FeatureRequest State [Executing]->[OutputResourcePending] for RequestIndex:2 //RealTime状态切换
05-19 16:18:11.389 29089 29126 I CHIUSECASE: [INFO ] chifeature2base.cpp:8061 OnPartialMetadataResult() FRO-URO:105_RTRawHDRBayer2YUVJPEG:RealTime_0 : Request:105 for pipeline:ZSLPreviewRaw_LT1080p stageId 0 stageSequenceId 0 pMetadata 0xb40000756f2d0a90
05-19 16:18:11.424 29089 29122 I CHIUSECASE: [INFO ] chifeature2base.cpp:8061 OnPartialMetadataResult() FRO-URO:105_RTRawHDRBayer2YUVJPEG:RealTime_0 : Request:106 for pipeline:ZSLPreviewRaw_LT1080p stageId 0 stageSequenceId 0 pMetadata 0xb40000756f2c77b0
05-19 16:18:11.458 29089 29122 I CHIUSECASE: [INFO ] chifeature2base.cpp:8061 OnPartialMetadataResult() FRO-URO:105_RTRawHDRBayer2YUVJPEG:RealTime_0 : Request:107 for pipeline:ZSLPreviewRaw_LT1080p stageId 0 stageSequenceId 0 pMetadata 0xb40000756f2abbf0
05-19 16:18:11.515 29089 29127 I CHIUSECASE: [CONFIG ] chifeature2base.cpp:4345 ProcessResult() FRO-URO:105_RTRawHDRBayer2YUVJPEG:RealTime_0 Result from Request:0 with metadata:0xb4000075cf2da3b0
05-19 16:18:11.515 29089 29127 I CHIUSECASE: [INFO ] chifeature2base.cpp:8176 OnMetadataResult() FRO-URO:105_RTRawHDRBayer2YUVJPEG:RealTime_0 Result from Request:105 for pipeline:ZSLPreviewRaw_LT1080p stageId 0 stageSequenceId 0 pMetadata 0xb40000756f2d0a90
05-19 16:18:11.515 29089 29127 I CHIUSECASE: [INFO ] chifeature2requestobject.cpp:1874 SetBufferInfo() FRO-URO:105_RTRawHDRBayer2YUVJPEG:RawHDR_0 InputDependency For GID[Session:0 Pipeline:0 Port:4 Type:1] BatchIndex:0 InputDependencyIndex:0, toBeSatisfied:6, BufferHandle:0xb4000075ff4b5830
05-19 16:18:11.515 29089 29127 I CHIUSECASE: [INFO ] chifeature2base.cpp:1714 HandleInputResourcePending() FRO-URO:105_RTRawHDRBayer2YUVJPEG:RawHDR_0 requestState:InputResourcePending, requestId:0
05-19 16:18:11.515 29089 29127 I CHIUSECASE: [CONFIG ] chifeature2base.cpp:4355 ProcessResult() FRO-URO:105_RTRawHDRBayer2YUVJPEG:RealTime_0 Result from Request:105 with 2 buffer(s)
05-19 16:18:11.515 29089 29127 I CHIUSECASE: [INFO ] chifeature2base.cpp:7957 OnBufferResult() FRO-URO:105_RTRawHDRBayer2YUVJPEG:RealTime_0 Result from Request:105 for port:Display_Out stageId 0 stageSequenceId 0 stream width height format 1600 1200 34
05-19 16:18:11.515 29089 29127 I CHIUSECASE: [INFO ] chifeature2requestobject.cpp:552 SetCurRequestState() FRO-URO:105_RTRawHDRBayer2YUVJPEG:RealTime_0: FeatureRequest State [OutputResourcePending]->[OutputNotificationPending] for RequestIndex:1 //RealTime状态切换
05-19 16:18:11.516 29089 29127 I CHIUSECASE: [INFO ] chifeature2requestobject.cpp:552 SetCurRequestState() FRO-URO:105_RTRawHDRBayer2YUVJPEG:RealTime_0: FeatureRequest State [OutputResourcePending]->[OutputNotificationPending] for RequestIndex:2 //RealTime状态切换
05-19 16:18:11.516 29089 29127 I CHIUSECASE: [INFO ] chifeature2base.cpp:7957 OnBufferResult() FRO-URO:105_RTRawHDRBayer2YUVJPEG:RealTime_0 Result from Request:105 for port:Raw_Out stageId 0 stageSequenceId 0 stream width height format 2592 1944 38
05-19 16:18:11.516 29089 29127 I CHIUSECASE: [INFO ] chifeature2requestobject.cpp:552 SetCurRequestState() FRO-URO:105_RTRawHDRBayer2YUVJPEG:RealTime_0: FeatureRequest State [OutputResourcePending]->[OutputNotificationPending] for RequestIndex:0 //RealTime状态切换
05-19 16:18:11.517 29089 29127 I CHIUSECASE: [INFO ] chifeature2requestobject.cpp:2741 SetOutputNotifiedForPort() FRO-URO:105_RTRawHDRBayer2YUVJPEG:RealTime_0 OutputNotified For port Display_Out : GID[Session:0 Pipeline:0 Port:0 Type:0] BatchIndex:0
05-19 16:18:11.517 29089 29127 I CHIUSECASE: [INFO ] chifeature2requestobject.cpp:2927 SetReleaseAcknowledgedForPort() FRO-URO:105_RTRawHDRBayer2YUVJPEG:RealTime_0 Release Ack For port Display_Out: GID[Session:0 Pipeline:0 Port:0 Type:0] BatchIndex:0
05-19 16:18:11.517 29089 29127 I CHIUSECASE: [INFO ] chifeature2requestobject.cpp:2752 SetOutputNotifiedForPort() FRO-URO:105_RTRawHDRBayer2YUVJPEG:RealTime_0 OutputNotified Already notified For GID[Session:0 Pipeline:0 Port:0 Type:0]BatchIndex:0
05-19 16:18:11.517 29089 29127 I CHIUSECASE: [INFO ] chifeature2requestobject.cpp:1874 SetBufferInfo() FRO-URO:105_RTRawHDRBayer2YUVJPEG:RawHDR_0 InputDependency For GID[Session:0 Pipeline:0 Port:0 Type:0] BatchIndex:0 InputDependencyIndex:0, toBeSatisfied:5, BufferHandle:0xb4000075ff4d8eb0
05-19 16:18:11.517 29089 29127 I CHIUSECASE: [INFO ] chifeature2base.cpp:1714 HandleInputResourcePending() FRO-URO:105_RTRawHDRBayer2YUVJPEG:RawHDR_0 requestState:InputResourcePending, requestId:0
05-19 16:18:11.537 29089 29122 I CHIUSECASE: [CONFIG ] chifeature2base.cpp:4345 ProcessResult() FRO-URO:105_RTRawHDRBayer2YUVJPEG:RealTime_0 Result from Request:0 with metadata:0xb4000075cf2bd770
05-19 16:18:11.537 29089 29122 I CHIUSECASE: [INFO ] chifeature2base.cpp:8176 OnMetadataResult() FRO-URO:105_RTRawHDRBayer2YUVJPEG:RealTime_0 Result from Request:106 for pipeline:ZSLPreviewRaw_LT1080p stageId 0 stageSequenceId 0 pMetadata 0xb40000756f2c77b0
05-19 16:18:11.538 29089 29122 I CHIUSECASE: [INFO ] chifeature2requestobject.cpp:1874 SetBufferInfo() FRO-URO:105_RTRawHDRBayer2YUVJPEG:RawHDR_0 InputDependency For GID[Session:0 Pipeline:0 Port:4 Type:1] BatchIndex:0 InputDependencyIndex:1, toBeSatisfied:4, BufferHandle:0xb4000075ff50c040
05-19 16:18:11.538 29089 29122 I CHIUSECASE: [INFO ] chifeature2base.cpp:1714 HandleInputResourcePending() FRO-URO:105_RTRawHDRBayer2YUVJPEG:RawHDR_0 requestState:InputResourcePending, requestId:0
05-19 16:18:11.538 29089 29122 I CHIUSECASE: [CONFIG ] chifeature2base.cpp:4355 ProcessResult() FRO-URO:105_RTRawHDRBayer2YUVJPEG:RealTime_0 Result from Request:106 with 1 buffer(s)
05-19 16:18:11.538 29089 29122 I CHIUSECASE: [INFO ] chifeature2base.cpp:7957 OnBufferResult() FRO-URO:105_RTRawHDRBayer2YUVJPEG:RealTime_0 Result from Request:106 for port:Raw_Out stageId 0 stageSequenceId 0 stream width height format 2592 1944 38
05-19 16:18:11.538 29089 29122 I CHIUSECASE: [INFO ] chifeature2requestobject.cpp:1874 SetBufferInfo() FRO-URO:105_RTRawHDRBayer2YUVJPEG:RawHDR_0 InputDependency For GID[Session:0 Pipeline:0 Port:0 Type:0] BatchIndex:0 InputDependencyIndex:1, toBeSatisfied:3, BufferHandle:0xb4000075ff54f350
05-19 16:18:11.538 29089 29122 I CHIUSECASE: [INFO ] chifeature2base.cpp:1714 HandleInputResourcePending() FRO-URO:105_RTRawHDRBayer2YUVJPEG:RawHDR_0 requestState:InputResourcePending, requestId:0
05-19 16:18:11.589 29089 29123 I CHIUSECASE: [CONFIG ] chifeature2base.cpp:4345 ProcessResult() FRO-URO:105_RTRawHDRBayer2YUVJPEG:RealTime_0 Result from Request:0 with metadata:0xb4000075cf2cc030
05-19 16:18:11.590 29089 29123 I CHIUSECASE: [INFO ] chifeature2base.cpp:8176 OnMetadataResult() FRO-URO:105_RTRawHDRBayer2YUVJPEG:RealTime_0 Result from Request:107 for pipeline:ZSLPreviewRaw_LT1080p stageId 0 stageSequenceId 0 pMetadata 0xb40000756f2abbf0
05-19 16:18:11.590 29089 29123 I CHIUSECASE: [INFO ] chifeature2requestobject.cpp:1874 SetBufferInfo() FRO-URO:105_RTRawHDRBayer2YUVJPEG:RawHDR_0 InputDependency For GID[Session:0 Pipeline:0 Port:4 Type:1] BatchIndex:0 InputDependencyIndex:2, toBeSatisfied:2, BufferHandle:0xb4000075ff54e670
05-19 16:18:11.590 29089 29123 I CHIUSECASE: [INFO ] chifeature2base.cpp:1714 HandleInputResourcePending() FRO-URO:105_RTRawHDRBayer2YUVJPEG:RawHDR_0 requestState:InputResourcePending, requestId:0
05-19 16:18:11.590 29089 29123 I CHIUSECASE: [CONFIG ] chifeature2base.cpp:4355 ProcessResult() FRO-URO:105_RTRawHDRBayer2YUVJPEG:RealTime_0 Result from Request:107 with 1 buffer(s)
05-19 16:18:11.590 29089 29123 I CHIUSECASE: [INFO ] chifeature2base.cpp:7957 OnBufferResult() FRO-URO:105_RTRawHDRBayer2YUVJPEG:RealTime_0 Result from Request:107 for port:Raw_Out stageId 0 stageSequenceId 0 stream width height format 2592 1944 38
05-19 16:18:11.590 29089 29123 I CHIUSECASE: [INFO ] chifeature2requestobject.cpp:1874 SetBufferInfo() FRO-URO:105_RTRawHDRBayer2YUVJPEG:RawHDR_0 InputDependency For GID[Session:0 Pipeline:0 Port:0 Type:0] BatchIndex:0 InputDependencyIndex:2, toBeSatisfied:1, BufferHandle:0xb4000075ff55b470
05-19 16:18:11.590 29089 29123 I CHIUSECASE: [INFO ] chifeature2requestobject.cpp:3117 AreInputDependenciesStatisfied() FRO-URO:105_RTRawHDRBayer2YUVJPEG:RawHDR_0: Input Dependency Satisfied for batch:0
05-19 16:18:11.590 29089 29123 I CHIUSECASE: [INFO ] chifeature2base.cpp:1714 HandleInputResourcePending() FRO-URO:105_RTRawHDRBayer2YUVJPEG:RawHDR_0 requestState:InputResourcePending, requestId:0
05-19 16:18:11.590 29089 29123 I CHIUSECASE: [INFO ] chifeature2requestobject.cpp:552 SetCurRequestState() FRO-URO:105_RTRawHDRBayer2YUVJPEG:RawHDR_0: FeatureRequest State [InputResourcePending]->[InputResourcePendingScheduled] for RequestIndex:0 //RawHDR状态切换
05-19 16:18:11.590 29089 31416 I CHIUSECASE: [INFO ] chifeature2requestobject.cpp:3117 AreInputDependenciesStatisfied() FRO-URO:105_RTRawHDRBayer2YUVJPEG:RawHDR_0: Input Dependency Satisfied for batch:0
05-19 16:18:11.591 29089 31416 I CHIUSECASE: [INFO ] chifeature2requestobject.cpp:552 SetCurRequestState() FRO-URO:105_RTRawHDRBayer2YUVJPEG:RawHDR_0: FeatureRequest State [InputResourcePendingScheduled]->[ReadyToExecute] for RequestIndex:0 //RawHDR状态切换
05-19 16:18:11.591 29089 31416 I CHIUSECASE: [INFO ] chifeature2base.cpp:413 OnProcessRequest() FRO-URO:105_RTRawHDRBayer2YUVJPEG:RawHDR_0 requestState:ReadyToExecute, requestId:0
05-19 16:18:11.591 29089 31416 I CHIUSECASE: [INFO ] chifeature2requestobject.cpp:3117 AreInputDependenciesStatisfied() FRO-URO:105_RTRawHDRBayer2YUVJPEG:RawHDR_0: Input Dependency Satisfied for batch:0
05-19 16:18:11.591 29089 31416 I CHIUSECASE: [INFO ] chifeature2requestobject.cpp:552 SetCurRequestState() FRO-URO:105_RTRawHDRBayer2YUVJPEG:RawHDR_0: FeatureRequest State [ReadyToExecute]->[Executing] for RequestIndex:0 //RawHDR状态切换
05-19 16:18:11.591 29089 31416 I CHIUSECASE: [INFO ] chifeature2base.cpp:7809 OnExecuteProcessRequest() FRO-URO:105_RTRawHDRBayer2YUVJPEG:RawHDR_0 Executing base request flow 1
05-19 16:18:11.591 29089 31416 I CHIUSECASE: [INFO ] chifeature2requestobject.cpp:1569 SetPortDescriptor() FRO-URO:105_RTRawHDRBayer2YUVJPEG:RawHDR_0 InputConfiguration For PortName:RAW_In1_Internal GID[Session:0 Pipeline:0 Port:1 Type:0] BatchIndex:0
05-19 16:18:11.592 29089 31416 I CHIUSECASE: [INFO ] chifeature2requestobject.cpp:1894 SetBufferInfo() FRO-URO:105_RTRawHDRBayer2YUVJPEG:RawHDR_0 InputConfiguration For GID[Session:0 Pipeline:0 Port:1 Type:0] BatchIndex:0, BufferHandle:0x0
05-19 16:18:11.592 29089 31416 I CHIUSECASE: [INFO ] chifeature2requestobject.cpp:1569 SetPortDescriptor() FRO-URO:105_RTRawHDRBayer2YUVJPEG:RawHDR_0 InputConfiguration For PortName:RAW_In2_Internal GID[Session:0 Pipeline:0 Port:2 Type:0] BatchIndex:0
05-19 16:18:11.592 29089 31416 I CHIUSECASE: [INFO ] chifeature2requestobject.cpp:1894 SetBufferInfo() FRO-URO:105_RTRawHDRBayer2YUVJPEG:RawHDR_0 InputConfiguration For GID[Session:0 Pipeline:0 Port:2 Type:0] BatchIndex:0, BufferHandle:0x0
05-19 16:18:11.592 29089 31416 I CHIUSECASE: [INFO ] chifeature2requestobject.cpp:1569 SetPortDescriptor() FRO-URO:105_RTRawHDRBayer2YUVJPEG:RawHDR_0 InputConfiguration For PortName:RAW_In3_Internal GID[Session:0 Pipeline:0 Port:3 Type:0] BatchIndex:0
05-19 16:18:11.592 29089 31416 I CHIUSECASE: [INFO ] chifeature2requestobject.cpp:1894 SetBufferInfo() FRO-URO:105_RTRawHDRBayer2YUVJPEG:RawHDR_0 InputConfiguration For GID[Session:0 Pipeline:0 Port:3 Type:0] BatchIndex:0, BufferHandle:0x0
05-19 16:18:11.592 29089 31416 I CHIUSECASE: [INFO ] chifeature2requestobject.cpp:1569 SetPortDescriptor() FRO-URO:105_RTRawHDRBayer2YUVJPEG:RawHDR_0 InputConfiguration For PortName:Meta_In_Internal GID[Session:0 Pipeline:0 Port:4 Type:1] BatchIndex:0
05-19 16:18:11.592 29089 31416 I CHIUSECASE: [INFO ] chifeature2requestobject.cpp:1894 SetBufferInfo() FRO-URO:105_RTRawHDRBayer2YUVJPEG:RawHDR_0 InputConfiguration For GID[Session:0 Pipeline:0 Port:4 Type:1] BatchIndex:0, BufferHandle:0xb4000075ff4b5830
05-19 16:18:11.593 29089 31416 I CHIUSECASE: [INFO ] chifeature2requestobject.cpp:1591 SetPortDescriptor() FRO-URO:105_RTRawHDRBayer2YUVJPEG:RawHDR_0 OutputConfiguration For PortName:RAW_Out_External GID[Session:0 Pipeline:0 Port:0 Type:3] BatchIndex:0
05-19 16:18:11.593 29089 31416 I CHIUSECASE: [INFO ] chifeature2requestobject.cpp:1912 SetBufferInfo() FRO-URO:105_RTRawHDRBayer2YUVJPEG:RawHDR_0 OutputConfiguration For GID[Session:0 Pipeline:0 Port:0 Type:0] BatchIndex:0, BufferHandle:0xb4000075ff4fbec0
05-19 16:18:11.593 29089 31416 I CHIUSECASE: [INFO ] chifeature2requestobject.cpp:1591 SetPortDescriptor() FRO-URO:105_RTRawHDRBayer2YUVJPEG:RawHDR_0 OutputConfiguration For PortName:Meta_Out_External GID[Session:0 Pipeline:0 Port:1 Type:3] BatchIndex:0
05-19 16:18:11.596 29089 31416 I CHIUSECASE: [INFO ] chifeature2requestobject.cpp:1912 SetBufferInfo() FRO-URO:105_RTRawHDRBayer2YUVJPEG:RawHDR_0 OutputConfiguration For GID[Session:0 Pipeline:0 Port:1 Type:1] BatchIndex:0, BufferHandle:0xb4000075ff4da870
05-19 16:18:11.596 29089 31416 I CHIUSECASE: [INFO ] chifeature2requestobject.cpp:1894 SetBufferInfo() FRO-URO:105_RTRawHDRBayer2YUVJPEG:RawHDR_0 InputConfiguration For GID[Session:0 Pipeline:0 Port:1 Type:0] BatchIndex:0, BufferHandle:0xb4000075ff4d8eb0
05-19 16:18:11.596 29089 31416 I CHIUSECASE: [INFO ] chifeature2requestobject.cpp:1894 SetBufferInfo() FRO-URO:105_RTRawHDRBayer2YUVJPEG:RawHDR_0 InputConfiguration For GID[Session:0 Pipeline:0 Port:2 Type:0] BatchIndex:0, BufferHandle:0xb4000075ff54f350
05-19 16:18:11.597 29089 31416 I CHIUSECASE: [INFO ] chifeature2requestobject.cpp:1894 SetBufferInfo() FRO-URO:105_RTRawHDRBayer2YUVJPEG:RawHDR_0 InputConfiguration For GID[Session:0 Pipeline:0 Port:3 Type:0] BatchIndex:0, BufferHandle:0xb4000075ff55b470
05-19 16:18:11.597 29089 31416 I CHIUSECASE: [INFO ] chifeature2base.cpp:1107 SubmitRequestToSession() FRO-URO:105_RTRawHDRBayer2YUVJPEG:RawHDR_0 Submitting Request:0 with numOutputs:1
05-19 16:18:11.601 29089 31416 I CHIUSECASE: [INFO ] chifeature2requestobject.cpp:552 SetCurRequestState() FRO-URO:105_RTRawHDRBayer2YUVJPEG:RawHDR_0: FeatureRequest State [Executing]->[OutputResourcePending] for RequestIndex:0 //RawHDR状态切换
05-19 16:18:11.603 29089 29122 I CHIUSECASE: [INFO ] chifeature2base.cpp:8061 OnPartialMetadataResult() FRO-URO:105_RTRawHDRBayer2YUVJPEG:RawHDR_0 : Request:0 for pipeline:SWMFMergeRaw stageId 0 stageSequenceId 0 pMetadata 0xb40000756f2c93d0
05-19 16:18:11.621 29089 29124 I CHIUSECASE: [CONFIG ] chifeature2base.cpp:4345 ProcessResult() FRO-URO:105_RTRawHDRBayer2YUVJPEG:RawHDR_0 Result from Request:0 with metadata:0xb4000075cf2cf750
05-19 16:18:11.621 29089 29124 I CHIUSECASE: [INFO ] chifeature2base.cpp:8176 OnMetadataResult() FRO-URO:105_RTRawHDRBayer2YUVJPEG:RawHDR_0 Result from Request:0 for pipeline:SWMFMergeRaw stageId 0 stageSequenceId 0 pMetadata 0xb40000756f2c93d0
05-19 16:18:11.621 29089 29124 I CHIUSECASE: [INFO ] chifeature2requestobject.cpp:1874 SetBufferInfo() FRO-URO:105_RTRawHDRBayer2YUVJPEG:Bayer2Yuv_0 InputDependency For GID[Session:0 Pipeline:0 Port:1 Type:1] BatchIndex:0 InputDependencyIndex:0, toBeSatisfied:2, BufferHandle:0xb4000075ff4da870
05-19 16:18:11.621 29089 29124 I CHIUSECASE: [INFO ] chifeature2base.cpp:1714 HandleInputResourcePending() FRO-URO:105_RTRawHDRBayer2YUVJPEG:Bayer2Yuv_0 requestState:InputResourcePending, requestId:0
05-19 16:18:11.622 29089 29124 I CHIUSECASE: [CONFIG ] chifeature2base.cpp:4355 ProcessResult() FRO-URO:105_RTRawHDRBayer2YUVJPEG:RawHDR_0 Result from Request:0 with 1 buffer(s)
05-19 16:18:11.622 29089 29124 I CHIUSECASE: [INFO ] chifeature2base.cpp:7957 OnBufferResult() FRO-URO:105_RTRawHDRBayer2YUVJPEG:RawHDR_0 Result from Request:0 for port:RAW_Out_External stageId 0 stageSequenceId 0 stream width height format 2592 1944 38
05-19 16:18:11.622 29089 29124 I CHIUSECASE: [INFO ] chifeature2requestobject.cpp:552 SetCurRequestState() FRO-URO:105_RTRawHDRBayer2YUVJPEG:RawHDR_0: FeatureRequest State [OutputResourcePending]->[OutputNotificationPending] for RequestIndex:0 //RawHDR状态切换
05-19 16:18:11.622 29089 29124 I CHIUSECASE: [INFO ] chifeature2base.cpp:4970 ProcessReleaseDependency() FRO-URO:105_RTRawHDRBayer2YUVJPEG:RawHDR_0 Release external dependency for port RAW_In0_External index 0
05-19 16:18:11.622 29089 29124 I CHIUSECASE: [INFO ] chifeature2base.cpp:4970 ProcessReleaseDependency() FRO-URO:105_RTRawHDRBayer2YUVJPEG:RawHDR_0 Release external dependency for port Meta_In_Internal index 0
05-19 16:18:11.622 29089 29124 I CHIUSECASE: [INFO ] chifeature2base.cpp:4970 ProcessReleaseDependency() FRO-URO:105_RTRawHDRBayer2YUVJPEG:RawHDR_0 Release external dependency for port RAW_In0_External index 1
05-19 16:18:11.622 29089 29124 I CHIUSECASE: [INFO ] chifeature2base.cpp:4970 ProcessReleaseDependency() FRO-URO:105_RTRawHDRBayer2YUVJPEG:RawHDR_0 Release external dependency for port Meta_In_Internal index 1
05-19 16:18:11.622 29089 29124 I CHIUSECASE: [INFO ] chifeature2base.cpp:4970 ProcessReleaseDependency() FRO-URO:105_RTRawHDRBayer2YUVJPEG:RawHDR_0 Release external dependency for port RAW_In0_External index 2
05-19 16:18:11.622 29089 29124 I CHIUSECASE: [INFO ] chifeature2base.cpp:4970 ProcessReleaseDependency() FRO-URO:105_RTRawHDRBayer2YUVJPEG:RawHDR_0 Release external dependency for port Meta_In_Internal index 2
05-19 16:18:11.622 29089 29124 I CHIUSECASE: [INFO ] chifeature2base.cpp:5032 ProcessReleaseDependency() FRO-URO:105_RTRawHDRBayer2YUVJPEG:RawHDR_0 RawHDR: numDependencies = 3 requestId = 0 SequenceId = 0
05-19 16:18:11.622 29089 29124 I CHIUSECASE: [INFO ] chifeature2requestobject.cpp:2741 SetOutputNotifiedForPort() FRO-URO:105_RTRawHDRBayer2YUVJPEG:RealTime_0 OutputNotified For port Raw_Out : GID[Session:0 Pipeline:0 Port:1 Type:0] BatchIndex:0
05-19 16:18:11.622 29089 29124 I CHIUSECASE: [INFO ] chifeature2requestobject.cpp:2927 SetReleaseAcknowledgedForPort() FRO-URO:105_RTRawHDRBayer2YUVJPEG:RealTime_0 Release Ack For port Raw_Out: GID[Session:0 Pipeline:0 Port:1 Type:0] BatchIndex:0
05-19 16:18:11.622 29089 29124 I CHIUSECASE: [INFO ] chifeature2requestobject.cpp:2741 SetOutputNotifiedForPort() FRO-URO:105_RTRawHDRBayer2YUVJPEG:RealTime_0 OutputNotified For port rt_metadata_out : GID[Session:0 Pipeline:0 Port:5 Type:1] BatchIndex:0
05-19 16:18:11.622 29089 29124 I CHIUSECASE: [INFO ] chifeature2requestobject.cpp:2927 SetReleaseAcknowledgedForPort() FRO-URO:105_RTRawHDRBayer2YUVJPEG:RealTime_0 Release Ack For port rt_metadata_out: GID[Session:0 Pipeline:0 Port:5 Type:1] BatchIndex:0
05-19 16:18:11.623 29089 29124 I CHIUSECASE: [INFO ] chifeature2requestobject.cpp:3031 AreOutputsReleased() FRO-URO:105_RTRawHDRBayer2YUVJPEG:RealTime_0: Outputs released for batch:0 with numRequestOutputs=3
05-19 16:18:11.623 29089 29124 I CHIUSECASE: [INFO ] chifeature2requestobject.cpp:552 SetCurRequestState() FRO-URO:105_RTRawHDRBayer2YUVJPEG:RealTime_0: FeatureRequest State [OutputNotificationPending]->[Complete] for RequestIndex:0 //RealTime状态切换
05-19 16:18:11.623 29089 29124 I CHIUSECASE: [INFO ] chifeature2requestobject.cpp:2741 SetOutputNotifiedForPort() FRO-URO:105_RTRawHDRBayer2YUVJPEG:RealTime_0 OutputNotified For port Raw_Out : GID[Session:0 Pipeline:0 Port:1 Type:0] BatchIndex:1
05-19 16:18:11.623 29089 29124 I CHIUSECASE: [INFO ] chifeature2requestobject.cpp:2927 SetReleaseAcknowledgedForPort() FRO-URO:105_RTRawHDRBayer2YUVJPEG:RealTime_0 Release Ack For port Raw_Out: GID[Session:0 Pipeline:0 Port:1 Type:0] BatchIndex:1
05-19 16:18:11.623 29089 29124 I CHIUSECASE: [INFO ] chifeature2requestobject.cpp:2741 SetOutputNotifiedForPort() FRO-URO:105_RTRawHDRBayer2YUVJPEG:RealTime_0 OutputNotified For port rt_metadata_out : GID[Session:0 Pipeline:0 Port:5 Type:1] BatchIndex:1
05-19 16:18:11.623 29089 29124 I CHIUSECASE: [INFO ] chifeature2requestobject.cpp:2927 SetReleaseAcknowledgedForPort() FRO-URO:105_RTRawHDRBayer2YUVJPEG:RealTime_0 Release Ack For port rt_metadata_out: GID[Session:0 Pipeline:0 Port:5 Type:1] BatchIndex:1
05-19 16:18:11.623 29089 29124 I CHIUSECASE: [INFO ] chifeature2requestobject.cpp:3031 AreOutputsReleased() FRO-URO:105_RTRawHDRBayer2YUVJPEG:RealTime_0: Outputs released for batch:1 with numRequestOutputs=2
05-19 16:18:11.623 29089 29124 I CHIUSECASE: [INFO ] chifeature2requestobject.cpp:552 SetCurRequestState() FRO-URO:105_RTRawHDRBayer2YUVJPEG:RealTime_0: FeatureRequest State [OutputNotificationPending]->[Complete] for RequestIndex:1 //RealTime状态切换
05-19 16:18:11.623 29089 29124 I CHIUSECASE: [INFO ] chifeature2requestobject.cpp:2741 SetOutputNotifiedForPort() FRO-URO:105_RTRawHDRBayer2YUVJPEG:RealTime_0 OutputNotified For port Raw_Out : GID[Session:0 Pipeline:0 Port:1 Type:0] BatchIndex:2
05-19 16:18:11.623 29089 29124 I CHIUSECASE: [INFO ] chifeature2requestobject.cpp:2927 SetReleaseAcknowledgedForPort() FRO-URO:105_RTRawHDRBayer2YUVJPEG:RealTime_0 Release Ack For port Raw_Out: GID[Session:0 Pipeline:0 Port:1 Type:0] BatchIndex:2
05-19 16:18:11.623 29089 29124 I CHIUSECASE: [INFO ] chifeature2requestobject.cpp:2741 SetOutputNotifiedForPort() FRO-URO:105_RTRawHDRBayer2YUVJPEG:RealTime_0 OutputNotified For port rt_metadata_out : GID[Session:0 Pipeline:0 Port:5 Type:1] BatchIndex:2
05-19 16:18:11.623 29089 29124 I CHIUSECASE: [INFO ] chifeature2requestobject.cpp:2927 SetReleaseAcknowledgedForPort() FRO-URO:105_RTRawHDRBayer2YUVJPEG:RealTime_0 Release Ack For port rt_metadata_out: GID[Session:0 Pipeline:0 Port:5 Type:1] BatchIndex:2
05-19 16:18:11.623 29089 29124 I CHIUSECASE: [INFO ] chifeature2requestobject.cpp:3031 AreOutputsReleased() FRO-URO:105_RTRawHDRBayer2YUVJPEG:RealTime_0: Outputs released for batch:2 with numRequestOutputs=2
05-19 16:18:11.623 29089 29124 I CHIUSECASE: [INFO ] chifeature2requestobject.cpp:552 SetCurRequestState() FRO-URO:105_RTRawHDRBayer2YUVJPEG:RealTime_0: FeatureRequest State [OutputNotificationPending]->[Complete] for RequestIndex:2 //RealTime状态切换
05-19 16:18:11.623 29089 29124 I CHIUSECASE: [INFO ] chifeature2base.cpp:1971 CompleteRequest() FRO-URO:105_RTRawHDRBayer2YUVJPEG:RealTime_0 All 3 requests complete, initiate cleanup
05-19 16:18:11.623 29089 29124 I CHIUSECASE: [INFO ] chifeature2requestobject.cpp:1874 SetBufferInfo() FRO-URO:105_RTRawHDRBayer2YUVJPEG:Bayer2Yuv_0 InputDependency For GID[Session:0 Pipeline:0 Port:0 Type:0] BatchIndex:0 InputDependencyIndex:0, toBeSatisfied:1, BufferHandle:0xb4000075ff4fbec0
05-19 16:18:11.623 29089 29124 I CHIUSECASE: [INFO ] chifeature2requestobject.cpp:3117 AreInputDependenciesStatisfied() FRO-URO:105_RTRawHDRBayer2YUVJPEG:Bayer2Yuv_0: Input Dependency Satisfied for batch:0
05-19 16:18:11.623 29089 29124 I CHIUSECASE: [INFO ] chifeature2base.cpp:1714 HandleInputResourcePending() FRO-URO:105_RTRawHDRBayer2YUVJPEG:Bayer2Yuv_0 requestState:InputResourcePending, requestId:0
05-19 16:18:11.623 29089 29124 I CHIUSECASE: [INFO ] chifeature2requestobject.cpp:552 SetCurRequestState() FRO-URO:105_RTRawHDRBayer2YUVJPEG:Bayer2Yuv_0: FeatureRequest State [InputResourcePending]->[InputResourcePendingScheduled] for RequestIndex:0 //Bayer2Yuv状态切换
05-19 16:18:11.623 29089 31426 I CHIUSECASE: [INFO ] chifeature2requestobject.cpp:3117 AreInputDependenciesStatisfied() FRO-URO:105_RTRawHDRBayer2YUVJPEG:Bayer2Yuv_0: Input Dependency Satisfied for batch:0
05-19 16:18:11.623 29089 31426 I CHIUSECASE: [INFO ] chifeature2requestobject.cpp:552 SetCurRequestState() FRO-URO:105_RTRawHDRBayer2YUVJPEG:Bayer2Yuv_0: FeatureRequest State [InputResourcePendingScheduled]->[ReadyToExecute] for RequestIndex:0 //Bayer2Yuv状态切换
05-19 16:18:11.623 29089 31426 I CHIUSECASE: [INFO ] chifeature2base.cpp:413 OnProcessRequest() FRO-URO:105_RTRawHDRBayer2YUVJPEG:Bayer2Yuv_0 requestState:ReadyToExecute, requestId:0
05-19 16:18:11.623 29089 31426 I CHIUSECASE: [INFO ] chifeature2requestobject.cpp:3117 AreInputDependenciesStatisfied() FRO-URO:105_RTRawHDRBayer2YUVJPEG:Bayer2Yuv_0: Input Dependency Satisfied for batch:0
05-19 16:18:11.623 29089 31426 I CHIUSECASE: [INFO ] chifeature2requestobject.cpp:552 SetCurRequestState() FRO-URO:105_RTRawHDRBayer2YUVJPEG:Bayer2Yuv_0: FeatureRequest State [ReadyToExecute]->[Executing] for RequestIndex:0 //Bayer2Yuv状态切换
05-19 16:18:11.623 29089 31426 I CHIUSECASE: [INFO ] chifeature2base.cpp:7809 OnExecuteProcessRequest() FRO-URO:105_RTRawHDRBayer2YUVJPEG:Bayer2Yuv_0 Executing base request flow 0
05-19 16:18:11.626 29089 31426 I CHIUSECASE: [INFO ] chifeature2requestobject.cpp:1569 SetPortDescriptor() FRO-URO:105_RTRawHDRBayer2YUVJPEG:Bayer2Yuv_0 InputConfiguration For PortName:RDI_In GID[Session:0 Pipeline:0 Port:0 Type:1] BatchIndex:0
05-19 16:18:11.626 29089 31426 I CHIUSECASE: [INFO ] chifeature2requestobject.cpp:1894 SetBufferInfo() FRO-URO:105_RTRawHDRBayer2YUVJPEG:Bayer2Yuv_0 InputConfiguration For GID[Session:0 Pipeline:0 Port:0 Type:0] BatchIndex:0, BufferHandle:0xb4000075ff4fbec0
05-19 16:18:11.626 29089 31426 I CHIUSECASE: [INFO ] chifeature2requestobject.cpp:1569 SetPortDescriptor() FRO-URO:105_RTRawHDRBayer2YUVJPEG:Bayer2Yuv_0 InputConfiguration For PortName:B2Y_Input_Metadata GID[Session:0 Pipeline:0 Port:1 Type:1] BatchIndex:0
05-19 16:18:11.626 29089 31426 I CHIUSECASE: [INFO ] chifeature2requestobject.cpp:1894 SetBufferInfo() FRO-URO:105_RTRawHDRBayer2YUVJPEG:Bayer2Yuv_0 InputConfiguration For GID[Session:0 Pipeline:0 Port:1 Type:1] BatchIndex:0, BufferHandle:0xb4000075ff4da870
05-19 16:18:11.626 29089 31426 I CHIUSECASE: [INFO ] chifeature2requestobject.cpp:1591 SetPortDescriptor() FRO-URO:105_RTRawHDRBayer2YUVJPEG:Bayer2Yuv_0 OutputConfiguration For PortName:YUV_Out GID[Session:0 Pipeline:0 Port:0 Type:3] BatchIndex:0
05-19 16:18:11.626 29089 31426 I CHIUSECASE: [INFO ] chifeature2requestobject.cpp:1912 SetBufferInfo() FRO-URO:105_RTRawHDRBayer2YUVJPEG:Bayer2Yuv_0 OutputConfiguration For GID[Session:0 Pipeline:0 Port:0 Type:0] BatchIndex:0, BufferHandle:0xb4000075ff4da200
05-19 16:18:11.626 29089 31426 I CHIUSECASE: [INFO ] chifeature2requestobject.cpp:1591 SetPortDescriptor() FRO-URO:105_RTRawHDRBayer2YUVJPEG:Bayer2Yuv_0 OutputConfiguration For PortName:YUV_Metadata_Out GID[Session:0 Pipeline:0 Port:1 Type:3] BatchIndex:0
05-19 16:18:11.626 29089 31426 I CHIUSECASE: [INFO ] chifeature2requestobject.cpp:1912 SetBufferInfo() FRO-URO:105_RTRawHDRBayer2YUVJPEG:Bayer2Yuv_0 OutputConfiguration For GID[Session:0 Pipeline:0 Port:1 Type:1] BatchIndex:0, BufferHandle:0xb4000075ff537780
05-19 16:18:11.626 29089 31426 I CHIUSECASE: [INFO ] chifeature2base.cpp:1107 SubmitRequestToSession() FRO-URO:105_RTRawHDRBayer2YUVJPEG:Bayer2Yuv_0 Submitting Request:0 with numOutputs:1
05-19 16:18:11.662 29089 31426 I CHIUSECASE: [INFO ] chifeature2requestobject.cpp:552 SetCurRequestState() FRO-URO:105_RTRawHDRBayer2YUVJPEG:Bayer2Yuv_0: FeatureRequest State [Executing]->[OutputResourcePending] for RequestIndex:0 //Bayer2Yuv状态切换
05-19 16:18:11.667 29089 29126 I CHIUSECASE: [INFO ] chifeature2base.cpp:8061 OnPartialMetadataResult() FRO-URO:105_RTRawHDRBayer2YUVJPEG:Bayer2Yuv_0 : Request:0 for pipeline:ZSLSnapshotYUVHAL stageId 0 stageSequenceId 0 pMetadata 0xb40000756f2d9730
05-19 16:18:11.694 29089 29126 I CHIUSECASE: [CONFIG ] chifeature2base.cpp:4345 ProcessResult() FRO-URO:105_RTRawHDRBayer2YUVJPEG:Bayer2Yuv_0 Result from Request:0 with metadata:0xb4000075cf2b3050
05-19 16:18:11.694 29089 29126 I CHIUSECASE: [INFO ] chifeature2base.cpp:8176 OnMetadataResult() FRO-URO:105_RTRawHDRBayer2YUVJPEG:Bayer2Yuv_0 Result from Request:0 for pipeline:ZSLSnapshotYUVHAL stageId 0 stageSequenceId 0 pMetadata 0xb40000756f2d9730
05-19 16:18:11.694 29089 29126 I CHIUSECASE: [INFO ] chifeature2requestobject.cpp:1874 SetBufferInfo() FRO-URO:105_RTRawHDRBayer2YUVJPEG:JPEG_0 InputDependency For GID[Session:0 Pipeline:0 Port:1 Type:1] BatchIndex:0 InputDependencyIndex:0, toBeSatisfied:2, BufferHandle:0xb4000075ff537780
05-19 16:18:11.694 29089 29126 I CHIUSECASE: [INFO ] chifeature2base.cpp:1714 HandleInputResourcePending() FRO-URO:105_RTRawHDRBayer2YUVJPEG:JPEG_0 requestState:InputResourcePending, requestId:0
05-19 16:18:11.694 29089 29126 I CHIUSECASE: [CONFIG ] chifeature2base.cpp:4355 ProcessResult() FRO-URO:105_RTRawHDRBayer2YUVJPEG:Bayer2Yuv_0 Result from Request:0 with 1 buffer(s)
05-19 16:18:11.694 29089 29126 I CHIUSECASE: [INFO ] chifeature2base.cpp:7957 OnBufferResult() FRO-URO:105_RTRawHDRBayer2YUVJPEG:Bayer2Yuv_0 Result from Request:0 for port:YUV_Out stageId 0 stageSequenceId 0 stream width height format 2592 1944 35
05-19 16:18:11.694 29089 29126 I CHIUSECASE: [INFO ] chifeature2requestobject.cpp:552 SetCurRequestState() FRO-URO:105_RTRawHDRBayer2YUVJPEG:Bayer2Yuv_0: FeatureRequest State [OutputResourcePending]->[OutputNotificationPending] for RequestIndex:0 //Bayer2Yuv状态切换
05-19 16:18:11.694 29089 29126 I CHIUSECASE: [INFO ] chifeature2base.cpp:4970 ProcessReleaseDependency() FRO-URO:105_RTRawHDRBayer2YUVJPEG:Bayer2Yuv_0 Release external dependency for port RDI_In index 0
05-19 16:18:11.694 29089 29126 I CHIUSECASE: [INFO ] chifeature2base.cpp:4970 ProcessReleaseDependency() FRO-URO:105_RTRawHDRBayer2YUVJPEG:Bayer2Yuv_0 Release external dependency for port B2Y_Input_Metadata index 0
05-19 16:18:11.694 29089 29126 I CHIUSECASE: [INFO ] chifeature2base.cpp:5032 ProcessReleaseDependency() FRO-URO:105_RTRawHDRBayer2YUVJPEG:Bayer2Yuv_0 Bayer2Yuv: numDependencies = 1 requestId = 0 SequenceId = 0
05-19 16:18:11.695 29089 29126 I CHIUSECASE: [INFO ] chifeature2requestobject.cpp:2741 SetOutputNotifiedForPort() FRO-URO:105_RTRawHDRBayer2YUVJPEG:RawHDR_0 OutputNotified For port RAW_Out_External : GID[Session:0 Pipeline:0 Port:0 Type:0] BatchIndex:0
05-19 16:18:11.695 29089 29126 I CHIUSECASE: [INFO ] chifeature2requestobject.cpp:2927 SetReleaseAcknowledgedForPort() FRO-URO:105_RTRawHDRBayer2YUVJPEG:RawHDR_0 Release Ack For port RAW_Out_External: GID[Session:0 Pipeline:0 Port:0 Type:0] BatchIndex:0
05-19 16:18:11.695 29089 29126 I CHIUSECASE: [INFO ] chifeature2requestobject.cpp:2741 SetOutputNotifiedForPort() FRO-URO:105_RTRawHDRBayer2YUVJPEG:RawHDR_0 OutputNotified For port Meta_Out_External : GID[Session:0 Pipeline:0 Port:1 Type:1] BatchIndex:0
05-19 16:18:11.695 29089 29126 I CHIUSECASE: [INFO ] chifeature2requestobject.cpp:2927 SetReleaseAcknowledgedForPort() FRO-URO:105_RTRawHDRBayer2YUVJPEG:RawHDR_0 Release Ack For port Meta_Out_External: GID[Session:0 Pipeline:0 Port:1 Type:1] BatchIndex:0
05-19 16:18:11.695 29089 29126 I CHIUSECASE: [INFO ] chifeature2requestobject.cpp:3031 AreOutputsReleased() FRO-URO:105_RTRawHDRBayer2YUVJPEG:RawHDR_0: Outputs released for batch:0 with numRequestOutputs=2
05-19 16:18:11.695 29089 29126 I CHIUSECASE: [INFO ] chifeature2requestobject.cpp:552 SetCurRequestState() FRO-URO:105_RTRawHDRBayer2YUVJPEG:RawHDR_0: FeatureRequest State [OutputNotificationPending]->[Complete] for RequestIndex:0 //RawHDR状态切换
05-19 16:18:11.695 29089 29126 I CHIUSECASE: [INFO ] chifeature2base.cpp:1971 CompleteRequest() FRO-URO:105_RTRawHDRBayer2YUVJPEG:RawHDR_0 All 1 requests complete, initiate cleanup
05-19 16:18:11.695 29089 29126 I CHIUSECASE: [INFO ] chifeature2requestobject.cpp:1874 SetBufferInfo() FRO-URO:105_RTRawHDRBayer2YUVJPEG:JPEG_0 InputDependency For GID[Session:0 Pipeline:0 Port:0 Type:0] BatchIndex:0 InputDependencyIndex:0, toBeSatisfied:1, BufferHandle:0xb4000075ff4da200
05-19 16:18:11.695 29089 29126 I CHIUSECASE: [INFO ] chifeature2requestobject.cpp:3117 AreInputDependenciesStatisfied() FRO-URO:105_RTRawHDRBayer2YUVJPEG:JPEG_0: Input Dependency Satisfied for batch:0
05-19 16:18:11.695 29089 29126 I CHIUSECASE: [INFO ] chifeature2base.cpp:1714 HandleInputResourcePending() FRO-URO:105_RTRawHDRBayer2YUVJPEG:JPEG_0 requestState:InputResourcePending, requestId:0
05-19 16:18:11.695 29089 29126 I CHIUSECASE: [INFO ] chifeature2requestobject.cpp:552 SetCurRequestState() FRO-URO:105_RTRawHDRBayer2YUVJPEG:JPEG_0: FeatureRequest State [InputResourcePending]->[InputResourcePendingScheduled] for RequestIndex:0 //JPEG状态切换
05-19 16:18:11.695 29089 31429 I CHIUSECASE: [INFO ] chifeature2requestobject.cpp:3117 AreInputDependenciesStatisfied() FRO-URO:105_RTRawHDRBayer2YUVJPEG:JPEG_0: Input Dependency Satisfied for batch:0
05-19 16:18:11.696 29089 31429 I CHIUSECASE: [INFO ] chifeature2requestobject.cpp:552 SetCurRequestState() FRO-URO:105_RTRawHDRBayer2YUVJPEG:JPEG_0: FeatureRequest State [InputResourcePendingScheduled]->[ReadyToExecute] for RequestIndex:0 //JPEG状态切换
05-19 16:18:11.696 29089 31429 I CHIUSECASE: [INFO ] chifeature2base.cpp:413 OnProcessRequest() FRO-URO:105_RTRawHDRBayer2YUVJPEG:JPEG_0 requestState:ReadyToExecute, requestId:0
05-19 16:18:11.696 29089 31429 I CHIUSECASE: [INFO ] chifeature2requestobject.cpp:3117 AreInputDependenciesStatisfied() FRO-URO:105_RTRawHDRBayer2YUVJPEG:JPEG_0: Input Dependency Satisfied for batch:0
05-19 16:18:11.696 29089 31429 I CHIUSECASE: [INFO ] chifeature2requestobject.cpp:552 SetCurRequestState() FRO-URO:105_RTRawHDRBayer2YUVJPEG:JPEG_0: FeatureRequest State [ReadyToExecute]->[Executing] for RequestIndex:0 //JPEG状态切换
05-19 16:18:11.696 29089 31429 I CHIUSECASE: [INFO ] chifeature2base.cpp:7809 OnExecuteProcessRequest() FRO-URO:105_RTRawHDRBayer2YUVJPEG:JPEG_0 Executing base request flow 0
05-19 16:18:11.696 29089 31429 I CHIUSECASE: [INFO ] chifeature2requestobject.cpp:1569 SetPortDescriptor() FRO-URO:105_RTRawHDRBayer2YUVJPEG:JPEG_0 InputConfiguration For PortName:YUV_In GID[Session:0 Pipeline:0 Port:0 Type:1] BatchIndex:0
05-19 16:18:11.696 29089 31429 I CHIUSECASE: [INFO ] chifeature2requestobject.cpp:1894 SetBufferInfo() FRO-URO:105_RTRawHDRBayer2YUVJPEG:JPEG_0 InputConfiguration For GID[Session:0 Pipeline:0 Port:0 Type:0] BatchIndex:0, BufferHandle:0xb4000075ff4da200
05-19 16:18:11.696 29089 31429 I CHIUSECASE: [INFO ] chifeature2requestobject.cpp:1569 SetPortDescriptor() FRO-URO:105_RTRawHDRBayer2YUVJPEG:JPEG_0 InputConfiguration For PortName:JPEG_Input_Metadata GID[Session:0 Pipeline:0 Port:1 Type:1] BatchIndex:0
05-19 16:18:11.696 29089 31429 I CHIUSECASE: [INFO ] chifeature2requestobject.cpp:1894 SetBufferInfo() FRO-URO:105_RTRawHDRBayer2YUVJPEG:JPEG_0 InputConfiguration For GID[Session:0 Pipeline:0 Port:1 Type:1] BatchIndex:0, BufferHandle:0xb4000075ff537780
05-19 16:18:11.696 29089 31429 I CHIUSECASE: [INFO ] chifeature2requestobject.cpp:1591 SetPortDescriptor() FRO-URO:105_RTRawHDRBayer2YUVJPEG:JPEG_0 OutputConfiguration For PortName:JPEG_Out GID[Session:0 Pipeline:0 Port:0 Type:3] BatchIndex:0
05-19 16:18:11.697 29089 31429 I CHIUSECASE: [INFO ] chifeature2requestobject.cpp:1912 SetBufferInfo() FRO-URO:105_RTRawHDRBayer2YUVJPEG:JPEG_0 OutputConfiguration For GID[Session:0 Pipeline:0 Port:0 Type:0] BatchIndex:0, BufferHandle:0xb4000075ff4a7d50
05-19 16:18:11.697 29089 31429 I CHIUSECASE: [INFO ] chifeature2requestobject.cpp:1591 SetPortDescriptor() FRO-URO:105_RTRawHDRBayer2YUVJPEG:JPEG_0 OutputConfiguration For PortName:JPEG_Metadata_Out GID[Session:0 Pipeline:0 Port:1 Type:3] BatchIndex:0
05-19 16:18:11.697 29089 31429 I CHIUSECASE: [INFO ] chifeature2requestobject.cpp:1912 SetBufferInfo() FRO-URO:105_RTRawHDRBayer2YUVJPEG:JPEG_0 OutputConfiguration For GID[Session:0 Pipeline:0 Port:1 Type:1] BatchIndex:0, BufferHandle:0xb4000075ff544bf0
05-19 16:18:11.697 29089 31429 I CHIUSECASE: [INFO ] chifeature2base.cpp:1107 SubmitRequestToSession() FRO-URO:105_RTRawHDRBayer2YUVJPEG:JPEG_0 Submitting Request:0 with numOutputs:1
05-19 16:18:11.711 29089 31429 I CHIUSECASE: [INFO ] chifeature2requestobject.cpp:552 SetCurRequestState() FRO-URO:105_RTRawHDRBayer2YUVJPEG:JPEG_0: FeatureRequest State [Executing]->[OutputResourcePending] for RequestIndex:0 //JPEG状态切换
05-19 16:18:11.712 29089 29123 I CHIUSECASE: [INFO ] chifeature2base.cpp:8061 OnPartialMetadataResult() FRO-URO:105_RTRawHDRBayer2YUVJPEG:JPEG_0 : Request:0 for pipeline:InternalZSLYuv2Jpeg stageId 0 stageSequenceId 0 pMetadata 0xb40000756f2d6e90
05-19 16:18:11.779 29089 29126 I CHIUSECASE: [CONFIG ] chifeature2base.cpp:4345 ProcessResult() FRO-URO:105_RTRawHDRBayer2YUVJPEG:JPEG_0 Result from Request:0 with metadata:0xb4000075cf2c6450
05-19 16:18:11.779 29089 29126 I CHIUSECASE: [INFO ] chifeature2base.cpp:8176 OnMetadataResult() FRO-URO:105_RTRawHDRBayer2YUVJPEG:JPEG_0 Result from Request:0 for pipeline:InternalZSLYuv2Jpeg stageId 0 stageSequenceId 0 pMetadata 0xb40000756f2d6e90
05-19 16:18:11.790 29089 29126 I CHIUSECASE: [INFO ] chifeature2requestobject.cpp:2741 SetOutputNotifiedForPort() FRO-URO:105_RTRawHDRBayer2YUVJPEG:JPEG_0 OutputNotified For port JPEG_Metadata_Out : GID[Session:0 Pipeline:0 Port:1 Type:1] BatchIndex:0
05-19 16:18:11.790 29089 29126 I CHIUSECASE: [INFO ] chifeature2requestobject.cpp:2927 SetReleaseAcknowledgedForPort() FRO-URO:105_RTRawHDRBayer2YUVJPEG:JPEG_0 Release Ack For port JPEG_Metadata_Out: GID[Session:0 Pipeline:0 Port:1 Type:1] BatchIndex:0
05-19 16:18:11.790 29089 29126 I CHIUSECASE: [INFO ] chifeature2requestobject.cpp:2752 SetOutputNotifiedForPort() FRO-URO:105_RTRawHDRBayer2YUVJPEG:JPEG_0 OutputNotified Already notified For GID[Session:0 Pipeline:0 Port:1 Type:1]BatchIndex:0
05-19 16:18:11.790 29089 29126 I CHIUSECASE: [CONFIG ] chifeature2base.cpp:4355 ProcessResult() FRO-URO:105_RTRawHDRBayer2YUVJPEG:JPEG_0 Result from Request:0 with 1 buffer(s)
05-19 16:18:11.790 29089 29126 I CHIUSECASE: [INFO ] chifeature2base.cpp:7957 OnBufferResult() FRO-URO:105_RTRawHDRBayer2YUVJPEG:JPEG_0 Result from Request:0 for port:JPEG_Out stageId 0 stageSequenceId 0 stream width height format 2592 1944 33
05-19 16:18:11.790 29089 29126 I CHIUSECASE: [INFO ] chifeature2requestobject.cpp:552 SetCurRequestState() FRO-URO:105_RTRawHDRBayer2YUVJPEG:JPEG_0: FeatureRequest State [OutputResourcePending]->[OutputNotificationPending] for RequestIndex:0 //JPEG状态切换
05-19 16:18:11.790 29089 29126 I CHIUSECASE: [INFO ] chifeature2base.cpp:4970 ProcessReleaseDependency() FRO-URO:105_RTRawHDRBayer2YUVJPEG:JPEG_0 Release external dependency for port YUV_In index 0
05-19 16:18:11.790 29089 29126 I CHIUSECASE: [INFO ] chifeature2base.cpp:4970 ProcessReleaseDependency() FRO-URO:105_RTRawHDRBayer2YUVJPEG:JPEG_0 Release external dependency for port JPEG_Input_Metadata index 0
05-19 16:18:11.790 29089 29126 I CHIUSECASE: [INFO ] chifeature2base.cpp:5032 ProcessReleaseDependency() FRO-URO:105_RTRawHDRBayer2YUVJPEG:JPEG_0 JPEG: numDependencies = 1 requestId = 0 SequenceId = 0
05-19 16:18:11.790 29089 29126 I CHIUSECASE: [INFO ] chifeature2requestobject.cpp:2741 SetOutputNotifiedForPort() FRO-URO:105_RTRawHDRBayer2YUVJPEG:Bayer2Yuv_0 OutputNotified For port YUV_Out : GID[Session:0 Pipeline:0 Port:0 Type:0] BatchIndex:0
05-19 16:18:11.790 29089 29126 I CHIUSECASE: [INFO ] chifeature2requestobject.cpp:2927 SetReleaseAcknowledgedForPort() FRO-URO:105_RTRawHDRBayer2YUVJPEG:Bayer2Yuv_0 Release Ack For port YUV_Out: GID[Session:0 Pipeline:0 Port:0 Type:0] BatchIndex:0
05-19 16:18:11.790 29089 29126 I CHIUSECASE: [INFO ] chifeature2requestobject.cpp:2741 SetOutputNotifiedForPort() FRO-URO:105_RTRawHDRBayer2YUVJPEG:Bayer2Yuv_0 OutputNotified For port YUV_Metadata_Out : GID[Session:0 Pipeline:0 Port:1 Type:1] BatchIndex:0
05-19 16:18:11.791 29089 29126 I CHIUSECASE: [INFO ] chifeature2requestobject.cpp:2927 SetReleaseAcknowledgedForPort() FRO-URO:105_RTRawHDRBayer2YUVJPEG:Bayer2Yuv_0 Release Ack For port YUV_Metadata_Out: GID[Session:0 Pipeline:0 Port:1 Type:1] BatchIndex:0
05-19 16:18:11.791 29089 29126 I CHIUSECASE: [INFO ] chifeature2requestobject.cpp:3031 AreOutputsReleased() FRO-URO:105_RTRawHDRBayer2YUVJPEG:Bayer2Yuv_0: Outputs released for batch:0 with numRequestOutputs=2
05-19 16:18:11.791 29089 29126 I CHIUSECASE: [INFO ] chifeature2requestobject.cpp:552 SetCurRequestState() FRO-URO:105_RTRawHDRBayer2YUVJPEG:Bayer2Yuv_0: FeatureRequest State [OutputNotificationPending]->[Complete] for RequestIndex:0 //Bayer2Yuv状态切换
05-19 16:18:11.791 29089 29126 I CHIUSECASE: [INFO ] chifeature2base.cpp:1971 CompleteRequest() FRO-URO:105_RTRawHDRBayer2YUVJPEG:Bayer2Yuv_0 All 1 requests complete, initiate cleanup
05-19 16:18:11.793 29089 29126 I CHIUSECASE: [INFO ] chifeature2requestobject.cpp:2741 SetOutputNotifiedForPort() FRO-URO:105_RTRawHDRBayer2YUVJPEG:JPEG_0 OutputNotified For port JPEG_Out : GID[Session:0 Pipeline:0 Port:0 Type:0] BatchIndex:0
05-19 16:18:11.793 29089 29126 I CHIUSECASE: [INFO ] chifeature2requestobject.cpp:2927 SetReleaseAcknowledgedForPort() FRO-URO:105_RTRawHDRBayer2YUVJPEG:JPEG_0 Release Ack For port JPEG_Out: GID[Session:0 Pipeline:0 Port:0 Type:0] BatchIndex:0
05-19 16:18:11.793 29089 29126 I CHIUSECASE: [INFO ] chifeature2requestobject.cpp:3031 AreOutputsReleased() FRO-URO:105_RTRawHDRBayer2YUVJPEG:JPEG_0: Outputs released for batch:0 with numRequestOutputs=2
05-19 16:18:11.793 29089 29126 I CHIUSECASE: [INFO ] chifeature2requestobject.cpp:552 SetCurRequestState() FRO-URO:105_RTRawHDRBayer2YUVJPEG:JPEG_0: FeatureRequest State [OutputNotificationPending]->[Complete] for RequestIndex:0 //JPEG状态切换
05-19 16:18:11.793 29089 29126 I CHIUSECASE: [INFO ] chifeature2base.cpp:1971 CompleteRequest() FRO-URO:105_RTRawHDRBayer2YUVJPEG:JPEG_0 All 1 requests complete, initiate cleanup
05-19 16:18:11.793 29089 29126 I CHIUSECASE: [INFO ] chifeature2requestobject.cpp:2752 SetOutputNotifiedForPort() FRO-URO:105_RTRawHDRBayer2YUVJPEG:JPEG_0 OutputNotified Already notified For GID[Session:0 Pipeline:0 Port:0 Type:0]BatchIndex:0
05-19 16:18:11.793 29089 29126 I CHIUSECASE: [INFO ] chifeature2base.cpp:7625 OnProcessingDependenciesComplete() FRO-URO:105_RTRawHDRBayer2YUVJPEG:JPEG_0 All ports are done processing; generating processing dependencies complete feature message
05-19 16:18:11.793 29089 29126 I CHIUSECASE: [INFO ] chifeature2base.cpp:7625 OnProcessingDependenciesComplete() FRO-URO:105_RTRawHDRBayer2YUVJPEG:Bayer2Yuv_0 All ports are done processing; generating processing dependencies complete feature message
05-19 16:18:11.793 29089 29126 I CHIUSECASE: [INFO ] chifeature2base.cpp:7625 OnProcessingDependenciesComplete() FRO-URO:105_RTRawHDRBayer2YUVJPEG:RawHDR_0 All ports are done processing; generating processing dependencies complete feature message
05-19 16:18:11.794 29089 29126 I CHIUSECASE: [INFO ] chifeature2base.cpp:7625 OnProcessingDependenciesComplete() FRO-URO:105_RTRawHDRBayer2YUVJPEG:RealTime_0 All ports are done processing; generating processing dependencies complete feature message
05-19 16:18:11.794 29089 29126 I CHIUSECASE: [INFO ] chifeature2graph.cpp:2746 ProcessResultMetadataMessage() FRO-URO:105_RTRawHDRBayer2YUVJPEG:JPEG_0 All FROs reported ProcessingComplete; moving URO to Complete
05-19 16:18:11.850 29089 29089 I CHIUSECASE: [INFO ] chifeature2requestobject.cpp:564 SetCurRequestState() FRO-URO:105_RTRawHDRBayer2YUVJPEG:RealTime_0: FeatureRequest State [Complete]->[Invalid] is not permitted for RequestIndex:0 //RealTime状态切换
05-19 16:18:11.850 29089 29089 I CHIUSECASE: [INFO ] chifeature2requestobject.cpp:564 SetCurRequestState() FRO-URO:105_RTRawHDRBayer2YUVJPEG:RealTime_0: FeatureRequest State [Complete]->[Invalid] is not permitted for RequestIndex:1 //RealTime状态切换
05-19 16:18:11.850 29089 29089 I CHIUSECASE: [INFO ] chifeature2requestobject.cpp:564 SetCurRequestState() FRO-URO:105_RTRawHDRBayer2YUVJPEG:RealTime_0: FeatureRequest State [Complete]->[Invalid] is not permitted for RequestIndex:2 //RealTime状态切换
05-19 16:18:11.850 29089 29089 I CHIUSECASE: [INFO ] chifeature2requestobject.cpp:511 Destroy() FRO-URO:105_RTRawHDRBayer2YUVJPEG:RealTime_0: Destroyed
05-19 16:18:11.850 29089 29089 I CHIUSECASE: [INFO ] chifeature2requestobject.cpp:564 SetCurRequestState() FRO-URO:105_RTRawHDRBayer2YUVJPEG:RawHDR_0: FeatureRequest State [Complete]->[Invalid] is not permitted for RequestIndex:0 //RawHDR状态切换
05-19 16:18:11.850 29089 29089 I CHIUSECASE: [INFO ] chifeature2requestobject.cpp:511 Destroy() FRO-URO:105_RTRawHDRBayer2YUVJPEG:RawHDR_0: Destroyed
05-19 16:18:11.850 29089 29089 I CHIUSECASE: [INFO ] chifeature2requestobject.cpp:564 SetCurRequestState() FRO-URO:105_RTRawHDRBayer2YUVJPEG:Bayer2Yuv_0: FeatureRequest State [Complete]->[Invalid] is not permitted for RequestIndex:0 //RawHDR状态切换
05-19 16:18:11.850 29089 29089 I CHIUSECASE: [INFO ] chifeature2requestobject.cpp:511 Destroy() FRO-URO:105_RTRawHDRBayer2YUVJPEG:Bayer2Yuv_0: Destroyed
05-19 16:18:11.850 29089 29089 I CHIUSECASE: [INFO ] chifeature2requestobject.cpp:564 SetCurRequestState() FRO-URO:105_RTRawHDRBayer2YUVJPEG:JPEG_0: FeatureRequest State [Complete]->[Invalid] is not permitted for RequestIndex:0 //JPEG状态切换
05-19 16:18:11.850 29089 29089 I CHIUSECASE: [INFO ] chifeature2requestobject.cpp:511 Destroy() FRO-URO:105_RTRawHDRBayer2YUVJPEG:JPEG_0: Destroyed
扫一扫
5742
被折叠的 条评论
为什么被折叠?
到【灌水乐园】发言
