华三H3C端口聚合与链路聚合

端口聚合是思科的叫法，链路聚合是华为与华三的叫法，网上也有不同解释，自己查资料理解区别吧

端口聚合 把端口加入端口组（group），链路聚合 把链路聚合在一起

华三配置

静态聚合模式

<H3C>system-view
[H3C]int Bridge-Aggregation 1
[H3C-Bridge-Aggregation1]quit
[H3C]int GigabitEthernet 1/0/1
[H3C-GigabitEthernet1/0/1]port link-aggregation group 1
[H3C-GigabitEthernet1/0/1]int GigabitEthernet 1/0/2
[H3C-GigabitEthernet1/0/2]port link-aggregation group 1
[H3C-GigabitEthernet1/0/2]int GigabitEthernet 1/0/3
[H3C-GigabitEthernet1/0/3]port link-aggregation group 1

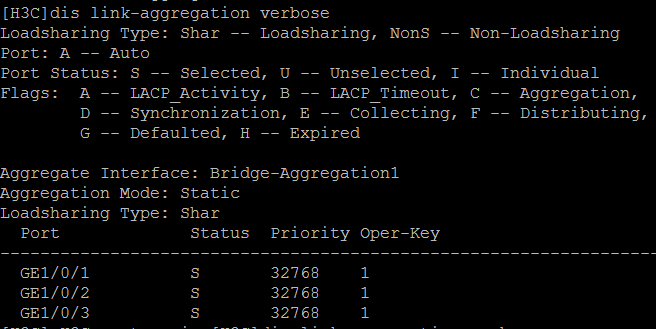

[H3C]dis link-aggregation verbose


动态聚合模式
<H3C>system-view
[H3C]int Bridge-Aggregation 1
[H3C-Bridge-Aggregation1]link-aggregation mode dynamic
[H3C-Bridge-Aggregation1]quit
[H3C]int GigabitEthernet 1/0/1
[H3C-GigabitEthernet1/0/1]port link-aggregation group 1
[H3C-GigabitEthernet1/0/1]int GigabitEthernet 1/0/2
[H3C-GigabitEthernet1/0/2]port link-aggregation group 1
[H3C-GigabitEthernet1/0/2]int GigabitEthernet 1/0/3
[H3C-GigabitEthernet1/0/3]port link-aggregation group 1

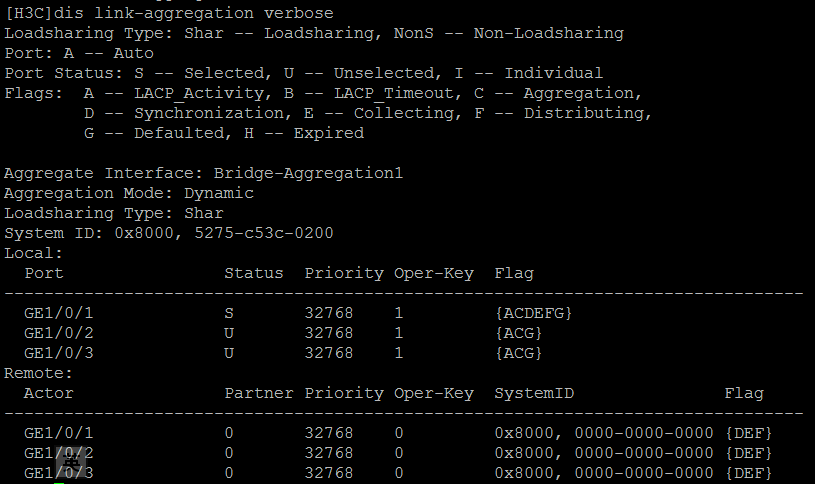

[H3C]dis link-aggregation verbose

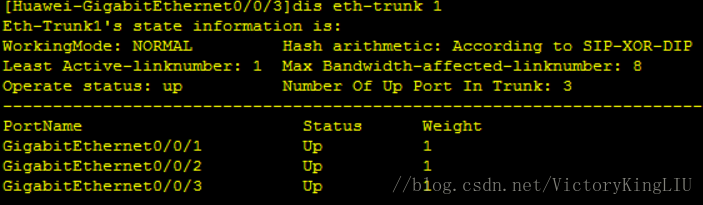

华为配置

<Huawei>system-view
[Huawei]int Eth-Trunk 1
[Huawei-Eth-Trunk1]q
[Huawei]int g0/0/1
[Huawei-GigabitEthernet0/0/1]eth-trunk 1
[Huawei-GigabitEthernet0/0/1]int g0/0/2
[Huawei-GigabitEthernet0/0/2]eth-trunk 1
[Huawei-GigabitEthernet0/0/1]int g0/0/2

[Huawei-GigabitEthernet0/0/2]eth-trunk 1

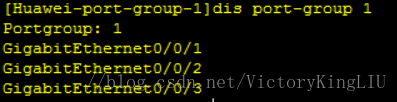

端口聚合

<Huawei>system-view

[Huawei]port-group 1

[Huawei-port-group-1]group-member GigabitEthernet 0/0/1 to GigabitEthernet 0/0/3

总节：先创建聚合（端口）组，再将端口加入（端口）聚合组
