1、先给物理机添加一块回环网卡;
参考教程:https://blog.csdn.net/qq_25574439/article/details/122427361

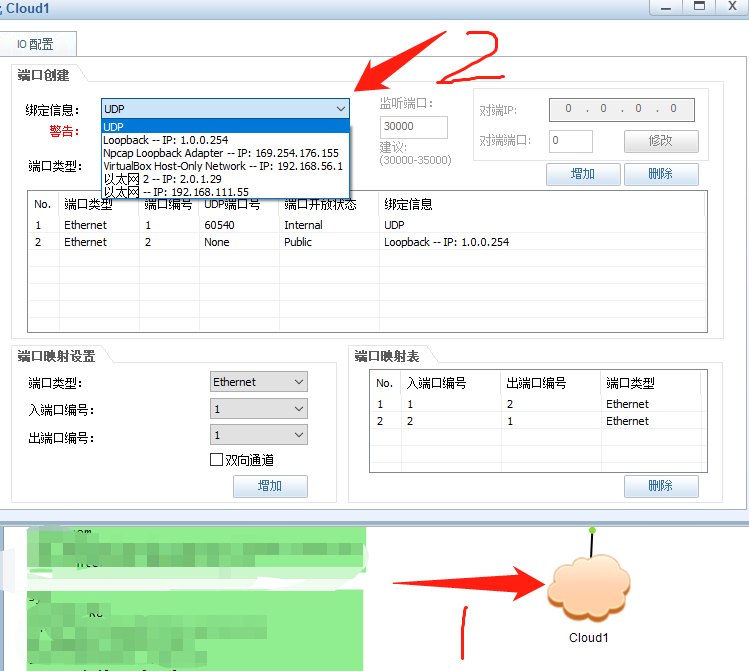

2、打开eNSP添加Cloud
注:若在绑定信息中无法识别回环网卡,请重启电脑

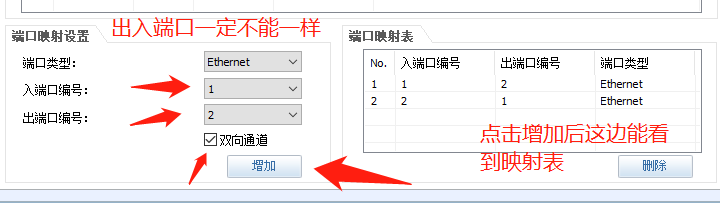

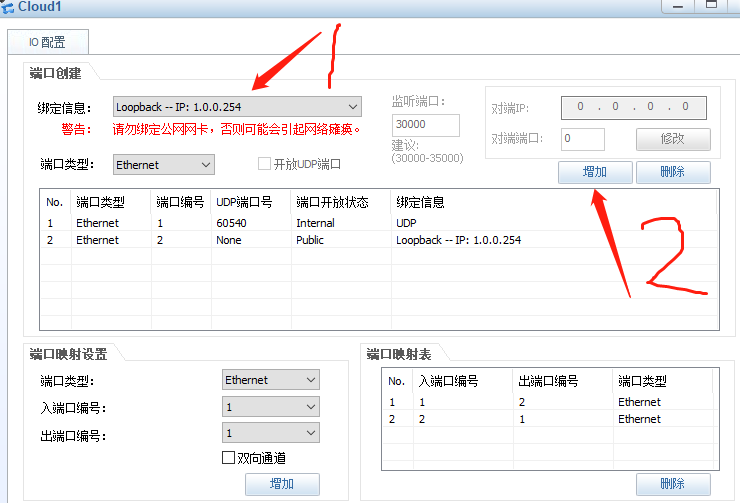

3、添加端口类型

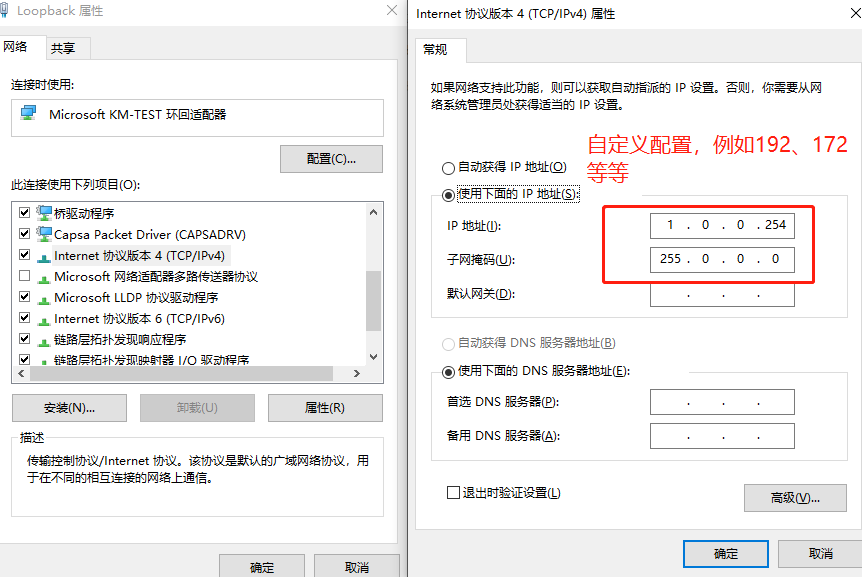

4、配置物理机中回环网卡地址
注:回环网卡地址必须和eNSP中设备同一网段

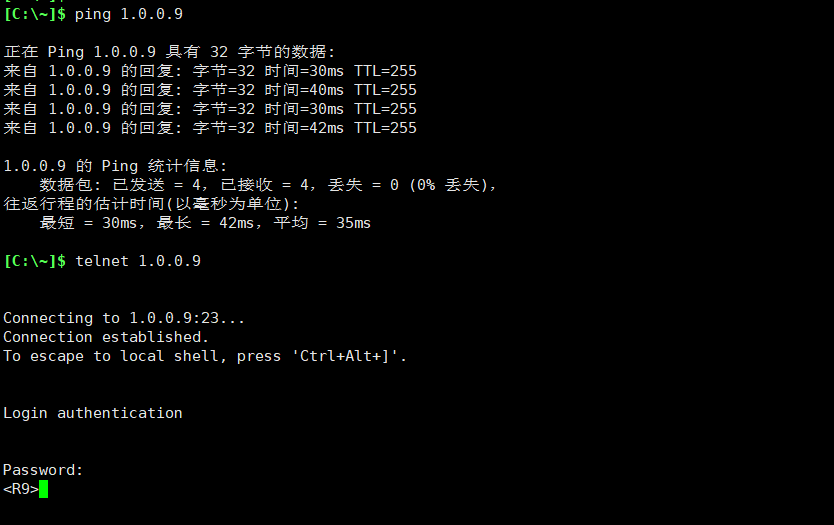

5、物理机远程访问eNSP交换机
注:交换机需配置地址,认证模式才能远程(AAA / password)
在交换机上输入配置命令:
system-view
interface Vlanif1
ip address 1.0.0.111 24
user-interface vty0 4
authentication-mode password
set authentication password cipher 1234.com
user privilege level 15
