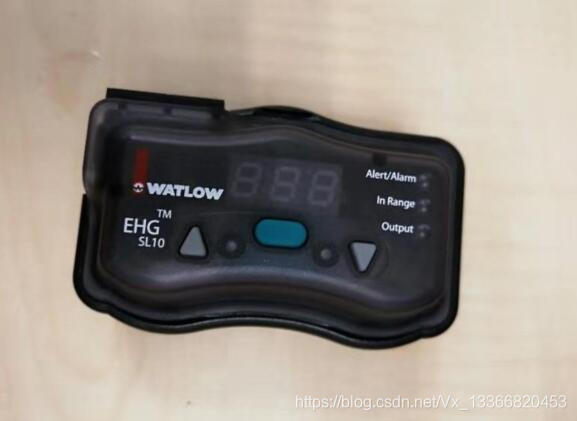

WATLOW EHG SL10 EHG2-CNTL-0000
WATLOW EHG SL10 EHG2-CNTL-0000
在这里插入图片描述
Integrated Temperature Control
• Standard Molex Connectors
• Dimensions
Configuration Width Depth Height
basic unit 88.8 mm
(3.496 in)
40.2 mm
(1.582 in)
55.8 mm
(2.196 in)
with mounting bracket 88.8 mm
(3.496 in)
48.4 mm
(1.907 in)
55.8 mm
(2.196 in)
with communicatons-display module & mounting
bracket
88.8 mm
(3.496 in)
63.6 mm
(2.503)
55.8 mm
(2.196 in)
Optional Communications Module
• Field adjustable set point
• Access to PID parameters
• Modbus RTU Communications
• RS-485
• 3-character, 7-segment LED display
• User Interface Software
The Series EHG SL10 User’s Guide is copyrighted by
Watlow Winona, Inc., © February 2011, with all rights
reserved.
Patent Pending
