Android 电子签名和文字抄录(封装成sdk) 银行签名和微信涂鸦实例

应用场景：

1.以前去银行办理业务都得去柜台，填N张表格，写N多个签名。随着智能机的普及、移动终端app的使用场景越来越广泛。手机银行app也给越来越多的人办理银行业务提供便捷，妈妈再也不用但是我们去银行排队浪费时间了。然而，有的业务该走的流程必须得走，所以电子签名的需求也就凸显出来。

2.小孩的作业

3.微信里面的涂鸦功能





sdk的封装东西

1.so库

2.jar

3.assert目录存放资源文件

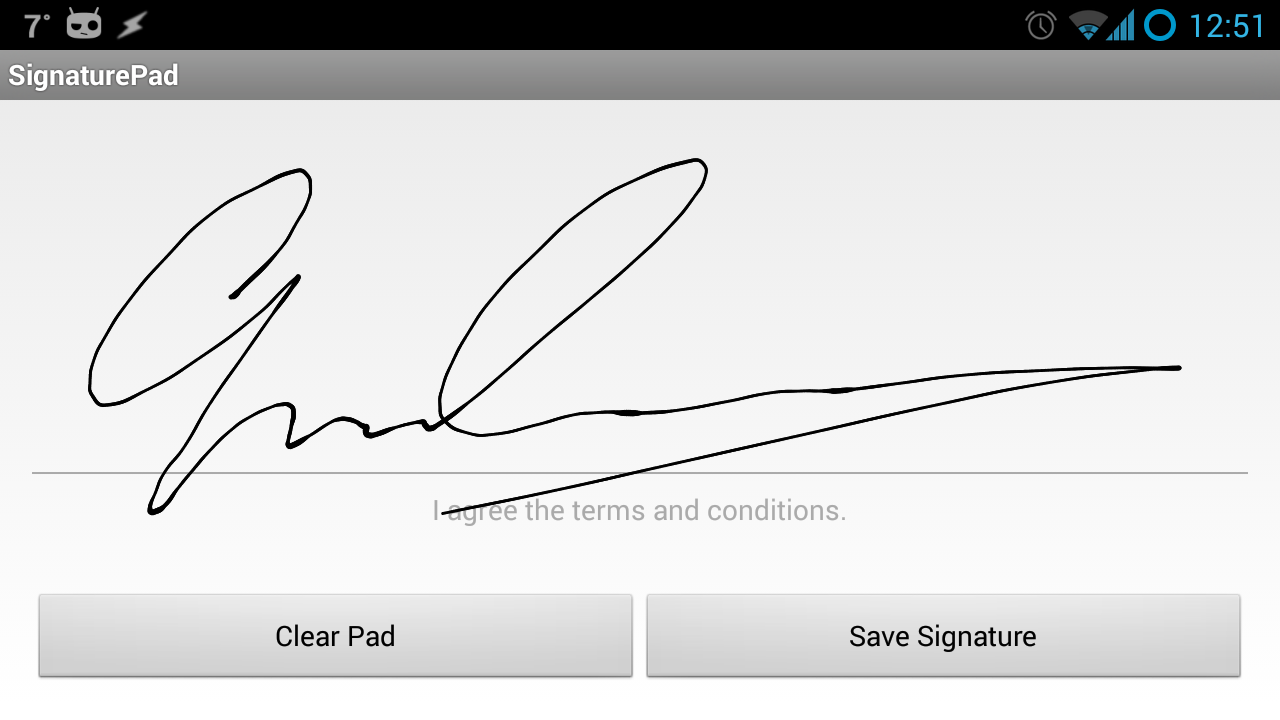

客户端实现功能

1.可以保存，生成图片

2.可以取消

3.可以清除

4.生成签名图片 把view转成bitmap

5.图片压缩



流程

1.客户端生成加密串

2.通过接口得到加密串解密，这个时候回调用国家ca认证，有法律效应

3.把得到的信息图片和模板生成pdf文件



 public SignatureView(Context context, AttributeSet attrs) {

  super(context, attrs);



  TypedArray a = context.getTheme().obtainStyledAttributes(attrs, R.styleable.SignatureView, 0, 0);



  // Configurable parameters

  try {

   mMinWidth = a.getDimensionPixelSize(R.styleable.SignatureView_minWidth, convertDpToPx(3));

   mMaxWidth = a.getDimensionPixelSize(R.styleable.SignatureView_maxWidth, convertDpToPx(7));

   mVelocityFilterWeight = a.getFloat(R.styleable.SignatureView_velocityFilterWeight, 0.9f);

   mPaint.setColor(a.getColor(R.styleable.SignatureView_penColor, Color.BLACK));

  } finally {

   a.recycle();

  }



  // Fixed parameters

  mPaint.setAntiAlias(true);

  mPaint.setStyle(Paint.Style.STROKE);

  mPaint.setStrokeCap(Paint.Cap.ROUND);

  mPaint.setStrokeJoin(Paint.Join.ROUND);



  // Dirty rectangle to update only the changed portion of the view

  mDirtyRect = new RectF();



  clear();

 }



 /**

  * Set the pen color from a given resource. If the resource is not found,

  * {@link android.graphics.Color#BLACK} is assumed.

  *

  * @param colorRes

  * the color resource.

  */

 public void setPenColorRes(int colorRes) {

  try {

   setPenColor(getResources().getColor(colorRes));

  } catch (Resources.NotFoundException ex) {

   setPenColor(getResources().getColor(Color.BLACK));

  }

 }



 /**

  * Set the pen color from a given color.

  *

  * @param color

  * the color.

  */

 public void setPenColor(int color) {

  mPaint.setColor(color);

 }



 /**

  * Set the minimum width of the stroke in pixel.

  *

  * @param minWidth

  * the width in dp.

  */

 public void setMinWidth(float minWidth) {

  mMinWidth = convertDpToPx(minWidth);

 }



 /**

  * Set the maximum width of the stroke in pixel.

  *

  * @param maxWidth

  * the width in dp.

  */

 public void setMaxWidth(float maxWidth) {

  mMaxWidth = convertDpToPx(maxWidth);

 }



 /**

  * Set the velocity filter weight.

  *

  * @param velocityFilterWeight

  * the weight.

  */

 public void setVelocityFilterWeight(float velocityFilterWeight) {

  mVelocityFilterWeight = velocityFilterWeight;

 }



 public void clear() {

  mPoints = new ArrayList<TimedPoint>();

  mLastVelocity = 0;

  mLastWidth = (mMinWidth + mMaxWidth) / 2;

  mPath.reset();



  if (mSignatureBitmap != null) {

   mSignatureBitmap = null;

   ensureSignatureBitmap();

  }



  setIsEmpty(true);



  invalidate();

 }



 @Override

 public boolean onTouchEvent(MotionEvent event) {

  if (!isEnabled())

   return false;



  float eventX = event.getX();

  float eventY = event.getY();



  switch (event.getAction()) {

  case MotionEvent.ACTION_DOWN:

   getParent().requestDisallowInterceptTouchEvent(true);

   mPoints.clear();

   mPath.moveTo(eventX, eventY);

   mLastTouchX = eventX;

   mLastTouchY = eventY;

   addPoint(new TimedPoint(eventX, eventY));



  case MotionEvent.ACTION_MOVE:

   resetDirtyRect(eventX, eventY);

   addPoint(new TimedPoint(eventX, eventY));

   break;



  case MotionEvent.ACTION_UP:

   resetDirtyRect(eventX, eventY);

   addPoint(new TimedPoint(eventX, eventY));

   getParent().requestDisallowInterceptTouchEvent(true);

   setIsEmpty(false);

   break;



  default:

   return false;

  }



  // invalidate();

  invalidate((int) (mDirtyRect.left - mMaxWidth), (int) (mDirtyRect.top - mMaxWidth),

    (int) (mDirtyRect.right + mMaxWidth), (int) (mDirtyRect.bottom + mMaxWidth));



  return true;

 }



 @Override

 protected void onDraw(Canvas canvas) {

  if (mSignatureBitmap != null) {

   canvas.drawBitmap(mSignatureBitmap, 0, 0, mPaint);

  }

 }



 public void setOnSignedListener(OnSignedListener listener) {

  mOnSignedListener = listener;

 }



 public boolean isEmpty() {

  return mIsEmpty;

 }



 public Bitmap getSignatureBitmap() {

  Bitmap originalBitmap = getTransparentSignatureBitmap();

  Bitmap whiteBgBitmap = Bitmap.createBitmap(originalBitmap.getWidth(), originalBitmap.getHeight(),

    Bitmap.Config.ARGB_8888);

  Canvas canvas = new Canvas(whiteBgBitmap);

  canvas.drawColor(Color.WHITE);

  canvas.drawBitmap(originalBitmap, 0, 0, null);

  return whiteBgBitmap;

 }



 public void setSignatureBitmap(Bitmap signature) {

  clear();

  ensureSignatureBitmap();



  RectF tempSrc = new RectF();

  RectF tempDst = new RectF();



  int dWidth = signature.getWidth();

  int dHeight = signature.getHeight();

  int vWidth = getWidth();

  int vHeight = getHeight();



  // Generate the required transform.

  tempSrc.set(0, 0, dWidth, dHeight);

  tempDst.set(0, 0, vWidth, vHeight);



  Matrix drawMatrix = new Matrix();

  drawMatrix.setRectToRect(tempSrc, tempDst, Matrix.ScaleToFit.CENTER);



  Canvas canvas = new Canvas(mSignatureBitmap);

  canvas.drawBitmap(signature, drawMatrix, null);

  setIsEmpty(false);

  invalidate();

 }



 public Bitmap getTransparentSignatureBitmap() {

  ensureSignatureBitmap();

  return mSignatureBitmap;

 }



 public Bitmap getTransparentSignatureBitmap(boolean trimBlankSpace) {



  if (!trimBlankSpace) {

   return getTransparentSignatureBitmap();

  }



  ensureSignatureBitmap();



  int imgHeight = mSignatureBitmap.getHeight();

  int imgWidth = mSignatureBitmap.getWidth();



  int backgroundColor = Color.TRANSPARENT;



  int xMin = Integer.MAX_VALUE, xMax = Integer.MIN_VALUE, yMin = Integer.MAX_VALUE, yMax = Integer.MIN_VALUE;



  boolean foundPixel = false;



  // Find xMin

  for (int x = 0; x < imgWidth; x++) {

   boolean stop = false;

   for (int y = 0; y < imgHeight; y++) {

    if (mSignatureBitmap.getPixel(x, y) != backgroundColor) {

     xMin = x;

     stop = true;

     foundPixel = true;

     break;

    }

   }

   if (stop)

    break;

  }



  // Image is empty...

  if (!foundPixel)

   return null;



  // Find yMin

  for (int y = 0; y < imgHeight; y++) {

   boolean stop = false;

   for (int x = xMin; x < imgWidth; x++) {

    if (mSignatureBitmap.getPixel(x, y) != backgroundColor) {

     yMin = y;

     stop = true;

     break;

    }

   }

   if (stop)

    break;

  }



  // Find xMax

  for (int x = imgWidth - 1; x >= xMin; x--) {

   boolean stop = false;

   for (int y = yMin; y < imgHeight; y++) {

    if (mSignatureBitmap.getPixel(x, y) != backgroundColor) {

     xMax = x;

     stop = true;

     break;

    }

   }

   if (stop)

    break;

  }



  // Find yMax

  for (int y = imgHeight - 1; y >= yMin; y--) {

   boolean stop = false;

   for (int x = xMin; x <= xMax; x++) {

    if (mSignatureBitmap.getPixel(x, y) != backgroundColor) {

     yMax = y;

     stop = true;

     break;

    }

   }

   if (stop)

    break;

  }



  return Bitmap.createBitmap(mSignatureBitmap, xMin, yMin, xMax - xMin, yMax - yMin);

 }



 private void addPoint(TimedPoint newPoint) {

  mPoints.add(newPoint);

  if (mPoints.size() > 2) {

   // To reduce the initial lag make it work with 3 mPoints

   // by copying the first point to the beginning.

   if (mPoints.size() == 3)

    mPoints.add(0, mPoints.get(0));



   ControlTimedPoints tmp = calculateCurveControlPoints(mPoints.get(0), mPoints.get(1), mPoints.get(2));

   TimedPoint c2 = tmp.c2;

   tmp = calculateCurveControlPoints(mPoints.get(1), mPoints.get(2), mPoints.get(3));

   TimedPoint c3 = tmp.c1;

   Bezier curve = new Bezier(mPoints.get(1), c2, c3, mPoints.get(2));



   TimedPoint startPoint = curve.startPoint;

   TimedPoint endPoint = curve.endPoint;



   float velocity = endPoint.velocityFrom(startPoint);

   velocity = Float.isNaN(velocity) ? 0.0f : velocity;



   velocity = mVelocityFilterWeight * velocity + (1 - mVelocityFilterWeight) * mLastVelocity;



   // The new width is a function of the velocity. Higher velocities

   // correspond to thinner strokes.

   float newWidth = strokeWidth(velocity);



   // The Bezier's width starts out as last curve's final width, and

   // gradually changes to the stroke width just calculated. The new

   // width calculation is based on the velocity between the Bezier's

   // start and end mPoints.

   addBezier(curve, mLastWidth, newWidth);



   mLastVelocity = velocity;

   mLastWidth = newWidth;



   // Remove the first element from the list,

   // so that we always have no more than 4 mPoints in mPoints array.

   mPoints.remove(0);

  }

 }



 private void addBezier(Bezier curve, float startWidth, float endWidth) {

  ensureSignatureBitmap();

  float originalWidth = mPaint.getStrokeWidth();

  float widthDelta = endWidth - startWidth;

  float drawSteps = (float) Math.floor(curve.length());



  for (int i = 0; i < drawSteps; i++) {

   // Calculate the Bezier (x, y) coordinate for this step.

   float t = ((float) i) / drawSteps;

   float tt = t * t;

   float ttt = tt * t;

   float u = 1 - t;

   float uu = u * u;

   float uuu = uu * u;



   float x = uuu * curve.startPoint.x;

   x += 3 * uu * t * curve.control1.x;

   x += 3 * u * tt * curve.control2.x;

   x += ttt * curve.endPoint.x;



   float y = uuu * curve.startPoint.y;

   y += 3 * uu * t * curve.control1.y;

   y += 3 * u * tt * curve.control2.y;

   y += ttt * curve.endPoint.y;



   // Set the incremental stroke width and draw.

   mPaint.setStrokeWidth(startWidth + ttt * widthDelta);

   mSignatureBitmapCanvas.drawPoint(x, y, mPaint);

   expandDirtyRect(x, y);

  }



  mPaint.setStrokeWidth(originalWidth);

 }



   * view转bitmap
     */
   public Bitmap viewConversionBitmap(View v) {
        int w = v.getWidth();
        int h = v.getHeight();

        Bitmap bmp = Bitmap.createBitmap(w, h, Bitmap.Config.ARGB_8888);
        Canvas c = new Canvas(bmp);

        c.drawColor(Color.WHITE);
        /** 如果不设置canvas画布为白色，则生成透明 */

        v.layout(0, 0, w, h);
        v.draw(c);

        return bmp;
    }



下载地址如下：

https://github.com/gcacace/android-signaturepad



总结：

1.电子签名模糊的原理？

生成的图片被缩放了

2.电子签名有锯齿的问题？

因为没有用贝塞尔曲线
