香蕉派开发板Banana Pi BPI-R4 wifi7模块 BPI-R4-NIC-BE14

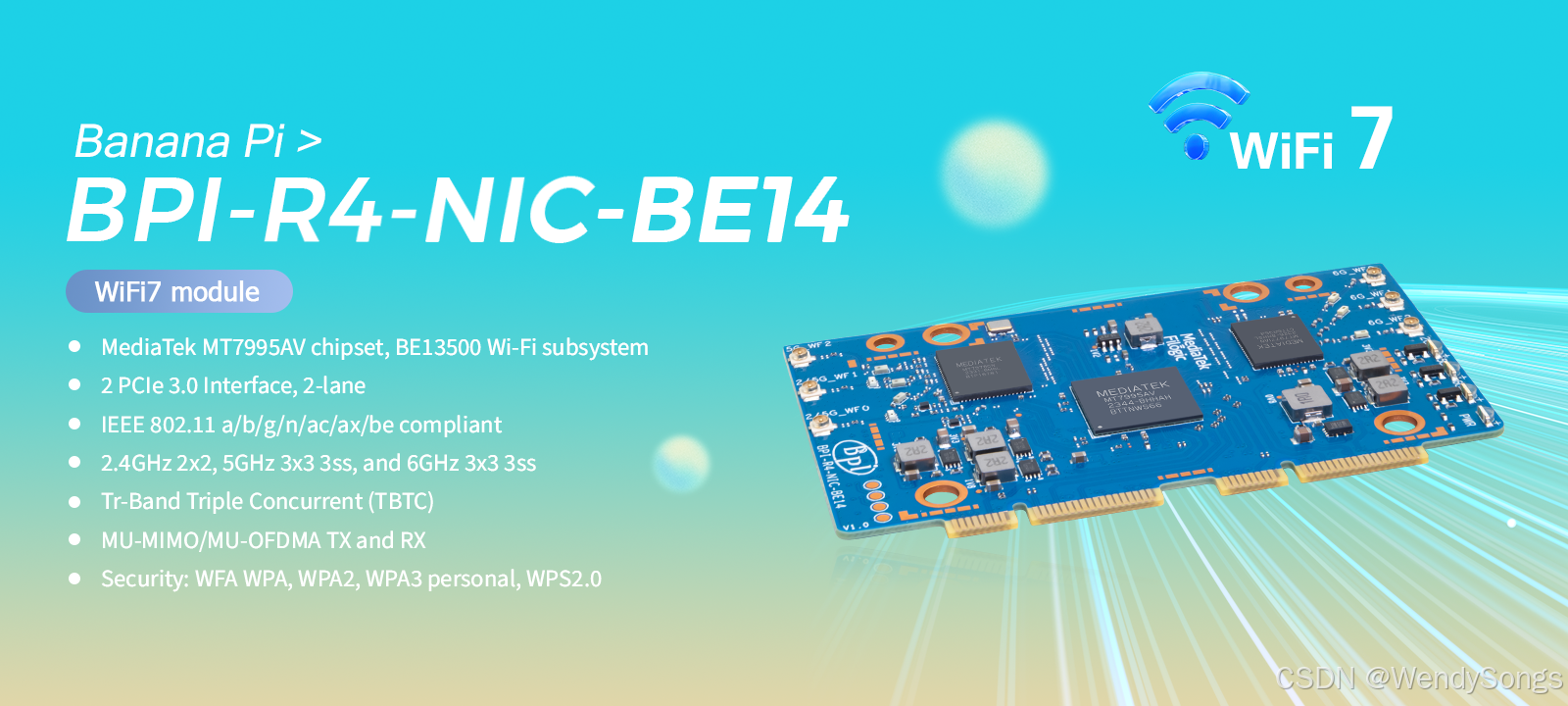

BPI-R4-NIC-BE14 is a 51x82mm WiFi7 module with MediaTek MT7995AV supports Wi-Fi7 technology and feature IEEE802.11a/b/g/n/ac/ax/be compliant,2.4GHz 2x2, 5GHz 3x3 3ss, and 6GHz 3x3 3ss BE13500 Wi-Fi subsystem. The MT7995AV offers feature-rich wireless connectivity at high standards and delivers reliable, cost-effective throughput from an extended distance.

MediaTek MT7988A (Filogic 880) design: Banana Pi BPI-R4 Router development board

The optimized Wi-Fi baseband algorithms provide superb performance. The intelligent MAC design deploys a highly efficient offload engine and hardware data processing accelerators, which fully offload Wi-Fi task of the host processor. The MT7995AV is designed to support standard-based features in the areas of security, quality of service, and international regulations, giving end users the greatest performance at any time and in any circumstances.

Platform

• MediaTek MT7995AV chipset

• 32-bit RISC-V MCU for Wi-Fi protocols and Wi-Fi offload

• Embedded SRAM and ROM

• UART interface with hardware flow control

• 2 PCIe 3.0 Interface, 2-lane

WLAN

• IEEE 802.11 a/b/g/n/ac/ax/be compliant

• Frequency band 2.4GHz

  • Bandwidth: 20 and 40MHz

  • 2T2R

• Frequency band 5GHz

  • Bandwidth: 20, 40,80, and 160MHz

  • 3T3R 3ss

• Frequency band 6GHz

  • Bandwidth: 20, 40,80,160 and 320MHz

  • 3T3R 3ss

• Tr-Band Triple Concurrent (TBTC)

• PHY rate :up to 13700 Mbps/9500 Mbps

• MU-MIMO TX and RX

• MU-OFDMA TX and RX

• STBC, LDPC, TX beamformer and RX beamformee

• Greenfield mode, mixed mode, and legacy mode

• Security: WFA WPA, WPA2, WPA3 personal, WPS2.0

• QoS: WFA WMM and WMM-PS
