Zabbix 5.0.13 与阿里云企业邮箱告警

部署zabbix-server

关闭防火墙以及selinux

systemctl disable firewalld
sed -i 's#SELINUX=disabled#SELINUX=enforcing#g' /etc/selinux/config

配置阿里zabbix源

vim /etc/yum.repos.d/zabbix.repo
[zabbix]
name=alibaba zabbix
baseurl=https://mirrors.aliyun.com/zabbix/zabbix/5.0/rhel/7/x86_64/
gpgcheck=0
enabled=1

[zabbix2]
name=alibaba zabbix frontend
baseurl=https://mirrors.aliyun.com/zabbix/zabbix/5.0/rhel/7/x86_64/frontend/
gpgcheck=0
enabled=1

zabbix服务，此处yum为5.0.13版本

yum  -y  install zabbix-server-mysql zabbix-agent
yum -y install centos-release-scl
yum install zabbix-web-mysql-scl zabbix-apache-conf-scl

安装数据库及授权zabbix账号

yum -y install mariadb mariadb-server
systemctl enable mariadb
systemctl start mariadb
mysql -uroot   #进入数据库，新机器yum mariadb没有密码
   create database zabbix character set utf8 collate utf8_bin;
   create user zabbix@localhost identified by 'passwd';
   grant all privileges on zabbix.* to zabbix@localhost;
   flush privileges;
   \q

初始化zabbix

ls /usr/share/doc/zabbix-server-mysql-5.0.13/

zcat /usr/share/doc/zabbix-server-mysql-5.0.8/create.sql.gz | mysql -uzabbix    -p'passwd'  zabbix

zabbix-server配置文件

vim /etc/zabbix/zabbix_server.conf
DBHost=localhost
DBName=zabbix
DBUser=zabbix
DBPassword=passwd

启动zabbix

vim  /etc/opt/rh/rh-php72/php-fpm.d/zabbix.conf
   php_value date.timezone Asia/Shanghai
systemctl restart zabbix-server zabbix-agent httpd rh-php72-php-fpm
systemctl enable zabbix-server zabbix-agent httpd rh-php72-php-fpm
netstart –ntpl   #查看是否开启了10050与10051端口

进入web页面

http://zabbix-server-ip/zabbix # zabbix-server-ip为服务端IP地址
第一次会进行检测与配置（略）
登录: Admin/zabbix

数字证书以及部署mail

请求数字证书

mkdir -p /root/.certs/
echo -n | openssl s_client -connect smtp.mxhichina.com:465 | sed -ne '/-BEGIN CERTIFICATE-/,/-END CERTIFICATE-/p' > ~/.certs/ali.crt

添加证书到证书数据库中

certutil -A -n "GeoTrust SSL CA" -t "C,," -d ~/.certs -i ~/.certs/ali.crt
certutil -A -n "GeoTrust Global CA" -t "C,," -d ~/.certs -i ~/.certs/ali.crt

列出目录下证书

certutil -L -d /root/.certs

执行，出现trust flag u is ……. Key is present说明SSL配置完成

cd /root/.certs/
certutil -A -n "GeoTrust SSL CA - G3" -t "Pu,Pu,Pu" -d ./ -i ali.crt

部署mail

yum -y install sendmail mailx libreport-plugin-mailx sharutils mutt
vim /etc/mail.rc   #末尾加入
  set from=xxxxx@xxx.com #阿里企业邮箱地址
  set smtp=smtps://smtp.mxhichina.com:465 #阿里默认禁用25端口，用465端口
  set smtp-auth-user= xxxxx@xxx.com #阿里企业邮箱地址
  set smtp-auth-password=passwd #阿狸企业邮箱默认开启smtp无需授权码,直接输入邮箱密码
  set smtp-auth=login
  set ssl-verify=ignore
  set nss-config-dir=/root/.certs

测试

echo "mail test info" | mail -s "mail_test"  xxx@xx.com 收件邮箱地址

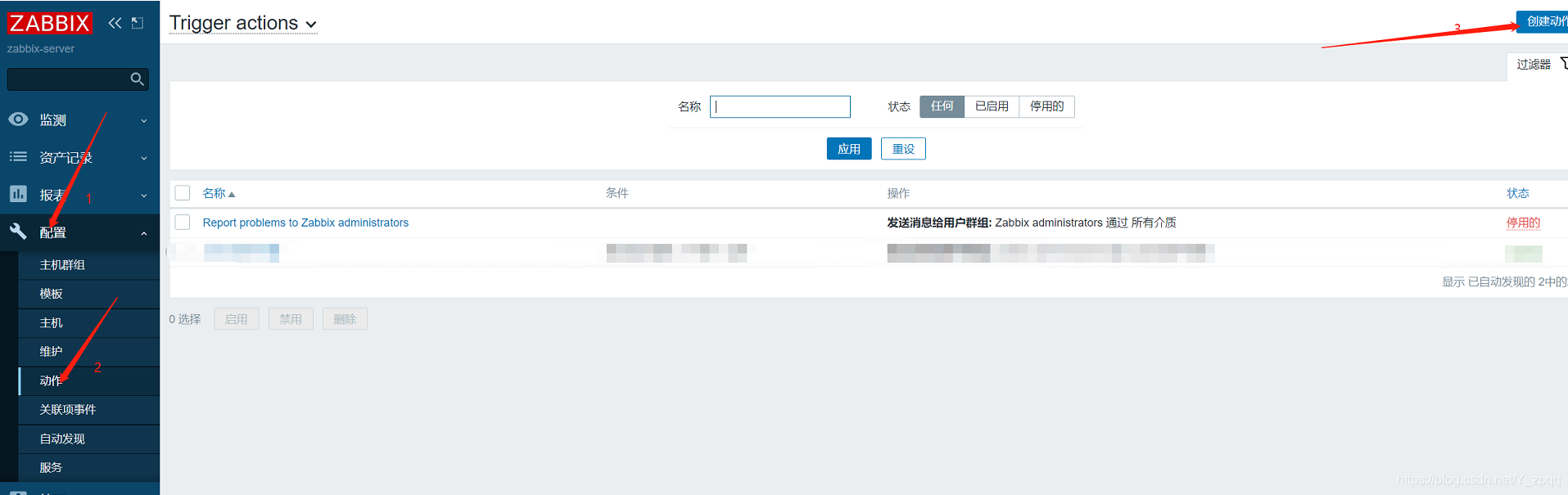

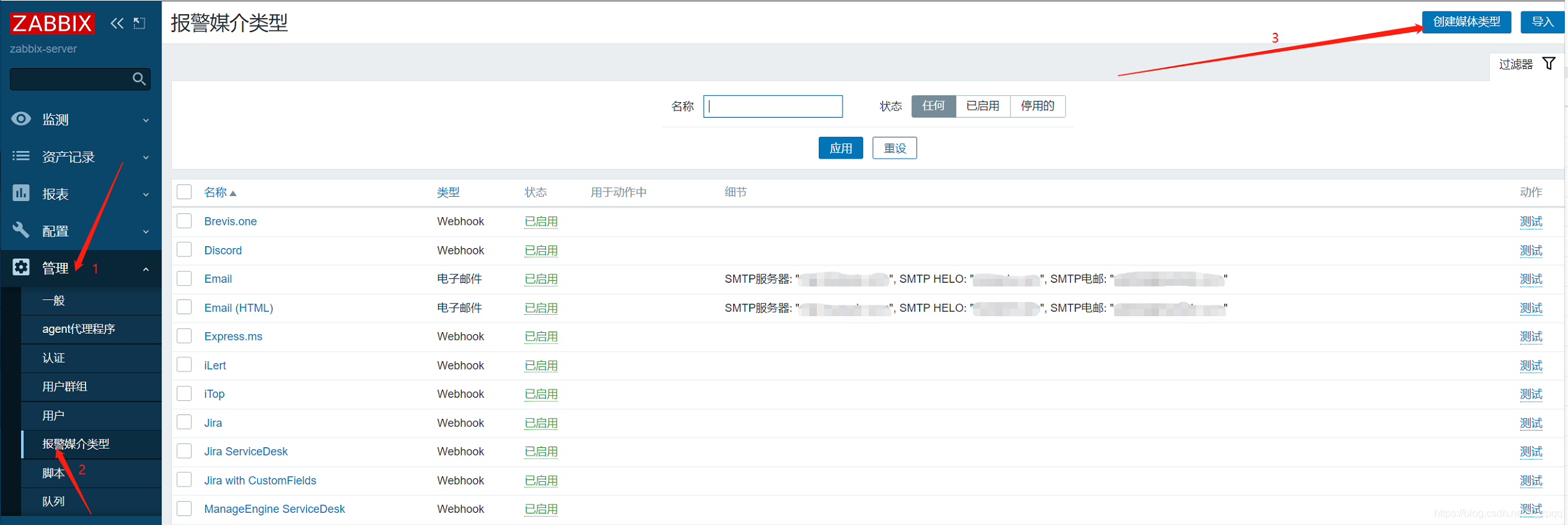

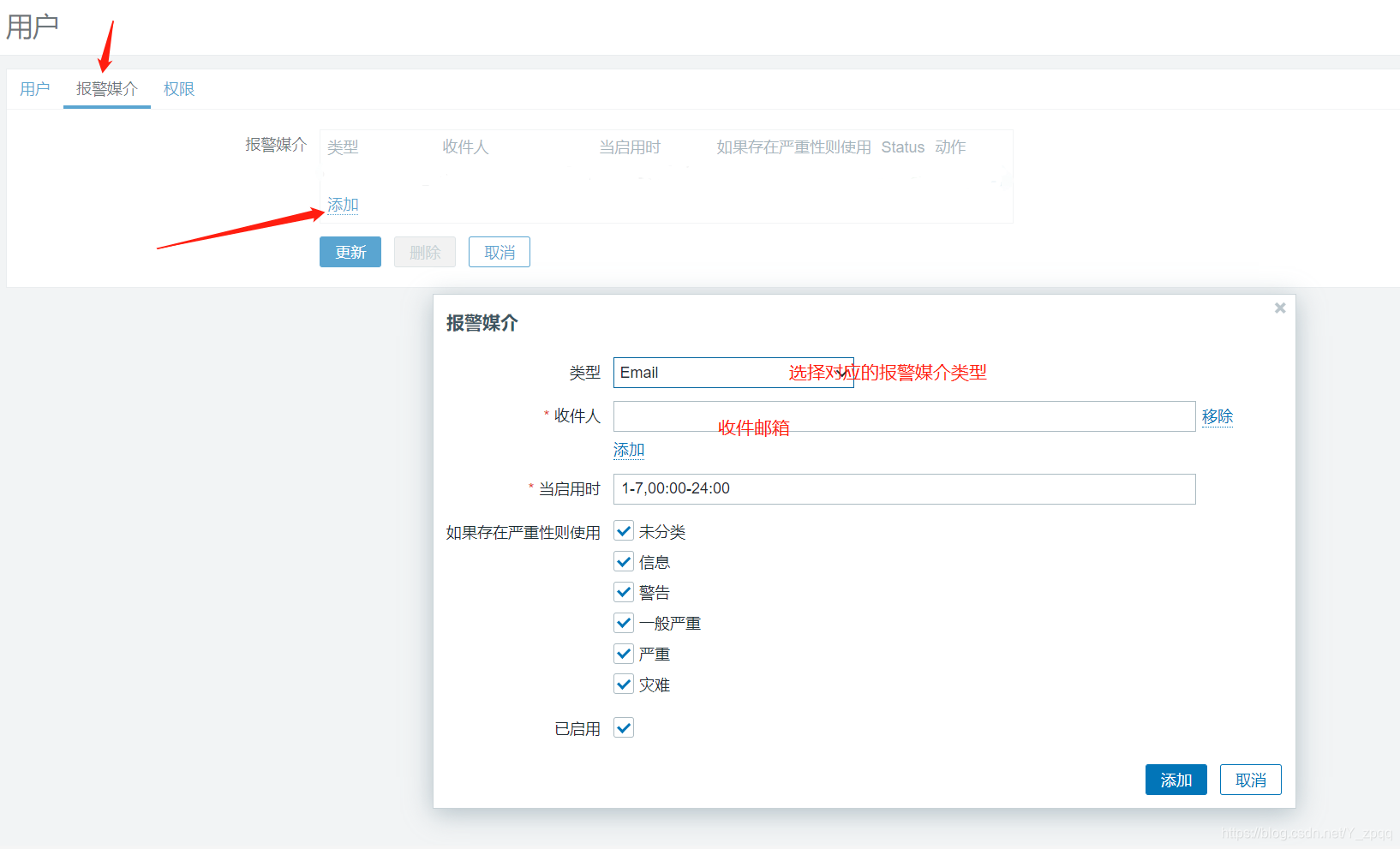

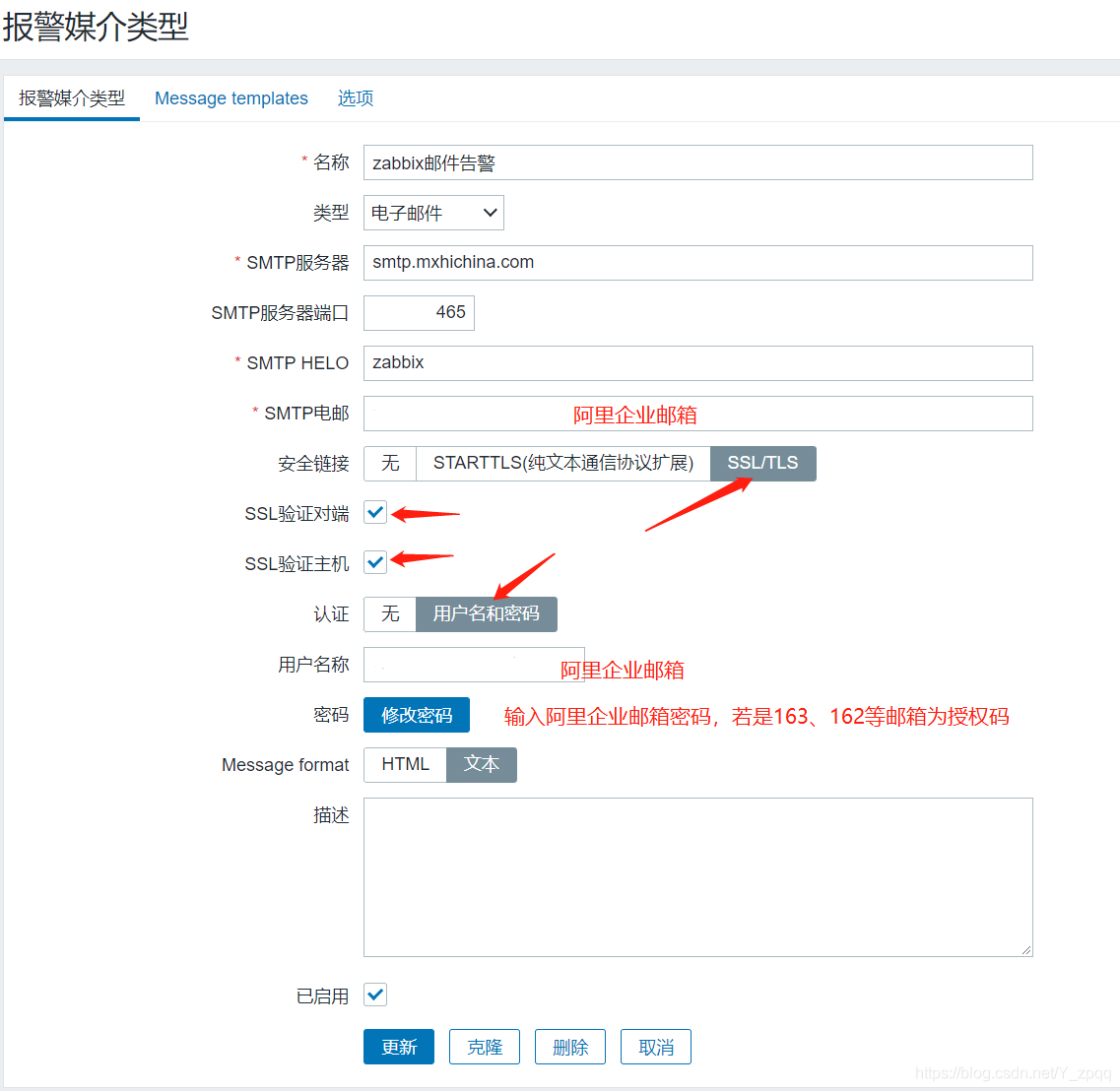

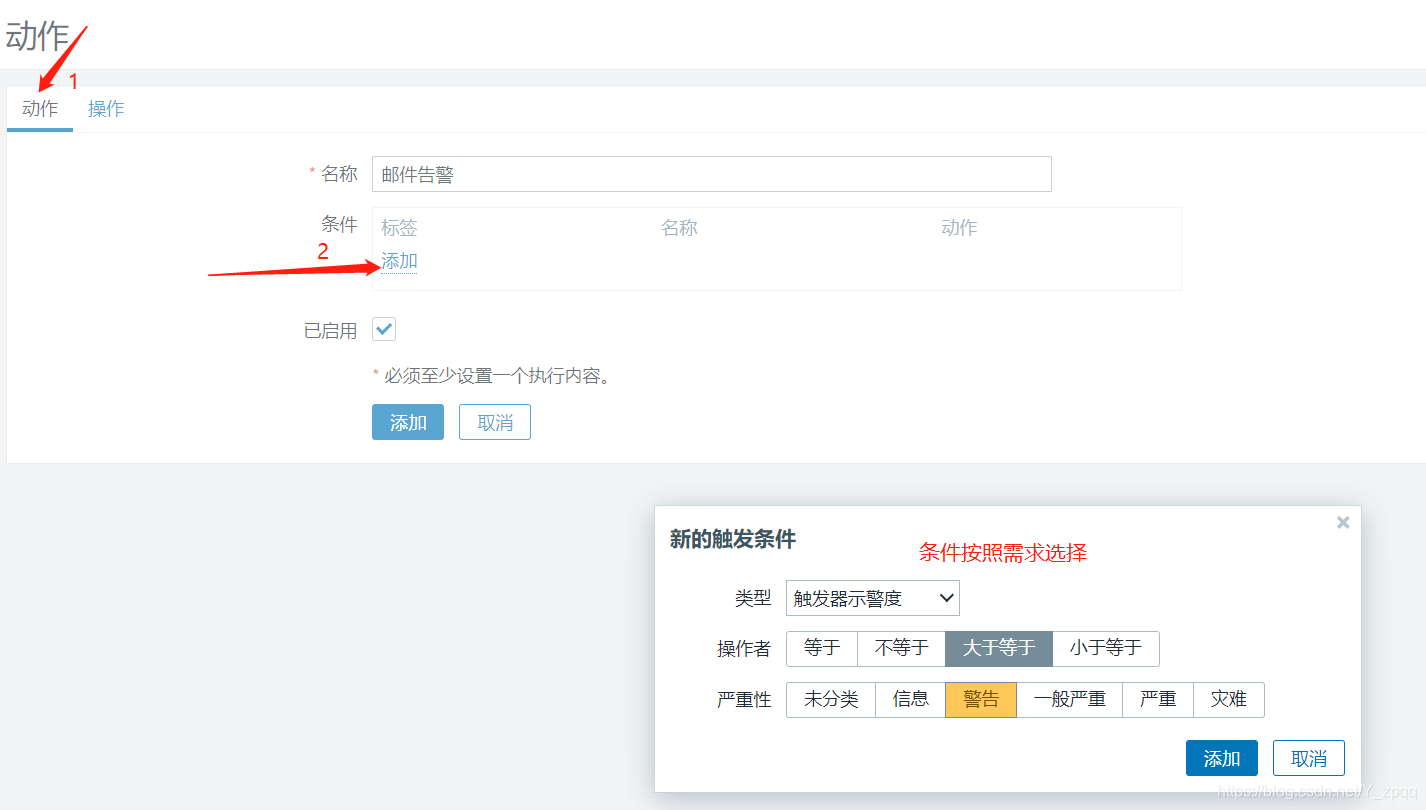

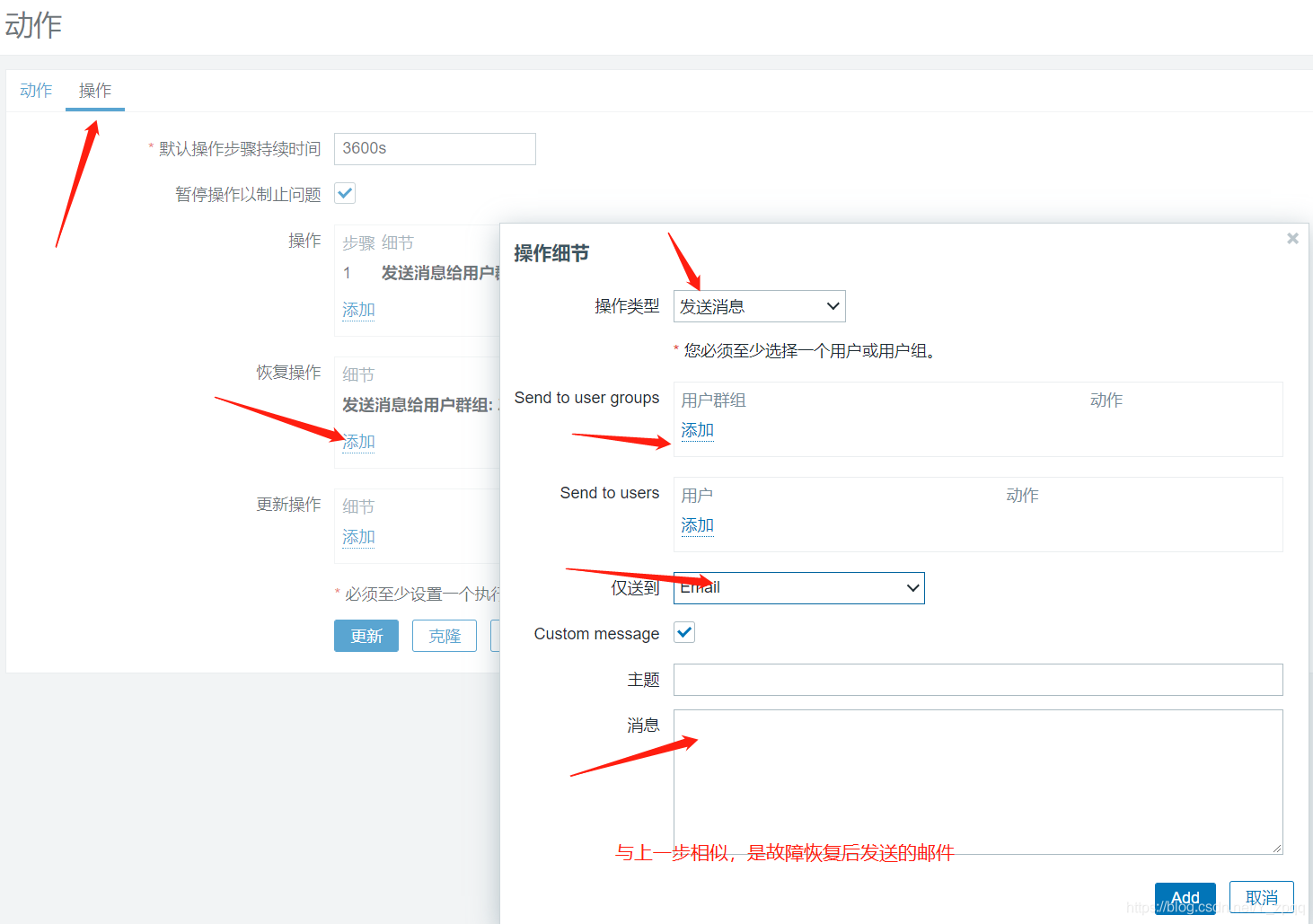

部署邮件告警
