小球碰撞动画
对于这个动画,涉及到的很多东西与之前的倒计时效果有很多相似之处,倒计时效果文章如下:
canvas初学之倒计时动画_炫丽的计时效果canvas绘图与动画基础 c语言-CSDN博客
而其中的新东西,第一是在canvas画布上添加其他的html元素,第二就是关于globalAlpha&globalCompositeOperation两个的运用。

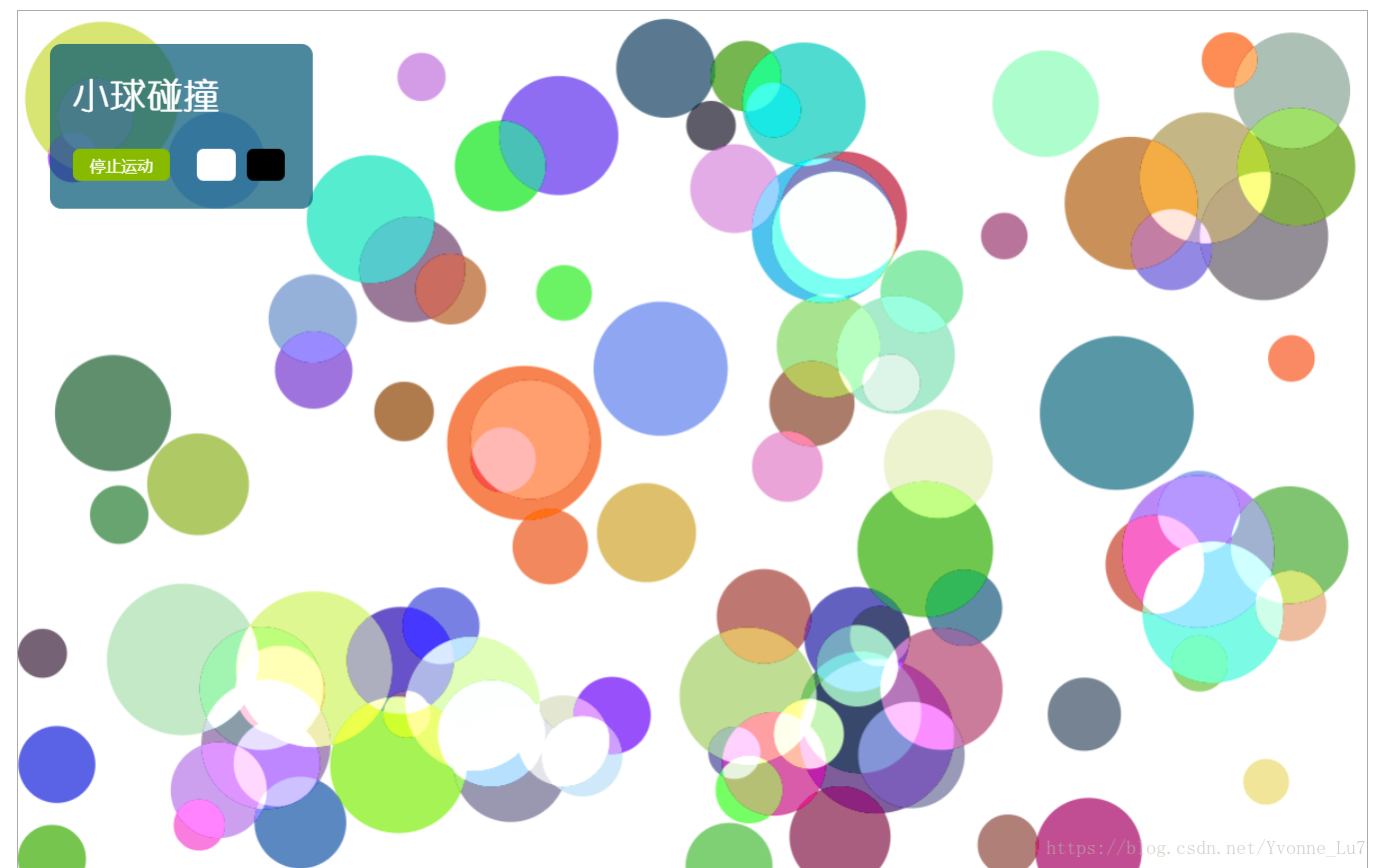

我们首先来看看效果

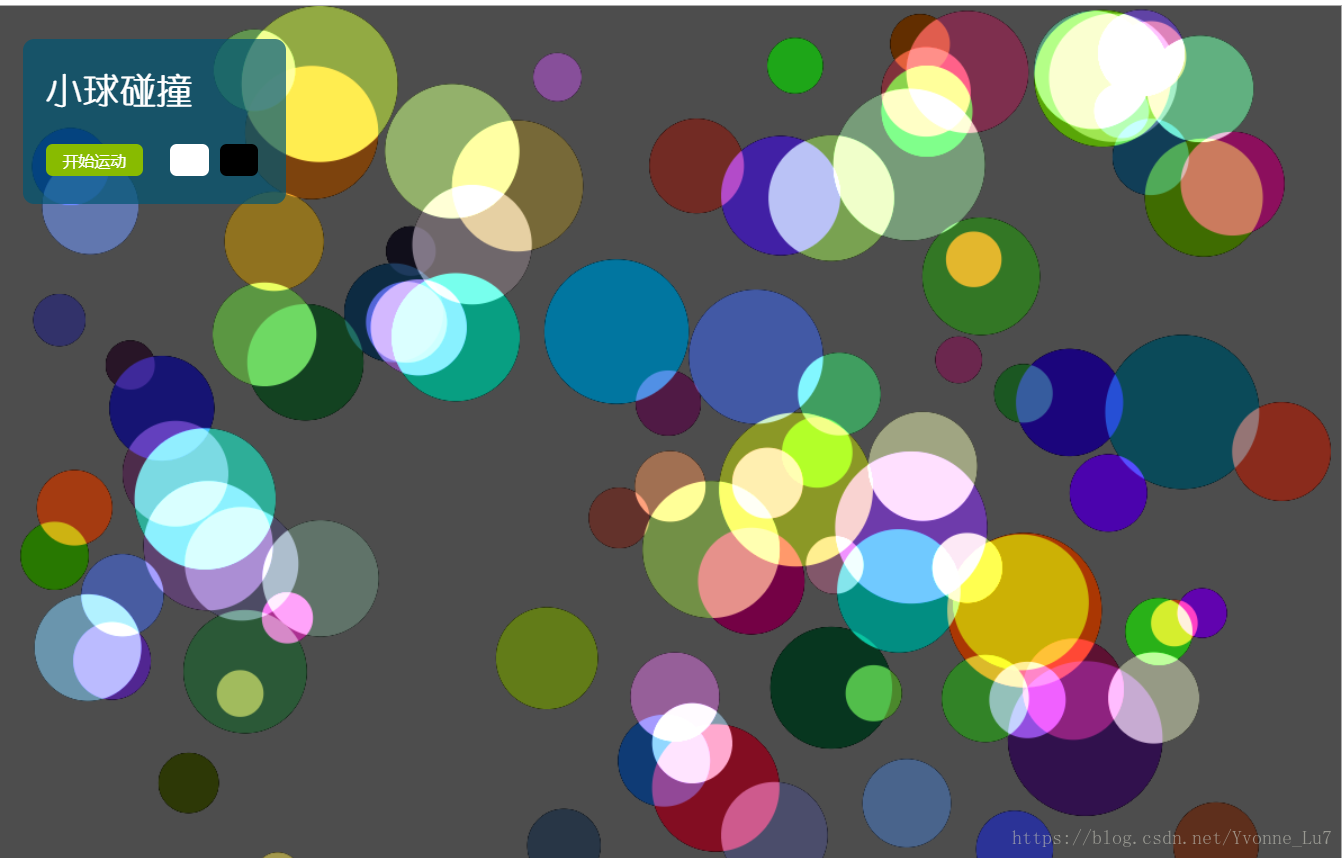

小球本身一直在运动中(有点类似与电脑的气泡屏保),点击停止运动后,小球会停下来,按钮变为开始运动,而旁边两个按钮,一个为白色,一个为黑色,都是画布的背景色,默认是白色,黑色如下:
其中的效果为半透明的效果,这就是我们今天新提到的globalAlpha,这是用来设置全局图案透明度的。另一个globalCompositeOperation则是设置绘制图形在重叠时产生的效果(所有效果共有11种,本例中我们使用的是其中的‘lighter’,效果为当重叠时会重新计算颜色)。
代码如下:
<!DOCTYPE html>
<html lang="en">
<head>
<meta charset="UTF-8">
<title>小球碰撞动画</title>
<style type="text/css">
#canvas-wrapper{
width: 1200px;
height: 800px;
position: relative;
margin: 50px auto;
}
#canvas{
border: 1px solid #aaa;
}
#controller{
position: absolute;
top: 30px;
left: 30px;
background-color: rgba(0,85,116,0.7);
padding: 5px 20px 25px 20px;
border-radius: 10px;
}
#controller h1{
color: white;
font-weight: bold;
font-family: YouYuan;
}
#controller #canvas-btn{
display: inline-block;
background-color: #8b0;
color: white;
font-size: 14px;
padding: 5px 15px;
border-radius: 6px;
text-decoration: none;
margin-top: 10px;
margin-right: 20px;
}
#controller #canvas-btn:hover{
text-decoration: none;
background-color: #7a0;
}
#controller .color-btn{
display: inline-block;
padding: 5px 15px;
border-radius: 6px;
font-size: 14px;
margin-right: 5px;
margin-top: 10px;
text-decoration: none;
}
#controller .color-btn:hover{
text-decoration: none;
}
#controller #white-color-btn{
background-color: white;
}
#controller #black-color-btn{
background-color: black;
}
</style>
</head>
<body>
<div id="canvas-wrapper">
<canvas id="canvas" style="display:block;border: 1px solid #aaa;margin: 50px auto">该浏览器不支持canvas,请更换浏览器后再试</canvas>
<div id="controller">
<h1>小球碰撞</h1>
<a href="#" id="canvas-btn">停止运动</a>
<a href="#" class="color-btn" id="white-color-btn"> </a>
<a href="#" class="color-btn" id="black-color-btn"> </a>
</div>
</div>
<script type="text/javascript">
var balls = []
var isMoving = true;
var themeColor = 'white';
window.onload = function(){
var canvas = document.getElementById('canvas');
canvas.width = 1200;
canvas.height = 800;
var cxt = canvas.getContext('2d');
cxt.globalAlpha = 0.7;
for (var i = 0; i < 100; i++) {
var R = Math.floor(Math.random()*255);
var G = Math.floor(Math.random()*255);
var B = Math.floor(Math.random()*255);
var radius = Math.random()*50+20;
aBall = {
color:'rgb(' + R +','+G+','+B+')',
radius: radius,
x: Math.random()*(canvas.width - 2*radius)+radius,
y: Math.random()*(canvas.height - 2*radius)+radius,
vx:(Math.random()*5+5)*Math.pow(-1,Math.floor(Math.random()*100)),
vy:(Math.random()*5+5)*Math.pow(-1,Math.floor(Math.random()*100))
}
balls[i] = aBall;
}
setInterval(
function(){
draw(cxt);
if (isMoving) {
update(canvas.width, canvas.height);
}
},
50
);
document.getElementById('canvas-btn').onclick = function(event){
if (isMoving) {
isMoving = false;
this.text = '开始运动';
}
else{
isMoving = true;
this.text = '停止运动';
}
return false;
}
document.getElementById('white-color-btn').onclick = function(event){
themeColor = 'white';
return false;
}
document.getElementById('black-color-btn').onclick = function(event){
themeColor = 'black';
return false;
}
}
function draw(cxt){
var canvas = cxt.canvas;
cxt.clearRect(0,0,canvas.width,canvas.height);
if (themeColor == 'black') {
console.log('black theme');
cxt.fillStyle = 'black';
cxt.fillRect(0,0,canvas.width,canvas.height);
}
for (var i = 0; i < balls.length; i++) {
cxt.globalCompositeOperation = 'lighter';
cxt.fillStyle = balls[i].color;
cxt.beginPath();
cxt.arc(balls[i].x, balls[i].y, balls[i].radius, 0 ,Math.PI*2);
cxt.closePath();
cxt.fill()
}
}
function update(canvasWidth, canvasHeight){
for (var i = 0; i < balls.length; i++) {
balls[i].x += balls[i].vx;
balls[i].y += balls[i].vy;
if (balls[i].x-balls[i].radius<=0) {
balls[i].vx = -balls[i].vx;
balls[i].x = balls[i].radius;
}
if (balls[i].x+balls[i].radius>=canvasWidth) {
balls[i].vx = -balls[i].vx;
balls[i].x = canvasWidth-balls[i].radius;
}
if (balls[i].y-balls[i].radius<=0) {
balls[i].vy = -balls[i].vy;
balls[i].y = balls[i].radius;
}
if (balls[i].y+balls[i].radius>=canvasHeight) {
balls[i].vy = -balls[i].vy;
balls[i].y = canvasHeight-balls[i].radius;
}
}
}
</script>
</body>
</html>
