栈(Stack)和队列(Queue)是两种非常重要的线性数据结构,在任务调度,广度优先搜索都有重要的应用,但相对于前面的链表来说,还是比较简单的

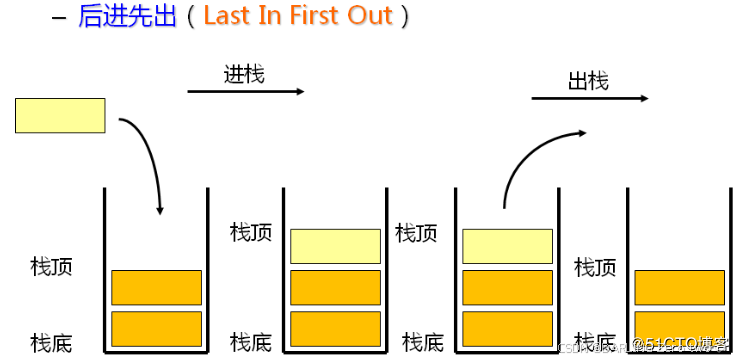

1.栈的概念及结构
一种特殊的线性表,其只允许在固定的一端进行插入和删除元素操作,进行数据插入和删除操作的一端称为栈顶,另一端称为栈底,栈中的数据元素遵守
后进先出LIFO(Last In First Out)
的原则

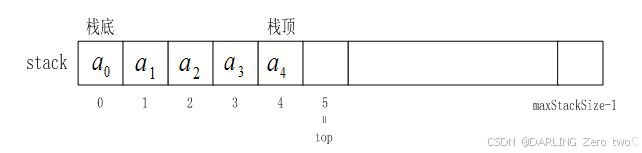

数组可以用来实现栈,但这并不意味着栈的本质就是数组。数组是一种连续存储元素的数据结构,使用数组实现栈时,利用数组的索引来模拟栈的操作
typedef int STDataType;
typedef struct Stack
{
int* a;
int top;
int capacity;
}ST;

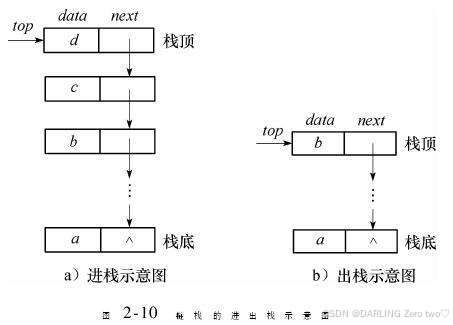

栈的实现一般可以使用数组或者链表实现,相对而言数组的结构实现更优一些。因为数组在尾上插入数据的代价比较小

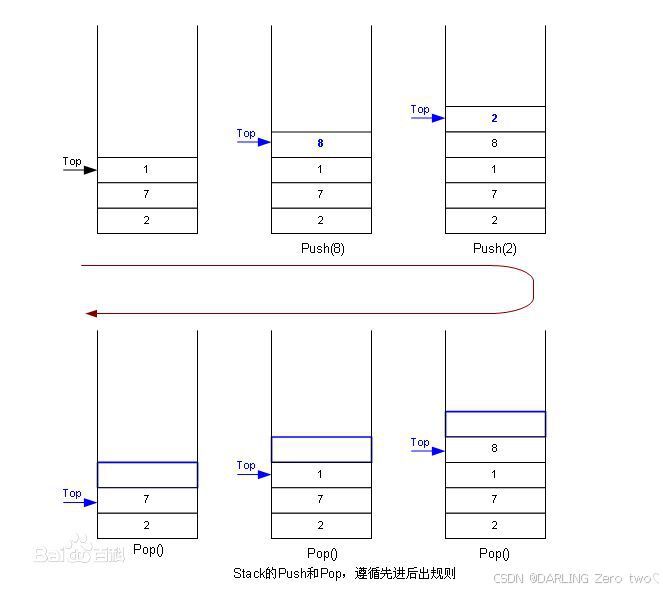

2.栈接口实现
2.1 栈初始化
void STInit(ST* ps)
{
assert(ps);
ps->a = (STDataType*)malloc(sizeof(STDataType) * 4);
if (ps->a == NULL)
{
perror("malloc mail");
return;
}
ps->capacity = 4;
ps->top = 0; //top是栈顶元素的下一个位置
//ps->top = 1; //top是栈顶元素位置
}
如果 top 为 0,top
指向的是下一个可以插入元素的位置。入栈操作时,直接将元素放入 top
位置,然后将 top
的值加 1
;出栈操作时,先将 top
的值减 1
,然后返回 top
位置的元素
如果 top 为 1,top
指向的就是插入元素的位置
2.2 栈销毁
void STDestroy(ST* ps)
{
assert(ps);
free(ps->a);
ps->a = NULL;
ps->capacity = 0;
ps->top = 0;
}
很常规的栈销毁操作,记得指针要释放后置空
2.3 栈顶删除
void STPop(ST* ps)
{
assert(ps);
assert(STEmpty(ps));
ps->top--;
}
栈顶指针减 1
,相当于移除栈顶元素
2.4 栈顶插入
void STPush(ST* ps, STDataType x)
{
if (ps->capacity == ps->top)
{
STDataType* tmp = (STDataType*)realloc(ps->a, sizeof(STDataType) * ps->capacity * 2);
if (tmp == NULL)
{
perror("malloc mail");
return;
}
ps->a = tmp;
ps->capacity *= 2;
}
ps->a[ps->top++] = x;
}
先检查栈的当前容量是否已满,如果已满则使用 realloc
函数将栈的容量扩大为原来的两倍,之后将新元素压入栈顶,并更新栈顶指针
2.5 栈的个数
int STSize(ST* ps)
{
assert(ps);
return ps->top;
}
这里栈是用数组实现的,top
指的是栈顶的下一个元素,所以索引就是栈的元素个数
2.6 栈的判空
int STEmpty(ST* ps)
{
assert(ps);
return ps->top == 0 ? 0 : 1;
}
如果为空,就返回 0
,那么条件就不会执行;如果不为空,就返回 1
,条件正常执行
2.7 栈顶获取
STDataType STTop(ST* ps)
{
assert(ps);
assert(STEmpty(ps));
return ps->a[ps->top - 1];
}
top - 1
表示最后一个元素,即栈顶元素

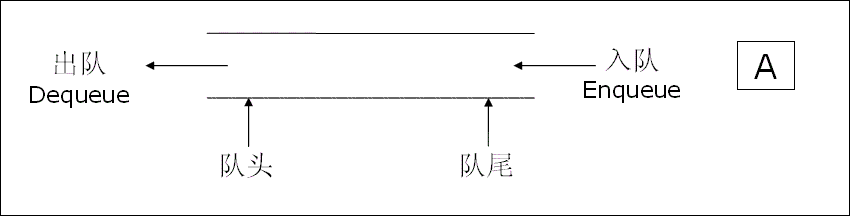

3.队列的概念及结构
队列和我们字面上理解一样,先进入队列的元素会先被处理,后进入的元素会在队列尾部等待
🚩队列: 只允许在一端进行插入数据操作,在另一端进行删除数据操作的特殊线性表,队列具有先进先出FIFO(First In First Out)
🚩入队列: 进行插入操作的一端称为队尾
🚩出队列: 进行删除操作的一端称为队头

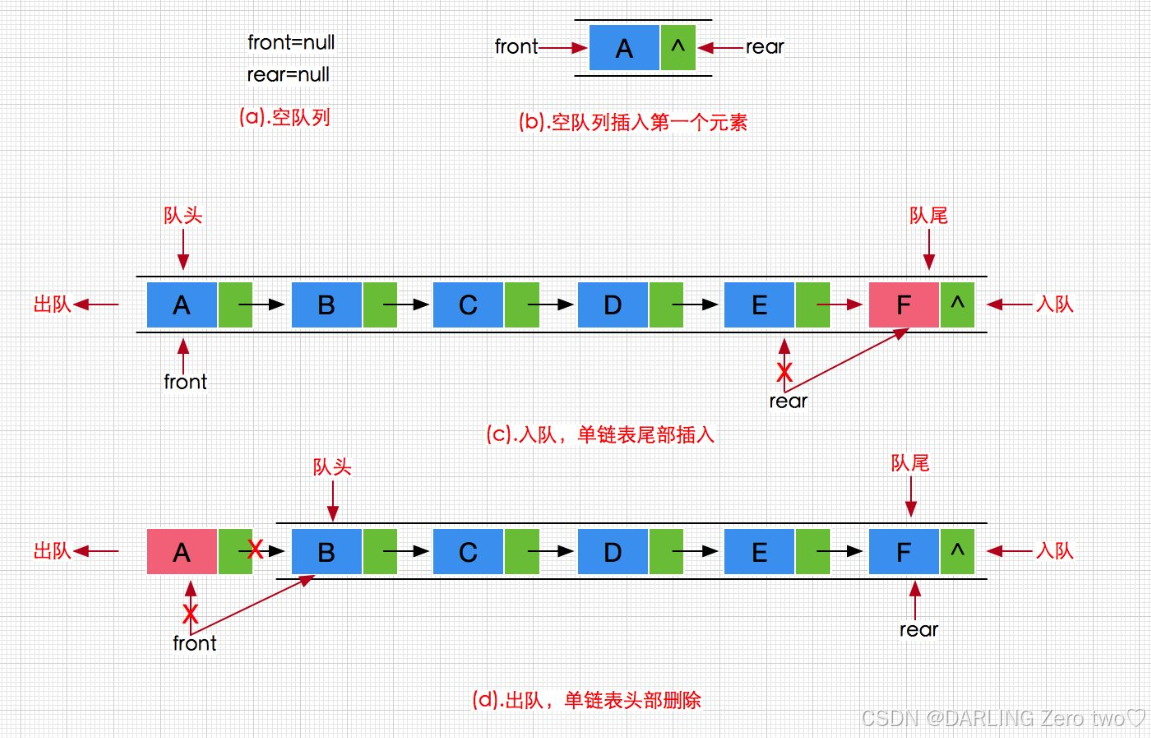

队列也可以数组和链表的结构实现,使用链表的结构实现更优一些,因为如果使用数组的结构,出队列在数组头上出数据,效率会比较低
由于是链式结构,所以每个元素还是以节点的形式体现,指向队列头部节点的指针 head
、指向队列尾部节点的指针 tail
以及记录队列中元素数量的 size
typedef int QDataType;
typedef struct QueueNode
{
struct QueueNode* next;
QDataType data;
}QNode;
typedef struct Queue
{
QNode* head;
QNode* tail;
int size;
}Queue;
4.队列接口实现
4.1 队列初始化
void QueueInit(Queue* pq)
{
assert(pq);
pq->head = pq->tail = NULL;
pq->size = 0;
}
队列的头部指针 head
和尾部指针 tail
都设置为 NULL
,表示队列为空,同时将队列的元素数量 size
初始化为 0
4.2 队列销毁
void QueueDestroy(Queue* pq)
{
assert(pq);
QNode* cur = pq->head;
while (cur)
{
QNode* next = cur->next;
free(cur);
cur = next;
}
pq->head = pq->tail = NULL;
pq->size = 0;
}
因为每个节点都存储了指向下一个节点的指针,所以需要先存储节点
,再释放节点
4.3 队列插入
void QueuePush(Queue* pq, QDataType x)
{
assert(pq);
QNode* newnode = (QNode*)malloc(sizeof(QNode));
if (newnode == NULL)
{
perror("malloc fail");
return;
}
newnode->data = x;
newnode->next = NULL;
if (pq->head == NULL)
{
assert(pq->tail == NULL);
pq->head = pq->tail = newnode;
}
else
{
pq->tail->next = newnode;
pq->tail = newnode;
}
pq->size++;
}
入列只能从尾入
队列为空:
if (pq->head == NULL)
:判断队列是否为空
assert(pq->tail == NULL)
:若队列为空,断言队尾指针也为空,确保队列状态的一致性
pq->head = pq->tail = newnode
:将队列的头指针和尾指针都指向新节点,此时队列中只有一个元素
队列非空:
pq->tail->next = newnode
:将新节点连接到队尾节点的后面
pq->tail = newnode
:更新队尾指针,使其指向新节点
注意要先链接,后移动尾指针,否则找不到链接的节点 next
指针
4.4 队列删除
void QueuePop(Queue* pq)
{
assert(pq);
assert(pq->head != NULL);
if (pq->head->next == NULL)
{
free(pq->head);
pq->head = pq->tail = NULL;
}
else
{
QNode* next = pq->head->next;
free(pq->head);
pq->head = next;
}
pq->size--;
}
出列只能从头出
,保存队列头部节点的下一个节点指针,释放队列头部节点的内存,将队列头部指针更新为原头部节点的下一个节点
4.5 队列元素个数
void QueueSize(Queue* pq)
{
assert(pq);
return pq->size;
}
4.6 队列判空
int QueueEmpty(Queue* pq)
{
assert(pq);
return pq->size == 0 ? 0 : 1;
}
如果为空,就返回 0
,那么条件就不会执行;如果不为空,就返回 1
,条件正常执行
4.7 队头获取
QDataType QueueFront(Queue* pq)
{
assert(pq);
assert(QueueEmpty(pq));
return pq->head->data;
}
4.8 队尾获取
QDataType QueueBack(Queue* pq)
{
assert(pq);
assert(QueueEmpty(pq));
return pq->tail->data;
}

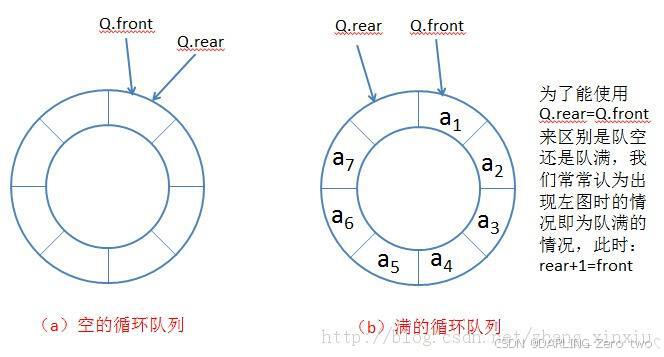

5.循环队列
实际中我们有时还会使用一种队列叫循环队列
。如操作系统讲解生产者消费者模型时可以就会使用循环队列。环形队列可以使用数组
实现,也可以使用循环链表实现
6.栈和队列习题
选择题
1.一个栈的初始状态为空。现将元素1、2、3、4、5、A、B、C、D、E依次入栈,然后再依次出栈,则元素出栈的顺序是(
B
)
A 12345ABCDE
B EDCBA54321
C ABCDE12345
D 54321EDCBA
2.若进栈序列为 1,2,3,4 ,进栈过程中可以出栈,则下列不可能的一个出栈序列是(C
)
A 1,4,3,2
B 2,3,4,1
C 3,1,4,2
D 3,4,2,1
3.循环队列的存储空间为 Q(1:100) ,初始状态为 front=rear=100 。经过一系列正常的入队与退队操作后, front=rear=99 ,则循环队列中的元素个数为(D
)
A 1
B 2
C 99
D 0或者100
4.以下(B
)不是队列的基本运算?
A 从队尾插入一个新元素
B 从队列中删除第i个元素
C 判断一个队列是否为空
D 读取队头元素的值
5.现有一循环队列,其队头指针为front,队尾指针为rear;循环队列长度为N。其队内有效长度为?(假设队头不存放数据)(B
)
A (rear - front + N) % N + 1
B (rear - front + N) % N
C (rear - front) % (N + 1)
D (rear - front + N) % (N - 1)
解析
-
栈是一种
后进先出(LIFO)
的数据结构。元素依次入栈后,最后入栈的元素会最先出栈。这里元素1
、2
、3
、4
、5
、A
、B
、C
、D
、E
依次入栈,那么出栈顺序就应该是E
最先出栈,接着是D
、C
、B
、A
、5
、4
、3
、2
、1
,所以答案是B
-
A
选项1
,4
,3
,2
:1
进栈,1
出栈;2
、3
、4
依次进栈,然后4
、3
、2
依次出栈,该出栈序列是可能的
B
选项2
,3
,4
,1
:1
、2
进栈,2
出栈;3
进栈,3
出栈;4
进栈,4
出栈;最后1
出栈,该出栈序列是可能的
C
选项3
,1
,4
,2
:3
要先出栈,那么1
、2
、3
必须先依次进栈,3
出栈后,栈顶元素是2
,此时只能2
出栈,而不能1
出栈,所以该出栈序列不可能
D
选项3
,4
,2
,1
:1
、2
、3
进栈,3
出栈;4
进栈,4
出栈;然后2
、1
依次出栈,该出栈序列是可能的 -
在循环队列中,当
front = rear
时,有两种情况:
队列为空: 初始状态front = rear
表示队列是空的。经过一系列操作后又出现front = rear
,有可能队列又变回了空的状态
队列为满: 循环队列中,当队列满时也会出现front = rear
的情况。对于长度为100
的循环队列,当入队和出队操作使得队列刚好满一圈时,也会出现front = rear
。所以元素个数可能是0
或者100
,答案选D
-
队列是一种
先进先出(FIFO)
的数据结构,其基本运算有:
入队: 从队尾插入一个新元素,对应选项A
出队: 从队头删除元素,而不是删除第i
个元素,选项B
不符合队列的基本运算规则
判断队列是否为空,对应选项C
读取队头元素的值,对应选项D
,所以答案是B
-
计算循环队列中元素的有效长度需要考虑
rear
和front
的相对位置
当 rear >= front 时,队列中元素的个数为rear - front
当 rear < front 时,队列中元素的个数为rear - front + N
(因为是循环队列,需要加上队列的长度N
来计算实际元素个数)
综合这两种情况,可以使用(rear - front + N) % N
来统一计算队列中元素的有效长度。因为取模运算可以处理rear
和front
的各种相对位置关系,所以答案选B
编程OJ题
7.代码展示
7.1 栈
传送门:Gitee栈代码
7.1.1 Stack.h
#pragma once
#include <stdio.h>
#include <stdlib.h>
#include <assert.h>
//#define N 10
//struct Stack
//{
// int a[N];
// int top;
// int capacity;
//}ST;
typedef int STDataType;
typedef struct Stack
{
int* a;
int top;
int capacity;
}ST;
void STInit(ST* ps);
void STDestroy(ST* ps);
void STPop(ST* ps);
void STPush(ST* ps, STDataType x);
int STSize(ST* ps);
int STEmpty(ST* ps);
STDataType STTop(ST* ps);
7.1.2 Stack.c
#define _CRT_SECURE_NO_WARNINGS
#include "Stack.h"
void STInit(ST* ps)
{
assert(ps);
ps->a = (STDataType*)malloc(sizeof(STDataType) * 4);
if (ps->a == NULL)
{
perror("malloc mail");
return;
}
ps->capacity = 4;
ps->top = 0; //top是栈顶元素的下一个位置
//ps->top = 1; //top是栈顶元素位置
}
void STDestroy(ST* ps)
{
assert(ps);
free(ps->a);
ps->a = NULL;
ps->capacity = 0;
ps->top = 0;
}
void STPop(ST* ps)
{
assert(ps);
assert(STEmpty(ps));
ps->top--;
}
void STPush(ST* ps, STDataType x)
{
if (ps->capacity == ps->top)
{
STDataType* tmp = (STDataType*)realloc(ps->a, sizeof(STDataType) * ps->capacity * 2);
if (tmp == NULL)
{
perror("malloc mail");
return;
}
ps->a = tmp;
ps->capacity *= 2;
}
ps->a[ps->top++] = x;
}
int STSize(ST* ps)
{
assert(ps);
return ps->top;
}
int STEmpty(ST* ps)
{
assert(ps);
return ps->top == 0 ? 0 : 1;
}
STDataType STTop(ST* ps)
{
assert(ps);
assert(STEmpty(ps));
return ps->a[ps->top - 1];
}
7.2 队列
传送门:Gitee队列代码
7.2.1 Queue.h
#pragma once
#include <stdio.h>
#include <stdlib.h>
#include <assert.h>
#include <stdbool.h>
typedef struct BinaryTreeNode* QDataType;
typedef struct QueueNode
{
struct QueueNode* next;
QDataType data;
}QNode;
typedef struct Queue
{
QNode* head;
QNode* tail;
int size;
}Queue;
void QueueInit(QNode* pq);
void QueueDestroy(QNode* pq);
void QueuePush(QNode* pq, QDataType x);
void QueuePop(QNode* pq);
void QueueSize(QNode* pq);
int QueueEmpty(Queue* pq);
QDataType QueueFront(Queue* pq);
QDataType QueueBack(Queue* pq);
7.2.2 Queue.c
#define _CRT_SECURE_NO_WARNINGS
#include "Queue.h"
void QueueInit(Queue* pq)
{
assert(pq);
pq->head = pq->tail = NULL;
pq->size = 0;
}
void QueueDestroy(Queue* pq)
{
assert(pq);
QNode* cur = pq->head;
while (cur)
{
QNode* next = cur->next;
free(cur);
cur = next;
}
pq->head = pq->tail = NULL;
pq->size = 0;
}
void QueuePush(Queue* pq, QDataType x)
{
assert(pq);
QNode* newnode = (QNode*)malloc(sizeof(QNode));
if (newnode == NULL)
{
perror("malloc fail");
return;
}
newnode->data = x;
newnode->next = NULL;
if (pq->head == NULL)
{
assert(pq->tail == NULL);
pq->head = pq->tail = newnode;
}
else
{
pq->tail->next = newnode;
pq->tail = newnode;
}
pq->size++;
}
void QueuePop(Queue* pq)
{
assert(pq);
assert(pq->head != NULL);
if (pq->head->next == NULL)
{
free(pq->head);
pq->head = pq->tail = NULL;
}
else
{
QNode* next = pq->head->next;
free(pq->head);
pq->head = next;
}
pq->size--;
}
void QueueSize(Queue* pq)
{
assert(pq);
return pq->size;
}
int QueueEmpty(Queue* pq)
{
assert(pq);
return pq->size == 0 ? 0 : 1;
}
QDataType QueueFront(Queue* pq)
{
assert(pq);
assert(QueueEmpty(pq));
return pq->head->data;
}
QDataType QueueBack(Queue* pq)
{
assert(pq);
assert(QueueEmpty(pq));
return pq->tail->data;
}
