PaddleOCR 在windows中安装依赖包报错 error: command ‘cl.exe‘ failed: None

报错内容：

pip install -r requirements.txt -i https://pypi.tuna.tsinghua.edu.cn/simple


 note: This error originates from a subprocess, and is likely not a problem with pip.
  ERROR: Failed building wheel for lanms-neo
  Building wheel for Polygon3 (setup.py) ... error
  error: subprocess-exited-with-error

  × python setup.py bdist_wheel did not run successfully.
  │ exit code: 1
  ╰─> [18 lines of output]
      NumPy extension not found - disabling support for it!
      running bdist_wheel
      running build
      running build_py
      creating build
      creating build\lib.win-amd64-cpython-39
      creating build\lib.win-amd64-cpython-39\Polygon
      copying Polygon\IO.py -> build\lib.win-amd64-cpython-39\Polygon
      copying Polygon\Shapes.py -> build\lib.win-amd64-cpython-39\Polygon
      copying Polygon\Utils.py -> build\lib.win-amd64-cpython-39\Polygon
      copying Polygon\__init__.py -> build\lib.win-amd64-cpython-39\Polygon
      running build_ext
      building 'Polygon.cPolygon' extension
      creating build\temp.win-amd64-cpython-39
      creating build\temp.win-amd64-cpython-39\Release
      creating build\temp.win-amd64-cpython-39\Release\src
      cl.exe /c /nologo /O2 /W3 /GL /DNDEBUG /MD -DDEFAULT_STYLE=STYLE_LIST -DSYSTEM_WIN32=1 -Isrc -ID:\ProgramData\miniconda3\envs\python39\include -ID:\ProgramData\miniconda3\envs\python39\Include /Tcsrc/PolyUtil.c /Fobuild\temp.win-amd64-cpython-39\Release\src/PolyUtil.obj
      error: command 'cl.exe' failed: None
      [end of output]

报错原因：

无法找到cl命令进行编译

解决方法：

1.安装VS2019环境

Visual Studio 2019 版本 16.11 发行说明 | Microsoft Learn

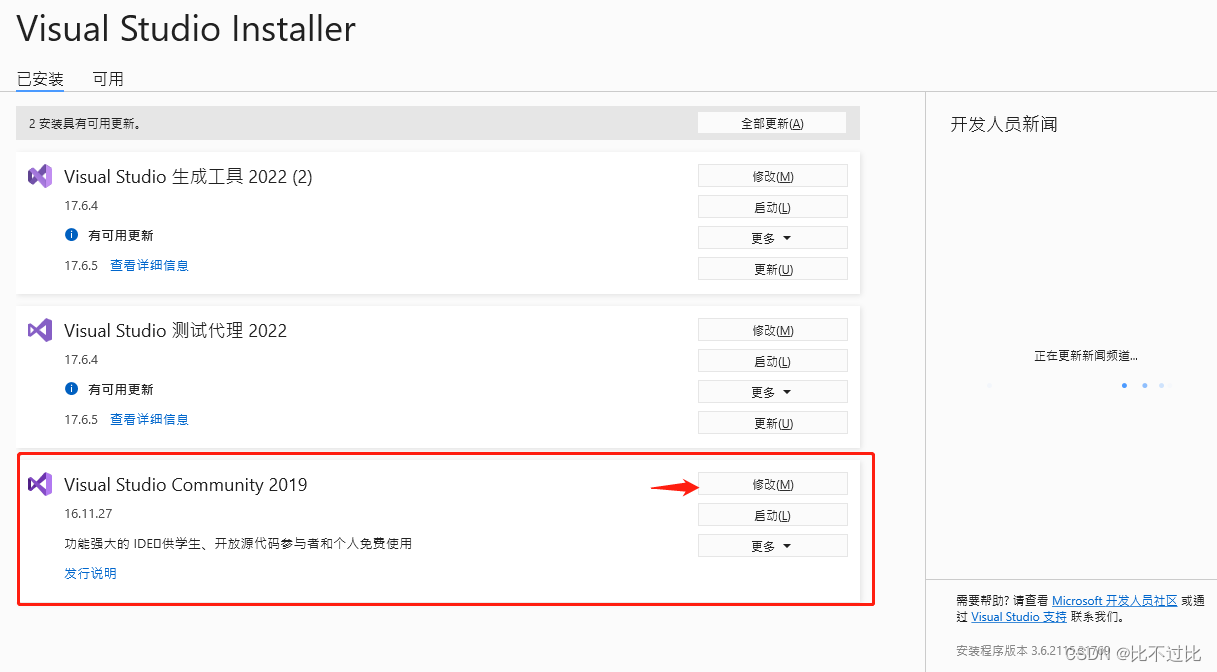

选择Visual Studio Communitiy 2019中的修改

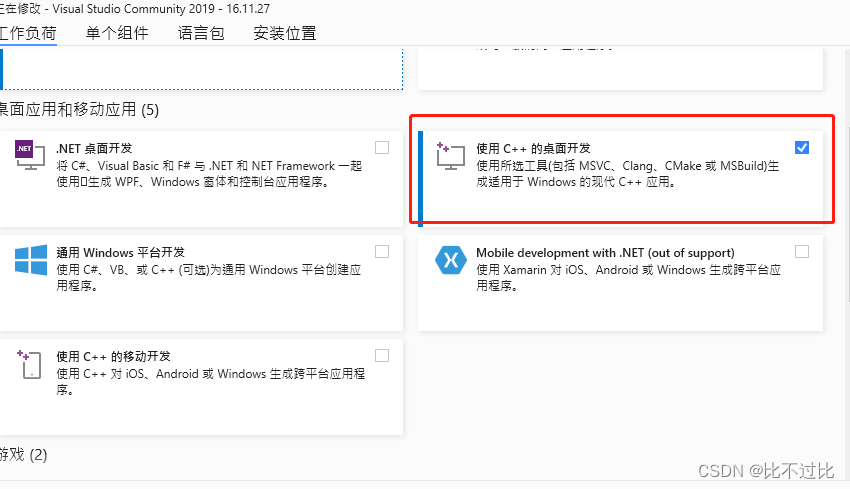

勾选“使用c++ 的桌面开发”

开始安装

2.配置环境变量

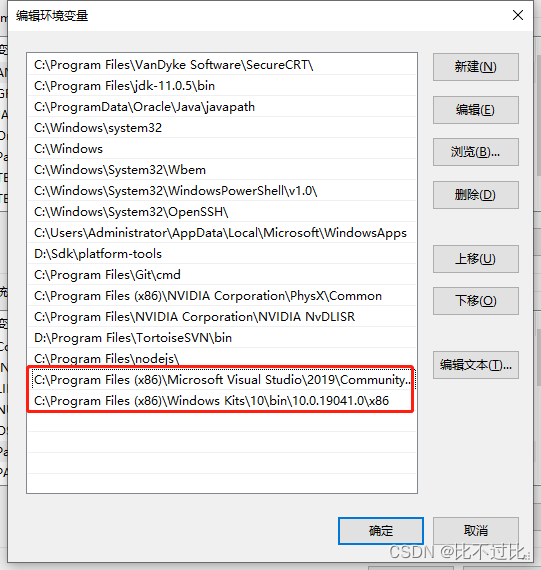

添加path:

C:\Program Files (x86)\Microsoft Visual Studio\2019\Community\VC\Tools\MSVC\14.29.30133\bin\Hostx64\x64
C:\Program Files (x86)\Windows Kits\10\bin\10.0.19041.0\x86

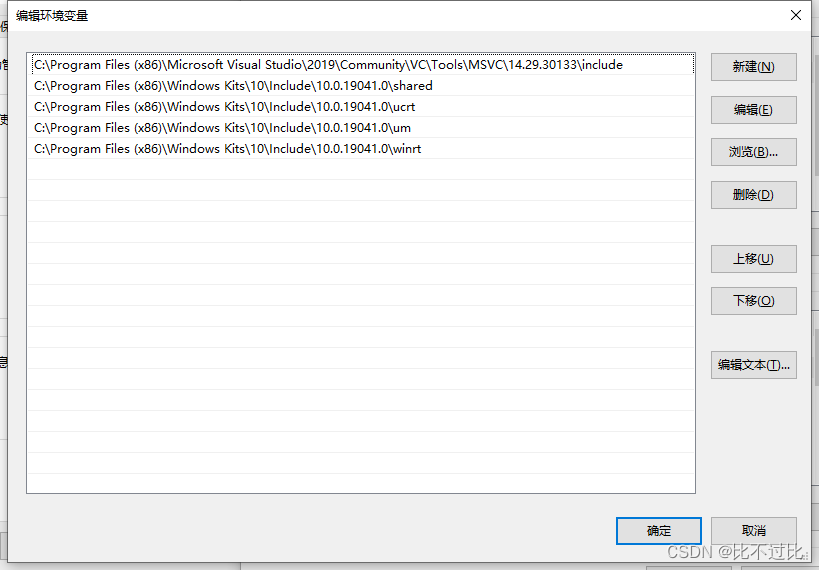

新建一个INCLUDE变量并配置

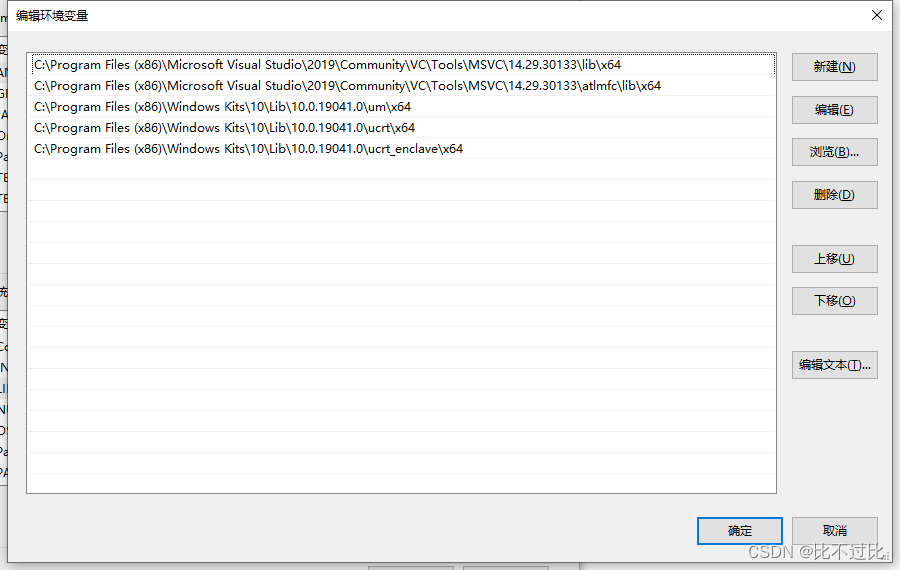

新建一个LIB变量并配置

3.验证CL命令

打开一个新的命令提示符窗口，测试cl命令

cl test.cpp

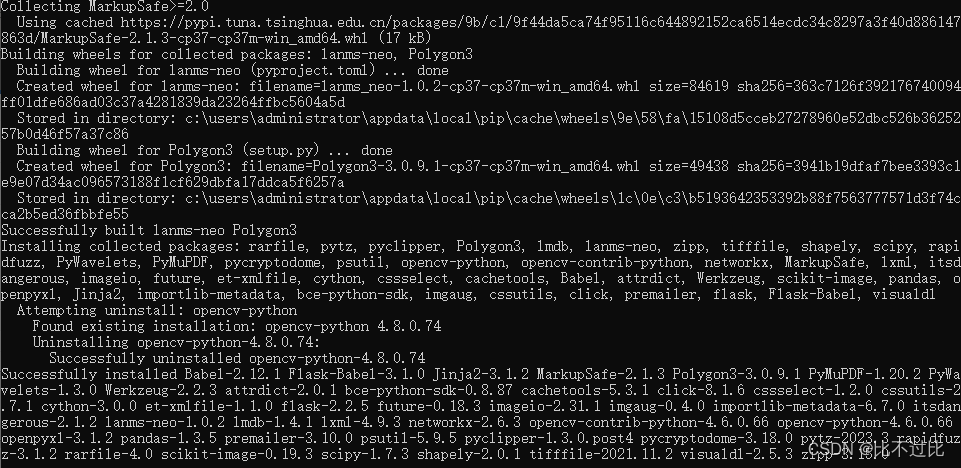

5.打开一个新的命令提示符窗口，再次使用pip安装
