mybatis结合spring执行Sql的流程

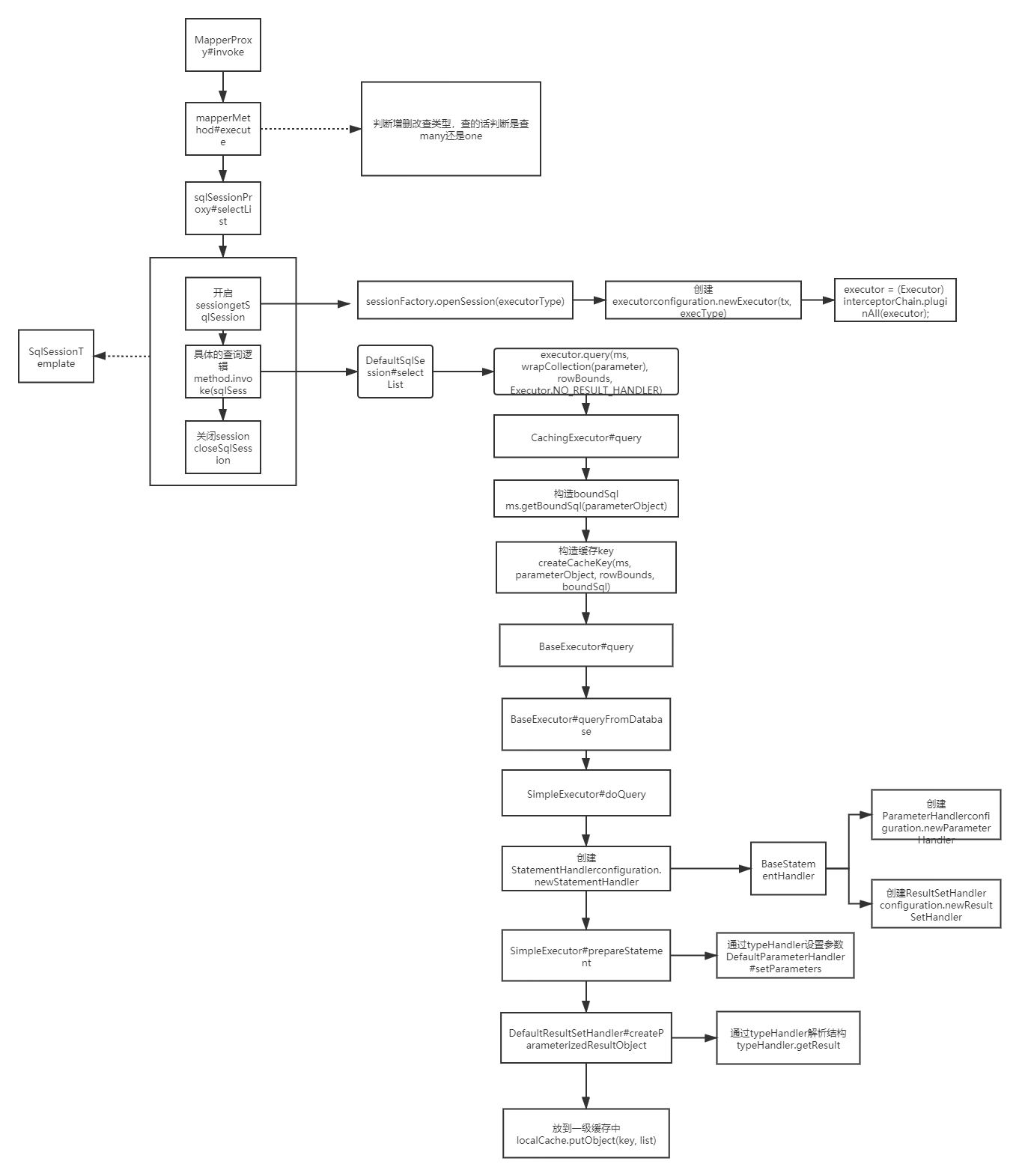

mybatis执行Sql的流程

首先讲上一篇出现过的一段代码new SqlSessionTemplate

  public void setSqlSessionFactory(SqlSessionFactory sqlSessionFactory) {
    if (!this.externalSqlSession) {
      this.sqlSession = new SqlSessionTemplate(sqlSessionFactory);
    }
  }

进入new SqlSessionTemplate，创建出来了一个代理对象sqlSessionProxy，这个下面执行sql会用到。

  public SqlSessionTemplate(SqlSessionFactory sqlSessionFactory, ExecutorType executorType,
      PersistenceExceptionTranslator exceptionTranslator) {

    notNull(sqlSessionFactory, "Property 'sqlSessionFactory' is required");
    notNull(executorType, "Property 'executorType' is required");

    this.sqlSessionFactory = sqlSessionFactory;
    this.executorType = executorType;
    this.exceptionTranslator = exceptionTranslator;
    //给SqlSession创建动态代理对象
    this.sqlSessionProxy = (SqlSession) newProxyInstance(
        SqlSessionFactory.class.getClassLoader(),
        new Class[] { SqlSession.class },
        new SqlSessionInterceptor());
  }

上面一篇文章讲到，我们通过context.getBean(AccountDao.class)拿到的对象是一个MapperProxy，所以当我们调用dao.getAll()的时候，我们就会进入MapperProxy的invoke方法

  public Object invoke(Object proxy, Method method, Object[] args) throws Throwable {
    if (Object.class.equals(method.getDeclaringClass())) {
      try {
        return method.invoke(this, args);
      } catch (Throwable t) {
        throw ExceptionUtil.unwrapThrowable(t);
      }
    }
    final MapperMethod mapperMethod = cachedMapperMethod(method);
    return mapperMethod.execute(sqlSession, args);
  }

首先会进入cachedMapperMethod(method)，这里首先会判断cache里面有没有这个method所对应的mapperMethod，没有就会根据接口名，method，和sqlSession的configuration信息创建一个mapperMethod，放到cachedMapperMethod。

  private MapperMethod cachedMapperMethod(Method method) {
    MapperMethod mapperMethod = methodCache.get(method);
    if (mapperMethod == null) {
      mapperMethod = new MapperMethod(mapperInterface, method, sqlSession.getConfiguration());
      methodCache.put(method, mapperMethod);
    }
    return mapperMethod;
  }

MapperMethod的创建，new一个SqlCommand和MethodSignature

  public MapperMethod(Class<?> mapperInterface, Method method, Configuration config) {
    this.command = new SqlCommand(config, mapperInterface, method);
    this.method = new MethodSignature(config, method);
  }

public SqlCommand(Configuration configuration, Class<?> mapperInterface, Method method) throws BindingException {
 	  //根据传进来的接口名和方法，得到statementName
      String statementName = mapperInterface.getName() + "." + method.getName();
      MappedStatement ms = null;
      //根据statementName从mappedStatements中找到对应的MappedStatement
      if (configuration.hasStatement(statementName)) {
        ms = configuration.getMappedStatement(statementName);
      } else if (!mapperInterface.equals(method.getDeclaringClass().getName())) { // issue #35
        String parentStatementName = method.getDeclaringClass().getName() + "." + method.getName();
        if (configuration.hasStatement(parentStatementName)) {
          ms = configuration.getMappedStatement(parentStatementName);
        }
      }
      if (ms == null) {
        throw new BindingException("Invalid bound statement (not found): " + statementName);
      }
      //赋值name和type
      name = ms.getId();
      type = ms.getSqlCommandType();
      if (type == SqlCommandType.UNKNOWN) {
        throw new BindingException("Unknown execution method for: " + name);
      }
    }

然后就完成了sql与dao方法的一个映射。

然后会执行mapperMethod.execute(sqlSession, args)进入execute方法，然后我们的sql是一个select list的一个操作，所以会进入executeForMany(sqlSession, args);

  public Object execute(SqlSession sqlSession, Object[] args) {
    Object result;
    //判断sql是crud的哪种
    if (SqlCommandType.INSERT == command.getType()) {
      Object param = method.convertArgsToSqlCommandParam(args);
      result = rowCountResult(sqlSession.insert(command.getName(), param));
    } else if (SqlCommandType.UPDATE == command.getType()) {
      Object param = method.convertArgsToSqlCommandParam(args);
      result = rowCountResult(sqlSession.update(command.getName(), param));
    } else if (SqlCommandType.DELETE == command.getType()) {
      Object param = method.convertArgsToSqlCommandParam(args);
      result = rowCountResult(sqlSession.delete(command.getName(), param));
    } else if (SqlCommandType.SELECT == command.getType()) {
      if (method.returnsVoid() && method.hasResultHandler()) {
        executeWithResultHandler(sqlSession, args);
        result = null;
      } else if (method.returnsMany()) {
        result = executeForMany(sqlSession, args);
      } else if (method.returnsMap()) {
        result = executeForMap(sqlSession, args);
      } else {
        Object param = method.convertArgsToSqlCommandParam(args);
        result = sqlSession.selectOne(command.getName(), param);
      }
    } else {
      throw new BindingException("Unknown execution method for: " + command.getName());
    }
    if (result == null && method.getReturnType().isPrimitive() && !method.returnsVoid()) {
      throw new BindingException("Mapper method '" + command.getName()
          + " attempted to return null from a method with a primitive return type (" + method.getReturnType() + ").");
    }
    return result;
  }

进入executeForMany(sqlSession, args)，
执行result = sqlSession.selectList(command.getName(), param);
由前面知道，sqlSession就是SqlSessionTemplate，进入SqlSessionTemplate的selectList方法，

  public <E> List<E> selectList(String statement, Object parameter) {
    return this.sqlSessionProxy.<E> selectList(statement, parameter);
  }

sqlSessionProxy是一个代理类，我们就进入到SqlSessionInterceptor的invoke方法，

  private class SqlSessionInterceptor implements InvocationHandler {
    public Object invoke(Object proxy, Method method, Object[] args) throws Throwable {
      //sessionFactory中开启sqlSession
      SqlSession sqlSession = getSqlSession(
          SqlSessionTemplate.this.sqlSessionFactory,
          SqlSessionTemplate.this.executorType,
          SqlSessionTemplate.this.exceptionTranslator);
      try {
      //执行sql语句
        Object result = method.invoke(sqlSession, args);
        if (!isSqlSessionTransactional(sqlSession, SqlSessionTemplate.this.sqlSessionFactory)) {
          // force commit even on non-dirty sessions because some databases require
          // a commit/rollback before calling close()
          sqlSession.commit(true);
        }
        return result;
      } catch (Throwable t) {
        Throwable unwrapped = unwrapThrowable(t);
        if (SqlSessionTemplate.this.exceptionTranslator != null && unwrapped instanceof PersistenceException) {
          // release the connection to avoid a deadlock if the translator is no loaded. See issue #22
          closeSqlSession(sqlSession, SqlSessionTemplate.this.sqlSessionFactory);
          sqlSession = null;
          Throwable translated = SqlSessionTemplate.this.exceptionTranslator.translateExceptionIfPossible((PersistenceException) unwrapped);
          if (translated != null) {
            unwrapped = translated;
          }
        }
        throw unwrapped;
      } finally {
      //关闭session，由于一级缓存是根据session缓存，所以与spring一起使用的话，一级缓存就会失效
        if (sqlSession != null) {
          closeSqlSession(sqlSession, SqlSessionTemplate.this.sqlSessionFactory);
        }
      }
    }
  }

对关键的代码进行分析，获得sqlSession

 SqlSession sqlSession = getSqlSession(
          SqlSessionTemplate.this.sqlSessionFactory,
          SqlSessionTemplate.this.executorType,
          SqlSessionTemplate.this.exceptionTranslator);

通过sessionFactory获取session

SqlSession session = sessionFactory.openSession(executorType);

private SqlSession openSessionFromDataSource(ExecutorType execType, TransactionIsolationLevel level, boolean autoCommit) {
    Transaction tx = null;
    try {
      final Environment environment = configuration.getEnvironment();
      final TransactionFactory transactionFactory = getTransactionFactoryFromEnvironment(environment);
      tx = transactionFactory.newTransaction(environment.getDataSource(), level, autoCommit);
      final Executor executor = configuration.newExecutor(tx, execType);
      return new DefaultSqlSession(configuration, executor, autoCommit);
    } catch (Exception e) {
      closeTransaction(tx); // may have fetched a connection so lets call close()
      throw ExceptionFactory.wrapException("Error opening session.  Cause: " + e, e);
    } finally {
      ErrorContext.instance().reset();
    }

创建出executor ，这里有一个mybatis的插件功能，executor = (Executor) interceptorChain.pluginAll(executor);

  public Executor newExecutor(Transaction transaction, ExecutorType executorType) {
    executorType = executorType == null ? defaultExecutorType : executorType;
    executorType = executorType == null ? ExecutorType.SIMPLE : executorType;
    Executor executor;
    if (ExecutorType.BATCH == executorType) {
      executor = new BatchExecutor(this, transaction);
    } else if (ExecutorType.REUSE == executorType) {
      executor = new ReuseExecutor(this, transaction);
    } else {
      executor = new SimpleExecutor(this, transaction);
    }
    if (cacheEnabled) {
      executor = new CachingExecutor(executor);
    }
    executor = (Executor) interceptorChain.pluginAll(executor);
    return executor;
  }

然后sqlSession就被创建出来了，创建出来的sqlSession是DefaultSqlSession，接下来就是执行sql语句
Object result = method.invoke(sqlSession, args);

  public <E> List<E> selectList(String statement, Object parameter, RowBounds rowBounds) {
    try {
    	//拿到对应的ms
      MappedStatement ms = configuration.getMappedStatement(statement);
     //执行sql
      List<E> result = executor.query(ms, wrapCollection(parameter), rowBounds, Executor.NO_RESULT_HANDLER);
      return result;
    } catch (Exception e) {
      throw ExceptionFactory.wrapException("Error querying database.  Cause: " + e, e);
    } finally {
      ErrorContext.instance().reset();
    }
  }

wrapCollection(parameter)，把collection转化成map

if (object instanceof List) {
      StrictMap<Object> map = new StrictMap<Object>();
      map.put("list", object);
      return map;
    } else if (object != null && object.getClass().isArray()) {
      StrictMap<Object> map = new StrictMap<Object>();
      map.put("array", object);
      return map;
    }
    return object;

进入executor.query，这里就有3个操作，构造BoundSql ，构造缓存的key，执行sql

  public <E> List<E> query(MappedStatement ms, Object parameterObject, RowBounds rowBounds, ResultHandler resultHandler) throws SQLException {    //构造BoundSql
    BoundSql boundSql = ms.getBoundSql(parameterObject);
    //构造缓存的key值
    CacheKey key = createCacheKey(ms, parameterObject, rowBounds, boundSql);
    return query(ms, parameterObject, rowBounds, resultHandler, key, boundSql);
  }

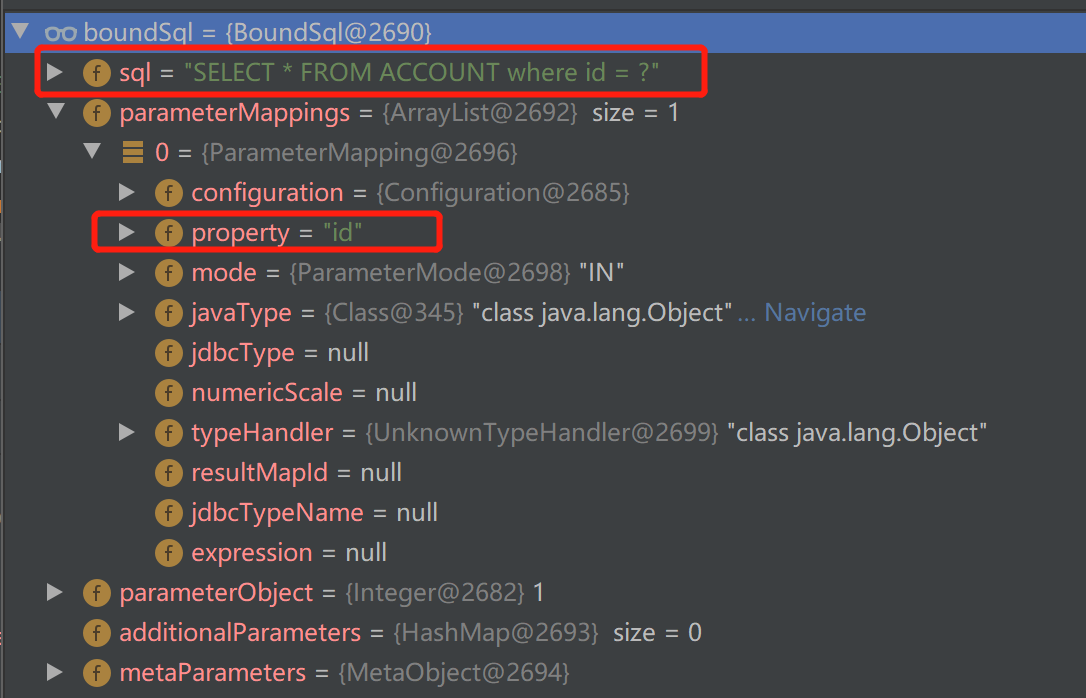

构造出来boundSql,可以看到，sql已经被解析出来了，

进入query方法，执行delegate.query

delegate.<E> query(ms, parameterObject, rowBounds, resultHandler, key, boundSql);

执行数据库查询

list = queryFromDatabase(ms, parameter, rowBounds, resultHandler, key, boundSql);

list = doQuery(ms, parameter, rowBounds, resultHandler, boundSql);

doQuery方法

  public <E> List<E> doQuery(MappedStatement ms, Object parameter, RowBounds rowBounds, ResultHandler resultHandler, BoundSql boundSql) throws SQLException {
    Statement stmt = null;
    try {
      Configuration configuration = ms.getConfiguration();
      //创建StatementHandler
      StatementHandler handler = configuration.newStatementHandler(wrapper, ms, parameter, rowBounds, resultHandler, boundSql);
      //参数的处理
      stmt = prepareStatement(handler, ms.getStatementLog());
      return handler.<E>query(stmt, resultHandler);
    } finally {
      closeStatement(stmt);
    }
  }

创建StatementHandler，这里有一个mybatis的插件功能，statementHandler = (StatementHandler) interceptorChain.pluginAll(statementHandler);

  public StatementHandler newStatementHandler(Executor executor, MappedStatement mappedStatement, Object parameterObject, RowBounds rowBounds, ResultHandler resultHandler, BoundSql boundSql) {
    //创建statementHandler
    StatementHandler statementHandler = new RoutingStatementHandler(executor, mappedStatement, parameterObject, rowBounds, resultHandler, boundSql);
    //拿到所有plugin中的statementHandler
    statementHandler = (StatementHandler) interceptorChain.pluginAll(statementHandler);
    return statementHandler;
  }

StatementHandler statementHandler = new RoutingStatementHandler();

  public RoutingStatementHandler(Executor executor, MappedStatement ms, Object parameter, RowBounds rowBounds, ResultHandler resultHandler, BoundSql boundSql) {

    switch (ms.getStatementType()) {
      case STATEMENT:
        delegate = new SimpleStatementHandler(executor, ms, parameter, rowBounds, resultHandler, boundSql);
        break;
      case PREPARED:
        delegate = new PreparedStatementHandler(executor, ms, parameter, rowBounds, resultHandler, boundSql);
        break;
      case CALLABLE:
        delegate = new CallableStatementHandler(executor, ms, parameter, rowBounds, resultHandler, boundSql);
        break;
      default:
        throw new ExecutorException("Unknown statement type: " + ms.getStatementType());
    }

  }

delegate = new PreparedStatementHandler（）；这里就new出来了parameterHandler和resultSetHandler，两个可以作为mybatis插件

  protected BaseStatementHandler(Executor executor, MappedStatement mappedStatement, Object parameterObject, RowBounds rowBounds, ResultHandler resultHandler, BoundSql boundSql) {
    this.configuration = mappedStatement.getConfiguration();
    this.executor = executor;
    this.mappedStatement = mappedStatement;
    this.rowBounds = rowBounds;

    this.typeHandlerRegistry = configuration.getTypeHandlerRegistry();
    this.objectFactory = configuration.getObjectFactory();

    if (boundSql == null) { // issue #435, get the key before calculating the statement
      generateKeys(parameterObject);
      boundSql = mappedStatement.getBoundSql(parameterObject);
    }

    this.boundSql = boundSql;
	// new parameterHandler
    this.parameterHandler = configuration.newParameterHandler(mappedStatement, parameterObject, boundSql);
    //new resultSetHandler
    this.resultSetHandler = configuration.newResultSetHandler(executor, mappedStatement, rowBounds, parameterHandler, resultHandler, boundSql);
  }

关键代码interceptorChain.pluginAll();写插件会用到

  public ParameterHandler newParameterHandler(MappedStatement mappedStatement, Object parameterObject, BoundSql boundSql) {
    ParameterHandler parameterHandler = mappedStatement.getLang().createParameterHandler(mappedStatement, parameterObject, boundSql);
    parameterHandler = (ParameterHandler) interceptorChain.pluginAll(parameterHandler);
    return parameterHandler;
  }

  public ResultSetHandler newResultSetHandler(Executor executor, MappedStatement mappedStatement, RowBounds rowBounds, ParameterHandler parameterHandler,
      ResultHandler resultHandler, BoundSql boundSql) {
    ResultSetHandler resultSetHandler = new DefaultResultSetHandler(executor, mappedStatement, parameterHandler, resultHandler, boundSql, rowBounds);
    resultSetHandler = (ResultSetHandler) interceptorChain.pluginAll(resultSetHandler);
    return resultSetHandler;
  }

参数处理 stmt = prepareStatement(handler, ms.getStatementLog());使用typeHandler进行参数的设置

 if (typeHandlerRegistry.hasTypeHandler(parameterObject.getClass())) {
            value = parameterObject;
          }

查询后结果集的处理resultSetHandler. handleResultSets(ps);

if (typeHandlerRegistry.hasTypeHandler(propertyType)) {
          final TypeHandler<?> typeHandler = rsw.getTypeHandler(propertyType, columnName);
          final Object value = typeHandler.getResult(rsw.getResultSet(), columnName);
          if (value != null || configuration.isCallSettersOnNulls()) { // issue #377, call setter on nulls
            if (value != null || !propertyType.isPrimitive()) {
              metaObject.setValue(property, value);
            }
            foundValues = true;
          }
        }

最后再关闭session，一级缓存就失效了。
closeSqlSession(sqlSession, SqlSessionTemplate.this.sqlSessionFactory);

最后附上流程图：
