各位眼光独到,学贯中西的读者们,你们好啊!今天我们讨论一下AES算法及其识别。
虽然DES算法的分组大小是64位,但是由于DES算法的密钥长度只有56位,因此DES算法存在着弱点,容易受到暴力破解和差分攻击等攻击手段的威胁。因此,在实际应用中,DES算法已经不再被广泛使用,而被更加安全的算法所取代,如AES算法等。
为了强调大于56位密钥对高强度安全的重要性,RAS数据安全(RSA Data Security)从1997年早期就发起了一系列的DES攻击竞赛。1998年电子前沿基金会(Electronic Frontier Foundation)在不到三天的时间里攻破了DES,赢得了RSA DES挑战II-2竞赛,EFF(电子前沿基金会缩写)用了一种专门开发的计算机,叫做DES破解者,它的造价不到25万美元。它的加密芯片能够使DES破解者有每秒钟产生880亿密钥的能力。更近一些,在1999年早期,分布式网络(Distributed. Net)创纪录的用22小时15分钟,利用DES破解者和全世界接近10万台电脑组成的网络赢得了RSA DES挑战III竞赛。DES破解者和联网电脑合起来每秒能够测试2450亿的密钥。另外,已经被证实,可以组建花费10万美元的硬件设施,以使其在3.5小时内攻破DES。这恰好验证了现在任何组织,只要利用现代化的资源就可以轻松破解DES。
不过,现在可以使用3DES的方式扩展密钥长度来进行加密。
高级加密标准(英语:Advanced Encryption Standard,缩写:AES),这个标准用来替代原先的DES,已经被多方分析且广为全世界所使用。

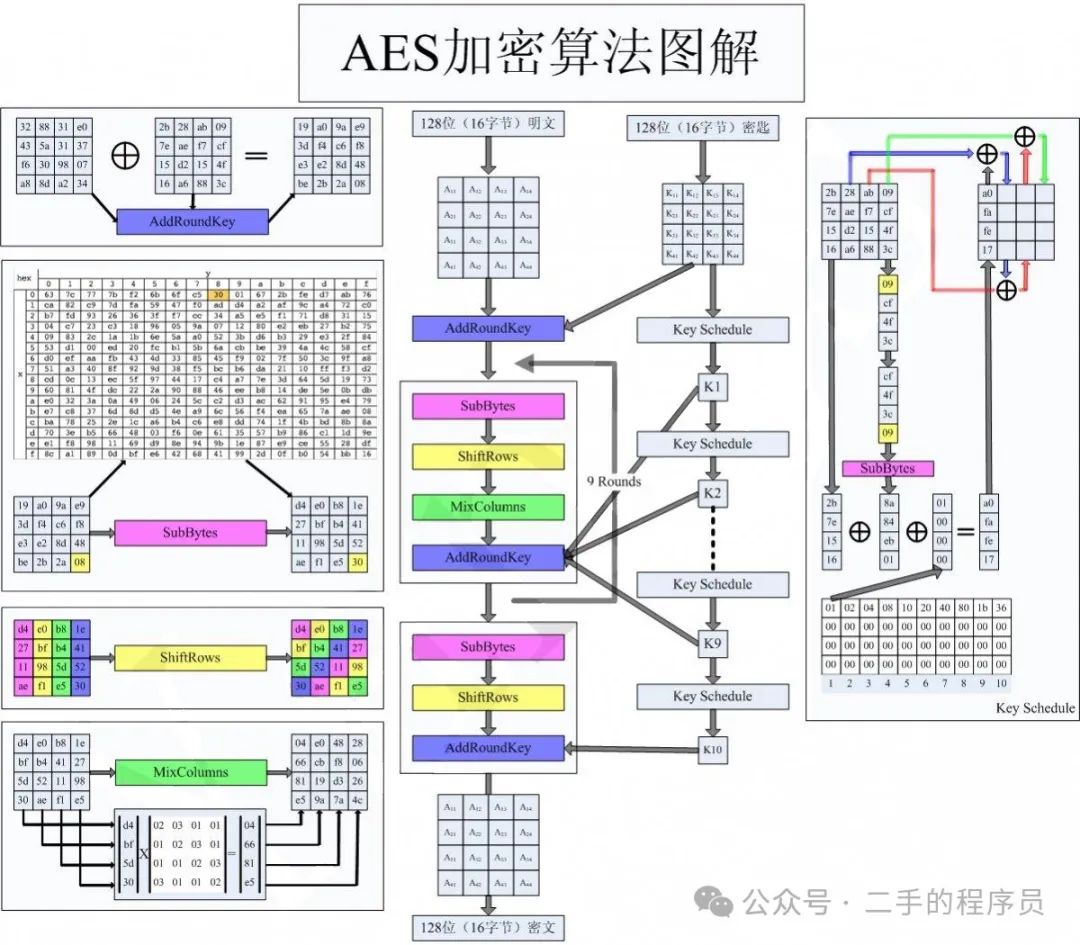

加密图解
图里面的每个流程具体的讲解,看下面的视频链接,依然是UP主(可厉害的土豆)讲的:
https://www.bilibili.com/video/BV1i341187fK
里面说的很清楚,加密流程,密钥扩展等。总的来说,这个算法并不难,只是非常的繁琐。至于为什么要这样做,我就不懂了。
AES是取代DES的,其大致流程是差不多的,也有S盒,置换表等。关于S盒是否是固定的,我猜测不是的,但是应该也需要满足一定的条件。
Java算法识别
先看其使用:
// 加密
public static String Encrypt(String sSrc, String sKey) throws Exception {
if (sKey == null) {
System.out.print("Key为空null");
return null;
}
// 判断Key是否为16位
if (sKey.length() != 16) {
System.out.print("Key长度不是16位");
return null;
}
byte[] raw = sKey.getBytes("utf-8");
SecretKeySpec skeySpec = new SecretKeySpec(raw, "AES");
Cipher cipher = Cipher.getInstance("AES/ECB/PKCS5Padding");//"算法/模式/填充方式"
cipher.init(Cipher.ENCRYPT_MODE, skeySpec);
byte[] encrypted = cipher.doFinal(sSrc.getBytes("utf-8"));
String result = null;
result = new String(Base64.encode(encrypted, Base64.DEFAULT));
return result;//使用BASE64做转码功能
}
// 解密
public static String Decrypt(String sSrc, String sKey) throws Exception {
try {
// 判断Key是否正确
if (sKey == null) {
System.out.print("Key为空null");
return null;
}
// 判断Key是否为16位
if (sKey.length() != 16) {
System.out.print("Key长度不是16位");
return null;
}
byte[] raw = sKey.getBytes("utf-8");
SecretKeySpec skeySpec = new SecretKeySpec(raw, "AES");
Cipher cipher = Cipher.getInstance("AES/ECB/PKCS5Padding");
cipher.init(Cipher.DECRYPT_MODE, skeySpec);
byte[] encrypted1 = Base64.decode(sSrc.getBytes("UTF-8"), Base64.DEFAULT);
try {
byte[] original = cipher.doFinal(encrypted1);
String originalString = new String(original, "utf-8");
return originalString;
} catch (Exception e) {
System.out.println(e.toString());
return null;
}
} catch (Exception ex) {
System.out.println(ex.toString());
return null;
}
}
依然是使用 Cipher 类来完成,不过传递的参数是 AES/ECB/PKCS5Padding
。
所以我们可以按照之前的Hook逻辑来处理:
Java.use('javax.crypto.spec.SecretKeySpec').$init.overload('[B', 'java.lang.String').implementation = function (arg0, arg1) {
//console.log('javax.crypto.spec.SecretKeySpec.init is called');
if (arg1.indexOf("AES") != -1) {
console.log('key:', JSON.stringify(arg0), ",algorithm:" + arg1);
}
var result = this.$init(arg0, arg1);
return result;
};
//.init(Cipher.ENCRYPT_MODE, getRawKey(key), iv);
Java.use('javax.crypto.Cipher').init.overload('int', 'java.security.Key').implementation = function (arg0, arg1) {
//console.log('javax.crypto.Cipher.init is called!', arg0, arg1, arg2);
var mode = arg0;
var key = arg1;
var SecretKeySpecClass = Java.use('java.security.Key');
var keyobj = Java.cast(key, SecretKeySpecClass);
var key_bytes = keyobj.getEncoded();
console.log('javax.crypto.Cipher.init is called!', mode, JSON.stringify(key_bytes));
var result = this.init(arg0, arg1);
return result;
};
Java.use('javax.crypto.Cipher').doFinal.overload('[B').implementation = function (arg0) {
console.log('javax.crypto.Cipher.doFinal is called!', JSON.stringify(arg0));
var data = arg0;
var result = this.doFinal(arg0);
console.log('javax.crypto.Cipher.doFinal is called!', JSON.stringify(data), "encrypt:", JSON.stringify(result));
return result;
};
通过hook SecretKeySpec
的构造函数可以获得密钥字节。通过 hook doFinal
方法可以获取明文字节。
要是做的更完善一点,可以Hook Cipher
类的所有相关方法。我之前写了一个 Xposed 版的,就是做了这样的一个事情:
https://github.com/aprz512/JavaxEncryptionHook
C算法识别
贴一些常量表:
// The lookup-tables are marked const so they can be placed in read-only storage instead of RAM
// The numbers below can be computed dynamically trading ROM for RAM -
// This can be useful in (embedded) bootloader applications, where ROM is often limited.
static const uint8_t sbox[256] = {
//0 1 2 3 4 5 6 7 8 9 A B C D E F
0x63, 0x7c, 0x77, 0x7b, 0xf2, 0x6b, 0x6f, 0xc5, 0x30, 0x01, 0x67, 0x2b, 0xfe, 0xd7, 0xab, 0x76,
0xca, 0x82, 0xc9, 0x7d, 0xfa, 0x59, 0x47, 0xf0, 0xad, 0xd4, 0xa2, 0xaf, 0x9c, 0xa4, 0x72, 0xc0,
0xb7, 0xfd, 0x93, 0x26, 0x36, 0x3f, 0xf7, 0xcc, 0x34, 0xa5, 0xe5, 0xf1, 0x71, 0xd8, 0x31, 0x15,
0x04, 0xc7, 0x23, 0xc3, 0x18, 0x96, 0x05, 0x9a, 0x07, 0x12, 0x80, 0xe2, 0xeb, 0x27, 0xb2, 0x75,
0x09, 0x83, 0x2c, 0x1a, 0x1b, 0x6e, 0x5a, 0xa0, 0x52, 0x3b, 0xd6, 0xb3, 0x29, 0xe3, 0x2f, 0x84,
0x53, 0xd1, 0x00, 0xed, 0x20, 0xfc, 0xb1, 0x5b, 0x6a, 0xcb, 0xbe, 0x39, 0x4a, 0x4c, 0x58, 0xcf,
0xd0, 0xef, 0xaa, 0xfb, 0x43, 0x4d, 0x33, 0x85, 0x45, 0xf9, 0x02, 0x7f, 0x50, 0x3c, 0x9f, 0xa8,
0x51, 0xa3, 0x40, 0x8f, 0x92, 0x9d, 0x38, 0xf5, 0xbc, 0xb6, 0xda, 0x21, 0x10, 0xff, 0xf3, 0xd2,
0xcd, 0x0c, 0x13, 0xec, 0x5f, 0x97, 0x44, 0x17, 0xc4, 0xa7, 0x7e, 0x3d, 0x64, 0x5d, 0x19, 0x73,
0x60, 0x81, 0x4f, 0xdc, 0x22, 0x2a, 0x90, 0x88, 0x46, 0xee, 0xb8, 0x14, 0xde, 0x5e, 0x0b, 0xdb,
0xe0, 0x32, 0x3a, 0x0a, 0x49, 0x06, 0x24, 0x5c, 0xc2, 0xd3, 0xac, 0x62, 0x91, 0x95, 0xe4, 0x79,
0xe7, 0xc8, 0x37, 0x6d, 0x8d, 0xd5, 0x4e, 0xa9, 0x6c, 0x56, 0xf4, 0xea, 0x65, 0x7a, 0xae, 0x08,
0xba, 0x78, 0x25, 0x2e, 0x1c, 0xa6, 0xb4, 0xc6, 0xe8, 0xdd, 0x74, 0x1f, 0x4b, 0xbd, 0x8b, 0x8a,
0x70, 0x3e, 0xb5, 0x66, 0x48, 0x03, 0xf6, 0x0e, 0x61, 0x35, 0x57, 0xb9, 0x86, 0xc1, 0x1d, 0x9e,
0xe1, 0xf8, 0x98, 0x11, 0x69, 0xd9, 0x8e, 0x94, 0x9b, 0x1e, 0x87, 0xe9, 0xce, 0x55, 0x28, 0xdf,
0x8c, 0xa1, 0x89, 0x0d, 0xbf, 0xe6, 0x42, 0x68, 0x41, 0x99, 0x2d, 0x0f, 0xb0, 0x54, 0xbb, 0x16 };
static const uint8_t rsbox[256] =
{ 0x52, 0x09, 0x6a, 0xd5, 0x30, 0x36, 0xa5, 0x38, 0xbf, 0x40, 0xa3, 0x9e, 0x81, 0xf3, 0xd7, 0xfb,
0x7c, 0xe3, 0x39, 0x82, 0x9b, 0x2f, 0xff, 0x87, 0x34, 0x8e, 0x43, 0x44, 0xc4, 0xde, 0xe9, 0xcb,
0x54, 0x7b, 0x94, 0x32, 0xa6, 0xc2, 0x23, 0x3d, 0xee, 0x4c, 0x95, 0x0b, 0x42, 0xfa, 0xc3, 0x4e,
0x08, 0x2e, 0xa1, 0x66, 0x28, 0xd9, 0x24, 0xb2, 0x76, 0x5b, 0xa2, 0x49, 0x6d, 0x8b, 0xd1, 0x25,
0x72, 0xf8, 0xf6, 0x64, 0x86, 0x68, 0x98, 0x16, 0xd4, 0xa4, 0x5c, 0xcc, 0x5d, 0x65, 0xb6, 0x92,
0x6c, 0x70, 0x48, 0x50, 0xfd, 0xed, 0xb9, 0xda, 0x5e, 0x15, 0x46, 0x57, 0xa7, 0x8d, 0x9d, 0x84,
0x90, 0xd8, 0xab, 0x00, 0x8c, 0xbc, 0xd3, 0x0a, 0xf7, 0xe4, 0x58, 0x05, 0xb8, 0xb3, 0x45, 0x06,
0xd0, 0x2c, 0x1e, 0x8f, 0xca, 0x3f, 0x0f, 0x02, 0xc1, 0xaf, 0xbd, 0x03, 0x01, 0x13, 0x8a, 0x6b,
0x3a, 0x91, 0x11, 0x41, 0x4f, 0x67, 0xdc, 0xea, 0x97, 0xf2, 0xcf, 0xce, 0xf0, 0xb4, 0xe6, 0x73,
0x96, 0xac, 0x74, 0x22, 0xe7, 0xad, 0x35, 0x85, 0xe2, 0xf9, 0x37, 0xe8, 0x1c, 0x75, 0xdf, 0x6e,
0x47, 0xf1, 0x1a, 0x71, 0x1d, 0x29, 0xc5, 0x89, 0x6f, 0xb7, 0x62, 0x0e, 0xaa, 0x18, 0xbe, 0x1b,
0xfc, 0x56, 0x3e, 0x4b, 0xc6, 0xd2, 0x79, 0x20, 0x9a, 0xdb, 0xc0, 0xfe, 0x78, 0xcd, 0x5a, 0xf4,
0x1f, 0xdd, 0xa8, 0x33, 0x88, 0x07, 0xc7, 0x31, 0xb1, 0x12, 0x10, 0x59, 0x27, 0x80, 0xec, 0x5f,
0x60, 0x51, 0x7f, 0xa9, 0x19, 0xb5, 0x4a, 0x0d, 0x2d, 0xe5, 0x7a, 0x9f, 0x93, 0xc9, 0x9c, 0xef,
0xa0, 0xe0, 0x3b, 0x4d, 0xae, 0x2a, 0xf5, 0xb0, 0xc8, 0xeb, 0xbb, 0x3c, 0x83, 0x53, 0x99, 0x61,
0x17, 0x2b, 0x04, 0x7e, 0xba, 0x77, 0xd6, 0x26, 0xe1, 0x69, 0x14, 0x63, 0x55, 0x21, 0x0c, 0x7d };
// The round constant word array, Rcon[i], contains the values given by
// x to th e power (i-1) being powers of x (x is denoted as {02}) in the field GF(2^8)
// Note that i starts at 1, not 0).
static const uint8_t Rcon[255] = {
0x8d, 0x01, 0x02, 0x04, 0x08, 0x10, 0x20, 0x40, 0x80, 0x1b, 0x36, 0x6c, 0xd8, 0xab, 0x4d, 0x9a,
0x2f, 0x5e, 0xbc, 0x63, 0xc6, 0x97, 0x35, 0x6a, 0xd4, 0xb3, 0x7d, 0xfa, 0xef, 0xc5, 0x91, 0x39,
0x72, 0xe4, 0xd3, 0xbd, 0x61, 0xc2, 0x9f, 0x25, 0x4a, 0x94, 0x33, 0x66, 0xcc, 0x83, 0x1d, 0x3a,
0x74, 0xe8, 0xcb, 0x8d, 0x01, 0x02, 0x04, 0x08, 0x10, 0x20, 0x40, 0x80, 0x1b, 0x36, 0x6c, 0xd8,
0xab, 0x4d, 0x9a, 0x2f, 0x5e, 0xbc, 0x63, 0xc6, 0x97, 0x35, 0x6a, 0xd4, 0xb3, 0x7d, 0xfa, 0xef,
0xc5, 0x91, 0x39, 0x72, 0xe4, 0xd3, 0xbd, 0x61, 0xc2, 0x9f, 0x25, 0x4a, 0x94, 0x33, 0x66, 0xcc,
0x83, 0x1d, 0x3a, 0x74, 0xe8, 0xcb, 0x8d, 0x01, 0x02, 0x04, 0x08, 0x10, 0x20, 0x40, 0x80, 0x1b,
0x36, 0x6c, 0xd8, 0xab, 0x4d, 0x9a, 0x2f, 0x5e, 0xbc, 0x63, 0xc6, 0x97, 0x35, 0x6a, 0xd4, 0xb3,
0x7d, 0xfa, 0xef, 0xc5, 0x91, 0x39, 0x72, 0xe4, 0xd3, 0xbd, 0x61, 0xc2, 0x9f, 0x25, 0x4a, 0x94,
0x33, 0x66, 0xcc, 0x83, 0x1d, 0x3a, 0x74, 0xe8, 0xcb, 0x8d, 0x01, 0x02, 0x04, 0x08, 0x10, 0x20,
0x40, 0x80, 0x1b, 0x36, 0x6c, 0xd8, 0xab, 0x4d, 0x9a, 0x2f, 0x5e, 0xbc, 0x63, 0xc6, 0x97, 0x35,
0x6a, 0xd4, 0xb3, 0x7d, 0xfa, 0xef, 0xc5, 0x91, 0x39, 0x72, 0xe4, 0xd3, 0xbd, 0x61, 0xc2, 0x9f,
0x25, 0x4a, 0x94, 0x33, 0x66, 0xcc, 0x83, 0x1d, 0x3a, 0x74, 0xe8, 0xcb, 0x8d, 0x01, 0x02, 0x04,
0x08, 0x10, 0x20, 0x40, 0x80, 0x1b, 0x36, 0x6c, 0xd8, 0xab, 0x4d, 0x9a, 0x2f, 0x5e, 0xbc, 0x63,
0xc6, 0x97, 0x35, 0x6a, 0xd4, 0xb3, 0x7d, 0xfa, 0xef, 0xc5, 0x91, 0x39, 0x72, 0xe4, 0xd3, 0xbd,
0x61, 0xc2, 0x9f, 0x25, 0x4a, 0x94, 0x33, 0x66, 0xcc, 0x83, 0x1d, 0x3a, 0x74, 0xe8, 0xcb };
根据常量表,就可以全局搜索了,依然使用 findcrypt3
插件来识别,当然我们可以自己加一些识别规则。
