水质预测模型

水质预测模型构建

1.水质数据介绍

1.1数据介绍

本文将水质分为可以用和不可饮用两种,以区分其水质好坏。水质数据来自于开源竞赛网络,具体包括pH value(pH值)、Hardness(硬度)、Solids(总溶解固体-TDS)、Chloramines(氯胺)、Conductivity(电导率)、Organic_carbon(有机碳)、Trihalomethanes(三卤甲烷类)、Turbidity(浊度)、Potability(可饮用性),以下是数据概念介绍。

  • 1.pH value(pH值)
  • PH是评估水的酸碱平衡的一个重要参数。它也是水状态的酸性或碱性条件的指示器。世界卫生组织建议pH值的最大允许限值为6.5至8.5。目前的调查范围为6.52-6.83,属于世界卫生组织标准范围。
  • 2.Hardness(硬度)
  • 硬度主要由钙盐和镁盐引起。这些盐是从水通过的地质沉积物中溶解出来的。水与产生硬度的材料接触的时间长度有助于确定原水中的硬度。硬度最初被定义为由钙和镁引起的水沉淀肥皂的能力。
  • 3.Solids(总溶解固体-TDS)
  • 水能够溶解各种无机和一些有机矿物或盐,如钾、钙、钠、碳酸氢盐、氯化物、镁、硫酸盐等。这些矿物在水的外观上会产生不想要的味道和稀释的颜色。这是用水的重要参数。TDS值高的水表明水具有高度矿化。TDS的理想限值为500mg/l,最大限值为1000mg/l,用于饮用。
  • 4.Chloramines(氯胺)
  • 氯和氯胺是公共供水系统中使用的主要消毒剂。氯胺最常见的形成是在氯中加入氨来处理饮用水。氯含量高达每升4毫克(mg/L或百万分之四(ppm))被认为是安全的饮用水中。
  • 5.Sulfate(硫酸盐)
  • 硫酸盐是天然存在的物质,存在于矿物、土壤和岩石中。它们存在于环境空气、地下水、植物和食物中。硫酸盐的主要商业用途是在化学工业中。海水中的硫酸盐浓度约为2700毫克/升(mg/L)。在大多数淡水供应中,它的浓度在3至30mg/L之间,尽管在一些地理位置发现的浓度要高得多(1000mg/L)。
  • 6.Conductivity(电导率)
  • 纯水不是电流的良好导体,而是一种良好的绝缘体。离子浓度的增加增强了水的导电性。通常,水中溶解固体的量决定了电导率。电导率(EC)实际上是测量溶液的离子过程,使其能够传输电流。根据世界卫生组织标准,EC值不应超过400μS/cm。
  • 7.Organic_carbon(有机碳)
  • 源水中的总有机碳(TOC)来自腐烂的天然有机物(NOM)和合成来源。TOC是衡量纯水中有机化合物中碳总量的指标。根据美国环保局的规定,经处理/饮用水中的总有机碳含量<2mg/L,用于处理的水源水中的总含量<4mg/L。
  • 8.Trihalomethanes(三卤甲烷类)
  • THM是一种化学物质,可能存在于经过氯处理的水中。饮用水中THM的浓度根据水中有机物质的水平、处理水所需的氯的量以及被处理水的温度而变化。高达80ppm的THM在饮用水中被认为是安全的。
  • 9.Turbidity(浊度)
  • 水的浊度取决于悬浮状态下存在的固体物质的数量。这是对水的发光财产的测量,该测试用于指示与胶体物质有关的废物排放质量。WondoGenet校园的平均浊度值(0.98NTU)低于世界卫生组织建议的5.00NTU。
  • 10.Potability(可饮用性)
  • 表示水对人类消费是否安全,其中1表示可饮用,0表示不可饮用。
import numpy as np
import pandas as pd
import seaborn as sns
import matplotlib.pyplot as plt
%matplotlib inline
import plotly.express as px
import warnings
warnings.filterwarnings('ignore')
# It is always consider as a good practice to make a copy of original dataset.

main_df = pd.read_csv("/kaggle/input/water-potability/water_potability.csv")
df = main_df.copy()
# 前5行数据
# Getting top 5 row of the dataset
df.head()
phHardnessSolidsChloraminesSulfateConductivityOrganic_carbonTrihalomethanesTurbidityPotability
0NaN204.89045520791.3189817.300212368.516441564.30865410.37978386.9909702.9631350
13.716080129.42292118630.0578586.635246NaN592.88535915.18001356.3290764.5006560
28.099124224.23625919909.5417329.275884NaN418.60621316.86863766.4200933.0559340
38.316766214.37339422018.4174418.059332356.886136363.26651618.436524100.3416744.6287710
49.092223181.10150917978.9863396.546600310.135738398.41081311.55827931.9979934.0750750

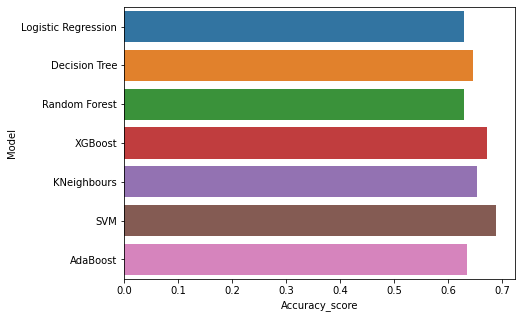

Following are the list of algorithms that are used in this notebook.

Algorithm
Logistic Regression
Decision Tree
Random Forest
XGBoost
KNeighbours
SVM
AdaBoost
print(df.shape)
(3276, 10)
print(df.columns)
Index(['ph', 'Hardness', 'Solids', 'Chloramines', 'Sulfate', 'Conductivity',
       'Organic_carbon', 'Trihalomethanes', 'Turbidity', 'Potability'],
      dtype='object')

1.2描述性统计

  • 各个数据的数量、平均值、标准差、最小最大值等如下表所示。
df.describe()
phHardnessSolidsChloraminesSulfateConductivityOrganic_carbonTrihalomethanesTurbidityPotability
count2785.0000003276.0000003276.0000003276.0000002495.0000003276.0000003276.0000003114.0000003276.0000003276.000000
mean7.080795196.36949622014.0925267.122277333.775777426.20511114.28497066.3962933.9667860.390110
std1.59432032.8797618768.5708281.58308541.41684080.8240643.30816216.1750080.7803820.487849
min0.00000047.432000320.9426110.352000129.000000181.4837542.2000000.7380001.4500000.000000
25%6.093092176.85053815666.6902976.127421307.699498365.73441412.06580155.8445363.4397110.000000
50%7.036752196.96762720927.8336077.130299333.073546421.88496814.21833866.6224853.9550280.000000
75%8.062066216.66745627332.7621278.114887359.950170481.79230416.55765277.3374734.5003201.000000
max14.000000323.12400061227.19600813.127000481.030642753.34262028.300000124.0000006.7390001.000000
df.info()
<class 'pandas.core.frame.DataFrame'>
RangeIndex: 3276 entries, 0 to 3275
Data columns (total 10 columns):
 #   Column           Non-Null Count  Dtype
---  ------           --------------  -----
 0   ph               2785 non-null   float64
 1   Hardness         3276 non-null   float64
 2   Solids           3276 non-null   float64
 3   Chloramines      3276 non-null   float64
 4   Sulfate          2495 non-null   float64
 5   Conductivity     3276 non-null   float64
 6   Organic_carbon   3276 non-null   float64
 7   Trihalomethanes  3114 non-null   float64
 8   Turbidity        3276 non-null   float64
 9   Potability       3276 non-null   int64
dtypes: float64(9), int64(1)
memory usage: 256.1 KB
#数量
print(df.nunique())
ph                 2785
Hardness           3276
Solids             3276
Chloramines        3276
Sulfate            2495
Conductivity       3276
Organic_carbon     3276
Trihalomethanes    3114
Turbidity          3276
Potability            2
dtype: int64
# 唯一值数量
print(df.isnull().sum())
ph                 491
Hardness             0
Solids               0
Chloramines          0
Sulfate            781
Conductivity         0
Organic_carbon       0
Trihalomethanes    162
Turbidity            0
Potability           0
dtype: int64
#定义各指标数据类型
df.dtypes
ph                 float64
Hardness           float64
Solids             float64
Chloramines        float64
Sulfate            float64
Conductivity       float64
Organic_carbon     float64
Trihalomethanes    float64
Turbidity          float64
Potability           int64
dtype: object

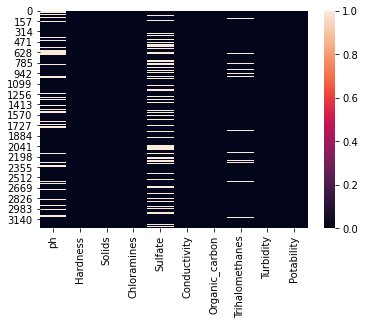

sns.heatmap(df.isnull())
<AxesSubplot:>

在这里插入图片描述

#各指标关联矩阵
plt.figure(figsize=(10, 8))
sns.heatmap(df.corr(), annot= True, cmap='coolwarm')
<AxesSubplot:>

在这里插入图片描述

#拆解关联矩阵来更直观的查看指标间的关联性
# Unstacking the correlation matrix to see the values more clearly.
corr = df.corr()
c1 = corr.abs().unstack()
c1.sort_values(ascending = False)[12:24:2]
Hardness  Sulfate           0.106923
ph        Solids            0.089288
Hardness  ph                0.082096
Solids    Chloramines       0.070148
Hardness  Solids            0.046899
ph        Organic_carbon    0.043503
dtype: float64
#可饮用数据与不可饮用数据柱状图
ax = sns.countplot(x = "Potability",data= df, saturation=0.8)
plt.xticks(ticks=[0, 1], labels = ["Not Potable", "Potable"])
plt.show()










```python
#可饮数据与不可饮用数据
x = df.Potability.value_counts()
labels = [0,1]
print(x)
0    1998
1    1278
Name: Potability, dtype: int64

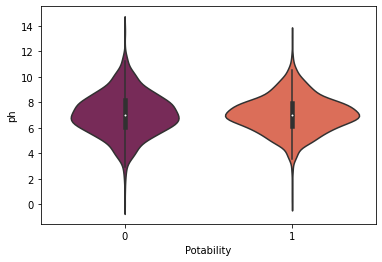

#PH值和可饮用性的小提琴图
sns.violinplot(x='Potability', y='ph', data=df, palette='rocket')
<AxesSubplot:xlabel='Potability', ylabel='ph'>

在这里插入图片描述

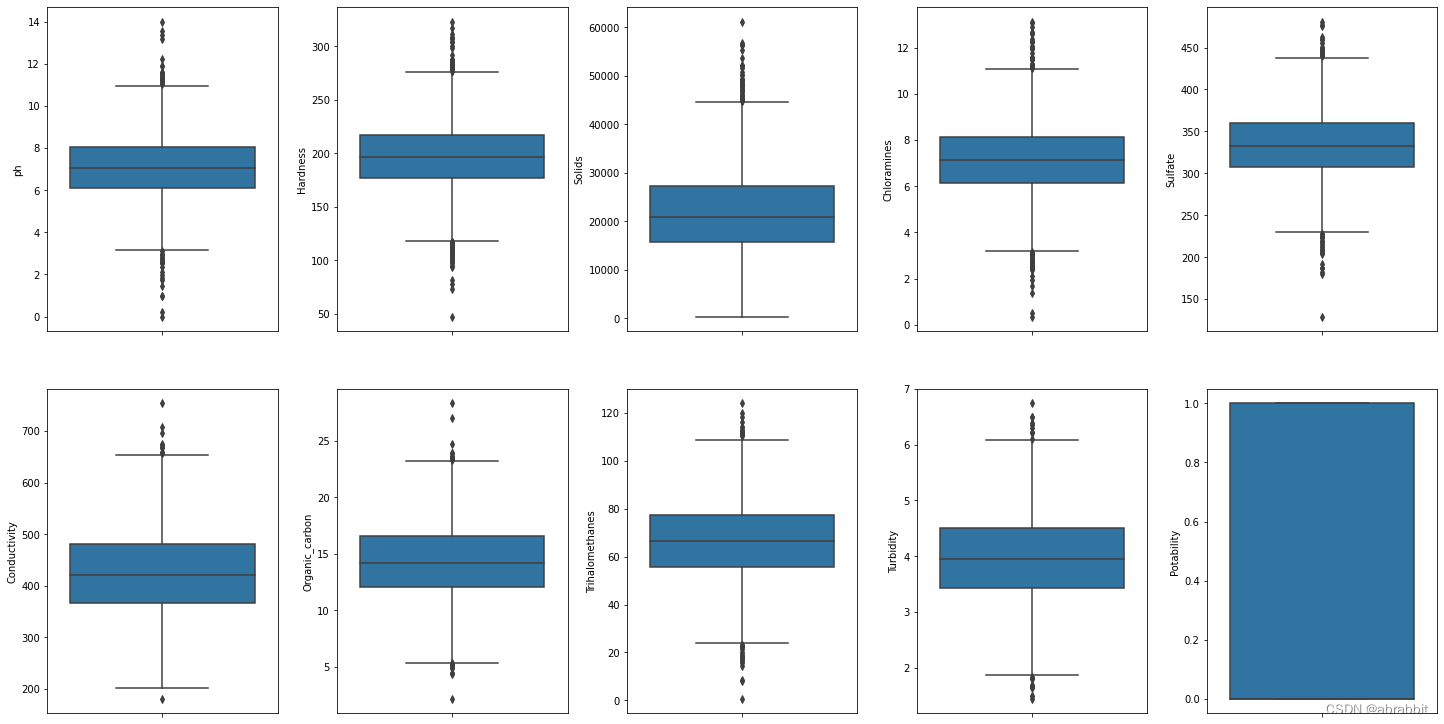

#用箱线图可视化数据并检查异常值
# Visualizing dataset and also checking for outliers

fig, ax = plt.subplots(ncols = 5, nrows = 2, figsize = (20, 10))
index = 0
ax = ax.flatten()

for col, value in df.items():
    sns.boxplot(y=col, data=df, ax=ax[index])
    index += 1
plt.tight_layout(pad = 0.5, w_pad=0.7, h_pad=5.0)

在这里插入图片描述

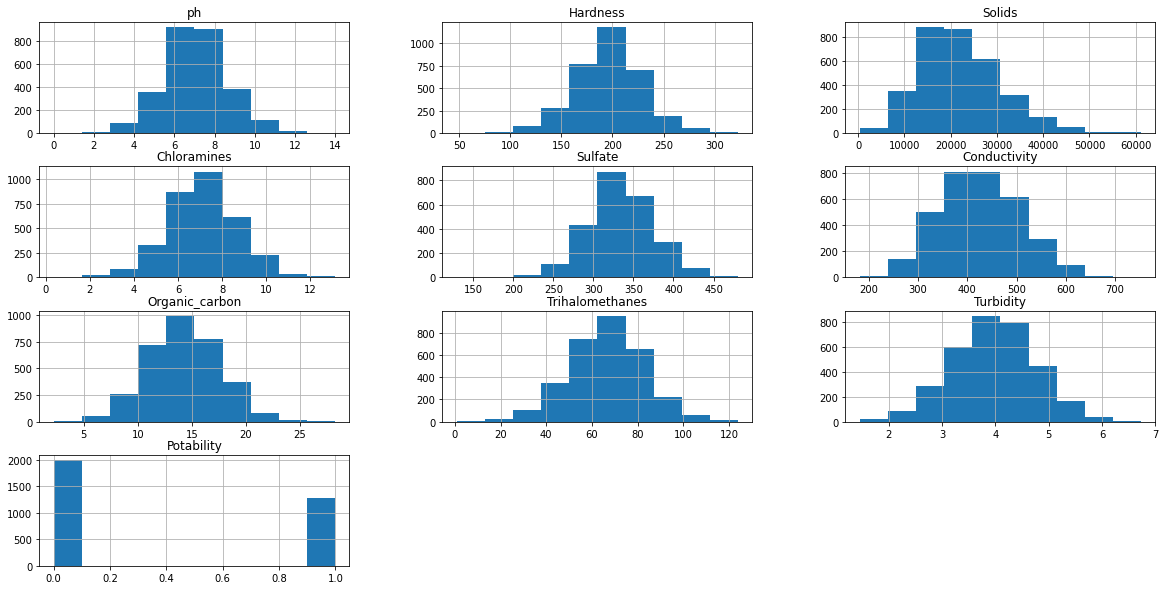

#用柱状图可视化数据
plt.rcParams['figure.figsize'] = [20,10]
df.hist()
plt.show()

在这里插入图片描述

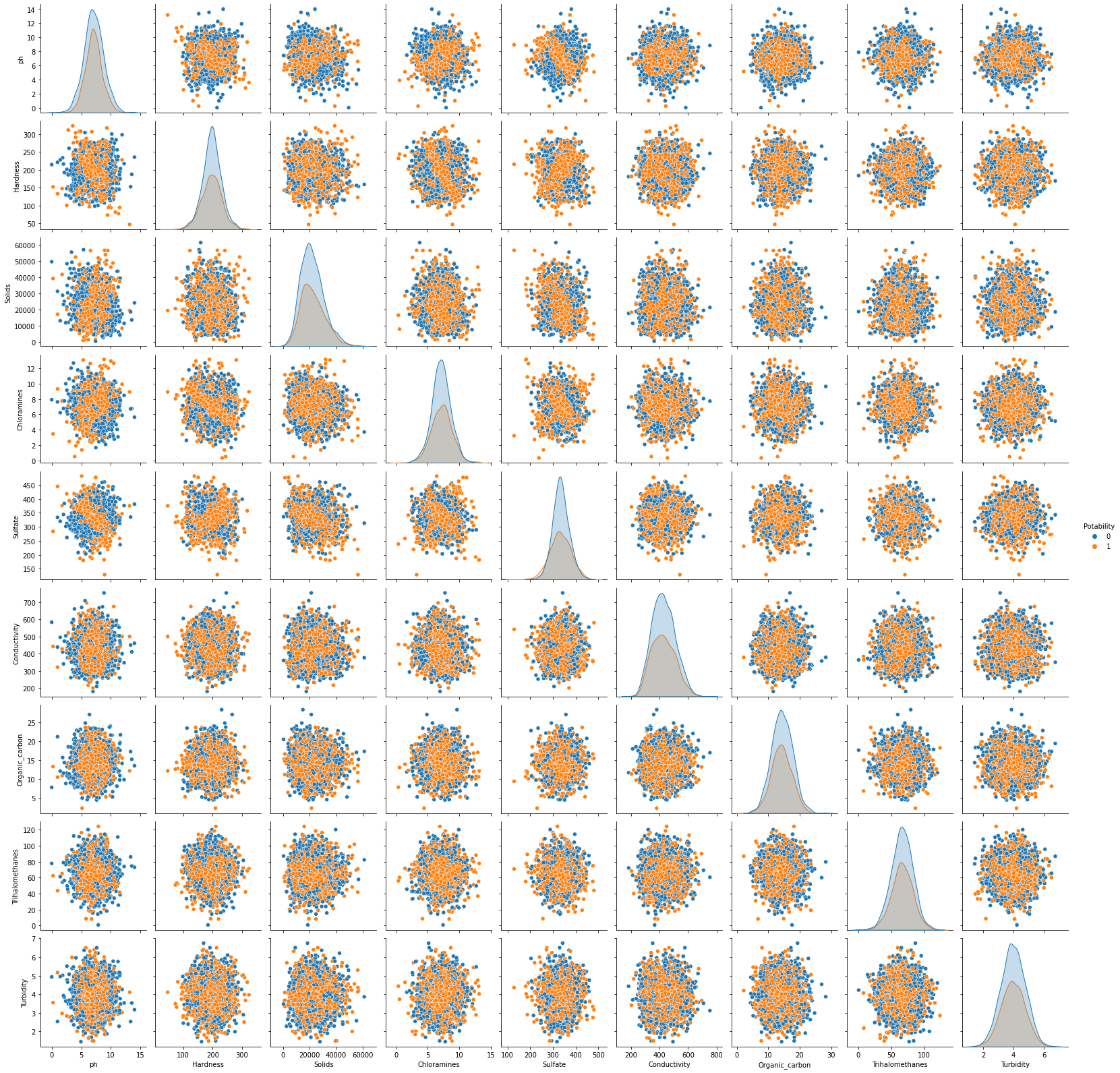

#根据可饮用性进行分类
sns.pairplot(df, hue="Potability")
<seaborn.axisgrid.PairGrid at 0x7f0b09306b10>

在这里插入图片描述

#可饮用性(x轴)和密度(y轴)的关系
plt.rcParams['figure.figsize'] = [7,5]
sns.distplot(df['Potability'])
<AxesSubplot:xlabel='Potability', ylabel='Density'>

在这里插入图片描述

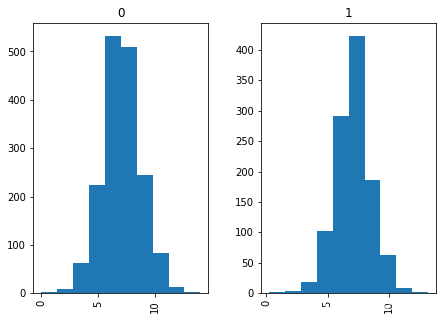

#PH值与可饮用性的关系
df.hist(column='ph', by='Potability')
array([<AxesSubplot:title={'center':'0'}>,
       <AxesSubplot:title={'center':'1'}>], dtype=object)

在这里插入图片描述

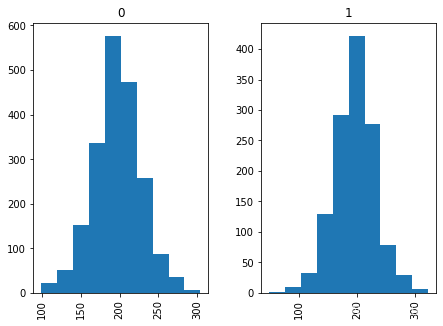

#水质硬度与可饮用性的关系
df.hist(column='Hardness', by='Potability')
array([<AxesSubplot:title={'center':'0'}>,
       <AxesSubplot:title={'center':'1'}>], dtype=object)

在这里插入图片描述

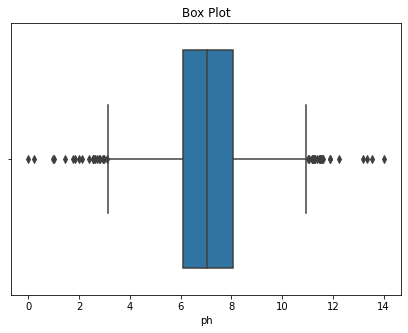

#各指标的独立箱线图
# Individual box plot for each feature
def Box(df):
    plt.title("Box Plot")
    sns.boxplot(df)
    plt.show()
Box(df['ph'])

在这里插入图片描述

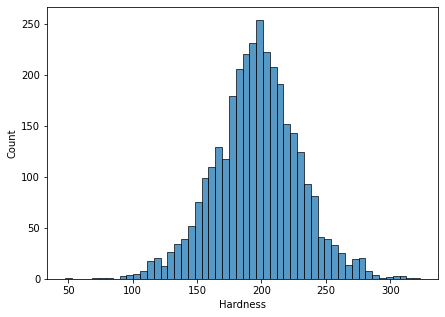

#水质硬化不同程度的数量
sns.histplot(x = "Hardness", data=df)
<AxesSubplot:xlabel='Hardness', ylabel='Count'>

在这里插入图片描述

#获取唯一值
df.nunique()
ph                 2785
Hardness           3276
Solids             3276
Chloramines        3276
Sulfate            2495
Conductivity       3276
Organic_carbon     3276
Trihalomethanes    3114
Turbidity          3276
Potability            2
dtype: int64
#对各指标的影响程度按降序排列
skew_val = df.skew().sort_values(ascending=False)
skew_val
Solids             0.621634
Potability         0.450784
Conductivity       0.264490
ph                 0.025630
Organic_carbon     0.025533
Turbidity         -0.007817
Chloramines       -0.012098
Sulfate           -0.035947
Hardness          -0.039342
Trihalomethanes   -0.083031
dtype: float64
  • Using pandas skew function to check the correlation between the values.
  • Values between 0.5 to -0.5 will be considered as the normal distribution else will be skewed depending upon the skewness value.

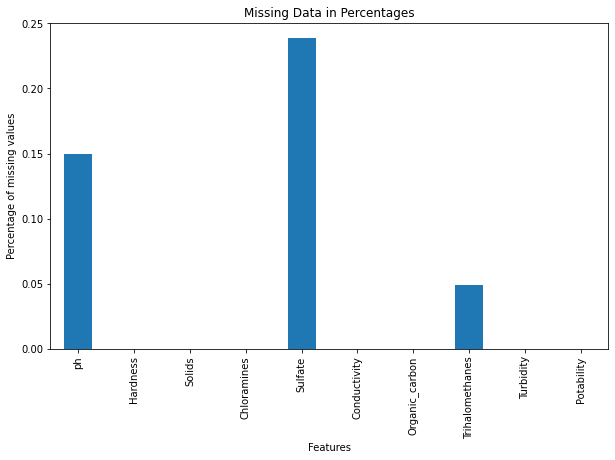

#各指标缺失数据的百分比
df.isnull().mean().plot.bar(figsize=(10,6))
plt.ylabel('Percentage of missing values')
plt.xlabel('Features')
plt.title('Missing Data in Percentages');

在这里插入图片描述

df['ph'] = df['ph'].fillna(df['ph'].mean())
df['Sulfate'] = df['Sulfate'].fillna(df['Sulfate'].mean())
df['Trihalomethanes'] = df['Trihalomethanes'].fillna(df['Trihalomethanes'].mean())
df.head()
phHardnessSolidsChloraminesSulfateConductivityOrganic_carbonTrihalomethanesTurbidityPotability
07.080795204.89045520791.3189817.300212368.516441564.30865410.37978386.9909702.9631350
13.716080129.42292118630.0578586.635246333.775777592.88535915.18001356.3290764.5006560
28.099124224.23625919909.5417329.275884333.775777418.60621316.86863766.4200933.0559340
38.316766214.37339422018.4174418.059332356.886136363.26651618.436524100.3416744.6287710
49.092223181.10150917978.9863396.546600310.135738398.41081311.55827931.9979934.0750750

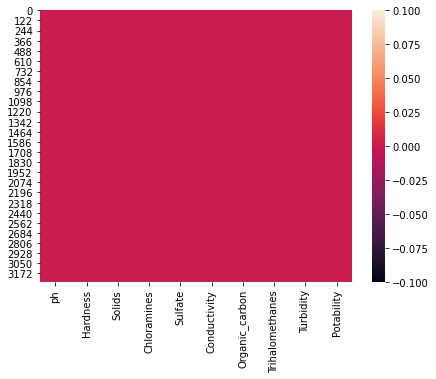

#各数据的热力图
sns.heatmap(df.isnull())
<AxesSubplot:>

在这里插入图片描述

df.isnull().sum()
ph                 0
Hardness           0
Solids             0
Chloramines        0
Sulfate            0
Conductivity       0
Organic_carbon     0
Trihalomethanes    0
Turbidity          0
Potability         0
dtype: int64
X = df.drop('Potability', axis=1)
y = df['Potability']
X.shape, y.shape
((3276, 9), (3276,))
# import StandardScaler to perform scaling
from sklearn.preprocessing import StandardScaler
scaler = StandardScaler()
X = scaler.fit_transform(X)
X
array([[-1.02733269e-14,  2.59194711e-01, -1.39470871e-01, ...,
        -1.18065057e+00,  1.30614943e+00, -1.28629758e+00],
       [-2.28933938e+00, -2.03641367e+00, -3.85986650e-01, ...,
         2.70597240e-01, -6.38479983e-01,  6.84217891e-01],
       [ 6.92867789e-01,  8.47664833e-01, -2.40047337e-01, ...,
         7.81116857e-01,  1.50940884e-03, -1.16736546e+00],
       ...,
       [ 1.59125368e+00, -6.26829230e-01,  1.27080989e+00, ...,
        -9.81329234e-01,  2.18748247e-01, -8.56006782e-01],
       [-1.32951593e+00,  1.04135450e+00, -1.14405809e+00, ...,
        -9.42063817e-01,  7.03468419e-01,  9.50797383e-01],
       [ 5.40150905e-01, -3.85462310e-02, -5.25811937e-01, ...,
         5.60940070e-01,  7.80223466e-01, -2.12445866e+00]])
# import train-test split
from sklearn.model_selection import train_test_split
X_train, X_test, y_train, y_test = train_test_split(X, y, test_size=0.33, random_state=42)

2.水质模型构建

2.1逻辑回归模型构建

这几个水质模型构建效果分析(结合各模型图表、指标)

from sklearn.linear_model import LogisticRegression
from sklearn.metrics import confusion_matrix, accuracy_score, classification_report
# Creating model object
model_lg = LogisticRegression(max_iter=120,random_state=0, n_jobs=20)
# Training Model
model_lg.fit(X_train, y_train)
LogisticRegression(max_iter=120, n_jobs=20, random_state=0)
# Making Prediction
pred_lg = model_lg.predict(X_test)
# Calculating Accuracy Score
lg = accuracy_score(y_test, pred_lg)
print(lg)
0.6284658040665434
  • 逻辑回归的预测精确度为0.6284658040665434
print(classification_report(y_test,pred_lg))
              precision    recall  f1-score   support

           0       0.63      1.00      0.77       680
           1       0.00      0.00      0.00       402

    accuracy                           0.63      1082
   macro avg       0.31      0.50      0.39      1082
weighted avg       0.39      0.63      0.49      1082
  • 逻辑回归的召回率、f1分数如上图所示。

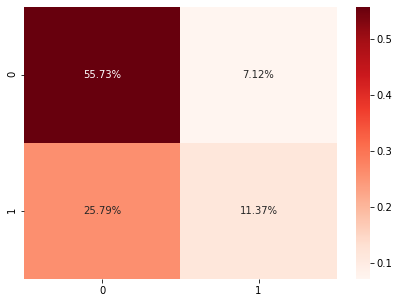

# confusion Maxtrix
cm1 = confusion_matrix(y_test, pred_lg)
sns.heatmap(cm1/np.sum(cm1), annot = True, fmt=  '0.2%', cmap = 'Reds')
<AxesSubplot:>

在这里插入图片描述

2.2决策树模型构建

from sklearn.tree import DecisionTreeClassifier
# Creating model object
model_dt = DecisionTreeClassifier( max_depth=4, random_state=42)
# Training Model
model_dt.fit(X_train,y_train)
DecisionTreeClassifier(max_depth=4, random_state=42)
# Making Prediction
pred_dt = model_dt.predict(X_test)
# Calculating Accuracy Score
dt = accuracy_score(y_test, pred_dt)
print(dt)
0.6451016635859519
  • 可见,决策树模型的精确度是0.6451016635859519
print(classification_report(y_test,pred_dt))
              precision    recall  f1-score   support

           0       0.66      0.90      0.76       680
           1       0.56      0.22      0.32       402

    accuracy                           0.65      1082
   macro avg       0.61      0.56      0.54      1082
weighted avg       0.62      0.65      0.60      1082
  • 决策树模型的召回率、f1分数如上图所示。

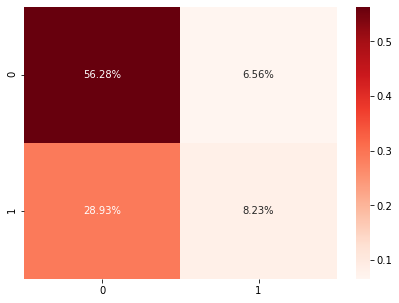

# confusion Maxtrix
cm2 = confusion_matrix(y_test, pred_dt)
sns.heatmap(cm2/np.sum(cm2), annot = True, fmt=  '0.2%', cmap = 'Reds')
<AxesSubplot:>

在这里插入图片描述

2.3随机森林模型构建

from sklearn.ensemble import RandomForestClassifier
# Creating model object
model_rf = RandomForestClassifier(n_estimators=300,min_samples_leaf=0.16, random_state=42)
# Training Model
model_rf.fit(X_train, y_train)
RandomForestClassifier(min_samples_leaf=0.16, n_estimators=300, random_state=42)
# Making Prediction
pred_rf = model_rf.predict(X_test)
# Calculating Accuracy Score
rf = accuracy_score(y_test, pred_rf)
print(rf)
0.6284658040665434

随机森林模型的准确度是0.6284658040665434

print(classification_report(y_test,pred_rf))
              precision    recall  f1-score   support

           0       0.63      1.00      0.77       680
           1       0.00      0.00      0.00       402

    accuracy                           0.63      1082
   macro avg       0.31      0.50      0.39      1082
weighted avg       0.39      0.63      0.49      1082
  • 随机森林模型的召回率、f1分数如上图所示。
# confusion Maxtrix
cm3 = confusion_matrix(y_test, pred_rf)
sns.heatmap(cm3/np.sum(cm3), annot = True, fmt=  '0.2%', cmap = 'Reds')
<AxesSubplot:>

在这里插入图片描述

2.4XGBoost模型构建

from xgboost import XGBClassifier
# Creating model object
model_xgb = XGBClassifier(max_depth= 8, n_estimators= 125, random_state= 0,  learning_rate= 0.03, n_jobs=5)
# Training Model
model_xgb.fit(X_train, y_train)
[01:40:53] WARNING: ../src/learner.cc:1095: Starting in XGBoost 1.3.0, the default evaluation metric used with the objective 'binary:logistic' was changed from 'error' to 'logloss'. Explicitly set eval_metric if you'd like to restore the old behavior.





XGBClassifier(base_score=0.5, booster='gbtree', colsample_bylevel=1,
              colsample_bynode=1, colsample_bytree=1, gamma=0, gpu_id=-1,
              importance_type='gain', interaction_constraints='',
              learning_rate=0.03, max_delta_step=0, max_depth=8,
              min_child_weight=1, missing=nan, monotone_constraints='()',
              n_estimators=125, n_jobs=5, num_parallel_tree=1, random_state=0,
              reg_alpha=0, reg_lambda=1, scale_pos_weight=1, subsample=1,
              tree_method='exact', validate_parameters=1, verbosity=None)
# Making Prediction
pred_xgb = model_xgb.predict(X_test)
# Calculating Accuracy Score
xgb = accuracy_score(y_test, pred_xgb)
print(xgb)
0.6709796672828097
  • XGBoost模型的准确度是0.6709796672828097
print(classification_report(y_test,pred_xgb))
              precision    recall  f1-score   support

           0       0.68      0.89      0.77       680
           1       0.61      0.31      0.41       402

    accuracy                           0.67      1082
   macro avg       0.65      0.60      0.59      1082
weighted avg       0.66      0.67      0.64      1082
  • XGBoost模型的召回率、F1分数指标如上图所示。
# confusion Maxtrix
cm4 = confusion_matrix(y_test, pred_xgb)
sns.heatmap(cm4/np.sum(cm4), annot = True, fmt=  '0.2%', cmap = 'Reds')
<AxesSubplot:>

在这里插入图片描述

2.5KNN模型构建

from sklearn.neighbors import KNeighborsClassifier
# Creating model object
model_kn = KNeighborsClassifier(n_neighbors=9, leaf_size=20)
# Training Model
model_kn.fit(X_train, y_train)
KNeighborsClassifier(leaf_size=20, n_neighbors=9)
# Making Prediction
pred_kn = model_kn.predict(X_test)
# Calculating Accuracy Score
kn = accuracy_score(y_test, pred_kn)
print(kn)
0.6534195933456562
  • KNN模型的准确度是0.6534195933456562
print(classification_report(y_test,pred_kn))
              precision    recall  f1-score   support

           0       0.69      0.82      0.75       680
           1       0.55      0.37      0.44       402

    accuracy                           0.65      1082
   macro avg       0.62      0.60      0.59      1082
weighted avg       0.64      0.65      0.63      1082
  • KNN模型的召回率、f1分数如上图所示。

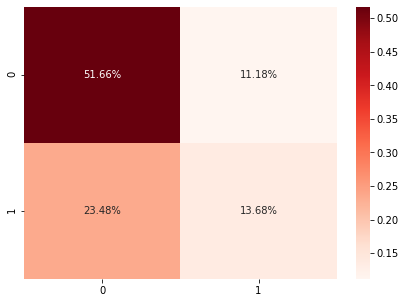

# confusion Maxtrix
cm5 = confusion_matrix(y_test, pred_kn)
sns.heatmap(cm5/np.sum(cm5), annot = True, fmt=  '0.2%', cmap = 'Reds')
<AxesSubplot:>

在这里插入图片描述

2.6支持向量机模型构建

from sklearn.svm import SVC, LinearSVC
model_svm = SVC(kernel='rbf', random_state = 42)
model_svm.fit(X_train, y_train)
SVC(random_state=42)
# Making Prediction
pred_svm = model_svm.predict(X_test)
# Calculating Accuracy Score
sv = accuracy_score(y_test, pred_svm)
print(sv)
0.6885397412199631

print(classification_report(y_test,pred_kn))

# confusion Maxtrix
cm6 = confusion_matrix(y_test, pred_svm)
sns.heatmap(cm6/np.sum(cm6), annot = True, fmt=  '0.2%', cmap = 'Reds')
<AxesSubplot:>

在这里插入图片描述

## Using AdaBoost Classifier
from sklearn.ensemble import AdaBoostClassifier
model_ada = AdaBoostClassifier(learning_rate= 0.002,n_estimators= 205,random_state=42)
model_ada.fit(X_train, y_train)
AdaBoostClassifier(learning_rate=0.002, n_estimators=205, random_state=42)
# Making Prediction
pred_ada = model_ada.predict(X_test)
# Calculating Accuracy Score
ada = accuracy_score(y_test, pred_ada)
print(ada)
0.634011090573013
  • 可见,SVM模型准确率是0.634011090573013
print(classification_report(y_test,pred_ada))
              precision    recall  f1-score   support

           0       0.63      0.99      0.77       680
           1       0.62      0.04      0.07       402

    accuracy                           0.63      1082
   macro avg       0.62      0.51      0.42      1082
weighted avg       0.63      0.63      0.51      1082
  • SVM模型的召回率、F1分数如上图所示。
# confusion Maxtrix
cm7 = confusion_matrix(y_test, pred_ada)
sns.heatmap(cm7/np.sum(cm7), annot = True, fmt=  '0.2%', cmap = 'Reds')
<AxesSubplot:>

在这里插入图片描述

3.各模型效果比较

models = pd.DataFrame({
    'Model':['Logistic Regression', 'Decision Tree', 'Random Forest', 'XGBoost', 'KNeighbours', 'SVM', 'AdaBoost'],
    'Accuracy_score' :[lg, dt, rf, xgb, kn, sv, ada]
})
models
sns.barplot(x='Accuracy_score', y='Model', data=models)

models.sort_values(by='Accuracy_score', ascending=False)
ModelAccuracy_score
5SVM0.688540
3XGBoost0.670980
4KNeighbours0.653420
1Decision Tree0.645102
6AdaBoost0.634011
0Logistic Regression0.628466
2Random Forest0.628466

在这里插入图片描述

比较了各个模型的预测精度后发现,SVM模型有着更高的精准度。
  • 11
    点赞
  • 47
    收藏
    觉得还不错? 一键收藏
  • 2
    评论

“相关推荐”对你有帮助么?

  • 非常没帮助
  • 没帮助
  • 一般
  • 有帮助
  • 非常有帮助
提交
评论 2
添加红包

请填写红包祝福语或标题

红包个数最小为10个

红包金额最低5元

当前余额3.43前往充值 >
需支付:10.00
成就一亿技术人!
领取后你会自动成为博主和红包主的粉丝 规则
hope_wisdom
发出的红包
实付
使用余额支付
点击重新获取
扫码支付
钱包余额 0

抵扣说明:

1.余额是钱包充值的虚拟货币,按照1:1的比例进行支付金额的抵扣。
2.余额无法直接购买下载,可以购买VIP、付费专栏及课程。

余额充值
