android ViewPager实现软件初次开启的轮播图欢迎特效

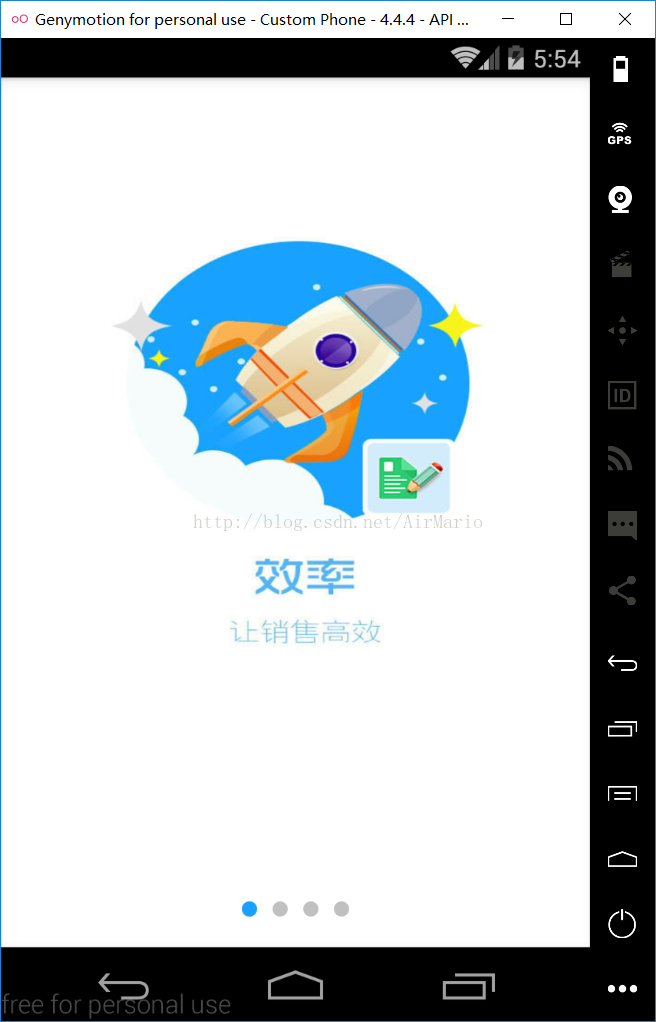

多数软件在初次下载开启或者更新后都有一个类似轮播图特效的欢迎界面,如下图:

当滑倒最后一页的时候开启显示开始体验按钮。现在来对这个样子进行实现,代码下有详细解释。

一 样式布局文件

<RelativeLayout xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:tools="http://schemas.android.com/tools"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    tools:context=".MainActivity" >
    <android.support.v4.view.ViewPager
        android:id="@+id/vp"
        android:layout_width="match_parent"
        android:layout_height="match_parent" />

    <RelativeLayout
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:layout_alignParentBottom="true"
        android:layout_centerHorizontal="true"
        android:layout_marginBottom="20dp" >
		<!-- 放置图片底部小点的位置这里之所以不写在这里,是为了代码的灵活性,通过Java代码来根据图
		片的多少动态加入 -->
        <LinearLayout
            android:id="@+id/ll"
            android:layout_width="wrap_content"
            android:layout_height="wrap_content"
            android:orientation="horizontal" >
        </LinearLayout>

        <!-- 滑倒当前页显示的蓝色小点 -->
        <ImageView
             android:id="@+id/lan_Iv"
             android:layout_width="wrap_content"
            android:layout_
