c#+logparser实现windows日志分析小程序

c#+logparser实现windows日志分析小程序

Logparser是微软免费的一款日志分析软件，Log Parser（微软网站下载）是微软公司出品的日志分析工具，它功能强大，使用简单，可以分析基于文本的日志文件、XML 文件、CSV（逗号分隔符）文件，以及操作系统的事件日志、注册表、文件系统、Active Directory。它可以像使用 SQL 语句一样查询分析这些数据，甚至可以把分析结果以各种图表的形式展现出来。

---

下载地址：
http://www.microsoft.com/en-us/download/details.aspx?id=24659

---

编写自己的日志分析软件

使用c#调用logparser.dll实现logparser工具的GUI界面，积累日志分析过程中的安全场景，为我们的应急响应工作提高效率。

c#代码

system.cs

using System;
using System.Collections.Generic;
using System.ComponentModel;
using System.Data;
using System.Drawing;
using System.Linq;
using System.Text;
using System.Threading.Tasks;
using System.Windows.Forms;
using LogQuery = MSUtil.LogQueryClassClass;
using LogRecordSet = MSUtil.ILogRecordset;
using tsvinputformat = MSUtil.COMTSVInputContextClassClass;
using EventLogInputFormat = MSUtil.COMEventLogInputContextClassClass;
using DataGridOutput = MSUtil.COMDataGridOutputContextClassClass;
using MSUtil;

namespace logparserGUI
{
    public partial class system : Form
    {
        public system()
        {
            InitializeComponent();
        }

        private void system_Load(object sender, EventArgs e)
        {
            comboBox1.Items.Add("开机/关机/重启");
        }

        private void button1_Click(object sender, EventArgs e)
        {
            if (comboBox1.Text.Length == 0)
            {
                MessageBox.Show("请选择日志类型");
            }
            else
            {
                switch (comboBox1.Text)
                {
                    case "开机/关机/重启":
                        security sec = new security();
                        this.Hide();//隐藏现在这个窗口
                        sec.ShowDialog();
                        break;
                    case "application":
                        application app = new application();
                        this.Hide();//隐藏现在这个窗口
                        app.ShowDialog();
                        break;
                    case "system":
                        system sys = new system();
                        this.Hide();//隐藏现在这个窗口
                        sys.ShowDialog();
                        break;

                }
                // string sql = @"SELECT EventID, TimeGenerated, SourceName, Message FROM E:\topsec\yj\银河\yinghang\155system.evtx";//此为系统日志文件路径
                 string sql = @"SELECT EventID, TimeGenerated, SourceName, Message FROM E:\topsec\yj\银河\yinghang\155system.evtx";//此为系统日志文件路径
                DataTable dt = ReadFromEvt(sql);
                //writeToDataBase(dt);
                dataGridView1.DataSource = dt;
                MessageBox.Show("读取完毕！");
            }
        }
        public DataTable ReadFromEvt(string sql)
        {
            try
            {
                DataTable datat = new DataTable();
                datat.Columns.Add("事件ID", typeof(string));
                datat.Columns.Add("日期", typeof(string));
                datat.Columns.Add("来源", typeof(string));
                datat.Columns.Add("描述", typeof(string));
                // Instantiate the LogQuery object
                LogQuery oLogQuery = new LogQuery();
                // Instantiate the Event Log Input Format object
                EventLogInputFormat oEvtInputFormat = new EventLogInputFormat();
                // Set its "direction" parameter to "BW"
                oEvtInputFormat.direction = "BW";
                // Create the query
                string query = sql;
                // Execute the query
                LogRecordSet oRecordSet = oLogQuery.Execute(query, oEvtInputFormat);
                while (!oRecordSet.atEnd())
                {
                    var itemData = oRecordSet.getRecord();
                    DataRow dr = datat.NewRow();
                    dr["事件ID"] = itemData.getValue("EventID").ToString();
                    dr["日期"] = itemData.getValue("TimeGenerated").ToString();
                    dr["来源"] = itemData.getValue("SourceName").ToString();
                    dr["描述"] = itemData.getValue("Message").ToString();
                    datat.Rows.Add(dr);
                    oRecordSet.moveNext();
                }

                // Close the recordset
                oRecordSet.close();
                return datat;
            }
            catch (System.Runtime.InteropServices.COMException exc)
            {
                MessageBox.Show("Unexpected error: " + exc.Message);
                return null;
            }
        }

        private void comboBox1_SelectedIndexChanged(object sender, EventArgs e)
        {

        }

        private void dataGridView1_CellContentClick(object sender, DataGridViewCellEventArgs e)
        {

        }
    }
}

security.cs

using System;
using System.Collections.Generic;
using System.ComponentModel;
using System.Data;
using System.Drawing;
using System.Linq;
using System.Text;
using System.Threading.Tasks;
using System.Windows.Forms;
using LogQuery = MSUtil.LogQueryClassClass;
using LogRecordSet = MSUtil.ILogRecordset;
using tsvinputformat = MSUtil.COMTSVInputContextClassClass;
using EventLogInputFormat = MSUtil.COMEventLogInputContextClassClass;
using DataGridOutput = MSUtil.COMDataGridOutputContextClassClass;
using MSUtil;

namespace logparserGUI
{
    public partial class security : Form
    {
        public security()
        {
            InitializeComponent();
        }
        public void eventlog()
        {
            try
            {
                LogQuery oLogQuery = new LogQuery();

                EventLogInputFormat oEVTInputFormat = new EventLogInputFormat();
                oEVTInputFormat.direction = "BW";
                //string query = @"SELECT TimeGenerated as LoginTime,EXTRACT_TOKEN(Strings,5,'|') as username,EXTRACT_TOKEN(Strings, 8, '|') as LogonType,EXTRACT_TOKEN(Strings, 17, '|') AS ProcessName,EXTRACT_TOKEN(Strings, 18, '|') AS SourceIP FROM D:\Users\TenOn\Desktop\太湖局\11.135\11.135safe.evtx where EventID=4624";
                //string query = @"SELECT * FROM D:\Users\TenOn\Desktop\太湖局\日志\11.99app.evtx";
                string query = @"SELECT * FROM E:\hack\anfu\yj\security.evtx";
                //string query = @"SELECT TimeGenerated as LoginTime,EXTRACT_TOKEN(Strings,5,'|') as username,EXTRACT_TOKEN(Strings,6,'|') as AAA,EXTRACT_TOKEN(Strings,7,'|') as BBB,EXTRACT_TOKEN(Strings,8, '|') as LogonType,EXTRACT_TOKEN(Strings,9, '|') as CCC,EXTRACT_TOKEN(Strings, 10, '|') as DDD,EXTRACT_TOKEN(Strings, 11, '|') as EEE,EXTRACT_TOKEN(Strings, 12, '|') as FFF,EXTRACT_TOKEN(Strings, 13, '|') as GGG,EXTRACT_TOKEN(Strings, 14, '|') as HHH,EXTRACT_TOKEN(Strings, 15, '|') as III,EXTRACT_TOKEN(Strings, 16, '|') as JJJ,EXTRACT_TOKEN(Strings, 17, '|') AS ProcessName,EXTRACT_TOKEN(Strings, 18, '|') AS SourceIP FROM D:\Users\TenOn\Desktop\log20190629\log\security.evtx  where EventID=4625";
                //string query = @"SELECT TimeGenerated as LoginTime,EXTRACT_TOKEN(Strings,5,'|') as username,EXTRACT_TOKEN(Strings,6,'|') as AAA,EXTRACT_TOKEN(Strings,7,'|') as BBB,EXTRACT_TOKEN(Strings,8, '|') as LogonType,EXTRACT_TOKEN(Strings,9, '|') as CCC,EXTRACT_TOKEN(Strings, 10, '|') as DDD,EXTRACT_TOKEN(Strings, 11, '|') as EEE,EXTRACT_TOKEN(Strings, 12, '|') as FFF,EXTRACT_TOKEN(Strings, 13, '|') as GGG,EXTRACT_TOKEN(Strings, 14, '|') as HHH,EXTRACT_TOKEN(Strings, 15, '|') as III,EXTRACT_TOKEN(Strings, 16, '|') as JJJ,EXTRACT_TOKEN(Strings, 17, '|') AS ProcessName,EXTRACT_TOKEN(Strings, 18, '|') AS SourceIP FROM D:\Users\TenOn\Desktop\log20190629\log\security.evt where EventTypeName='Warning event'";
                //string query = @"SELECT TimeGenerated as LoginTime,EXTRACT_TOKEN(Strings,5,'|') as username,EXTRACT_TOKEN(Strings,8, '|') as LogonType,EXTRACT_TOKEN(Strings,9, '|') as aaa,EXTRACT_TOKEN(Strings, 10, '|') as bbbbbb,EXTRACT_TOKEN(Strings, 17, '|') AS ProcessName,EXTRACT_TOKEN(Strings, 18, '|') AS SourceIP FROM D:\Users\TenOn\Desktop\太湖局\日志\11.99.evtx where EventID=4624";
                //Logparser.exe –i:EVT –o:DATAGRID "SELECT * FROM E:\study\yj\security.evtx where EventID=4625"
                //string query = @"SELECT * FROM D:\Users\TenOn\Desktop\太湖局\11.135\11.135safe.evtx";
                LogRecordSet oRecordSet = oLogQuery.Execute(query, oEVTInputFormat);//执行语句
                DataGridOutput oEVTOutputFormat = new DataGridOutput();
                MessageBox.Show("oLogQuery.ToString");
                oLogQuery.ExecuteBatch(query, oEVTInputFormat, oEVTOutputFormat);
                if (oLogQuery.errorMessages != null)
                {
                    MessageBox.Show(oLogQuery.errorMessages.ToString());
                }

            }

            catch (System.Runtime.InteropServices.COMException exc)
            {
                Console.WriteLine("Unexpected error: " + exc.Message);
            }
        }
        private void security_Load(object sender, EventArgs e)
        {

        }

        private void button1_Click(object sender, EventArgs e)
        {
            string sql = @"SELECT EventID, TimeGenerated, SourceName, Message FROM E:\topsec\yj\银河\yinghang\155system.evtx";//此为系统日志文件路径
            DataTable dt = ReadFromEvt(sql);
            //writeToDataBase(dt);
            dataGridView1.DataSource = dt;
            MessageBox.Show("读取完毕！");
        }
        public DataTable ReadFromEvt(string sql)
        {
            try
            {
                DataTable datat = new DataTable();
                datat.Columns.Add("事件ID", typeof(string));
                datat.Columns.Add("日期", typeof(string));
                datat.Columns.Add("来源", typeof(string));
                datat.Columns.Add("描述", typeof(string));
                // Instantiate the LogQuery object
                LogQuery oLogQuery = new LogQuery();
                // Instantiate the Event Log Input Format object
                EventLogInputFormat oEvtInputFormat = new EventLogInputFormat();
                // Set its "direction" parameter to "BW"
                oEvtInputFormat.direction = "BW";
                // Create the query
                string query = sql;
                // Execute the query
                LogRecordSet oRecordSet = oLogQuery.Execute(query, oEvtInputFormat);
                while (!oRecordSet.atEnd())
                {
                    var itemData = oRecordSet.getRecord();
                    DataRow dr = datat.NewRow();
                    dr["事件ID"] = itemData.getValue("EventID").ToString();
                    dr["日期"] = itemData.getValue("TimeGenerated").ToString();
                    dr["来源"] = itemData.getValue("SourceName").ToString();
                    dr["描述"] = itemData.getValue("Message").ToString();
                    datat.Rows.Add(dr);
                    oRecordSet.moveNext();
                }

                // Close the recordset
                oRecordSet.close();
                return datat;
            }
            catch (System.Runtime.InteropServices.COMException exc)
            {
                MessageBox.Show("Unexpected error: " + exc.Message);
                return null;
            }
        }

        private void dataGridView1_CellContentClick(object sender, DataGridViewCellEventArgs e)
        {

        }
    }
}

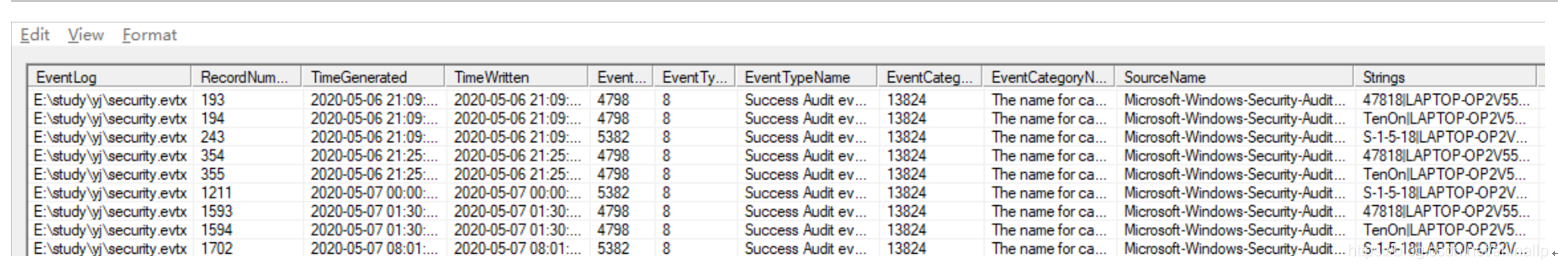

可视化输出

–o:DATAGRID

windows日志Strings字段提取
在提取的项目中发现其他比较简单，但是string这一项非常复杂，但是又比较重要。
使用函数EXTRACT_TOKEN(Strings, num, ‘|’)

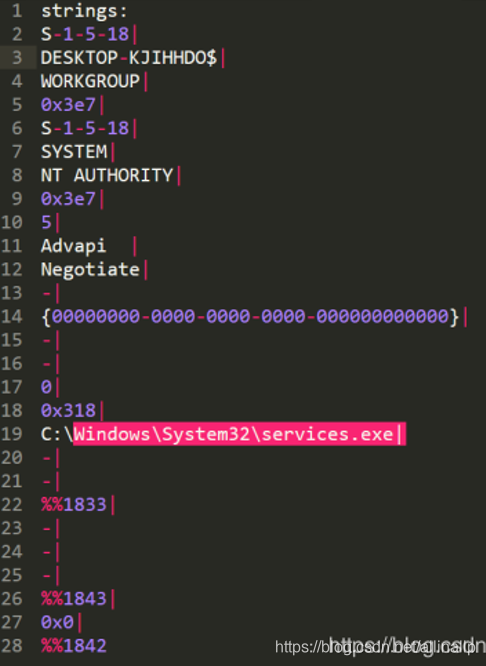

strings使用|对数据进行分割EXTRACT_TOKEN(Strings, 0, ‘|’)提取S-1-5-18，EXTRACT_TOKEN(Strings, 1, ‘|’)提取DESKTOP-KJIHHDO$以此类推
(这里用隔壁的图说明一下
https://blog.csdn.net/qq_29647709)

例如:Strings字段按照|分段第5个值，把表头重命名为username

EXTRACT_TOKEN(Strings,5,'|') as username

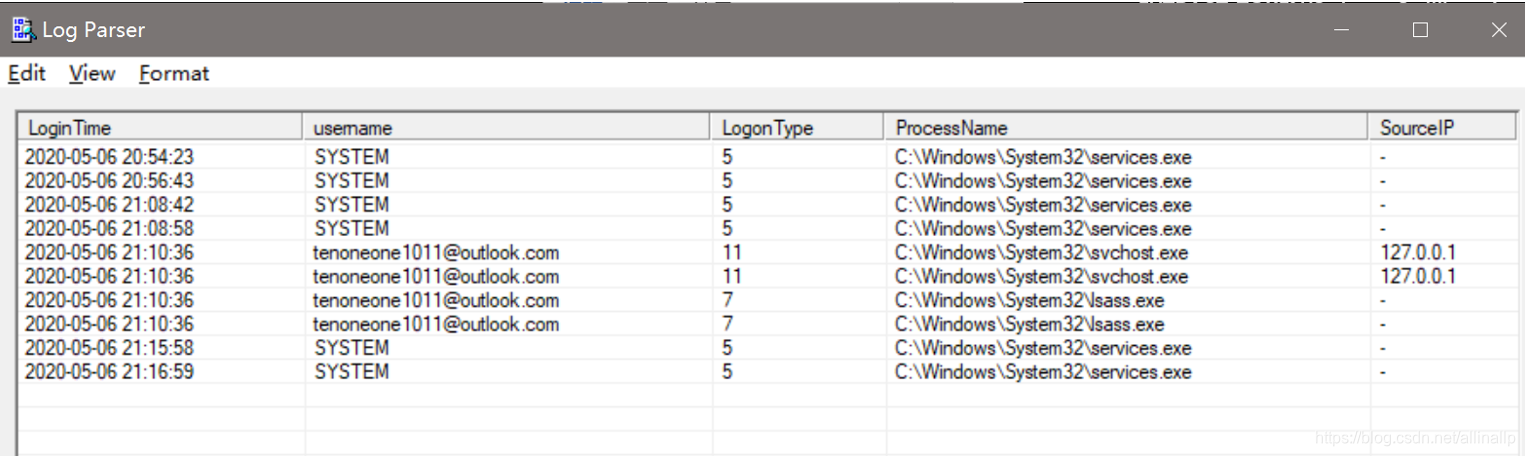

例如：分析成功登录事件4624我们过滤出我们的想要提取的数据：
其中包括，第5项用户，第8项登录类型，第17项程序路径，以及我们关心的第18项源IP地址。

LogParser.exe -i:EVT -o:DATAGRID "SELECT TimeGenerated as LoginTime,EXTRACT_TOKEN(Strings,5,'|') as username,EXTRACT_TOKEN(Strings, 8, '|') as LogonType,EXTRACT_TOKEN(Strings, 17, '|') AS ProcessName,EXTRACT_TOKEN(Strings, 18, '|') AS SourceIP FROM E:\study\yj\security.evtx where EventID=4624"

在我们的c#程序中写入查询语句

如：分析成功登录事件4624
我们过滤出我们的想要提取的数据：
其中包括，第5项用户，第8项登录类型，第17项程序路径，以及我们关心的第18项源IP地址。

LogParser.exe -i:EVT -o:DATAGRID "SELECT TimeGenerated as LoginTime,EXTRACT_TOKEN(Strings,5,'|') as username,EXTRACT_TOKEN(Strings, 8, '|') as LogonType,EXTRACT_TOKEN(Strings, 17, '|') AS ProcessName,EXTRACT_TOKEN(Strings, 18, '|') AS SourceIP FROM

查看与登录事件

Logparser -i:evt –o:DATAGRID “SELECT * FROM E:\study\yj\security.evtx WHERE Strings LIKE '%logon%'”

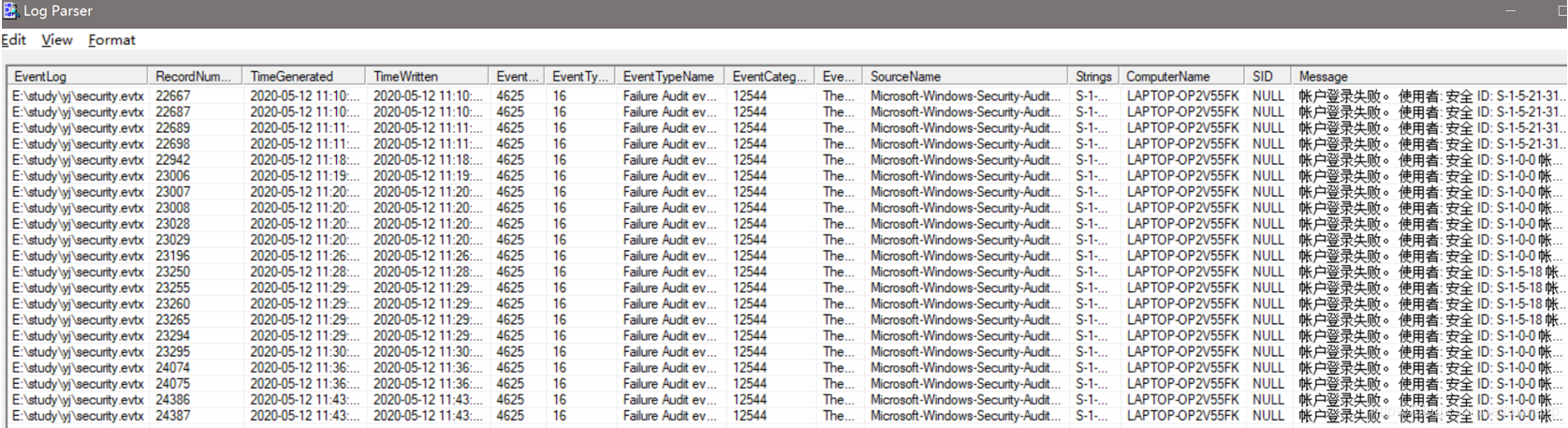

查看登录审核失败日志的全部字段并可视化输出

Logparser.exe –i:EVT –o:DATAGRID "SELECT * FROM E:\study\yj\security.evtx where EventID=4625"

参考文章

https://www.jianshu.com/p/d325b4b1169c
http://blog.sina.com.cn/s/blog_54b976460100o8qt.html
https://blog.csdn.net/qq_29647709/article/details/85124105
https://www.t00ls.net/viewthread.php?tid=48067&highlight=%E5%BA%94%E6%80%A5%E5%93%8D%E5%BA%94
