import java.io.File;
import java.io.IOException;
import org.apache.pdfbox.pdmodel.PDDocument;
import org.apache.pdfbox.pdmodel.PDPage;
import org.apache.pdfbox.pdmodel.PDPageContentStream;
import org.apache.pdfbox.pdmodel.font.PDType0Font;
import org.apache.pdfbox.pdmodel.font.PDType1Font;
public class pdfbox_tables {
/**
* @param page
* @param contentStream
* @param y the y-coordinate of the first row
* @param margin the padding on left and right of table
* @param content a 2d array containing the table data
* @throws IOException
*/
public static void drawTable(PDDocument doc, PDPage page, PDPageContentStream contentStream,
float y, float margin,
String[][] content) throws IOException {
final int rows = content.length;
final int cols = content[0].length;
final float rowHeight = 20f;
final float tableWidth = page.getMediaBox().getWidth() - (2 * margin);
final float tableHeight = rowHeight * rows;
final float colWidth = tableWidth / (float) cols;
final float cellMargin = 5f;
//draw the rows
float nexty = y;
for (int i = 0; i <= rows; i++) {
contentStream.drawLine(margin, nexty, margin + tableWidth, nexty);
nexty -= rowHeight;
}
//draw the columns
float nextx = margin;
for (int i = 0; i <= cols; i++) {
contentStream.drawLine(nextx, y, nextx, y - tableHeight);
nextx += colWidth;
}
//now add the text
//contentStream.setFont(PDType1Font.HELVETICA_BOLD, 12);
contentStream.setFont(PDType0Font.load(doc, new File("C:\\Windows\\Fonts\\simfang.TTF")), 12);
float textx = margin + cellMargin;
float texty = y - 15;
for (int i = 0; i < content.length; i++) {
for (int j = 0; j < content[i].length; j++) {
String text = content[i][j];
contentStream.beginText();
contentStream.moveTextPositionByAmount(textx, texty);
contentStream.drawString(text);
contentStream.endText();
textx += colWidth;
}
texty -= rowHeight;
textx = margin + cellMargin;
}
}
public static void main(String[] args) throws IOException {
PDDocument doc = new PDDocument();
PDPage page = new PDPage();
doc.addPage(page);
PDPageContentStream contentStream
= new PDPageContentStream(doc, page);

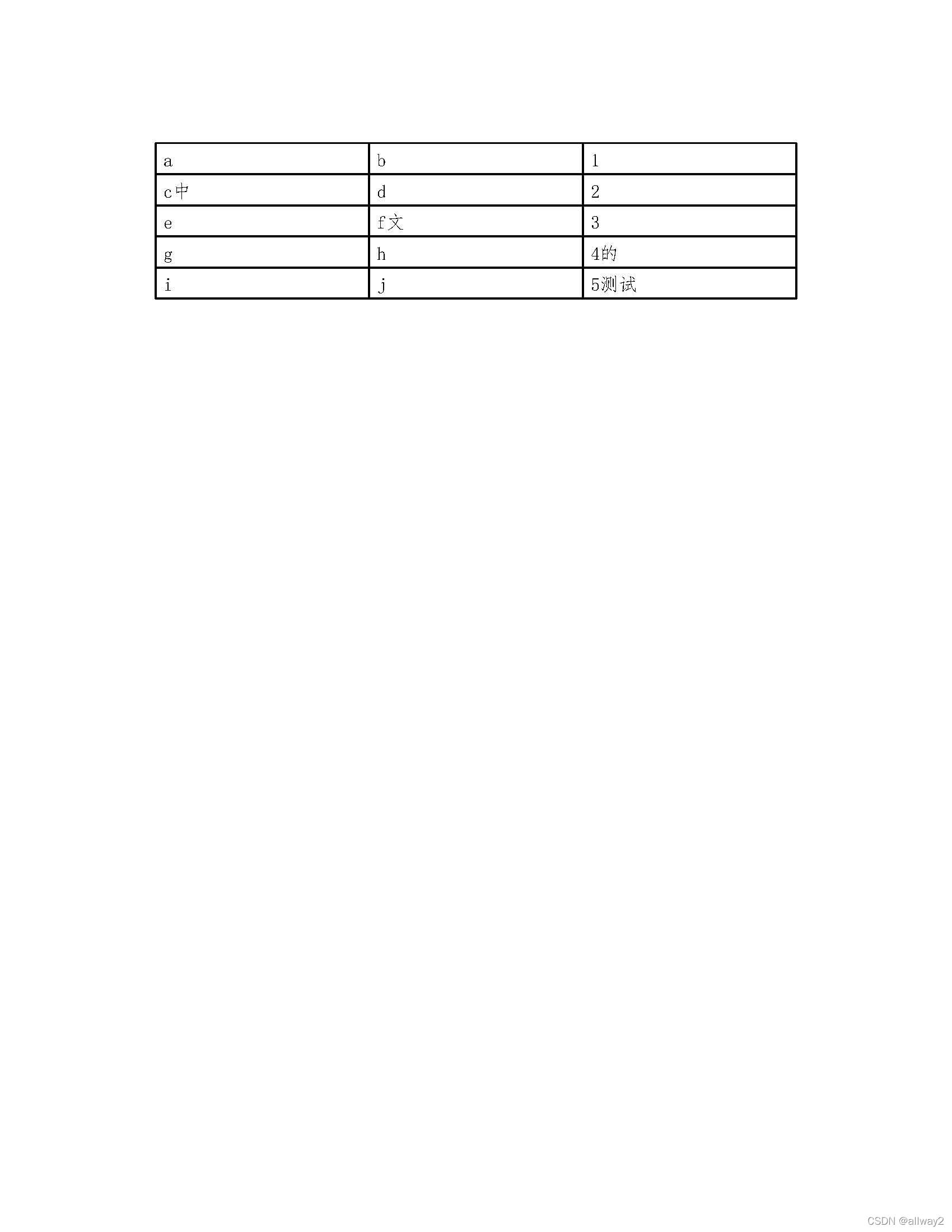

String[][] content = {{"a", "b", "1"},
{"c中", "d", "2"},
{"e", "f文", "3"},
{"g", "h", "4的"},
{"i", "j", "5测试"}};
drawTable(doc, page, contentStream, 700, 100, content);
contentStream.close();
doc.save("F:/test_table.pdf");
}
}
