java实现简单的网络象棋游戏

版权声明:本文为博主原创文章,遵循 CC 4.0 BY-SA 版权协议,转载请附上原文出处链接和本声明。
本文链接:https://blog.csdn.net/angry_youth/article/details/73009252

- 游戏规则:

  • 1.将/帅:不能出田字格,不能走斜线,只能前进后退向左向右,每次只走一格;
  • 2.士/仕:不能出田字格,只能走斜线,每次只走一格;

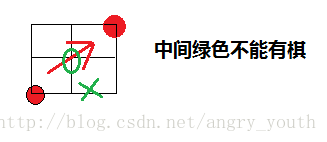

  • 3.象/相:只能走田字格,中间防止蹩脚,不能有棋;
  • 这里写图片描述
  • 4.马:只能走日,(这个比较麻烦,且看下图标识)
  • 这里写图片描述
  • 5.车:车只能走直线,这个很好理解,不细说了;
  • 6.炮:
    情况一:纯走路—->中间和目的地都不能有棋
    情况二:吃棋—–>中间要有一颗棋,目标也有棋,且是敌方的棋,毕竟不能自己吃自己哈
  • 7.卒/兵:
    河这边:只能前进不能后退,不能横着走!!!
    河对面:可以前进,可以横着走,不能后退!!!

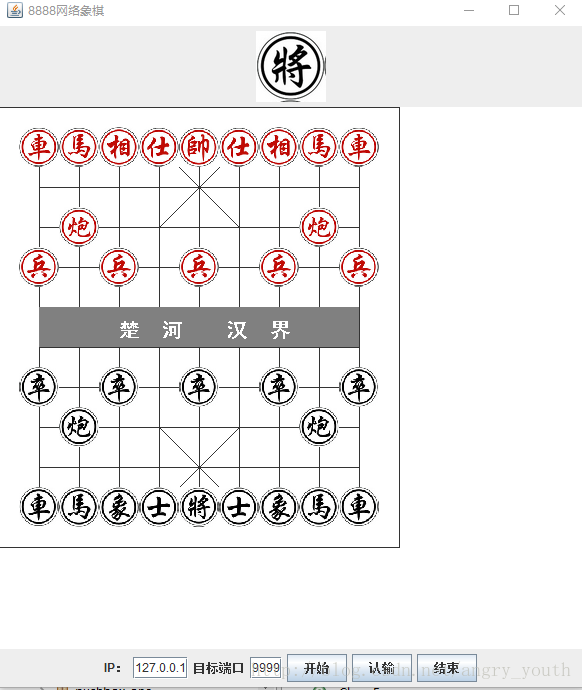

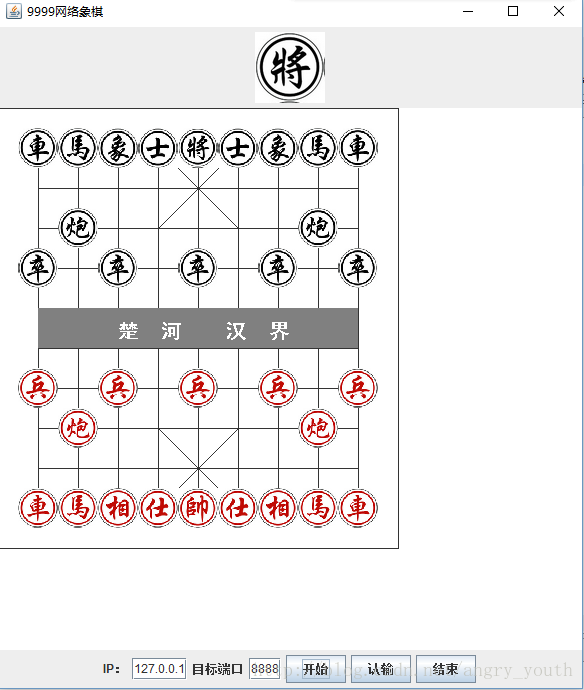

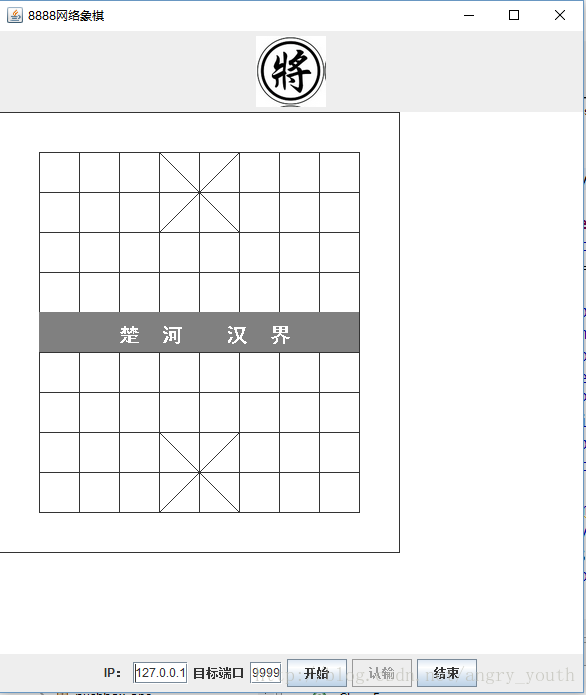

面板设计

这里写图片描述
看上去一定很挫!哈哈,别急,听我细细道来!

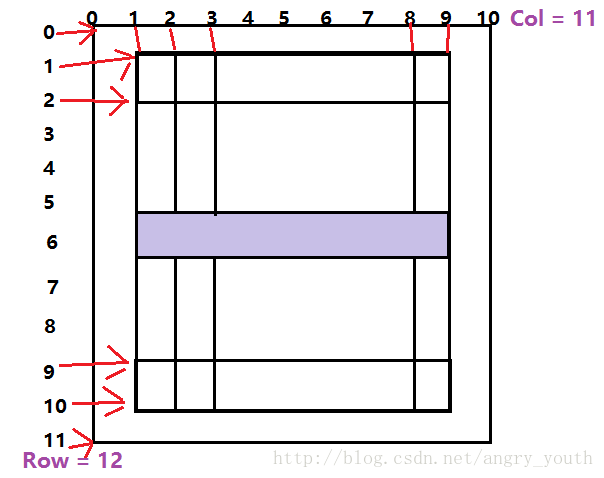

一般的界面设计我们都知道横纵坐标是这样的:
这里写图片描述
但是我选择背道而行,不是因为别的,是为了更好的去让初学者理解,我们把原本的x坐标看成数组的列(col),把y坐标看成我们数组的行(row),这样是不是更好理解一点呢,当然了我就是这么理解的,哈哈,接下来的游戏代码编程我们会把横坐标用y*width,纵坐标用x*height你们应该就能理解为什么了,因为x是数组的行,也就是坐标纵坐标(y)的体现,同理数组中的y也是如此。

数据传输:这里我们采用UDP协议来进行通讯,所以你们也要先去了解一下UDP协议的一些基本方法,这里就不细讲了。

通讯协议:这里我们自定义通讯协议啊:
“play|”——–以此开头代表一端发出了游戏邀请,等待另一端的回应;
“connect|”——-以此开头代表另一端收到邀请并且同意建立连接通讯!如果邀请者受到这条消息就代表通讯建立成功,可以开始游戏了;
“move|”——以此开头代表移动数据传输,如果一端移动了棋子,那么另一端也要收到信息,重新绘制界面;
“lose|”——–以此开头代表一方认输,如果有一方认输就会向另一方发送该信息;
“quit|”——-以此开头代表一方退出游戏,任意一方离开都会向对方发送该信息,以提示对方;
“success|”—–以此开头代表胜利,某一方胜利就向对方发出信息,通知对方;
“regret|”——以此开头表示悔棋,这个不用讲了吧,大家都明白,但是本次编程中我没有把这个加进去,这个你们可以自己根据自己需要去添加。
(肯定有人问我这个协议是谁定义的,啊哈哈,让你们失望了,这是我自己定义的,这个通讯协议只适用于你们写的这个代码,和使用这个代码的两个人通讯使用,所以协议如何自己可以定义的哦)

代码实现

1.Chess类:
package internet_chess;

import java.awt.Graphics;
import java.awt.Image;
import java.awt.Point;
import java.awt.Toolkit;
import java.awt.image.ImageObserver;

import javax.swing.JPanel;

public class Chess {
    public int Row = 12;
    public int Col = 11;
    public String chessName;//当前棋子对象的名字
    public int owner;//当前棋子对象的所有者--黑方还是红方
    public Point point;//当前棋子对象的位置
    public Image chessImage;//当前棋子对象的图像
    private int BLACKCHESS = 1;
    private int REDCHESS = 0;//红方0,黑方1
    private int width = 40;
    private int height = 40;

    public Chess(String name, int own,Point point)//获取每一个棋子对象名字,所有者,位置,和图片信息
    {
        this.chessName = name;
        this.owner = own;
        this.point = point;
        if(owner == BLACKCHESS)//如果所有者是黑方
        {
            if(chessName.equals("将"))
            {
                chessImage = Toolkit.getDefaultToolkit().getImage("F:/Image/chess/0.png");
            }
            else if(chessName.equals("士"))
            {
                chessImage = Toolkit.getDefaultToolkit().getImage("F:/Image/chess/1.png");
            }
            else if(chessName.equals("象"))
            {
                chessImage = Toolkit.getDefaultToolkit().getImage("F:/Image/chess/3.png");
            }
            else if(chessName.equals("马"))
            {
                chessImage = Toolkit.getDefaultToolkit().getImage("F:/Image/chess/5.png");
            }
            else if(chessName.equals("车"))
            {
                chessImage = Toolkit.getDefaultToolkit().getImage("F:/Image/chess/7.png");
            }
            else if(chessName.equals("炮"))
            {
                chessImage = Toolkit.getDefaultToolkit().getImage("F:/Image/chess/9.png");
            }
            else if(chessName.equals("卒"))
            {
                chessImage = Toolkit.getDefaultToolkit().getImage("F:/Image/chess/11.png");
            }
        }
        else//如果所有者是红方
        {
            if(chessName.equals("帅"))
            {
                chessImage = Toolkit.getDefaultToolkit().getImage("F:/Image/chess/16.png");
            }
            else if(chessName.equals("仕"))
            {
                chessImage = Toolkit.getDefaultToolkit().getImage("F:/Image/chess/17.png");
            }
            else if(chessName.equals("相"))
            {
                chessImage = Toolkit.getDefaultToolkit().getImage("F:/Image/chess/19.png");
            }
            else if(chessName.equals("马"))
            {
                chessImage = Toolkit.getDefaultToolkit().getImage("F:/Image/chess/21.png");
            }
            else if(chessName.equals("车"))
            {
                chessImage = Toolkit.getDefaultToolkit().getImage("F:/Image/chess/23.png");
            }
            else if(chessName.equals("炮"))
            {
                chessImage = Toolkit.getDefaultToolkit().getImage("F:/Image/chess/25.png");
            }
            else if(chessName.equals("兵"))
            {
                chessImage = Toolkit.getDefaultToolkit().getImage("F:/Image/chess/27.png");
            }
        }
    }

    protected void paint(Graphics g,JPanel i)//画棋子
    {
        g.drawImage(chessImage, point.y*width-width/2, point.x*height-height/2, width, height, (ImageObserver)i);
    }

    protected void paintSeclected(Graphics g)//画鼠标选择了以后的棋子对象的边框
    {
        g.drawRect(point.y*width-width/2, point.x*height-height/2, width, height);
    }

    public void SetPos(int x, int y)//重新设置移动以后的棋子对象的位置坐标
    {
        point.x = x;
        point.y = y;
    }

    public void ReversePos()//将该对象的位置坐标逆置输出,用于方便显示信息情况
    {
        point.x = Row-1 - point.x;
        point.y = Col-1 - point.y;
    }
}

2.ChessPanel类:
package internet_chess;

import java.awt.Color;
import java.awt.Font;
import java.awt.Graphics;
import java.awt.Point;
import java.awt.event.MouseAdapter;
import java.awt.event.MouseEvent;
import java.io.IOException;
import java.net.DatagramPacket;
import java.net.DatagramSocket;
import java.net.InetAddress;
import java.net.SocketException;
import java.net.UnknownHostException;

import javax.swing.JOptionPane;
import javax.swing.JPanel;

public class ChessPanel extends JPanel implements Runnable{
    private int BLACKCHESS = 1;
    private int REDCHESS = 0;//黑棋是1,红旗是0
    public Chess chess[] = new Chess[32];//创建了32个棋子对象
    private int width = 40;
    private int height = 40;
    public int Row = 12;
    public int Col = 11;//11行10列
    public int map[][] = new int [Row][Col];
    public int player;//设置当前玩家对象
    private boolean isFirst = false;//判断是否是第一次点击的棋子,以此分开两次点击棋子的碰撞矛盾
    private int x1,y1,x2,y2;//用来保存第一次第二次选中的坐标的
    private boolean flag = true;//用来控制线程的运行
    private boolean isPlay = false;
    private Chess firstChess = null;
    private Chess secondChess = null;//设置第一次点击的棋子和第二次选中的棋子对象

    private InetAddress myID;//自己id地址
    private InetAddress youID;//目标ID地址
    private int sendport;//发送端口
    private int receiveport = 8888;//接收端口


    public ChessPanel()//构造函数
    {
        init_map();//初始化棋盘
        //给这个面板添加鼠标监听机制
        this.addMouseListener(new MouseAdapter()
        {
            public void mouseClicked(MouseEvent e)
            {
                if(isPlay == true)//判断是否该本方下棋
                {
                    SelectChess(e.getPoint());//选择要移动的棋子
                    repaint();
                }
            }

            public void SelectChess(Point pos)
            {
                int x = pos.x;
                int y = pos.y;//获取此时此刻鼠标点击的位置坐标
                System.out.println("选择要移动的棋子坐标:x->"+x+"  y->"+y);
                if(x > 0 && x < (Col-1)*width && y > 0 && y < (Row-1)*height)//判断鼠标是否在合理的范围,不在就直接退出
                {
                    Point point = ReSetID(x,y);
                    if(isFirst)//判断是否是第一次选中的棋子
                    {
                        x1 = point.x;
                        y1 = point.y;
                        //判断第一次选中的棋子是不是自己的棋子或者是不是无效棋子,不是就失败
                        int id = map[x1][y1];
                        if(id != -1 && chess[id].owner == player)
                        {
                            isFirst = false;
                            firstChess = chess[id];
                            System.out.println("id->"+id);
                        }
                        else//第一次选择的棋子无效
                        {
                            JOptionPane.showConfirmDialog(null, "提示", "第一次选棋无效!请重新选择!", JOptionPane.OK_OPTION);
                            isFirst = true;
                        }
                    }
                    else//第二次选中的棋子
                    {
                        x2 = point.x;
                        y2 = point.y;
                        int id = map[x2][y2];
                        if(id != -1 && chess[id].owner != player)//第二次选择了敌方棋子,将敌方棋子保存起来
                        {
                            isFirst = true;
                            secondChess = chess[id];
                            //开始判断是否可以移动棋子,如果可以就将棋子移动,并发信息给对方我们已经移动的棋子信息
                            //判断是否可以移动棋子
                            if(IsMoveChess(firstChess,x2,y2))//可以移动-吃棋
                            {
                                int idx1 = map[x1][y1];
                                map[x1][y1] = -1;
                                map[x2][y2] = idx1;
                                chess[id] = null;
                                firstChess.SetPos(x2, y2);
                                repaint();
                                send("move|"+String.valueOf(idx1)+"|"+String.valueOf(Row-1-x2)+"|"+String.valueOf(Col-1-y2)+"|",youID,sendport);
                                if(id == 0)//吃掉了黑棋将军
                                {
                                    send("success|红棋赢",youID,sendport);
                                    isPlay = false;
                                    JOptionPane.showConfirmDialog(null, "红棋胜利", "恭喜您,您赢了!", JOptionPane.OK_OPTION);
                                    return;
                                }
                                else if(id == 16)//吃掉了红棋大帅
                                {
                                    send("success|黑棋赢",youID,sendport);
                                    isPlay = false;
                                    JOptionPane.showConfirmDialog(null, "黑棋胜利", "恭喜您,您赢了!", JOptionPane.OK_OPTION);
                                    return;
                                }
                                isFirst = true;
                                isPlay = false;
                            }
                            else//表示不能吃棋,重新下棋
                            {
                                JOptionPane.showConfirmDialog(null, "提示", "对不起,移动棋子失败,请重新选择目标!", JOptionPane.ERROR_MESSAGE);
                                isFirst = false;
                            }
                        }
                        else if(id != -1 && chess[id].owner == player)//第二次又选择了自己的棋子,那么就将第二次选择的棋子当做第一次选择的棋子
                        {
                            firstChess = chess[id];
                            x1 = x2;
                            y1 = y2;
                            isFirst = false;
                        }
                        else//第二次选择的棋子是空,那么就是单纯的移动棋子
                        {
                            secondChess = null;
                            if(IsMoveChess(firstChess,x2,y2))//可以移动-吃棋
                            {
                                int idx1 = map[x1][y1];
                                map[x1][y1] = -1;
                                map[x2][y2] = idx1;
//                              chess[id] = null;
                                firstChess.SetPos(x2, y2);
                                send("move|"+String.valueOf(idx1)+"|"+String.valueOf(Row-1-x2)+"|"+String.valueOf(Col-1-y2)+"|",youID,sendport);
                                System.out.println("第二次选中棋子为空:目标-》"+(Row-1-x2)+"  "+(Col-1-y2));
                                repaint();
                                isFirst = true;
                                isPlay = false;
                            }
                        }
                    }
                }
            }
        });
    }

    public boolean IsMoveChess(Chess chess,int x,int y)//判断是否可以移动棋子----移动棋子的规则
    {
        if(chess.chessName.equals("将") || chess.chessName.equals("帅"))//只能走一步
        {
            int x0 = chess.point.x;
            int y0 = chess.point.y;
            if(x >= 8 && x <= 10 && y >= 4 && y <= 6)
            {
//              int x0 = chess.point.x;
//              int y0 = chess.point.y;
                if(Math.abs(x - x0) > 1 || Math.abs(y - y0) > 1)
                    return false;
                else if(Math.abs(x - x0)*Math.abs(y - y0) != 0)//不能走斜线
                    return false;
                else
                    return true;
            }
            if(this.chess[map[x][y]].chessName.equals("将") || this.chess[map[x][y]].chessName.equals("帅") && (y0 == y))//判断两个将领之间吃棋
            {
                int min = x < x0? x : x0;
                int max = x > x0? x : x0;
                for(min = min+1; min < max; min++)
                {
                    if(map[min][y] != -1)
                        return false;
                }
                return true;
            }
            else
                return false;
        }
        else if(chess.chessName.equals("士") || chess.chessName.equals("仕"))//士也不能出田字格,且,士走斜线,每次只走一格
        {
            if(x >= 8 && x <= 10 && y >= 4 && y <= 6)
            {
                int x0 = chess.point.x;
                int y0 = chess.point.y;
                if(Math.abs(x - x0) * Math.abs(y - y0) != 1)
                {
                    return false;
                }
                else
                    return true;
            }
            else//越界
                return false;
        }
        else if(chess.chessName.equals("象") || chess.chessName.equals("相"))//相走田字,且不能过河
        {
            if(x >= 6 && x != 11 && y >= 1 && y <= 9)
            {
                int x0 = chess.point.x;
                int y0 = chess.point.y;
                if(Math.abs(x - x0) * Math.abs(y - y0) != 4)
                {
                    return false;
                }
                else if(Math.abs(x - x0) == 2 && Math.abs(y - y0) == 2)
                {
                    int xm,ym;//求取中间值,防止中间有值不能走棋
                    xm = x > x0? x-1:x0-1;
                    ym = y > y0? y-1:y0-1;
                    if(map[xm][ym] != -1)//表示中间有棋
                        return false;
                    return true;
                }
                else//防止1*4 == 4的情况出现
                    return false;
            }
            else
                return false;
        }
        else if(chess.chessName.equals("马"))//马走日,防止蹩脚的情况出现
        {
            if(x >= 1 && x <=10 && y >= 1 && y <= 9)
            {
                int x0 = chess.point.x;
                int y0 = chess.point.y;
                if(Math.abs(x - x0) * Math.abs(y - y0) == 2)//判断是否走日
                {
                    //判断是否蹩脚
                    if(Math.abs(y - y0) == 2)
                    {
                        if(map[x0][y+1] != -1 && y < y0)//左边
                        {
                            return false;
                        }
                        if(map[x0][y-1] != -1 && y0 < y)//右边
                        {
                            return false;
                        }
                        return true;
                    }
                    else
                    {
                        if(map[x+1][y0] != -1 && x < x0)//上边
                        {
                            return false;
                        }
                        if(map[x-1][y0] != -1 && x > x0)//下边
                        {
                            return false;
                        }
                        return true;
                    }
                }
                else
                    return false;
            }
            else
                return false;
        }
        else if(chess.chessName.equals("车"))//车走直线
        {
            if(x >= 1 && x <=10 && y >= 1 && y <= 9)
            {
                int x0 = chess.point.x;
                int y0 = chess.point.y;
                if(x == x0)//水平移动
                {
                    int i = y < y0 ? y : y0;
                    int max = y > y0 ? y : y0;
                    for(i = i+1; i < max; i++)//不判断目标状态,目标状态能否走在外面判断
                    {
                        if(map[x][i] != -1)
                        {
//                          if(i == max && this.chess[map[x][i]].owner != chess.owner)
//                          {
//                              return true;
//                          }
                            return false;
                        }
                    }
                    return true;
                }
                else if(y == y0)//垂直移动
                {
                    int i = x < x0 ? x : x0;
                    int max = x > x0 ? x : x0;
                    for(i = i+1; i < max; i++)
                    {
                        if(map[i][y] != -1)
                        {
//                          if(i == max && this.chess[map[i][y]].owner != chess.owner)
//                          {
//                              return true;
//                          }
                            return false;
                        }
                    }
                    return true;
                }
                return false;
            }
            else
                return false;//越界
        }
        else if(chess.chessName.equals("炮"))//跑隔山打牛,不隔山就走路,水平或者垂直移动
        {
            if(x >= 1 && x <=10 && y >= 1 && y <= 9)
            {
                int x0 = chess.point.x;
                int y0 = chess.point.y;
                int countx = 0;
                int county = 0;
                if(x == x0)//水平移动
                {
                    int i = y < y0 ? y : y0;
                    int max = y > y0 ? y : y0;
                    for(i = i+1; i < max; i++)
                    {
                        if(map[x][i] != -1)
                        {
                            countx++;
                        }
                    }
                }
                else if(y == y0)//垂直移动
                {
                    int i = x < x0 ? x : x0;
                    int max = x > x0 ? x : x0;
                    for(i = i+1; i < max; i++)
                    {
                        if(map[i][y] != -1)
                        {
                            county++;
                        }
                    }
                }
                if(countx == 1 || county == 1)//说明中间有一个棋
                {
//                  if(this.chess[map[x][y]].owner != chess.owner)
//                  {
//                      return true;
//                  }
//                  else
//                      return false;
                    System.out.println("countx:"+countx);
                    System.out.println("county:"+county);
                    return true;
                }
                else if(countx == 0 && county == 0)//说明中间没有棋
                {
                    if(map[x][y] == -1)//目标没有棋
                    {
                        return true;
                    }
                    else
                        return false;
//                  return true;
                }
                else
                    return false;
            }
            else
                return false;//越界
        }
        else if(chess.chessName.equals("兵") || chess.chessName.equals("卒"))//卒子在自己区域不能退,只能前进,每次只走一步
        {
            if(x < 7 && x >= 1 && y >= 1 && y <= 9)
            {
                int x0 = chess.point.x;
                int y0 = chess.point.y;
                if(x == x0 && Math.abs(y-y0) == 1)//横向只走一步,判断是否在河的这边还是那边
                {
                    //如果是河的这边就不能走横向
                    if(x == 6)
                        return false;
                    else
                        return true;
                }
                if(y == y0 && x - x0 == -1)//纵向只走一步,且必须向前走
                {
                    return true;
                }
                return false;
            }
            else
                return false;
        }
        return false;
    }

    public Point ReSetID(int x, int y)//重置id,将id转化成可辨识的坐标信息
    {
        int posx = (y+height/2)/height;
        int posy = (x+width/2)/width;
        return new Point(posx,posy);
    }

    public void init_map()//初始化棋盘
    {
        for(int i = 0; i < Row; i++)
        {
            for(int j = 0; j < Col; j++)
            {
                map[i][j] = -1;//将棋盘初始化为-1,表示没有棋子id
            }
        }
    }

    public void paint(Graphics g)//自己画棋盘
    {
        super.paint(g);
        g.clearRect(0,0,this.getWidth(),this.getHeight());
        //画棋盘
        int a = 1;
        int b = 8;
        int c = 5;//两军中间的分界线
        for(int j = 1; j < Row-1; j++)//画横线
        {
            g.drawLine(a*width, j*height, (Col-2)*width, j*height);
        }
        for(int i = 1; i < Col-1; i++)//画竖线
        {
            g.drawLine(i*width, a*height, i*width, (Row-2)*height);
            if(i == 4)
            {
                g.drawLine(i*width, a*height, (i+2)*width, (a+2)*height);
                g.drawLine(i*width, b*height, (i+2)*width, (b+2)*height);
            }
            if(i == 6)
            {
                g.drawLine(i*width, a*height, (i-2)*width, (a+2)*height);
                g.drawLine(i*width, b*height, (i-2)*width, (b+2)*height);
            }
        }
        g.drawRect(0, 0, (Col-1)*width, (Row-1)*height);
        g.setColor(Color.GRAY);
        g.fillRect(a*width, c*height,(Col-2-a)*width, height);
        g.setFont(new Font("黑体",Font.BOLD,20));
        g.setColor(Color.white);
        g.drawString("楚  河    汉  界", 3*width, (c+1)*height-10);
        g.setColor(Color.black);
        //画棋子
        for(int i = 0; i < chess.length; i++)
        {
            if(chess[i] != null)
            {
                chess[i].paint(g, this);
            }
        }
        if(firstChess != null)
        {
            firstChess.paintSeclected(g);
        }
        if(secondChess != null)
        {
            secondChess.paintSeclected(g);
        }

    }

    public void send(String str,InetAddress ip,int port) //发送数据报
    {
        DatagramSocket s = null;
        try{
            s = new DatagramSocket();//创建一个数据报套接字
            byte data[] = new byte[100];
            data = str.getBytes();
            DatagramPacket pocket = new DatagramPacket(data,data.length,ip,port);//将数据报的信息放入自寻址包中,自寻址信息包括数据,数据长度,目标ip地址,目标端口号
            s.send(pocket);//发送自寻址包
            System.out.println("发送信息:"+str);
        }catch(IOException ex)
        {
            ex.printStackTrace();
        }finally
        {
            if(s != null)
                s.close();
        }
    }

    public void startgame(InetAddress ip, int otherport, int myport)//游戏正式开始的起点入口
    {
        youID = ip;
        this.sendport = otherport;
        this.receiveport = myport;
        try{
            myID = InetAddress.getLocalHost();
        }catch(UnknownHostException ex)
        {
            ex.printStackTrace();
        }
        send("play|",youID,sendport);//发送邀请,等待目标ip的回应----开启一个线程,不断监听端口,检查是否有消息,是否建立连接成功
        Thread t = new Thread(this);
        t.start();
    }

    public void FirstPaintChess()//第一次画棋盘---将每个棋盘上的棋子对象摆放完好,设置各自的初始属性
    {
        //原本把黑棋放上面,红棋放下面,但是为了显示效果,凡是玩家玩,都把玩家的花色放下面
        init_map();//如果再玩一局就要先清空棋盘,然后再重置棋子,否则上一局某些位置上面的id会遗留下来
        paintChess();
        if(player == BLACKCHESS)
        {
            ReverseChess();
        }
        repaint();
    }

    public void ReverseChess()//转置,将坐标改变,以便于下棋者下棋
    {
        //先改变坐标
//      for(int i = 0; i < 32; i++)
//      {
//          if(chess[i] != null)
//             chess[i].ReversePos();
//      }
        //改变map地图id
        for(int i = 0; i < 32; i++)
        {
            if(chess[i] != null)
            {
                chess[i].ReversePos();
                int xx = chess[i].point.x;
                int yy = chess[i].point.y;
                map[xx][yy] = i;
            }
        }
    }

    public void paintChess()//画棋盘显示,上面黑棋,下面红棋
    {
        //黑方
        chess[0] = new Chess("将",BLACKCHESS,new Point(1,5));
        map[1][5] = 0;
        chess[1] = new Chess("士",BLACKCHESS,new Point(1,4));
        map[1][4] = 1;
        chess[2] = new Chess("士",BLACKCHESS,new Point(1,6));
        map[1][6] = 2;
        chess[3] = new Chess("象",BLACKCHESS,new Point(1,3));
        map[1][3] = 3;
        chess[4] = new Chess("象",BLACKCHESS,new Point(1,7));
        map[1][7] = 4;
        chess[5] = new Chess("马",BLACKCHESS,new Point(1,2));
        map[1][2] = 5;
        chess[6] = new Chess("马",BLACKCHESS,new Point(1,8));
        map[1][8] = 6;
        chess[7] = new Chess("车",BLACKCHESS,new Point(1,1));
        map[1][1] = 7;
        chess[8] = new Chess("车",BLACKCHESS,new Point(1,9));
        map[1][9] = 8;
        chess[9] = new Chess("炮",BLACKCHESS,new Point(3,2));
        map[3][2] = 9;
        chess[10] = new Chess("炮",BLACKCHESS,new Point(3,8));
        map[3][8] = 10;
        for(int i = 11,j = 1; i < 16; i++,j+=2)
        {
            chess[i] = new Chess("卒",BLACKCHESS,new Point(4,j));
            map[4][j] = i;
        }

        //画红棋
        chess[16] = new Chess("帅",REDCHESS,new Point(10,5));
        map[10][5] = 16;
        chess[17] = new Chess("仕",REDCHESS,new Point(10,4));
        map[10][4] = 17;
        chess[18] = new Chess("仕",REDCHESS,new Point(10,6));
        map[10][6] = 18;
        chess[19] = new Chess("相",REDCHESS,new Point(10,3));
        map[10][3] = 19;
        chess[20] = new Chess("相",REDCHESS,new Point(10,7));
        map[10][7] = 20;
        chess[21] = new Chess("马",REDCHESS,new Point(10,2));
        map[10][2] = 21;
        chess[22] = new Chess("马",REDCHESS,new Point(10,8));
        map[10][8] = 22;
        chess[23] = new Chess("车",REDCHESS,new Point(10,1));
        map[10][1] = 23;
        chess[24] = new Chess("车",REDCHESS,new Point(10,9));
        map[10][9] = 24;
        chess[25] = new Chess("炮",REDCHESS,new Point(8,2));
        map[8][2] = 25;
        chess[26] = new Chess("炮",REDCHESS,new Point(8,8));
        map[8][8] = 26;
        for(int i = 27, j = 1; i < 32; i++, j+=2)
        {
            chess[i] = new Chess("兵",REDCHESS,new Point(7,j));
            map[7][j] = i;
        }
    }

    @Override
    public void run()
    {
        DatagramSocket sock = null;
        try {
            sock = new DatagramSocket(receiveport);//打开监听窗口
            byte data[] = new byte[100];
            DatagramPacket pocket = new DatagramPacket(data,data.length);
            while(flag)
            {
                sock.receive(pocket);//接收数据
                //读取接收信息
                String str = new String(data);
                String s[] = new String[6];
                s = str.split("\\|");//将数据信息按照|进行分割
                if(s[0].equals("play"))//表示此时这个对象是一个被邀请的对象,将被邀请的对象设置为黑棋
                {
                    player = BLACKCHESS;//被邀请者设为黑棋
                    send("connect|",youID,sendport);
                    //开始画棋盘
                    FirstPaintChess();
                    isPlay = false;//因为是红棋先走,所以黑棋此时不能下棋
                }
                else if(s[0].equals("connect"))//表示此时的对象是游戏发出者对象,并且已经和被邀请对象建立连接
                {
                    player = REDCHESS;//游戏发出者设为红棋对象
                    FirstPaintChess();
                    isPlay = true;//因为此时是红棋,而红旗先走,所以红棋此时可以下棋
                }
                else if(s[0].equals("lose"))//对方认输
                {
                    JOptionPane.showConfirmDialog(null, "认输", "对方棋手认输!", JOptionPane.OK_OPTION);
                    isPlay = false;
                }
                else if(s[0].equals("success"))//对方赢了
                {
                    if(s[1].equals("黑棋赢"))
                    {
                       JOptionPane.showConfirmDialog(null, "输了", "黑棋赢了!您输了!", JOptionPane.OK_OPTION);
                    }
                    else if(s[1].equals("红棋赢"))
                    {
                        JOptionPane.showConfirmDialog(null, "输了", "红棋赢了!您输了!", JOptionPane.OK_OPTION);
                    }
                    isPlay = false;
                }
                else if(s[0].equals("move"))//对方走棋
                {
                    int indx = Integer.parseInt(s[1]);
                    System.out.println("indx->"+indx);
                    int posx = Integer.parseInt(s[2]);
                    System.out.println("posx->"+posx);
                    int posy = Integer.parseInt(s[3]);
                    System.out.println("posy->"+posy);
                    int x = chess[indx].point.x;
                    int y = chess[indx].point.y;
                    map[x][y] = -1;
                    chess[indx].point.x = posx;
                    chess[indx].point.y = posy;
                    if(map[posx][posy] != -1)
                    {
                        chess[map[posx][posy]] = null;
                    }
                    map[posx][posy] = indx;
                    repaint();
                    isPlay = true;
                }
                else if(s[0].equals("quit"))//对方退出
                {
                    JOptionPane.showConfirmDialog(null, "提示", "对方离开,游戏结束!", JOptionPane.OK_OPTION);
                    isPlay = false;
                    flag = false;//退出线程
                }

            }

        } catch (SocketException e) {
            e.printStackTrace();
        } catch (IOException e) {
            e.printStackTrace();
        }finally
        {
            if(sock != null)
            {
                sock.close();
            }
        }

    }
}

3.ChessFrame类:
package internet_chess;

import java.awt.BorderLayout;
import java.awt.Container;
import java.awt.Dimension;
import java.awt.FlowLayout;
import java.awt.Rectangle;
import java.awt.event.MouseAdapter;
import java.awt.event.MouseEvent;
import java.net.InetAddress;
import java.net.UnknownHostException;

import javax.swing.ImageIcon;
import javax.swing.JButton;
import javax.swing.JFrame;
import javax.swing.JLabel;
import javax.swing.JPanel;
import javax.swing.JTextField;

public class ChessFrame extends JFrame{
    private JButton start = new JButton("开始");
    private JButton end = new JButton("结束");
    private JButton lose = new JButton("认输");
    private JPanel paneUp = new JPanel();
    private ChessPanel chesspanel = new ChessPanel();
    private JPanel paneDown = new JPanel();
    private JLabel IPlabel = new JLabel("IP:");
    private JLabel otherPortlabel = new JLabel("目标端口");
    private JLabel imageicon = new JLabel();
    private JTextField ip_address = new JTextField("127.0.0.1");
    private JTextField otherPort = new JTextField("9999");

    private InetAddress myID;//自己id地址
    private InetAddress youID;//目标ID地址
    private int sendport;//发送端口
    private int receiveport = 8888;//接收端口


    public ChessFrame()//构造函数
    {
        paneDown.setLayout(new FlowLayout());
        IPlabel.setBounds(10, 10, 40, 20);
        ip_address.setBounds(new Rectangle(60,10,50,20));
        paneDown.add(IPlabel);
        paneDown.add(ip_address);
        paneDown.add(otherPortlabel);
        paneDown.add(otherPort);
        paneDown.add(start);
        paneDown.add(lose);
        paneDown.add(end);
        lose.setEnabled(false);

        imageicon.setBounds(new Rectangle(300,0,100,100));
        imageicon.setIcon(new ImageIcon("F:/Image/chess/0.png"));//标签加载图片
        paneUp.add(imageicon,BorderLayout.CENTER);

        Container con = this.getContentPane();
        con.add(paneUp,BorderLayout.NORTH);
        con.add(chesspanel,BorderLayout.CENTER);
        con.add(paneDown,BorderLayout.SOUTH);

        this.setTitle("8888网络象棋");
        this.setSize(new Dimension(600,700));
        this.setVisible(true);
        this.setDefaultCloseOperation(JFrame.EXIT_ON_CLOSE);

        start.addMouseListener(new MouseAdapter()
        {
            public void mouseClicked(MouseEvent e)
            {
                try {
                    String ip = ip_address.getText();//获取当前目标ip地址
                    sendport = Integer.parseInt(otherPort.getText());//获取目标连接端口
                    myID = InetAddress.getLocalHost();//获取本地ip地址
                    youID = InetAddress.getByName(ip);//获取目标ip地址
                } catch (UnknownHostException e1) {
                    e1.printStackTrace();
                }
                chesspanel.startgame(youID,sendport,receiveport);
                lose.setEnabled(true);
            }
        });

        end.addMouseListener(new MouseAdapter()
        {
            public void mouseClicked(MouseEvent e)
            {
                try{
                    chesspanel.send("quit|",youID,sendport);//向对方发送离开信息,同时断开连接
                    System.exit(0);
                }catch(Exception ex)
                {
                    ex.printStackTrace();
                }
            }
        });

        lose.addMouseListener(new MouseAdapter()
        {
            public void mouseClicked(MouseEvent e)
            {
                try{
                    chesspanel.send("lose|",youID,sendport);//向对方发送认输信息
                }catch(Exception ex)
                {
                    ex.printStackTrace();
                }
            }
        });


        //加一个对方求和的按钮
    }

    public static void main(String[] args) {
        // TODO Auto-generated method stub
        new ChessFrame();
    }

}

代码结果

这里写图片描述

这里写图片描述

这里写图片描述

(写的不好,别喷啊)

展开阅读全文

没有更多推荐了,返回首页
