DecorView绘制流程源码分析

通过Activiyt布局加载流程源码分析(I)Activiyt布局加载流程源码分析(II)两篇博文,我们知道,首先,Activity的布局内容被加载进入装饰器DecorView中,然后WindowManager将DecorView添加到PhoneWindow中,也即Window中,最后ViewRootImpl对DecorView进行绘制操作,将其内容显示到手机上。但前两篇博文中,对于DecorView的绘制原理,没有作详细说明,所以本篇博文重在梳理这部分逻辑。

在开始分析之前,我们需要了解一些概念,如:

  • DecorView:是PhoneWindow中的一个内部类,也是Window的顶级View,主要负责装载各种View和Activity布局。
  • ViewRootImpl:是View的绘制的辅助类,所有View的绘制都离不开ViewRootImpl。
  • Choreographer:是”舞蹈指挥”者,控制同步处理输入(Input)、动画(Animation)、绘制(Draw)三个UI操作。
  • DisplayEventReceiver:是一个抽象类,主要是接收显示绘制帧的垂直脉冲vsync,从而开始绘制帧。
  • FrameDisplayEventReceiver: Choreographer的内部类,也是DisplayEventReceiver具体实现类。

在说DecorView的绘制之前,我们先来说说Android的绘制原理,这样方便我们理解后面内容。

一、Android的绘制原理简介

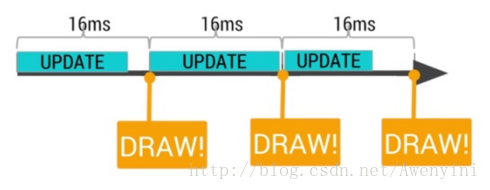

Android系统每隔16ms会发出VSYNC信号重绘我们的界面(Activity)。为什么是16ms, 因为Android设定的刷新率是60FPS(Frame Per Second), 也就是每秒60帧的刷新率, 约合16ms刷新一次。如下图所示:

这里写图片描述

二、DecorView绘制原理分析

在Activity布局加载流程分析中,我们知道DecorView被添加进入了WindowManager,并且最后ViewRootImpl通过setView()方法开始绘制DecorView,所以下面我们就来看看ViewRootImpl的setView()方法

 public void setView(View view, WindowManager.LayoutParams attrs, View panelParentView) {
        synchronized (this) {
            if (mView == null) {
                mView = view;//1.DecorView赋值为mView
                mFallbackEventHandler.setView(view);
                ......

                requestLayout();//2.DecorView的绘制

                if ((mWindowAttributes.inputFeatures
                        & WindowManager.LayoutParams.INPUT_FEATURE_NO_INPUT_CHANNEL) == 0) {
                    mInputChannel = new InputChannel();
                }
                try {
                    mOrigWindowType = mWindowAttributes.type;
                    mAttachInfo.mRecomputeGlobalAttributes = true;
                    collectViewAttributes();

                    //3.Window的权限判断,主要是Window添加的控制,由于本篇博文重在DecorView绘制,所以这里将不会分析
                    res = sWindowSession.add(mWindow, mSeq, mWindowAttributes,
                            getHostVisibility(), mAttachInfo.mContentInsets,
                            mInputChannel);

                } catch (RemoteException e) {
                    mAdded = false;
                    mView = null;
                    mAttachInfo.mRootView = null;
                    mInputChannel = null;
                    mFallbackEventHandler.setView(null);
                    unscheduleTraversals();
                    setAccessibilityFocus(null, null);
                    throw new RuntimeException("Adding window failed", e);
                } finally {
                    if (restore) {
                        attrs.restore();
                    }
                }

               ........
            }
        }
    }

首先,我们来关注一下注释1,这里主要是对mView进行赋值DecorView,mView是ViewRootImpl的属性变量,这里需要注意一下,因为后面绘制需要用到。我们再来看注释2,ViewRootImpl的requestLayout()方法,我们具体来看看其方法逻辑

    public void requestLayout() {
        checkThread();
        mLayoutRequested = true;
        scheduleTraversals();//核心方法
    }

这里我们直接来看核心方法scheduleTraversals()

    void scheduleTraversals() {
        if (!mTraversalScheduled) {
            mTraversalScheduled = true;
            mTraversalBarrier = mHandler.getLooper().postSyncBarrier();
            mChoreographer.postCallback(
                    Choreographer.CALLBACK_TRAVERSAL, mTraversalRunnable, null);
            scheduleConsumeBatchedInput();
        }
    }

这里我们需要特别关注mChoreographer,即Choreographer类,从字面意思来说是“舞蹈指挥”者,是Android绘制原理的核心类,控制Android显示帧的绘制。关于Choreographer类,这里不做过多的分析,想了解其原理的同学,可以看看博文Android Choreographer 源码分析

由Android绘制原理,我们知道每隔16ms,Android系统就会发出垂直信号VSYNC脉冲重绘我们的界面,而Choreographer中postCallback()方法主要功能就是向系统添加回调并加入绘制帧,从而实现View的绘制。这里我们来看看添加的回调mTraversalRunnable

   final class TraversalRunnable implements Runnable {
        @Override
        public void run() {
            doTraversal();//核心方法
        }
    }
    final TraversalRunnable mTraversalRunnable = new TraversalRunnable();

我们继续来看doTraversal()方法

    void doTraversal() {
        if (mTraversalScheduled) {
            mTraversalScheduled = false;
            mHandler.getLooper().removeSyncBarrier(mTraversalBarrier);

            if (mProfile) {
                Debug.startMethodTracing("ViewAncestor");
            }

            Trace.traceBegin(Trace.TRACE_TAG_VIEW, "performTraversals");
            try {
                performTraversals();//核心方法
            } finally {
                Trace.traceEnd(Trace.TRACE_TAG_VIEW);
            }

            if (mProfile) {
                Debug.stopMethodTracing();
                mProfile = false;
            }
        }
    }

我们继续分析方法performTraversals()

   private void performTraversals() {

            .......//1.代码省略。省略主要内容,Surface和SurfaceHolder初始化及条件判断

            if (!mStopped) {
                boolean focusChangedDueToTouchMode = ensureTouchModeLocally(
                        (relayoutResult&WindowManagerImpl.RELAYOUT_RES_IN_TOUCH_MODE) != 0);
                if (focusChangedDueToTouchMode || mWidth != host.getMeasuredWidth()
                        || mHeight != host.getMeasuredHeight() || contentInsetsChanged) {
                    int childWidthMeasureSpec = getRootMeasureSpec(mWidth, lp.width);
                    int childHeightMeasureSpec = getRootMeasureSpec(mHeight, lp.height);


                    performMeasure(childWidthMeasureSpec, childHeightMeasureSpec);//2.执行View的宽高测量

                    ........

                    layoutRequested = true;
                }
            }
        }

        final boolean didLayout = layoutRequested && !mStopped;
        boolean triggerGlobalLayoutListener = didLayout
                || attachInfo.mRecomputeGlobalAttributes;
        if (didLayout) {

            performLayout();//3.执行View的布局

            .....
        }

        ......

        boolean cancelDraw = attachInfo.mTreeObserver.dispatchOnPreDraw() ||
                viewVisibility != View.VISIBLE;

        if (!cancelDraw && !newSurface) {
            if (!skipDraw || mReportNextDraw) {
                ........
                performDraw();//执行View绘制
            }
        } else {
           ........
        }
    }

此方法,可以说是Android系统绘制的核心方法。View绘制原理的三大流程:View的测量onMeasure -> View的布局onLayout -> View的绘制onDraw,都在此方法中提现出来了。下面我们一一来看一下相关方法,首先我们来看一下performMeasure()方法

    private void performMeasure(int childWidthMeasureSpec, int childHeightMeasureSpec) {
        Trace.traceBegin(Trace.TRACE_TAG_VIEW, "measure");
        try {
            mView.measure(childWidthMeasureSpec, childHeightMeasureSpec);//核心方法
        } finally {
            Trace.traceEnd(Trace.TRACE_TAG_VIEW);
        }
    }

根据上面的分析,我们知道mView就是DecorView,所以这里就是调用DecorView的measure()方法。由Activity布局加载流程源码分析(I)博文,我们知道DecorView是继承至FrameLayout,而FrameLayout又继承至ViewGroup,ViewGroup又继承至View,所以这里的measure()方法就是调用View中的measure()方法,具体怎么调用,这里不细说了,想了解的同学可以看看这篇博文View的绘制原理。下面让我们来看看performLayout()方法

 private void performLayout() {
        mLayoutRequested = false;
        mScrollMayChange = true;

        final View host = mView;
        if (DEBUG_ORIENTATION || DEBUG_LAYOUT) {
            Log.v(TAG, "Laying out " + host + " to (" +
                    host.getMeasuredWidth() + ", " + host.getMeasuredHeight() + ")");
        }

        Trace.traceBegin(Trace.TRACE_TAG_VIEW, "layout");
        try {
            host.layout(0, 0, host.getMeasuredWidth(), host.getMeasuredHeight());
        } finally {
            Trace.traceEnd(Trace.TRACE_TAG_VIEW);
        }
    }

这里逻辑与测量measure类似,也就是调用DecorView的layout方法,具体View的布局控制细节略。我们再来看看performDraw()方法

 private void performDraw() {
        if (!mAttachInfo.mScreenOn && !mReportNextDraw) {
            return;
        }

        final boolean fullRedrawNeeded = mFullRedrawNeeded;
        mFullRedrawNeeded = false;

        mIsDrawing = true;
        Trace.traceBegin(Trace.TRACE_TAG_VIEW, "draw");
        try {
            draw(fullRedrawNeeded);//核心方法
        } finally {
            mIsDrawing = false;
            Trace.traceEnd(Trace.TRACE_TAG_VIEW);
        }
        ......
    }

我们继续来看看draw()方法

 private void draw(boolean fullRedrawNeeded) {
        Surface surface = mSurface;
        .......

        if (!dirty.isEmpty() || mIsAnimating) {
            if (attachInfo.mHardwareRenderer != null && attachInfo.mHardwareRenderer.isEnabled()) {
                // Draw with hardware renderer.
                mIsAnimating = false;
                mHardwareYOffset = yoff;
                mResizeAlpha = resizeAlpha;

                mCurrentDirty.set(dirty);
                mCurrentDirty.union(mPreviousDirty);
                mPreviousDirty.set(dirty);
                dirty.setEmpty();

                //1.Hardware渲染(Hardware加速)
                if (attachInfo.mHardwareRenderer.draw(mView, attachInfo, this,animating ? null :mCurrentDirty)) {
                    mPreviousDirty.set(0, 0, mWidth, mHeight);
                }

            } else if (!drawSoftware(surface, attachInfo, yoff, scalingRequired, dirty)) {//2.Software渲染
                return;
            }
        }
        if (animating) {
            mFullRedrawNeeded = true;
            scheduleTraversals();
        }
    }

这里的绘制方法涉及到两种绘制方式,分别为Hardware渲染(硬件加速)和Software渲染,关于选择那种绘制方式,这里还需要回溯到ViewRootImpl的setView()方法,我们再来看看此方法

 /**
     * We have one child
     */
    public void setView(View view, WindowManager.LayoutParams attrs, View panelParentView) {
        synchronized (this) {
            if (mView == null) {
                mView = view;

                ......

                if (view instanceof RootViewSurfaceTaker) {//1.mSurfaceHolder赋值
                    mSurfaceHolderCallback =
                            ((RootViewSurfaceTaker)view).willYouTakeTheSurface();
                    if (mSurfaceHolderCallback != null) {
                        mSurfaceHolder = new TakenSurfaceHolder();
                        mSurfaceHolder.setFormat(PixelFormat.UNKNOWN);
                    }
                }

                ........

                if (mSurfaceHolder == null) {//2.是否需要硬件加速
                    enableHardwareAcceleration(mView.getContext(), attrs);
                }
            .......
       }
}

我们知道DecorView是实现了RootViewSurfaceTaker接口的,所以当View为DecorView时,就不会开启硬件加速,不会走Hardware渲染,而其他的View会选择Hardware渲染。因为WindowManager添加的View可能使DecorView,也可能不是DecorView,也可能是一般的View。我们来看看enableHardwareAcceleration()方法

  private void enableHardwareAcceleration(Context context, WindowManager.LayoutParams attrs) {
        mAttachInfo.mHardwareAccelerated = false;
        mAttachInfo.mHardwareAccelerationRequested = false;

        if (mTranslator != null) return;

        final boolean hardwareAccelerated =
                (attrs.flags & WindowManager.LayoutParams.FLAG_HARDWARE_ACCELERATED) != 0;

        if (hardwareAccelerated) {
            if (!HardwareRenderer.isAvailable()) {
                return;
            }

            final boolean fakeHwAccelerated = (attrs.privateFlags &
                    WindowManager.LayoutParams.PRIVATE_FLAG_FAKE_HARDWARE_ACCELERATED) != 0;
            final boolean forceHwAccelerated = (attrs.privateFlags &
                    WindowManager.LayoutParams.PRIVATE_FLAG_FORCE_HARDWARE_ACCELERATED) != 0;

            if (!HardwareRenderer.sRendererDisabled || (HardwareRenderer.sSystemRendererDisabled
                    && forceHwAccelerated)) {
                ........
                final boolean translucent = attrs.format != PixelFormat.OPAQUE;
                mAttachInfo.mHardwareRenderer = HardwareRenderer.createGlRenderer(2, translucent);//核心方法
                mAttachInfo.mHardwareAccelerated = mAttachInfo.mHardwareAccelerationRequested
                        = mAttachInfo.mHardwareRenderer != null;

            } else if (fakeHwAccelerated) {

                mAttachInfo.mHardwareAccelerationRequested = true;
            }
        }
    }

这方法主要是对mAttachInfo.mHardwareRenderer进行赋值,从而在performDraw()方法中可以执行绘制。下面我们来看看上面的绘制方式1,Hardware渲染(硬件加速),由上知主要是通过attachInfo.mHardwareRenderer.draw()绘制,所以我们来看看HardwareRenderer中的draw()方法

  @Override
        boolean draw(View view, View.AttachInfo attachInfo, HardwareDrawCallbacks callbacks,
                Rect dirty) {
            if (canDraw()) {
               .......

                    try {
                        .......

                        DisplayList displayList;//渲染列表

                        Trace.traceBegin(Trace.TRACE_TAG_VIEW, "getDisplayList");
                        try {
                            displayList = view.getDisplayList();
                        } finally {
                            Trace.traceEnd(Trace.TRACE_TAG_VIEW);
                        }

                       .......

                        if (displayList != null) {
                            .....
                            try {
                                status |= canvas.drawDisplayList(displayList, mRedrawClip,
                                        DisplayList.FLAG_CLIP_CHILDREN);
                            } finally {
                                Trace.traceEnd(Trace.TRACE_TAG_VIEW);
                            }

                            .....

                            handleFunctorStatus(attachInfo, status);
                        } else {
                            view.draw(canvas);//核心方法
                        }
                    } finally {
                       ....
                    }

                    ......

                    return dirty == null;
                }
            }

            return false;
        }

当displayList为空的时候,也就会调用 view.draw(canvas)方法,即DeocorView的draw()方法。关于DisplayList这里也不细说,它主要是View中的显示列表记录,具体作用这里不作详述了。我们再来看看第二种绘制方式SoftWare渲染,drawSoftware()方法

 private boolean drawSoftware(Surface surface, AttachInfo attachInfo, int yoff,
            boolean scalingRequired, Rect dirty) {

        // Draw with software renderer.
        Canvas canvas;
        try {
            .......

            canvas = mSurface.lockCanvas(dirty);

           ......

        } catch (Surface.OutOfResourcesException e) {
           .....
        } catch (IllegalArgumentException e) {
          .....
        }

        try {
            .......
            try {

               ......

                mView.draw(canvas);//核心方法

                drawAccessibilityFocusedDrawableIfNeeded(canvas);
            } finally {
                if (!attachInfo.mSetIgnoreDirtyState) {
                    // Only clear the flag if it was not set during the mView.draw() call
                    attachInfo.mIgnoreDirtyState = false;
                }
            }
        } finally {
          .....
        }
        return true;
    }

这里发现,最后也还是调用DecorView的draw方法,具体流程也与measure和layout类似。可以说两种绘制方式最后也还是调用了View的draw方法,可以说是殊途同归。

到这里我们就把添加的回调绘制帧mTraversalRunnable这个说完了。上面说到,Choreographer通过postCallback(Choreographer.CALLBACK_TRAVERSAL, mTraversalRunnable, null)方法向系统添加回调并加入绘制帧,然后Android系统通过16ms间隔脉冲实现帧的绘制,从而才将布局内容显示到手机上。

说到这里,DecorView的绘制流程我们就说完了。

注:源码采用android-4.1.1_r1版本,建议下载源码然后自己走一遍流程,这样更能加深理解。
