在 WSO2 ESB 5.0.0 中使用 SLF4J 日志框架

一、所需 jar 包

由于 WSO2 ESB 5.0.0 自带的日志组件使用的是 log4j，并提供有 log4j-slf4j-impl jar 包，所以只需导入以下三个包：

可以到 mvnrepository 下载 jar 包。

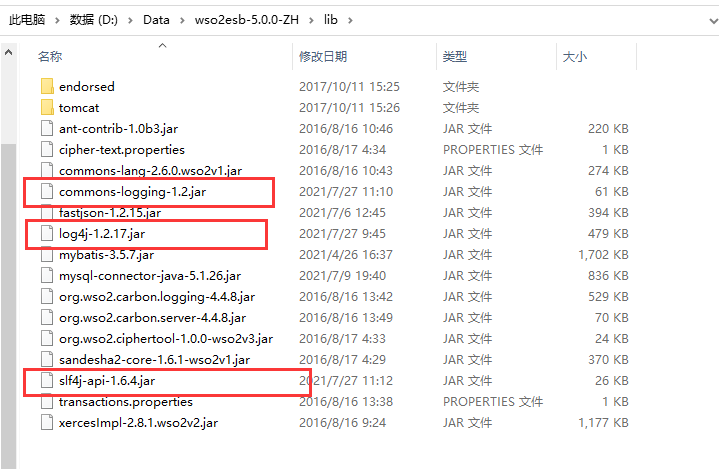

把 jar 包放到 {WSO2 ESB 5.0.0}\lib 目录下

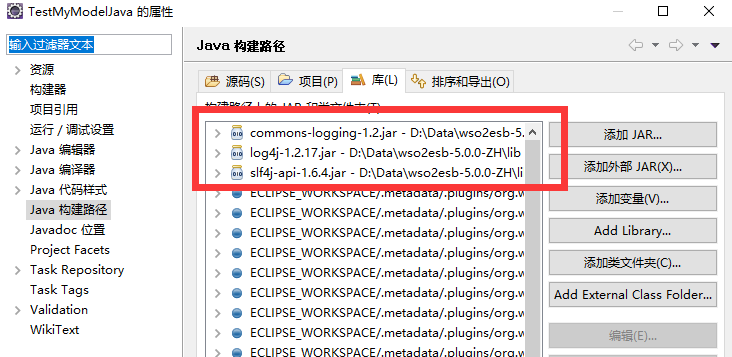

导入 jar 到项目。

二、修改日志输出级别

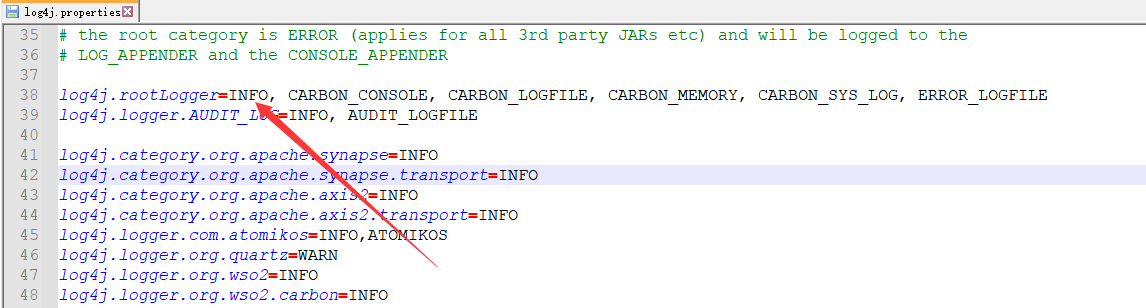

打开 {WSO2 ESB 5.0.0}\repository\conf\log4j.properties 文件

把第 38 行开头的 ERROR 改为 INFO，保存，重启 WSO2 ESB。

不修改的话只会打印 ≥ ERROR 级别的日志。

三、实例测试

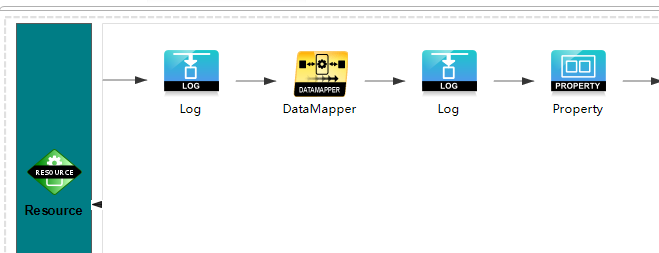

1、添加自带的 Log 日志组件。

2、Mediator Project 类

package com;

import org.apache.synapse.MessageContext;
import org.apache.synapse.mediators.AbstractMediator;
import org.slf4j.Logger;
import org.slf4j.LoggerFactory;

public class TestMyModel extends AbstractMediator {

	private String property_name;

	public String getProperty_name() {
		return property_name;
	}

	public void setProperty_name(String property_name) {
		this.property_name = property_name;
	}

	//SLF4J 日志记录器
	private static final Logger logger = LoggerFactory.getLogger(TestMyModel.class);

	public boolean mediate(MessageContext context) {
		// TODO Implement your mediation logic here

		String xmldata = (String)context.getProperty(property_name);

		//System.out.println("xmldata: " + xmldata);

		logger.info("info xmldata: {}", xmldata);
		logger.warn("warn xmldata: {}", xmldata);
		logger.error("error xmldata: {}", xmldata);

		//log 是 wso2 自带的日志记录器，在扩展了 AbstractMediator 的类中不用声明可以直接使用。
		log.debug("receive debug");
		//log.info("receive info");
		//log.warn("receive warn");
		//log.error("receive error");

		String resp = "<DATA>\n" +
				"        <DATAINFOS>\n" +
				"            <PUUID>11111</PUUID>\n" +
				"            <SYNCODE>ZWY</SYNCODE>\n" +
				"            <DATAINFO>\n" +
				"                <DESC1>ABC</DESC1>\n" +
				"            </DATAINFO>\n" +
				"        </DATAINFOS>\n" +
				"    </DATA>";
		context.setProperty("resp", resp);

		return true;
	}
}

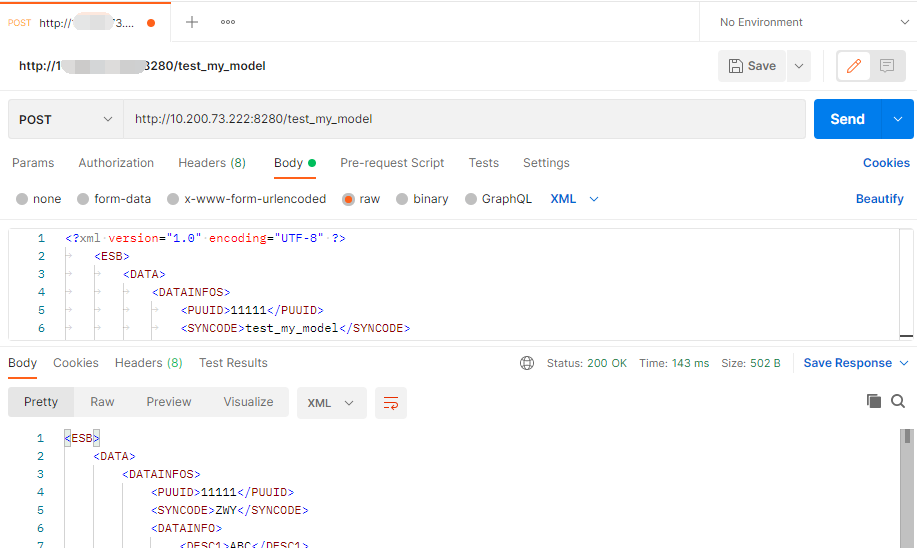

3、Postman 测试

Postman 进行 POST 请求测试。

控制台日志输出：

[2021-07-28 20:13:49,333]  INFO - LogMediator To: /test_my_model, MessageID: urn:uuid:c51c534d-9cdd-4bdb-9ee6-d8fe40f5fb47, Direction: request
[2021-07-28 20:13:49,334]  INFO - test_my_model To: /test_my_model, MessageID: urn:uuid:c51c534d-9cdd-4bdb-9ee6-d8fe40f5fb47, Direction: request
[2021-07-28 20:13:49,461]  INFO - LogMediator To: /test_my_model, MessageID: urn:uuid:c51c534d-9cdd-4bdb-9ee6-d8fe40f5fb47, Direction: request
[2021-07-28 20:13:49,462]  INFO - test_my_model To: /test_my_model, MessageID: urn:uuid:c51c534d-9cdd-4bdb-9ee6-d8fe40f5fb47, Direction: request
[2021-07-28 20:13:49,462]  INFO - TestMyModel info xmldata: {"ESB":{"DATA":{"DATAINFOS":{"PUUID":11111,"SYNCODE":"test_my_model","DATAINFO":{"DESC1":"EFG","DESC2":"ABC","DESC3":"ABC","DESC4":"ABC","DESC5":"ABC","DESC6":"ABC","DESC7":"ABC"}}}}}
[2021-07-28 20:13:49,463]  WARN - TestMyModel warn xmldata: {"ESB":{"DATA":{"DATAINFOS":{"PUUID":11111,"SYNCODE":"test_my_model","DATAINFO":{"DESC1":"EFG","DESC2":"ABC","DESC3":"ABC","DESC4":"ABC","DESC5":"ABC","DESC6":"ABC","DESC7":"ABC"}}}}}
[2021-07-28 20:13:49,464] ERROR - TestMyModel error xmldata: {"ESB":{"DATA":{"DATAINFOS":{"PUUID":11111,"SYNCODE":"test_my_model","DATAINFO":{"DESC1":"EFG","DESC2":"ABC","DESC3":"ABC","DESC4":"ABC","DESC5":"ABC","DESC6":"ABC","DESC7":"ABC"}}}}}

可以看到自带的日志组件和 SLF4J 日志框架的输出格式基本一致。
