在 WSO2 ESB 5.0.0 中使用 MyBatis 框架

一、导包

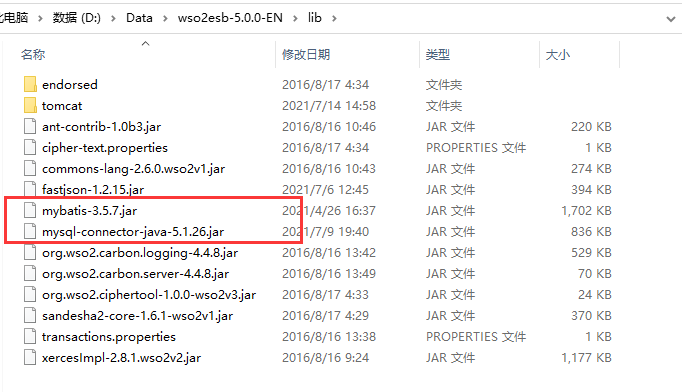

1、在 WSO2 ESB 5.0.0 lib文件夹中导入 jar 包

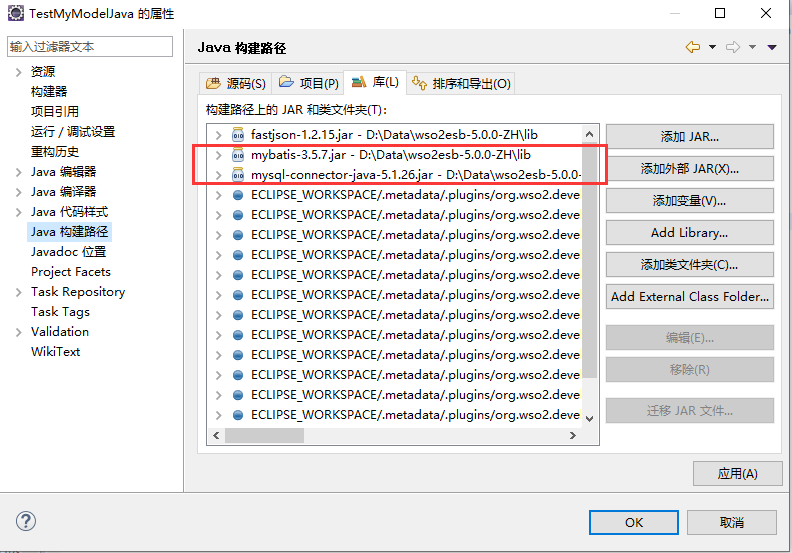

2、在 Eclipse 项目中导入 jar 包

二、准备 Mybatis 的配置文件

SqlMapConfig.xml

<?xml version="1.0" encoding="UTF-8" ?>
<!DOCTYPE configuration
        PUBLIC "-//mybatis.org//DTD Config 3.0//EN"
        "http://mybatis.org/dtd/mybatis-3-config.dtd">
<configuration>

    <settings>
        <!-- 打印查询语句 -->
        <setting name="logImpl" value="STDOUT_LOGGING" />
    </settings>

    <!-- 和Spring整合后environment配置都会被干掉 -->
    <environments default="development">
        <environment id="development">
            <!-- 使用jdbc事务管理，目前由mybatis来管理 -->
            <transactionManager type="JDBC" />
            <!-- 数据库连接池，目前由mybatis来管理 -->
            <dataSource type="POOLED"><!--有关于mysql数据库的各种信息-->
                <property name="driver" value="com.mysql.jdbc.Driver" />
                <property name="url" value="jdbc:mysql://localhost:3306/test" />
                <property name="username" value="root" />
                <property name="password" value="123456" />
            </dataSource>
        </environment>
    </environments>

    <mappers>
        <!--将操作配置文件TestMapper.xml系添加进mapper-->
        <mapper resource="mapper/TestMapper.xml" ></mapper>
    </mappers>
</configuration>

三、准备实体类

package entity;

import java.io.Serializable;

public class TestMode implements Serializable{

	private String name,address,sex,phone;
	private Integer id;

	public Integer getId() {
		return id;
	}

	public void setId(Integer id) {
		this.id = id;
	}

	public String getName() {
		return name;
	}

	public void setName(String name) {
		this.name = name;
	}

	public String getAddress() {
		return address;
	}

	public void setAddress(String address) {
		this.address = address;
	}

	public String getSex() {
		return sex;
	}

	public void setSex(String sex) {
		this.sex = sex;
	}

	public String getPhone() {
		return phone;
	}

	public void setPhone(String phone) {
		this.phone = phone;
	}


}

四、准备实体对应的 mapper 映射 xml 文件

TestMapper.xml

<?xml version="1.0" encoding="UTF-8" ?>
<!DOCTYPE mapper
        PUBLIC "-//mybatis.org//DTD Mapper 3.0//EN"
        "http://mybatis.org/dtd/mybatis-3-mapper.dtd">

<mapper namespace="TestMapper"> <!-- 注意，因为这边没有用到mapper接口，所以这里的namespace不需要是完全的类名 -->

    <!-- 通过id查询用户是否存在 -->
    <select id="countById" parameterType="java.lang.String" resultType="int">
        select count(1) as num from mode where id = #{id}
    </select>
    <!--通过name查找一个list的用户，模糊匹配，返回类型使用Map-->
    <select id="findUserByName" parameterType="java.lang.String" resultType="Map">
        select * from mode where name like '%${value}%'
    </select>

</mapper>

五、准备一个获取 sqlsession 的工具类

package util;

import java.io.IOException;

import org.apache.ibatis.io.Resources;
import org.apache.ibatis.session.SqlSession;
import org.apache.ibatis.session.SqlSessionFactory;
import org.apache.ibatis.session.SqlSessionFactoryBuilder;

public class MybatisSessionUtil {
	static SqlSessionFactory sqlSessionFactory = null;
	static {
		SqlSessionFactoryBuilder sqlSessionFactoryBuilder = new SqlSessionFactoryBuilder();
		try {
			sqlSessionFactory = sqlSessionFactoryBuilder.build(Resources.getResourceAsStream("SqlMapConfig.xml"));
		} catch (IOException e) {
			e.printStackTrace();
		}
	}

	public static SqlSession getSession() {
		return sqlSessionFactory.openSession();
	}
}

六、准备 dao

package dao;

import java.util.List;
import java.util.Map;

import org.apache.ibatis.session.SqlSession;

import util.MybatisSessionUtil;

public class TestDao {

	private SqlSession session = MybatisSessionUtil.getSession();

	public int countById(String id){
		int rint = session.selectOne("TestMapper.countById", id); // 第一个参数是mapper.xml里的namespace+MappedStatement对应的id
        session.commit();// 不要忘记提交
		return rint;
	}

	public List<Map<String,Object>> findUserByName(String name){
		List<Map<String,Object>> list = session.selectList("TestMapper.findUserByName", name);
		session.commit();
		return list;
	}
}

七、Mediator 类

package com;

import java.util.List;
import java.util.Map;

import org.apache.synapse.MessageContext;
import org.apache.synapse.mediators.AbstractMediator;

import com.alibaba.fastjson.JSON;
import com.alibaba.fastjson.JSONArray;

import dao.TestDao;

public class TestMyModel extends AbstractMediator {

	private String property_name;

	public String getProperty_name() {
		return property_name;
	}

	public void setProperty_name(String property_name) {
		this.property_name = property_name;
	}

	public boolean mediate(MessageContext context) {
		// TODO Implement your mediation logic here

		//String xmldata = (String)context.getProperty(property_name);

		//System.out.println("xmldata: " + xmldata);
		JSONArray js = new JSONArray();

		try{
			TestDao tdao = new TestDao();
			List<Map<String,Object>> list = tdao.findUserByName("a");
			int count = tdao.countById("441012198009245079");
			System.out.println("count: " + count);

			System.out.println("id\tname\taddress\tsex\tphone\t");
			for(int i = 0; i < list.size(); i++){
				Map<String,Object> tm = list.get(i);
				System.out.println(tm.get("id") + "\t"
						+ tm.get("name") + "\t"
						+ tm.get("address") + "\t"
						+ tm.get("sex") + "\t"
						+ tm.get("phone") + "\t");
			}
			String jsonstr = JSON.toJSONString(list);
			js = JSONArray.parseArray(jsonstr);
			log.info("jsonstr: " + jsonstr);
		}catch(Exception e){
			log.error("Mybatis Exception!", e);
		}

		String resp = "<DATA>\n" +
				"        <DATAINFOS>\n" +
				"            <PUUID>11111</PUUID>\n" +
				"            <SYNCODE>ZWY</SYNCODE>\n" +
				"        </DATAINFOS>\n" +
				"    </DATA>";
		context.setProperty("resp", resp);

		return true;
	}

}

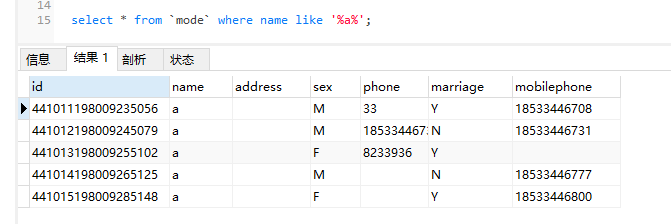

八、数据库表

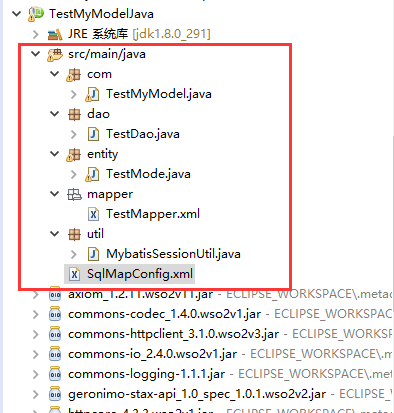

九、完整目录结构

十、Postman 测试

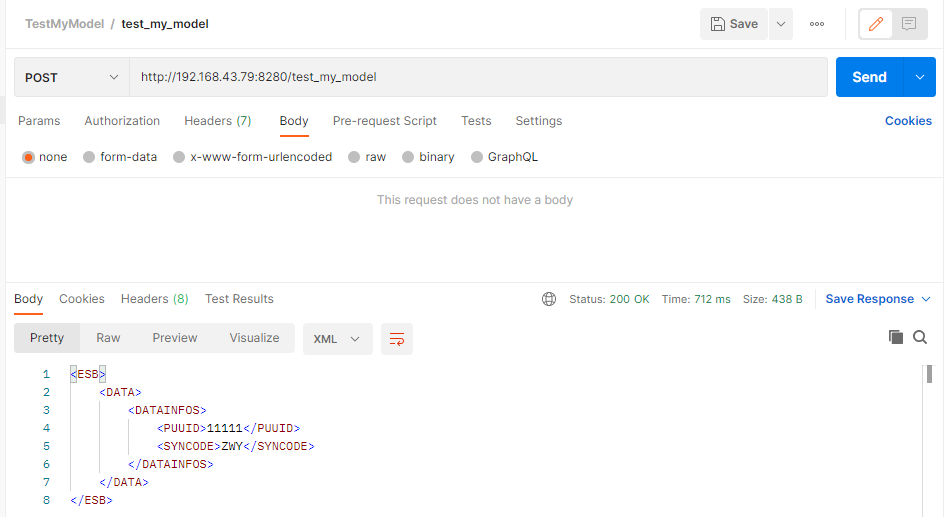

Postman 请求

控制台输出

详细输出日志：

Logging initialized using 'class org.apache.ibatis.logging.stdout.StdOutImpl' adapter.
PooledDataSource forcefully closed/removed all connections.
PooledDataSource forcefully closed/removed all connections.
PooledDataSource forcefully closed/removed all connections.
PooledDataSource forcefully closed/removed all connections.
Opening JDBC Connection
Created connection 728566657.
Setting autocommit to false on JDBC Connection [com.mysql.jdbc.JDBC4Connection@2b6d0b81]
==>  Preparing: select * from mode where name like '%a%'
==> Parameters:
<==    Columns: id, name, address, sex, phone, marriage, mobilephone
<==        Row: 441011198009235056, a, , M, 33, Y, 18533446708
<==        Row: 441012198009245079, a, , M, 18533446731, N, 18533446731
<==        Row: 441013198009255102, a, , F, 8233936, Y,
<==        Row: 441014198009265125, a, , M, , N, 18533446777
<==        Row: 441015198009285148, a, , F, , Y, 18533446800
<==      Total: 5
==>  Preparing: select count(1) as num from mode where id = ?
==> Parameters: 441012198009245079(String)
<==    Columns: num
<==        Row: 1
<==      Total: 1
count: 1
id	name	address	sex	phone
441011198009235056	a		M	33
441012198009245079	a		M	18533446731
441013198009255102	a		F	8233936
441014198009265125	a		M
441015198009285148	a		F
[2021-08-04 11:48:24,396]  INFO - TestMyModel jsonstr: [{"address":"","phone":"33","marriage":"Y","sex":"M","mobilephone":"18533446708","name":"a","id":"441011198009235056"},{"address":"","phone":"18533446731","marriage":"N","sex":"M","mobilephone":"18533446731","name":"a","id":"441012198009245079"},{"address":"","phone":"8233936","marriage":"Y","sex":"F","mobilephone":"","name":"a","id":"441013198009255102"},{"address":"","phone":"","marriage":"N","sex":"M","mobilephone":"18533446777","name":"a","id":"441014198009265125"},{"address":"","phone":"","marriage":"Y","sex":"F","mobilephone":"18533446800","name":"a","id":"441015198009285148"}]
