配置了二层和三层交换机、路由器的VLAN、接口、动态路由，实现网络互通。测试结果显示大部分设备间通信正常，但67两个网段不通，原因是三层交换机和路由器间缺少路由配置。已通过增加路由解决，同时发现三层交换机内部两台机器网络不通，问题在于未创建VLAN。修复后网络通信恢复正常。

摘要生成于 C知道 ，由 DeepSeek-R1 满血版支持， 前往体验 >

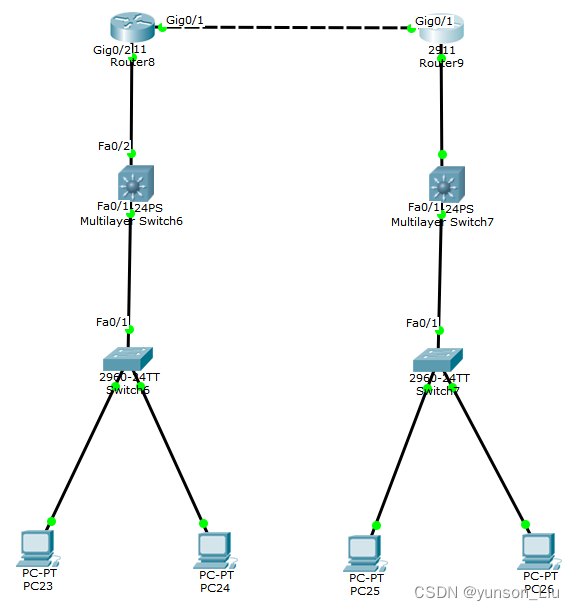

在这里插入图片描述

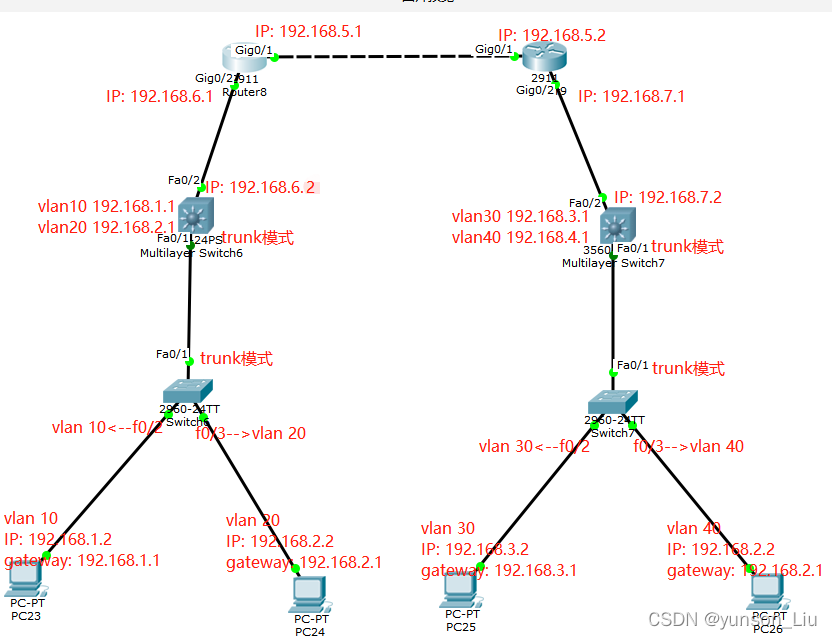

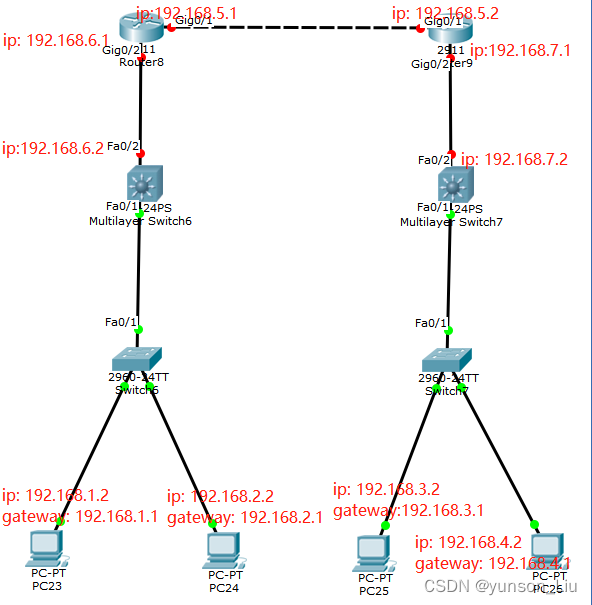

配置后的拓扑图如下：
在这里插入图片描述

1、二层交换机switch6配置

Switch>enable
Switch#configure terminal
Enter configuration commands, one per line.  End with CNTL/Z.
#创建两个vlan
Switch(config)#vlan 10
Switch(config-vlan)#exit
Switch(config)#vlan 20
Switch(config-vlan)#exit
#讲接口加入到vlan中
Switch(config)#interface fastEthernet 0/2
Switch(config-if)#switchport access vlan 10
Switch(config-if)#exit
Switch(config)#interface fastEthernet 0/3
Switch(config-if)#switchport access vlan 20
Switch(config-if)#exit
#端口封装
Switch(config)#interface fastEthernet 0/1
Switch(config-if)#switchport mode trunk

Switch(config-if)#
%LINEPROTO-5-UPDOWN: Line protocol on Interface FastEthernet0/1, changed state to down

%LINEPROTO-5-UPDOWN: Line protocol on Interface FastEthernet0/1, changed state to up

在这里插入图片描述

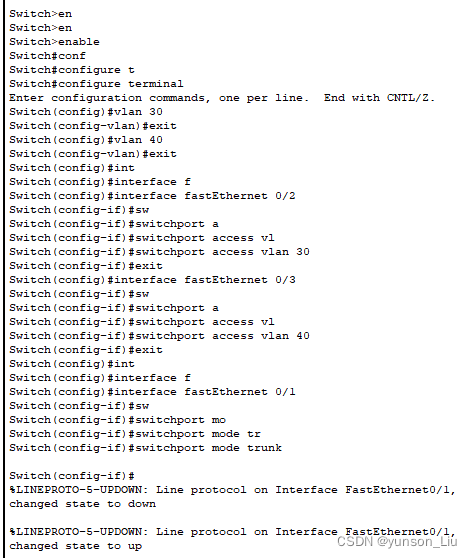

2、二层交换机switch7配置

Switch>enable
Switch#configure terminal
Enter configuration commands, one per line.  End with CNTL/Z.
#创建vlan
Switch(config)#vlan 30
Switch(config-vlan)#exit
Switch(config)#vlan 40
Switch(config-vlan)#exit
#接口绑定到vlan
Switch(config)#interface fastEthernet 0/2
Switch(config-if)#switchport access vlan 30
Switch(config-if)#exit
Switch(config)#interface fastEthernet 0/3
Switch(config-if)#switchport access vlan 40
Switch(config-if)#exit
#封装端口
Switch(config)#interface fastEthernet 0/1
Switch(config-if)#switchport mode trunk

在这里插入图片描述

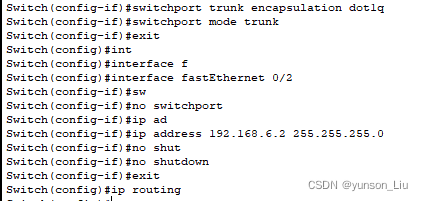

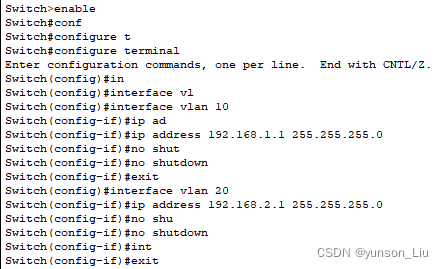

3、三层交换机switch6配置

Switch>enable
Switch#configure terminal
Enter configuration commands, one per line.  End with CNTL/Z.
Switch(config)#vlan 10
Switch(config)#exit
Switch(config)#vlan 20
Switch(config)#exit
Switch(config)#interface vlan 10
Switch(config-if)#ip address 192.168.1.1 255.255.255.0
Switch(config-if)#no shutdown
Switch(config-if)#exit
Switch(config)#interface vlan 20
Switch(config-if)#ip address 192.168.2.1 255.255.255.0
Switch(config-if)#no shutdown
Switch(config-if)#exit
Switch(config)#interface fastEthernet 0/1
Switch(config-if)#switchport trunk encapsulation dot1q
Switch(config-if)#switchport mode trunk
Switch(config-if)#exit
Switch(config)#int
Switch(config)#interface f
Switch(config)#interface fastEthernet 0/2
Switch(config-if)#sw
Switch(config-if)#no switchport
Switch(config-if)#ip ad
Switch(config-if)#ip address 192.168.6.2 255.255.255.0
Switch(config-if)#no shut
Switch(config-if)#no shutdown
Switch(config-if)#exit
Switch(config)#ip routing

在这里插入图片描述
在这里插入图片描述
在这里插入图片描述

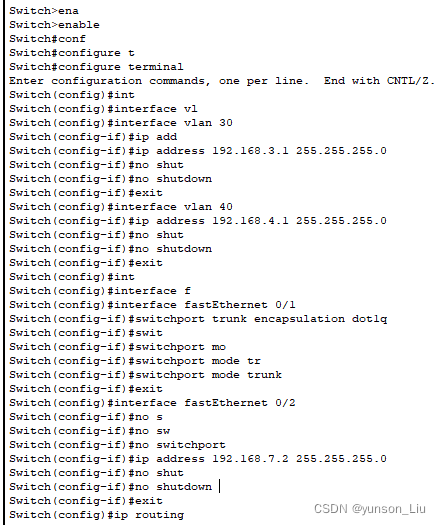

3、三层交换机switch7配置

Switch>ena
Switch>enable
Switch#configure terminal
Enter configuration commands, one per line.  End with CNTL/Z.
Switch(config)#vlan 30
Switch(config)#exit
Switch(config)#vlan 40
Switch(config)#exit
Switch(config)#interface vlan 30
Switch(config-if)#ip address 192.168.3.1 255.255.255.0
Switch(config-if)#no shutdown
Switch(config-if)#exit
Switch(config)#interface vlan 40
Switch(config-if)#ip address 192.168.4.1 255.255.255.0
Switch(config-if)#no shutdown
Switch(config-if)#exit
Switch(config)#interface fastEthernet 0/1
Switch(config-if)#switchport trunk encapsulation dot1q
Switch(config-if)#switchport mode trunk
Switch(config-if)#exit
Switch(config)#interface fastEthernet 0/2
Switch(config-if)#no switchport
Switch(config-if)#ip address 192.168.7.2 255.255.255.0
Switch(config-if)#no shutdown
Switch(config-if)#exit
Switch(config)#ip routing

在这里插入图片描述
5、路由器route8配置

Router>enable
Router#configure terminal
Enter configuration commands, one per line.  End with CNTL/Z.
#配置g0/1端口IP
Router(config)#interface gigabitEthernet 0/1
Router(config-if)#ip address 192.168.5.1 255.255.255.0
Router(config-if)#no shutdown
Router(config-if)#exit
#配置g0/2端口IP
Router(config)#interface gigabitEthernet 0/2
Router(config-if)#ip address 192.168.6.1 255.255.255.0
Router(config-if)#no shutdown

在这里插入图片描述

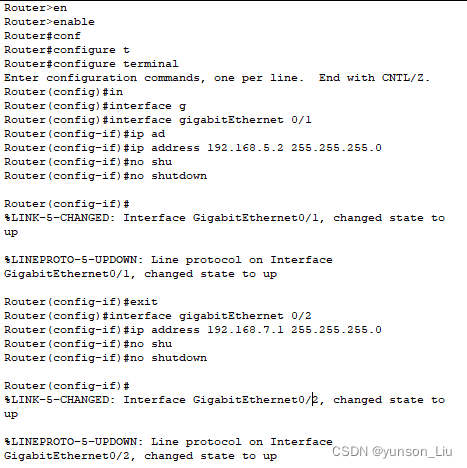

6、路由器route9配置

Router>enable
Router#configure terminal
Enter configuration commands, one per line.  End with CNTL/Z.
#配置g0/1端口IP
Router(config)#interface gigabitEthernet 0/1
Router(config-if)#ip address 192.168.5.2 255.255.255.0
Router(config-if)#no shutdown

Router(config-if)#exit
#配置g0/2端口IP
Router(config)#interface gigabitEthernet 0/2
Router(config-if)#ip address 192.168.7.1 255.255.255.0
Router(config-if)#no shutdown

在这里插入图片描述

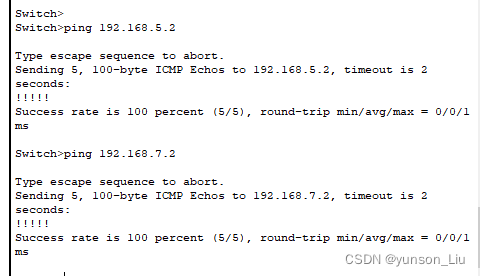

此时网络拓扑图都显示绿色
在这里插入图片描述
7、在三层交换机switch6上配置动态路由

Switch(config)#ip route 192.168.3.0 255.255.255.0 192.168.6.1
Switch(config)#ip route 192.168.4.0 255.255.255.0 192.168.6.1
Switch(config)#ip route 192.168.5.0 255.255.255.0 192.168.6.1

在这里插入图片描述
8、在三层交换机switch7上配置动态路由

Switch(config)#ip route 192.168.1.0 255.255.255.0 192.168.7.1
Switch(config)#ip route 192.168.2.0 255.255.255.0 192.168.7.1
Switch(config)#ip route 192.168.5.0 255.255.255.0 192.168.7.1

在这里插入图片描述

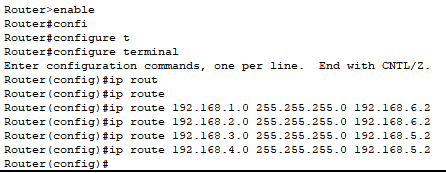

9、在路由器route8上配置路由

Router(config)#ip route 192.168.1.0 255.255.255.0 192.168.6.2
Router(config)#ip route 192.168.2.0 255.255.255.0 192.168.6.2
Router(config)#ip route 192.168.3.0 255.255.255.0 192.168.5.2
Router(config)#ip route 192.168.4.0 255.255.255.0 192.168.5.2

在这里插入图片描述

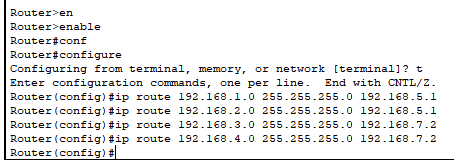

10、在路由器touter9上配置路由

Router(config)#ip route 192.168.1.0 255.255.255.0 192.168.5.1
Router(config)#ip route 192.168.2.0 255.255.255.0 192.168.5.1
Router(config)#ip route 192.168.3.0 255.255.255.0 192.168.7.2
Router(config)#ip route 192.168.4.0 255.255.255.0 192.168.7.2

在这里插入图片描述

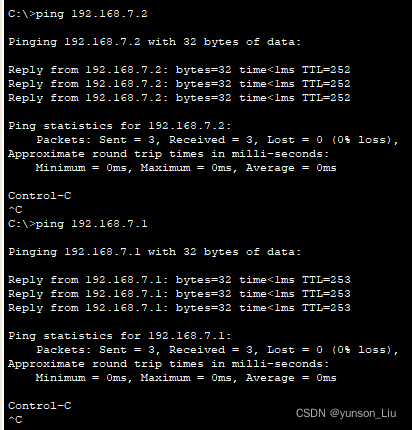

测试结果
pc23

C:\>ping 192.168.1.1

Pinging 192.168.1.1 with 32 bytes of data:

Reply from 192.168.1.1: bytes=32 time<1ms TTL=255
Reply from 192.168.1.1: bytes=32 time=3ms TTL=255

Ping statistics for 192.168.1.1:
    Packets: Sent = 2, Received = 2, Lost = 0 (0% loss),
Approximate round trip times in milli-seconds:
    Minimum = 0ms, Maximum = 3ms, Average = 1ms

Control-C
^C
C:\>ping 192.168.2.1

Pinging 192.168.2.1 with 32 bytes of data:

Reply from 192.168.2.1: bytes=32 time<1ms TTL=255
Reply from 192.168.2.1: bytes=32 time=1ms TTL=255

Ping statistics for 192.168.2.1:
    Packets: Sent = 2, Received = 2, Lost = 0 (0% loss),
Approximate round trip times in milli-seconds:
    Minimum = 0ms, Maximum = 1ms, Average = 0ms

Control-C
^C
C:\>ping 192.168.2.2

Pinging 192.168.2.2 with 32 bytes of data:

Reply from 192.168.2.2: bytes=32 time<1ms TTL=127
Reply from 192.168.2.2: bytes=32 time<1ms TTL=127

Ping statistics for 192.168.2.2:
    Packets: Sent = 2, Received = 2, Lost = 0 (0% loss),
Approximate round trip times in milli-seconds:
    Minimum = 0ms, Maximum = 0ms, Average = 0ms

Control-C
^C
C:\>ping 192.168.3.1

Pinging 192.168.3.1 with 32 bytes of data:

Reply from 192.168.3.1: bytes=32 time=1ms TTL=252
Reply from 192.168.3.1: bytes=32 time<1ms TTL=252

Ping statistics for 192.168.3.1:
    Packets: Sent = 2, Received = 2, Lost = 0 (0% loss),
Approximate round trip times in milli-seconds:
    Minimum = 0ms, Maximum = 1ms, Average = 0ms

Control-C
^C
C:\>ping 192.168.3.2

Pinging 192.168.3.2 with 32 bytes of data:

Request timed out.
Reply from 192.168.3.2: bytes=32 time=11ms TTL=124
Reply from 192.168.3.2: bytes=32 time=1ms TTL=124
Reply from 192.168.3.2: bytes=32 time=3ms TTL=124

Ping statistics for 192.168.3.2:
    Packets: Sent = 4, Received = 3, Lost = 1 (25% loss),
Approximate round trip times in milli-seconds:
    Minimum = 1ms, Maximum = 11ms, Average = 5ms

C:\>ping 192.168.4.1

Pinging 192.168.4.1 with 32 bytes of data:

Reply from 192.168.4.1: bytes=32 time=2ms TTL=252
Reply from 192.168.4.1: bytes=32 time<1ms TTL=252

Ping statistics for 192.168.4.1:
    Packets: Sent = 2, Received = 2, Lost = 0 (0% loss),
Approximate round trip times in milli-seconds:
    Minimum = 0ms, Maximum = 2ms, Average = 1ms

Control-C
^C
C:\>ping 192.168.4.2

Pinging 192.168.4.2 with 32 bytes of data:

Reply from 192.168.4.2: bytes=32 time<1ms TTL=124
Reply from 192.168.4.2: bytes=32 time<1ms TTL=124
Reply from 192.168.4.2: bytes=32 time<1ms TTL=124

Ping statistics for 192.168.4.2:
    Packets: Sent = 3, Received = 3, Lost = 0 (0% loss),
Approximate round trip times in milli-seconds:
    Minimum = 0ms, Maximum = 0ms, Average = 0ms

Control-C
^C
C:\>ping 192.168.5.1

Pinging 192.168.5.1 with 32 bytes of data:

Reply from 192.168.5.1: bytes=32 time<1ms TTL=254
Reply from 192.168.5.1: bytes=32 time<1ms TTL=254

Ping statistics for 192.168.5.1:
    Packets: Sent = 2, Received = 2, Lost = 0 (0% loss),
Approximate round trip times in milli-seconds:
    Minimum = 0ms, Maximum = 0ms, Average = 0ms

Control-C
^C
C:\>ping 192.168.5.2

Pinging 192.168.5.2 with 32 bytes of data:

Reply from 192.168.5.2: bytes=32 time<1ms TTL=253
Reply from 192.168.5.2: bytes=32 time<1ms TTL=253

Ping statistics for 192.168.5.2:
    Packets: Sent = 2, Received = 2, Lost = 0 (0% loss),
Approximate round trip times in milli-seconds:
    Minimum = 0ms, Maximum = 0ms, Average = 0ms

Control-C
^C
C:\>ping 192.168.6.1

Pinging 192.168.6.1 with 32 bytes of data:

Reply from 192.168.6.1: bytes=32 time<1ms TTL=254
Reply from 192.168.6.1: bytes=32 time<1ms TTL=254

Ping statistics for 192.168.6.1:
    Packets: Sent = 2, Received = 2, Lost = 0 (0% loss),
Approximate round trip times in milli-seconds:
    Minimum = 0ms, Maximum = 0ms, Average = 0ms

Control-C
^C
C:\>ping 192.168.6.2

Pinging 192.168.6.2 with 32 bytes of data:

Reply from 192.168.6.2: bytes=32 time<1ms TTL=255
Reply from 192.168.6.2: bytes=32 time<1ms TTL=255

Ping statistics for 192.168.6.2:
    Packets: Sent = 2, Received = 2, Lost = 0 (0% loss),
Approximate round trip times in milli-seconds:
    Minimum = 0ms, Maximum = 0ms, Average = 0ms

Control-C
^C
C:\>ping 192.168.7.1

Pinging 192.168.7.1 with 32 bytes of data:

Reply from 192.168.6.1: Destination host unreachable.
Reply from 192.168.6.1: Destination host unreachable.

Ping statistics for 192.168.7.1:
    Packets: Sent = 3, Received = 0, Lost = 3 (100% loss),

Control-C
^C
C:\>ping 192.168.7.2

Pinging 192.168.7.2 with 32 bytes of data:

Reply from 192.168.6.1: Destination host unreachable.
Reply from 192.168.6.1: Destination host unreachable.
Reply from 192.168.6.1: Destination host unreachable.
Reply from 192.168.6.1: Destination host unreachable.

Ping statistics for 192.168.7.2:
    Packets: Sent = 4, Received = 0, Lost = 4 (100% loss),

pc24测试结果

C:\>ping 192.168.1.1

Pinging 192.168.1.1 with 32 bytes of data:

Reply from 192.168.1.1: bytes=32 time<1ms TTL=255

Ping statistics for 192.168.1.1:
    Packets: Sent = 1, Received = 1, Lost = 0 (0% loss),
Approximate round trip times in milli-seconds:
    Minimum = 0ms, Maximum = 0ms, Average = 0ms

Control-C
^C
C:\>ping 192.168.1.2

Pinging 192.168.1.2 with 32 bytes of data:

Reply from 192.168.1.2: bytes=32 time<1ms TTL=127
Reply from 192.168.1.2: bytes=32 time<1ms TTL=127

Ping statistics for 192.168.1.2:
    Packets: Sent = 2, Received = 2, Lost = 0 (0% loss),
Approximate round trip times in milli-seconds:
    Minimum = 0ms, Maximum = 0ms, Average = 0ms

Control-C
^C
C:\>ping 192.168.2.2

Pinging 192.168.2.2 with 32 bytes of data:

Reply from 192.168.2.2: bytes=32 time=3ms TTL=128

Ping statistics for 192.168.2.2:
    Packets: Sent = 1, Received = 1, Lost = 0 (0% loss),
Approximate round trip times in milli-seconds:
    Minimum = 3ms, Maximum = 3ms, Average = 3ms

Control-C
^C
C:\>ping 192.168.2.1

Pinging 192.168.2.1 with 32 bytes of data:

Reply from 192.168.2.1: bytes=32 time<1ms TTL=255
Reply from 192.168.2.1: bytes=32 time<1ms TTL=255

Ping statistics for 192.168.2.1:
    Packets: Sent = 2, Received = 2, Lost = 0 (0% loss),
Approximate round trip times in milli-seconds:
    Minimum = 0ms, Maximum = 0ms, Average = 0ms

Control-C
^C
C:\>ping 192.168.3.1

Pinging 192.168.3.1 with 32 bytes of data:

Reply from 192.168.3.1: bytes=32 time=2ms TTL=252
Reply from 192.168.3.1: bytes=32 time<1ms TTL=252

Ping statistics for 192.168.3.1:
    Packets: Sent = 2, Received = 2, Lost = 0 (0% loss),
Approximate round trip times in milli-seconds:
    Minimum = 0ms, Maximum = 2ms, Average = 1ms

Control-C
^C
C:\>ping 192.168.3.2

Pinging 192.168.3.2 with 32 bytes of data:

Reply from 192.168.3.2: bytes=32 time=1ms TTL=124

Ping statistics for 192.168.3.2:
    Packets: Sent = 1, Received = 1, Lost = 0 (0% loss),
Approximate round trip times in milli-seconds:
    Minimum = 1ms, Maximum = 1ms, Average = 1ms

Control-C
^C
C:\>ping 192.168.4.2

Pinging 192.168.4.2 with 32 bytes of data:

Reply from 192.168.4.2: bytes=32 time<1ms TTL=124

Ping statistics for 192.168.4.2:
    Packets: Sent = 1, Received = 1, Lost = 0 (0% loss),
Approximate round trip times in milli-seconds:
    Minimum = 0ms, Maximum = 0ms, Average = 0ms

Control-C
^C
C:\>ping 192.168.4.1

Pinging 192.168.4.1 with 32 bytes of data:

Reply from 192.168.4.1: bytes=32 time<1ms TTL=252

Ping statistics for 192.168.4.1:
    Packets: Sent = 1, Received = 1, Lost = 0 (0% loss),
Approximate round trip times in milli-seconds:
    Minimum = 0ms, Maximum = 0ms, Average = 0ms

Control-C
^C
C:\>ping 192.168.5.1

Pinging 192.168.5.1 with 32 bytes of data:

Reply from 192.168.5.1: bytes=32 time=1ms TTL=254

Ping statistics for 192.168.5.1:
    Packets: Sent = 1, Received = 1, Lost = 0 (0% loss),
Approximate round trip times in milli-seconds:
    Minimum = 1ms, Maximum = 1ms, Average = 1ms

Control-C
^C
C:\>ping 192.168.5.2

Pinging 192.168.5.2 with 32 bytes of data:

Reply from 192.168.5.2: bytes=32 time<1ms TTL=253
Reply from 192.168.5.2: bytes=32 time<1ms TTL=253

Ping statistics for 192.168.5.2:
    Packets: Sent = 2, Received = 2, Lost = 0 (0% loss),
Approximate round trip times in milli-seconds:
    Minimum = 0ms, Maximum = 0ms, Average = 0ms

Control-C
^C
C:\>ping 192.168.6.2

Pinging 192.168.6.2 with 32 bytes of data:

Reply from 192.168.6.2: bytes=32 time<1ms TTL=255
Reply from 192.168.6.2: bytes=32 time<1ms TTL=255

Ping statistics for 192.168.6.2:
    Packets: Sent = 2, Received = 2, Lost = 0 (0% loss),
Approximate round trip times in milli-seconds:
    Minimum = 0ms, Maximum = 0ms, Average = 0ms

Control-C
^C
C:\>ping 192.168.6.1

Pinging 192.168.6.1 with 32 bytes of data:

Reply from 192.168.6.1: bytes=32 time<1ms TTL=254
Reply from 192.168.6.1: bytes=32 time<1ms TTL=254

Ping statistics for 192.168.6.1:
    Packets: Sent = 2, Received = 2, Lost = 0 (0% loss),
Approximate round trip times in milli-seconds:
    Minimum = 0ms, Maximum = 0ms, Average = 0ms

Control-C
^C
C:\>ping 192.168.7.1

Pinging 192.168.7.1 with 32 bytes of data:

Reply from 192.168.6.1: Destination host unreachable.
Reply from 192.168.6.1: Destination host unreachable.

Ping statistics for 192.168.7.1:
    Packets: Sent = 2, Received = 0, Lost = 2 (100% loss),

Control-C
^C
C:\>ping 192.168.7.2

Pinging 192.168.7.2 with 32 bytes of data:

Reply from 192.168.6.1: Destination host unreachable.

Ping statistics for 192.168.7.2:
    Packets: Sent = 1, Received = 0, Lost = 1 (100% loss),

Control-C
^C

pc25测试结果

C:\>ping 192.168.1.1

Pinging 192.168.1.1 with 32 bytes of data:

Reply from 192.168.1.1: bytes=32 time=3ms TTL=252

Ping statistics for 192.168.1.1:
    Packets: Sent = 1, Received = 1, Lost = 0 (0% loss),
Approximate round trip times in milli-seconds:
    Minimum = 3ms, Maximum = 3ms, Average = 3ms

Control-C
^C
C:\>ping 192.168.1.2

Pinging 192.168.1.2 with 32 bytes of data:

Reply from 192.168.1.2: bytes=32 time<1ms TTL=124

Ping statistics for 192.168.1.2:
    Packets: Sent = 1, Received = 1, Lost = 0 (0% loss),
Approximate round trip times in milli-seconds:
    Minimum = 0ms, Maximum = 0ms, Average = 0ms

Control-C
^C
C:\>ping 192.168.2.2

Pinging 192.168.2.2 with 32 bytes of data:

Reply from 192.168.2.2: bytes=32 time=2ms TTL=124

Ping statistics for 192.168.2.2:
    Packets: Sent = 1, Received = 1, Lost = 0 (0% loss),
Approximate round trip times in milli-seconds:
    Minimum = 2ms, Maximum = 2ms, Average = 2ms

Control-C
^C
C:\>ping 192.168.2.1

Pinging 192.168.2.1 with 32 bytes of data:

Reply from 192.168.2.1: bytes=32 time<1ms TTL=252

Ping statistics for 192.168.2.1:
    Packets: Sent = 1, Received = 1, Lost = 0 (0% loss),
Approximate round trip times in milli-seconds:
    Minimum = 0ms, Maximum = 0ms, Average = 0ms

Control-C
^C
C:\>ping 192.168.3.1

Pinging 192.168.3.1 with 32 bytes of data:

Reply from 192.168.3.1: bytes=32 time=1ms TTL=255

Ping statistics for 192.168.3.1:
    Packets: Sent = 1, Received = 1, Lost = 0 (0% loss),
Approximate round trip times in milli-seconds:
    Minimum = 1ms, Maximum = 1ms, Average = 1ms

Control-C
^C
C:\>ping 192.168.3.2

Pinging 192.168.3.2 with 32 bytes of data:

Reply from 192.168.3.2: bytes=32 time=4ms TTL=128

Ping statistics for 192.168.3.2:
    Packets: Sent = 1, Received = 1, Lost = 0 (0% loss),
Approximate round trip times in milli-seconds:
    Minimum = 4ms, Maximum = 4ms, Average = 4ms

Control-C
^C
C:\>ping 192.168.4.2

Pinging 192.168.4.2 with 32 bytes of data:

Reply from 192.168.4.2: bytes=32 time<1ms TTL=127

Ping statistics for 192.168.4.2:
    Packets: Sent = 1, Received = 1, Lost = 0 (0% loss),
Approximate round trip times in milli-seconds:
    Minimum = 0ms, Maximum = 0ms, Average = 0ms

Control-C
^C
C:\>ping 192.168.4.1

Pinging 192.168.4.1 with 32 bytes of data:

Reply from 192.168.4.1: bytes=32 time<1ms TTL=255

Ping statistics for 192.168.4.1:
    Packets: Sent = 1, Received = 1, Lost = 0 (0% loss),
Approximate round trip times in milli-seconds:
    Minimum = 0ms, Maximum = 0ms, Average = 0ms

Control-C
^C
C:\>ping 192.168.5.1

Pinging 192.168.5.1 with 32 bytes of data:

Reply from 192.168.5.1: bytes=32 time<1ms TTL=253

Ping statistics for 192.168.5.1:
    Packets: Sent = 1, Received = 1, Lost = 0 (0% loss),
Approximate round trip times in milli-seconds:
    Minimum = 0ms, Maximum = 0ms, Average = 0ms

Control-C
^C
C:\>ping 192.168.5.2

Pinging 192.168.5.2 with 32 bytes of data:

Reply from 192.168.5.2: bytes=32 time<1ms TTL=254

Ping statistics for 192.168.5.2:
    Packets: Sent = 1, Received = 1, Lost = 0 (0% loss),
Approximate round trip times in milli-seconds:
    Minimum = 0ms, Maximum = 0ms, Average = 0ms

Control-C
^C
C:\>ping 192.168.6.2

Pinging 192.168.6.2 with 32 bytes of data:

Reply from 192.168.3.1: Destination host unreachable.

Ping statistics for 192.168.6.2:
    Packets: Sent = 1, Received = 0, Lost = 1 (100% loss),

Control-C
^C
C:\>ping 192.168.6.1

Pinging 192.168.6.1 with 32 bytes of data:

Reply from 192.168.3.1: Destination host unreachable.
Reply from 192.168.3.1: Destination host unreachable.

Ping statistics for 192.168.6.1:
    Packets: Sent = 2, Received = 0, Lost = 2 (100% loss),

Control-C
^C
C:\>ping 192.168.7.1

Pinging 192.168.7.1 with 32 bytes of data:

Reply from 192.168.7.1: bytes=32 time=1ms TTL=254

Ping statistics for 192.168.7.1:
    Packets: Sent = 1, Received = 1, Lost = 0 (0% loss),
Approximate round trip times in milli-seconds:
    Minimum = 1ms, Maximum = 1ms, Average = 1ms

Control-C
^C
C:\>ping 192.168.7.2

Pinging 192.168.7.2 with 32 bytes of data:

Reply from 192.168.7.2: bytes=32 time<1ms TTL=255

Ping statistics for 192.168.7.2:
    Packets: Sent = 1, Received = 1, Lost = 0 (0% loss),
Approximate round trip times in milli-seconds:
    Minimum = 0ms, Maximum = 0ms, Average = 0ms

Control-C

pc26测试结果

C:\>ping 192.168.1.1

Pinging 192.168.1.1 with 32 bytes of data:

Reply from 192.168.1.1: bytes=32 time=3ms TTL=252

Ping statistics for 192.168.1.1:
    Packets: Sent = 1, Received = 1, Lost = 0 (0% loss),
Approximate round trip times in milli-seconds:
    Minimum = 3ms, Maximum = 3ms, Average = 3ms

Control-C
^C
C:\>ping 192.168.1.2

Pinging 192.168.1.2 with 32 bytes of data:

Reply from 192.168.1.2: bytes=32 time<1ms TTL=124

Ping statistics for 192.168.1.2:
    Packets: Sent = 1, Received = 1, Lost = 0 (0% loss),
Approximate round trip times in milli-seconds:
    Minimum = 0ms, Maximum = 0ms, Average = 0ms

Control-C
^C
C:\>ping 192.168.2.2

Pinging 192.168.2.2 with 32 bytes of data:

Reply from 192.168.2.2: bytes=32 time=2ms TTL=124

Ping statistics for 192.168.2.2:
    Packets: Sent = 1, Received = 1, Lost = 0 (0% loss),
Approximate round trip times in milli-seconds:
    Minimum = 2ms, Maximum = 2ms, Average = 2ms

Control-C
^C
C:\>ping 192.168.2.1

Pinging 192.168.2.1 with 32 bytes of data:

Reply from 192.168.2.1: bytes=32 time<1ms TTL=252

Ping statistics for 192.168.2.1:
    Packets: Sent = 1, Received = 1, Lost = 0 (0% loss),
Approximate round trip times in milli-seconds:
    Minimum = 0ms, Maximum = 0ms, Average = 0ms

Control-C
^C
C:\>ping 192.168.3.1

Pinging 192.168.3.1 with 32 bytes of data:

Reply from 192.168.3.1: bytes=32 time=1ms TTL=255

Ping statistics for 192.168.3.1:
    Packets: Sent = 1, Received = 1, Lost = 0 (0% loss),
Approximate round trip times in milli-seconds:
    Minimum = 1ms, Maximum = 1ms, Average = 1ms

Control-C
^C
C:\>ping 192.168.3.2

Pinging 192.168.3.2 with 32 bytes of data:

Reply from 192.168.3.2: bytes=32 time=4ms TTL=128

Ping statistics for 192.168.3.2:
    Packets: Sent = 1, Received = 1, Lost = 0 (0% loss),
Approximate round trip times in milli-seconds:
    Minimum = 4ms, Maximum = 4ms, Average = 4ms

Control-C
^C
C:\>ping 192.168.4.2

Pinging 192.168.4.2 with 32 bytes of data:

Reply from 192.168.4.2: bytes=32 time<1ms TTL=127

Ping statistics for 192.168.4.2:
    Packets: Sent = 1, Received = 1, Lost = 0 (0% loss),
Approximate round trip times in milli-seconds:
    Minimum = 0ms, Maximum = 0ms, Average = 0ms

Control-C
^C
C:\>ping 192.168.4.1

Pinging 192.168.4.1 with 32 bytes of data:

Reply from 192.168.4.1: bytes=32 time<1ms TTL=255

Ping statistics for 192.168.4.1:
    Packets: Sent = 1, Received = 1, Lost = 0 (0% loss),
Approximate round trip times in milli-seconds:
    Minimum = 0ms, Maximum = 0ms, Average = 0ms

Control-C
^C
C:\>ping 192.168.5.1

Pinging 192.168.5.1 with 32 bytes of data:

Reply from 192.168.5.1: bytes=32 time<1ms TTL=253

Ping statistics for 192.168.5.1:
    Packets: Sent = 1, Received = 1, Lost = 0 (0% loss),
Approximate round trip times in milli-seconds:
    Minimum = 0ms, Maximum = 0ms, Average = 0ms

Control-C
^C
C:\>ping 192.168.5.2

Pinging 192.168.5.2 with 32 bytes of data:

Reply from 192.168.5.2: bytes=32 time<1ms TTL=254

Ping statistics for 192.168.5.2:
    Packets: Sent = 1, Received = 1, Lost = 0 (0% loss),
Approximate round trip times in milli-seconds:
    Minimum = 0ms, Maximum = 0ms, Average = 0ms

Control-C
^C
C:\>ping 192.168.6.2

Pinging 192.168.6.2 with 32 bytes of data:

Reply from 192.168.3.1: Destination host unreachable.

Ping statistics for 192.168.6.2:
    Packets: Sent = 1, Received = 0, Lost = 1 (100% loss),

Control-C
^C
C:\>ping 192.168.6.1

Pinging 192.168.6.1 with 32 bytes of data:

Reply from 192.168.3.1: Destination host unreachable.
Reply from 192.168.3.1: Destination host unreachable.

Ping statistics for 192.168.6.1:
    Packets: Sent = 2, Received = 0, Lost = 2 (100% loss),

Control-C
^C
C:\>ping 192.168.7.1

Pinging 192.168.7.1 with 32 bytes of data:

Reply from 192.168.7.1: bytes=32 time=1ms TTL=254

Ping statistics for 192.168.7.1:
    Packets: Sent = 1, Received = 1, Lost = 0 (0% loss),
Approximate round trip times in milli-seconds:
    Minimum = 1ms, Maximum = 1ms, Average = 1ms

Control-C
^C
C:\>ping 192.168.7.2

Pinging 192.168.7.2 with 32 bytes of data:

Reply from 192.168.7.2: bytes=32 time<1ms TTL=255

Ping statistics for 192.168.7.2:
    Packets: Sent = 1, Received = 1, Lost = 0 (0% loss),
Approximate round trip times in milli-seconds:
    Minimum = 0ms, Maximum = 0ms, Average = 0ms

Control-C

异常问题：
1、6 7两个网段不通
解决办法在三层交换机和路由器间加一条路由
三层交换机switch6

Switch(config)#ip route 192.168.7.0 255.255.255.0 192.168.6.1

路由器route8

Router(config)#ip route 192.168.7.0 255.255.255.0 192.168.5.2

路由器route9

Router(config)#ip route 192.168.6.0 255.255.255.0 192.168.5.1

三层交换机switch7

Switch(config)#ip route 192.168.6.0 255.255.255.0 192.168.7.1

测试结果

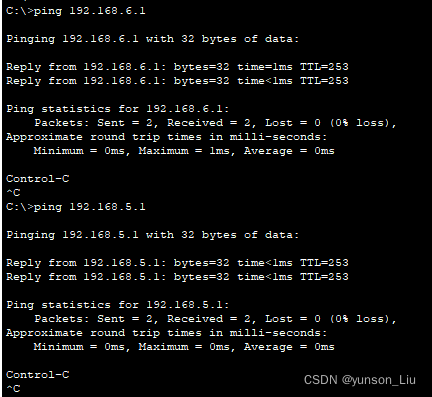

pc23
在这里插入图片描述

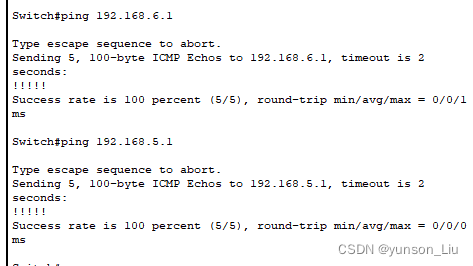

三层交换机switch6测试结果
在这里插入图片描述
三层交换机switch7测试结果
在这里插入图片描述
pc25
在这里插入图片描述
2、三层交换机内部两台机器网络不都通
问题原因如下
直接原因：是因为我配置的两个三层交换机的时候vlan都处于down状态
根本原因：因为在操作三层交换机的时候没有先创建vlan,直接执行interface vlan 10导致
问题解决办法：先执行vlan 10 然后再执行interface vlan 10
现已在编辑处添加了，但是截图没有显示

三层交换与路由器之间连接配置
A soul tortured by desire
06-23 8679
今天配置三层交换，配置如下： <Huawei>sys [Huawei]vlan batch 10 20 [Huawei]un in en Info: Information center is disabled. [Huawei]int gi 0/0/2 [Huawei-GigabitEthernet0/0/2]port link-type access [Huawei-GigabitEthernet0/0/2]port default vlan 10 [Huawei-GigabitEth..
路由器和交换机连接如何配置_三层交换机与路由器对接上网配置示例
weixin_39763293的博客
11-24 9969
三层交换机简介三层交换机是具有路由功能的交换机，由于路由属于OSI模型中第三层网络层的功能，所以称为三层交换机。三层交换机既可以工作在二层也可以工作在三层，可以部署在接入层，也可以部署在汇聚层，作为用户的网关。配置注意事项本举例中的路由器配置以AR3600 V200R007C00SPCc00为例，其他路由器的配置方法请参见对应的文档指南。本举例中的交换机作为DHCP服务器适用的产品和版本请参见举例...
三层交换机与路由器连通上网实验
weixin_42185241的博客
05-07 5142
三层交换机与路由器连通上网实验
三层交换配置路由
秦庚辰的博客
05-01 1万+
三层交换配置路由 问题 三层交换机实现了VLAN间互通后，还要与其他网络进行通信，这样就需要有相关的路由机制。 1)交换接口配置为三层接口实现路由间通信 方案 三层交换机既然具有三层功能，也就可以实现与路由器相似的配置。既可以把交换接口配置为三层接口，也可以在其上配置静态、动态路由。通过对三层交换机的路由配置，实现VLAN与其他网络的互通。 网络的拓扑结构如图所示： 步骤 实现此案例需要按照如下...
三层交换机实现路由功能
m0_74578408的博客
03-12 1197
在逻辑上，三层交换和路由是等同的，三层交换的过程就是IP报文选路的过程三层交换机 = 二层交换机 + 路由。
三层交换机与路由互联配置（华为设备）
雷小莫_code
06-19 6749
配置交换机缺省路由 0.0.0.0 0.0.0.0 代表所有的地址。#配置端口1 类型并 加入vlan 2。#路由器地址为172.168.11.1。#配置 端口 g0/0/0 IP地址。#进入 vlan 1 并配置IP地址。#三层交换机与路由器配置配置。#配置vlan 2 IP地址。#配置IP地址 与 掩码。
某公司网络搭建项目实战
weixin_33755554的博客
06-29 1204
1.1.1. 项目介绍某中等规模公司的网络环境如下图1 所示，本公司现有三个部门分别是生产部、销售部、技术部，生产部属于vlan1,销售部属于vlan2,技术部属于vlan3,所有PC的IP地址均为静态配置，各部门之间都可互相通信，并且能够访问外网。网络拓扑如图－1所示：随着企业发展需求，为了保证网络稳定性及高可用性，需将现有网络进一步规划：为了保证网络的稳定...
西门子XM-400三层交换机路由器配置教程：实现不同网段间数据交换与跨路由通信
最新发布
05-10
适合人群：从事工业自动化和网络通信工作的技术人员，尤其是对三层交换机路由器配置有一定需求的专业人士。 使用场景及目标：适用于需要在不同网段间实现稳定、高效数据传输的工业自动化环境中。主要目标是帮助技术...
实验三通过配置三层交换机或路由器实现VLAN间的通信.doc
08-28
通过配置三层交换机或路由器实现VLAN间的通信，通过路由器实现vlan间通信(单臂路由)在路由器与交换机的端口上配置子接口，每个子接口的IP地址是每个VLAN的网关地址（也可以理解为下一跳地址），并在子接口上封装802....
工业自动化领域西门子XM-400三层交换机路由器配置实现不同网段数据交换
04-26
内容概要：本文详细介绍了如何使用西门子XM-400三层交换机路由器实现不同网段设备（如PLC、服务器、操作员站）之间的数据交换。主要内容包括：创建VLAN并将物理端口分配到相应的VLAN中，配置SVI接口作为各网段的网关...
三层交换机和路由器实现VLAN间通信的研究.pdf
10-08
本文研究了三层交换机和路由器实现VLAN间通信的技术，旨在解决区域性网络的发展对通信业务的要求不断提升的挑战。文章首先介绍了VLAN的概念和特征，然后对三层交换机的特征和 VLAN 接入端口应用进行了阐述，并对三层...
三层交换机路由器练习题目.doc
07-12
在IT网络环境中，三层交换机和路由器是网络通信的关键设备，它们负责数据包的转发和网络间的通信。这里我们将详细探讨四个练习题目中涉及的知识点，包括VLAN虚拟接口配置、VLAN间通信、静态路由配置以及动态路由配置...
三层交换机与路由器对接实现上网
10-26
三层交换机与路由器对接实现上网
Cisco PacketTracer5---三层交换机连接路由器配置
热门推荐
黑KING的博客
04-04 5万+
基础配置参考： PacketTracer---静态路由： https://blog.csdn.net/qq_40163937/article/details/88957269 Cisco Packet Tracer---三层交换机实现VLAN间路由： https://blog.csdn.net/qq_40163937/article/details/88818650 三层交换机连...
三层交换机与路由器对接上网配置案例
weixin_55559102的博客
10-31 1363
三层交换机与路由器对接上网配置案例，如有不懂请私信博主，博主会为大家答疑解惑的！
【学习笔记-数据通信】三层交换和静态路由的配置
m0_74119193的博客
04-11 4007
ps：理论截图放在最后^_^
三层交换机基本配置,动态路由链接
2401_84376072的博客
05-23 1998
步骤四：默认路由。
三层交换机路由配置
逐梦的博客
03-10 4万+
目的： 1.用三层交换机配置静态路由实现不同vlan间通信 2.rip动态路由配置 3.ospf动态路由配置 4.默认路由配置 拓扑图： 步骤： 1.配置静态路由 一：给两台pc设置IP、掩码和网关 pc0:192.168.1.2 255.255.255.0 pc1:192.168.2.2 255.255.255.0 二：给两台三层交换机划分vlan、注意：两台交...
三层交换机以及动态路由的配置
朝闻微风的博客
04-27 6216
交换机一般是 tcp/ip 五层模型的二层设备 三层交换机： 路由器+交换机 配置三层交换机 首先要有vlan 进入接口将接口加入vlan [Huawei]undo info-center enable #关闭日志提示信息 [Huawei]vlan batch 2 3 #同时创建 vlan 2 3 [Huawei]interface GigabitEthernet 0/0/2 #进入2接口 [Huawei-GigabitEthernet0/0...
评论 3
添加红包

请填写红包祝福语或标题

个

红包个数最小为10个

元

红包金额最低5元

当前余额3.43元 前往充值 >
需支付：10.00元
成就一亿技术人!
领取后你会自动成为博主和红包主的粉丝 规则
hope_wisdom
发出的红包

打赏作者

yunson_Liu

你的鼓励将是我创作的最大动力

¥1 ¥2 ¥4 ¥6 ¥10 ¥20
扫码支付：¥1
获取中
扫码支付

您的余额不足，请更换扫码支付或充值

打赏作者

实付元
使用余额支付
点击重新获取
扫码支付
钱包余额 0

抵扣说明：

1.余额是钱包充值的虚拟货币，按照1:1的比例进行支付金额的抵扣。
2.余额无法直接购买下载，可以购买VIP、付费专栏及课程。

余额充值
