一、插件实现机制

二、具体实现过程

抽象接口定义

IBGDA ，IBRC ，IBDEVX插件实现对应接口

运行时选择机制

上层调用统一API层

一、插件实现机制

IBGDA ，IBRC ，IBDEVX ……每个传输模式（插件)编译出来对应一个.so库，每个.so都有自己的nvshmemt_init。

通过环境变量决定加载哪一个.so，然后在加载之后运行.so里面的nvshmemt_init，将传输层统一的接口映射到.so库的具体实现：

二、具体实现过程

抽象接口定义

在 src/include/internal/host_transport/transport.h 中定义了统一的传输接口：

struct nvshmem_transport_host_ops {
    int (*can_reach_peer)(int *access, nvshmem_transport_pe_info_t *peer_info,
                          struct nvshmem_transport *transport);
    int (*connect_endpoints)(struct nvshmem_transport *tcurr, int *selected_dev_ids,
                             int num_selected_devs);
    int (*get_mem_handle)(nvshmem_mem_handle_t *mem_handle, nvshmem_mem_handle_t *mem_handle_in,
                          void *buf, size_t size, struct nvshmem_transport *transport,
                          bool local_only);
    // RMA和AMO操作函数指针
    rma_handle rma;
    amo_handle amo;
    fence_handle fence;
    quiet_handle quiet;
    // ... 其他操作
};

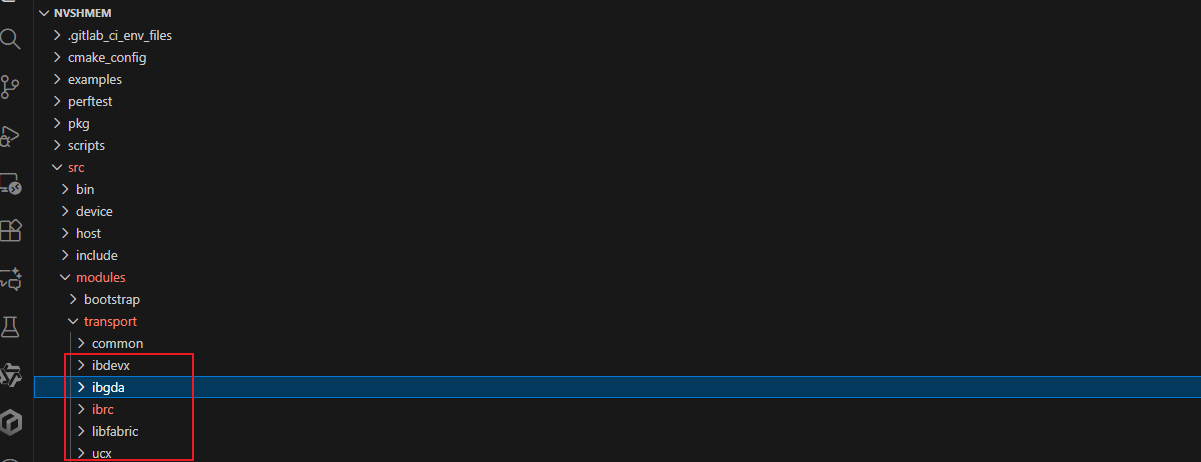

IBGDA ，IBRC ，IBDEVX插件实现对应接口

编译出.so库

运行时选择机制

根据环境变量配置选择.so 文件transport_object_file


具体赋值逻辑：
IBRC传输（默认情况）：

status = snprintf(transport_object_file, transport_object_file_len,
                  "nvshmem_transport_ibrc.so.%d", NVSHMEM_TRANSPORT_PLUGIN_MAJOR_VERSION);
这会产生类似：nvshmem_transport_ibrc.so.3（基于版本3）

UCX传输：
status = snprintf(transport_object_file, transport_object_file_len,
                  "nvshmem_transport_ucx.so.%d", NVSHMEM_TRANSPORT_PLUGIN_MAJOR_VERSION);
IBDEVX传输：
status = snprintf(transport_object_file, transport_object_file_len,
                  "nvshmem_transport_ibdevx.so.%d", NVSHMEM_TRANSPORT_PLUGIN_MAJOR_VERSION);
LIBFABRIC传输：
status = snprintf(transport_object_file, transport_object_file_len,
                  "nvshmem_transport_libfabric.so.%d", NVSHMEM_TRANSPORT_PLUGIN_MAJOR_VERSION);

打开 .so 文件

transport_lib = dlopen(transport_object_file, RTLD_NOW);
if (transport_lib == NULL) {
    WARN("Unable to open the %s transport. %s\n", transport_object_file, dlerror());
    goto transport_fail;
}

init_fn = (nvshmemi_transport_init_fn)dlsym(transport_lib, "nvshmemt_init");
// 调用初始化函数
status = init_fn(&transports[index], nvshmemi_cuda_syms, NVSHMEM_TRANSPORT_INTERFACE_VERSION);

运行.so里面的nvshmemt_init接口，对应的函数映射到统一接口：

IBGDA:
int nvshmemt_init(nvshmem_transport_t *transport,
                  struct nvshmemi_cuda_fn_table *table,
                  int api_version)
{
    // 初始化工作...

    // 填充 host_ops 结构体
    transport->host_ops.can_reach_peer = nvshmemt_ibgda_can_reach_peer;
    transport->host_ops.connect_endpoints = nvshmemt_ibgda_connect_endpoints;
    transport->host_ops.get_mem_handle = nvshmemt_ibgda_get_mem_handle;
    // ... 其他函数指针赋值

    return status;
}

IBRC:

int nvshmemt_init(nvshmem_transport_t *transport,
                  struct nvshmemi_cuda_fn_table *table,
                  int api_version)
{
    // 初始化工作...

    // 填充 host_ops 结构体
    transport->host_ops.can_reach_peer = nvshmemt_ibrc_can_reach_peer;
    transport->host_ops.connect_endpoints = nvshmemt_ibrc_connect_endpoints;
    transport->host_ops.get_mem_handle = nvshmemt_ibrc_get_mem_handle;
    // ... 其他函数指针赋值

    return status;
}
……

上层调用统一API层

上层应用通过统一的NVSHMEM API调用，这些调用被路由到相应插件的实现函数：

// 上层调用
nvshmem_put(...);

// 内部路由到插件的rma函数
transport->host_ops.rma(transport, pe, verb, remote, local, bytesdesc, is_proxy);
