Hyperledger Fabric 2.x 多机部署/分布式集群部署流程

硬件环境:CentOS7虚拟机一台,Ubuntu虚拟机一台,一共两台主机,有条件的小伙伴可以试一下在3台以上的主机部署。

软件环境

名称版本
Fabric2.2.0
go1.15
docker19.03.11
docker-compose1.12.0

部署方案:3个orderer、2个组织、每个组织2个普通节点,通过静态IP的方式实现Hyperledger Fabric多机/分布式部署

1.安装Go、docker、docker-compose(虚拟机1和虚拟机2都需要)

安装Go流程
wget链接获取来源链接为https://studygolang.com/dl,如果以下wget命令失效请到以上网站获取或下载
打开终端,输入指令

sudo wget -P /usr/local https://studygolang.com/dl/golang/go1.15.linux-amd64.tar.gz
cd /usr/local
sudo tar -zxvf go1.15.linux-amd64.tar.gz

添加环境变量,打开编辑器

vim ~/.bashrc

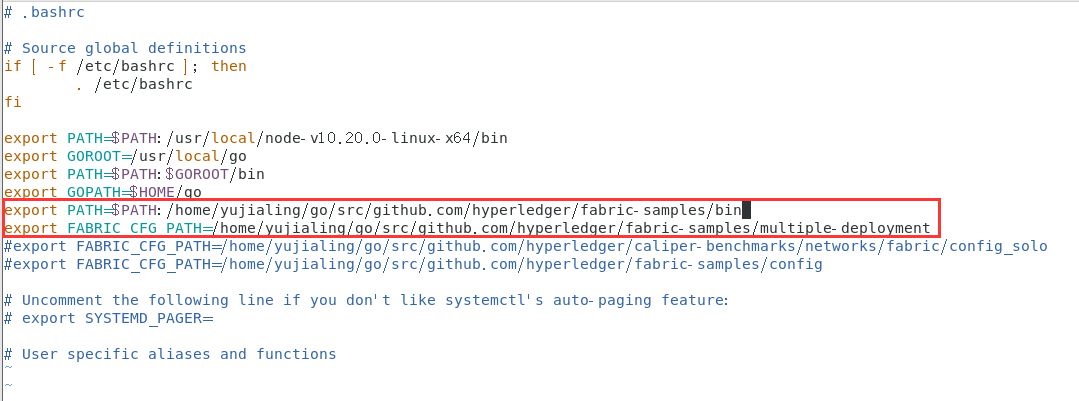

将以下内容复制到bashrc文件中,按I插入,插入完成后按ESC退出插入,输出:wq!保存退出,如下图所示

export GOROOT=/usr/local/go
export PATH=$PATH:$GOROOT/bin
export GOPATH=$HOME/go
export PATH=$PATH:/home/yujialing/go/src/github.com/hyperledger/fabric-samples/bin
export FABRIC_CFG_PATH=/home/yujialing/go/src/github.com/hyperledger/fabric-samples/multiple-deployment
source ~/.bashrc

验证go是否安装成功

go version

安装docker流程

sudo yum install -y yum-utils
sudo yum-config-manager --add-repo https://mirrors.aliyun.com/docker-ce/linux/centos/docker-ce.repo
yum makecache fast
sudo yum -y install docker-ce

启动Docker-ce

sudo systemctl start docker
sudo systemctl enable docker

将当前用户添加到docker组中

sudo usermod -aG docker $USER
newgrp - docker

检查docker是否安装成功

docker -v

在这里插入图片描述
没有VPN的同学需要修改docker镜像源,否则后面的步骤有些去外网下载的步骤有可能会报连接失败的错误

vim /etc/docker/daemon.json
{
"registry-mirrors":["https://registry.docker-cn.com"]
}

I插入,插入完成后按ESC退出插入,输出:wq!保存退出

如果显示无法写入请使用sudo chmod -R 777 docker/指令给docker最高权限方可写入。

重启docker服务

systemctl restart docker.service

安装docker-compose流程

curl -L https://get.daocloud.io/docker/compose/releases/download/1.12.0/docker-compose-`uname -s`-`uname -m` > ~/docker-compose
sudo mv ~/docker-compose /usr/local/bin/docker-compose
chmod +x /usr/local/bin/docker-compose

查看docker是否安装成功

docker-compose -v

2.下载fabric二进制文件、docker镜像和fabric样例(虚拟机1、2都要)

下载fabric二进制文件、docker镜像、fabric样例

cd /home/yujialing
mkdir go
mkdir go/src
mkdir go/src/github.com
mkdir go/src/github.com/hyperledger
cd /home/yujialing/go/src/github.com/hyperledger
git clone https://github.com/hyperledger/fabric-samples.git
cd fabric-samples
git checkout 22393b629bcac7f7807cc6998aa44e06ecc77426
curl -sSL https://bit.ly/2ysbOFE | bash -s -- 2.2.0 1.4.8 -s

最后一步用时稍微有点长,请耐心等待

3.建立多机部署的文件夹

fabric-samples文件夹下

虚拟机1和虚拟机2的操作

mkdir multiple-deployment
cd multiple-deployment

以下是虚拟机1的操作,复制fabric样例中的名为abstore的链码(智能合约)到chaincode/go

mkdir chaincode
mkdir chaincode/go
cp -r ../chaincode/abstore/go/* chaincode/go

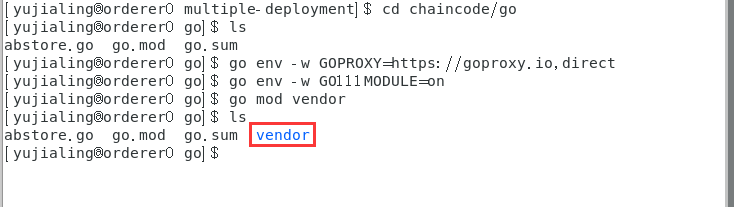

下载链码的依赖包

cd chaincode/go
go env -w GOPROXY=https://goproxy.io,direct
go env -w GO111MODULE=on
go mod vendor

可以看到go文件夹下多出存放链码(智能合约)依赖的vendor文件夹

4.生成证书及通道配置

虚拟机1的操作

multiple-deployment文件夹下新建crypto-config.yaml文件和configtx.yaml文件

cd ../..
touch crypto-config.yaml
touch configtx.yaml

将以下内容写进crypto-config.yaml文件中

OrdererOrgs:
  - Name: Orderer
    Domain: example.com
    Specs:
      - Hostname: orderer0
      - Hostname: orderer1
      - Hostname: orderer2

PeerOrgs:
  - Name: Org1
    Domain: org1.example.com
    EnableNodeOUs: true
    Template:
      Count: 2
    Users:
      Count: 1
  - Name: Org2
    Domain: org2.example.com
    EnableNodeOUs: true
    Template:
      Count: 2
    Users:
      Count: 1

将以下内容写进configtx.yaml文件中

Organizations:
    - &OrdererOrg
        Name: OrdererOrg
        ID: OrdererMSP
        MSPDir: crypto-config/ordererOrganizations/example.com/msp
        Policies:
            Readers:
                Type: Signature
                Rule: "OR('OrdererMSP.member')"
            Writers:
                Type: Signature
                Rule: "OR('OrdererMSP.member')"
            Admins:
                Type: Signature
                Rule: "OR('OrdererMSP.admin')"

    - &Org1
        Name: Org1MSP
        ID: Org1MSP
        MSPDir: crypto-config/peerOrganizations/org1.example.com/msp
        Policies:
            Readers:
                Type: Signature
                Rule: "OR('Org1MSP.admin', 'Org1MSP.peer', 'Org1MSP.client')"
            Writers:
                Type: Signature
                Rule: "OR('Org1MSP.admin', 'Org1MSP.client')"
            Admins:
                Type: Signature
                Rule: "OR('Org1MSP.admin')"
            Endorsement:
                Type: Signature
                Rule: "OR('Org1MSP.peer')"

        AnchorPeers:
            - Host: peer0.org1.example.com
              Port: 7051

    - &Org2
        Name: Org2MSP
        ID: Org2MSP
        MSPDir: crypto-config/peerOrganizations/org2.example.com/msp
        Policies:
            Readers:
                Type: Signature
                Rule: "OR('Org2MSP.admin', 'Org2MSP.peer', 'Org2MSP.client')"
            Writers:
                Type: Signature
                Rule: "OR('Org2MSP.admin', 'Org2MSP.client')"
            Admins:
                Type: Signature
                Rule: "OR('Org2MSP.admin')"
            Endorsement:
                Type: Signature
                Rule: "OR('Org2MSP.peer')"

        AnchorPeers:
            - Host: peer0.org2.example.com
              Port: 7051

Capabilities:
    Channel: &ChannelCapabilities
        V2_0: true
    Orderer: &OrdererCapabilities
        V2_0: true
    Application: &ApplicationCapabilities
        V2_0: true

Application: &ApplicationDefaults

    Organizations:

    Policies:
        Readers:
            Type: ImplicitMeta
            Rule: "ANY Readers"
        Writers:
            Type: ImplicitMeta
            Rule: "ANY Writers"
        Admins:
            Type: ImplicitMeta
            Rule: "MAJORITY Admins"
        LifecycleEndorsement:
            Type: ImplicitMeta
            Rule: "MAJORITY Endorsement"
        Endorsement:
            Type: ImplicitMeta
            Rule: "MAJORITY Endorsement"

    Capabilities:
        <<: *ApplicationCapabilities

Orderer: &OrdererDefaults

    OrdererType: etcdraft

    Addresses: # orderer 集群节点
        - orderer0.example.com:7050
        - orderer1.example.com:8050
        - orderer2.example.com:7050
    # Batch Timeout: The amount of time to wait before creating a batch
    BatchTimeout: 2s

    # Batch Size: Controls the number of messages batched into a block
    BatchSize:

        MaxMessageCount: 10

        AbsoluteMaxBytes: 99 MB

        PreferredMaxBytes: 512 KB

    Organizations:

    Policies:
        Readers:
            Type: ImplicitMeta
            Rule: "ANY Readers"
        Writers:
            Type: ImplicitMeta
            Rule: "ANY Writers"
        Admins:
            Type: ImplicitMeta
            Rule: "MAJORITY Admins"
        # BlockValidation specifies what signatures must be included in the block
        # from the orderer for the peer to validate it.
        BlockValidation:
            Type: ImplicitMeta
            Rule: "ANY Writers"

Channel: &ChannelDefaults

    Policies:
        # Who may invoke the 'Deliver' API
        Readers:
            Type: ImplicitMeta
            Rule: "ANY Readers"
        # Who may invoke the 'Broadcast' API
        Writers:
            Type: ImplicitMeta
            Rule: "ANY Writers"
        # By default, who may modify elements at this config level
        Admins:
            Type: ImplicitMeta
            Rule: "MAJORITY Admins"

    Capabilities:
        <<: *ChannelCapabilities

Profiles:

    TwoOrgsChannel:
        Consortium: SampleConsortium
        <<: *ChannelDefaults
        Application:
            <<: *ApplicationDefaults
            Organizations:
                - *Org1
                - *Org2
            Capabilities:
                <<: *ApplicationCapabilities

    SampleMultiNodeEtcdRaft:
        <<: *ChannelDefaults
        Capabilities:
            <<: *ChannelCapabilities
        Orderer:
            <<: *OrdererDefaults
            OrdererType: etcdraft
            EtcdRaft:
                Consenters:
                - Host: orderer0.example.com
                  Port: 7050
                  ClientTLSCert: crypto-config/ordererOrganizations/example.com/orderers/orderer0.example.com/tls/server.crt
                  ServerTLSCert: crypto-config/ordererOrganizations/example.com/orderers/orderer0.example.com/tls/server.crt
                - Host: orderer1.example.com
                  Port: 8050
                  ClientTLSCert: crypto-config/ordererOrganizations/example.com/orderers/orderer1.example.com/tls/server.crt
                  ServerTLSCert: crypto-config/ordererOrganizations/example.com/orderers/orderer1.example.com/tls/server.crt
                - Host: orderer2.example.com
                  Port: 7050
                  ClientTLSCert: crypto-config/ordererOrganizations/example.com/orderers/orderer2.example.com/tls/server.crt
                  ServerTLSCert: crypto-config/ordererOrganizations/example.com/orderers/orderer2.example.com/tls/server.crt
            Addresses:
                - orderer0.example.com:7050
                - orderer1.example.com:8050
                - orderer2.example.com:7050
            Organizations:
            - *OrdererOrg
            Capabilities:
                <<: *OrdererCapabilities
        Application:
            <<: *ApplicationDefaults
            Organizations:
            - <<: *OrdererOrg
        Consortiums:
            SampleConsortium:
                Organizations:
                - *Org1
                - *Org2

虚拟机1的操作

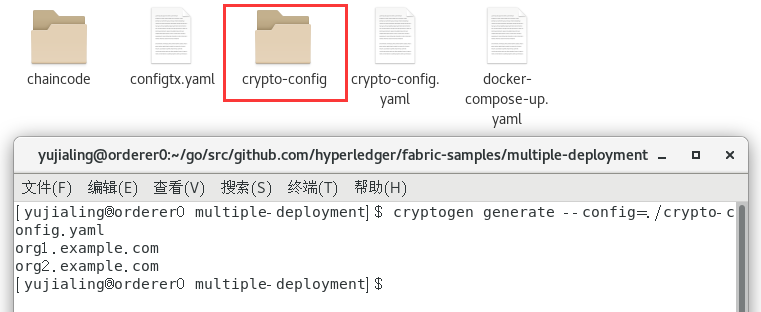

通过cryptogen命令生成证书配置

cryptogen generate --config=./crypto-config.yaml

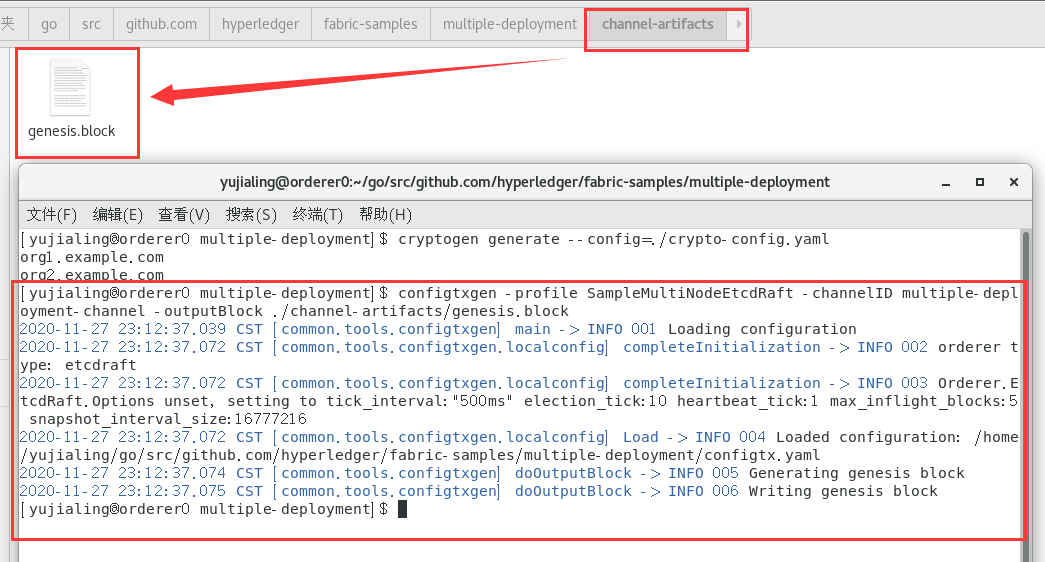

通过configtxgen命令生成创世区块

configtxgen -profile SampleMultiNodeEtcdRaft -channelID multiple-deployment-channel -outputBlock ./channel-artifacts/genesis.block

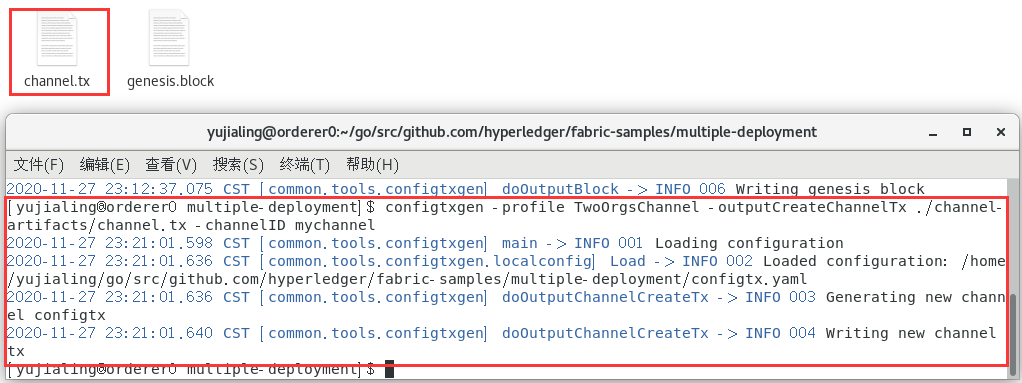

通过configtxgen命令生成通道配置

configtxgen -profile TwoOrgsChannel -outputCreateChannelTx ./channel-artifacts/channel.tx -channelID mychannel

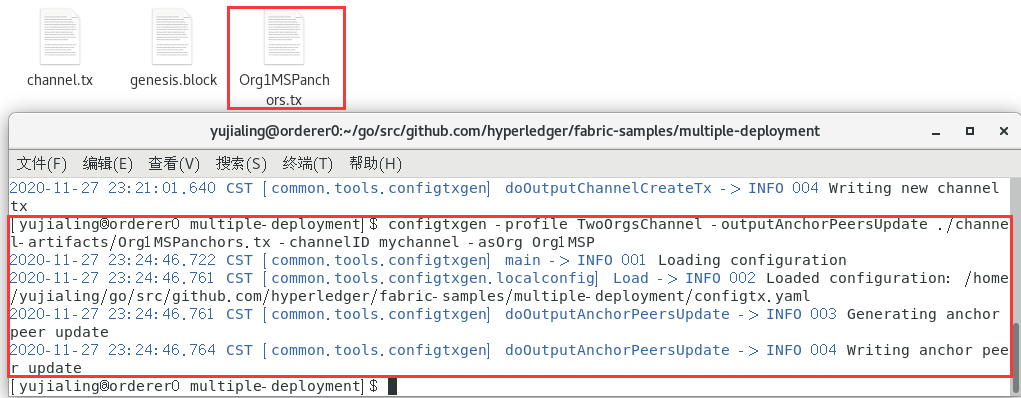

定义组织1的锚节点(也称主节点)

configtxgen -profile TwoOrgsChannel -outputAnchorPeersUpdate ./channel-artifacts/Org1MSPanchors.tx -channelID mychannel -asOrg Org1MSP

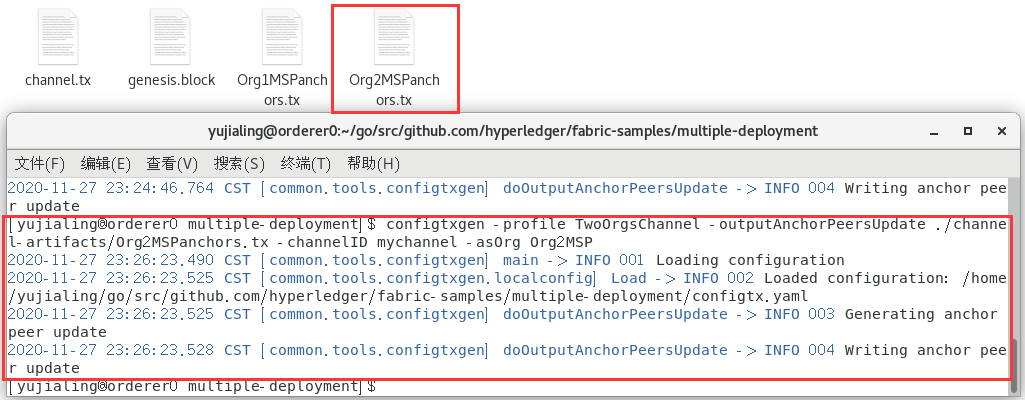

定义组织2的锚节点

configtxgen -profile TwoOrgsChannel -outputAnchorPeersUpdate ./channel-artifacts/Org2MSPanchors.tx -channelID mychannel -asOrg Org2MSP

channel-artifactscrypto-config这两个文件夹拷贝到虚拟机2

6.IP与域名映射配置(虚拟机1和虚拟机2都需要设定)

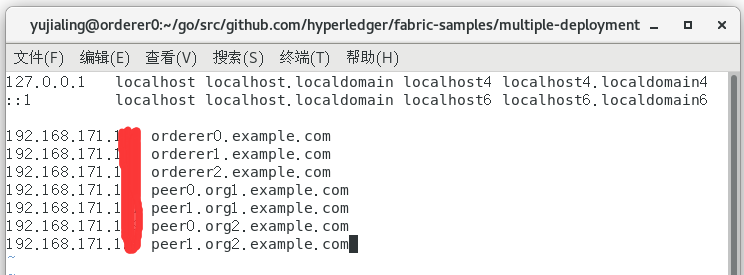

通过修改/etc/hosts文件 添加IP地址与域名的映射

修改/etc/hosts文件指令

sudo vim /etc/hosts

I插入,插入完成后按ESC退出插入,输入:wq!保存退出,如下图所示:

虚拟机1IP orderer0.example.com
虚拟机1IP orderer1.example.com
虚拟机2IP orderer2.example.com
虚拟机1IP peer0.org1.example.com
虚拟机1IP peer1.org1.example.com
虚拟机2IP peer0.org2.example.com
虚拟机2IP peer1.org2.example.com

完成添加后重启一下网络

Ubuntu

sudo /etc/init.d/networking restart

CentOS

sudo /etc/init.d/network restart

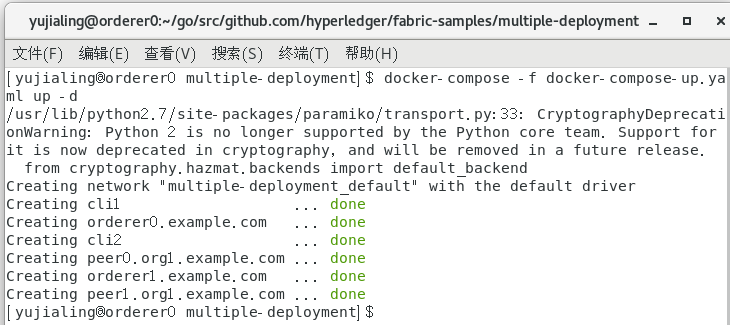

7.编写网络启动脚本并启动网络

虚拟机1的操作

touch docker-compose-up.yaml

将以下内容写入docker-compose-up.yaml中,yaml文件中的虚拟机的IP记得修改成你们的虚拟机IP

version: '2'

services:
  orderer0.example.com:
    container_name: orderer0.example.com
    image: hyperledger/fabric-orderer
    environment:
      - FABRIC_LOGGING_SPEC=DEBUG
      - ORDERER_GENERAL_LISTENADDRESS=0.0.0.0
      - ORDERER_GENERAL_BOOTSTRAPMETHOD=file
      - ORDERER_GENERAL_BOOTSTRAPFILE=/var/hyperledger/orderer/orderer.genesis.block
      - ORDERER_GENERAL_LOCALMSPID=OrdererMSP
      - ORDERER_GENERAL_LOCALMSPDIR=/var/hyperledger/orderer/msp
      # enabled TLS
      - ORDERER_GENERAL_TLS_ENABLED=true
      - ORDERER_GENERAL_TLS_PRIVATEKEY=/var/hyperledger/orderer/tls/server.key
      - ORDERER_GENERAL_TLS_CERTIFICATE=/var/hyperledger/orderer/tls/server.crt
      - ORDERER_GENERAL_TLS_ROOTCAS=[/var/hyperledger/orderer/tls/ca.crt]
      - ORDERER_GENERAL_CLUSTER_CLIENTCERTIFICATE=/var/hyperledger/orderer/tls/server.crt
      - ORDERER_GENERAL_CLUSTER_CLIENTPRIVATEKEY=/var/hyperledger/orderer/tls/server.key
      - ORDERER_GENERAL_CLUSTER_ROOTCAS=[/var/hyperledger/orderer/tls/ca.crt]
    working_dir: /opt/gopath/src/github.com/hyperledger/fabric
    command: orderer
    volumes:
        - ./channel-artifacts/genesis.block:/var/hyperledger/orderer/orderer.genesis.block
        - ./crypto-config/ordererOrganizations/example.com/orderers/orderer0.example.com/msp:/var/hyperledger/orderer/msp
        - ./crypto-config/ordererOrganizations/example.com/orderers/orderer0.example.com/tls/:/var/hyperledger/orderer/tls
    ports:
      - 7050:7050
    extra_hosts:
      - "orderer0.example.com:虚拟机1的IP"
      - "orderer1.example.com:虚拟机1的IP"
      - "orderer2.example.com:虚拟机2的IP"

  orderer1.example.com:
    container_name: orderer1.example.com
    image: hyperledger/fabric-orderer
    environment:
      - FABRIC_LOGGING_SPEC=INFO
      - ORDERER_GENERAL_LISTENADDRESS=0.0.0.0
      - ORDERER_GENERAL_BOOTSTRAPMETHOD=file
      - ORDERER_GENERAL_BOOTSTRAPFILE=/var/hyperledger/orderer/orderer.genesis.block
      - ORDERER_GENERAL_LOCALMSPID=OrdererMSP
      - ORDERER_GENERAL_LOCALMSPDIR=/var/hyperledger/orderer/msp
      # enabled TLS
      - ORDERER_GENERAL_TLS_ENABLED=true
      - ORDERER_GENERAL_TLS_PRIVATEKEY=/var/hyperledger/orderer/tls/server.key
      - ORDERER_GENERAL_TLS_CERTIFICATE=/var/hyperledger/orderer/tls/server.crt
      - ORDERER_GENERAL_TLS_ROOTCAS=[/var/hyperledger/orderer/tls/ca.crt]
      - ORDERER_GENERAL_CLUSTER_CLIENTCERTIFICATE=/var/hyperledger/orderer/tls/server.crt
      - ORDERER_GENERAL_CLUSTER_CLIENTPRIVATEKEY=/var/hyperledger/orderer/tls/server.key
      - ORDERER_GENERAL_CLUSTER_ROOTCAS=[/var/hyperledger/orderer/tls/ca.crt]
    working_dir: /opt/gopath/src/github.com/hyperledger/fabric
    command: orderer
    volumes:
        - ./channel-artifacts/genesis.block:/var/hyperledger/orderer/orderer.genesis.block
        - ./crypto-config/ordererOrganizations/example.com/orderers/orderer1.example.com/msp:/var/hyperledger/orderer/msp
        - ./crypto-config/ordererOrganizations/example.com/orderers/orderer1.example.com/tls/:/var/hyperledger/orderer/tls
    ports:
      - 8050:8050
    extra_hosts:
      - "orderer0.example.com:虚拟机1的IP"
      - "orderer1.example.com:虚拟机1的IP"
      - "orderer2.example.com:虚拟机2的IP"

  peer0.org1.example.com:
    container_name: peer0.org1.example.com
    image: hyperledger/fabric-peer
    environment:
      - CORE_VM_ENDPOINT=unix:///host/var/run/docker.sock
      - CORE_PEER_ID=peer0.org1.example.com
      - CORE_PEER_ADDRESS=peer0.org1.example.com:7051
      - CORE_PEER_LISTENADDRESS=0.0.0.0:7051
      - CORE_PEER_CHAINCODEADDRESS=peer0.org1.example.com:7052
      - CORE_PEER_CHAINCODELISTENADDRESS=0.0.0.0:7052
      - CORE_PEER_GOSSIP_BOOTSTRAP=peer0.org1.example.com:7051
      - CORE_PEER_GOSSIP_EXTERNALENDPOINT=peer0.org1.example.com:7051
      - CORE_PEER_LOCALMSPID=Org1MSP
      - FABRIC_LOGGING_SPEC=INFO
      - CORE_PEER_TLS_ENABLED=true
      - CORE_PEER_GOSSIP_USELEADERELECTION=true
      - CORE_PEER_GOSSIP_ORGLEADER=false
      - CORE_PEER_PROFILE_ENABLED=true
      - CORE_PEER_TLS_CERT_FILE=/etc/hyperledger/fabric/tls/server.crt
      - CORE_PEER_TLS_KEY_FILE=/etc/hyperledger/fabric/tls/server.key
      - CORE_PEER_TLS_ROOTCERT_FILE=/etc/hyperledger/fabric/tls/ca.crt
      # Allow more time for chaincode container to build on install.
      - CORE_CHAINCODE_EXECUTETIMEOUT=300s
    working_dir: /opt/gopath/src/github.com/hyperledger/fabric/peer
    command: peer node start
    volumes:
       - /var/run/:/host/var/run/
       - ./crypto-config/peerOrganizations/org1.example.com/peers/peer0.org1.example.com/msp:/etc/hyperledger/fabric/msp
       - ./crypto-config/peerOrganizations/org1.example.com/peers/peer0.org1.example.com/tls:/etc/hyperledger/fabric/tls
    ports:
      - 7051:7051
      - 7052:7052
      - 7053:7053
    extra_hosts:
      - "orderer0.example.com:虚拟机1的IP"
      - "orderer1.example.com:虚拟机1的IP"
      - "orderer2.example.com:虚拟机2的IP"

  peer1.org1.example.com:
    container_name: peer1.org1.example.com
    image: hyperledger/fabric-peer
    environment:
      - CORE_VM_ENDPOINT=unix:///host/var/run/docker.sock
      - CORE_PEER_ID=peer1.org1.example.com
      - CORE_PEER_ADDRESS=peer1.org1.example.com:8051
      - CORE_PEER_LISTENADDRESS=0.0.0.0:8051
      - CORE_PEER_CHAINCODEADDRESS=peer1.org1.example.com:8052
      - CORE_PEER_CHAINCODELISTENADDRESS=0.0.0.0:8052
      - CORE_PEER_GOSSIP_BOOTSTRAP=peer1.org1.example.com:8051
      - CORE_PEER_GOSSIP_EXTERNALENDPOINT=peer1.org1.example.com:8051
      - CORE_PEER_LOCALMSPID=Org1MSP
      - FABRIC_LOGGING_SPEC=INFO
      - CORE_PEER_TLS_ENABLED=true
      - CORE_PEER_GOSSIP_USELEADERELECTION=true
      - CORE_PEER_GOSSIP_ORGLEADER=false
      - CORE_PEER_PROFILE_ENABLED=true
      - CORE_PEER_TLS_CERT_FILE=/etc/hyperledger/fabric/tls/server.crt
      - CORE_PEER_TLS_KEY_FILE=/etc/hyperledger/fabric/tls/server.key
      - CORE_PEER_TLS_ROOTCERT_FILE=/etc/hyperledger/fabric/tls/ca.crt
      # Allow more time for chaincode container to build on install.
      - CORE_CHAINCODE_EXECUTETIMEOUT=300s
    working_dir: /opt/gopath/src/github.com/hyperledger/fabric/peer
    command: peer node start
    volumes:
       - /var/run/:/host/var/run/
       - ./crypto-config/peerOrganizations/org1.example.com/peers/peer1.org1.example.com/msp:/etc/hyperledger/fabric/msp
       - ./crypto-config/peerOrganizations/org1.example.com/peers/peer1.org1.example.com/tls:/etc/hyperledger/fabric/tls
    ports:
      - 8051:8051
      - 8052:8052
      - 8053:8053
    extra_hosts:
      - "orderer0.example.com:虚拟机1的IP"
      - "orderer1.example.com:虚拟机1的IP"
      - "orderer2.example.com:虚拟机2的IP"

  cli1:
    container_name: cli1
    image: hyperledger/fabric-tools
    tty: true
    stdin_open: true
    environment:
      - GOPATH=/opt/gopath
      - CORE_VM_ENDPOINT=unix:///host/var/run/docker.sock
      #- FABRIC_LOGGING_SPEC=DEBUG
      - FABRIC_LOGGING_SPEC=INFO
      - CORE_PEER_ID=cli1
      - CORE_PEER_ADDRESS=peer0.org1.example.com:7051
      - CORE_PEER_LOCALMSPID=Org1MSP
      - CORE_PEER_TLS_ENABLED=true
      - CORE_PEER_TLS_CERT_FILE=/opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/org1.example.com/peers/peer0.org1.example.com/tls/server.crt
      - CORE_PEER_TLS_KEY_FILE=/opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/org1.example.com/peers/peer0.org1.example.com/tls/server.key
      - CORE_PEER_TLS_ROOTCERT_FILE=/opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/org1.example.com/peers/peer0.org1.example.com/tls/ca.crt
      - CORE_PEER_MSPCONFIGPATH=/opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/org1.example.com/users/Admin@org1.example.com/msp
    working_dir: /opt/gopath/src/github.com/hyperledger/fabric/peer
    command: /bin/bash
    volumes:
        - /var/run/:/host/var/run/
        - ./chaincode/go/:/opt/gopath/src/github.com/hyperledger/multiple-deployment/chaincode/go
        - ./crypto-config:/opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/
        - ./channel-artifacts:/opt/gopath/src/github.com/hyperledger/fabric/peer/channel-artifacts
    extra_hosts:
      - "orderer0.example.com:虚拟机1的IP"
      - "orderer1.example.com:虚拟机1的IP"
      - "orderer2.example.com:虚拟机2的IP"
      - "peer0.org1.example.com:虚拟机1的IP"
      - "peer1.org1.example.com:虚拟机1的IP"
      - "peer0.org2.example.com:虚拟机2的IP"
      - "peer1.org2.example.com:虚拟机2的IP"

  cli2:
    container_name: cli2
    image: hyperledger/fabric-tools
    tty: true
    stdin_open: true
    environment:
      - GOPATH=/opt/gopath
      - CORE_VM_ENDPOINT=unix:///host/var/run/docker.sock
      #- FABRIC_LOGGING_SPEC=DEBUG
      - FABRIC_LOGGING_SPEC=INFO
      - CORE_PEER_ID=cli2
      - CORE_PEER_ADDRESS=peer1.org1.example.com:8051
      - CORE_PEER_LOCALMSPID=Org1MSP
      - CORE_PEER_TLS_ENABLED=true
      - CORE_PEER_TLS_CERT_FILE=/opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/org1.example.com/peers/peer1.org1.example.com/tls/server.crt
      - CORE_PEER_TLS_KEY_FILE=/opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/org1.example.com/peers/peer1.org1.example.com/tls/server.key
      - CORE_PEER_TLS_ROOTCERT_FILE=/opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/org1.example.com/peers/peer1.org1.example.com/tls/ca.crt
      - CORE_PEER_MSPCONFIGPATH=/opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/org1.example.com/users/Admin@org1.example.com/msp
    working_dir: /opt/gopath/src/github.com/hyperledger/fabric/peer
    command: /bin/bash
    volumes:
        - /var/run/:/host/var/run/
        - ./chaincode/go/:/opt/gopath/src/github.com/hyperledger/multiple-deployment/chaincode/go
        - ./crypto-config:/opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/
        - ./channel-artifacts:/opt/gopath/src/github.com/hyperledger/fabric/peer/channel-artifacts
    extra_hosts:
      - "orderer0.example.com:虚拟机1的IP"
      - "orderer1.example.com:虚拟机1的IP"
      - "orderer2.example.com:虚拟机2的IP"
      - "peer0.org1.example.com:虚拟机1的IP"
      - "peer1.org1.example.com:虚拟机1的IP"
      - "peer0.org2.example.com:虚拟机2的IP"
      - "peer1.org2.example.com:虚拟机2的IP"

虚拟机2的操作

touch docker-compose-up.yaml

将以下内容写入docker-compose-up.yaml中,yaml文件中的虚拟机的IP记得修改成你们的虚拟机IP

version: '2'

services:
  orderer2.example.com:
    container_name: orderer2.example.com
    image: hyperledger/fabric-orderer
    environment:
      - FABRIC_LOGGING_SPEC=INFO
      - ORDERER_GENERAL_LISTENADDRESS=0.0.0.0
      - ORDERER_GENERAL_BOOTSTRAPMETHOD=file
      - ORDERER_GENERAL_BOOTSTRAPFILE=/var/hyperledger/orderer/orderer.genesis.block
      - ORDERER_GENERAL_LOCALMSPID=OrdererMSP
      - ORDERER_GENERAL_LOCALMSPDIR=/var/hyperledger/orderer/msp
      # enabled TLS
      - ORDERER_GENERAL_TLS_ENABLED=true
      - ORDERER_GENERAL_TLS_PRIVATEKEY=/var/hyperledger/orderer/tls/server.key
      - ORDERER_GENERAL_TLS_CERTIFICATE=/var/hyperledger/orderer/tls/server.crt
      - ORDERER_GENERAL_TLS_ROOTCAS=[/var/hyperledger/orderer/tls/ca.crt]
      - ORDERER_GENERAL_CLUSTER_CLIENTCERTIFICATE=/var/hyperledger/orderer/tls/server.crt
      - ORDERER_GENERAL_CLUSTER_CLIENTPRIVATEKEY=/var/hyperledger/orderer/tls/server.key
      - ORDERER_GENERAL_CLUSTER_ROOTCAS=[/var/hyperledger/orderer/tls/ca.crt]
    working_dir: /opt/gopath/src/github.com/hyperledger/fabric
    command: orderer
    volumes:
        - ./channel-artifacts/genesis.block:/var/hyperledger/orderer/orderer.genesis.block
        - ./crypto-config/ordererOrganizations/example.com/orderers/orderer2.example.com/msp:/var/hyperledger/orderer/msp
        - ./crypto-config/ordererOrganizations/example.com/orderers/orderer2.example.com/tls/:/var/hyperledger/orderer/tls
    ports:
      - 7050:7050
    extra_hosts:
      - "orderer0.example.com:虚拟机1的IP"
      - "orderer1.example.com:虚拟机1的IP"
      - "orderer2.example.com:虚拟机2的IP"

  peer0.org2.example.com:
    container_name: peer0.org2.example.com
    image: hyperledger/fabric-peer
    environment:
      - CORE_VM_ENDPOINT=unix:///host/var/run/docker.sock
      - CORE_PEER_ID=peer0.org2.example.com
      - CORE_PEER_ADDRESS=peer0.org2.example.com:7051
      - CORE_PEER_LISTENADDRESS=0.0.0.0:7051
      - CORE_PEER_CHAINCODEADDRESS=peer0.org2.example.com:7052
      - CORE_PEER_CHAINCODELISTENADDRESS=0.0.0.0:7052
      - CORE_PEER_GOSSIP_EXTERNALENDPOINT=peer0.org2.example.com:7051
      - CORE_PEER_GOSSIP_BOOTSTRAP=peer0.org2.example.com:7051
      - CORE_PEER_LOCALMSPID=Org2MSP
      - FABRIC_LOGGING_SPEC=INFO
      - CORE_PEER_TLS_ENABLED=true
      - CORE_PEER_GOSSIP_USELEADERELECTION=true
      - CORE_PEER_GOSSIP_ORGLEADER=false
      - CORE_PEER_PROFILE_ENABLED=true
      - CORE_PEER_TLS_CERT_FILE=/etc/hyperledger/fabric/tls/server.crt
      - CORE_PEER_TLS_KEY_FILE=/etc/hyperledger/fabric/tls/server.key
      - CORE_PEER_TLS_ROOTCERT_FILE=/etc/hyperledger/fabric/tls/ca.crt
      # Allow more time for chaincode container to build on install.
      - CORE_CHAINCODE_EXECUTETIMEOUT=300s
    working_dir: /opt/gopath/src/github.com/hyperledger/fabric/peer
    command: peer node start
    volumes:
       - /var/run/:/host/var/run/
       - ./crypto-config/peerOrganizations/org2.example.com/peers/peer0.org2.example.com/msp:/etc/hyperledger/fabric/msp
       - ./crypto-config/peerOrganizations/org2.example.com/peers/peer0.org2.example.com/tls:/etc/hyperledger/fabric/tls
    ports:
      - 7051:7051
      - 7052:7052
      - 7053:7053
    extra_hosts:
      - "orderer0.example.com:虚拟机1的IP"
      - "orderer1.example.com:虚拟机1的IP"
      - "orderer2.example.com:虚拟机2的IP"

  peer1.org2.example.com:
    container_name: peer1.org2.example.com
    image: hyperledger/fabric-peer
    environment:
      - CORE_VM_ENDPOINT=unix:///host/var/run/docker.sock
      - CORE_PEER_ID=peer1.org2.example.com
      - CORE_PEER_ADDRESS=peer1.org2.example.com:8051
      - CORE_PEER_LISTENADDRESS=0.0.0.0:8051
      - CORE_PEER_CHAINCODEADDRESS=peer1.org2.example.com:8052
      - CORE_PEER_CHAINCODELISTENADDRESS=0.0.0.0:8052
      - CORE_PEER_GOSSIP_EXTERNALENDPOINT=peer1.org2.example.com:8051
      - CORE_PEER_GOSSIP_BOOTSTRAP=peer1.org2.example.com:8051
      - CORE_PEER_LOCALMSPID=Org2MSP
      - FABRIC_LOGGING_SPEC=INFO
      - CORE_PEER_TLS_ENABLED=true
      - CORE_PEER_GOSSIP_USELEADERELECTION=true
      - CORE_PEER_GOSSIP_ORGLEADER=false
      - CORE_PEER_PROFILE_ENABLED=true
      - CORE_PEER_TLS_CERT_FILE=/etc/hyperledger/fabric/tls/server.crt
      - CORE_PEER_TLS_KEY_FILE=/etc/hyperledger/fabric/tls/server.key
      - CORE_PEER_TLS_ROOTCERT_FILE=/etc/hyperledger/fabric/tls/ca.crt
      # Allow more time for chaincode container to build on install.
      - CORE_CHAINCODE_EXECUTETIMEOUT=300s
    working_dir: /opt/gopath/src/github.com/hyperledger/fabric/peer
    command: peer node start
    volumes:
       - /var/run/:/host/var/run/
       - ./crypto-config/peerOrganizations/org2.example.com/peers/peer1.org2.example.com/msp:/etc/hyperledger/fabric/msp
       - ./crypto-config/peerOrganizations/org2.example.com/peers/peer1.org2.example.com/tls:/etc/hyperledger/fabric/tls
    ports:
      - 8051:8051
      - 8052:8052
      - 8053:8053
    extra_hosts:
      - "orderer0.example.com:虚拟机1的IP"
      - "orderer1.example.com:虚拟机1的IP"
      - "orderer2.example.com:虚拟机2的IP"

  cli1:
    container_name: cli1
    image: hyperledger/fabric-tools
    tty: true
    stdin_open: true
    environment:
      - GOPATH=/opt/gopath
      - CORE_VM_ENDPOINT=unix:///host/var/run/docker.sock
      #- FABRIC_LOGGING_SPEC=DEBUG
      - FABRIC_LOGGING_SPEC=INFO
      - CORE_PEER_ID=cli1
      - CORE_PEER_ADDRESS=peer0.org2.example.com:7051
      - CORE_PEER_LOCALMSPID=Org2MSP
      - CORE_PEER_TLS_ENABLED=true
      - CORE_PEER_TLS_CERT_FILE=/opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/org2.example.com/peers/peer0.org2.example.com/tls/server.crt
      - CORE_PEER_TLS_KEY_FILE=/opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/org2.example.com/peers/peer0.org2.example.com/tls/server.key
      - CORE_PEER_TLS_ROOTCERT_FILE=/opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/org2.example.com/peers/peer0.org2.example.com/tls/ca.crt
      - CORE_PEER_MSPCONFIGPATH=/opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/org2.example.com/users/Admin@org2.example.com/msp
    working_dir: /opt/gopath/src/github.com/hyperledger/fabric/peer
    command: /bin/bash
    volumes:
        - /var/run/:/host/var/run/
        - ./chaincode/go/:/opt/gopath/src/github.com/hyperledger/multiple-deployment/chaincode/go
        - ./crypto-config:/opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/
        - ./channel-artifacts:/opt/gopath/src/github.com/hyperledger/fabric/peer/channel-artifacts
    extra_hosts:
      - "orderer0.example.com:虚拟机1的IP"
      - "orderer1.example.com:虚拟机1的IP"
      - "orderer2.example.com:虚拟机2的IP"
      - "peer0.org1.example.com:虚拟机1的IP"
      - "peer1.org1.example.com:虚拟机1的IP"
      - "peer0.org2.example.com:虚拟机2的IP"
      - "peer1.org2.example.com:虚拟机2的IP"

  cli2:
    container_name: cli2
    image: hyperledger/fabric-tools
    tty: true
    stdin_open: true
    environment:
      - GOPATH=/opt/gopath
      - CORE_VM_ENDPOINT=unix:///host/var/run/docker.sock
      #- FABRIC_LOGGING_SPEC=DEBUG
      - FABRIC_LOGGING_SPEC=INFO
      - CORE_PEER_ID=cli2
      - CORE_PEER_ADDRESS=peer1.org2.example.com:8051
      - CORE_PEER_LOCALMSPID=Org2MSP
      - CORE_PEER_TLS_ENABLED=true
      - CORE_PEER_TLS_CERT_FILE=/opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/org2.example.com/peers/peer1.org2.example.com/tls/server.crt
      - CORE_PEER_TLS_KEY_FILE=/opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/org2.example.com/peers/peer1.org2.example.com/tls/server.key
      - CORE_PEER_TLS_ROOTCERT_FILE=/opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/org2.example.com/peers/peer1.org2.example.com/tls/ca.crt
      - CORE_PEER_MSPCONFIGPATH=/opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/org2.example.com/users/Admin@org2.example.com/msp
    working_dir: /opt/gopath/src/github.com/hyperledger/fabric/peer
    command: /bin/bash
    volumes:
        - /var/run/:/host/var/run/
        - ./chaincode/go/:/opt/gopath/src/github.com/hyperledger/multiple-deployment/chaincode/go
        - ./crypto-config:/opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/
        - ./channel-artifacts:/opt/gopath/src/github.com/hyperledger/fabric/peer/channel-artifacts
    extra_hosts:
      - "orderer0.example.com:虚拟机1的IP"
      - "orderer1.example.com:虚拟机1的IP"
      - "orderer2.example.com:虚拟机2的IP"
      - "peer0.org1.example.com:虚拟机1的IP"
      - "peer1.org1.example.com:虚拟机1的IP"
      - "peer0.org2.example.com:虚拟机2的IP"
      - "peer1.org2.example.com:虚拟机2的IP"

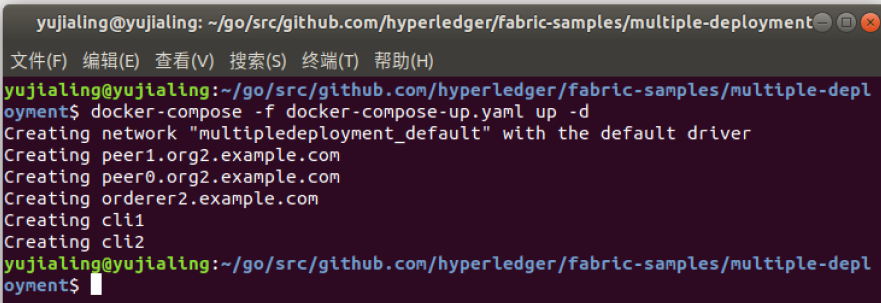

接下来在两台虚拟机上启动网络

虚拟机1和虚拟机2的操作

docker-compose -f docker-compose-up.yaml up -d

虚拟机1的操作

进入cli1容器,也就是以peer0.org1的角色与网络交互

docker exec -it cli1 bash

创建通道,这一步最好等网络跑起来15秒之后再操作,因为orderer之间要握手和选举raft领导节点,需要点时间。操作太快会报no Raft leader的错误

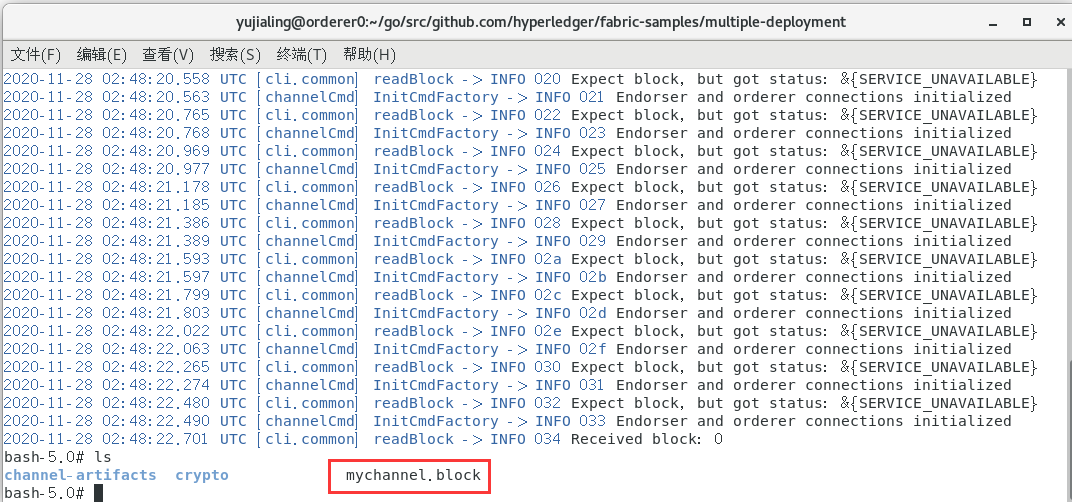

peer channel create -o orderer0.example.com:7050 -c mychannel -f ./channel-artifacts/channel.tx --tls --cafile /opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/ordererOrganizations/example.com/orderers/orderer0.example.com/msp/tlscacerts/tlsca.example.com-cert.pem

组织1peer0节点加入通道mychannel

peer channel join -b mychannel.block

更新组织1的锚节点

peer channel update -o orderer0.example.com:7050 -c mychannel -f ./channel-artifacts/Org1MSPanchors.tx --tls --cafile /opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/ordererOrganizations/example.com/orderers/orderer0.example.com/msp/tlscacerts/tlsca.example.com-cert.pem

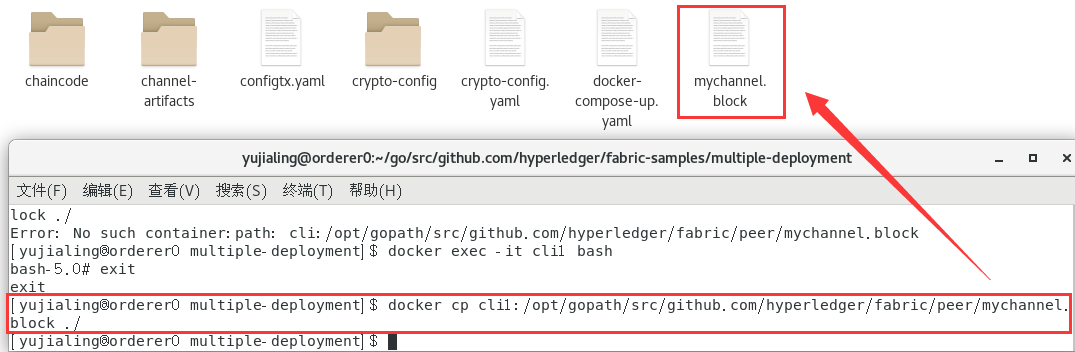

退出cli1容器,从cli1容器中拷贝出mychannel.block文件到multiple-deployment文件夹下,并复制到虚拟机2

exit
docker cp cli1:/opt/gopath/src/github.com/hyperledger/fabric/peer/mychannel.block ./

接下来到虚拟机2的操作

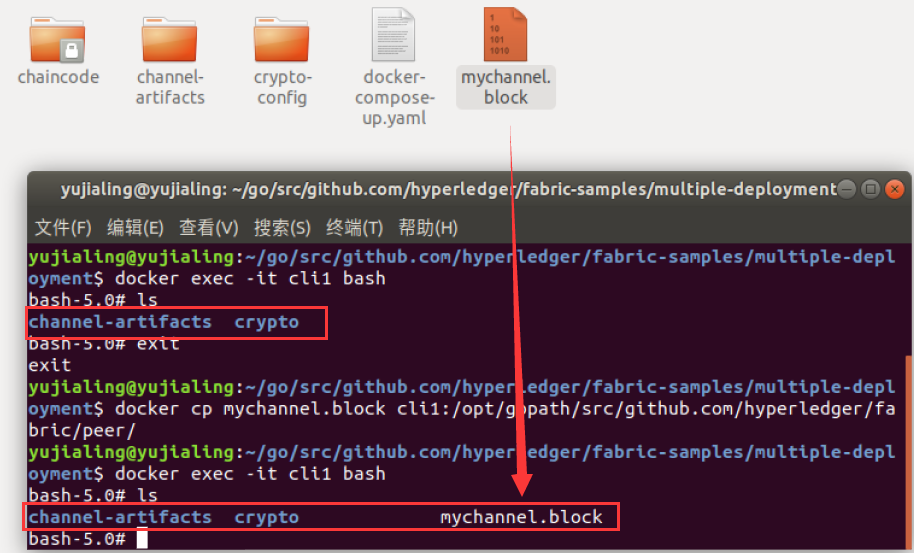

mychannel.block拷贝到虚拟机2cli1组织2peer0角色)容器中

docker cp mychannel.block cli1:/opt/gopath/src/github.com/hyperledger/fabric/peer/

进入cli1容器

docker exec -it cli1 bash

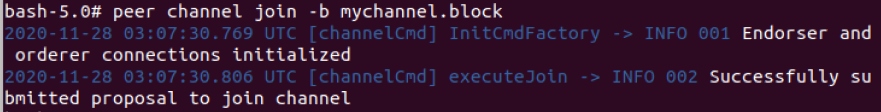

加入通道

peer channel join -b mychannel.block

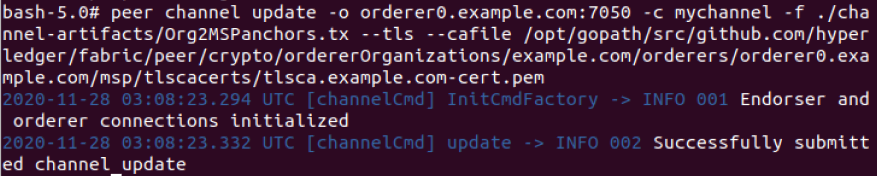

更新组织2的锚节点(主节点)

peer channel update -o orderer0.example.com:7050 -c mychannel -f ./channel-artifacts/Org2MSPanchors.tx --tls --cafile /opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/ordererOrganizations/example.com/orderers/orderer0.example.com/msp/tlscacerts/tlsca.example.com-cert.pem

8.安装与调用链码(智能合约)

接下来到虚拟机1的操作

进入cli1容器中

docker exec -it cli1 bash

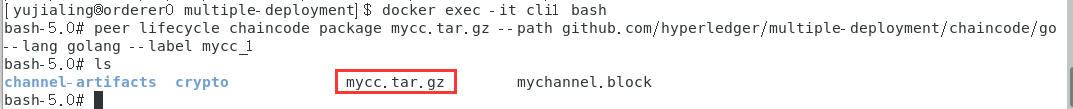

peer lifecycle chaincode package mycc.tar.gz --path github.com/hyperledger/multiple-deployment/chaincode/go --lang golang --label mycc_1

安装链码

peer lifecycle chaincode install mycc.tar.gz

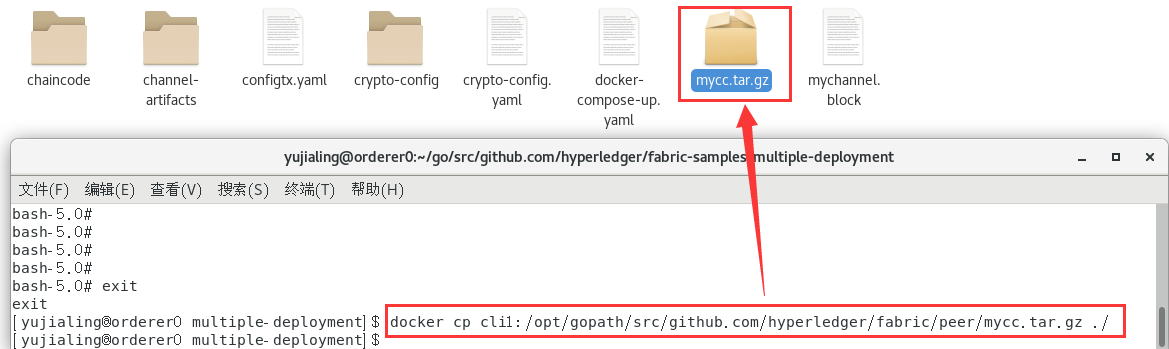

退出cli1容器,将打包的链码mycc.tar.gz从cli1容器中提取出来,并拷贝到虚拟机2multiple-deployment目录下

exit
docker cp cli1:/opt/gopath/src/github.com/hyperledger/fabric/peer/mycc.tar.gz ./

接下来到虚拟机2的操作

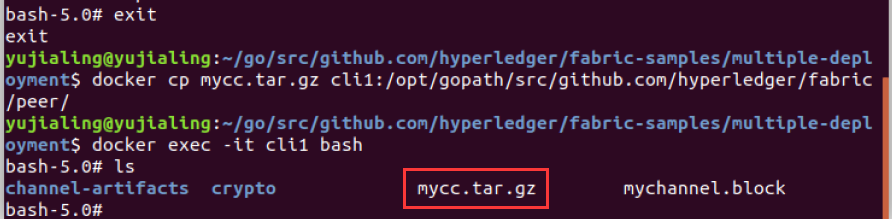

退出cli1容器,将multiple-deployment目录下的链码压缩包mycc.tar.gz复制到cli1组织2peer0)容器中

exit
docker cp mycc.tar.gz cli1:/opt/gopath/src/github.com/hyperledger/fabric/peer/

再次进入cli1容器,安装链码

docker exec -it cli1 bash

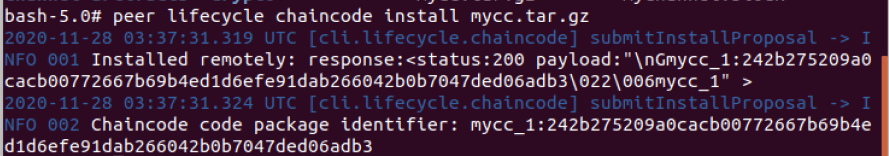

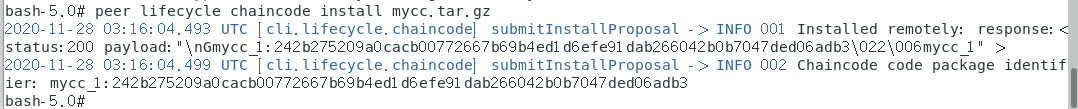

peer lifecycle chaincode install mycc.tar.gz

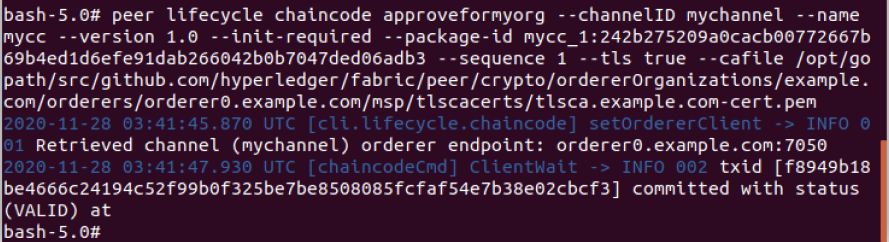

组织2同意提交链码,下面指令中的链码id记得替换成上一条指令生成的链码id

peer lifecycle chaincode approveformyorg --channelID mychannel --name mycc --version 1.0 --init-required --package-id mycc_1:242b275209a0cacb00772667b69b4ed1d6efe91dab266042b0b7047ded06adb3 --sequence 1 --tls true --cafile /opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/ordererOrganizations/example.com/orderers/orderer0.example.com/msp/tlscacerts/tlsca.example.com-cert.pem

接下来到虚拟机1的操作

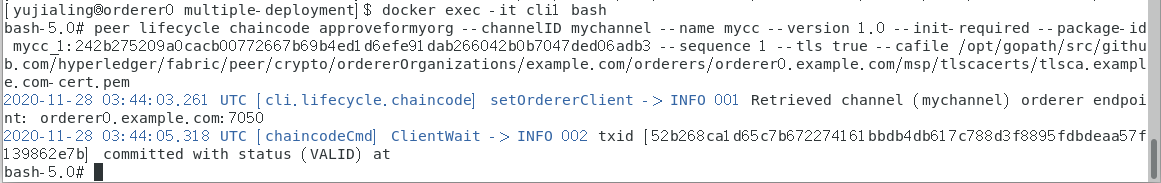

再次进入cli1容器,同意提交链码

docker exec -it cli1 bash
peer lifecycle chaincode approveformyorg --channelID mychannel --name mycc --version 1.0 --init-required --package-id mycc_1:242b275209a0cacb00772667b69b4ed1d6efe91dab266042b0b7047ded06adb3 --sequence 1 --tls true --cafile /opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/ordererOrganizations/example.com/orderers/orderer0.example.com/msp/tlscacerts/tlsca.example.com-cert.pem

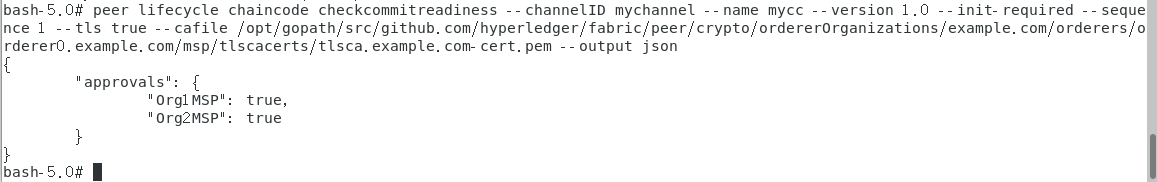

查看链码的状态是否就绪

peer lifecycle chaincode checkcommitreadiness --channelID mychannel --name mycc --version 1.0 --init-required --sequence 1 --tls true --cafile /opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/ordererOrganizations/example.com/orderers/orderer0.example.com/msp/tlscacerts/tlsca.example.com-cert.pem --output json

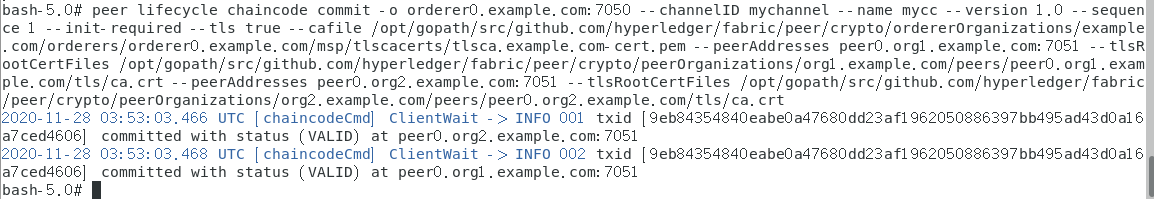

提交链码

peer lifecycle chaincode commit -o orderer0.example.com:7050 --channelID mychannel --name mycc --version 1.0 --sequence 1 --init-required --tls true --cafile /opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/ordererOrganizations/example.com/orderers/orderer0.example.com/msp/tlscacerts/tlsca.example.com-cert.pem --peerAddresses peer0.org1.example.com:7051 --tlsRootCertFiles /opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/org1.example.com/peers/peer0.org1.example.com/tls/ca.crt --peerAddresses peer0.org2.example.com:7051 --tlsRootCertFiles /opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/org2.example.com/peers/peer0.org2.example.com/tls/ca.crt

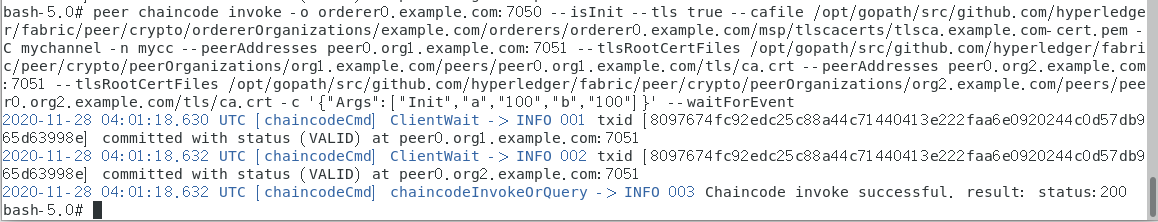

初始化链码

peer chaincode invoke -o orderer0.example.com:7050 --isInit --tls true --cafile /opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/ordererOrganizations/example.com/orderers/orderer0.example.com/msp/tlscacerts/tlsca.example.com-cert.pem -C mychannel -n mycc --peerAddresses peer0.org1.example.com:7051 --tlsRootCertFiles /opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/org1.example.com/peers/peer0.org1.example.com/tls/ca.crt --peerAddresses peer0.org2.example.com:7051 --tlsRootCertFiles /opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/org2.example.com/peers/peer0.org2.example.com/tls/ca.crt -c '{"Args":["Init","a","100","b","100"]}' --waitForEvent

虚拟机1查询a的余额

peer chaincode query -C mychannel -n mycc -c '{"Args":["query","a"]}'

虚拟机2查询a的余额

双方均可查询到a的余额

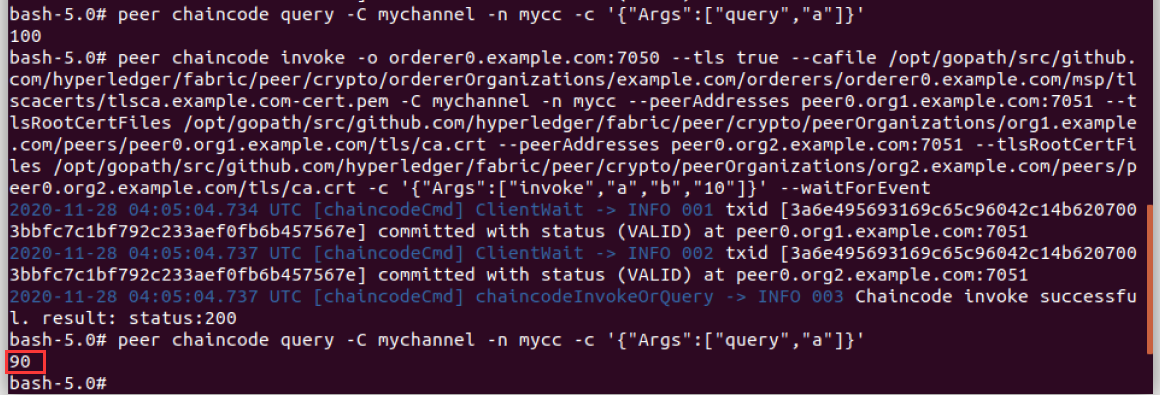

虚拟机2上操作a转账10给b

peer chaincode invoke -o orderer0.example.com:7050 --tls true --cafile /opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/ordererOrganizations/example.com/orderers/orderer0.example.com/msp/tlscacerts/tlsca.example.com-cert.pem -C mychannel -n mycc --peerAddresses peer0.org1.example.com:7051 --tlsRootCertFiles /opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/org1.example.com/peers/peer0.org1.example.com/tls/ca.crt --peerAddresses peer0.org2.example.com:7051 --tlsRootCertFiles /opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/org2.example.com/peers/peer0.org2.example.com/tls/ca.crt -c '{"Args":["invoke","a","b","10"]}' --waitForEvent

转账完成后查询a的余额

peer chaincode query -C mychannel -n mycc -c '{"Args":["query","a"]}'

查询结果为90,转账成功

虚拟机1查询a的余额

peer chaincode query -C mychannel -n mycc -c '{"Args":["query","a"]}'

虚拟机2的操作已经fabric网络的各节点中同步

Hyperledger Fabric 2.x 多机部署/分布式集群部署成功

如果要结束网络,可以在退出cli1容器后使用以下指令退出

docker-compose -f docker-compose-up.yaml down

docker-compose-up.yaml文件中还有各组织1、2的peer1节点,容器名为cli2,可以进入容器中使他们加入网络,同步消息,操作与peer0一样

欢迎小伙伴讨论,如有错误请在评论区评论或发私聊消息,谢谢你。

  • 37
    点赞
  • 82
    收藏
  • 打赏
    打赏
  • 172
    评论

“相关推荐”对你有帮助么?

  • 非常没帮助
  • 没帮助
  • 一般
  • 有帮助
  • 非常有帮助
提交
©️2022 CSDN 皮肤主题:精致技术 设计师:CSDN官方博客 返回首页
评论 172

打赏作者

余府

谢谢你的鼓励

¥2 ¥4 ¥6 ¥10 ¥20
输入1-500的整数
余额支付 (余额:-- )
扫码支付
扫码支付:¥2
获取中
扫码支付

您的余额不足,请更换扫码支付或充值

打赏作者

实付
使用余额支付
点击重新获取
扫码支付
钱包余额 0

抵扣说明:

1.余额是钱包充值的虚拟货币,按照1:1的比例进行支付金额的抵扣。
2.余额无法直接购买下载,可以购买VIP、C币套餐、付费专栏及课程。

余额充值
