简介

在 MinIO 的 Kubernetes 实现中，operator 和 tenant 扮演着不同但互补的角色。

MinIO Operator

定义: MinIO Operator 是 Kubernetes 的控制平面组件，负责管理和自动化 MinIO 实例的运维任务。
作用:
• 生命周期管理: 自动管理 MinIO 实例的整个生命周期，包括创建、升级、配置和删除。
• 高可用性: 确保 MinIO 实例的高可用性，通过自动复制和故障转移。
• 扩展性: 允许您轻松扩展 MinIO 集群，以满足存储需求的变化。
• 自定义资源: 使用自定义资源定义（CRD）来管理 MinIO 租户的配置。
组件:
• MinIO Tenant CRD: 一个 Kubernetes 自定义资源，用于定义和管理 MinIO 租户的配置。
• MinIO Pool CRD: 用于定义 MinIO 池的配置，每个池可以包含多个 MinIO 实例。

MinIO Tenant

定义: MinIO Tenant 是数据平面组件，实际提供存储服务。
作用:
• 存储服务: 提供对象存储服务，用于存储和检索数据。
• 数据管理: 管理数据的存储、访问和备份。
• 用户和权限: 管理用户访问和权限控制。
组件:
• MinIO Pods: 实际运行 MinIO 服务的 Kubernetes Pods。
• PVCs: 持久卷声明，用于为 MinIO 提供持久化存储。
• Services: 服务，用于访问 MinIO Pods。

机器角色分配

10.2.64.91 minio1 rke2+k8s1.31.1
10.2.64.53 minio2 rke2+k8s1.31.1
10.2.64.59 minio3 rke2+k8s1.31.1

每个主机都挂载了4块xfs文件系统格式的10G磁盘，分别对应
/data/disk1、/data/disk2、/data/disk3、/data/disk4

重要说明

1.并不是所有的配置都是在helm的values.yaml中配置的。
需要提前配置好storage class 、pv 。因为使用本地磁盘作为sc，是不支持创建pvc时自动生成pv并关联，需要提前创建好pv。pv在这里的作用就是声明好挂载了本地磁盘的目录。另外，磁盘格式使用xfs，>=4块磁盘才有纠删码功能。
2.如果重复做多次实验，一定要先删除掉宿主机目录重建。否则会导致启动异常。
因为部署tenant后会在挂载目录中自动生成 .minio.sys 目录，直接清理这个目录也可以
3.部署tenant时，注意servers数量*volumesPerServer数量不能超过宿主机上的pv总数

 pools:
    - servers: 1
      name: minio1
      volumesPerServer: 4
      size: 10Gi
      storageClassName: local-storage
      nodeSelector:
        "kubernetes.io/hostname": minio1

比如本实验中，mini1一台机器挂载了4个磁盘，那么可以
servers: 1 volumesPerServer: 4，表示minio1上有1个minio实例，每个实例挂载4个存储卷
servers: 4 volumesPerServer: 1，表示minio1上有4个minio实例，每个实例挂载1个存储卷
servers: 2 volumesPerServer: 2，表示minio1上有2个minio实例，每个实例挂载2个存储卷
当然如果你不想用光宿主机上的4块磁盘，servers: 1 volumesPerServer: 2也可以
4.tenant会自动创建pvc，不需要提前创建pvc
自动生成的pvc命名规则是 data{存储卷num}-{statefulsetName}{Num}-{minio实例num} 比如’data0-myminio-minio1-0’
如果配置了参数servers: 1 volumesPerServer: 4
在宿主机minio1上只会有1个实例: myminio-minio1-0
对应pvc的关系如下

myminio-minio1-0：
• data0-myminio-minio1-0
• data1-myminio-minio1-0
• data2-myminio-minio1-0
• data3-myminio-minio1-0

如果配置了参数servers: 2 volumesPerServer: 2
在宿主机minio1上会有2个实例: myminio-minio1-0、myminio-minio1-1
对应pvc的关系如下

myminio-minio1-0：
• data0-myminio-minio1-0
• data0-myminio-minio1-1
myminio-minio1-1：
• data1-myminio-minio1-0
• data1-myminio-minio1-1

5.mountPath 是挂载到minio实例中的路径，volumesPerServer 配置多少个，就会在挂载时自动在路径后面加上数字，比如/export0 /export1 /export2 /export3
subPath 是minio的数据会保存到这个子目录里，对应/export0/data等
注意这个mountPath 后面的数字，仅仅代表分配存储卷的序号，并不是和宿主机的磁盘序号一一对应。并不代表容器/export0=>宿主机/data/disk0、容器/export1=>宿主机/data/disk1、容器/export2=>宿主机/data/disk2、容器/export3=>宿主机/data/disk3

mountPath: /export
subPath: /data

6.配置用于登录minio-console的账户

# 登录页面的用户名密码，生产不建议在values.yaml中直接配置，而是引用已经配好的secret
  configSecret:
    name: myminio-env-configuration
    accessKey: minio
    secretKey: minio123

# 生产环境建议使用这个方式，values.yaml中只配置这个configuration，不需要配置configSecret
configuration:
    name: myminio-env-configuration

# myminio-env-configuration需要提前配置好
cat > config.env << EOF
export MINIO_ROOT_USER="minio"
export MINIO_ROOT_PASSWORD="minio123"
EOF

base64_content=$( cat config.env | base64 | tr -d '\n' )

cat > myminio-env-configuration.yaml <<EOF
apiVersion: v1
kind: Secret
metadata:
  name: myminio-env-configuration
  namespace: minio-tenant
  annotations:
    meta.helm.sh/release-name: myminio
    meta.helm.sh/release-namespace: minio-tenant
  labels:
    app.kubernetes.io/managed-by: Helm
type: Opaque
data:
  config.env: $base64_content
EOF

kubectl apply -f myminio-env-configuration.yaml

7.k8s对应minio operator版本

kubernetes	minio operator
1.16~1.21	v4.x
1.18~1.22	v5.x
1.21+	v6.x

8.云厂商的对象存储可能会更实惠

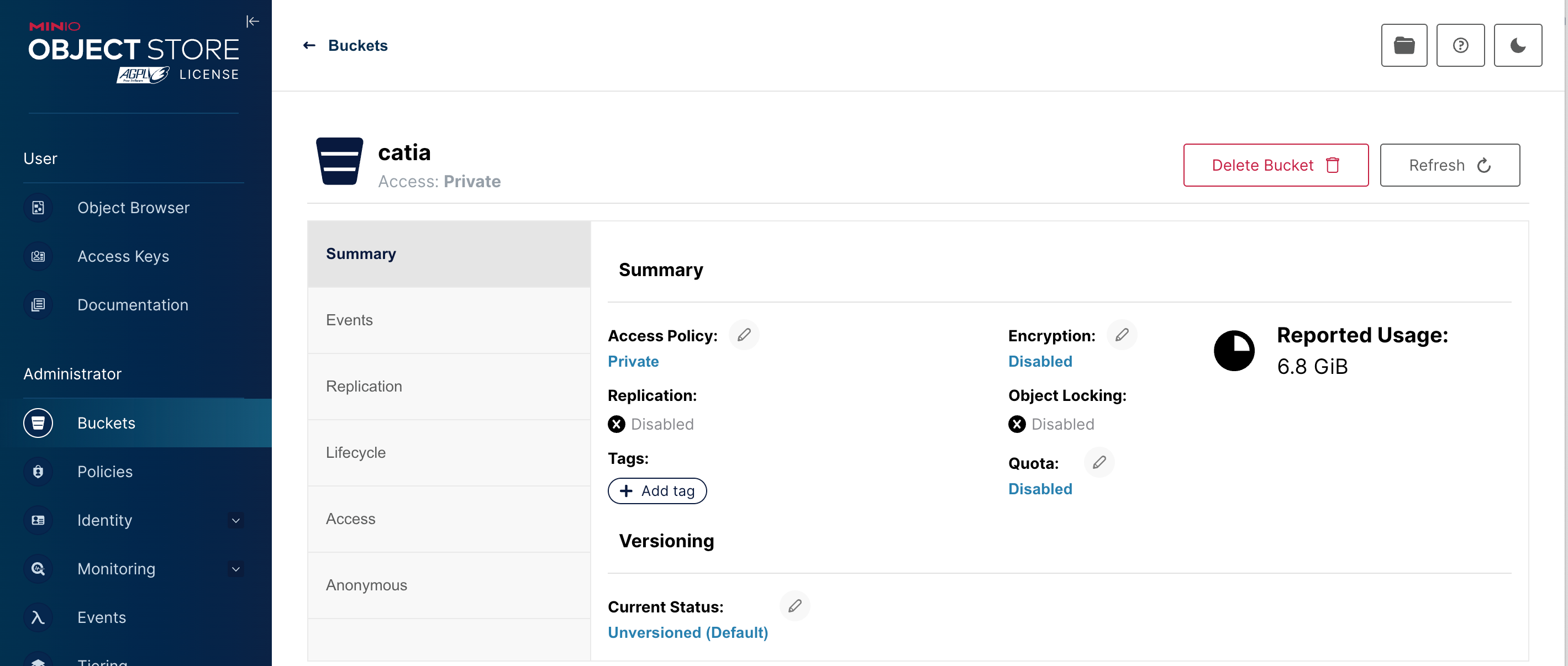

在这里插入图片描述

部署

创建 StorageClass
创建一个 StorageClass (SC) 定义。以下是 storageclass.yaml 文件的内容：

cat > storageclass.yaml << EOF
apiVersion: storage.k8s.io/v1
kind: StorageClass
metadata:
  name: local-storage
provisioner: kubernetes.io/no-provisioner
volumeBindingMode: WaitForFirstConsumer
EOF

应用配置

kubectl apply -f storageclass.yaml

创建 PersistentVolumes (PV)
为每台机器上的每个磁盘创建 PersistentVolume (PV) 定义。以下是 pv.yaml 文件的内容：

apiVersion: v1
kind: List
items:
  - apiVersion: v1
    kind: PersistentVolume
    metadata:
      name: pv-minio1-disk0
    spec:
      capacity:
        storage: 10Gi
      volumeMode: Filesystem
      accessModes:
        - ReadWriteOnce
      persistentVolumeReclaimPolicy: Retain
      storageClassName: local-storage
      local:
        path: /data/disk0
      nodeAffinity:
        required:
          nodeSelectorTerms:
            - matchExpressions:
                - key: kubernetes.io/hostname
                  operator: In
                  values:
                    - minio1
  - apiVersion: v1
    kind: PersistentVolume
    metadata:
      name: pv-minio1-disk1
    spec:
      capacity:
        storage: 10Gi
      volumeMode: Filesystem
      accessModes:
        - ReadWriteOnce
      persistentVolumeReclaimPolicy: Retain
      storageClassName: local-storage
      local:
        path: /data/disk1
      nodeAffinity:
        required:
          nodeSelectorTerms:
            - matchExpressions:
                - key: kubernetes.io/hostname
                  operator: In
                  values:
                    - minio1
  - apiVersion: v1
    kind: PersistentVolume
    metadata:
      name: pv-minio1-disk2
    spec:
      capacity:
        storage: 10Gi
      volumeMode: Filesystem
      accessModes:
        - ReadWriteOnce
      persistentVolumeReclaimPolicy: Retain
      storageClassName: local-storage
      local:
        path: /data/disk2
      nodeAffinity:
        required:
          nodeSelectorTerms:
            - matchExpressions:
                - key: kubernetes.io/hostname
                  operator: In
                  values:
                    - minio1
  - apiVersion: v1
    kind: PersistentVolume
    metadata:
      name: pv-minio1-disk3
    spec:
      capacity:
        storage: 10Gi
      volumeMode: Filesystem
      accessModes:
        - ReadWriteOnce
      persistentVolumeReclaimPolicy: Retain
      storageClassName: local-storage
      local:
        path: /data/disk3
      nodeAffinity:
        required:
          nodeSelectorTerms:
            - matchExpressions:
                - key: kubernetes.io/hostname
                  operator: In
                  values:
                    - minio1
  - apiVersion: v1
    kind: PersistentVolume
    metadata:
      name: pv-minio2-disk0
    spec:
      capacity:
        storage: 10Gi
      volumeMode: Filesystem
      accessModes:
        - ReadWriteOnce
      persistentVolumeReclaimPolicy: Retain
      storageClassName: local-storage
      local:
        path: /data/disk0
      nodeAffinity:
        required:
          nodeSelectorTerms:
            - matchExpressions:
                - key: kubernetes.io/hostname
                  operator: In
                  values:
                    - minio2
  - apiVersion: v1
    kind: PersistentVolume
    metadata:
      name: pv-minio2-disk1
    spec:
      capacity:
        storage: 10Gi
      volumeMode: Filesystem
      accessModes:
        - ReadWriteOnce
      persistentVolumeReclaimPolicy: Retain
      storageClassName: local-storage
      local:
        path: /data/disk1
      nodeAffinity:
        required:
          nodeSelectorTerms:
            - matchExpressions:
                - key: kubernetes.io/hostname
                  operator: In
                  values:
                    - minio2
  - apiVersion: v1
    kind: PersistentVolume
    metadata:
      name: pv-minio2-disk2
    spec:
      capacity:
        storage: 10Gi
      volumeMode: Filesystem
      accessModes:
        - ReadWriteOnce
      persistentVolumeReclaimPolicy: Retain
      storageClassName: local-storage
      local:
        path: /data/disk2
      nodeAffinity:
        required:
          nodeSelectorTerms:
            - matchExpressions:
                - key: kubernetes.io/hostname
                  operator: In
                  values:
                    - minio2
  - apiVersion: v1
    kind: PersistentVolume
    metadata:
      name: pv-minio2-disk3
    spec:
      capacity:
        storage: 10Gi
      volumeMode: Filesystem
      accessModes:
        - ReadWriteOnce
      persistentVolumeReclaimPolicy: Retain
      storageClassName: local-storage
      local:
        path: /data/disk3
      nodeAffinity:
        required:
          nodeSelectorTerms:
            - matchExpressions:
                - key: kubernetes.io/hostname
                  operator: In
                  values:
                    - minio2
  - apiVersion: v1
    kind: PersistentVolume
    metadata:
      name: pv-minio3-disk0
    spec:
      capacity:
        storage: 10Gi
      volumeMode: Filesystem
      accessModes:
        - ReadWriteOnce
      persistentVolumeReclaimPolicy: Retain
      storageClassName: local-storage
      local:
        path: /data/disk0
      nodeAffinity:
        required:
          nodeSelectorTerms:
            - matchExpressions:
                - key: kubernetes.io/hostname
                  operator: In
                  values:
                    - minio3
  - apiVersion: v1
    kind: PersistentVolume
    metadata:
      name: pv-minio3-disk1
    spec:
      capacity:
        storage: 10Gi
      volumeMode: Filesystem
      accessModes:
        - ReadWriteOnce
      persistentVolumeReclaimPolicy: Retain
      storageClassName: local-storage
      local:
        path: /data/disk1
      nodeAffinity:
        required:
          nodeSelectorTerms:
            - matchExpressions:
                - key: kubernetes.io/hostname
                  operator: In
                  values:
                    - minio3
  - apiVersion: v1
    kind: PersistentVolume
    metadata:
      name: pv-minio3-disk2
    spec:
      capacity:
        storage: 10Gi
      volumeMode: Filesystem
      accessModes:
        - ReadWriteOnce
      persistentVolumeReclaimPolicy: Retain
      storageClassName: local-storage
      local:
        path: /data/disk2
      nodeAffinity:
        required:
          nodeSelectorTerms:
            - matchExpressions:
                - key: kubernetes.io/hostname
                  operator: In
                  values:
                    - minio3
  - apiVersion: v1
    kind: PersistentVolume
    metadata:
      name: pv-minio3-disk3
    spec:
      capacity:
        storage: 10Gi
      volumeMode: Filesystem
      accessModes:
        - ReadWriteOnce
      persistentVolumeReclaimPolicy: Retain
      storageClassName: local-storage
      local:
        path: /data/disk3
      nodeAffinity:
        required:
          nodeSelectorTerms:
            - matchExpressions:
                - key: kubernetes.io/hostname
                  operator: In
                  values:
                    - minio3

应用配置

kubectl apply -f pv.yaml

添加 MinIO Helm 仓库

helm repo add minio-operator https://operator.min.io
helm repo update

4.部署 MinIO Operator

# 在线安装
helm install \
  --namespace minio-operator \
  --create-namespace \
  minio-operator minio-operator/operator

# 本地安装
# 方法1：
wget https://ghp.ci/https://raw.githubusercontent.com/minio/operator/master/helm-releases/operator-6.0.3.tgz
tar xf operator-6.0.3.tgz
# 方法2：
helm pull minio-operator/operator --untar
helm install \
--namespace minio-operator \
--create-namespace \
minio-operator ./operator

# 查看
[root@minio1 ~]# helm list -n minio-operator
NAME            NAMESPACE       REVISION        UPDATED                                 STATUS          CHART           APP VERSION
minio-operator  minio-operator  1               2024-09-21 23:20:10.557744863 +0800 CST deployed        operator-6.0.3  v6.0.3

[root@minio1 ~]# kubectl get all -n minio-operator
NAME                                  READY   STATUS    RESTARTS   AGE
pod/minio-operator-66cbc6c865-9clxj   1/1     Running   0          12h
pod/minio-operator-66cbc6c865-kvvkh   1/1     Running   0          12h

NAME               TYPE        CLUSTER-IP      EXTERNAL-IP   PORT(S)    AGE
service/operator   ClusterIP   10.43.124.211   <none>        4221/TCP   12h
service/sts        ClusterIP   10.43.62.198    <none>        4223/TCP   12h

NAME                             READY   UP-TO-DATE   AVAILABLE   AGE
deployment.apps/minio-operator   2/2     2            2           12h

NAME                                        DESIRED   CURRENT   READY   AGE
replicaset.apps/minio-operator-66cbc6c865   2         2         2       12h

5.部署MinIO Tenant
拉取minio-tenant

# 方法1：
wget https://ghp.ci/https://raw.githubusercontent.com/minio/operator/master/helm-releases/tenant-6.0.3.tgz
# 方法2：
helm pull minio-operator/tenant --untar

配置 Tenant 的 Helm Chart。以下是 tenant-values.yaml 文件的内容：

tenant:
  name: myminio
  image:
    repository: quay.io/minio/minio
    tag: RELEASE.2024-08-17T01-24-54Z
    pullPolicy: IfNotPresent
  configSecret:
    name: myminio-env-configuration
    accessKey: minio
    secretKey: minio123
  mountPath: /export
  subPath: /data
  pools:
    - servers: 1
      name: minio1
      volumesPerServer: 4
      size: 10Gi
      storageClassName: local-storage
      nodeSelector:
        "kubernetes.io/hostname": minio1
    - servers: 1
      name: minio2
      volumesPerServer: 4
      size: 10Gi
      storageClassName: local-storage
      nodeSelector:
        "kubernetes.io/hostname": minio2
    - servers: 1
      name: minio3
      volumesPerServer: 4
      size: 10Gi
      storageClassName: local-storage
      nodeSelector:
        "kubernetes.io/hostname": minio3

ingress:
  api:
    enabled: false
    ingressClassName: "nginx"
    labels: { }
    annotations: { }
    tls: [ ]
    host: minio.local
    path: /
    pathType: Prefix
  console:
    enabled: true
    ingressClassName: "nginx"
    labels: { }
    annotations: { }
    tls: [ ]
    host: minio-console.local
    path: /
    pathType: Prefix

应用配置

# 在线安装
helm install \
  --namespace minio-tenant \
  --create-namespace \
  myminio minio-operator/tenant -f tenant-values.yaml
# 本地安装
helm install \
  --namespace minio-tenant \
  --create-namespace \
  myminio ./tenant -f tenant-values.yaml

# 查看
[root@minio1 tenant]# kubectl get all -n minio-tenant
NAME                   READY   STATUS    RESTARTS   AGE
pod/myminio-minio1-0   2/2     Running   0          49m
pod/myminio-minio1-1   2/2     Running   0          49m
pod/myminio-minio2-0   2/2     Running   0          49m
pod/myminio-minio2-1   2/2     Running   0          49m
pod/myminio-minio3-0   2/2     Running   0          49m
pod/myminio-minio3-1   2/2     Running   0          49m

NAME                      TYPE        CLUSTER-IP      EXTERNAL-IP   PORT(S)    AGE
service/minio             ClusterIP   10.43.211.152   <none>        443/TCP    49m
service/myminio-console   ClusterIP   10.43.204.242   <none>        9443/TCP   49m
service/myminio-hl        ClusterIP   None            <none>        9000/TCP   49m

NAME                              READY   AGE
statefulset.apps/myminio-minio1   2/2     49m
statefulset.apps/myminio-minio2   2/2     49m
statefulset.apps/myminio-minio3   2/2     49m

[root@minio1 tenant]# kubectl get pv
NAME              CAPACITY   ACCESS MODES   RECLAIM POLICY   STATUS   CLAIM                                 STORAGECLASS    VOLUMEATTRIBUTESCLASS   REASON   AGE
pv-minio1-disk0   10Gi       RWO            Retain           Bound    minio-tenant/data0-myminio-minio1-0   local-storage   <unset>                          50m
pv-minio1-disk1   10Gi       RWO            Retain           Bound    minio-tenant/data1-myminio-minio1-0   local-storage   <unset>                          50m
pv-minio1-disk2   10Gi       RWO            Retain           Bound    minio-tenant/data0-myminio-minio1-1   local-storage   <unset>                          50m
pv-minio1-disk3   10Gi       RWO            Retain           Bound    minio-tenant/data1-myminio-minio1-1   local-storage   <unset>                          50m
pv-minio2-disk0   10Gi       RWO            Retain           Bound    minio-tenant/data0-myminio-minio2-0   local-storage   <unset>                          50m
pv-minio2-disk1   10Gi       RWO            Retain           Bound    minio-tenant/data0-myminio-minio2-1   local-storage   <unset>                          50m
pv-minio2-disk2   10Gi       RWO            Retain           Bound    minio-tenant/data1-myminio-minio2-1   local-storage   <unset>                          50m
pv-minio2-disk3   10Gi       RWO            Retain           Bound    minio-tenant/data1-myminio-minio2-0   local-storage   <unset>                          50m
pv-minio3-disk0   10Gi       RWO            Retain           Bound    minio-tenant/data0-myminio-minio3-1   local-storage   <unset>                          50m
pv-minio3-disk1   10Gi       RWO            Retain           Bound    minio-tenant/data0-myminio-minio3-0   local-storage   <unset>                          50m
pv-minio3-disk2   10Gi       RWO            Retain           Bound    minio-tenant/data1-myminio-minio3-0   local-storage   <unset>                          50m
pv-minio3-disk3   10Gi       RWO            Retain           Bound    minio-tenant/data1-myminio-minio3-1   local-storage   <unset>                          50m

[root@minio1 tenant]# kubectl get pvc -n minio-tenant
NAME                     STATUS   VOLUME            CAPACITY   ACCESS MODES   STORAGECLASS    VOLUMEATTRIBUTESCLASS   AGE
data0-myminio-minio1-0   Bound    pv-minio1-disk0   10Gi       RWO            local-storage   <unset>                 51m
data0-myminio-minio1-1   Bound    pv-minio1-disk2   10Gi       RWO            local-storage   <unset>                 51m
data0-myminio-minio2-0   Bound    pv-minio2-disk0   10Gi       RWO            local-storage   <unset>                 51m
data0-myminio-minio2-1   Bound    pv-minio2-disk1   10Gi       RWO            local-storage   <unset>                 51m
data0-myminio-minio3-0   Bound    pv-minio3-disk1   10Gi       RWO            local-storage   <unset>                 51m
data0-myminio-minio3-1   Bound    pv-minio3-disk0   10Gi       RWO            local-storage   <unset>                 51m
data1-myminio-minio1-0   Bound    pv-minio1-disk1   10Gi       RWO            local-storage   <unset>                 51m
data1-myminio-minio1-1   Bound    pv-minio1-disk3   10Gi       RWO            local-storage   <unset>                 51m
data1-myminio-minio2-0   Bound    pv-minio2-disk3   10Gi       RWO            local-storage   <unset>                 51m
data1-myminio-minio2-1   Bound    pv-minio2-disk2   10Gi       RWO            local-storage   <unset>                 51m
data1-myminio-minio3-0   Bound    pv-minio3-disk2   10Gi       RWO            local-storage   <unset>                 51m
data1-myminio-minio3-1   Bound    pv-minio3-disk3   10Gi       RWO            local-storage   <unset>                 51m

通过以上步骤，每台机器上的每个磁盘都将被单独挂载到容器内部，实现分布式存储，并且 MinIO 将在指定的子路径 data 下存储数据。
附：多次测试方便使用

cat > clear.sh << EOF
helm uninstall myminio -n minio-tenant
kubectl delete pvc --all -n minio-tenant
kubectl delete pv --all
rm -rf /data/*
EOF

cat > start.sh << EOF
mkdir -p /data/disk{0..3}
kubectl apply -f /root/pv.yaml
helm install   --namespace minio-tenant   --create-namespace   myminio minio-operator/tenant -f /root/tenant/tenant-values.yaml
EOF

rm -rf * && mkdir -p /data/disk{0..3}

k8s集群外部使用MinIO

先对service myminio-console 和myminio-hl 配置ingress或者NodePort供集群外访问
NodePort参考配置
myminio-console.yaml

apiVersion: v1
kind: Service
metadata:
  labels:
    v1.min.io/console: myminio-console
  name: minio-console-nodeport
  namespace: minio-tenant
spec:
  externalTrafficPolicy: Cluster
  internalTrafficPolicy: Cluster
  ipFamilies:
    - IPv4
  ipFamilyPolicy: SingleStack
  ports:
    - name: https-console
      nodePort: 31074
      port: 80
      protocol: TCP
      targetPort: 9443
  selector:
    v1.min.io/tenant: myminio
  sessionAffinity: None
  type: NodePort

myminio-hl.yaml

apiVersion: v1
kind: Service
metadata:
  labels:
    v1.min.io/tenant: myminio
  name: minio-api
  namespace: minio-tenant
spec:
  externalTrafficPolicy: Cluster
  internalTrafficPolicy: Cluster
  ipFamilies:
    - IPv4
  ipFamilyPolicy: SingleStack
  ports:
    - name: https-minio
      nodePort: 30001
      port: 9000
      protocol: TCP
      targetPort: 9000
  publishNotReadyAddresses: true
  selector:
    v1.min.io/tenant: myminio
  type: NodePort

控制台配置bucket和账户等信息

登录minio-console页面https://10.2.64.91:31074
账户密码：minio/minio123
1.创建bucket，关闭版本控制，关闭加密
在这里插入图片描述

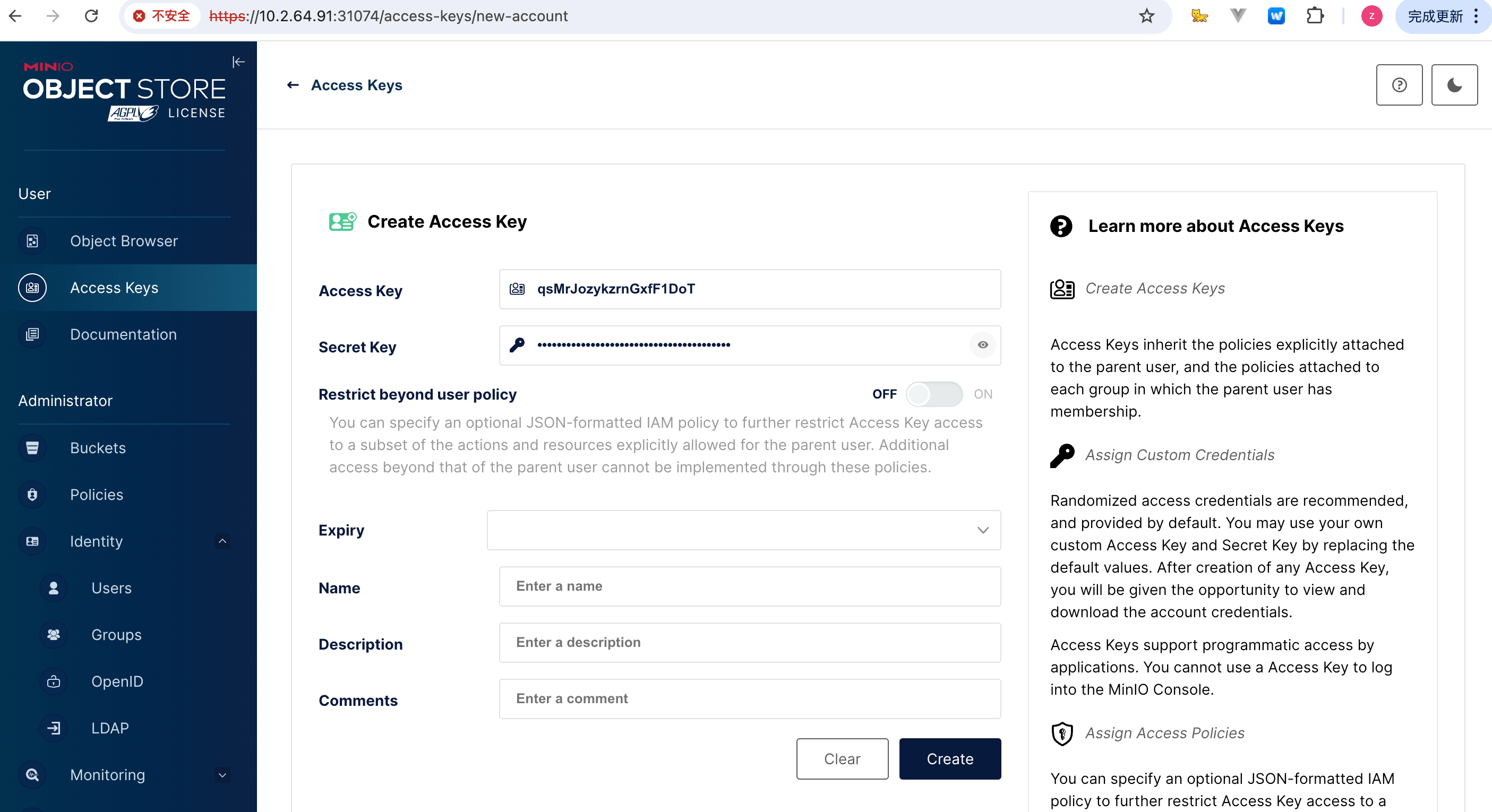

2.创建Access Key和Secret Key
在这里插入图片描述

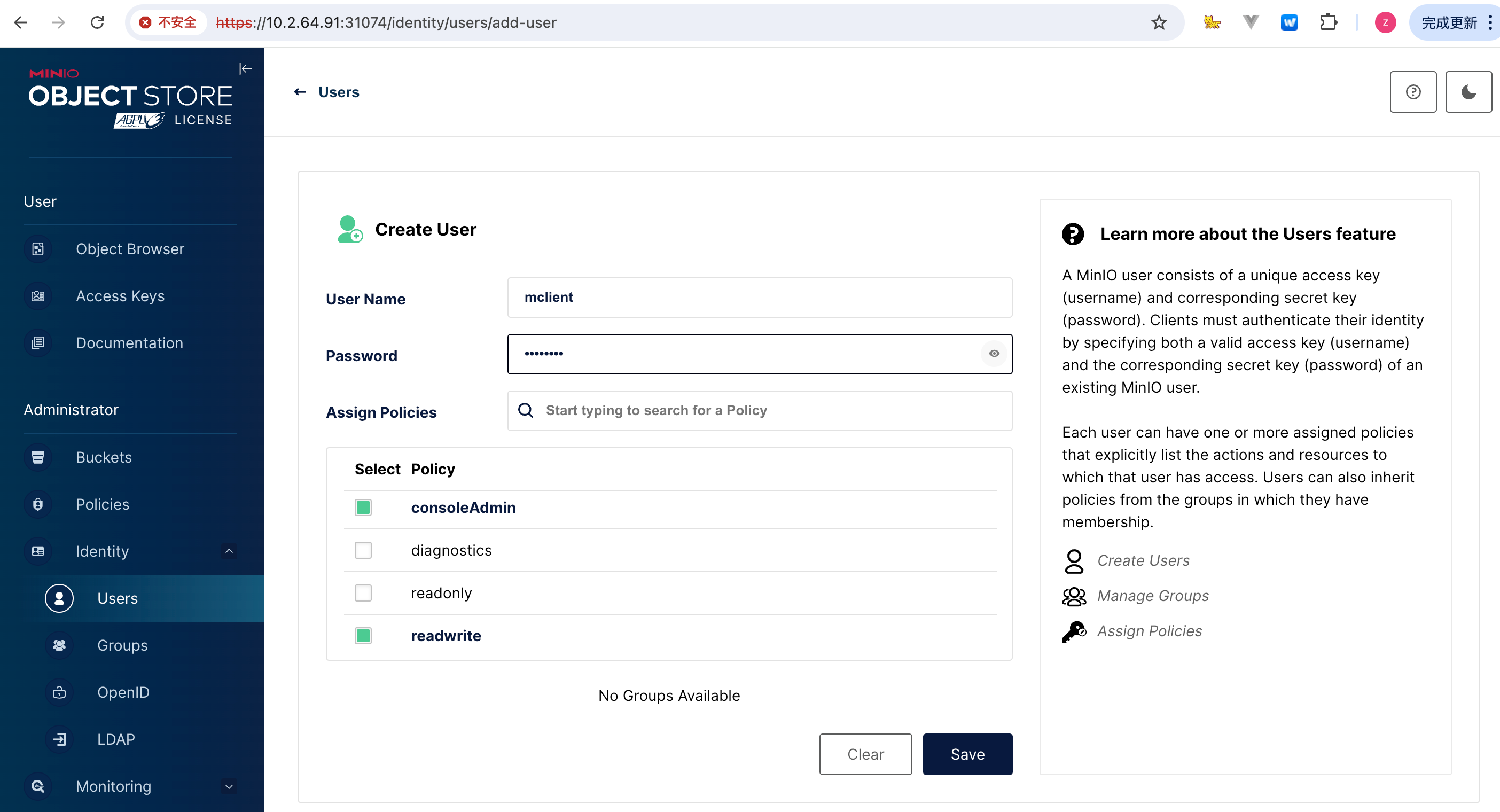

3.创建用户

4.设置Region

扩展tenant

不要在用过的机器上，通过增加pools中pool来扩容。
新增机器minio4，先挂载好磁盘/data/disk0
更新pv.yaml

apiVersion: v1
kind: List
items:
  - apiVersion: v1
    kind: PersistentVolume
    metadata:
      name: pv-minio1-disk0
    spec:
      capacity:
        storage: 10Gi
      volumeMode: Filesystem
      accessModes:
        - ReadWriteOnce
      persistentVolumeReclaimPolicy: Retain
      storageClassName: local-storage
      local:
        path: /data/disk0
      nodeAffinity:
        required:
          nodeSelectorTerms:
            - matchExpressions:
                - key: kubernetes.io/hostname
                  operator: In
                  values:
                    - minio1
  - apiVersion: v1
    kind: PersistentVolume
    metadata:
      name: pv-minio1-disk1
    spec:
      capacity:
        storage: 10Gi
      volumeMode: Filesystem
      accessModes:
        - ReadWriteOnce
      persistentVolumeReclaimPolicy: Retain
      storageClassName: local-storage
      local:
        path: /data/disk1
      nodeAffinity:
        required:
          nodeSelectorTerms:
            - matchExpressions:
                - key: kubernetes.io/hostname
                  operator: In
                  values:
                    - minio1
  - apiVersion: v1
    kind: PersistentVolume
    metadata:
      name: pv-minio1-disk2
    spec:
      capacity:
        storage: 10Gi
      volumeMode: Filesystem
      accessModes:
        - ReadWriteOnce
      persistentVolumeReclaimPolicy: Retain
      storageClassName: local-storage
      local:
        path: /data/disk2
      nodeAffinity:
        required:
          nodeSelectorTerms:
            - matchExpressions:
                - key: kubernetes.io/hostname
                  operator: In
                  values:
                    - minio1
  - apiVersion: v1
    kind: PersistentVolume
    metadata:
      name: pv-minio1-disk3
    spec:
      capacity:
        storage: 10Gi
      volumeMode: Filesystem
      accessModes:
        - ReadWriteOnce
      persistentVolumeReclaimPolicy: Retain
      storageClassName: local-storage
      local:
        path: /data/disk3
      nodeAffinity:
        required:
          nodeSelectorTerms:
            - matchExpressions:
                - key: kubernetes.io/hostname
                  operator: In
                  values:
                    - minio1
  - apiVersion: v1
    kind: PersistentVolume
    metadata:
      name: pv-minio2-disk0
    spec:
      capacity:
        storage: 10Gi
      volumeMode: Filesystem
      accessModes:
        - ReadWriteOnce
      persistentVolumeReclaimPolicy: Retain
      storageClassName: local-storage
      local:
        path: /data/disk0
      nodeAffinity:
        required:
          nodeSelectorTerms:
            - matchExpressions:
                - key: kubernetes.io/hostname
                  operator: In
                  values:
                    - minio2
  - apiVersion: v1
    kind: PersistentVolume
    metadata:
      name: pv-minio2-disk1
    spec:
      capacity:
        storage: 10Gi
      volumeMode: Filesystem
      accessModes:
        - ReadWriteOnce
      persistentVolumeReclaimPolicy: Retain
      storageClassName: local-storage
      local:
        path: /data/disk1
      nodeAffinity:
        required:
          nodeSelectorTerms:
            - matchExpressions:
                - key: kubernetes.io/hostname
                  operator: In
                  values:
                    - minio2
  - apiVersion: v1
    kind: PersistentVolume
    metadata:
      name: pv-minio2-disk2
    spec:
      capacity:
        storage: 10Gi
      volumeMode: Filesystem
      accessModes:
        - ReadWriteOnce
      persistentVolumeReclaimPolicy: Retain
      storageClassName: local-storage
      local:
        path: /data/disk2
      nodeAffinity:
        required:
          nodeSelectorTerms:
            - matchExpressions:
                - key: kubernetes.io/hostname
                  operator: In
                  values:
                    - minio2
  - apiVersion: v1
    kind: PersistentVolume
    metadata:
      name: pv-minio2-disk3
    spec:
      capacity:
        storage: 10Gi
      volumeMode: Filesystem
      accessModes:
        - ReadWriteOnce
      persistentVolumeReclaimPolicy: Retain
      storageClassName: local-storage
      local:
        path: /data/disk3
      nodeAffinity:
        required:
          nodeSelectorTerms:
            - matchExpressions:
                - key: kubernetes.io/hostname
                  operator: In
                  values:
                    - minio2
  - apiVersion: v1
    kind: PersistentVolume
    metadata:
      name: pv-minio3-disk0
    spec:
      capacity:
        storage: 10Gi
      volumeMode: Filesystem
      accessModes:
        - ReadWriteOnce
      persistentVolumeReclaimPolicy: Retain
      storageClassName: local-storage
      local:
        path: /data/disk0
      nodeAffinity:
        required:
          nodeSelectorTerms:
            - matchExpressions:
                - key: kubernetes.io/hostname
                  operator: In
                  values:
                    - minio3
  - apiVersion: v1
    kind: PersistentVolume
    metadata:
      name: pv-minio3-disk1
    spec:
      capacity:
        storage: 10Gi
      volumeMode: Filesystem
      accessModes:
        - ReadWriteOnce
      persistentVolumeReclaimPolicy: Retain
      storageClassName: local-storage
      local:
        path: /data/disk1
      nodeAffinity:
        required:
          nodeSelectorTerms:
            - matchExpressions:
                - key: kubernetes.io/hostname
                  operator: In
                  values:
                    - minio3
  - apiVersion: v1
    kind: PersistentVolume
    metadata:
      name: pv-minio3-disk2
    spec:
      capacity:
        storage: 10Gi
      volumeMode: Filesystem
      accessModes:
        - ReadWriteOnce
      persistentVolumeReclaimPolicy: Retain
      storageClassName: local-storage
      local:
        path: /data/disk2
      nodeAffinity:
        required:
          nodeSelectorTerms:
            - matchExpressions:
                - key: kubernetes.io/hostname
                  operator: In
                  values:
                    - minio3
  - apiVersion: v1
    kind: PersistentVolume
    metadata:
      name: pv-minio3-disk3
    spec:
      capacity:
        storage: 10Gi
      volumeMode: Filesystem
      accessModes:
        - ReadWriteOnce
      persistentVolumeReclaimPolicy: Retain
      storageClassName: local-storage
      local:
        path: /data/disk3
      nodeAffinity:
        required:
          nodeSelectorTerms:
            - matchExpressions:
                - key: kubernetes.io/hostname
                  operator: In
                  values:
                    - minio3
  - apiVersion: v1
    kind: PersistentVolume
    metadata:
      name: pv-minio4-disk0
    spec:
      capacity:
        storage: 10Gi
      volumeMode: Filesystem
      accessModes:
        - ReadWriteOnce
      persistentVolumeReclaimPolicy: Retain
      storageClassName: local-storage
      local:
        path: /data/disk0
      nodeAffinity:
        required:
          nodeSelectorTerms:
            - matchExpressions:
                - key: kubernetes.io/hostname
                  operator: In
                  values:
                    - minio4

应用配置

kubectl apply -f pv.yaml

再调整tentant配置，增加pool

tenant:
  name: myminio
  image:
    repository: quay.io/minio/minio
    tag: RELEASE.2024-08-17T01-24-54Z
    pullPolicy: IfNotPresent
  configSecret:
    name: myminio-env-configuration
    accessKey: minio
    secretKey: minio123
  mountPath: /export
  subPath: /data
  pools:
    - servers: 1
      name: minio1
      volumesPerServer: 4
      size: 10Gi
      storageClassName: local-storage
      nodeSelector:
        "kubernetes.io/hostname": minio1
    - servers: 1
      name: minio2
      volumesPerServer: 4
      size: 10Gi
      storageClassName: local-storage
      nodeSelector:
        "kubernetes.io/hostname": minio2
    - servers: 1
      name: minio3
      volumesPerServer: 4
      size: 10Gi
      storageClassName: local-storage
      nodeSelector:
        "kubernetes.io/hostname": minio3
    - servers: 1
      name: minio4
      volumesPerServer: 1
      size: 10Gi
      storageClassName: local-storage
      nodeSelector:
        "kubernetes.io/hostname": minio4

ingress:
  api:
    enabled: false
    ingressClassName: "nginx"
    labels: { }
    annotations: { }
    tls: [ ]
    host: minio.local
    path: /
    pathType: Prefix
  console:
    enabled: true
    ingressClassName: "nginx"
    labels: { }
    annotations: { }
    tls: [ ]
    host: minio-console.local
    path: /
    pathType: Prefix

升级tenant

helm upgrade myminio ./tenant -f tenant-values.yaml

CentOS7.9使用parted磁盘分区xfs文件系统)

minio挂载磁盘推荐使用xfs文件系统，这里给出参考

创建GPT分区表
使用parted命令为磁盘创建GPT分区表。

sudo parted /dev/vdb mklabel gpt

• parted: 磁盘分区工具。
• /dev/vdb: 指定要操作的磁盘设备。
• mklabel gpt: 创建GPT分区表。

创建主分区
创建一个占据整个磁盘的主分区。

sudo parted /dev/vdb mkpart primary xfs 0% 100%

• mkpart primary xfs: 创建一个主分区，xfs作为文件系统类型（虽然这一步不会真正格式化分区，但可以作为格式化的提示）。
• 0% 100%: 分区从磁盘开始到结束。

格式化分区为XFS文件系统
使用mkfs.xfs命令格式化分区。

sudo mkfs.xfs /dev/vdb1

• mkfs.xfs: 创建XFS文件系统的命令。
• /dev/vdb1: 指定要格式化的分区。

sudo mkdir -p /data/disk1

• mkdir -p: 创建目录，-p参数确保如果目录不存在则创建它。
• /data/disk1: 挂载点路径。

挂载分区
将分区挂载到挂载点。

sudo mount /dev/vdb1 /data/disk1

• mount: 挂载命令。
• /dev/vdb1: 要挂载的分区。
• /data/disk1: 挂载点。

添加到fstab以实现开机自动挂载
将分区的UUID添加到/etc/fstab文件，以实现开机自动挂载。

UUID=$(sudo blkid -s UUID -o value /dev/vdb1)
echo "UUID=$UUID /data/disk1 xfs defaults 0 0" | sudo tee -a /etc/fstab

• blkid -s UUID -o value /dev/vdb1: 获取分区的UUID。
• echo: 创建fstab文件的条目。
• tee -a: 将条目添加到/etc/fstab文件。

注意事项

• 在执行操作前，请确保备份了所有重要数据。
• 使用UUID而不是设备文件名（如/dev/sdb1）来挂载分区，可以避免因磁盘顺序变化导致的问题。
• 确保在执行这些操作时，磁盘没有被挂载。

请根据你的实际情况调整上述命令中的磁盘设备名（如/dev/vdb）和挂载点（如/data/disk1）。

shell脚本

#!/bin/bash

# 定义磁盘设备和挂载点
DISK="/dev/vdb"
MOUNT_POINT="/data/disk1"

# 创建挂载点目录
if [ ! -d "$MOUNT_POINT" ]; then
    sudo mkdir -p "$MOUNT_POINT"
fi

# 检查磁盘是否已经分区，如果是，则先删除分区
if sudo parted "$DISK" print | grep -q "Partition Table"; then
    echo "磁盘 $DISK 已分区，将删除现有分区。"
    sudo parted -s "$DISK" mklabel gpt
fi

# 创建新的单一分区
echo "正在创建新的分区..."
sudo parted -s "$DISK" mkpart primary xfs 0% 100%

# 格式化分区为XFS文件系统
echo "正在格式化分区为XFS文件系统..."
PARTITION="${DISK}1" # 获取分区设备文件
sudo mkfs.xfs "$PARTITION"

# 挂载分区
echo "正在挂载分区..."
sudo mount "$PARTITION" "$MOUNT_POINT"

# 添加到fstab以实现开机自动挂载
echo "正在添加分区到 /etc/fstab..."
UUID=$(sudo blkid -s UUID -o value "$PARTITION")
if [ -n "$UUID" ]; then
    echo "UUID=$UUID $MOUNT_POINT xfs defaults 0 0" | sudo tee -a /etc/fstab
    echo "磁盘 $DISK 已分区、格式化并挂载到 $MOUNT_POINT。"
else
    echo "无法获取分区的UUID，请手动添加到 /etc/fstab。"
fi
blkid
