WPF（自适应圆）

        在WPF中可以实现椭圆，利用Ellipse或者Border。但是要实现圆，就必须设定固定的长宽，然后根据长宽设置对应的倒角才可以实现圆。如果这样设计，就固定了长宽，不能根据界面自适应调整。所以我们可以根据绑定和转换器将实际的长宽转换为对应的倒角。

    using System;
    using System.Globalization;
    using System.Windows.Data;

    [ValueConversion(typeof(double), typeof(double[]))]
    public class RoundMathConverter : IMultiValueConverter
    {
        public object Convert(object[] values, Type targetType, object parameter, CultureInfo culture)
        {
            if (values.Length < 2)
            {
                throw new NotImplementedException();
            }
            double.TryParse(values[0].ToString(), out double d1);
            double.TryParse(values[1].ToString(), out double d2);
            if (d1 * d2 == 0)
            {
                return double.NaN;
            }
            return Math.Min(d1, d2);
        }

        public object[] ConvertBack(object value, Type[] targetTypes, object parameter, CultureInfo culture)
        {
            throw new NotImplementedException();
        }
    }

    [ValueConversion(typeof(System.Windows.CornerRadius), typeof(double[]))]
    public class RoundRadiusConverter : IMultiValueConverter
    {
        public object Convert(object[] values, Type targetType, object parameter, CultureInfo culture)
        {
            if (values.Length < 2)
            {
                throw new NotImplementedException();
            }
            double.TryParse(values[0].ToString(), out double d1);
            double.TryParse(values[1].ToString(), out double d2);
            double ratio = 1;
            if (values.Length >= 3)
            {
                double.TryParse(values[2].ToString(), out ratio);
            }
            return new System.Windows.CornerRadius(Math.Min(d1, d2) * ratio / 2);
        }

        public object[] ConvertBack(object value, Type[] targetTypes, object parameter, CultureInfo culture)
        {
            throw new NotImplementedException();
        }
    }

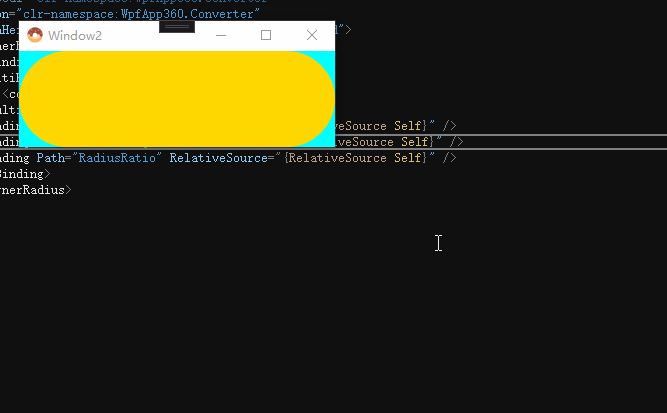

1.椭圆

    using System.Windows;
    using System.Windows.Controls;

    /// <summary>
    /// EllipseBorder.xaml 的交互逻辑
    /// </summary>
    public partial class EllipseBorder : Border
    {
        public static readonly DependencyProperty RadiusRatioProperty =
            DependencyProperty.Register(nameof(RadiusRatio), typeof(float), typeof(EllipseBorder), new FrameworkPropertyMetadata(1f));

        public float RadiusRatio
        {
            get { return (float)GetValue(RadiusRatioProperty); }
            set { SetValue(RadiusRatioProperty, value); }
        }

        public EllipseBorder()
        {
            InitializeComponent();
        }
    }

<Border x:Class="WpfApp360.CustomControl.EllipseBorder"
        xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
        xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
        xmlns:d="http://schemas.microsoft.com/expression/blend/2008"
        xmlns:mc="http://schemas.openxmlformats.org/markup-compatibility/2006"
        xmlns:local="clr-namespace:WpfApp360.Converter"
        xmlns:con="clr-namespace:WpfApp360.Converter"
        d:DesignHeight="450" d:DesignWidth="800" mc:Ignorable="d">
    <Border.CornerRadius>
        <MultiBinding>
            <MultiBinding.Converter>
                <con:RoundRadiusConverter />
            </MultiBinding.Converter>
            <Binding Path="ActualWidth" RelativeSource="{RelativeSource Self}" />
            <Binding Path="ActualHeight" RelativeSource="{RelativeSource Self}" />
            <Binding Path="RadiusRatio" RelativeSource="{RelativeSource Self}" />
        </MultiBinding>
    </Border.CornerRadius>
</Border>

可通过设置RadiusRatio来控制倒角的比例。

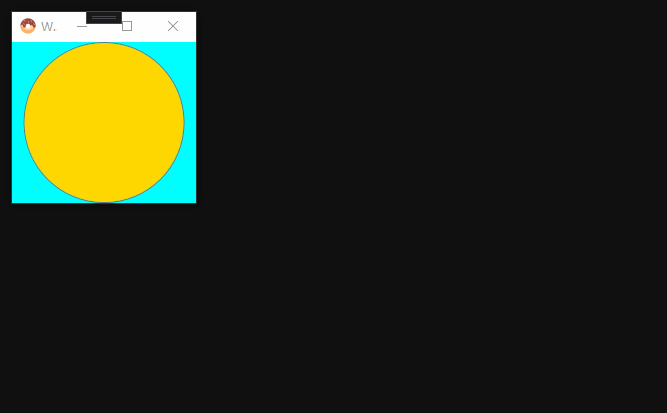

2.圆

由于圆需要根据ActualHeight和ActualWidth 来设置元素的Width和Height，但是这两者之间会互相影响，所以我们不能和椭圆一样来定义一个Border。下面我们设计一个圆形Button，在Button模板中定义一个Border。

<Button x:Class="WpfApp360.CustomControl.RoundButton"
        xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
        xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
        xmlns:d="http://schemas.microsoft.com/expression/blend/2008"
        xmlns:mc="http://schemas.openxmlformats.org/markup-compatibility/2006"
        xmlns:con="clr-namespace:WpfApp360.Converter"
        d:DesignHeight="400" d:DesignWidth="400" mc:Ignorable="d">
    <Button.Template>
        <ControlTemplate TargetType="Button">
            <Border Background="{TemplateBinding Background}" BorderBrush="{TemplateBinding BorderBrush}" BorderThickness="{TemplateBinding BorderThickness}">
                <Border.CornerRadius>
                    <MultiBinding>
                        <MultiBinding.Converter>
                            <con:RoundRadiusConverter />
                        </MultiBinding.Converter>
                        <Binding Path="ActualWidth" RelativeSource="{RelativeSource TemplatedParent}" />
                        <Binding Path="ActualHeight" RelativeSource="{RelativeSource TemplatedParent}" />
                    </MultiBinding>
                </Border.CornerRadius>
                <Border.Width>
                    <MultiBinding>
                        <MultiBinding.Converter>
                            <con:RoundMathConverter />
                        </MultiBinding.Converter>
                        <Binding Path="ActualWidth" RelativeSource="{RelativeSource TemplatedParent}" />
                        <Binding Path="ActualHeight" RelativeSource="{RelativeSource TemplatedParent}" />
                    </MultiBinding>
                </Border.Width>
                <Border.Height>
                    <MultiBinding>
                        <MultiBinding.Converter>
                            <con:RoundMathConverter />
                        </MultiBinding.Converter>
                        <Binding Path="ActualWidth" RelativeSource="{RelativeSource TemplatedParent}" />
                        <Binding Path="ActualHeight" RelativeSource="{RelativeSource TemplatedParent}" />
                    </MultiBinding>
                </Border.Height>
                <ContentPresenter HorizontalAlignment="{TemplateBinding HorizontalContentAlignment}" VerticalAlignment="{TemplateBinding VerticalContentAlignment}" />
            </Border>
        </ControlTemplate>
    </Button.Template>
</Button>
