该篇文章介绍了如何在微信小程序中使用JavaScript和canvasAPI实现动态验证码的生成,包括随机代码生成、字符颜色和位置的随机变化,以及干扰线和点的绘制。
最近需要使用到图形验证码,起初使用旧版的api
wx.createCanvasContext('myCanvas')
发现官方已经弃用了,不能实现需要的效果了,折腾好久终于使用新版的api做了出来。

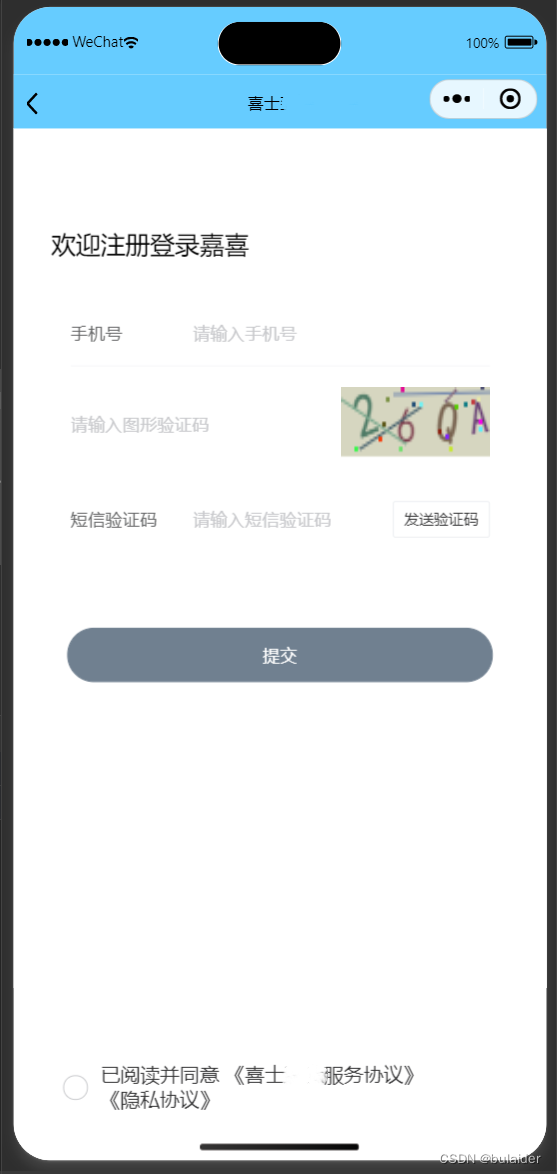

做出来的最终效果图:
在WXview.wxml中,在需要的地方添加以下代码:
<view slot="right-icon">
<canvas id="myCanvas"
type="2d"
bindtap='change'
style="width:120px;height: 60px;"
>
</canvas>
</view>
在WXview.js中:
Page({
data: {
// 图形验证码
text:"",
},
onLoad(options) {
var that = this;
this.drawPic(that);
},
// 更换图形验证码
change: function() {
var that = this;
this.drawPic(that);
},
// 随机数
randomNum(min, max) {
return Math.floor(Math.random() * (max - min) + min);
},
/**生成一个随机色**/
randomColor(min, max) {
let r = this.randomNum(min, max);
let g = this.randomNum(min, max);
let b = this.randomNum(min, max);
return "rgb(" + r + "," + g + "," + b + ")";
},
/**绘制验证码图片**/
drawPic(that) {
// ctx = wx.createCanvasContext('canvas');
var ctx;
wx.createSelectorQuery()
.select('#myCanvas') // 在 WXML 中填入的 id
.node(({ node: canvas }) => {
canvas.width = 80
canvas.height = 30
const ctx12 = canvas.getContext('2d')
ctx = ctx12
})
.exec((res)=>{
/**绘制背景色**/
ctx.fillStyle = this.randomColor(180, 240); //颜色若太深可能导致看不清
ctx.fillRect(0, 0, 90, 28)
/**绘制文字**/
var arr;
var text = '';
var str = 'ABCEFGHJKLMNPQRSTWXY123456789';
for (var i = 0; i < 4; i++) {
var txt = str[this.randomNum(0, str.length)];
ctx.fillStyle = this.randomColor(50, 160); //随机生成字体颜色
ctx.font = this.randomNum(20, 26) + 'px SimHei'; //随机生成字体大小
var x = 5 + i * 20;
var y = this.randomNum(20, 25);
var deg = this.randomNum(-20, 20);
//修改坐标原点和旋转角度
ctx.translate(x, y);
ctx.rotate(deg * Math.PI / 180);
ctx.fillText(txt, 5, 0);
text = text + txt;
//恢复坐标原点和旋转角度
ctx.rotate(-deg * Math.PI / 180);
ctx.translate(-x, -y);
}
/**绘制干扰线**/
for (var i = 0; i < 4; i++) {
ctx.strokeStyle = this.randomColor(40, 180);
ctx.beginPath();
ctx.moveTo(this.randomNum(0, 90), this.randomNum(0, 28));
ctx.lineTo(this.randomNum(0, 90), this.randomNum(0, 28));
ctx.stroke();
}
/**绘制干扰点**/
for (var i = 0; i < 20; i++) {
ctx.fillStyle = this.randomColor(0, 255);
ctx.beginPath();
ctx.arc(this.randomNum(0, 90), this.randomNum(0, 28), 1, 0, 2 * Math.PI);
ctx.fill();
}
that.setData({
text: text
})
})
}
})
以上代码为微信小程序原生代码,可直接复制粘贴就可以运行使用。

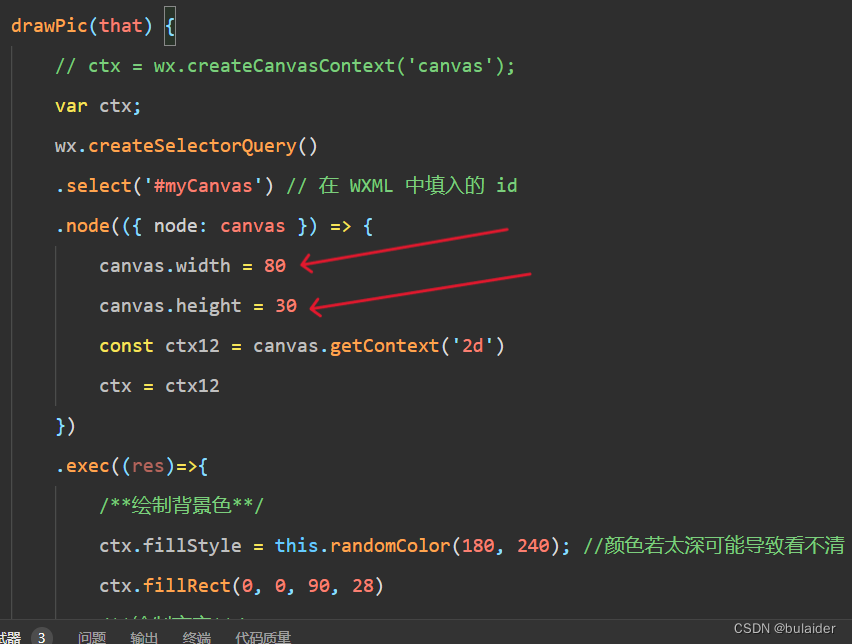

想要调整图形验证码画布的大小可以修改这些元素的值:

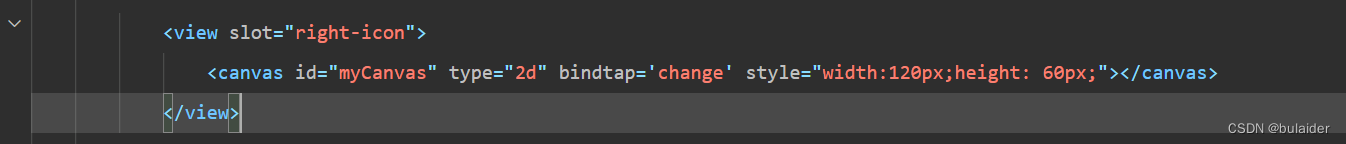

以及css中的width和height属性,进行大小调整。
