RTD2735TD/RTD2738 8K30Hz/4K165Hz

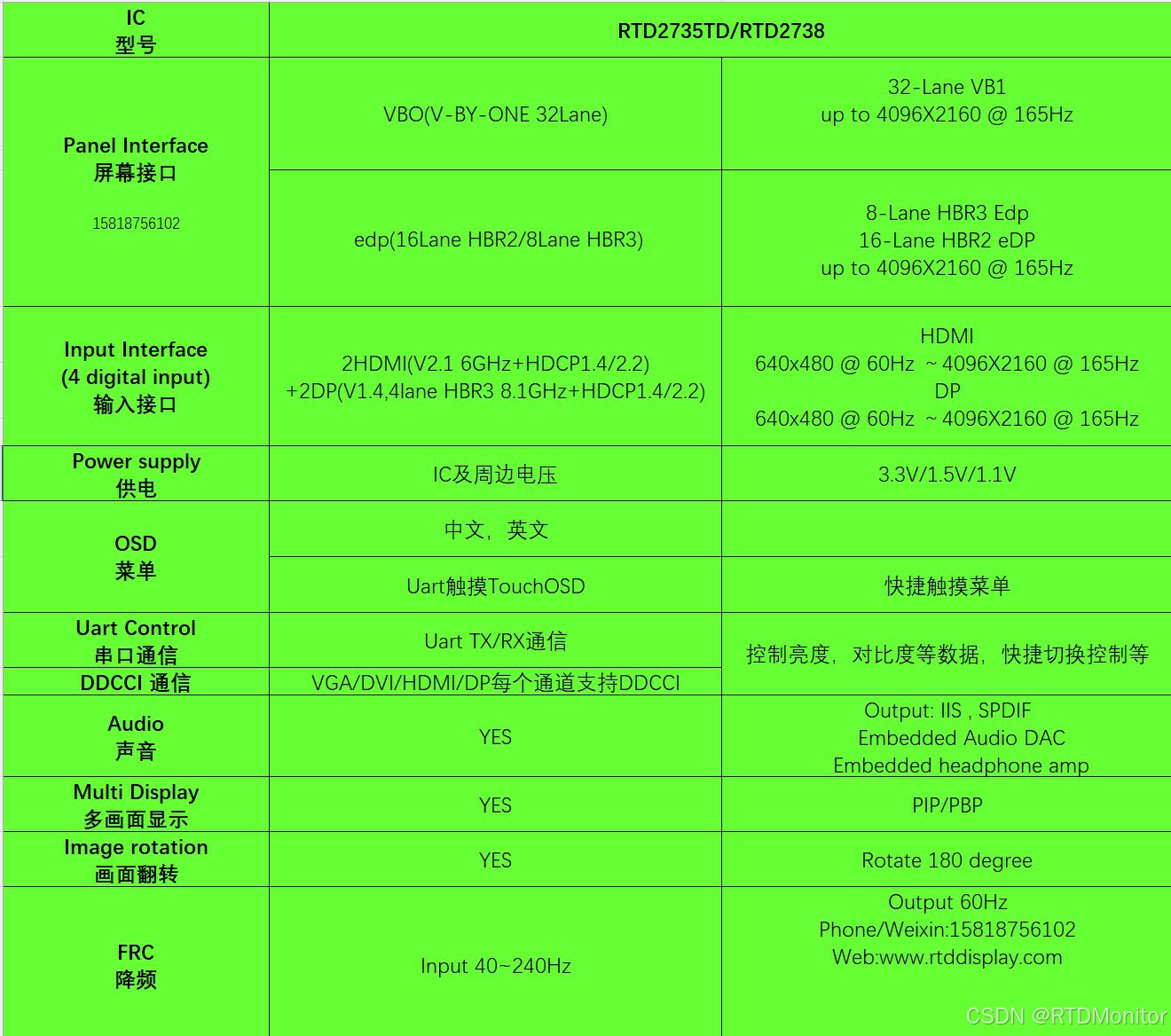

RTD2735TD/RTD2738,支持3DP+2HDMI 输入，输出支持32-lane V-by-One, 16-lane eDP(HBR2) and 8-lane eDP HBR3 ,点8K/4K165Hz 屏

General

RTD2735TD-CG supports input format up to  4096 x 2160 @ 165Hz

Support V-by-1 and eDP panel interfaces.

Crystal

Support 14.318MHz crystal type

DisplayPort Receiver

RTD2735TD-CG supports 3 ports of Ultra-High Speed Receiver can support DisplayPort1.4In DisplayPort mode, four link layer speedHBR3 (8.1GHz), HBR2 (5.4GHz), HBR (2.7GHz), RBR (1.62GHz) are supported,weixin:RTDDISPLAY

HDMI Receiver

RTD2735TD-CG supports 2 ports of Ultra-High Speed Receiver can support HDMI2.1

Data rate in FRL mode supports 12-Gbps mode and TMDS mode supports up to 6-Gbps.

Output Interface

Support 8-bit / 10-bit output through either V-by-1 and eDP

Supports 32-lane V-by-One, 16-lane eDP (HBR2) and 8-lane eDP HBR3 for 4096 x 2160 @ 165Hz.
