python 自动识别并连接串口

这个属于我项目中一个函数,跟大家分享一下我的思路及最终实现

在编写串口通信工具中,需要实现一个函数,自动找到对应com 口,并且连接该com口,保证后续通信正常
作为初始化过程的一部分。

思路

在win 设备管理器中,经常会出现多个com 口,但并不是每个com 口都是目标设备所链接的。
尝试打开每个com 口,输入enter 按键, 正确的com 口,会有ack log 返回,表明通信 正常

否则,没有任何log 返回,则判断为非目标设备所连接的com 口。

实现

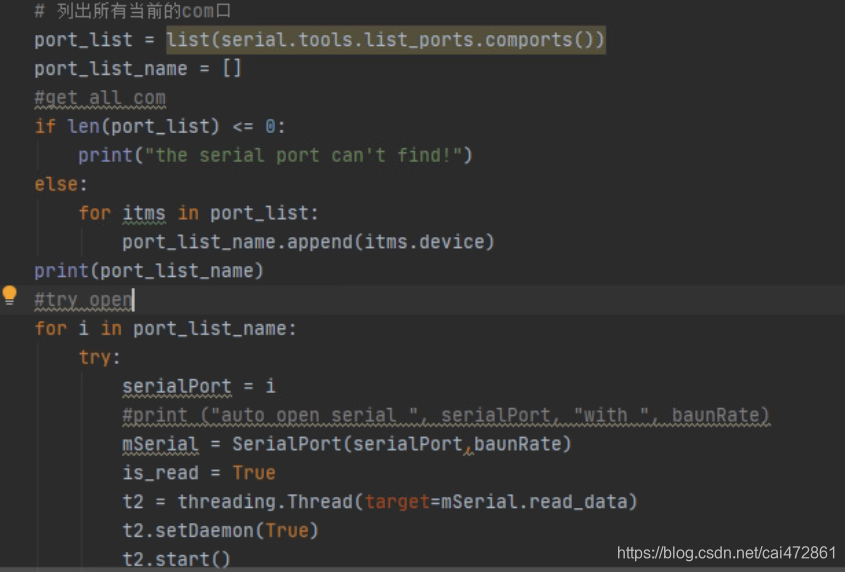

在这里插入图片描述
尝试去打开所有com 口,然后发送enter, 如果在一段时间内有返回值,检查com 口收到的字节数,如果非零,则表明找到了对应的com 口。

完整测试代码如下:

import serial
import serial.tools.list_ports
import threading
import binascii
import time
from datetime import datetime

# default value
baunRate = 115200
is_read = False
is_write = False
write_buff = []
sys_buff = []
mSerial = None
callback = None
is_opened = 0
is_registed = 0


class SerialPort:

    def __init__(self,port,buand):

        self.port = serial.Serial(port,buand)
        self.port.close()
        if not self.port.isOpen():
            self.port.open()

        #the index of data_bytes for read operation,私有属性
        #only used in read lines
        self.__read_ptr = 0
        self.__read_head = 0
        #store all read bytes
        # used in read date, read lines
        self.__data_bytes = bytearray()

    def port_open(self):
        if not self.port.isOpen():
            self.port.open()

    def port_close(self):
        self.port.close()

    def send(self):
        global is_write
        global write_buff

        while is_write:
            if len(write_buff):
                msg = write_buff.pop(0)
                msg = msg+"\n"
                cmd = msg.encode()
                try
