USB设备类型汇总

USB设备类型汇总

一、USB概述

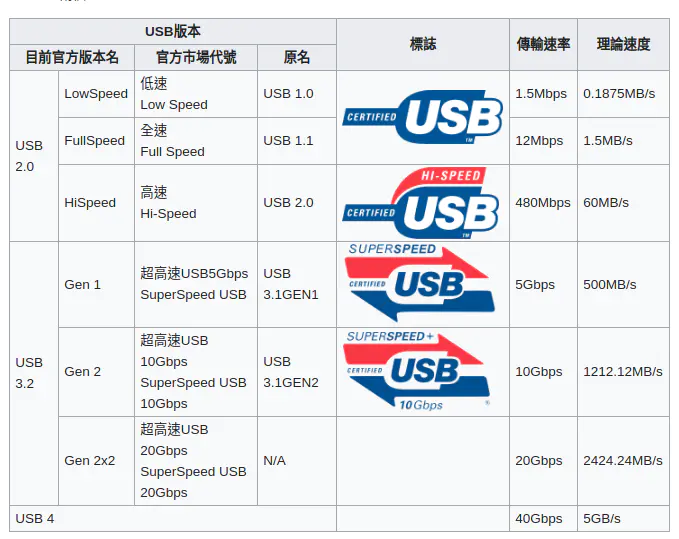

1.USB 版本

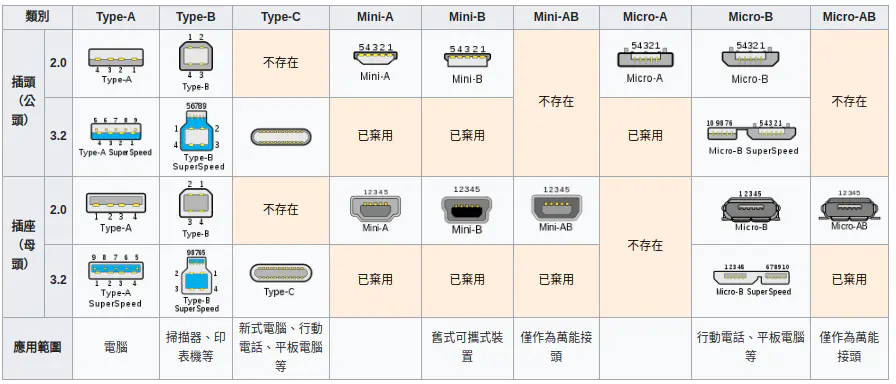

2.USB 接口

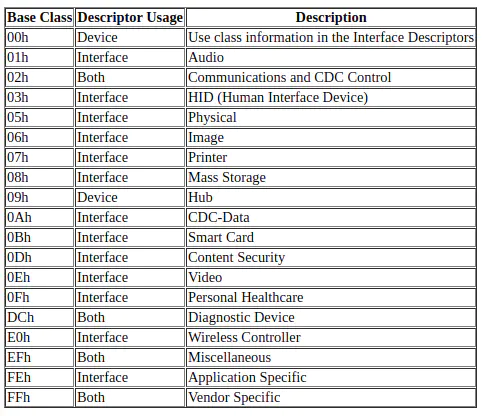

3.USB Class Codes

USB定义了设备类的类别码信息，它的功能包括：可以用来识别设备并且加载设备驱动。这种代码信息有包含Base Class（[基类]）、SubClass（[子类]）、Protocol（[协议]）一共占有3个字节。

Base Class、SubClass与Protocol详细关系列表

4.USB封包格式

二、常见usb设备类型

参考ACM&ECM&NCM&EEM&RNDIS&RmNet介绍

1.USB CDC设备

通用串行总线(USB)通信设备(Communication devices)的定义由三个类组成：

• 通信设备类(Communication Device Class, CDC)：设备级定义，被主机用于识别(确定)含有几种不同类型接口的通信设备；
• 通信接口类(Communication Interface Class)：定义了一种通用机制，该机制可被用来使能处于USB总线上的所有类型的通信服务，即USB通信设备的控制功能；
• 数据接口类(Data Interface Class)：定义了一种通用机制，当一种数据不符合任何类的要求时,该机制使这种数据传输能通过USB块传输或同步传输类型在USB总线上进行，即通过USB块传输或同步传输类型去实现任何类型的数据传输的机制。

1）USB CDC ACM（虚拟串口）

• CDC-ACM (Abstract Control Model 抽象控制模型）允许任何通信设备提供串行通信接口（例如发送和接收AT命令的调制解调器设备）。该设备类型是在PSTN(Public Switched Telephone Network)中定义的。
• CDC-ACM驱动程序将USB设备作为虚拟调制解调器或虚拟COM端口暴露给操作系统。驱动程序可以通过ACM（通过不同通道分离数据和AT命令）或通过串行仿真（按原样传递AT命令和作为数据流的一部分）发送数据和AT命令。

2）USB CDC ECM

CDC-ECM（Ethernet Networking Control Model 以太网网络控制模型）用于在设备和主机之间交换以太网帧数据。CDC-ECM设备的一般用例是LAN/WLAN的点对点以太网适配器。（获取的是局域网IP）

3）USB CDC NCM

CDC-NCM（Network Control Model 网络控制模型）协议用于在设备和主机之间交换高速以太网帧数据。这些以太网帧可以传送通过通信网络传输的IPv4或IPv6数据报。NCM设备的一般用例是支持3.5G/4G网络的无线网络适配器，例如：HSPA +和LTE。NCM是建立在ECM的基础上，进行改进以支持更高的数据速率，主要表现在：

• 多个以太网帧可以聚合为单个USB传输；
• 为了最大限度地减少在USB设备中处理以太网帧时的开销，CDC-NCM可以按照最好的方式将以太网帧放到USB传输中。
• CDC-ECM专为USB full-speed设备而设计，尤其适用于支持DOCSIS 1.0电缆调制解调器。虽然ECM在功能上是完整的，但它在吞吐量或效率方面不能很好地扩展到更高的USB速度和更高的网络速度。NCM利用从ECM实施中获得的经验，并调整数据传输协议，使其更加高效。

4）USB CDC EEM

CDC-EEM（Ethernet Emulation Model 以太网仿真模型）是一种通过USB总线以低成本和高效率传输以太网帧的规范。与CDC ECM不同，EEM不会扩展USB总线上的接口，而是将USB总线视为移动以太网数据包的工具。EEM是较新的标准，比ECM稍微简单一些，可以获得更多的硬件支持。两者之间的差别是：

• ECM将网络接口扩展到目标（例如USB电缆调制解调器）；
• EEM用于移动设备通过USB使用以太网与主机通信。

但是，对于Linux gadget，与主机的接口是相同的（usbX设备），因此差异很小。

5）USB CDC OBEX

USB CDC-OBEX（Object Exchange 对象交换）符合WMC（Wireless Mobile Communication 无线移动通信）OBEX功能模型，支持USB上的OBEX应用程序。

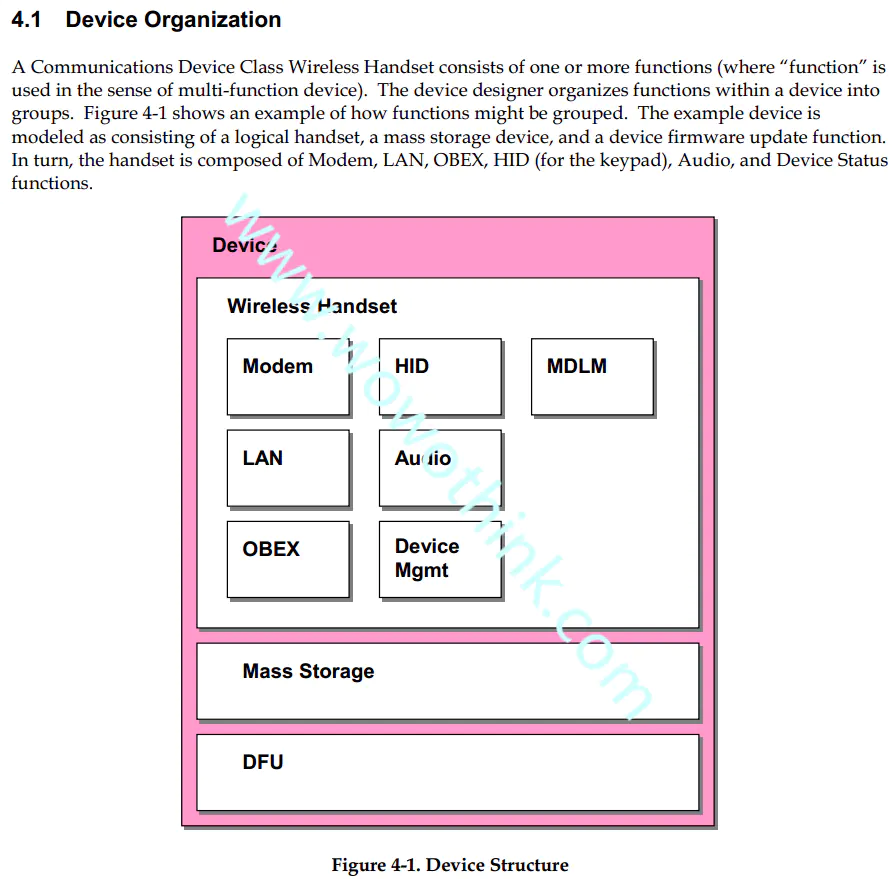

6）USB WMC

USB WMC（Wireless Mobile Communication 无线移动通信），可以理解为USB上网卡（连接移动通信网络），该模型包括以下内容：

2.RNDIS设备

• RNDIS（Remote Network Driver Interface Specification 远程网络驱动接口协议）是Microsoft专有协议，主要用于USB之上，在支持Microsoft RNDIS协议的Windows PC上提供类似CDC的通信功能。它提供了大多数Windows，Linux和FreeBSD操作系统版本的虚拟以太网链接。

• NDIS和RNDIS区别：NDIS是一种规范，定义了网络驱动接口的api。RNDIS是一种技术，是将TCP/IP封装在USB报文里，实现网络通信。

• NDIS和PPP区别：ppp通过pppd进行拨号，NDIS通过gobinet进行拨号。

• RNDIS的框架如下：

3.RmNet设备

RmNet是高通公司为其手机平台开发的专有USB虚拟以太网框架。 RmNet通过薄层协议（TLP）提供更高的吞吐量，并允许服务质量流量控制。

• RmNet和CDC-ECM区别：更像是两种拨号方式的区别，RmNet获取公网IP，CCD-ECM获取局域网IP。
• 在高通平台上，rmnet 也是属于CDC-ECM，他们具体的区别在于对于USB命令的封装以及使用的USB接口，端点定义方式不同。
• 如果是使用RmNet,那么发起data call是通过QMI工具发的QMI命令，QMI工具为QMICM，QMICM集成了QMI命令。
• 而通过标准的CDC-ECM发起data call，则是发送标准的ECM命令。
  • 如果是QMICM建立的data call，不走router的，所以它的IP地址获得的是公网IP。
  • 而通过标准的CDC-ECM建立的data call，是走router的，获得的IP地址是私有的IP如192.168开头。

4.HID设备

Human Interface Device的缩写，由其名称可以了解HID设备是直接与人交互的设备，例如键盘、鼠标与游戏杆等。不过HID设备并不一定要有人机接口，只要符合HID类别规范的设备都是HID设备。

5.Mass Storage设备

USB大容量存储设备是一个协议，允许一个USB接口的设备与主计算设备相连接，以便在两者之间传输文件。对于主计算设备来说，USB设备看起来就像一个移动硬盘，允许拖放型文件传送。它实际上是由USB实施者论坛所通过许多通讯协议的汇总，这一标准提供了许多设备的界面。包括移动硬盘、闪存盘、移动光学驱动器、读卡器、数码相机、数码音乐播放器、PDA以及手机等等。

Defined Class Codes

USB defines class code information that is used to identify a device’s functionality and to nominally load a device driver based on that functionality. The information is contained in three bytes with the names Base Class, SubClass, and Protocol. (Note that ‘Base Class’ is used in this description to identify the first byte of the Class Code triple. That terminology is not used in the USB Specification). There are two places on a device where class code information can be placed.One place is in the Device Descriptor, and the other is in Interface Descriptors. Some defined class codes are allowed to be used only in a Device Descriptor, others can be used in both Device and Interface Descriptors, and some can only be used in Interface Descriptors. The table below shows the currently defined set of Base Class values, what the generic usage is, and where that Base Class can be used (either Device or Interface Descriptors or both).

Last Update: June 15, 2016

Base Class	Descriptor Usage	Description
00h	Device	Use class information in the Interface Descriptors
01h	Interface	Audio
02h	Both	Communications and CDC Control
03h	Interface	HID (Human Interface Device)
05h	Interface	Physical
06h	Interface	Image
07h	Interface	Printer
08h	Interface	Mass Storage
09h	Device	Hub
0Ah	Interface	CDC-Data
0Bh	Interface	Smart Card
0Dh	Interface	Content Security
0Eh	Interface	Video
0Fh	Interface	Personal Healthcare
10h	Interface	Audio/Video Devices
11h	Device	Billboard Device Class
12h	Interface	USB Type-C Bridge Class
DCh	Both	Diagnostic Device
E0h	Interface	Wireless Controller
EFh	Both	Miscellaneous
FEh	Interface	Application Specific
FFh	Both	Vendor Specific

Base Class 00h (Device)

This base class is defined to be used in Device Descriptors to indicate that class information should be determined from the Interface Descriptors in the device. There is one class code definition in this base class. All other values are reserved.

This value is also used in Interface Descriptors to indicate a null class code triple.

Base Class	SubClass	Protocol	Meaning
00h	00h	00h	Use class code info from Interface Descriptors

Base Class 01h (Audio)

This base class is defined for Audio capable devices that conform to the Audio Device Class Specification found on the USB-IF website. That specification defines the usable set of SubClass and Protocol values. Values outside of that defined spec are reserved. These class codes may only be used in Interface Descriptors.

Base Class	SubClass	Protocol	Meaning
01h	xxh	xxh	Audio device

Base Class 02h (Communications and CDC Control)

This base class is defined for devices that conform to the Communications Device Class Specification found on the USB-IF website. That specification defines the usable set of SubClass and Protocol values. Values outside of that defined spec are reserved. Note that the Communication Device Class spec requires some class code values (triples) to be used in Device Descriptors and some to be used in Interface Descriptors.

Base Class	SubClass	Protocol	Meaning
02h	xxh	xxh	Communication device class

Base Class 03h (HID – Human Interface Device)

This base class is defined for devices that conform to the HID Device Class Specification found on the USB-IF website. That specification defines the usable set of SubClass and Protocol values. Values outside of that defined spec are reserved. These class codes can only be used in Interface Descriptors.

Base Class	SubClass	Protocol	Meaning
03h	xxh	xxh	HID device class

Base Class 05h (Physical)

This base class is defined for devices that conform to the Physical Device Class Specification found on the USB-IF website. That specification defines the usable set of SubClass and Protocol values. Values outside of that defined spec are reserved. These class codes can only be used in Interface Descriptors.

Base Class	SubClass	Protocol	Meaning
05h	xxh	xxh	Physical device class

Base Class 06h (Still Imaging)

This base class is defined for devices that conform to the Imaging Device Class Specification found on the USB-IF website. That specification defines the usable set of SubClass and Protocol values. Values outside of that defined spec are reserved.

Base Class	SubClass	Protocol	Meaning
06h	01h	01h	Still Imaging device

Base Class 07h (Printer)

This base class is defined for devices that conform to the Printer Device Class Specification found on the USB-IF website. That specification defines the usable set of SubClass and Protocol values. Values outside of that defined spec are reserved. These class codes can only be used in Interface Descriptors.

Base Class	SubClass	Protocol	Meaning
07h	xxh	xxh	Printer device

Base Class 08h (Mass Storage)

This base class is defined for devices that conform to the Mass Storage Device Class Specification found on the USB-IF website. That specification defines the usable set of SubClass and Protocol values. Values outside of that defined spec are reserved. These class codes can only be used in Interface Descriptors.

Base Class	SubClass	Protocol	Meaning
08h	xxh	xxh	Mass Storage device

Base Class 09h (Hub)

This base class is defined for devices that are USB hubs and conform to the definition in the USB specification. That specification defines the complete triples as shown below. All other values are reserved. These class codes can only be used in Device Descriptors.

Base Class	SubClass	Protocol	Meaning
09h	00h	00h	Full speed Hub
		01h	Hi-speed hub with single TT
		02h	Hi-speed hub with multiple TTs

Base Class 0Ah (CDC-Data)

This base class is defined for devices that conform to the Communications Device Class Specification found on the USB-IF website. That specification defines the usable set of SubClass and Protocol values.Values outside of that defined spec are reserved. These class codes can only be used in Interface Descriptors.

Base Class	SubClass	Protocol	Meaning
0Ah	xxh	xxh	CDC data device

Base Class 0Bh (Smart Card)

This base class is defined for devices that conform to the Smart Card Device Class Specification found on the USB-IF website. That specification defines the usable set of SubClass and Protocol values.Values outside of that defined spec are reserved. These class codes can only be used in Interface Descriptors.

Base Class	SubClass	Protocol	Meaning
0Bh	xxh	xxh	Smart Card device

Base Class 0Dh (Content Security)

This base class is defined for devices that conform to the Content Security Device Class Specification found on the USB-IF website. That specification defines the usable set of SubClass and Protocol values. Values outside of that defined spec are reserved. These class codes can only be used in Interface Descriptors.

Base Class	SubClass	Protocol	Meaning
0Dh	00h	00h	Content Security device

Base Class 0Eh (Video)

This base class is defined for devices that conform to the Video Device Class Specification found on the USB-IF website. That specification defines the usable set of SubClass and Protocol values. Values outside of that defined spec are reserved. These class codes can only be used in Interface Descriptors.

Base Class	SubClass	Protocol	Meaning
0Eh	xxh	xxh	Video device

Base Class 0Fh (Personal Healthcare)

This base class is defined for devices that conform to the Personal Healthcare Device Class Specification found on the USB-IF website. That specification defines the usable set of SubClass and Protocol values. Values outside of that defined spec are reserved. These class codes should only be used in Interface Descriptors.

Base Class	SubClass	Protocol	Meaning
0Fh	xxh	xxh	Personal Healthcare device

Base Class 10h (Audio/Video Devices)

The USB Audio/Video (AV) Device Class Definition describes the methods used to communicate with devices or functions embedded in composite devices that are used to manipulate audio, video, voice, and all image- and sound-related functionality. That specification defines the usable set of SubClass and Protocol values. Values outside of that defined spec are reserved. These class codes can only be used in Interface Descriptors.

Base Class	SubClass	Protocol	Meaning
10h	01h	00h	Audio/Video Device – AVControl Interface
	02h	00h	Audio/Video Device – AVData Video Streaming Interface
	03h	00h	Audio/Video Device – AVData Audio Streaming Interface

Base Class 11h (Billboard Device)

This base class is defined for devices that conform to the Billboard Device Class Specification found on the USB-IF website. That specification defines the usable set of SubClass and Protocol values. Values outside of that defined spec are reserved. These class codes can only be used in Device Descriptors.

Base Class	SubClass	Protocol	Meaning
11h	00h	00h	Billboard Device

Base Class 12h (USB Type-C Bridge Device)

This base class is defined for devices that conform to the USB Type-C Bridge Device Class Specification found on the USB-IF website. That specification defines the usable set of SubClass and Protocol values. Values outside of that defined spec are reserved. These class codes can only be used in Interface Descriptors.

Base Class	SubClass	Protocol	Meaning
12h	00h	00h	USB Type-C Bridge Device

Base Class DCh (Diagnostic Device)

This base class is defined for devices that diagnostic devices. This class code can be used in Device or Interface Descriptors.
Trace is a form of debugging where processor or system activity is made externally visible in real-time or stored and later retrieved for viewing by an applications developer, applications program, or, external equipment specializing observing system activity.
Design for Debug or Test (Dfx). This refers to a logic block that provides debug or test support (E.g. via Test Access Port (TAP)).
DvC: Debug Capability on the USB device (Device Capability)

Base Class	SubClass	Protocol	Meaning
DCh	01h	01h	USB2 Compliance Device. Definition for this device can be found at http://www.intel.com/technology/usb/spec.htm
	02h	00h	Debug Target vendor defined. Please see http://www.intel.com/content/www/us/en/io/universal-serial-bus/extensible-host-controler-interface-usb-xhci.html for more info.
		01h	GNU Remote Debug Command Set. Please see http://www.intel.com/content/www/us/en/io/universal-serial-bus/extensible-host-controler-interface-usb-xhci.html for more info.
	03h	00h	Undefined
		01h	Vendor defined Trace protocol on DbC.
	04h	00h	Undefined
		01h	Vendor defined Dfx protocol on DbC.
	05h	00h	Vendor defined Trace protocol over General Purpose (GP) endpoint on DvC.
		01h	GNU Protocol protocol over General Purpose (GP) endpoint on DvC.http://www.gnu.org/software/gdb/
	06h	00h	Undefined
		01h	Vendor defined Dfx protocol on DvC.
	07h	00h	Undefined
		01h	Vendor defined Trace protocol on DvC.
	08h	00h	Undefined

Base Class E0h (Wireless Controller)

This base class is defined for devices that are Wireless controllers. Values not shown in the table below are reserved. These class codes are to be used in Interface Descriptors, with the exception of the Bluetooth class code which can also be used in a Device Descriptor.

Base Class	SubClass	Protocol	Meaning
E0h	01h	01h	Bluetooth Programming Interface. Get specific information from www.bluetooth.com.
		02h	UWB Radio Control Interface. Definition for this is found in the Wireless USB Specification in Chapter 8.
		03h	Remote NDIS. Information can be found at: http://www.microsoft.com/windowsmobile/mobileoperators/default.mspx
		04h	Bluetooth AMP Controller. Get specific information from www.bluetooth.com.
	2h	01h	Host Wire Adapter Control/Data interface. Definition can be found in the Wireless USB Specification in Chapter 8.
		02h	Device Wire Adapter Control/Data interface. Definition can be found in the Wireless USB Specification in Chapter 8.
		03h	Device Wire Adapter Isochronous interface. Definition can be found in the Wireless USB Specification in Chapter 8.

Base Class EFh (Miscellaneous)

This base class is defined for miscellaneous device definitions. Values not shown in the table below are reserved. The use of these class codes (Device or Interface descriptor) are specifically annotated in each entry below.

Base Class	SubClass	Protocol	Meaning
EFh	01h	01h	Active Sync device. This class code can be used in either Device or Interface Descriptors. Contact Microsoft for more information on this class.
		02h	Palm Sync. This class code can be used in either Device or Interface Descriptors.
	02h	01h	Interface Association Descriptor. The usage of this class code triple is defined in the Interface Association Descriptor ECN that is provided on www.usb.org . This class code may only be used in Device Descriptors.
		02h	Wire Adapter Multifunction Peripheral programming interface. Definition can be found in the Wireless USB Specification in Chapter 8. This class code may only be used in Device Descriptors
	03h	01h	Cable Based Association Framework. This is defined in the Association Model addendum to the Wireless USB specification. This class code may only be used in Interface Descriptors.
	04h	01h	RNDIS over Ethernet.Connecting a host to the Internet via Ethernet mobile device. The device appears to the host as an Ethernet gateway device.This class code may only be used in Interface Descriptors.
		02h	RNDIS over WiFi.Connecting a host to the Internet via WiFi enabled mobile device. The device represents itself to the host as an 802.11 compliant network device.This class code may only be used in Interface Descriptors.
		03h	RNDIS over WiMAXConnecting a host to the Internet via WiMAX enabled mobile device. The device is represented to the host as an 802.16 network device.This class code may only be used in Interface Descriptors.
		04h	RNDIS over WWANConnecting a host to the Internet via a device using mobile broadband, i.e. WWAN (GSM/CDMA).This class code may only be used in Interface Descriptors.
		05h	RNDIS for Raw IPv4Connecting a host to the Internet using raw IPv4 via non-Ethernet mobile device. Devices that provide raw IPv4, not in an Ethernet packet, may use this form to in lieu of other stock types.This class code may only be used in Interface Descriptors.
		06h	RNDIS for Raw IPv6Connecting a host to the Internet using raw IPv6 via non-Ethernet mobile device. Devices that provide raw IPv6, not in an Ethernet packet, may use this form to in lieu of other stock types.This class code may only be used in Interface Descriptors.
		07h	RNDIS for GPRSConnecting a host to the Internet over GPRS mobile device using the device’s cellular radio
	05h Machine Vision Device conforming to the USB3 Vision specification. This standard covers cameras and other related devices that are typically used in machine vision, industrial, and embedded applications.Reference: http://visiononline.org/This class code may only be used in Interface Descriptors.	00h	USB3 Vision Control Interface
		01h	USB3 Vision Event Interface
		02h	USB3 Vision Streaming Interface
	06h	01h	STEP. Stream Transport Efficient Protocol for content protection.
		02h	STEP RAW. Stream Transport Efficient Protocol for Raw content protection.
	07h The DVB Common Interface (DVB-CI) specification describes a system whereby a removable CI Conditional Access Module (CICAM), given the appropriate usage rights, unscrambles protected pay-TV content and routes it over the same interface back to a TV receiver for display. An interface association for a DVB-CI function will contain a DVB-CI Command Interface for command, control, and status information, it may contain a DVB-CI Media Interface for audiovisual data streams, and it may also contain a CDC EEM interface to provide bridged networking to the CICAM.Reference: https://www.dvb.org/standards/dvb-ci-plus	01h	Command Interface in IAD
		01h	Command Interface in Interface Descriptor
		02h	Media Interface in Interface Descriptor

Base Class FEh (Application Specific)

This base class is defined for devices that conform to several class specifications found on the USB-IF website. That specification defines the usable set of SubClass and Protocol values. Values outside of that defined spec are reserved. These class codes can only be used in Interface Descriptors.

Base Class	SubClass	Protocol	Meaning
FEh	01h	01h	Device Firmware Upgrade. Device class definition provided on www.usb.org .
	02h	00h	IRDA Bridge device. Device class definition provided on www.usb.org .
	03h	00h	USB Test and Measurement Device. Definition provided in the USB Test and Measurement Class spec found on www.usb.org .
		01h	USB Test and Measurement Device conforming to the USBTMC USB488 Subclass Specification found on www.usb.org.

Base Class FFh (Vendor Specific)

This base class is defined for vendors to use as they please. These class codes can be used in both Device and Interface Descriptors.

Base Class	SubClass	Protocol	Meaning
FFh	xxh	xxh	Vendor specific
