方法描述

refresh()是Spring最核心的方法，在springApplication.run(args)的时候执行，是一个同步同步方法，用synchronized关键字来实现。

org.springframework.context.support.AbstractApplicationContext#refresh

方法源码

public void refresh() throws BeansException, IllegalStateException {
	synchronized (this.startupShutdownMonitor) {
		StartupStep contextRefresh = this.applicationStartup.start("spring.context.refresh");

		// Prepare this context for refreshing.
		prepareRefresh();

		// Tell the subclass to refresh the internal bean factory.
		ConfigurableListableBeanFactory beanFactory = obtainFreshBeanFactory();

		// Prepare the bean factory for use in this context.
		prepareBeanFactory(beanFactory);

		try {
			// Allows post-processing of the bean factory in context subclasses.
			postProcessBeanFactory(beanFactory);

			StartupStep beanPostProcess = this.applicationStartup.start("spring.context.beans.post-process");
			// Invoke factory processors registered as beans in the context.
			invokeBeanFactoryPostProcessors(beanFactory);

			// Register bean processors that intercept bean creation.
			registerBeanPostProcessors(beanFactory);
			beanPostProcess.end();

			// Initialize message source for this context.
			initMessageSource();

			// Initialize event multicaster for this context.
			initApplicationEventMulticaster();

			// Initialize other special beans in specific context subclasses.
			onRefresh();

			// Check for listener beans and register them.
			registerListeners();

			// Instantiate all remaining (non-lazy-init) singletons.
			finishBeanFactoryInitialization(beanFactory);

			// Last step: publish corresponding event.
			finishRefresh();
		}

		catch (BeansException ex) {
			if (logger.isWarnEnabled()) {
				logger.warn("Exception encountered during context initialization - " +
						"cancelling refresh attempt: " + ex);
			}

			// Destroy already created singletons to avoid dangling resources.
			destroyBeans();

			// Reset 'active' flag.
			cancelRefresh(ex);

			// Propagate exception to caller.
			throw ex;
		}

		finally {
			// Reset common introspection caches in Spring's core, since we
			// might not ever need metadata for singleton beans anymore...
			resetCommonCaches();
			contextRefresh.end();
		}
	}
}

从源码中可以看出在refresh方法中包含13个子方法的调用

prepareRefresh()
obtainFreshBeanFactory()
prepareBeanFactory(beanFactory)
postProcessBeanFactory(beanFactory)
invokeBeanFactoryPostProcessors(beanFactory)
registerBeanPostProcessors(beanFactory)
initMessageSource()
initApplicationEventMulticaster()
onRefresh()
registerListeners()
finishBeanFactoryInitialization(beanFactory)
finishRefresh()
resetCommonCaches()

refresh()13个子方法

1. prepareRefresh()

该方法用于容器状态设置，初始化属性设置，检查必备属性是否存在

protected void prepareRefresh() {
	// Switch to active.
	this.startupDate = System.currentTimeMillis();
	this.closed.set(false);
	this.active.set(true);

	if (logger.isDebugEnabled()) {
		if (logger.isTraceEnabled()) {
			logger.trace("Refreshing " + this);
		}
		else {
			logger.debug("Refreshing " + getDisplayName());
		}
	}

	// Initialize any placeholder property sources in the context environment.
	initPropertySources();

	// Validate that all properties marked as required are resolvable:
	// see ConfigurablePropertyResolver#setRequiredProperties
	getEnvironment().validateRequiredProperties();

	// Store pre-refresh ApplicationListeners...
	if (this.earlyApplicationListeners == null) {
		this.earlyApplicationListeners = new LinkedHashSet<>(this.applicationListeners);
	}
	else {
		// Reset local application listeners to pre-refresh state.
		this.applicationListeners.clear();
		this.applicationListeners.addAll(this.earlyApplicationListeners);
	}

	// Allow for the collection of early ApplicationEvents,
	// to be published once the multicaster is available...
	this.earlyApplicationEvents = new LinkedHashSet<>();
}

设置必备属性，在启动的时候必须要配置
通过初始化器设置必备属性

@Order(0)
public class RequiredPropertiesInitializer implements ApplicationContextInitializer<ConfigurableApplicationContext> {
    @Override
    public void initialize(ConfigurableApplicationContext applicationContext) {
        ConfigurableEnvironment environment = applicationContext.getEnvironment();
        //设置启动的时候必须要silly属性值
        environment.setRequiredProperties("silly");
    }
}

启动加载初始化器

@SpringBootApplication
public class SpringBootDemoApplication {
    public static void main(String[] args) {
//		SpringApplication.run(SpringBootDemoApplication.class, args);

        SpringApplication springApplication = new SpringApplication((SpringBootDemoApplication.class));
        springApplication.addInitializers(new RequiredPropertiesInitializer());
        springApplication.run(args);
    }
}

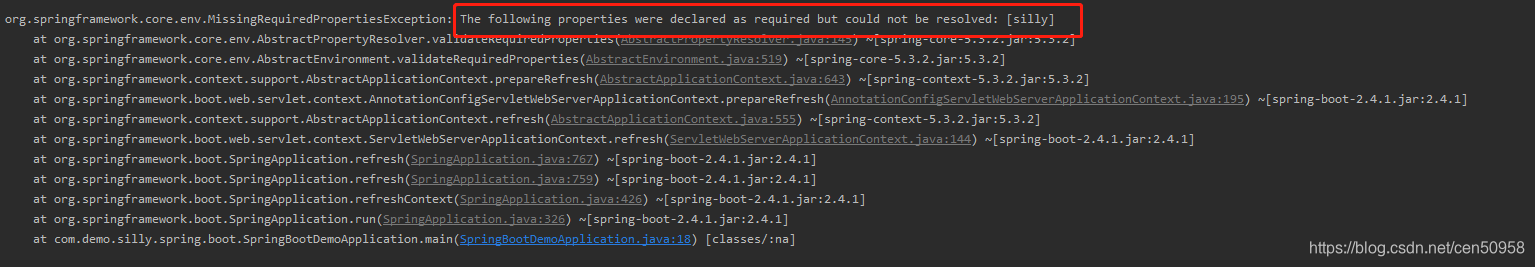

启动SpringBoot结果
在这里插入图片描述
有启动的报错信息显示，必须设置刚刚在初始化中加的silly这个属性值，这时在application.yml中添加silly属性再次启动则正常启动

2. obtainFreshBeanFactory()

该方法主要设置beanFactory序列号id和获取beanFactory

protected ConfigurableListableBeanFactory obtainFreshBeanFactory() {
	//设置beanFactory序列号id
	refreshBeanFactory();
	//获取beanFactory
	return getBeanFactory();
}

这两个方法都是需要子类去实现

3. prepareBeanFactory(beanFactory)

该方法主要做一些设置工作，设置beanFactory一些属性、添加后置处理器、设置忽略的自动装配接口、设置 ClassLoader、设置 SpEL 表达式解析器，、加忽略注入的接口、注册一些组件

protected void prepareBeanFactory(ConfigurableListableBeanFactory beanFactory) {
	//  设置 beanFactory 的类加载器
	beanFactory.setBeanClassLoader(getClassLoader());
	if (!shouldIgnoreSpel) {
		// 设置支持表达式解析器
		beanFactory.setBeanExpressionResolver(new StandardBeanExpressionResolver(beanFactory.getBeanClassLoader()));
	}
	// 为 beanFactory 增加了一个默认的 propertyEditor ，这个主要是对 bean 的属性等设置管理的一个工具
	beanFactory.addPropertyEditorRegistrar(new ResourceEditorRegistrar(this, getEnvironment()));

	// 添加部分BeanPostProcessor【ApplicationContextAwareProcessor】
	beanFactory.addBeanPostProcessor(new ApplicationContextAwareProcessor(this));
	// 设置忽略的自动装配的接口EnvironmentAware、EmbeddedValueResolverAware等
	beanFactory.ignoreDependencyInterface(EnvironmentAware.class);
	beanFactory.ignoreDependencyInterface(EmbeddedValueResolverAware.class);
	beanFactory.ignoreDependencyInterface(ResourceLoaderAware.class);
	beanFactory.ignoreDependencyInterface(ApplicationEventPublisherAware.class);
	beanFactory.ignoreDependencyInterface(MessageSourceAware.class);
	beanFactory.ignoreDependencyInterface(ApplicationContextAware.class);
	beanFactory.ignoreDependencyInterface(ApplicationStartup.class);

	// 注册可以解析的自动装配；我们能直接在任何组件中自动注入
	beanFactory.registeresolvableDependency(BeanFactory.class, beanFactory);
	beanFactory.registerResolvableDependency(ResourceLoader.class, this);
	beanFactory.registerResolvableDependency(ApplicationEventPublisher.class, this);
	beanFactory.registerResolvableDependency(ApplicationContext.class, this);

	// Register early post-processor for detecting inner beans as ApplicationListeners.
	beanFactory.addBeanPostProcessor(new ApplicationListenerDetector(this));

	// 增加对 AspectJ 的支持
	if (!IN_NATIVE_IMAGE && beanFactory.containsBean(LOAD_TIME_WEAVER_BEAN_NAME)) {
		beanFactory.addBeanPostProcessor(new LoadTimeWeaverAwareProcessor(beanFactory));
		// Set a temporary ClassLoader for type matching.
		beanFactory.setTempClassLoader(new ContextTypeMatchClassLoader(beanFactory.getBeanClassLoader()));
	}

	// 环境信息ConfigurableEnvironment
	if (!beanFactory.containsLocalBean(ENVIRONMENT_BEAN_NAME)) {
		beanFactory.registerSingleton(ENVIRONMENT_BEAN_NAME, getEnvironment());
	}
	// 系统属性，systemProperties【Map<String, Object>】
	if (!beanFactory.containsLocalBean(SYSTEM_PROPERTIES_BEAN_NAME)) {
		beanFactory.registerSingleton(SYSTEM_PROPERTIES_BEAN_NAME, getEnvironment().getSystemProperties());
	}
	// 系统环境变量systemEnvironment【Map<String, Object>】
	if (!beanFactory.containsLocalBean(SYSTEM_ENVIRONMENT_BEAN_NAME)) {
		beanFactory.registerSingleton(SYSTEM_ENVIRONMENT_BEAN_NAME, getEnvironment().getSystemEnvironment());
	}
	if (!beanFactory.containsLocalBean(APPLICATION_STARTUP_BEAN_NAME)) {
		beanFactory.registerSingleton(APPLICATION_STARTUP_BEAN_NAME, getApplicationStartup());
	}
}

4. postProcessBeanFactory(beanFactory)

模板方法，子类重写已在BeanFactory完成创建后做进一步设置，比如环境下：在BeanFactory创建后添加一些web环境的作用域，环境配置信息，增加一些web环境的组件
StaticWebApplicationContext实现

protected void postProcessBeanFactory(ConfigurableListableBeanFactory beanFactory) {
    beanFactory.addBeanPostProcessor(new ServletContextAwareProcessor(this.servletContext, this.servletConfig));
    beanFactory.ignoreDependencyInterface(ServletContextAware.class);
    beanFactory.ignoreDependencyInterface(ServletConfigAware.class);
    WebApplicationContextUtils.registerWebApplicationScopes(beanFactory, this.servletContext);
    WebApplicationContextUtils.registerEnvironmentBeans(beanFactory, this.servletContext, this.servletConfig);
}

5. invokeBeanFactoryPostProcessors(beanFactory)

调用BeanDefinitionRegistryPostProcessor实现向容器内添加bean的定义
调用BeanFactoryPostProcessor实现向容器内bean的定义添加属性

PostProcessorRegistrationDelegate.invokeBeanFactoryPostProcessors(beanFactory, getBeanFactoryPostProcessors());

在invokeBeanFactoryPostProcessors方法中，Spring 会先去找到所有的实现了BeanDefinitionRegistryPostProcessor的 BeanFactory 后置处理器，然后先执行实现PriorityOrdered的，再执行实现了Ordered的。
其中最著名的就是ConfigurationClassPostProcessor，用来扫描被 @Component 和 @Bean 标记的对象，并注册其 BeanDefinition 元数据到 Spring 容器的 BeanDefinitionMap 中。然后再去获取所有的 BeanFactory 后置处理器，去掉已经执行过的，也是根据排序依次执行。

该方法结束后，Spring 上下文中已经注册并执行了 BeanFactory 后置处理器，也将一部分 BeanDefinition 注册了进来

样例：实现BeanFactoryPostProcessor接口，设置bean属性
MyBeanFactoryPostprocessor.java 设置cat类name=MyBeanFactoryPostprocessor-cat

@Component
public class MyBeanFactoryPostprocessor implements BeanFactoryPostProcessor {
    @Override
    public void postProcessBeanFactory(ConfigurableListableBeanFactory beanFactory) throws BeansException {
        BeanDefinition cat = beanFactory.getBeanDefinition("cat");
        MutablePropertyValues propertyValues = cat.getPropertyValues();
        propertyValues.addPropertyValue("name", "MyBeanFactoryPostprocessor-cat");
    }
}

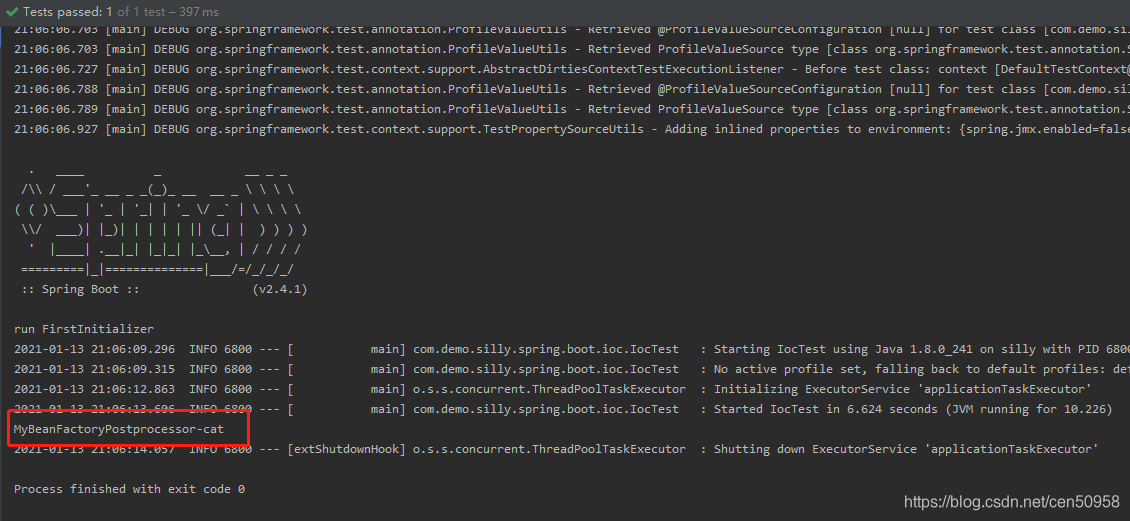

单元测试打印结果

@RunWith(SpringRunner.class)
@SpringBootTest
@Import(MyCatImportRegistrar.class)
public class IocTest {

    @Autowired
    private Cat cat;

    @Test
    public void testBeanFactoryPostprocessor() {
        System.out.println(cat.getName());
    }
}

在这里插入图片描述

6. registerBeanPostProcessors(beanFactory)

该方法是注册 Bean 的后置处理器,找到BeanPostProcessor的实现，排序后注册进容器内

protected void registerBeanPostProcessors(ConfigurableListableBeanFactory beanFactory) {
	PostProcessorRegistrationDelegate.registerBeanPostProcessors(beanFactory, this);
}

org.springframework.context.support.PostProcessorRegistrationDelegate#registerBeanPostProcessors(org.springframework.beans.factory.config.ConfigurableListableBeanFactory, org.springframework.context.support.AbstractApplicationContext)

// 1. 获取所有的 Bean 后置处理器的名字
String[] postProcessorNames = beanFactory.getBeanNamesForType(BeanPostProcessor.class, true, false);
// 2. 对 Bean 后置处理器分类
List<BeanPostProcessor> priorityOrderedPostProcessors = new ArrayList<>();
List<BeanPostProcessor> internalPostProcessors = new ArrayList<>();
List<String> orderedPostProcessorNames = new ArrayList<>();
List<String> nonOrderedPostProcessorNames = new ArrayList<>();
// 3. 注册 Bean 后置处理器
registerBeanPostProcessors(beanFactory, priorityOrderedPostProcessors);
registerBeanPostProcessors(beanFactory, orderedPostProcessors);
registerBeanPostProcessors(beanFactory, nonOrderedPostProcessors);
registerBeanPostProcessors(beanFactory, internalPostProcessors);

// 4. 注册 ApplicationListener 探测器
beanFactory.addBeanPostProcessor(new ApplicationListenerDetector(applicationContext));

priorityOrderedPostProcessors是所有实现了PriorityOrdered接口的后置处理器
internalPostProcessors是所有内置的后置处理器
orderedPostProcessorNames实现了ordered接口的后置处理器
nonOrderedPostProcessorNames没有排序的后置处理器

7. initMessageSource()

初始化国际化相关属性

8. initApplicationEventMulticaster()

初始化事件广播器，并放入 applicationEventMulticaster bean 中

9. onRefresh()

模板方法，在容器刷新的时候可以自定义逻辑，不同的Spring容器做不同的事情，比如：web环境中，创建web容器

10. registerListeners()

添加容器内事件监听器至事件广播器中，派发早期事件

protected void registerListeners() {
	// Register statically specified listeners first.
	for (ApplicationListener<?> listener : getApplicationListeners()) {
		getApplicationEventMulticaster().addApplicationListener(listener);
	}

	// Do not initialize FactoryBeans here: We need to leave all regular beans
	// uninitialized to let post-processors apply to them!
	String[] listenerBeanNames = getBeanNamesForType(ApplicationListener.class, true, false);
	for (String listenerBeanName : listenerBeanNames) {
		getApplicationEventMulticaster().addApplicationListenerBean(listenerBeanName);
	}

	// Publish early application events now that we finally have a multicaster...
	Set<ApplicationEvent> earlyEventsToProcess = this.earlyApplicationEvents;
	this.earlyApplicationEvents = null;
	if (!CollectionUtils.isEmpty(earlyEventsToProcess)) {
		for (ApplicationEvent earlyEvent : earlyEventsToProcess) {
			getApplicationEventMulticaster().multicastEvent(earlyEvent);
		}
	}
}

11. finishBeanFactoryInitialization(beanFactory)

实例化所有剩余的非懒加载单例,比如invokeBeanFactoryPostProcessors方法中根据各种注解解析出来的类，在这个时候都会被初始化。实例化的过程各种BeanPostProcessor开始起作用

// 1. 冻结所有的 bean，已经注册的 bean 定义将不会被修改或任何进一步的处理
beanFactory.freezeConfiguration();
// 2. 实例化所有剩余的非懒加载的 bean
beanFactory.preInstantiateSingletons();

// 3.获取容器中所有 beanDefinition 的名称
List<String> beanNames = new ArrayList<>(this.beanDefinitionNames);
for (String beanName : beanNames) {
    // 根据 beanName 获取 BeanDefinition
	RootBeanDefinition bd = getMergedLocalBeanDefinition(beanName);
	// 不是抽象的 && 是单例的 && 不是懒加载的
	if (!bd.isAbstract() && bd.isSingleton() && !bd.isLazyInit()) {
		if (isFactoryBean(beanName)) {
		    // 如果是 FactoryBean，就先获取 FactoryBean 实例
			Object bean = getBean(FACTORY_BEAN_PREFIX + beanName);
			if (bean instanceof FactoryBean) {
			xxx 实现
			}
		}
		else {
		    // 如果不是 FactoryBean,就直接获取 Bean

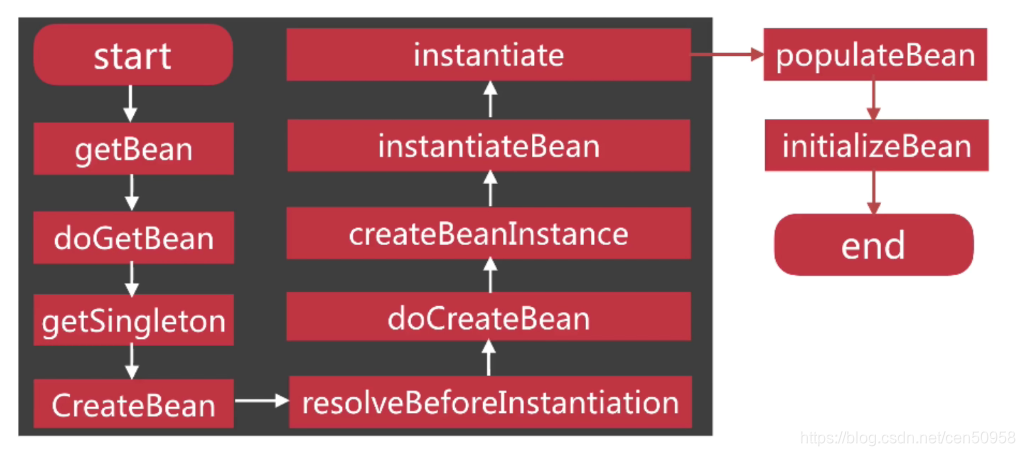

			getBean(beanName);
		}
	}
}

12. finishRefresh()

初始化生命周期处理器，调用生命周期处理器onRefresh方法，发布ContextRefreshedEvent事件，JMX相关处理

// 清除上下文资源缓存（如扫描中的ASM元数据） scanning).
clearResourceCaches();
// 初始化上下文的生命周期处理器，并刷新（找出Spring容器中实现了Lifecycle接口的bean并执行start()方法）
initLifecycleProcessor();
getLifecycleProcessor().onRefresh();
// 发布ContextRefreshedEvent事件告知对应的ApplicationListener进行响应的操作
publishEvent(new ContextRefreshedEvent(this));

13. resetCommonCaches()

清空产生的缓存数据

protected void resetCommonCaches() {
	ReflectionUtils.clearCache();
	AnnotationUtils.clearCache();
	ResolvableType.clearCache();
	CachedIntrospectionResults.clearClassLoader(getClassLoader());
}
