现在的应用大多需要一个底部导航图来完成人性化的设置，这篇文章就来看一下比较流行的底部导航的实现：
目录：
三.TabLayout+fragment+viewPager
四.FragmentTabHost+ViewPager+fragment
七.TextView+LinearLayout+FrameLayout
fragment文件
fragment布局文件就是放了一个Textview显示：
<TextView
android:layout_width="match_parent"
android:layout_height="wrap_content"
android:id="@+id/text" />
代码：
@Override
public View onCreateView(LayoutInflater inflater, @Nullable ViewGroup container, Bundle savedInstanceState) {
View view = inflater.inflate(R.layout.layout_fragment,null);
TextView textView = view.findViewById(R.id.text);
textView.setText(R.string.alert);
return view;
}
public static Fragment newInstance(){
AlertFragment homeFragment = new AlertFragment();
return homeFragment;
}其他的fragmentt和此类似

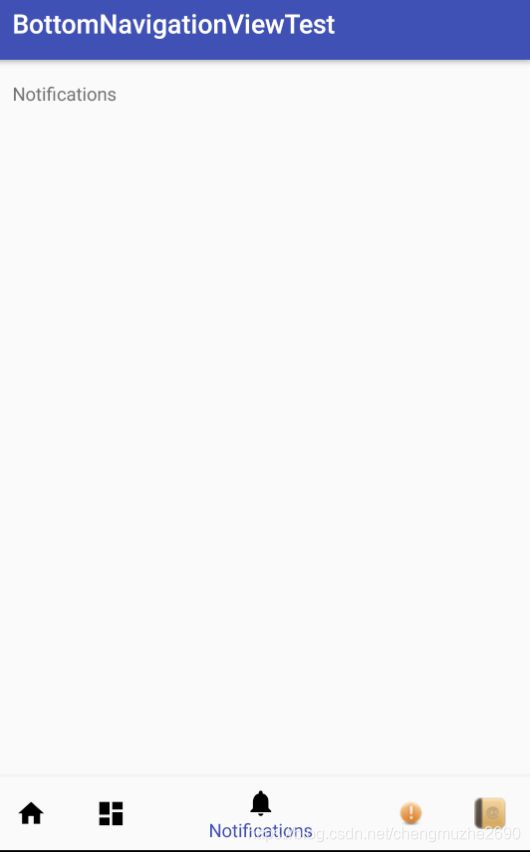

一.BottomNavigationView+ViewPager+fragment
uGoogle 发布了专门用来实现底部导航的控件，那就是BottomNavigationView,BottomNavigationView符合Material 风格，有着炫酷的切换动画，但是5.0以上才可以使用，BottomNavigationView使用较为简单：
新建一个Activity，选择BottomNavigation Activity，自动给你添加控件和代码
而BottomNavigationView 的Tab是通过menu 的方式添加的，所有看一下menu文件：
menu
<item
android:id="@+id/navigation_home"
android:icon="@drawable/ic_home_black_24dp"
android:title="@string/title_home" />
<item
android:id="@+id/navigation_dashboard"
android:icon="@drawable/ic_dashboard_black_24dp"
android:title="@string/title_dashboard" />
<item
android:id="@+id/navigation_notifications"
android:icon="@drawable/ic_notifications_black_24dp"
android:title="@string/title_notifications" />
<item
android:id="@+id/alert"
android:icon="@drawable/dialog_alert_icon"
android:title="@string/alert" />
<item
android:id="@+id/email"
android:icon="@drawable/email"
android:title="@string/email" />Activity中的代码
private TextView mTextMessage;
private BottomNavigationView.OnNavigationItemSelectedListener mOnNavigationItemSelectedListener
= new BottomNavigationView.OnNavigationItemSelectedListener() {
@Override
public boolean onNavigationItemSelected(@NonNull MenuItem item) {
switch (item.getItemId()) {
case R.id.navigation_home:
mTextMessage.setText(R.string.title_home);
return true;
case R.id.navigation_dashboard:
mTextMessage.setText(R.string.title_dashboard);
return true;
case R.id.navigation_notifications:
mTextMessage.setText(R.string.title_notifications);
return true;
case R.id.alert:
mTextMessage.setText(R.string.alert);
return true;
case R.id.email:
mTextMessage.setText(R.string.email);
return true;
}
return false;
}
};
@Override
protected void onCreate(Bundle savedInstanceState) {
super.onCreate(savedInstanceState);
setContentView(R.layout.activity_bottom_navigation_view_test);
mTextMessage = (TextView) findViewById(R.id.message);
BottomNavigationView navigation = (BottomNavigationView) findViewById(R.id.navigation);
navigation.setOnNavigationItemSelectedListener(mOnNavigationItemSelectedListener);
navigation.setItemIconTintList(null);
}XML文件：
<?xml version="1.0" encoding="utf-8"?>
<android.support.constraint.ConstraintLayout xmlns:android="http://schemas.android.com/apk/res/android"
xmlns:app="http://schemas.android.com/apk/res-auto"
xmlns:tools="http://schemas.android.com/tools"
android:id="@+id/container"
android:layout_width="match_parent"
android:layout_height="match_parent"
tools:context=".BottomNavigationViewTest">
<TextView
android:id="@+id/message"
android:layout_width="wrap_content"
android:layout_height="wrap_content"
android:layout_marginLeft="@dimen/activity_horizontal_margin"
android:layout_marginStart="@dimen/activity_horizontal_margin"
android:layout_marginTop="@dimen/activity_vertical_margin"
android:text="@string/title_home"
app:layout_constraintLeft_toLeftOf="parent"
app:layout_constraintTop_toTopOf="parent" />
<fragment
android:id="@+id/nav_host_fragment"
android:name="androidx.navigation.fragment.NavHostFragment"
android:layout_width="match_parent"
android:layout_height="match_parent"
app:navGraph="@navigation/mobile_navigation"
/>
<android.support.design.widget.BottomNavigationView
android:id="@+id/navigation"
android:layout_width="0dp"
android:layout_height="wrap_content"
android:layout_marginEnd="0dp"
android:layout_marginStart="0dp"
android:background="?android:attr/windowBackground"
app:layout_constraintBottom_toBottomOf="parent"
app:layout_constraintLeft_toLeftOf="parent"
app:layout_constraintRight_toRightOf="parent"
app:menu="@menu/navigation" />
</android.support.constraint.ConstraintLayout>BottomNavigationView使用较为简单，不需要你自己定义控件，只需要自己修改他给你定义的menu文件和回调方法
这些都是系统程序自动生成的可以直接使用，下面看加ViewPager
viewPager = (ViewPager) findViewById(R.id.viewpager);
navView = (BottomNavigationView) findViewById(R.id.bottom_navigation);
navView.setOnNavigationItemSelectedListener(
new BottomNavigationView.OnNavigationItemSelectedListener() {
@Override
public boolean onNavigationItemSelected(@NonNull MenuItem item) {
switch (item.getItemId()) {
case R.id.item_call:
viewPager.setCurrentItem(0);
break;
case R.id.item_mail:
viewPager.setCurrentItem(1);
break;
case R.id.item_person:
viewPager.setCurrentItem(2);
break;
}
return false;
}
});
viewPager.addOnPageChangeListener(new ViewPager.OnPageChangeListener() {
@Override
public void onPageScrolled(int position, float positionOffset, int positionOffsetPixels) {
}
@Override
public void onPageSelected(int position) {
if (prevMenuItem != null) {
prevMenuItem.setChecked(false);
} else {
navView.getMenu().getItem(0).setChecked(false);
}
navView.getMenu().getItem(position).setChecked(true);
prevMenuItem = bottomNavigationView.getMenu().getItem(position);
}
@Override
public void onPageScrollStateChanged(int state) {
}
});
//滑动，如果不想滑动，取消注销就可以
// viewPager.setOnTouchListener(new View.OnTouchListener() {
// @Override
// public boolean onTouch(View v, MotionEvent event) {
// return true;
// }
// });
ViewPagerAdapter adapter = new ViewPagerAdapter(getSupportFragmentManager());
adapter.addFragment(BaseFragment.newInstance("CPC"));
adapter.addFragment(BaseFragment.newInstance("OBU"));
viewPager.setAdapter(adapter);<android.support.v4.view.ViewPager
android:id="@+id/viewpager"
android:layout_width="match_parent"
android:layout_height="match_parent"
android:layout_above="@+id/navigation" />
<android.support.design.widget.BottomNavigationView
android:id="@+id/navigation"
android:layout_width="match_parent"
android:layout_height="wrap_content"
android:layout_alignParentBottom="true"
app:itemIconTint="@drawable/navigation_selector"
app:itemTextColor="@drawable/navigation_selector"
app:menu="@menu/menu_bottom_navigation" />二.BottomNavigationBar+ViewPager(FrameLayout)+fragment
BottomNavigationBar和BottomNavigationView都是Google公司自己退出的，名字还是如此的相似，但是我却没有找出他们的联系和区别，这就让我很迷茫了，有知道的大佬可以告告我
现在说一下它的使用
在Gradle中添加
implementation 'com.ashokvarma.android:bottom-navigation-bar:2.0.2'
布局文件(FrameLayout)
<FrameLayout
android:layout_width="match_parent"
android:layout_height="wrap_content"
android:id="@+id/framelayout"></FrameLayout>
<com.ashokvarma.bottomnavigation.BottomNavigationBar
android:layout_width="match_parent"
android:layout_height="wrap_content"
android:id="@+id/bottombar"
app:layout_constraintBottom_toBottomOf="parent">
</com.ashokvarma.bottomnavigation.BottomNavigationBar>使用FrameLayout
Activity类：
private int imageViewArray[] = {R.drawable.ic_home_black_24dp, R.drawable.ic_dashboard_black_24dp, R.drawable.ic_notifications_black_24dp, R.drawable.email, R.drawable.dialog_alert_icon};
private String[] strings = {"Home", "DashBoard", "Notification", "Email", "Alert"};
FragmentTransaction transaction;
FragmentManager manager;
BottomNavigationBar bar;
@Override
protected void onCreate(Bundle savedInstanceState) {
super.onCreate(savedInstanceState);
setContentView(R.layout.activity_bottom_navigation_bar_test);
bar = findViewById(R.id.bottombar);

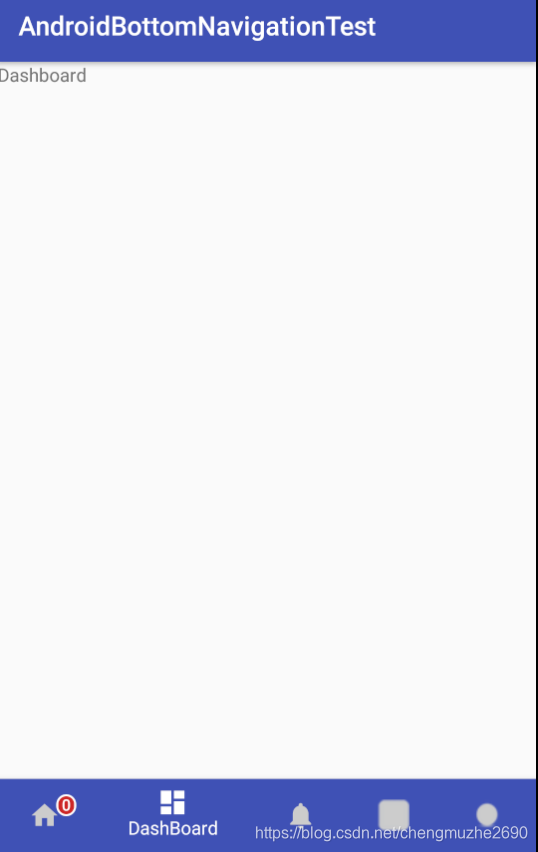

//角标，如同QQ的红点
final TextBadgeItem mBadgeItem = new TextBadgeItem()
.setBorderWidth(4)
.setAnimationDuration(200)
.setBackgroundColorResource(R.color.red)
.setHideOnSelect(false)
.setText("0");
bar.addItem(new BottomNavigationItem(imageViewArray[0], strings[0]).setActiveColorResource(R.color.black).setBadgeItem(mBadgeItem))
.addItem(new BottomNavigationItem(imageViewArray[1], strings[1]).setActiveColorResource(R.color.colorPrimary))
.addItem(new BottomNavigationItem(imageViewArray[2], strings[2]).setActiveColorResource(R.color.orange))
.addItem(new BottomNavigationItem(imageViewArray[3], strings[3]).setActiveColorResource(R.color.purple))
.addItem(new BottomNavigationItem(imageViewArray[4], strings[4]).setActiveColorResource(R.color.red))
.setFirstSelectedPosition(0)
.initialise();
bar.setTabSelectedListener(new BottomNavigationBar.OnTabSelectedListener() {
@Override
public void onTabSelected(int position) {
manager = getSupportFragmentManager();
transaction = manager.beginTransaction();
switch (position){
case 0:
transaction.replace(R.id.framelayout, HomeFragment.newInstance());
mBadgeItem.hide();
break;
case 1:
transaction.replace(R.id.framelayout, DashboardFragment.newInstance());
mBadgeItem.show();
break;
case 2:
transaction.replace(R.id.framelayout, NotificationFragment.newInstance());
break;
case 3:
transaction.replace(R.id.framelayout, EmailFragment.newInstance());
break;
case 4:
transaction.replace(R.id.framelayout,AlertFragment.newInstance());
break;
}
transaction.commit();
}
@Override
public void onTabUnselected(int position) {
}
@Override
public void onTabReselected(int position) {
}
});
//设置初始页面
setDefaultFragment();
}设置初始界面
private void setDefaultFragment() {
manager = getSupportFragmentManager();
transaction = manager.beginTransaction();
transaction.replace(R.id.framelayout, HomeFragment.newInstance());
transaction.commit();
}使用ViewPager
布局文件
将FrameLayout改成ViewPager
<android.support.v4.view.ViewPager
android:layout_width="match_parent"
android:layout_height="wrap_content"
android:id="@+id/viewpager">
</android.support.v4.view.ViewPager>Activity类
只需要将回调方法重写，以及初始化fragment和viewPager
private List<Fragment> fragments;
private ViewPager viewPager;
@Override
protected void onCreate(Bundle savedInstanceState) {
super.onCreate(savedInstanceState);
setContentView(R.layout.activity_bottom_navigation_bar_test);
bar = findViewById(R.id.bottombar);
initPager();
final TextBadgeItem mBadgeItem = new TextBadgeItem()
.setBorderWidth(4)
.setAnimationDuration(200)
.setBackgroundColorResource(R.color.red)
.setHideOnSelect(false)
.setText("0");
bar.addItem(new BottomNavigationItem(imageViewArray[0], strings[0]).setActiveColorResource(R.color.black).setBadgeItem(mBadgeItem))
.addItem(new BottomNavigationItem(imageViewArray[1], strings[1]).setActiveColorResource(R.color.colorPrimary))
.addItem(new BottomNavigationItem(imageViewArray[2], strings[2]).setActiveColorResource(R.color.orange))
.addItem(new BottomNavigationItem(imageViewArray[3], strings[3]).setActiveColorResource(R.color.purple))
.addItem(new BottomNavigationItem(imageViewArray[4], strings[4]).setActiveColorResource(R.color.red))
.setFirstSelectedPosition(0)
.initialise();
bar.setTabSelectedListener(new BottomNavigationBar.OnTabSelectedListener() {
@Override
public void onTabSelected(int position) {
viewPager.setCurrentItem(position);
}
@Override
public void onTabUnselected(int position) {
}
@Override
public void onTabReselected(int position) {
}
});
setDefaultFragment();
}
private void initPager() {
viewPager = findViewById(R.id.viewpager);
fragments = new ArrayList<Fragment>();
fragments.add(HomeFragment.newInstance());
fragments.add(DashboardFragment.newInstance());
fragments.add(NotificationFragment.newInstance());
fragments.add(EmailFragment.newInstance());
fragments.add(AlertFragment.newInstance());
viewPager.setAdapter(new MyFragmentPagerAdapter(getSupportFragmentManager(), fragments));
viewPager.setCurrentItem(0);
viewPager.addOnPageChangeListener(new ViewPager.OnPageChangeListener() {
@Override
public void onPageScrolled(int position, float positionOffset, int positionOffsetPixels) {
}
@Override
public void onPageSelected(int position) {
bar.selectTab(position);
}
@Override
public void onPageScrollStateChanged(int state) {
}
});
}
private class MyFragmentPagerAdapter extends FragmentPagerAdapter {
private List<Fragment> lists;
@Override
public Fragment getItem(int position) {
return lists == null ? null : lists.get(position);
}
@Override
public int getCount() {
return lists == null ? 0 : lists.size();
}
public MyFragmentPagerAdapter(FragmentManager fm, List<Fragment> datas) {
super(fm);
lists = datas;
}
public MyFragmentPagerAdapter() {
super(null);
}

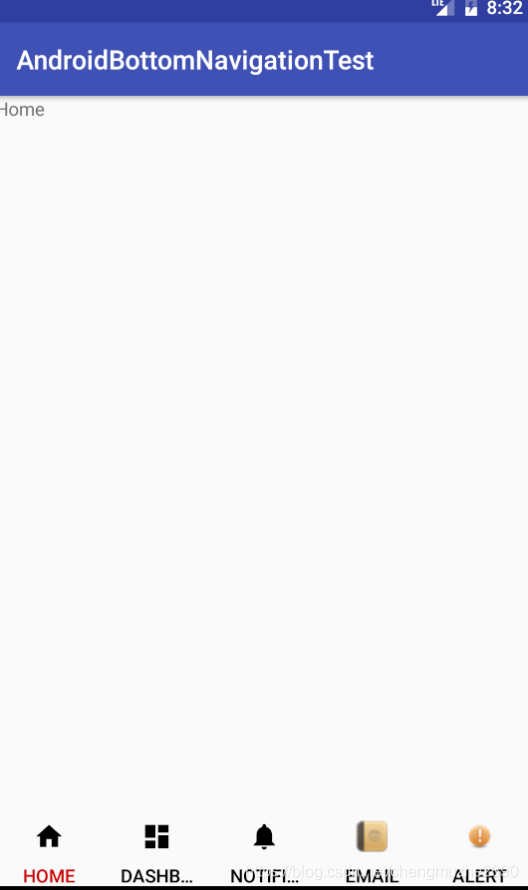

}三.TabLayout+fragment+viewPager
要实现这样一个底部导航栏，大家最容易想到的当然就是TabLayout，Tab 切换嘛，TabLayout 就是专门干这个事的，不过TabLayout 默认是带有Indicator的，我们是不需要的，因此需要把它去掉
去掉默认的Indicator直接设置app:tabIndicatorHeight属性的值为0就行了
布局文件
<android.support.v4.view.ViewPager
android:layout_width="match_parent"
android:layout_height="0dp"
android:layout_weight="1"
android:id="@+id/viewpager"></android.support.v4.view.ViewPager>
<android.support.design.widget.TabLayout
android:layout_width="match_parent"
android:layout_height="50dp"
app:tabIndicatorHeight="0dp"
app:tabSelectedTextColor="@android:color/holo_red_dark"
app:tabTextColor="@android:color/black"
android:id="@+id/tablayout">Activity类：
private TabLayout tabLayout;
private List<Fragment> fragments;
private ViewPager viewPager;
private FragmentPagerAdapter adapter;
private String[] strings ={"Home","DashBoard","Notification","Email","Alert"};
@Override
protected void onCreate(Bundle savedInstanceState) {
super.onCreate(savedInstanceState);
setContentView(R.layout.activity_tablayout_test);
initView();
}
private void initView() {
tabLayout = findViewById(R.id.tablayout);
fragments = new ArrayList<Fragment>();
fragments.add(HomeFragment.newInstance());
fragments.add(DashboardFragment.newInstance());
fragments.add(NotificationFragment.newInstance());
fragments.add(EmailFragment.newInstance());
fragments.add(AlertFragment.newInstance());
viewPager = findViewById(R.id.viewpager);
adapter = new TitleFragmentPagerAdapter(getSupportFragmentManager(),fragments,strings);
viewPager.setAdapter(adapter);
tabLayout.setupWithViewPager(viewPager);
onTabItemSelected();
}
private void onTabItemSelected() {
for (int i =0;i<tabLayout.getTabCount();i++) {
TabLayout.Tab tab = tabLayout.getTabAt(i);
Drawable drawable = null;
switch (i){
case 0:
drawable = getResources().getDrawable(R.drawable.ic_home_black_24dp);
break;
case 1:
drawable = getResources().getDrawable(R.drawable.ic_dashboard_black_24dp);
break;
case 2:
drawable = getResources().getDrawable(R.drawable.ic_notifications_black_24dp);
break;
case 3:
drawable = getResources().getDrawable(R.drawable.email);
break;
case 4:
drawable = getResources().getDrawable(R.drawable.dialog_alert_icon);
break;
}
tab.setIcon(drawable);
}
}
private class TitleFragmentPagerAdapter extends FragmentPagerAdapter {
private List<Fragment> mFragmentList = null;
private String[] titles;
public TitleFragmentPagerAdapter(FragmentManager mFragmentManager,
List<Fragment> fragmentList) {
super(mFragmentManager);
mFragmentList = fragmentList;
}
public TitleFragmentPagerAdapter(FragmentManager mFragmentManager,
List<Fragment> fragmentList, String[] titles) {
super(mFragmentManager);
mFragmentList = fragmentList;
this.titles = titles;
}
@Override
public int getCount() {
return mFragmentList.size();
}
@Override
public Fragment getItem(int position) {
Fragment fragment = null;
if (position < mFragmentList.size()) {
fragment = mFragmentList.get(position);
} else {
fragment = mFragmentList.get(0);
}
return fragment;
}
@Override
public CharSequence getPageTitle(int position) {
if (titles != null && titles.length > 0)
return titles[position];
return null;
}
}

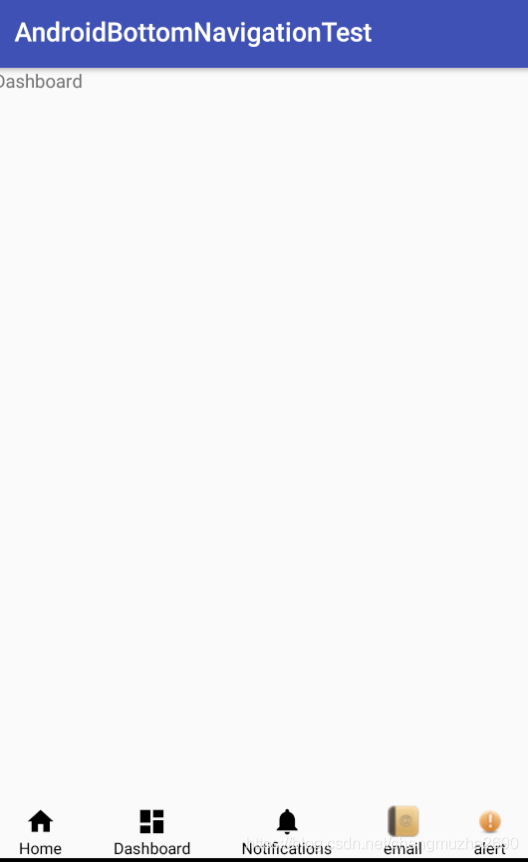

四.FragmentTabHost+ViewPager+fragment
FragmentTabHost 可能是大家实现底部导航栏用得最多的一种方式，特别是在TabLayout 和 BottomNavigation 出来之前，是比较老的实现底部导航栏的方式，同时也是使用最多的一种
布局文件
<android.support.v4.view.ViewPager
android:layout_width="match_parent"
android:layout_height="0dp"
android:layout_weight="1"
android:id="@+id/viewpager"></android.support.v4.view.ViewPager>
<android.support.v4.app.FragmentTabHost
android:layout_width="match_parent"
android:layout_height="50dp"
android:id="@android:id/tabhost">
<FrameLayout
android:layout_width="0dp"
android:layout_height="0dp"
android:id="@android:id/tabcontent">
</FrameLayout>
</android.support.v4.app.FragmentTabHost>Activity
private ViewPager mViewPager;
private List<Fragment> fragments;
private FragmentTabHost host;
private int imageViewArray[] = { R.drawable.ic_home_black_24dp, R.drawable.ic_dashboard_black_24dp,R.drawable.ic_notifications_black_24dp,R.drawable.email,R.drawable.dialog_alert_icon};
private String[] strings ={"Home","DashBoard","Notification","Email","Alert"};
private FragmentPagerAdapter adapter;
@Override
protected void onCreate(Bundle savedInstanceState) {
super.onCreate(savedInstanceState);
setContentView(R.layout.activity_fragment_tab_host_test);
initview();
}
private void initview(){
mViewPager = findViewById(R.id.viewpager);
fragments = new ArrayList<Fragment>();
fragments.add(HomeFragment.newInstance());
fragments.add(DashboardFragment.newInstance());
fragments.add(NotificationFragment.newInstance());
fragments.add(EmailFragment.newInstance());
fragments.add(AlertFragment.newInstance());
adapter = new MyFragmentPagerAdapter(getSupportFragmentManager(),fragments);
mViewPager.setAdapter(adapter);
mViewPager.addOnPageChangeListener(pageChangeListener);
host = findViewById(android.R.id.tabhost);
host.setup(this,getSupportFragmentManager(),R.id.viewpager);
host.getTabWidget().setDividerDrawable(null);
host.setOnTabChangedListener(onTabChangeListener);
int count = strings.length;
for (int i = 0;i<count;i++) {
TabHost.TabSpec tabSpec = host.newTabSpec(strings[i]).setIndicator(getTabItemView(i));
host.addTab(tabSpec,fragments.get(i).getClass(),null);
host.setTag(i);
}
}
private View getTabItemView(int i){
View view = LayoutInflater.from(this).inflate(R.layout.layout_tab,null);
ImageView imageView = view.findViewById(R.id.tab_imageview);
imageView.setImageResource(imageViewArray[i]);
TextView textView = view.findViewById(R.id.tab_textview);
textView.setText(strings[i]);
return view;
}
private TabHost.OnTabChangeListener onTabChangeListener = new TabHost.OnTabChangeListener() {
@Override
public void onTabChanged(String tabId) {
int position = host.getCurrentTab();
mViewPager.setCurrentItem(position);
}
};
private ViewPager.OnPageChangeListener pageChangeListener = new ViewPager.OnPageChangeListener() {
@Override
public void onPageScrolled(int position, float positionOffset, int positionOffsetPixels) {
}
@Override
public void onPageSelected(int position) {
TabWidget widget = host.getTabWidget();
int focusability = widget.getDescendantFocusability();
widget.setDescendantFocusability(ViewGroup.FOCUS_BLOCK_DESCENDANTS);
host.setCurrentTab(position);
widget.setDescendantFocusability(focusability);
}
@Override
public void onPageScrollStateChanged(int state) {
}
};
private class MyFragmentPagerAdapter extends FragmentPagerAdapter {
private List<Fragment> lists;
@Override
public Fragment getItem(int position) {
return lists == null?null:lists.get(position);
}
@Override
public int getCount() {
return lists == null?0:lists.size();
}
public MyFragmentPagerAdapter(FragmentManager fm, List<Fragment> datas){
super(fm);
lists = datas;
}
public MyFragmentPagerAdapter(){
super(null);
}
}TabHost需要你自己定义一个布局文件来显示图片和文字
<?xml version="1.0" encoding="utf-8"?>
<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
android:layout_width="match_parent"
android:layout_height="match_parent"
android:orientation="vertical">
<ImageView
android:id="@+id/tab_imageview"
android:layout_width="wrap_content"
android:layout_height="wrap_content" />
<TextView
android:id="@+id/tab_textview"
android:layout_width="wrap_content"
android:layout_height="wrap_content"
android:text="" />
</LinearLayout>

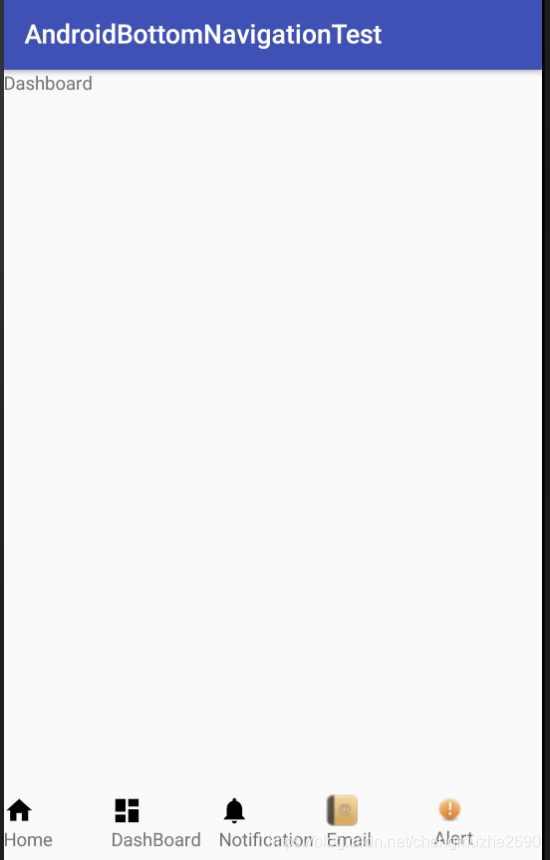

五.RadioGroup+Radiobutton+ViewPager+fragment
RadioGroup ＋RadioButtom 是做单选的 所以用RadioGroup + RadioButton 来实现底部导航栏也是一种方式。但是要去掉他的默认样式，所以自己要定义一个样式：
自定义样式
<style name="RadioGroupButtonStyle" >
<!-- 这个属性是去掉button 默认样式-->
<item name="android:button">@null</item>
<item name="android:gravity">center</item>
<item name="android:layout_width">0dp</item>
<item name="android:layout_height">wrap_content</item>
<item name="android:layout_weight">1</item>
<item name="android:textSize">12sp</item>
<item name="android:textColor">@color/black</item>
</style>布局文件
<android.support.v4.view.ViewPager
android:id="@+id/viewpager"
android:layout_width="match_parent"
android:layout_height="match_parent">
</android.support.v4.view.ViewPager>
<RadioGroup
android:layout_width="match_parent"
android:layout_height="40dp"
android:orientation="horizontal"
app:layout_constraintBottom_toBottomOf="parent"
android:id="@+id/radiogroup">
<RadioButton
android:id="@+id/radio1"
style="@style/RadioGroupButtonStyle"
android:layout_width="wrap_content"
android:layout_height="wrap_content"
android:drawableBottom="@drawable/ic_home_black_24dp"
android:text="@string/title_home"
android:checked="true"/>
<RadioButton
android:id="@+id/radio2"
style="@style/RadioGroupButtonStyle"
android:layout_width="wrap_content"
android:layout_height="wrap_content"
android:drawableBottom="@drawable/ic_dashboard_black_24dp"
android:text="@string/title_dashboard" />
<RadioButton
android:id="@+id/radio3"
style="@style/RadioGroupButtonStyle"
android:layout_width="wrap_content"
android:layout_height="wrap_content"
android:drawableBottom="@drawable/ic_notifications_black_24dp"
android:text="@string/title_notifications" />
<RadioButton
android:id="@+id/radio4"
style="@style/RadioGroupButtonStyle"
android:layout_width="wrap_content"
android:layout_height="wrap_content"
android:drawableBottom="@drawable/email"
android:text="@string/email" />
<RadioButton
android:id="@+id/radio5"
style="@style/RadioGroupButtonStyle"
android:layout_width="wrap_content"
android:layout_height="wrap_content"
android:drawableBottom="@drawable/dialog_alert_icon"
android:text="@string/alert" />
</RadioGroup>Activity类
private ViewPager mViewPager;
private RadioGroup radioGroup;
private List<Fragment> fragments;
private FragmentPagerAdapter adapter;
@Override
protected void onCreate(Bundle savedInstanceState) {
super.onCreate(savedInstanceState);
setContentView(R.layout.activity_radio_group_test);
initview();
}
private void initview() {
mViewPager = findViewById(R.id.viewpager);
radioGroup = findViewById(R.id.radiogroup);
fragments = new ArrayList<Fragment>();
fragments.add(HomeFragment.newInstance());
fragments.add(DashboardFragment.newInstance());
fragments.add(NotificationFragment.newInstance());
fragments.add(EmailFragment.newInstance());
fragments.add(AlertFragment.newInstance());
adapter = new MyFragmentPagerAdapter(getSupportFragmentManager(), fragments);
mViewPager.setAdapter(adapter);
mViewPager.addOnPageChangeListener(pageChangeListener);
radioGroup.setOnCheckedChangeListener(new RadioGroup.OnCheckedChangeListener() {
@Override
public void onCheckedChanged(RadioGroup group, int checkedId) {
for (int i = 0; i < group.getChildCount(); i++) {
if (group.getChildAt(i).getId() == checkedId) {
mViewPager.setCurrentItem(i);
return;
}
}
}
});
}
@Override
protected void onDestroy() {
super.onDestroy();
mViewPager.removeOnPageChangeListener(pageChangeListener);
}
private ViewPager.OnPageChangeListener pageChangeListener = new ViewPager.OnPageChangeListener() {
@Override
public void onPageScrolled(int position, float positionOffset, int positionOffsetPixels) {
}
@Override
public void onPageSelected(int position) {
if (radioGroup.getChildAt(position) instanceof RadioButton) {
RadioButton radioButton = (RadioButton) radioGroup.getChildAt(position);
radioButton.setChecked(true);
} else {
}
}
@Override
public void onPageScrollStateChanged(int state) {
}
};
private class MyFragmentPagerAdapter extends FragmentPagerAdapter {
private List<Fragment> lists;
@Override
public Fragment getItem(int position) {
return lists == null ? null : lists.get(position);
}
@Override
public int getCount() {
return lists == null ? 0 : lists.size();
}
public MyFragmentPagerAdapter(FragmentManager fm, List<Fragment> datas) {
super(fm);
lists = datas;
}
public MyFragmentPagerAdapter() {
super(null);
}
}

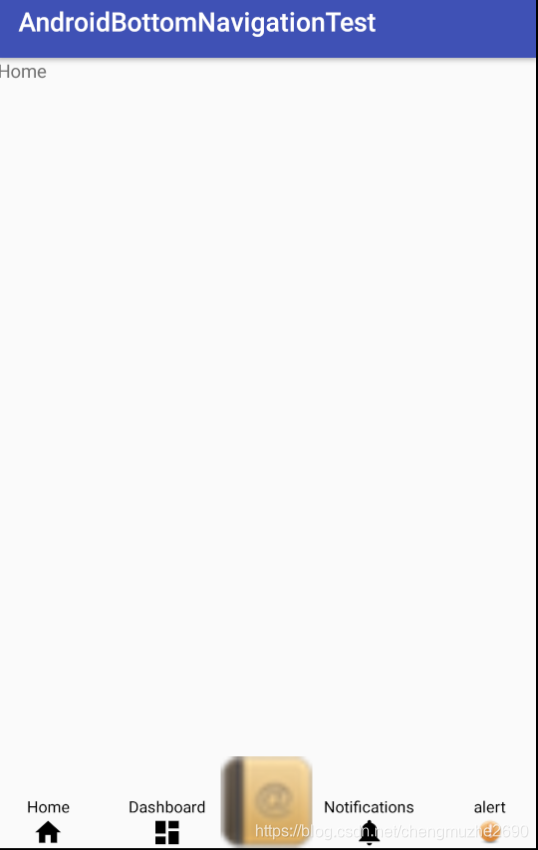

六.RadioGroup+Radiobutton+FrameLayout+fragment（实现底部栏中间大按钮跳转页面）
和第5个类似，但是在radiogroup添加一个view占格，然后创建个imageview覆盖view
布局文件
<FrameLayout
android:layout_width="match_parent"
android:layout_height="match_parent"
android:id="@+id/fragment_container"></FrameLayout>
<RadioGroup
android:layout_width="match_parent"
android:layout_height="40dp"
android:orientation="horizontal"
app:layout_constraintBottom_toBottomOf="parent"
android:id="@+id/radiogroup">
<RadioButton
android:id="@+id/radio1"
style="@style/RadioGroupButtonStyle"
android:layout_width="wrap_content"
android:layout_height="wrap_content"
android:drawableBottom="@drawable/ic_home_black_24dp"
android:text="@string/title_home"
android:checked="true"/>
<RadioButton
android:id="@+id/radio2"
style="@style/RadioGroupButtonStyle"
android:layout_width="wrap_content"
android:layout_height="wrap_content"
android:drawableBottom="@drawable/ic_dashboard_black_24dp"
android:text="@string/title_dashboard" />
<View style="@style/RadioGroupButtonStyle"
android:id="@+id/view"></View>
<RadioButton
android:id="@+id/radio3"
style="@style/RadioGroupButtonStyle"
android:layout_width="wrap_content"
android:layout_height="wrap_content"
android:drawableBottom="@drawable/ic_notifications_black_24dp"
android:text="@string/title_notifications" />
<RadioButton
android:id="@+id/radio5"
style="@style/RadioGroupButtonStyle"
android:layout_width="wrap_content"
android:layout_height="wrap_content"
android:drawableBottom="@drawable/dialog_alert_icon"
android:text="@string/alert" />
</RadioGroup>
<ImageView
android:layout_width="70dp"
android:layout_height="70dp"
app:layout_constraintBottom_toBottomOf="parent"
app:layout_constraintRight_toRightOf="parent"
app:layout_constraintLeft_toLeftOf="parent"
android:src="@drawable/email"
android:id="@+id/imageview"/>Activity
private RadioGroup radioGroup;
private SparseArray<Fragment> fragments;
@Override
protected void onCreate(Bundle savedInstanceState) {
super.onCreate(savedInstanceState);
setContentView(R.layout.activity_intent_test);
initview();
}
private void initview(){
radioGroup = findViewById(R.id.radiogroup);
fragments = new SparseArray<Fragment>() {};
fragments.append(R.id.radio1, HomeFragment.newInstance());
fragments.append(R.id.radio2, DashboardFragment.newInstance());
fragments.append(R.id.radio3, NotificationFragment.newInstance());
fragments.append(R.id.radio5, AlertFragment.newInstance());
radioGroup.setOnCheckedChangeListener(new RadioGroup.OnCheckedChangeListener() {
@Override
public void onCheckedChanged(RadioGroup group, int checkedId) {
getSupportFragmentManager().beginTransaction().replace(R.id.fragment_container,
fragments.get(checkedId)).commit();
}
});
getSupportFragmentManager().beginTransaction().add(R.id.fragment_container,
fragments.get(R.id.radio1)).commit();
ImageView imageView = findViewById(R.id.imageview);
imageView.setOnClickListener(new View.OnClickListener() {
@Override
public void onClick(View v) {
startActivity(new Intent(IntentTest.this,TabLayoutTest.class));
}
});
}这个我viewpager没有实现出来，所以就是抄的别人的（小小的吐槽一下）
第二个方法
在布局文件的根节点添加：
android:clipChildren="false"
clipChildren这个属性是在容器里面限制子控件能不能越界绘制，默认是true，也是可以实现底部中间大按钮的,此处就不给代码，诸位可以试试
七.TextView+LinearLayout+FrameLayout
此方法就是自己一个个定义TextView和Imageview来显示
这篇文章讲可以参考：https://blog.csdn.net/student9128/article/details/53463355
总结
本文总结了实现底部导航栏的6种方式，其中TabLayout 和，BottomNavigationView和BottomNavigationBar 是Android 5.0 以后添加的新控件，符合Material 设计规范，如果是Materail 风格的，可以考虑用这两种实现
还有就是知道BottomNavigationView和BottomNavigationBar 区别和联系的大佬可以告我一下的
demo
这是demo,需要的可以看一下
510
被折叠的 条评论
为什么被折叠?
到【灌水乐园】发言
