Jacinto 6 / TDA2x CPU Board Kit

Home -> Target Boards -> Jacinto 6 / TDA2x -> Jacinto 6 / TDA2x CPU Board
EVM5777BG-03-00-00: DRA74x/DRA75x/TDA2x CPU Board – Spectrum Digital
$1322.05(USD)

1. Hardware Features

1.1. CPU Board

Jacinto 6 / TDA2x ES2.0 SoC Superset
4GB DDR3
eMMC
NAND Flash 16 bit
NOR Flash
I2C EEPROM
AIC3106 codec: Headphone OUT, Line OUT, Line IN, Microphone IN

Connectors:

CAN
USB3.0
USB2.0
PCIe
Video: HDMI Out, FPD-Link III, LCD
COM8
MicroSD
SATA
Expansion

2. Software Features

Compatible with TI Vision SDK
Compatible with TI SDK for DRA7x Processors
Compatible with DRA7xx Generic Linux Software Development Kit (GLSDK)
Compatible with Code Composer Studio Ver 6.x+ from TI
Software is not included in this kit.

3. What’s Included

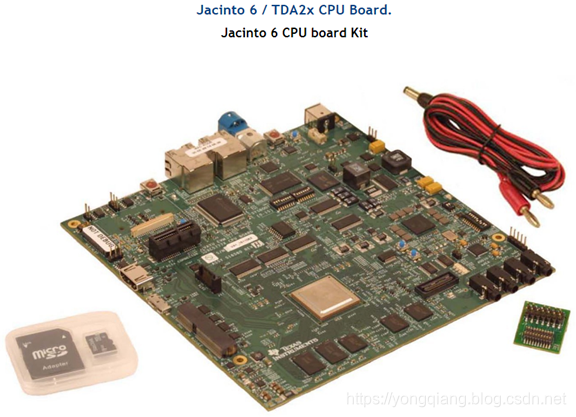

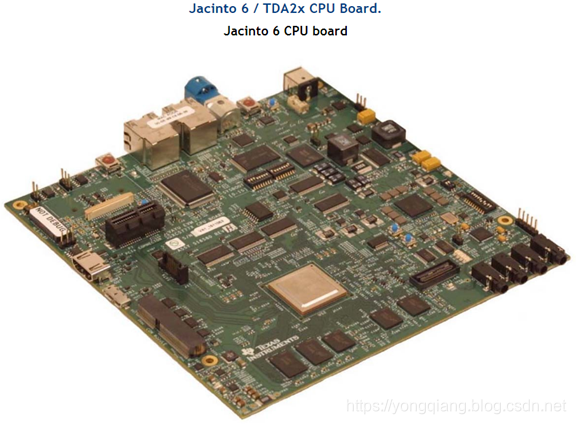

Jacinto 6 / TDA2x CPU board
4 GB Micro SD Card with SD Adapter

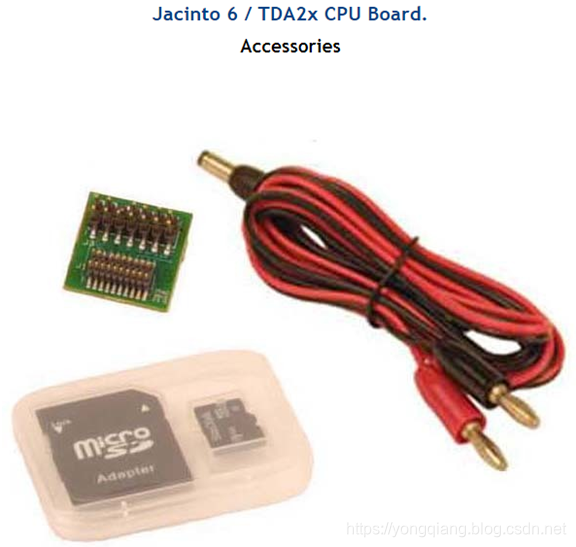

CTI20/TI14 to MIPI60 JTAG Adapter
Power Cable Adapter (2.5MM Straight Plug to Banana Plugs)
DC Power Plug Adapter (2.1mm Male TO 2.5mm Female)
NOTE: Power Supply is not included in this EVM kit See Below for options.

4. Recommended Power Supply Options

12V, 5A, 65W compatible wall supplies
Spectrum Digital Part# 701029-0001
CUI Inc. - p/n SDI65-12-U-P5
CUI Inc. - p/n SDI65-12-UD-P5
CUI Inc. - p/n SDI65-12-U-P6
CUI Inc. - p/n SDI65-12-UD-P6
Volgen America/Kaga Electronics USA - p/n KTPS65-1250DT-3P-VI-C-P1

5. Do You Need?

Full License of Code Composer Studio?
XDS560v2 STM JTAG Emulator, 702592?

5.1. Documentation

Documentation may be found on the Texas Instruments website at: DRA7x Documention
DRA746: Jacinto - OMAP 汽车用处理器

5.2. Application

ADAS
Infotainment

5.3. Warranty

1 year from date of purchase
