vue 中 el-dialog 二次封装

PS：首先声明一点，本篇文章封装的是 element-plus 的对话框，别搞错了兄弟们，plus跟ui的对话框有些细节是不一样的。

1. 功能介绍

（1）对element-plus的el-dialog进行二次封装，实现自定义对话框宽高、定位、底部按钮，

（2）新增功能包括拉伸、全屏，

（3）对原本API也带入了封装，包括遮罩层、关闭图标、打开关闭事件回调、按钮事件等。

        附：我将所有用到的API写在了最下面（第6条）

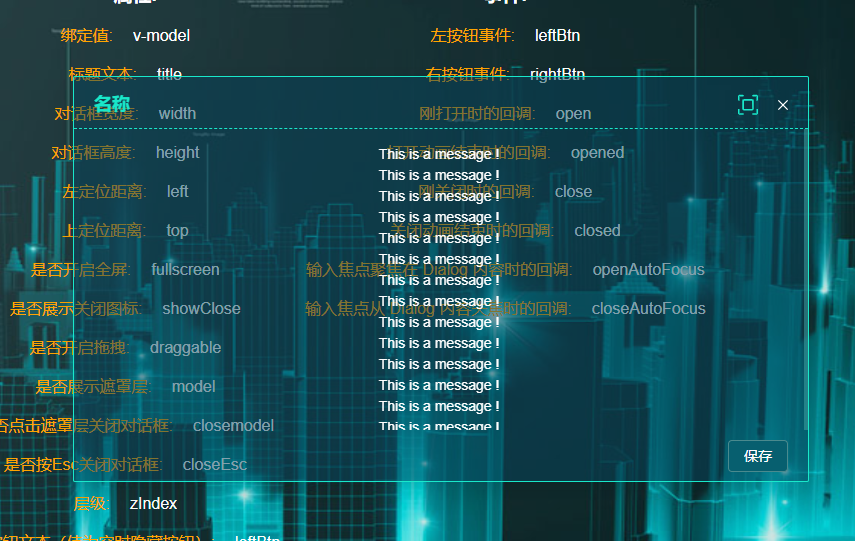

2. 结果展示

el-dialog二次封装效果

3. 功能拆解

（1）首先对头部和尾部进行封装，实现头尾部的文本自定义，右下角增加用于拉伸的透明dom，头部增加全屏按钮图标，支持头部双击全屏；

        里面的<svgIcon></svgIcon>标签是我封装用来展示svg图标的组件，你们嫌麻烦可以直接换成小图片或者组件库里的图标都行

<template #header="{ titleId, titleClass }">
      <div class="my-header" @dblclick="screenfnc">
          <h4 :id="titleId" :class="titleClass">{{ title }}</h4>
          <svgIcon
            :name="screen ? 'bg-fullscreen' : 'fullscreen'"
            width="20px"
            v-show="fullscreen"
            @click="screenfnc"
            style="cursor: pointer"
            class="svgIcon"></svgIcon>
      </div>
</template>

<template #footer>
      <span class="dialog-footer">
          <el-button @click="leftBtnClick" v-show="leftBtn">{{ leftBtn }}</el-button>
          <el-button type="primary" @click="rightBtnClick" v-show="rightBtn"> {{ rightBtn }} </el-button>
      </span>
      <!-- 定位在右下角的用于拉伸的透明小块 -->
      <div class="stretch" @mousedown="mousedown"></div>
</template>

（2）全屏方法：通过控制el-dialog的类名进行样式修改，达到全屏的效果

// 全屏
const screenfnc = () => {
  if (screen.value) {
    // 恢复原来位置
    (document.getElementsByClassName("el-dialog")[0] as HTMLElement).style.height = height.value;
    width.value = screenWidth;
    (document.getElementsByClassName("el-dialog")[0] as HTMLElement).style.left = left;
    (document.getElementsByClassName("el-dialog")[0] as HTMLElement).style.top = top;
    (document.getElementsByClassName("el-dialog__body")[0] as HTMLElement).style.maxHeight = height.value
      ? `calc(${height.value} - ${bodyHeight})`
      : "";
  } else {
    // 全屏
    screenWidth = width.value;
    (document.getElementsByClassName("el-dialog")[0] as HTMLElement).style.height = "100%";
    width.value = "100%";
    (document.getElementsByClassName("el-dialog")[0] as HTMLElement).style.left = "0";
    (document.getElementsByClassName("el-dialog")[0] as HTMLElement).style.top = "0";
    (document.getElementsByClassName("el-dialog__body")[0] as HTMLElement).style.maxHeight = `calc(100% - ${bodyHeight})`;
  }
  screen.value = !screen.value;
};

 （3）拉伸方法：当鼠标按下预先设置在右下角的透明dom上时，通过监听鼠标的拖拽、抬起事件，实时计算鼠标位置，修改对话框的宽高；

        这里我设置了边界值高150长231，防止样式紊乱，具体的值根据你的需求修改。

// 拉伸
const mousedown = (e: any) => {
  if (!stretch) return;
  // 当前宽度/高度 = 点击时宽度/高度 + 移动的距离（移动时距离 - 点击时距离）
  // 点击时距离
  let startX = e.pageX;
  let startY = e.pageY;
  // 点击时宽度/高度
  let initWidth = width.value;
  let initHeight = height.value;
  // mousemove的回调
  const moveFunc = (el: any) => {
    // 移动的距离
    let x = el.pageX - startX;
    let y = el.pageY - startY;
    // 当前宽度/高度(边界值x: 231,y: 150)
    // el-dialog自带的拖拽不改变offsetTop和offsetLeft，需要使用getBoundingClientRect()获取
    if (el.pageY - document.getElementsByClassName("el-dialog")[0].getBoundingClientRect().top >= 150) {
      (document.getElementsByClassName("el-dialog")[0] as HTMLElement).style.height = height.value = `calc(${initHeight} + ${y}px)`;
    } else {
      (document.getElementsByClassName("el-dialog")[0] as HTMLElement).style.height = height.value = "calc(150px)";
    }
    if (el.pageX - document.getElementsByClassName("el-dialog")[0].getBoundingClientRect().left >= 231) {
      width.value = `calc(${initWidth} + ${x}px)`;
    } else {
      width.value = "calc(231px)";
    }
    (document.getElementsByClassName("el-dialog__body")[0] as HTMLElement).style.maxHeight = `calc(${height.value} - ${bodyHeight})`;
  };
  document.addEventListener("mousemove", moveFunc);
  document.addEventListener("mouseup", (_eu: any) => {
    document.removeEventListener("mousemove", moveFunc);
  });
};

（4）事件监听：默认的初始化操作都在open中完成

const open = () => {
  // 判断是否有遮罩层,有就不能穿透,没有就可以穿透
  (document.getElementsByClassName("modelClass")[0] as HTMLElement).style.pointerEvents = model ? "auto" : "none";
  // 初始化高度、位置、body最大高度
  (document.getElementsByClassName("el-dialog")[0] as HTMLElement).style.height = height.value;
  (document.getElementsByClassName("el-dialog")[0] as HTMLElement).style.left = left;
  (document.getElementsByClassName("el-dialog")[0] as HTMLElement).style.top = top;
  // 头部尾部是否显示
  (document.getElementsByClassName("el-dialog__header")[0] as HTMLElement).style.display = headerShow ? "" : "none";
  (document.getElementsByClassName("el-dialog__footer")[0] as HTMLElement).style.display = footerShow ? "" : "none";
  // body最大高度
  (document.getElementsByClassName("el-dialog__body")[0] as HTMLElement).style.maxHeight = `calc(${height.value} - ${bodyHeight})`;
  // 拉伸图标
  (document.getElementsByClassName("stretch")[0] as HTMLElement).style.cursor = stretch ? "nwse-resize" : "";
  emit("open", "刚打开时的回调");
};
// 左按钮事件
const leftBtnClick = () => {
  emit("leftBtn", "这是左按钮");
};
// 右按钮事件
const rightBtnClick = () => {
  emit("rightBtn", "这是右按钮");
};
const opened = () => {
  emit("opened", "打开动画结束时的回调");
};
const close = () => {
  dialogVisible.value = false;
  emit("update:modelValue", false);
  emit("close", "刚关闭时的回调");
};
const closed = () => {
  emit("closed", "关闭动画结束时的回调");
};
const openAutoFocus = () => {
  emit("openAutoFocus", "输入焦点聚焦在 Dialog 内容时的回调");
};
const closeAutoFocus = () => {
  emit("closeAutoFocus", "输入焦点从 Dialog 内容失焦时的回调");
};

4. 完整代码

<template>
  <div class="elDialog">
    <el-dialog
      v-model="dialogVisible"
      :width="width"
      :fullscreen="screen"
      :close-on-click-modal="closemodel"
      :close-on-press-escape="closeEsc"
      :show-close="showClose"
      :draggable="draggable"
      :modal="model"
      :z-index="zIndex"
      @open="open"
      @opened="opened"
      @close="close"
      @closed="closed"
      @open-auto-focus="openAutoFocus"
      @close-auto-focus="closeAutoFocus"
      modal-class="modelClass">
      <template #header="{ titleId, titleClass }">
        <div class="my-header" @dblclick="screenfnc">
          <h4 :id="titleId" :class="titleClass">{{ title }}</h4>
          <svgIcon
            :name="screen ? 'bg-fullscreen' : 'fullscreen'"
            width="20px"
            v-show="fullscreen"
            @click="screenfnc"
            style="cursor: pointer"
            class="svgIcon"></svgIcon>
        </div>
      </template>
      <slot></slot>
      <div class="stretch" @mousedown="mousedown" v-if="!footerShow"></div>
      <template #footer>
        <span class="dialog-footer">
          <el-button @click="leftBtnClick" v-show="leftBtn">{{ leftBtn }}</el-button>
          <el-button type="primary" @click="rightBtnClick" v-show="rightBtn"> {{ rightBtn }} </el-button>
        </span>
        <!-- 定位在右下角的用于拉伸的透明小块 -->
        <div class="stretch" @mousedown="mousedown"></div>
      </template>
    </el-dialog>
  </div>
</template>

<script setup lang="ts">
import { ref, watch } from "vue";
// 这个组件时封装用来展示全屏svg图标的，不是必须的，用img标签一样。
import svgIcon from "@/components/svgIcon.vue";
const emit = defineEmits();
const props = defineProps({
  // 对话框v-model
  modelValue: {
    type: Boolean,
    default: false,
  },
  // 标题
  title: {
    type: String,
    default: "名称",
  },
  // 宽度
  width: {
    type: String,
    default: "600px",
  },
  // 高度
  height: {
    type: String,
    default: "300px",
  },
  // 左定位
  left: {
    type: String,
    default: "350px",
  },
  // 上定位
  top: {
    type: String,
    default: "50px",
  },
  // 全屏
  fullscreen: {
    type: Boolean,
    default: false,
  },
  // 关闭图标
  showClose: {
    type: Boolean,
    default: false,
  },
  // 拖拽
  draggable: {
    type: Boolean,
    default: false,
  },
  // 遮罩层
  model: {
    type: Boolean,
    default: true,
  },
  // 是否点击遮罩层关闭对话框
  closemodel: {
    type: Boolean,
    default: false,
  },
  // 是否按Esc关闭对话框
  closeEsc: {
    type: Boolean,
    default: true,
  },
  // 层级
  zIndex: {
    type: Number,
    default: 2000,
  },
  // 左按钮
  leftBtn: {
    type: String,
    default: "取消",
  },
  // 右按钮
  rightBtn: {
    type: String,
    default: "确认",
  },
  // 头部显隐
  headerShow: {
    type: Boolean,
    default: true,
  },
  // 尾部显隐
  footerShow: {
    type: Boolean,
    default: true,
  },
  // 拉伸
  stretch: {
    type: Boolean,
    default: false,
  },
});
const { left, top, model, headerShow, footerShow, stretch } = props;
const width = ref(props.width);
const height = ref(props.height);
const screen = ref(false);
const dialogVisible = ref(props.modelValue);

watch(
  () => props.modelValue,
  (val) => {
    dialogVisible.value = val;
  },
  { immediate: true, deep: true }
);
const open = () => {
  // 判断是否有遮罩层,有就不能穿透,没有就可以穿透
  (document.getElementsByClassName("modelClass")[0] as HTMLElement).style.pointerEvents = model ? "auto" : "none";
  // 初始化高度、位置、body最大高度
  (document.getElementsByClassName("el-dialog")[0] as HTMLElement).style.height = height.value;
  (document.getElementsByClassName("el-dialog")[0] as HTMLElement).style.left = left;
  (document.getElementsByClassName("el-dialog")[0] as HTMLElement).style.top = top;
  // 头部尾部是否显示
  (document.getElementsByClassName("el-dialog__header")[0] as HTMLElement).style.display = headerShow ? "" : "none";
  (document.getElementsByClassName("el-dialog__footer")[0] as HTMLElement).style.display = footerShow ? "" : "none";
  // body最大高度
  (document.getElementsByClassName("el-dialog__body")[0] as HTMLElement).style.maxHeight = `calc(${height.value} - ${bodyHeight})`;
  // 拉伸图标
  (document.getElementsByClassName("stretch")[0] as HTMLElement).style.cursor = stretch ? "nwse-resize" : "";
  emit("open", "刚打开时的回调");
};
// 全屏时保存全屏前的宽度
let screenWidth: any;
//  根据头部尾部显隐分别判断body的最大高度
let bodyHeight = "140px";
if (!headerShow && !footerShow) {
  bodyHeight = "50px";
} else if (!headerShow || !footerShow) {
  bodyHeight = "95px";
}
// 全屏
const screenfnc = () => {
  if (screen.value) {
    // 恢复原来位置
    (document.getElementsByClassName("el-dialog")[0] as HTMLElement).style.height = height.value;
    width.value = screenWidth;
    (document.getElementsByClassName("el-dialog")[0] as HTMLElement).style.left = left;
    (document.getElementsByClassName("el-dialog")[0] as HTMLElement).style.top = top;
    (document.getElementsByClassName("el-dialog__body")[0] as HTMLElement).style.maxHeight = height.value
      ? `calc(${height.value} - ${bodyHeight})`
      : "";
  } else {
    // 全屏
    screenWidth = width.value;
    (document.getElementsByClassName("el-dialog")[0] as HTMLElement).style.height = "100%";
    width.value = "100%";
    (document.getElementsByClassName("el-dialog")[0] as HTMLElement).style.left = "0";
    (document.getElementsByClassName("el-dialog")[0] as HTMLElement).style.top = "0";
    (document.getElementsByClassName("el-dialog__body")[0] as HTMLElement).style.maxHeight = `calc(100% - ${bodyHeight})`;
  }
  screen.value = !screen.value;
};
// 拉伸
const mousedown = (e: any) => {
  if (!stretch) return;
  // 当前宽度/高度 = 点击时宽度/高度 + 移动的距离（移动时距离 - 点击时距离）
  // 点击时距离
  let startX = e.pageX;
  let startY = e.pageY;
  // 点击时宽度/高度
  let initWidth = width.value;
  let initHeight = height.value;
  // mousemove的回调
  const moveFunc = (el: any) => {
    // 移动的距离
    let x = el.pageX - startX;
    let y = el.pageY - startY;
    // 当前宽度/高度(边界值x: 231,y: 150)
    // el-dialog自带的拖拽不改变offsetTop和offsetLeft，需要使用getBoundingClientRect()获取
    if (el.pageY - document.getElementsByClassName("el-dialog")[0].getBoundingClientRect().top >= 150) {
      (document.getElementsByClassName("el-dialog")[0] as HTMLElement).style.height = height.value = `calc(${initHeight} + ${y}px)`;
    } else {
      (document.getElementsByClassName("el-dialog")[0] as HTMLElement).style.height = height.value = "calc(150px)";
    }
    if (el.pageX - document.getElementsByClassName("el-dialog")[0].getBoundingClientRect().left >= 231) {
      width.value = `calc(${initWidth} + ${x}px)`;
    } else {
      width.value = "calc(231px)";
    }
    (document.getElementsByClassName("el-dialog__body")[0] as HTMLElement).style.maxHeight = `calc(${height.value} - ${bodyHeight})`;
  };
  document.addEventListener("mousemove", moveFunc);
  document.addEventListener("mouseup", (_eu: any) => {
    document.removeEventListener("mousemove", moveFunc);
  });
};
// 左按钮事件
const leftBtnClick = () => {
  emit("leftBtn", "这是左按钮");
};
// 右按钮事件
const rightBtnClick = () => {
  emit("rightBtn", "这是右按钮");
};
const opened = () => {
  emit("opened", "打开动画结束时的回调");
};
const close = () => {
  dialogVisible.value = false;
  emit("update:modelValue", false);
  emit("close", "刚关闭时的回调");
};
const closed = () => {
  emit("closed", "关闭动画结束时的回调");
};
const openAutoFocus = () => {
  emit("openAutoFocus", "输入焦点聚焦在 Dialog 内容时的回调");
};
const closeAutoFocus = () => {
  emit("closeAutoFocus", "输入焦点从 Dialog 内容失焦时的回调");
};
</script>

<style lang="scss" scoped>
.elDialog {
  -moz-user-select: none;
  -webkit-user-select: none;
  user-select: none;
}
.my-header {
  display: flex;
  justify-content: space-between;
  padding-right: 15px;
}
::v-deep(.el-dialog) {
  margin: 0 !important;
}
::v-deep(.el-dialog__header) {
  border-bottom: 1px dashed #19e8ca;
}
::v-deep(.el-dialog__body) {
  padding-top: 15px !important;
}
.svgIcon:hover {
  transform: scale(1.1);
}
.stretch {
  position: absolute;
  bottom: 0;
  right: 0;
  width: 10px;
  height: 10px;
}
</style>

5. 调用示例

        基本上把原组件库的事件监听也都带上了，属性没有全部带上，很多不常用的没有加上，有需要的话可以自行加上，可以按照代码里showClose的方式添加就可以，或者不明白的可以评论区留言。

       有不足的地方， 欢迎大佬们指正，享受鞭挞哈哈哈哈哈哈...

<Dialog
    v-model="dialogVisible"
    left="350px"
    top="100px"
    fullscreen
    showClose
    draggable
    :model="false"
    stretch
    leftBtn=""
    rightBtn="保存"
    @leftBtn="leftBtn"
    @rightBtn="rightBtn"
    @open="open"
    @opened="opened"
    @close="close"
    @closed="closed"
    @openAutoFocus="openAutoFocus"
    @closeAutoFocus="closeAutoFocus">
    <div v-for="(item, index) in list" :key="index">{{ item }}</div>
</Dialog>

6. API

属性

v-model	绑定值	title	标题文本
width	对话框宽度	height	对话框高度
left	左定位距离	top	上定位距离
fullscreen	是否开启全屏	showClose	是否展示关闭图标
draggable	是否开启拖拽	model	是否展示遮罩层
closemodel	是否点击遮罩层关闭对话框	closeEsc	是否按Esc关闭对话框
zIndex	层级	leftBtn	左按钮文本（值为空时隐藏按钮）
rightBtn	右按钮文本（值为空时隐藏按钮）



事件

leftBtn	左按钮事件	rightBtn	右按钮事件
open	刚打开时的回调	opened	打开动画结束时的回调
close	刚关闭时的回调	closed	关闭动画结束时的回调
openAutoFocus	输入焦点聚焦在 Dialog 内容时的回调	closeAutoFocus	输入焦点从 Dialog 内容失焦时的回调
