Ocelot + Consul 搭建关键点

Ocelot 的【限流】【熔断】  【负载均衡】等基础功能已经实现，比较难实现的是Ocelot集成Consul这个服务发现以及服务治理，原来里面有几个比较隐秘的坑，废话不多说，上代码，中间有可能需要引用对应的dll

using Ocelot.Cache.CacheManager;
using Ocelot.DependencyInjection;
using Ocelot.Middleware;
using Ocelot.Provider.Consul;
using Ocelot.Provider.Polly;

 Ocelot搭建

 首先在Program.cs引用Ocelot

  public static IHostBuilder CreateHostBuilder(string[] args) =>
            Host.CreateDefaultBuilder(args)
            .ConfigureAppConfiguration(conf => conf.AddJsonFile("ocelot.json", false, true))
                .ConfigureWebHostDefaults(webBuilder =>
                {
                    webBuilder.UseStartup<Startup>();
                });

然后在Startup.cs注入Ocelot

public void ConfigureServices(IServiceCollection services)
        {
            //services.AddControllers();
            services.AddOcelot(Configuration).AddPolly().AddConsul().AddCacheManager(u=>u.WithDictionaryHandle()); //AddPolly 负责熔断
        }

**************************************************
public void Configure(IApplicationBuilder app, IWebHostEnvironment env)
        {
            app.UseOcelot().Wait();
        }

 附上Ocelot.json文件写法，里面有对应的注释。

{
  "Routes": [
    {
      "UpstreamPathTemplate": "/api/user/{url}",
      "DownstreamPathTemplate": "/{url}",
      "DownstreamScheme": "http",
      "DownstreamHostAndPorts": [
        {
          "Host": "47.XX.XX.XX",
          "Port": 8080
        }
      ],
      "UpstreamHttpMethod": [
        "Get",
        "Post"
      ]
    },
    {
      "UpstreamPathTemplate": "/api/server/{url}",
      "DownstreamPathTemplate": "/{url}",
      "DownstreamScheme": "http",
      "UseServiceDiscovery": true,
      "ServiceName": "HelloServer", //ServiceName 服务名称要跟Consul的服务名称一致【ServiceName DownstreamHostAndPorts】不可以同时为空，也不可以同时存在
      "Key": "server", //声明聚合路由
      //"DownstreamHostAndPorts": [ //使用服务发现后需要注释掉
      //  {
      //    "Host": "localhost",
      //    "Port": 8082
      //  },
      //  {
      //    "Host": "localhost",
      //    "Port": 8083
      //  }
      //],
      "UpstreamHttpMethod": [
        "Get",
        "Post"
      ],
      "LoadBalancerOptions": {
        "Type": "RoundRobin" //负载均衡，轮询机制 LeastConnection/RoundRobin/NoLoadBalancer/CookieStickySessions
      },
      "ReRouteIsCaseSensitive": false, //重写路由是否区分大小写
      //缓存
      //"FileCacheOptions": {
      //  "TtlSeconds": 30, //缓存时间（秒）
      //  "Region": "CacheArea" //缓存区（名称自定义），表示改配置缓存放到哪个区域，可以在配置管理中进行维护
      //},
      //限流
      "RateLimitOptions": {
        "ClientWhitelist": [], //数组中的客户机不会受到路由限制的影响使用方式：在客户端请求头中添加key：ClientId，value为网关配置白名单。
        "EnableRateLimiting": true, //是否启用路由限制。
        "Period": "1s", //指定周期，如1s、5m、1h、1d等。
        "PeriodTimespan": 1, //指定我们可以在一定秒数后重试【限流后多久可以重试】。
        "Limit": 1 //指定客户端在定义的时间段内可以发出的最大请求数
      }

    }
  ],
  "GlobalConfiguration": {
    //"BaseUrl": "http://localhost:9070"
    //全局限流
    "RateLimitOptions": {
      "DisableRateLimitHeaders": false,
      "QuotaExceededMessage": "Customize Tips!", //限流返回的信息。
      "HttpStatusCode": 999 //限流返回状态码
    },
    //服务发现
    "ServiceDiscoveryProvider": {
      "Host": "localhost", //上线后需要取线上地址
      "Port": 8500,
      "Token": "footoken",
      "Provider": "consul", //Consul PollConsul
      "PollingInterval": 100
    },
    //服务质量  熔断？
    "QoSOptions": {
      "ExceptionsAllowedBeforeBreaking": 2, //在熔断之前允许的异常次数
      "DurationOfBreak": 5000, //熔断时长 ，单位毫秒
      "TimeoutValue": 2000 //请求超时设置, 单位毫秒
    }
  }
}

 主要要关注是以下的坑

1. Ocelot 最新版本的V17.0的Routes跟以前版本不一样，以前版本是ReRoutes
2. "UseServiceDiscovery": true  开启服务发现的时候需要定义ServerName，ServerName的名字需要跟Consul的服务名字一致，同时需要注释DownstreamHostAndPorts，如果不开启服务发现"UseServiceDiscovery": false 的话需要定义DownstreamHostAndPorts，否则将会报错

Consul搭建

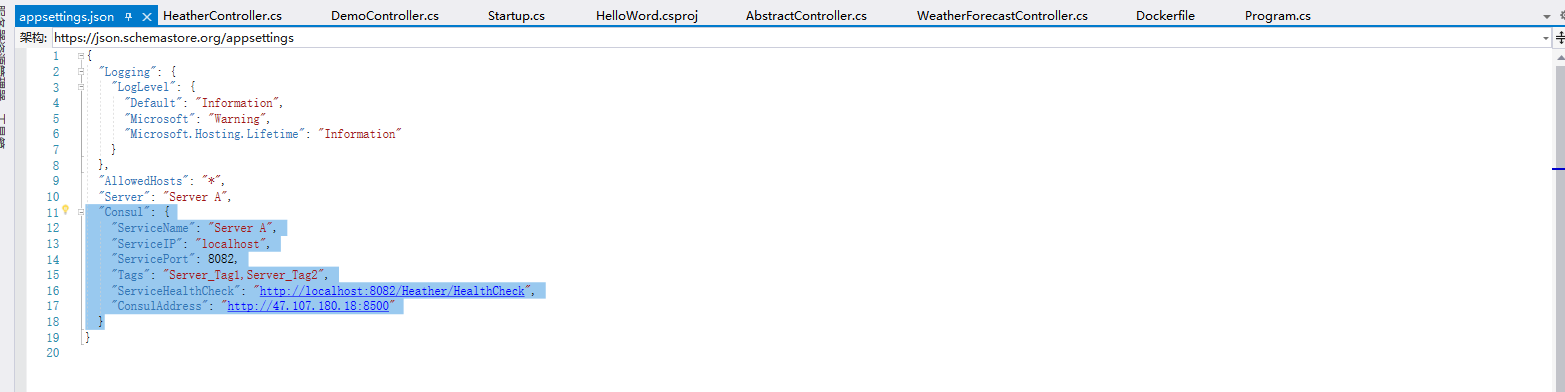

 新建一个demo项目，appsettings.json新增Consul配置

 "Consul": {
    "ServiceName": "HelloServer",
    "ServiceIP": "localhost",
    "ServicePort": 8082,
    "Tags": "Server_Tag1,Server_Tag2",
    "ServiceHealthCheck": "http://localhost:8082/Heather/HealthCheck",
    "ConsulAddress": "http://localhost:8500"
  }

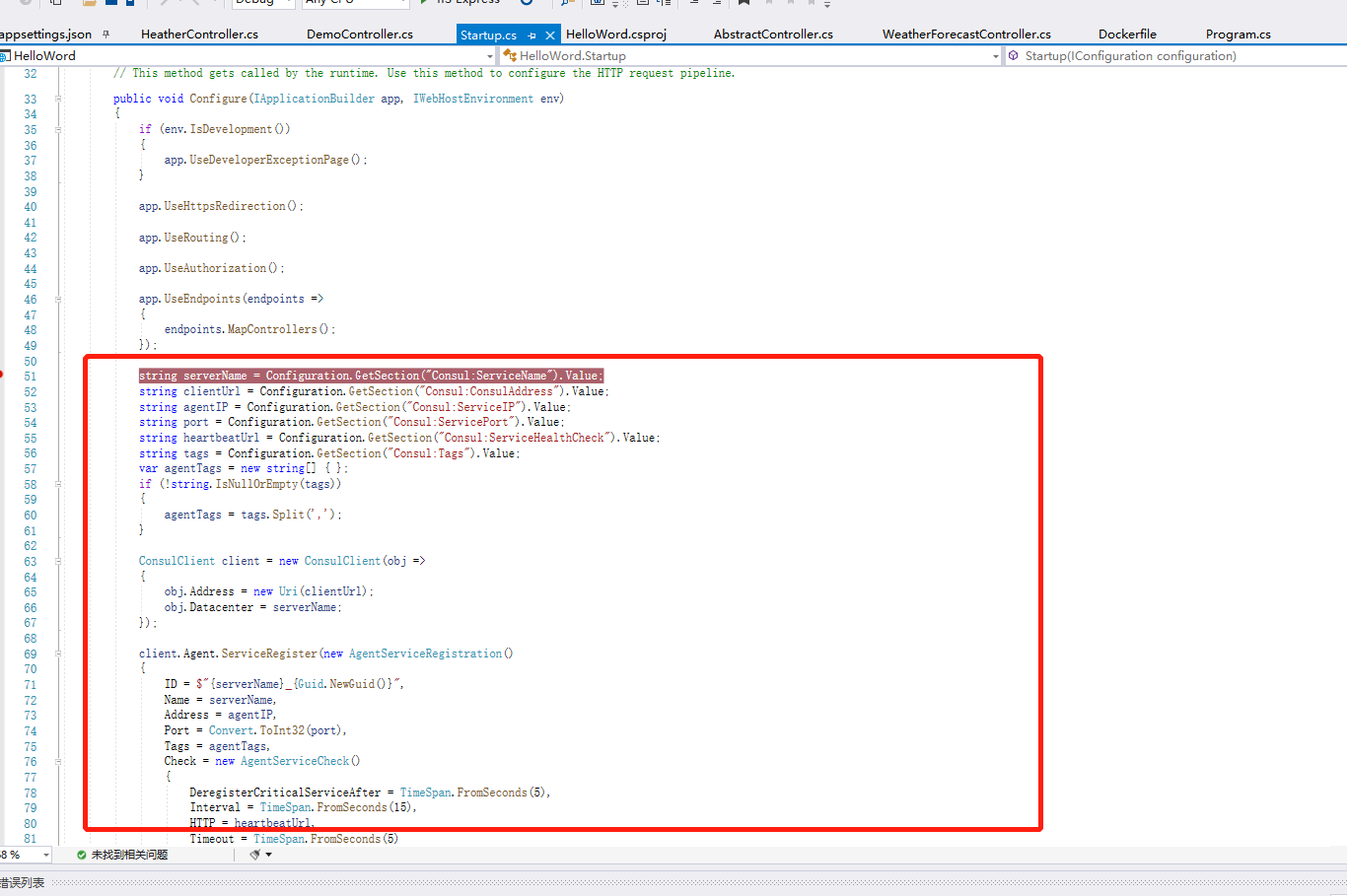

string serverName = Configuration.GetSection("Consul:ServiceName").Value;
            string clientUrl = Configuration.GetSection("Consul:ConsulAddress").Value;
            string agentIP = Configuration.GetSection("Consul:ServiceIP").Value;
            string port = Configuration.GetSection("Consul:ServicePort").Value;
            string heartbeatUrl = Configuration.GetSection("Consul:ServiceHealthCheck").Value;
            string tags = Configuration.GetSection("Consul:Tags").Value;
            var agentTags = new string[] { };
            if (!string.IsNullOrEmpty(tags))
            {
                agentTags = tags.Split(',');
            }

            ConsulClient client = new ConsulClient(obj =>
            {
                obj.Address = new Uri(clientUrl);
                obj.Datacenter = serverName;
            });

            client.Agent.ServiceRegister(new AgentServiceRegistration()
            {
                ID = $"{serverName}_{Guid.NewGuid()}",
                Name = serverName,
                Address = agentIP,
                Port = Convert.ToInt32(port),
                Tags = agentTags,
                Check = new AgentServiceCheck()
                {
                    DeregisterCriticalServiceAfter = TimeSpan.FromSeconds(5),
                    Interval = TimeSpan.FromSeconds(15),
                    HTTP = heartbeatUrl,
                    Timeout = TimeSpan.FromSeconds(5)
                }
            }).Wait();

 接着新建心跳Controller

   [ApiController]
    [Route("[controller]/[action]")]
    public abstract class AbstractController : ControllerBase
    {
    }



public class HeatherController: AbstractController
    {
        [HttpGet]
        public IActionResult HealthCheck()
        {
            return Ok();
        }
    }

将Demo打包运行即可
