WPF中 DataGrid中DataGridTemplateColumn打开Window的问题

问题重现:

1、创建一个WPF项目;

2、创建一个Window,添加一个按钮,Click事件中添加如下代码:



 Window window = new Window();
 window.Show();
 window.Activate();

3、创建一个DataGrid,使用自定义模板列,DataTemplate中的控件为一个TextBlock,MouseDown事件同样添加以上代码。

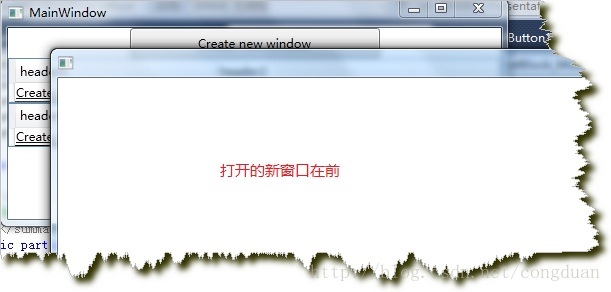

4、鼠标单击按钮和DataGrid中的TextBlock,发现以下区别:

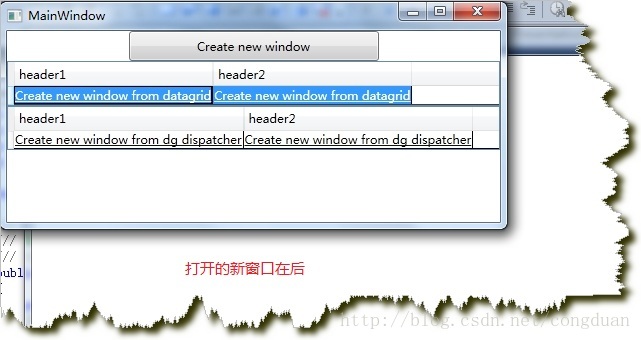

在DataGrid中打开的Window并没有置于最前,而Button中打开的Window正常。且window.Activate();返回值是true,说明执行成功。问题关键在于,window.Activate()执行没有效果。





==========================================================================================

由于项目需求原因,需要能打开多个窗口,不能使用Window.ShowDialog(),也不能使用TopMost = true,这样无法将其他窗口置于最前。另外设置window.Owner之后,无法再windows任务栏通过鼠标单击切换到其他窗口。



部分代码如下:

 MainWindow.xaml

<Window x:Class="TestWindowShow.MainWindow"
        xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
        xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
        xmlns:local="clr-namespace:TestWindowShow"
        Title="MainWindow" Height="229" Width="509">
    <Grid>
        <StackPanel>
            <Button Width="250" Height="30" Content="Create new window"  Click="Button_Click"/>
            <DataGrid>
            <DataGrid.Columns>
                <DataGridTemplateColumn Header="header1">
                    <DataGridTemplateColumn.CellTemplate>
                        <DataTemplate>
                            <local:UserControlButton/>
                        </DataTemplate>
                    </DataGridTemplateColumn.CellTemplate>
                </DataGridTemplateColumn>
                <DataGridTemplateColumn Header="header2">
                    <DataGridTemplateColumn.CellTemplate>
                        <DataTemplate>
                                <local:UserControlButton/>
                        </DataTemplate>
                    </DataGridTemplateColumn.CellTemplate>
                </DataGridTemplateColumn>
            </DataGrid.Columns>
            <DataGrid.Items>
                test
            </DataGrid.Items>
        </DataGrid>
            <DataGrid>
                <DataGrid.Columns>
                    <DataGridTemplateColumn Header="header1">
                        <DataGridTemplateColumn.CellTemplate>
                            <DataTemplate>
                                <local:UserControlButton1/>
                            </DataTemplate>
                        </DataGridTemplateColumn.CellTemplate>
                    </DataGridTemplateColumn>
                    <DataGridTemplateColumn Header="header2">
                        <DataGridTemplateColumn.CellTemplate>
                            <DataTemplate>
                                <local:UserControlButton1/>
                            </DataTemplate>
                        </DataGridTemplateColumn.CellTemplate>
                    </DataGridTemplateColumn>
                </DataGrid.Columns>
                <DataGrid.Items>
                    test
                </DataGrid.Items>
            </DataGrid>
        </StackPanel>
    </Grid>
</Window>


MainWindow.xaml.cs

using System.Windows;

namespace TestWindowShow
{
    /// <summary>
    /// MainWindow.xaml 的交互逻辑
    /// </summary>
    public partial class MainWindow : Window
    {
        public MainWindow()
        {
            InitializeComponent();
        }

        private void Button_Click(object sender, RoutedEventArgs e)
        {
            Window window = new Window();
            window.Show();
            window.Activate();
        }
    }
}


UserControlButton.xaml

<UserControl x:Class="TestWindowShow.UserControlButton"
             xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
             xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
             xmlns:mc="http://schemas.openxmlformats.org/markup-compatibility/2006"
             xmlns:d="http://schemas.microsoft.com/expression/blend/2008"
             mc:Ignorable="d"
             d:DesignHeight="118" d:DesignWidth="330">
    <Grid>
        <TextBlock HorizontalAlignment="Center"
                   VerticalAlignment="Center"
                   Text="Create new window from datagrid"  MouseDown="TextBlock_MouseDown" TextDecorations="UnderLine"/>
    </Grid>
</UserControl>


UserControlButton.xaml.cs

using System.Windows;
using System.Windows.Controls;
using System.Windows.Input;

namespace TestWindowShow
{
    /// <summary>
    /// UserControlButton.xaml 的交互逻辑
    /// </summary>
    public partial class UserControlButton : UserControl
    {
        public UserControlButton()
        {
            InitializeComponent();
        }

        private void TextBlock_MouseDown(object sender, MouseButtonEventArgs e)
        {
            Window window = new Window();
            window.Show();
            window.Activate();
        }
    }
}

UserControlButton1.xaml

<UserControl x:Class="TestWindowShow.UserControlButton1"
             xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
             xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
             xmlns:mc="http://schemas.openxmlformats.org/markup-compatibility/2006"
             xmlns:d="http://schemas.microsoft.com/expression/blend/2008"
             mc:Ignorable="d"
             d:DesignHeight="118" d:DesignWidth="330">
    <Grid>
        <TextBlock HorizontalAlignment="Center"
                   VerticalAlignment="Center"
                   Text="Create new window from dg dispatcher"  MouseDown="TextBlock_MouseDown" TextDecorations="UnderLine"/>
    </Grid>
</UserControl>

UserControlButton1.xaml.cs

using System.Windows;
using System.Windows.Controls;
using System.Windows.Input;
using System;

namespace TestWindowShow
{
    /// <summary>
    /// UserControlButton1.xaml 的交互逻辑
    /// </summary>
    public partial class UserControlButton1 : UserControl
    {
        public UserControlButton1()
        {
            InitializeComponent();
        }

        private void TextBlock_MouseDown(object sender, MouseButtonEventArgs e)
        {
            Window window = new Window();
            window.Show();

            window.Activate();
        }
    }
}

======================================================================================================

解决方法:

参考StackOverFlow (http://stackoverflow.com/questions/7211523/wpf-bring-window-to-front

解决方法如下:

window.Activate();改成以下代码

this.Dispatcher.BeginInvoke(new Action(delegate

            {

               window.Activate();

            }),System.Windows.Threading.DispatcherPriority.ContextIdle,null);



至于问题出现的原因,目前还没有弄明白,有知道的在下面留言。
