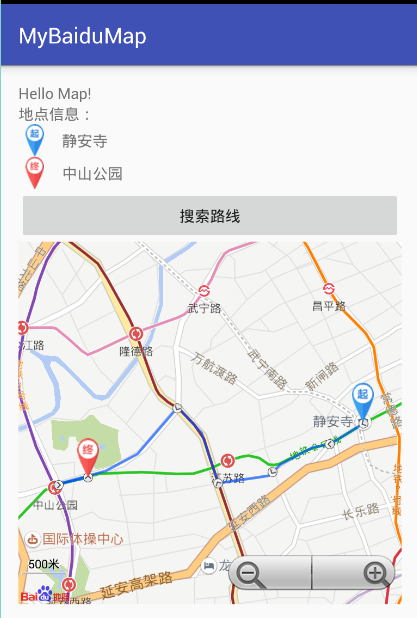

写到这里差不多百度地图系列要讲得东西也讲的差不多了。这篇博文主要是讲，百度地图的路线规划这个功能，本次例子以驾车路线规划来说明的。
- 在上个博文百度地图之四 Poi的demo 的基础上我们添加了一个搜索路线的按钮。
<Button
android:id="@+id/bt_search"
android:layout_width="match_parent"
android:layout_height="wrap_content"
android:text="搜索路线"/>
- 首先先获取起始点的坐标，然后调用路线规划接口主要代码如下
LatLng from = new LatLng(Double.parseDouble(mStartPosition.getLatitude()),
Double.parseDouble(mStartPosition.getLongitude()));
LatLng dest = new LatLng(Double.parseDouble(mEndPosition.getLatitude()),
Double.parseDouble(mEndPosition.getLongitude()));
//设置起终点信息，对于tranist search 来说，城市名无意义
PlanNode stNode = PlanNode.withLocation(from);
PlanNode enNode = PlanNode.withLocation(dest);
// 实际使用中请对起点终点城市进行正确的设定
mSearch.drivingSearch((new DrivingRoutePlanOption())
.from(stNode)
.to(enNode));- 调用完接口后还需监听返回的结果，当然因为我这边是调用的驾车路线的接口，所以只监听驾车的路线返回结果，还有走路和坐车两种的路线规划，如有需要也可以自行试试。
//////////////////////////////////route plan
@Override
public void onGetWalkingRouteResult(WalkingRouteResult walkingRouteResult) {
}
@Override
public void onGetTransitRouteResult(TransitRouteResult transitRouteResult) {
}
@Override
public void onGetDrivingRouteResult(DrivingRouteResult result) {
if (result == null || result.error != SearchResult.ERRORNO.NO_ERROR) {
Toast.makeText(this, "抱歉，未找到结果", Toast.LENGTH_SHORT).show();
}
if (result.error == SearchResult.ERRORNO.AMBIGUOUS_ROURE_ADDR) {
//起终点或途经点地址有岐义，通过以下接口获取建议查询信息
//result.getSuggestAddrInfo()
return;
}
if (result.error == SearchResult.ERRORNO.NO_ERROR) {
mBaiduMap.clear();
// mroute = result.getRouteLines().get(0);
DrivingRouteOverlay overlay = new MyDrivingRouteOverlay(mBaiduMap);
mrouteOverlay = overlay;
mBaiduMap.setOnMarkerClickListener(overlay);
overlay.setData(result.getRouteLines().get(0));
overlay.addToMap();
overlay.zoomToSpan();
}
}
//定制RouteOverly
private class MyDrivingRouteOverlay extends DrivingRouteOverlay {
public MyDrivingRouteOverlay(BaiduMap baiduMap) {
super(baiduMap);
}
@Override
public BitmapDescriptor getStartMarker() {
return BitmapDescriptorFactory.fromResource(R.drawable.ic_baidumap_start);
}
@Override
public BitmapDescriptor getTerminalMarker() {
return BitmapDescriptorFactory.fromResource(R.drawable.ic_baidumap_destination);
}
}
//////////////////////////////////route plan- 最后要主要一点baidu.mapapi.overlayutil.DrivingRouteOverlay 和baidu.mapapi.overlayutil.OverlayManager 两个类是没有在百度地图sdk 中的，需要从将官方的demo 中的baidu.mapapi.overlayutil文件夹拷贝到自己的工程java 文件夹下。才可以调用路线规划。
完整的主程序的代码如下：
package com.hand.jimda.mybaidumap.activity;
import android.os.Bundle;
import android.support.v7.app.AppCompatActivity;
import android.text.TextUtils;
import android.view.View;
import android.widget.Button;
import android.widget.TextView;
import android.widget.Toast;
import com.baidu.location.BDLocation;
import com.baidu.location.BDLocationListener;
import com.baidu.location.LocationClient;
import com.baidu.location.LocationClientOption;
import com.baidu.mapapi.SDKInitializer;
import com.baidu.mapapi.map.BaiduMap;
import com.baidu.mapapi.map.BitmapDescriptor;
import com.baidu.mapapi.map.BitmapDescriptorFactory;
import com.baidu.mapapi.map.MapPoi;
import com.baidu.mapapi.map.MapStatus;
import com.baidu.mapapi.map.MapStatusUpdateFactory;
import com.baidu.mapapi.map.Marker;
import com.baidu.mapapi.map.MarkerOptions;
import com.baidu.mapapi.map.MyLocationConfiguration;
import com.baidu.mapapi.map.MyLocationData;
import com.baidu.mapapi.map.OverlayOptions;
import com.baidu.mapapi.map.TextureMapView;
import com.baidu.mapapi.model.LatLng;
import com.baidu.mapapi.search.core.RouteLine;
import com.baidu.mapapi.search.core.SearchResult;
import com.baidu.mapapi.search.geocode.GeoCodeResult;
import com.baidu.mapapi.search.geocode.GeoCoder;
import com.baidu.mapapi.search.geocode.OnGetGeoCoderResultListener;
import com.baidu.mapapi.search.geocode.ReverseGeoCodeOption;
import com.baidu.mapapi.search.geocode.ReverseGeoCodeResult;
import com.baidu.mapapi.search.route.DrivingRoutePlanOption;
import com.baidu.mapapi.search.route.DrivingRouteResult;
import com.baidu.mapapi.search.route.OnGetRoutePlanResultListener;
import com.baidu.mapapi.search.route.PlanNode;
import com.baidu.mapapi.search.route.RoutePlanSearch;
import com.baidu.mapapi.search.route.TransitRouteResult;
import com.baidu.mapapi.search.route.WalkingRouteResult;
import com.hand.jimda.mybaidumap.R;
import com.hand.jimda.mybaidumap.model.MapPosition;
import com.hand.jimda.mybaidumap.view.ChoosePosDlg;
import thirdpart.baidu.mapapi.overlayutil.DrivingRouteOverlay;
import thirdpart.baidu.mapapi.overlayutil.OverlayManager;
public class MainMapActivity extends AppCompatActivity implements View.OnClickListener,OnGetGeoCoderResultListener,OnGetRoutePlanResultListener {
TextView mTvinfo;
TextureMapView mMapView = null;
private BaiduMap mBaiduMap;
private Marker mMark;
loc//
private MyLocationListener mLocationListener;
private LocationClient mLocationClient;
private MyLocationConfiguration.LocationMode mCurrentMode;
//geo
private GeoCoder mGeoSearch;
//poi
private TextView mTxtStartPos;
private TextView mTxtEndPos;
private String mCity;
private MapPosition mStartPosition;
private MapPosition mEndPosition;
//RoutePlan
private Button mSearchButton;
RouteLine mroute = null;
OverlayManager mrouteOverlay = null;
private TextView popupText = null;//泡泡view
RoutePlanSearch mSearch = null;
@Override
protected void onCreate(Bundle savedInstanceState) {
super.onCreate(savedInstanceState);
SDKInitializer.initialize(getApplicationContext());
setContentView(R.layout.activity_main_map);
mMapView = (TextureMapView) findViewById(R.id.bmapView);
mBaiduMap = mMapView.getMap();
initview();
intloc();
initGEO();
}
private void initview() {
mStartPosition =new MapPosition();
mEndPosition =new MapPosition();
mTvinfo =(TextView)findViewById(R.id.tv_info);
mTxtStartPos = (TextView) findViewById(R.id.tv_start_pos);
mTxtEndPos = (TextView) findViewById(R.id.tv_end_pos);
mSearchButton =(Button)findViewById(R.id.bt_search);
mSearchButton.setOnClickListener(this);
mTxtStartPos.setOnClickListener(this);
mTxtEndPos.setOnClickListener(this);
// 初始化路线规划模块，注册事件监听;
mSearch = RoutePlanSearch.newInstance();
mSearch.setOnGetRoutePlanResultListener(this);
}
@Override
public void onClick(View view) {
switch (view.getId()){
case R.id.tv_start_pos: {
ChoosePosDlg.DlgListener listener = new ChoosePosDlg.DlgListener() {
@Override
public void choosePossuccess(MapPosition mapPosition) {
mStartPosition=mapPosition;
mTxtStartPos.setText(mapPosition.getName());
}
};
ChoosePosDlg.registerListener(listener);
new ChoosePosDlg(this, R.style.bottom_animation_dlg,mCity).show();
}
break;
case R.id.tv_end_pos: {
ChoosePosDlg.DlgListener listener = new ChoosePosDlg.DlgListener() {
@Override
public void choosePossuccess(MapPosition mapPosition) {
mEndPosition=mapPosition;
mTxtEndPos.setText(mapPosition.getName());
}
};
ChoosePosDlg.registerListener(listener);
new ChoosePosDlg(this, R.style.bottom_animation_dlg,mCity).show();
}break;
case R.id.bt_search:{
if(mStartPosition.getAddress().isEmpty() ||mEndPosition.getAddress().isEmpty()){
Toast.makeText(this, "请先选择起始位置", Toast.LENGTH_SHORT).show();
}else{
LatLng from = new LatLng(Double.parseDouble(mStartPosition.getLatitude()),
Double.parseDouble(mStartPosition.getLongitude()));
LatLng dest = new LatLng(Double.parseDouble(mEndPosition.getLatitude()),
Double.parseDouble(mEndPosition.getLongitude()));
//设置起终点信息，对于tranist search 来说，城市名无意义
PlanNode stNode = PlanNode.withLocation(from);
PlanNode enNode = PlanNode.withLocation(dest);
// 实际使用中请对起点终点城市进行正确的设定
mSearch.drivingSearch((new DrivingRoutePlanOption())
.from(stNode)
.to(enNode));
}
}
}
}
@Override
protected void onDestroy() {
super.onDestroy();
//在activity执行onDestroy时执行mMapView.onDestroy()，实现地图生命周期管理
mMapView.onDestroy();
mLocationClient.stop();
mGeoSearch.destroy();
mSearch.destroy();
}
@Override
protected void onResume() {
super.onResume();
//在activity执行onResume时执行mMapView. onResume ()，实现地图生命周期管理
mMapView.onResume();
mLocationClient.start();
}
@Override
protected void onPause() {
super.onPause();
//在activity执行onPause时执行mMapView. onPause ()，实现地图生命周期管理
mMapView.onPause();
mLocationClient.stop();
}
//
//定位
private void intloc() {
mBaiduMap.setMyLocationEnabled(true);
mLocationClient = new LocationClient(this);
mLocationListener = new MyLocationListener();
mLocationClient.registerLocationListener(mLocationListener);
initLocation();
}
/**
* 定位SDK监听函数
*/
public class MyLocationListener implements BDLocationListener {
@Override
public void onReceiveLocation(BDLocation location) {
mBaiduMap.setMyLocationEnabled(true);
mCity =location.getCity();
MyLocationData locData = new MyLocationData.Builder()
.accuracy(location.getRadius())
// 此处设置开发者获取到的方向信息，顺时针0-360
.direction(100).latitude(location.getLatitude())
.longitude(location.getLongitude()).build();
// 设置定位数据
mBaiduMap.setMyLocationData(locData);
// 设置定位图层的配置（定位模式，是否允许方向信息，用户自定义定位图标）
//mCurrentMarker = BitmapDescriptorFactory.fromResource(R.drawable.navi_map_gps_locked);
MyLocationConfiguration config = new MyLocationConfiguration(mCurrentMode, true, null); //第三个参数是位置图片没有就默认
mBaiduMap.setMyLocationConfigeration(config);
//以我的位置为中心
LatLng latlng = new LatLng(location.getLatitude(), location.getLongitude());
mBaiduMap.animateMapStatus(MapStatusUpdateFactory.newLatLng(latlng));
}
}
/**
* 定位初始化
*/
private void initLocation() {
LocationClientOption option = new LocationClientOption();
option.setLocationMode(LocationClientOption.LocationMode.Hight_Accuracy
);//可选，默认高精度，设置定位模式，高精度，低功耗，仅设备
option.setCoorType("bd09ll");//可选，默认gcj02，设置返回的定位结果坐标系
int span = 10000;
// option.setScanSpan(span);//可选，默认0，即仅定位一次，设置发起定位请求的间隔需要大于等于1000ms才是有效的
option.setIsNeedAddress(true);//可选，设置是否需要地址信息，默认不需要
option.setOpenGps(true);//可选，默认false,设置是否使用gps
option.setLocationNotify(true);//可选，默认false，设置是否当gps有效时按照1S1次频率输出GPS结果
option.setIsNeedLocationDescribe(true);//可选，默认false，设置是否需要位置语义化结果，可以在BDLocation.getLocationDescribe里得到，结果类似于“在北京天安门附近”
option.setIsNeedLocationPoiList(true);//可选，默认false，设置是否需要POI结果，可以在BDLocation.getPoiList里得到
option.setIgnoreKillProcess(false);//可选，默认false，定位SDK内部是一个SERVICE，并放到了独立进程，设置是否在stop的时候杀死这个进程，默认杀死
option.SetIgnoreCacheException(false);//可选，默认false，设置是否收集CRASH信息，默认收集
option.setEnableSimulateGps(false);//可选，默认false，设置是否需要过滤gps仿真结果，默认需要
mLocationClient.setLocOption(option);
mLocationClient.start();
}
///geo
private void initGEO() {
//Geo
mGeoSearch = GeoCoder.newInstance();
mGeoSearch.setOnGetGeoCodeResultListener(this);
//
/*地图监听GEO转换*/
mBaiduMap.setOnMapClickListener(new BaiduMap.OnMapClickListener() {
@Override
public void onMapClick(LatLng latLng) {
final LatLng lat = latLng;
mGeoSearch.reverseGeoCode(new ReverseGeoCodeOption()
.location(lat));
}
@Override
public boolean onMapPoiClick(MapPoi mapPoi) {
return false;
}
});
//BaiduMap.OnMapClickListener///
}
///OnGetGeoCoderResultListener
@Override
public void onGetGeoCodeResult(GeoCodeResult geoCodeResult) {
}
@Override
public void onGetReverseGeoCodeResult(ReverseGeoCodeResult reverseGeoCodeResult) {
if (TextUtils.isEmpty(reverseGeoCodeResult.getAddress())) {
Toast.makeText(MainMapActivity.this, "地点解析失败，请重新选择", Toast.LENGTH_SHORT).show();
} else {
if (null != mMark) {
mMark.remove();
}
mTvinfo.setText(reverseGeoCodeResult.getAddressDetail().district + reverseGeoCodeResult.getAddressDetail().street + reverseGeoCodeResult.getAddressDetail().streetNumber);
/show pos
LatLng from = new LatLng(reverseGeoCodeResult.getLocation().latitude,
reverseGeoCodeResult.getLocation().longitude);
BitmapDescriptor bdB = BitmapDescriptorFactory
.fromResource(R.drawable.ic_baidumap_start);
OverlayOptions ooP = new MarkerOptions().position(from).icon(bdB);
mMark = (Marker) (mBaiduMap.addOverlay(ooP));
MapStatus mMapStatus = new MapStatus.Builder().target(from)
.build();
/show pos
}
}
///OnGetGeoCoderResultListener
//route plan
@Override
public void onGetWalkingRouteResult(WalkingRouteResult walkingRouteResult) {
}
@Override
public void onGetTransitRouteResult(TransitRouteResult transitRouteResult) {
}
@Override
public void onGetDrivingRouteResult(DrivingRouteResult result) {
if (result == null || result.error != SearchResult.ERRORNO.NO_ERROR) {
Toast.makeText(this, "抱歉，未找到结果", Toast.LENGTH_SHORT).show();
}
if (result.error == SearchResult.ERRORNO.AMBIGUOUS_ROURE_ADDR) {
//起终点或途经点地址有岐义，通过以下接口获取建议查询信息
//result.getSuggestAddrInfo()
return;
}
if (result.error == SearchResult.ERRORNO.NO_ERROR) {
mBaiduMap.clear();
// mroute = result.getRouteLines().get(0);
DrivingRouteOverlay overlay = new MyDrivingRouteOverlay(mBaiduMap);
mrouteOverlay = overlay;
mBaiduMap.setOnMarkerClickListener(overlay);
overlay.setData(result.getRouteLines().get(0));
overlay.addToMap();
overlay.zoomToSpan();
}
}
//定制RouteOverly
private class MyDrivingRouteOverlay extends DrivingRouteOverlay {
public MyDrivingRouteOverlay(BaiduMap baiduMap) {
super(baiduMap);
}
@Override
public BitmapDescriptor getStartMarker() {
return BitmapDescriptorFactory.fromResource(R.drawable.ic_baidumap_start);
}
@Override
public BitmapDescriptor getTerminalMarker() {
return BitmapDescriptorFactory.fromResource(R.drawable.ic_baidumap_destination);
}
}
//route plan
}
运行效果如图：
258
被折叠的 条评论
为什么被折叠?
到【灌水乐园】发言
