千兆以太网交叉线
Crossover Cable

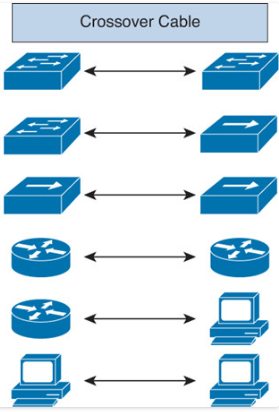

is used to connect two same type devices back to back to provide a network connection. This can be also called a direct ethernet connection. What makes crossover cable different is the connecting devices are the same type as two computers or two routers etc where the data communication lines should be reversed. The signals should be crossed intentionally where they send signal will be receiving a signal and receive signal will send a signal for the counterpart system.
Crossover Cable
用于背对背连接两个相同类型的设备以提供网络连接。 这也可以称为直接以太网连接。 交叉电缆的不同之处在于,连接设备的类型与两台计算机或两台路由器等的类型相同,其中数据通信线路应反向。 信号应有意地交叉,在这些信号中,它们的发送信号将接收信号,而接收信号将向对方系统发送信号。

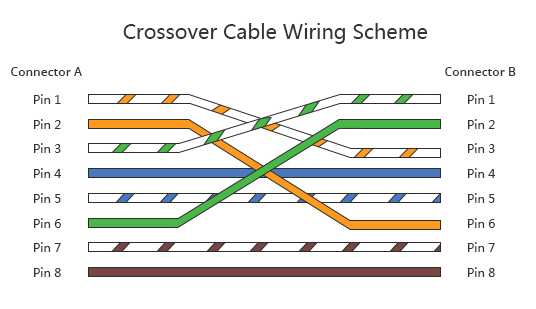

交叉布线方案 (Crossover Wiring Scheme)
There is two pinout schemes named T568A
and T568B
. A crossover cable uses both of these scheme end of the ethernet cable. You can see these pinout in the following diagram.
有两种引脚分配方案,分别为T568A
和T568B
。 交叉电缆使用以太网电缆的这两个方案端。 您可以在下图中看到这些引脚。

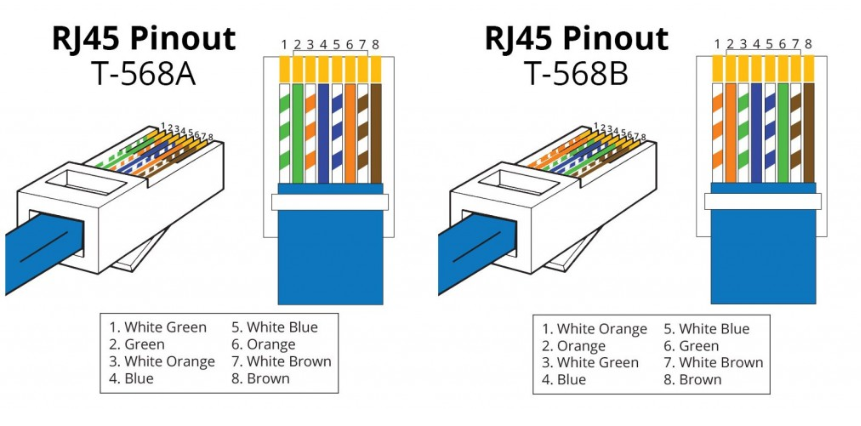

![](https://img-blog.csdnimg.cn/img_convert/7b3c69cab5bc44c18a945b4c4fc916bf.png)
T-568A颜色引脚(T-568A Color Pinout)
- White Green白绿
- Green绿色
- White Orange白橙
- Blue蓝色
- White Blue白蓝
- Orange橙子
- White Brown白棕
- Brown棕色
T-568B颜色引脚(T-568B Color Pinout)
- White Orange白橙
- Orange橙子
- White Green
