这篇博客详细介绍了在 SAP GUI 中进行字段增强的步骤，包括在 CL_CFD_SAP_GUI_CONTROLLER 类中添加字段 ZZ，并在 MD11, MD12, MD13 事务码下进行隐式增强。增强内容涉及字段属性设置、值的设定和搜索帮助功能。此外，还解决了数据丢失问题并进行了S4BUG的处理。
PLAF的加字段ZZ，CI_PLAFDB里
然后开始隐式增强
增强1加字段
CL_CFD_SAP_GUI_CONTROLLER=====CP 静态增强点/部分 \TY:CL_CFD_SAP_GUI_CONTROLLER\ME:SET_SUBSCREEN_ASSIGNMENT\SE:BEGIN\EI
METHOD set_subscreen_assignment.
"""""""""""""""""""""""""""""""""""""""""""""""""""""""""""""""""""""""""""""""""""""""""""""$"$\SE:(1) Class CL_CFD_SAP_GUI_CONTROLLER, Method SET_SUBSCREEN_ASSIGNMENT, Start A
*$*$-Start: (1)---------------------------------------------------------------------------------$*$*
ENHANCEMENT 1 ZEHM_PP028_001. "active version
DATA: ls_position type i.
IF SY-TCODE = 'MD11' OR SY-TCODE = 'MD12' OR SY-TCODE = 'MD13'.
IF MT_CONTEXT_FIELDS IS INITIAL.
* 订单类型
SELECT SINGLE DDTEXT
INTO @DATA(LV_LABEL)
FROM DD04T
WHERE ROLLNAME = 'AUFART'
AND DDLANGUAGE = @SY-LANGU
AND AS4LOCAL = 'A'.
DATA(LS_FIELD_METADATA) = VALUE TY_GS_FIELD_METADATA(
POSITION = 1
FIELD_NAME = 'ZZDAUAT'
FIELD_TYPE = 'ASC_TO_STD'
REFERENCE_FIELD_NAME = 'ZZDAUAT'
PERSISTENCE_FIELD_NAME = 'ZZDAUAT'
LENGTH = 4
DDIC_TYPE = 'CHAR'
LABEL = LV_LABEL
SCREEN_LENGTH = 4
DATA_ELEMENT_NAME = 'AUFART'
CODE_TEXT_TABLE_NAME = ''
VALUE_HELP_CODE_VIEW_NAME = 'ATPC_CDS_PLAF'
VALUE_HELP_DATA_ELEMENT = 'AUFART'
).
LS_FIELD_METADATA-ASSIGNED_SUBSCREEN_NUMBER = GET_SUBSCREEN( IV_FIELD_TYPE = 'ASC_TO_STD' "ASC_TO_STD
IV_DDIC_TYPE = 'CHAR'
IV_SCREEN_LENGTH = 4 ).
APPEND LS_FIELD_METADATA TO MT_CONTEXT_FIELDS.
CLEAR: LS_FIELD_METADATA, LV_LABEL.
* 一模多出绑定关系号
SELECT SINGLE DDTEXT
INTO @LV_LABEL
FROM DD04T
WHERE ROLLNAME = 'ZE_YMDC'
AND DDLANGUAGE = @SY-LANGU
AND AS4LOCAL = 'A'.
LS_FIELD_METADATA = VALUE TY_GS_FIELD_METADATA(
POSITION = 2
FIELD_NAME = 'YMDC'
FIELD_TYPE = 'TEXT'
REFERENCE_FIELD_NAME = 'YMDC'
PERSISTENCE_FIELD_NAME = 'YMDC'
DDIC_TYPE = 'CHAR'
LABEL = LV_LABEL
SCREEN_LENGTH = 10
DATA_ELEMENT_NAME = 'ZE_YMDC'
IS_READ_ONLY = ABAP_TRUE ).
LS_FIELD_METADATA-ASSIGNED_SUBSCREEN_NUMBER = GET_SUBSCREEN( IV_FIELD_TYPE = 'TEXT'
IV_DDIC_TYPE = 'CHAR'
IV_SCREEN_LENGTH = 10 ).
APPEND LS_FIELD_METADATA TO MT_CONTEXT_FIELDS.
CLEAR: LS_FIELD_METADATA, LV_LABEL.
* 一模多出当量
SELECT SINGLE DDTEXT
INTO @LV_LABEL
FROM DD04T
WHERE ROLLNAME = 'ZE_IFFR'
AND DDLANGUAGE = @SY-LANGU
AND AS4LOCAL = 'A'.
LS_FIELD_METADATA = VALUE TY_GS_FIELD_METADATA(
POSITION = 3
FIELD_NAME = 'ZIFFR'
FIELD_TYPE = 'TEXT'
REFERENCE_FIELD_NAME = 'ZIFFR'
PERSISTENCE_FIELD_NAME = 'ZIFFR'
DDIC_TYPE = 'CHAR'
LABEL = LV_LABEL
SCREEN_LENGTH = 0003
DATA_ELEMENT_NAME = 'ZE_IFFR'
IS_READ_ONLY = ABAP_TRUE ).
LS_FIELD_METADATA-ASSIGNED_SUBSCREEN_NUMBER = GET_SUBSCREEN( IV_FIELD_TYPE = 'TEXT'
IV_DDIC_TYPE = 'CHAR'
IV_SCREEN_LENGTH = 3 ).
APPEND LS_FIELD_METADATA TO MT_CONTEXT_FIELDS.
CLEAR: LS_FIELD_METADATA, LV_LABEL.
ENDIF.
*-------------------------------------------------------
*03.12.2020 10:49:05 chenyl for lizeren
data ls_ASSOCIATION_KEY_FIELDS TYPE ty_gs_std_assoc_metadata.
ls_ASSOCIATION_KEY_FIELDS-field_name = 'ZZDAUAT'.
ls_ASSOCIATION_KEY_FIELDS-POSITION = '1'.
ls_ASSOCIATION_KEY_FIELDS-ddic_type = 'CHAR'.
ls_ASSOCIATION_KEY_FIELDS-data_element_name = 'AUFART'.
ls_ASSOCIATION_KEY_FIELDS-gui_search_help_name = '/CUM/CU_AUART'.
ls_ASSOCIATION_KEY_FIELDS-search_help_input_parameter = 'AUART'.
ls_ASSOCIATION_KEY_FIELDS-search_help_export_parameter = 'AUART'.
ls_ASSOCIATION_KEY_FIELDS-ASSIGNED_SUBSCREEN_NUMBER = GET_SUBSCREEN( IV_FIELD_TYPE = 'ASC_TO_STD' "ASC_TO_STD
IV_DDIC_TYPE = 'CHAR'
IV_SCREEN_LENGTH = 4 ).
APPEND ls_ASSOCIATION_KEY_FIELDS TO MT_ASSOCIATION_KEY_FIELDS.
*-------------------------------------------------------
ENDIF.
ENDENHANCEMENT.
增强2设置字段属性
在\TY:CL_CFD_SAP_GUI_CONTROLLER\IN:IF_CFD_SAP_GUI_CONTROLLER\ME:PBO_SUBSCREEN\SE:END\EI
ENHANCEMENT 1 ZEHM_PP028_002. "active version
READ TABLE MT_CONTEXT_FIELDS WITH TABLE KEY POSITION = MV_CURRENT_SUBSCREEN_POSITION REFERENCE INTO LR_CONTEXT_FIELD.
IF LR_CONTEXT_FIELD IS BOUND.
IF LR_CONTEXT_FIELD->FIELD_NAME = 'ZZDAUAT'.
LOOP AT SCREEN INTO DATA(LS_SCREEN).
IF LS_SCREEN-NAME CS GC_UI_NAME_POSTFIX-DESCRIPTION.
LS_SCREEN-INVISIBLE = 1.
LS_SCREEN-INPUT = 0.
MODIFY SCREEN FROM LS_SCREEN.
ENDIF.
ENDLOOP.
ELSEIF LR_CONTEXT_FIELD->FIELD_NAME = 'YMDC' OR LR_CONTEXT_FIELD->FIELD_NAME = 'ZIFFR'.
IF LR_CONTEXT_FIELD->IS_INVISIBLE EQ ABAP_FALSE.
MODIFY_SUBSCREEN_FIELDS( IV_POSITION = LR_CONTEXT_FIELD->POSITION
IV_FIELD_TYPE = LR_CONTEXT_FIELD->FIELD_TYPE
IV_SCREEN_LENGTH = LR_CONTEXT_FIELD->SCREEN_LENGTH
IV_IS_READ_ONLY = LR_CONTEXT_FIELD->IS_READ_ONLY
IV_IS_MANDATORY = LR_CONTEXT_FIELD->IS_MANDATORY ).
UPDATE_UI_VALUE( IV_POSITION = LR_CONTEXT_FIELD->POSITION
IR_UI_VALUES = IR_UI_VALUES ).
LOOP AT SCREEN INTO LS_SCREEN.
LS_SCREEN-INVISIBLE = 0.
LS_SCREEN-INPUT = 0.
MODIFY SCREEN FROM LS_SCREEN.
ENDLOOP.
ENDIF.
ENDIF.
ENDIF.
ENDENHANCEMENT.
*$*$-End: (1)---------------------------------------------------------------------------------$*$*
ENDMETHOD.
增强3设置值
在\TY:CL_CFD_SAP_GUI_CONTROLLER\ME:SET_UI_VALUE_FIELD\SE:END\EI
ENHANCEMENT 1 ZEHM_PP028_003. "active version
DATA: LV_YMDC TYPE ZSPP038-YMDC,
LV_ZIFFR TYPE ZSPP038-ZIFFR,
LS_ZTPP052 TYPE ZTPP052.
READ TABLE MT_CONTEXT_FIELDS WITH TABLE KEY POSITION = MV_CURRENT_SUBSCREEN_POSITION REFERENCE INTO DATA(LR_CONTEXT_FIELD).
IF LR_CONTEXT_FIELD IS BOUND.
ASSIGN ('(SAPLM61O)PLAF-PLNUM') TO FIELD-SYMBOL(<LV_PLNUM>).
IF <LV_PLNUM> IS ASSIGNED.
call function 'ZPP_GET_YMDC_INFO'
exporting
iv_plnum = <LV_PLNUM>
IMPORTING
ES_ZTPP052 = LS_ZTPP052.
ENDIF.
IF LR_CONTEXT_FIELD->FIELD_NAME = 'YMDC'.
LV_YMDC = LS_ZTPP052-ZYMDC.
SET_UI_FIELD( IR_UI_VALUES = IR_UI_VALUES
IV_COMPONENT = IR_UI_FIELD_NAMES->VALUE_FIELD
IV_VALUE = LV_YMDC
IV_IS_NUMERIC_TYPE = ABAP_TRUE ).
ENDIF.
IF LR_CONTEXT_FIELD->FIELD_NAME = 'ZIFFR'.
LV_ZIFFR = LS_ZTPP052-AEQUI.
SET_UI_FIELD( IR_UI_VALUES = IR_UI_VALUES
IV_COMPONENT = IR_UI_FIELD_NAMES->VALUE_FIELD
IV_VALUE = LV_ZIFFR
IV_IS_NUMERIC_TYPE = ABAP_TRUE ).
ENDIF.
ENDIF.
ENDENHANCEMENT.
*$*$-End: (1)---------------------------------------------------------------------------------$*$*
ENDMETHOD.

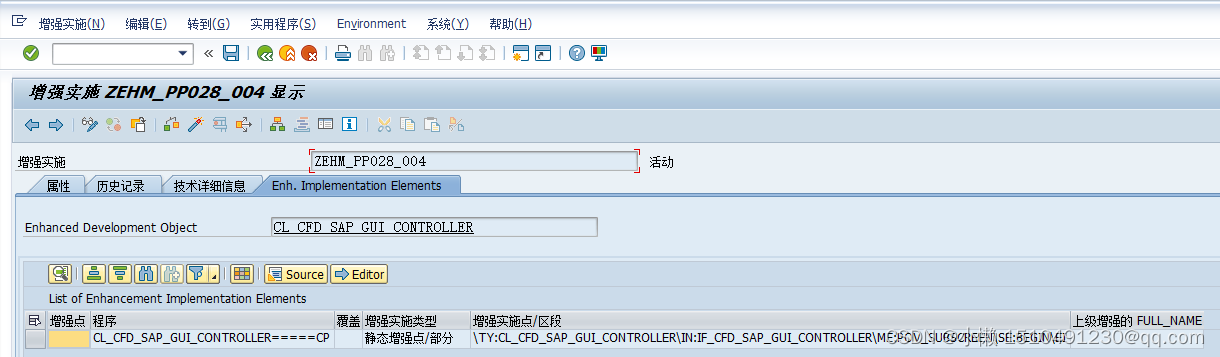

增强4写搜索帮助
在\TY:CL_CFD_SAP_GUI_CONTROLLER\IN:IF_CFD_SAP_GUI_CONTROLLER\ME:POV_SUBSCREEN\SE:BEGIN\EI
METHOD if_cfd_sap_gui_controller~pov_subscreen.
"""""""""""""""""""""""""""""""""""""""""""""""""""""""""""""""""""""""""""""""""""""""""""""$"$\SE:(1) Class CL_CFD_SAP_GUI_CONTROLLER, Interface IF_CFD_SAP_GUI_CONTROLLER, Method POV_SUBSCREEN, Start A
*$*$-Start: (1)---------------------------------------------------------------------------------$*$*
ENHANCEMENT 1 ZEHM_PP028_004. "active version
DATA lt_selection_values TYPE if_cfd_sap_gui_ddic_value_help=>ty_gts_return_value.
DATA ls_selection_values TYPE LINE OF if_cfd_sap_gui_ddic_value_help=>ty_gts_return_value.
DATA AUART_TMP TYPE T003O-AUART.
IF ( SY-TCODE = 'MD11' OR SY-TCODE = 'MD12' OR SY-TCODE = 'MD13' ).
READ TABLE MT_CONTEXT_FIELDS WITH TABLE KEY POSITION = GET_POSITION_FROM_SCREEN( ) REFERENCE INTO DATA(LR_CONTEXT_FIELDS).
IF LR_CONTEXT_FIELDS IS BOUND.
IF LR_CONTEXT_FIELDS->FIELD_NAME = 'ZZDAUAT'.
ASSIGN ('(SAPLM61O)PLAF-PWWRK') TO FIELD-SYMBOL(<Lv_WERKS>).
IF SY-SUBRC = 0.
CALL FUNCTION 'CO_F4_AUART'
EXPORTING
* AKTYP = RC27S-AKTYP
* AUTYP_IMP = T490-AUTYP
WERKS = <Lv_WERKS>
IMPORTING
AUART_EXP = AUART_TMP.
if AUART_TMP IS NOT INITIAL.
if mt_value_help_executed IS INITIAL.
APPEND 1 TO mt_value_help_executed.
endif.
* DATA(lt_key_component_contexts) = get_key_component_contexts( lr_context_fields ).
*APPEND INITIAL LINE TO mt_association_key_fields ASSIGNING FIELD-SYMBOL(<fs_key_fields>).
*<fs_key_fields>-field_name = 'ZZDAUAT'.
*<fs_key_fields>-position = LR_CONTEXT_FIELDS->position.
* ls_selection_values-parameter_name = 'ZZDAUAT'.
* ls_selection_values-parameter_value = AUART_TMP.
* APPEND ls_selection_values to lt_selection_values.
*
* mo_subscreen_handler->write_value_to_subscreen(
* iv_subscreen_position = LR_CONTEXT_FIELDS->position
* iv_subscreen_dynpro_number = LR_CONTEXT_FIELDS->assigned_subscreen_number
* it_dynpro_values = VALUE #(
* ( fieldname = 'ASSOCIATION_FIELD_VALUE'
* fieldvalue = AUART_TMP
* )
* )
* ).
* MR_OLD_FIELD_VALUES = MR_FIELD_VALUES.
* ASSIGN MR_FIELD_VALUES to FIELD-SYMBOL(<fs_FIELD_VALUES>).
* if sy-subrc = 0.
* ASSIGN COMPONENT 'ZZDAUAT' of STRUCTURE <fs_FIELD_VALUES> to FIELD-SYMBOL(<fs_ZZDAUAT>).
* if sy-subrc = 0.
* <fs_ZZDAUAT> = AUART_TMP.
* endif.
* endif.
SET_UI_FIELD( IR_UI_VALUES = IR_UI_VALUES
IV_COMPONENT = gc_ui_fields-association-value
IV_VALUE = AUART_TMP
IV_IS_NUMERIC_TYPE = ABAP_TRUE ).
*-------------------------------------------------------
*03.12.2020 13:18:48 chenyl for lizeren
data lv_ZZDAUAT TYPE AUFART.
lv_ZZDAUAT = AUART_TMP.
EXPORT lv_ZZDAUAT = lv_ZZDAUAT to MEMORY id 'ZEHM_PP028_006'.
*-------------------------------------------------------
* set_key_components(
* it_key_component_contexts = lt_key_component_contexts
* it_selection_values = lt_selection_values ).
ENDIF.
trigger_roundtrip( ).
ENDIF.
RETURN.
ENDIF.
ENDIF.
ENDIF.
ENDENHANCEMENT.
增强5处理S4 BUG
在 CL_CFD_SAP_GUI_CONTROLLER METHOD validate_code_value.开头
ENHANCEMENT 1 ZEHM_PP028_006. "active version
IF sy-tcode = 'MD11' OR SY-TCODE = 'MD12' OR SY-TCODE = 'MD13'.
RETURN.
ENDIF.
ENDENHANCEMENT.
增强6写搜索帮助值
在 CL_CFD_SAP_GUI_CONTROLLER set_ui_field结束
ENHANCEMENT 2 ZEHM_PP028_006. "active version
IF sy-tcode = 'MD11' OR SY-TCODE = 'MD12' OR SY-TCODE = 'MD13'.
ASSIGN COMPONENT 'ASSOCIATION_FIELD_LABEL' OF STRUCTURE ir_ui_values->* TO FIELD-SYMBOL(<lv_ASSOCIATION_FIELD_LABEL>).
IF <lv_ASSOCIATION_FIELD_LABEL> IS ASSIGNED.
IF <lv_ASSOCIATION_FIELD_LABEL> = '订单类型'.
IF <lv_ui_value> IS ASSIGNED.
data lv_ZZDAUAT TYPE AUFART.
import lv_ZZDAUAT = lv_ZZDAUAT FROM MEMORY id 'ZEHM_PP028_006'.
IF lv_ZZDAUAT IS NOT INITIAL.
ASSIGN COMPONENT 'ASSOCIATION_FIELD_VALUE' OF STRUCTURE ir_ui_values->* TO FIELD-SYMBOL(<lv_ASSOCIATION_FIELD_VALUE>).
<lv_ASSOCIATION_FIELD_VALUE> = lv_ZZDAUAT .
ENDIF.
endif.
ENDIF.
ENDIF.
ENDIF.
ENDENHANCEMENT.

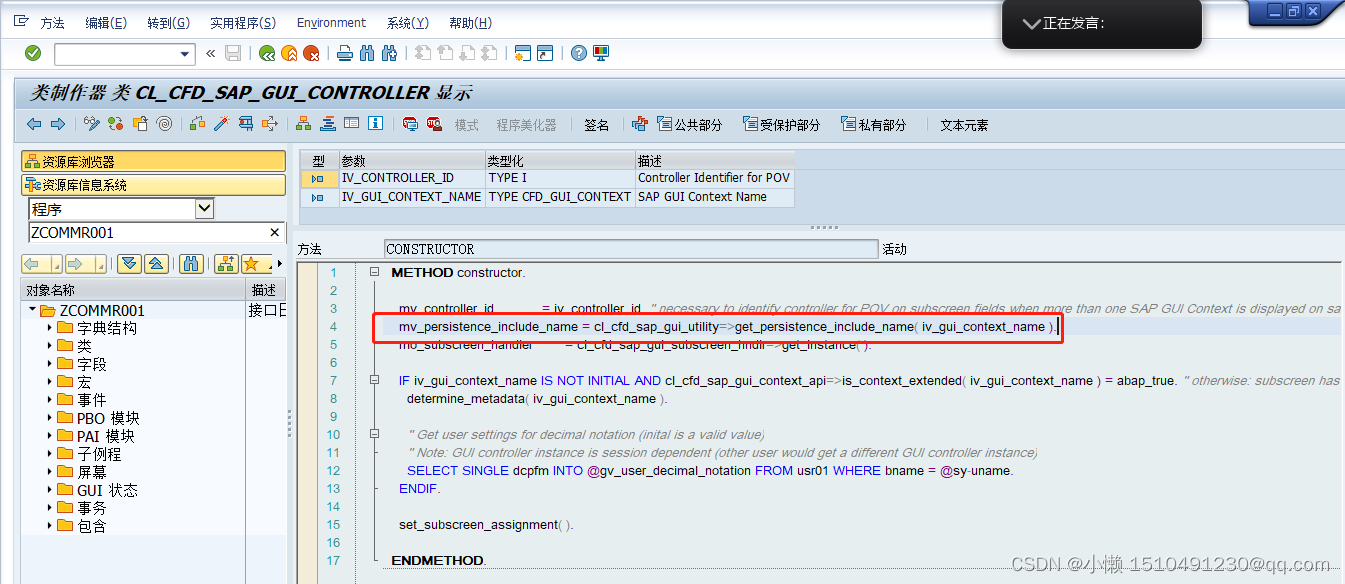

注：回车之后数据丢失的问题
753版本会取plaf的include结构名
mv_persistence_include_name = PLAF_INCL_EEW_PS

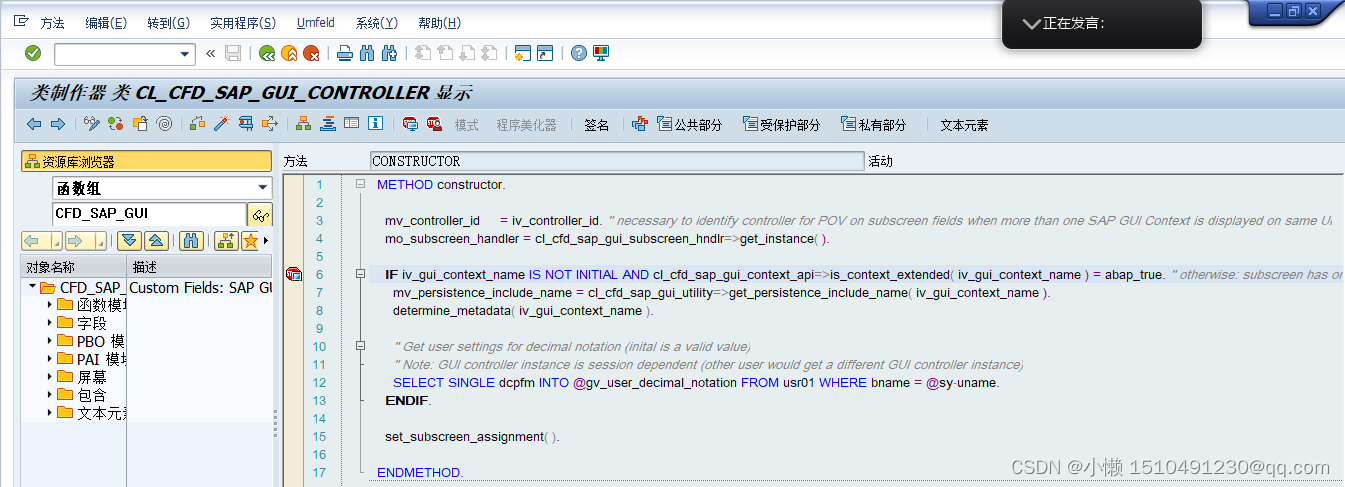

756版本不取了

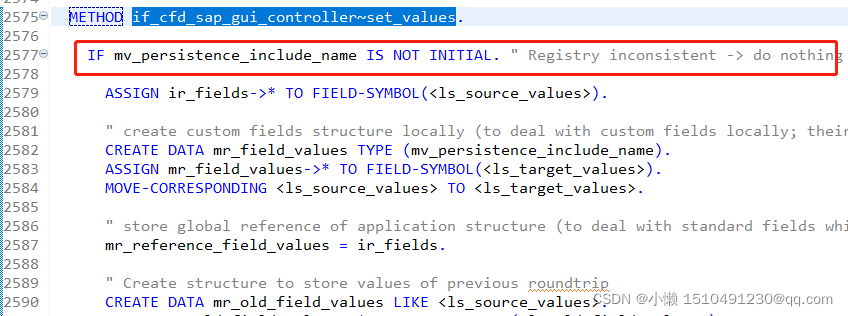

在子屏幕的PAI里会给自定义字段set value，如果include为空就跳过了所以写不进去
解决办法是在set_values方法里再做一个增强，增强里把mv_persistence_include_name的值“PLAF_INCL_EEW_PS”写进去
