安装kubeflow

安装kustomize
安装kubeflow

因为是多次补充的安装过程，因此，安装驱动和k8s搭建部分的顺序比较乱，需要自行脑补。。

安装kustomize

curl -Lo ./kustomize https://github.com/kubernetes-sigs/kustomize/releases/download/v3.2.0/kustomize_3.2.0_linux_amd64
chmod +x ./kustomize
sudo mv kustomize /usr/local/bin

安装kubeflow

高级玩家都使用使用https://github.com/kubeflow/manifests进行安装，哈哈哈

下载manifests

https://github.com/kubeflow/manifests/releases/tag/v1.5.1

设置kubernetes默认storageclass

安装ceph的csi插件见以前写的博客：
设置默认storageclass：

---
apiVersion: storage.k8s.io/v1
kind: StorageClass
metadata:
   name: csi-rbd-sc
   annotations:
      storageclass.kubernetes.io/is-default-class: "true"
provisioner: rbd.csi.ceph.com
parameters:
   clusterID: 365b02aa-db0c-11ec-b243-525400ce981f
   pool: k8s_rbd #之前创建pool的名称
   imageFeatures: layering
   csi.storage.k8s.io/provisioner-secret-name: csi-rbd-secret
   csi.storage.k8s.io/provisioner-secret-namespace: default
   csi.storage.k8s.io/controller-expand-secret-name: csi-rbd-secret
   csi.storage.k8s.io/controller-expand-secret-namespace: default
   csi.storage.k8s.io/node-stage-secret-name: csi-rbd-secret
   csi.storage.k8s.io/node-stage-secret-namespace: default
   csi.storage.k8s.io/fstype: ext4
reclaimPolicy: Delete
allowVolumeExpansion: true
mountOptions:
   - discard

执行安装

# 解压后，进入
[root@master1 kubeflow]# cd manifests-1.5.0/
[root@master1 manifests-1.5.0]# ls
apps    contrib       docs     go.mod  hack     OWNERS     prow_config.yaml  tests
common  develop.yaml  example  go.sum  LICENSE  proposals  README.md
[root@master1 manifests-1.5.0]# while ! kustomize build example | kubectl apply -f -; do echo "Retrying to apply resources"; sleep 10; done

因为镜像基本都是国外的，所以kubeflow安装过程需要添加国外代理或者需要将国外镜像通过其他方式下载到本地，需要等N长时间

需要在每台机器上面安装nvidia-docker2

参考：安装nvidia-docker2
2.1设置仓库

distribution=$(. /etc/os-release;echo $ID$VERSION_ID)
curl -s -L https://nvidia.github.io/nvidia-docker/$distribution/nvidia-docker.repo | \
sudo tee /etc/yum.repos.d/nvidia-docker.repo

2.2更新仓库中的key

DIST=$(sed -n 's/releasever=//p' /etc/yum.conf)
DIST=${DIST:-$(. /etc/os-release; echo $VERSION_ID)}
sudo yum makecache

2.3安装nvidia-docker2

sudo yum install nvidia-docker2
2.4 重新载入docker daemon的设定

sudo pkill -SIGHUP dockerd
2.5 测试是否安装成功

docker run --runtime=nvidia --rm nvidia/cuda nvidia-smi
第一次运行会花几分钟下载组件，最后显示如下结果则表示安装成功

安装nvdia gpu插件

参考：navdia plugin gitlab地址

引用：
https://www.csdn.net/tags/MtTaMgxsMjE4ODA4LWJsb2cO0O0O.html

在机器上面安装nvidia插件

参照NVIDIA官网：https://docs.nvidia.com/datacenter/tesla/tesla-installation-notes/index.html#centos7
在反复使用yum安装都失败的情况下，一直报错如下：
安装过程中，需要添加：

-bash: yum-config-manager: 未找到命令
yum -y install yum-utils

安装过程如下：

yum install -y nvidia-driver-latest-dkms
加载插件：fastestmirror
Loading mirror speeds from cached hostfile
 * centos-sclo-rh: mirrors.bupt.edu.cn
 * centos-sclo-sclo: mirrors.bupt.edu.cn
 * elrepo: mirrors.tuna.tsinghua.edu.cn
正在解决依赖关系
--> 正在检查事务
---> 软件包 nvidia-driver-latest-dkms.x86_64.3.515.65.01-1.el7 将被 安装
.........................
.........................
.........................
---> 软件包 libmodman.x86_64.0.2.0.1-8.el7 将被 安装
---> 软件包 nettle.x86_64.0.2.7.1-9.el7_9 将被 安装
---> 软件包 trousers.x86_64.0.0.3.14-2.el7 将被 安装
--> 处理 3:nvidia-driver-latest-dkms-libs-515.65.01-1.el7.x86_64 与 nvidia-x11-drv-libs 的冲突
--> 解决依赖关系完成
错误：nvidia-driver-latest-dkms-libs conflicts with nvidia-x11-drv-libs-515.65.01-1.el7_9.elrepo.x86_64
 您可以尝试添加 --skip-broken 选项来解决该问题
 您可以尝试执行：rpm -Va --nofiles --nodigest

于是，使用文件安装：
参照官网：https://docs.nvidia.com/datacenter/tesla/tesla-installation-notes/index.html#runfile

NVIDIA drivers are available as .run installer packages for use with Linux distributions from the NVIDIA driver downloads site. Select the .run package for your GPU product.

This page also includes links to all the current and previous driver releases: https://www.nvidia.com/en-us/drivers/unix.

The .run can also be downloaded using wget or curl as shown in the example below:

$ BASE_URL=https://us.download.nvidia.com/tesla
$ DRIVER_VERSION=450.80.02
$ wget  $BASE_URL/$DRIVER_VERSION/NVIDIA-Linux-x86_64-$DRIVER_VERSION.run
Once the .run installer has been downloaded, the NVIDIA driver can be installed:

$ sudo sh NVIDIA-Linux-x86_64-$DRIVER_VERSION.run
Follow the prompts on the screen during the installation. For more advanced options on using the .run installer, see the --help option or refer to the README.

需要禁用原来显卡的驱动：

需要升级内核：
注意: 必须使得kernel-headers和devel与内核版本保持一致
下载kernel依赖文件：

     wget https://elrepo.org/linux/kernel/el7/x86_64/RPMS/kernel-lt-headers-5.4.219-1.el7.elrepo.x86_64.rpm
     wget https://elrepo.org/linux/kernel/el7/x86_64/RPMS/kernel-lt-devel-5.4.219-1.el7.elrepo.x86_64.rpm
     wget https://elrepo.org/linux/kernel/el7/x86_64/RPMS/kernel-lt-tools-libs-5.4.219-1.el7.elrepo.x86_64.rpm
     wget https://elrepo.org/linux/kernel/el7/x86_64/RPMS/kernel-lt-tools-libs-devel-5.4.219-1.el7.elrepo.x86_64.rpm
     wget https://elrepo.org/linux/kernel/el7/x86_64/RPMS/python-perf-5.4.219-1.el7.elrepo.x86_64.rpm
     wget https://elrepo.org/linux/kernel/el7/x86_64/RPMS/perf-5.4.219-1.el7.elrepo.x86_64.rpm
     wget https://elrepo.org/linux/kernel/el7/x86_64/RPMS/kernel-lt-tools-5.4.219-1.el7.elrepo.x86_64.rpm

     yum remove kernel-headers-3.10.0-1160.76.1.el7.x86_64
     yum install kernel-lt-headers-5.4.219-1.el7.elrepo.x86_64.rpm
     yum remove kernel-tools-3.10.0-1160.76.1.el7.x86_64
     yum remove kernel-tools
     yum install kernel-lt-tools-libs-5.4.219-1.el7.elrepo.x86_64.rpm
     yum install kernel-lt-tools-5.4.219-1.el7.elrepo.x86_64.rpm

(base) [root@node3 ~]# rpm -qa|grep kernel
kernel-ml-tools-libs-devel-5.19.4-1.el7.elrepo.x86_64
kernel-ml-5.19.4-1.el7.elrepo.x86_64
kernel-ml-tools-5.19.4-1.el7.elrepo.x86_64
kernel-ml-headers-5.19.4-1.el7.elrepo.x86_64
kernel-ml-tools-libs-5.19.4-1.el7.elrepo.x86_64
kernel-ml-devel-5.19.4-1.el7.elrepo.x86_64

安装过程中，需要升级gcc版本：
centos7.9上面升级gcc

sudo yum install -y http://mirror.centos.org/centos/7/extras/x86_64/Packages/centos-release-scl-rh-2-3.el7.centos.noarch.rpm

sudo yum install -y http://mirror.centos.org/centos/7/extras/x86_64/Packages/centos-release-scl-2-3.el7.centos.noarch.rpm

sudo yum install devtoolset-9-gcc-c++

source /opt/rh/devtoolset-9/enable

暴露kubeflow服务

可以参考：https://www.jianshu.com/p/6f7aeecada67
https://www.cnblogs.com/boshen-hzb/p/10679863.html
1.确认istio-ingressgateway是否有对外的IP

(base) [root@node3 ~]# kubectl get  service istio-ingressgateway -n istio-system
NAME                   TYPE       CLUSTER-IP     EXTERNAL-IP                 PORT(S)                                                                      AGE
istio-ingressgateway   NodePort   10.104.17.87   172.70.10.35,172.70.10.30   15021:31805/TCP,80:30778/TCP,443:31460/TCP,31400:30593/TCP,15443:31113/TCP   71d

如果 EXTERNAL-IP 有值（IP 地址或主机名），则说明您的环境具有可用于 Ingress 网关的外部负载均衡器。如果 EXTERNAL-IP 值是（或一直是），则说明可能您的环境并没有为 Ingress 网关提供外部负载均衡器的功能。

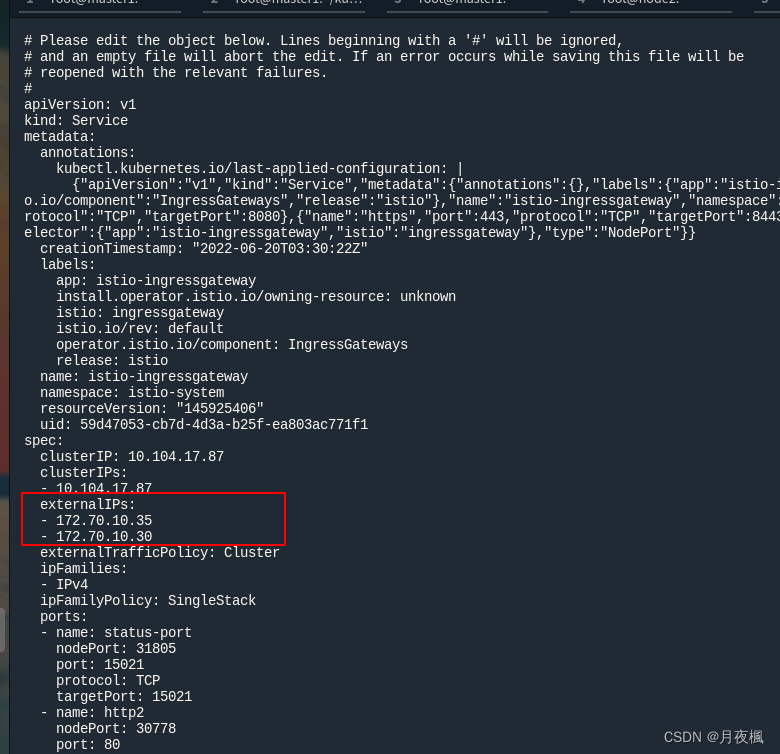

可以通过以下方法添加外部IP

kubectl edit  service istio-ingressgateway -n istio-system

在这里插入图片描述因为我是3台k8s集群，所以我加了2个外部IP(去掉master负载），这样就可以用这2个IP的任意一个对外提供服务了，默认端口80
使用https://172.70.10.35或者https://172.70.10.30

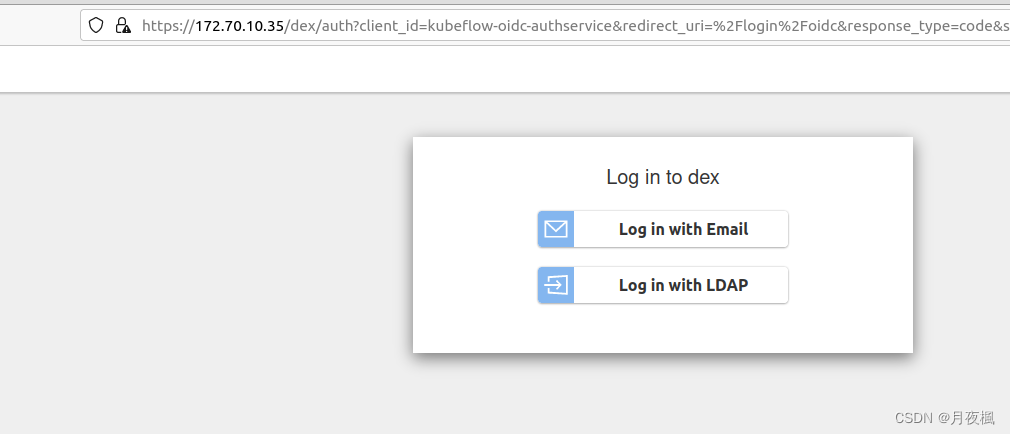

添加LDAP支持

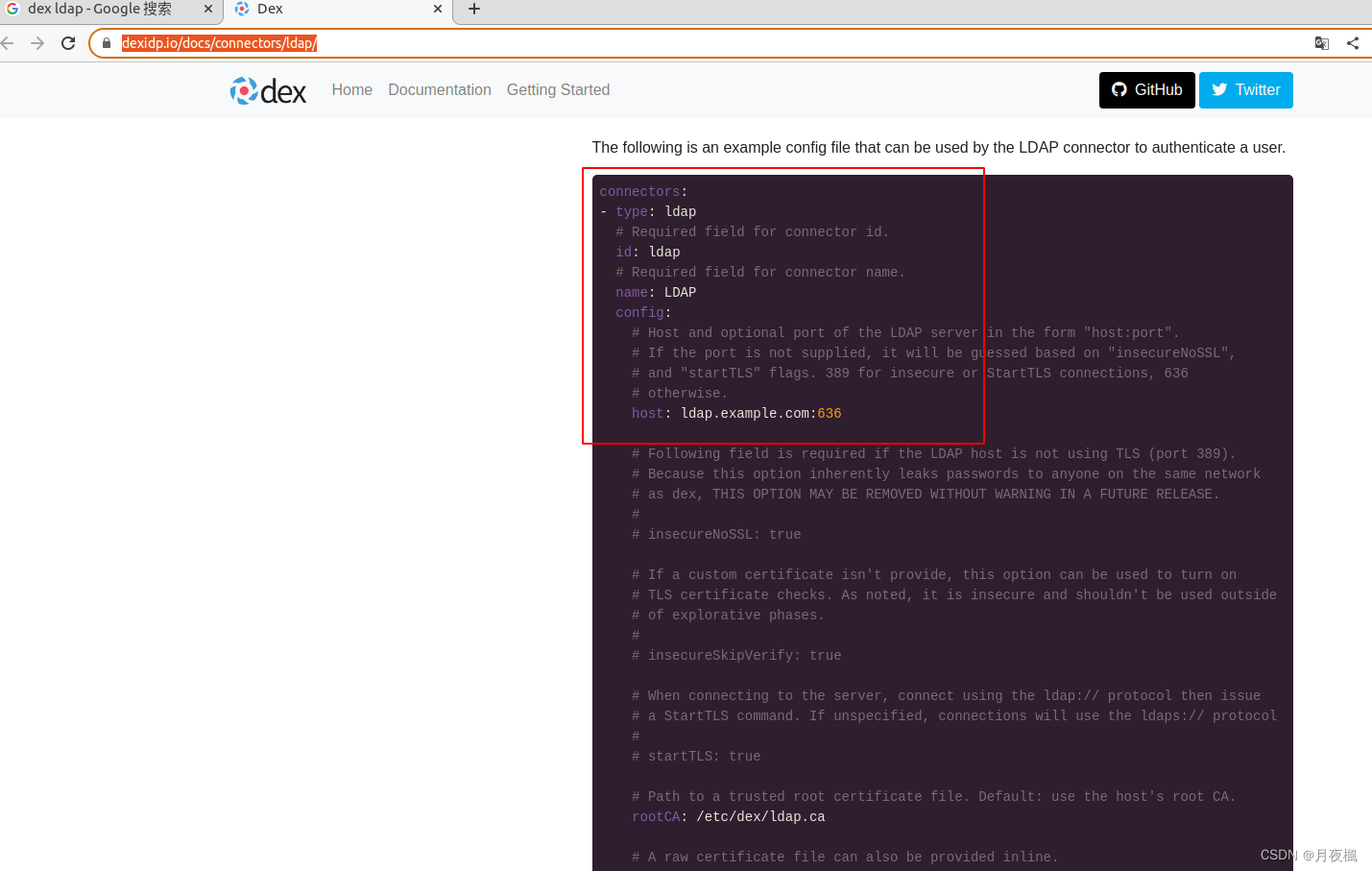

参见dex官网：https://dexidp.io/docs/connectors/ldap/
在这里插入图片描述在k8s中，找到dex服务

base) [root@node3 ~]# kubectl get pods -n auth
NAME                   READY   STATUS    RESTARTS   AGE
dex-5ddf47d88d-jg2kf   1/1     Running   0          4h2m
(base) [root@node3 ~]# kubectl get pod/dex-5ddf47d88d-jg2kf -n auth -o yaml
apiVersion: v1
kind: Pod
metadata:
  annotations:
    cni.projectcalico.org/containerID: a4b63ccd8259f2a57bc9019aaf49a15008d1da121835dfd6282bb6acfda531f0
    cni.projectcalico.org/podIP: 10.244.135.31/32
    cni.projectcalico.org/podIPs: 10.244.135.31/32
  creationTimestamp: "2022-08-30T03:48:54Z"
  generateName: dex-5ddf47d88d-
  labels:
    app: dex
    pod-template-hash: 5ddf47d88d
  name: dex-5ddf47d88d-jg2kf
  namespace: auth
  ownerReferences:
  - apiVersion: apps/v1
    blockOwnerDeletion: true
    controller: true
    kind: ReplicaSet
    name: dex-5ddf47d88d
    uid: 115ce097-69e4-4228-ba06-206908416093
  resourceVersion: "145713807"
  uid: 1a26c0e9-60fe-4b13-a0be-26089005bbdc
spec:
  containers:
  - command:
    - dex
    - serve
    - /etc/dex/cfg/config.yaml
    env:
    - name: KUBERNETES_POD_NAMESPACE
      valueFrom:
        fieldRef:
          apiVersion: v1
          fieldPath: metadata.namespace
    envFrom:
    - secretRef:
        name: dex-oidc-client
    image: quay.io/dexidp/dex:v2.24.0
    imagePullPolicy: IfNotPresent
    name: dex
    ports:
    - containerPort: 5556
      name: http
      protocol: TCP
    resources: {}
    terminationMessagePath: /dev/termination-log
    terminationMessagePolicy: File
    volumeMounts:
    - mountPath: /etc/dex/cfg
      name: config
    - mountPath: /var/run/secrets/kubernetes.io/serviceaccount
      name: kube-api-access-qw5j7
      readOnly: true
  dnsPolicy: ClusterFirst
  enableServiceLinks: true
  nodeName: node3
  preemptionPolicy: PreemptLowerPriority
  priority: 0
  restartPolicy: Always
  schedulerName: default-scheduler
  securityContext: {}
  serviceAccount: dex
  serviceAccountName: dex
  terminationGracePeriodSeconds: 30
  tolerations:
  - effect: NoExecute
    key: node.kubernetes.io/not-ready
    operator: Exists
    tolerationSeconds: 300
  - effect: NoExecute
    key: node.kubernetes.io/unreachable
    operator: Exists
    tolerationSeconds: 300
  volumes:
  - configMap:
      defaultMode: 420
      items:
      - key: config.yaml
        path: config.yaml
      name: dex
    name: config
  - name: kube-api-access-qw5j7
    projected:
      defaultMode: 420
      sources:
      - serviceAccountToken:
          expirationSeconds: 3607
          path: token
      - configMap:
          items:
          - key: ca.crt
            path: ca.crt
          name: kube-root-ca.crt
      - downwardAPI:
          items:
          - fieldRef:
              apiVersion: v1
              fieldPath: metadata.namespace
            path: namespace
status:
  conditions:
  - lastProbeTime: null
    lastTransitionTime: "2022-08-30T03:48:54Z"
    status: "True"
    type: Initialized
  - lastProbeTime: null
    lastTransitionTime: "2022-08-30T03:48:56Z"
    status: "True"
    type: Ready
  - lastProbeTime: null
    lastTransitionTime: "2022-08-30T03:48:56Z"
    status: "True"
    type: ContainersReady
  - lastProbeTime: null
    lastTransitionTime: "2022-08-30T03:48:54Z"
    status: "True"
    type: PodScheduled
  containerStatuses:
  - containerID: docker://c66373a4e4dc033444cf9e8aee9ec446ed3e5b54c53b42d68f6b9cf50ca46886
    image: quay.io/dexidp/dex:v2.24.0
    imageID: docker-pullable://quay.io/dexidp/dex@sha256:c9b7f6d0d9539bc648e278d64de46eb45f8d1e984139f934ae26694fe7de6077
    lastState: {}
    name: dex
    ready: true
    restartCount: 0
    started: true
    state:
      running:
        startedAt: "2022-08-30T03:48:56Z"
  hostIP: 172.70.10.30
  phase: Running
  podIP: 10.244.135.31
  podIPs:
  - ip: 10.244.135.31
  qosClass: BestEffort
  startTime: "2022-08-30T03:48:54Z"

可以根据该配置文件，找到configMap：

(base) [root@node3 ~]# kubectl get cm -n auth
NAME                 DATA   AGE
dex                  1      71d
istio-ca-root-cert   1      71d
kube-root-ca.crt     1      71d
(base) [root@node3 ~]# kubectl get cm/dex -n auth -o yaml
apiVersion: v1
data:
  config.yaml: |
    issuer: http://dex.auth.svc.cluster.local:5556/dex
    storage:
      type: kubernetes
      config:
        inCluster: true
    web:
      http: 0.0.0.0:5556
    logger:
      level: "debug"
      format: text
    oauth2:
      skipApprovalScreen: true
    enablePasswordDB: true
    staticPasswords:
    - email: user@example.com
      hash: $2y$12$4K/VkmDd1q1Orb3xAt82zu8gk7Ad6ReFR4LCP9UeYE90NLiN9Df72
      # https://github.com/dexidp/dex/pull/1601/commits
      # FIXME: Use hashFromEnv instead
      username: user
      userID: "15841185641784"
    staticClients:
    # https://github.com/dexidp/dex/pull/1664
    - idEnv: OIDC_CLIENT_ID
      redirectURIs: ["/login/oidc"]
      name: 'Dex Login Application'
      secretEnv: OIDC_CLIENT_SECRET

在该configmap后，添加ldap配置即可：

apiVersion: v1
kind: ConfigMap
metadata:
  name: dex
  namespace: auth
data:
  config.yaml: |
    issuer: http://dex.auth.svc.cluster.local:5556/dex
    storage:
      type: kubernetes
      config:
        inCluster: true
    web:
      http: 0.0.0.0:5556
    logger:
      level: "debug"
      format: text
    oauth2:
      skipApprovalScreen: true
    enablePasswordDB: true
    staticPasswords:
    - email: user@example.com
      hash: $2y$12$4K/VkmDd1q1Orb3xAt82zu8gk7Ad6ReFR4LCP9UeYE90NLiN9Df72
      # https://github.com/dexidp/dex/pull/1601/commits
      # FIXME: Use hashFromEnv instead
      username: user
      userID: "15841185641784"
    staticClients:
    # https://github.com/dexidp/dex/pull/1664
    - idEnv: OIDC_CLIENT_ID
      redirectURIs: ["/login/oidc"]
      name: 'Dex Login Application'
      secretEnv: OIDC_CLIENT_SECRET
    connectors:
    - type: ldap
      # Required field for connector id.
      id: ldap
      # Required field for connector name.
      name: LDAP
      config:
        # Host and optional port of the LDAP server in the form "host:port".
        # If the port is not supplied, it will be guessed based on "insecureNoSSL",
        # and "startTLS" flags. 389 for insecure or StartTLS connections, 636
        # otherwise.
        host: 192.70.30.2:15007

        # Following field is required if the LDAP host is not using TLS (port 389).
        # Because this option inherently leaks passwords to anyone on the same network
        # as dex, THIS OPTION MAY BE REMOVED WITHOUT WARNING IN A FUTURE RELEASE.
        #
        insecureNoSSL: true

        # If a custom certificate isn't provide, this option can be used to turn on
        # TLS certificate checks. As noted, it is insecure and shouldn't be used outside
        # of explorative phases.
        #
        insecureSkipVerify: true

        # When connecting to the server, connect using the ldap:// protocol then issue
        # a StartTLS command. If unspecified, connections will use the ldaps:// protocol
        #
        startTLS: false

        # Path to a trusted root certificate file. Default: use the host's root CA.
        # rootCA: /etc/dex/ldap.ca

        # A raw certificate file can also be provided inline.
        # rootCAData: ( base64 encoded PEM file )

        # The DN and password for an application service account. The connector uses
        # these credentials to search for users and groups. Not required if the LDAP
        # server provides access for anonymous auth.
        # Please note that if the bind password contains a `$`, it has to be saved in an
        # environment variable which should be given as the value to `bindPW`.
        bindDN: cn=*****,cn=BDIT,ou=Group,dc=******,dc=com
        bindPW: *****

        # The attribute to display in the provided password prompt. If unset, will
        # display "Username"
        usernamePrompt: Email Address
        # User search maps a username and password entered by a user to a LDAP entry.
        userSearch:
          # BaseDN to start the search from. It will translate to the query
          # "(&(objectClass=person)(uid=<username>))".
          baseDN: ou=Group,dc=*****,dc=com
          # Optional filter to apply when searching the directory.
          #filter: "(objectClass=person)"
          #filter: "(&(cn=%s)(cn=%s))"

          # username attribute used for comparing user entries. This will be translated
          # and combined with the other filter as "(<attr>=<username>)".
          #username: userPrincipalName
          username: cn
          # The following three fields are direct mappings of attributes on the user entry.
          # String representation of the user.
          idAttr: DN
          # Required. Attribute to map to Email.
          #emailAttr: userPrincipalName
          emailAttr: cn
          # Maps to display name of users. No default value.
          nameAttr: cn

        # Group search queries for groups given a user entry.
#        groupSearch:
#          # BaseDN to start the search from. It will translate to the query
#          # "(&(objectClass=group)(member=<user uid>))".
#          baseDN: ou=Group,dc=knowdee,dc=com
#          # Optional filter to apply when searching the directory.
#          filter: "(&(cn=%s)(cn=%s))"
#          #filter: "(objectClass=group)"
#
#          # Following list contains field pairs that are used to match a user to a group. It adds an additional
#          # requirement to the filter that an attribute in the group must match the user's
#          # attribute value.
#          userMatchers:
#          - userAttr: DN
#            groupAttr: member
#
#          # Represents group name.
#          nameAttr: cn
