main.cpp文件
#include "widget.h"
#include <QApplication>
int main(int argc, char *argv[])
{
QApplication a(argc, argv);
Widget w;
w.show();
return a.exec();
}
widget.cpp
#include "widget.h"
#include "ui_widget.h"
#include "QDebug"
#include <QDir>
Widget::Widget(QWidget *parent) :
QWidget(parent),
ui(new Ui::Widget)
{
ui->setupUi(this);
// QLoggingCategory::defaultCategory()->setEnabled(QtDebugMsg, true);
//获取串口信息
QList<QSerialPortInfo> list = QSerialPortInfo::availablePorts();
//bpsList.clear();
//bpsList.append(QString("无串口"));
//ui->comboBox->addItem(bpsList.at(0));
foreach (QSerialPortInfo info, list){
QString Name;
QString DEC;
//打印串口名字
qDebug() << info.portName();
qDebug() << info.description();
qDebug() << info.serialNumber();
qDebug() << info.productIdentifier();
//显示串口信息
Name = info.portName();
/*DEC = info.description();
if(DEC.indexOf("UART") > 0)
{
Name += '(';
Name += "UART";
Name += ')';
}*/
ui->comboBox->addItem(Name);
}
bpsList.clear();
bpsList.append(QString("100000"));
bpsList.append(QString("460800"));
bpsList.append(QString("230400"));
bpsList.append(QString("115200"));
bpsList.append(QString("38400"));
bpsList.append(QString("57600"));
bpsList.append(QString("9600"));
for (int i = 0; i < 7; i++) {
ui->comboBox_2->addItem(bpsList.at(i));
}
dataList.clear();
dataList.append(QString("8bits"));
dataList.append(QString("6bits"));
dataList.append(QString("5bits"));
for (int i = 0; i < 3; i++) {
ui->comboBox_3->addItem(dataList.at(i));
}
parityList.clear();
parityList.append(QString("NONE"));
parityList.append(QString("EVEN"));
parityList.append(QString("ODD"));
for (int i = 0; i < 3; i++) {
ui->comboBox_4->addItem(parityList.at(i));
}
stopList.clear();
stopList.append(QString("one"));
stopList.append(QString("two"));
for (int i = 0; i < 2; i++) {
ui->comboBox_5->addItem(stopList.at(i));
}

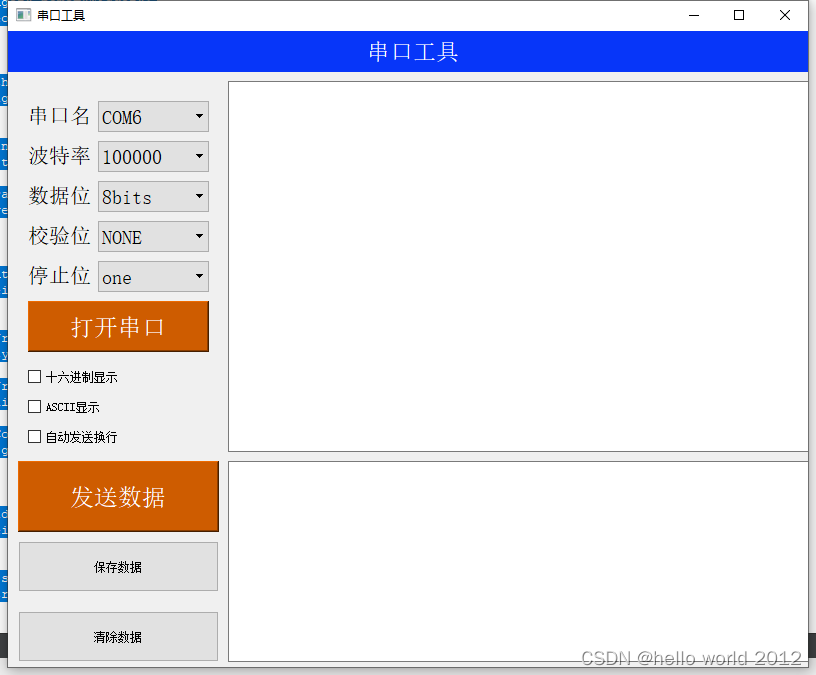

setWindowTitle("串口工具");
ui->label->setText(QString("串口工具"));
//qDebug()<<"串口工具 debug"<<endl;
openFlag = false;
connect(&port, SIGNAL(readyRead()), this, SLOT(readDataHandler()));
}
Widget::~Widget()
{
delete ui;
}
void Widget::readDataHandler()
{
QByteArray ba = port.readAll();
ui->textEdit->append(QString(ba.toStdString().c_str()));
QString Uart_data = QString(ba.toStdString().c_str());
//QString Temp = ;
uint32_t pre = Uart_data.indexOf("BARO :");
if(pre < 100)
{
QString Pressure = Uart_data.mid(pre + 8, 6);
QString Temp = Uart_data.mid(pre + 15);
uint32_t te = Temp.indexOf("TEMP :");
QString Temp1 = Temp.mid(te + 8, 3);
bool ok;
double Pressurenum = double(Pressure.toInt(&ok,16));
Pressurenum = Pressurenum / 4096;
QString Pressurenum1 = QString("%1").arg(Pressurenum);
double Tempnum = double(Temp1.toInt(&ok,16));
Tempnum = Tempnum / 100;
Temp = QString("%1").arg(Tempnum);
ui->textEdit_2->append("Pressure:" + Pressurenum1);
ui->textEdit_2->append("Temp:" + Temp);
}
}
void Widget::on_pushButton_clicked()
{
if (openFlag == false) {
port.setPortName(ui->comboBox->currentText());
if (port.open(QIODevice::ReadWrite)) {
port.setBaudRate(ui->comboBox_2->currentText().toInt());
switch (ui->comboBox_3->currentIndex()) {
case 0:
port.setDataBits(QSerialPort::Data8);
break;
case 1:
port.setDataBits(QSerialPort::Data6);
break;
case 2:
port.setDataBits(QSerialPort::Data5);
break;
default:
break;
}
switch (ui->comboBox_4->currentIndex()) {
case 0:
port.setParity(QSerialPort::NoParity);
break;
case 1:
port.setParity(QSerialPort::EvenParity);
break;
case 2:
port.setParity(QSerialPort::OddParity);
break;
default:
break;
}
switch (ui->comboBox_5->currentIndex()) {
case 0:
port.setStopBits(QSerialPort::OneStop);
break;
case 1:
port.setStopBits(QSerialPort::TwoStop);
break;
default:
break;
}
openFlag = true;
ui->pushButton->setText(QString("关闭串口"));
}
} else {
port.close();
openFlag = false;
ui->pushButton->setText(QString("打开串口"));
}
//qDebug() << ui->comboBox->currentText();
}
void Widget::on_pushButton_2_clicked()
{
port.write(ui->textEdit_2->toPlainText().toLatin1());
}
void Widget::on_clear_data_clicked()
{
ui->textEdit->clear();
ui->textEdit_2->clear();
}
void Widget::on_Save_Date_clicked()
{
QString Save_date = ui->textEdit->toPlainText();
QString Save_date1 = ui->textEdit_2->toPlainText();
QString dirName = "C:/Users/Administrator/Desktop/串口工具";
QDir dir(dirName);
if(!dir.exists())
{
ui->textEdit->append("创建串口工具文件夹成功");
dir.mkdir(dirName);
}
else
{
ui->textEdit->append("串口工具文件夹已存在");
}
QString creathPath = "C:/Users/Administrator/Desktop/串口工具/lps22hh.c";
QFileInfo fileInfo(creathPath);
if(fileInfo.isFile())
{
QFile::remove(creathPath);//删除文件
ui->textEdit->append("lps22hh.c文件已删除");
}
else
{
}
QFile creathfile(creathPath);
if(!creathfile.open(QIODevice::ReadWrite|QIODevice::Text|QIODevice::Append))
{
ui->textEdit->append("lps22hh.c文件打开失败");
}
creathfile.write(Save_date.toUtf8());
creathfile.close();
ui->textEdit->append("lps22hh.c文件保存成功");
creathPath = "C:/Users/Administrator/Desktop/串口工具/lps22hh整理后数据.c";
QFileInfo fileInfo1(creathPath);
if(fileInfo1.isFile())
{
QFile::remove(creathPath);//删除文件
ui->textEdit->append("lps22hh整理后数据.c文件已删除");
}
else
{
}
QFile creathfile1(creathPath);
if(!creathfile1.open(QIODevice::ReadWrite|QIODevice::Text|QIODevice::Append))
{
ui->textEdit->append("lps22hh整理后数据.c文件打开失败");
}
creathfile1.write(Save_date1.toUtf8());
creathfile1.close();
ui->textEdit->append("lps22hh整理后数据.c文件保存成功");
}
widget.h
#ifndef WIDGET_H
#define WIDGET_H
#include <QWidget>
#include <QSerialPort>
#include <QSerialPortInfo>
namespace Ui {
class Widget;
}
class Widget : public QWidget
{
Q_OBJECT
public:
explicit Widget(QWidget *parent = 0);
~Widget();
private slots:
void on_pushButton_clicked();
void readDataHandler();
void on_pushButton_2_clicked();
void on_clear_data_clicked();
void on_Save_Date_clicked();
private:
Ui::Widget *ui;
QList<QString> bpsList;
QList<QString> dataList;
QList<QString> parityList;
QList<QString> stopList;
bool openFlag;
QSerialPort port;
};
#endif // WIDGET_H

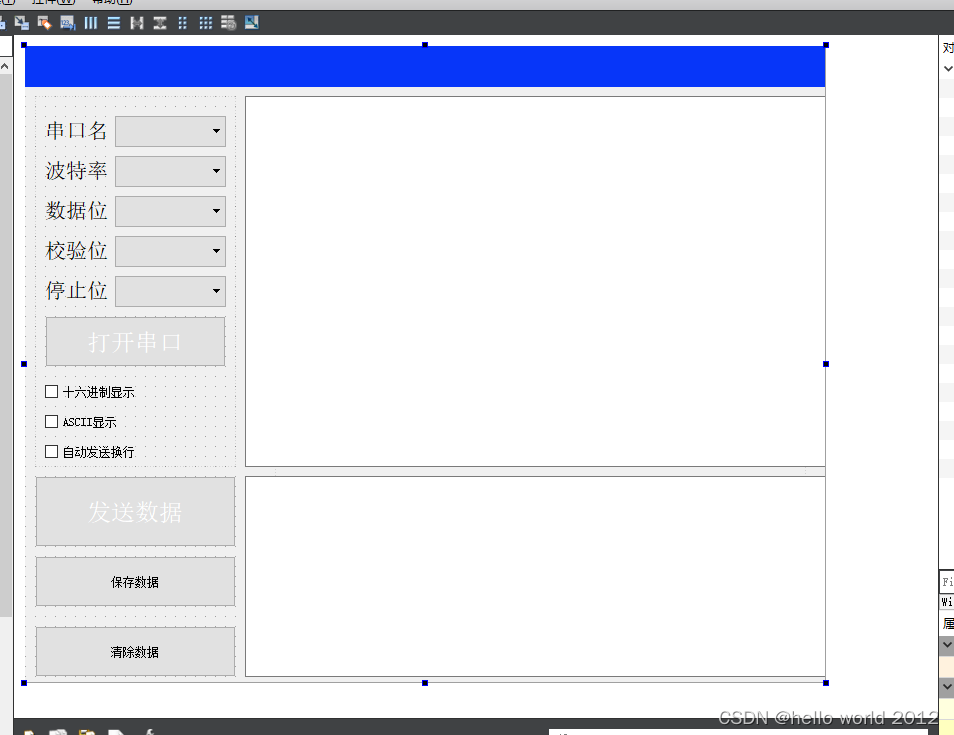

ui
ui文件内容
<?xml version="1.0" encoding="UTF-8"?>
<ui version="4.0">
<class>Widget</class>
<widget class="QWidget" name="Widget">
<property name="geometry">
<rect>
<x>0</x>
<y>0</y>
<width>800</width>
<height>636</height>
</rect>
</property>
<property name="windowTitle">
<string>Widget</string>
</property>
<widget class="QFrame" name="frame">
<property name="geometry">
<rect>
<x>10</x>
<y>50</y>
<width>201</width>
<height>371</height>
</rect>
</property>
<property name="frameShape">
<enum>QFrame::StyledPanel</enum>
</property>
<property name="frameShadow">
<enum>QFrame::Raised</enum>
</property>
<widget class="QComboBox" name="comboBox">
<property name="geometry">
<rect>
<x>80</x>
<y>20</y>
<width>111</width>
<height>31</height>
</rect>
</property>
<property name="styleSheet">
<string notr="true">font: 15pt "Ubuntu";</string>
</property>
</widget>
<widget class="QLabel" name="label_2">
<property name="geometry">
<rect>
<x>10</x>
<y>24</y>
<width>71</width>
<height>21</height>
</rect>
</property>
<property name="styleSheet">
<string notr="true">font: 16pt "Ubuntu";</string>
</property>
<property name="text">
<string>串口名</string>
</property>
</widget>
<widget class="QLabel" name="label_3">
<property name="geometry">
<rect>
<x>10</x>
<y>64</y>
<width>71</width>
<height>21</height>
</rect>
</property>
<property name="styleSheet">
<string notr="true">font: 16pt "Ubuntu";</string>
</property>
<property name="text">
<string>波特率</string>
</property>
</widget>
<widget class="QComboBox" name="comboBox_2">
<property name="geometry">
<rect>
<x>80</x>
<y>60</y>
<width>111</width>
<height>31</height>
</rect>
</property>
<property name="styleSheet">
<string notr="true">font: 15pt "Ubuntu";</string>
</property>
</widget>
<widget class="QLabel" name="label_4">
<property name="geometry">
<rect>
<x>10</x>
<y>104</y>
<width>71</width>
<height>21</height>
</rect>
</property>
<property name="styleSheet">
<string notr="true">font: 16pt "Ubuntu";</string>
</property>
<property name="text">
<string>数据位</string>
</property>
</widget>
<widget class="QComboBox" name="comboBox_3">
<property name="geometry">
<rect>
<x>80</x>
<y>100</y>
<width>111</width>
<height>31</height>
</rect>
</property>
<property name="styleSheet">
<string notr="true">font: 15pt "Ubuntu";</string>
</property>
</widget>
<widget class="QLabel" name="label_5">
<property name="geometry">
<rect>
<x>10</x>
<y>144</y>
<width>71</width>
<height>21</height>
</rect>
</property>
<property name="styleSheet">
<string notr="true">font: 16pt "Ubuntu";</string>
</property>
<property name="text">
<string>校验位</string>
</property>
</widget>
<widget class="QComboBox" name="comboBox_4">
<property name="geometry">
<rect>
<x>80</x>
<y>140</y>
<width>111</width>
<height>31</height>
</rect>
</property>
<property name="styleSheet">
<string notr="true">font: 15pt "Ubuntu";</string>
</property>
</widget>
<widget class="QLabel" name="label_6">
<property name="geometry">
<rect>
<x>10</x>
<y>184</y>
<width>71</width>
<height>21</height>
</rect>
</property>
<property name="styleSheet">
<string notr="true">font: 16pt "Ubuntu";</string>
</property>
<property name="text">
<string>停止位</string>
</property>
</widget>
<widget class="QComboBox" name="comboBox_5">
<property name="geometry">
<rect>
<x>80</x>
<y>180</y>
<width>111</width>
<height>31</height>
</rect>
</property>
<property name="styleSheet">
<string notr="true">font: 15pt "Ubuntu";</string>
</property>
</widget>
<widget class="QPushButton" name="pushButton">
<property name="geometry">
<rect>
<x>10</x>
<y>220</y>
<width>181</width>
<height>51</height>
</rect>
</property>
<property name="styleSheet">
<string notr="true">font: 18pt "Ubuntu";
color: rgb(255, 255, 255);
background-color: rgb(206, 92, 0);</string>
</property>
<property name="text">
<string>打开串口</string>
</property>
</widget>
<widget class="QCheckBox" name="checkBox">
<property name="geometry">
<rect>
<x>10</x>
<y>280</y>
<width>111</width>
<height>31</height>
</rect>
</property>
<property name="text">
<string>十六进制显示</string>
</property>
</widget>
<widget class="QCheckBox" name="checkBox_2">
<property name="geometry">
<rect>
<x>10</x>
<y>310</y>
<width>111</width>
<height>31</height>
</rect>
</property>
<property name="text">
<string>ASCII显示</string>
</property>
</widget>
<widget class="QCheckBox" name="checkBox_3">
<property name="geometry">
<rect>
<x>10</x>
<y>340</y>
<width>111</width>
<height>31</height>
</rect>
</property>
<property name="text">
<string>自动发送换行</string>
</property>
</widget>
</widget>
<widget class="QFrame" name="frame_2">
<property name="geometry">
<rect>
<x>250</x>
<y>140</y>
<width>531</width>
<height>321</height>
</rect>
</property>
<property name="frameShape">
<enum>QFrame::StyledPanel</enum>
</property>
<property name="frameShadow">
<enum>QFrame::Raised</enum>
</property>
</widget>
<widget class="QLabel" name="label">
<property name="geometry">
<rect>
<x>0</x>
<y>0</y>
<width>811</width>
<height>41</height>
</rect>
</property>
<property name="styleSheet">
<string notr="true">font: 17pt "Ubuntu";
color: rgb(255, 255, 255);
background-color: rgb(7, 54, 249);</string>
</property>
<property name="text">
<string/>
</property>
<property name="alignment">
<set>Qt::AlignCenter</set>
</property>
</widget>
<widget class="QPushButton" name="pushButton_2">
<property name="geometry">
<rect>
<x>10</x>
<y>430</y>
<width>201</width>
<height>71</height>
</rect>
</property>
<property name="styleSheet">
<string notr="true">font: 18pt "Ubuntu";
color: rgb(255, 255, 255);
background-color: rgb(206, 92, 0);</string>
</property>
<property name="text">
<string>发送数据</string>
</property>
</widget>
<widget class="QPushButton" name="clear_data">
<property name="geometry">
<rect>
<x>10</x>
<y>580</y>
<width>201</width>
<height>51</height>
</rect>
</property>
<property name="text">
<string>清除数据</string>
</property>
</widget>
<widget class="QPushButton" name="Save_Date">
<property name="geometry">
<rect>
<x>10</x>
<y>510</y>
<width>201</width>
<height>51</height>
</rect>
</property>
<property name="text">
<string>保存数据</string>
</property>
</widget>
<widget class="QTextEdit" name="textEdit_2">
<property name="geometry">
<rect>
<x>220</x>
<y>430</y>
<width>581</width>
<height>201</height>
</rect>
</property>
</widget>
<widget class="QTextEdit" name="textEdit">
<property name="geometry">
<rect>
<x>220</x>
<y>50</y>
<width>581</width>
<height>371</height>
</rect>
</property>
</widget>
</widget>
<layoutdefault spacing="6" margin="11"/>
<resources/>
<connections/>
</ui>
编译效果
源码链接:跳转链接
