宽带运营商MPLS V P N城际互联综合项目

《傅老师eNSP经典综合实验系列之项目03》——原创

==前言==

本案例主要技术：

MPLS、VPN、OSPF、BGP、EBGP、VLAN、Trunk、VRRP、DHCP等。

傅老师文档特点：

1、必须能做通；

2、很强的易读性（重点部分有理论讲解，例如本文的R9）

3、教科书级别（曾主刀10+年相关教材编纂，放心看）。

（文章尾部有傅老师的二维码，欢迎沟通交流：）

适合人群：

1、希望快速完成毕业设计同时提升能力的在校生；

2、用业余时间提升的在职人员；

阅读建议：

1、傅老师的实验案例几乎都来自真实项目，但因为真实项目过于庞大不适用于实验环境，因此每个案例都结合该项目特点进行了提炼，把最重要的部分展现给各位同学，且不失其综合性；

2、务必先了解拓扑图和需求，因为实验步骤是与需求对应的；

3、重要的命令有注释，可以帮助理解。

一、项目概述

随着企业业务的不断扩展和信息化程度的提高，对于高效、稳定、安全的网络连接需求日益增长。某大型审计事务所，作为业界的领军者，对信息技术有着极高的要求。为了确保各分支机构与总部之间数据传输的安全性和可靠性，该事务所决定采用宽带运营商提供的MPLS VPN技术来实现安全、稳定和高速的城际网络连接。

MPLS VPN技术是一种基于多协议标签交换（MPLS）的虚拟专用网络（VPN）技术。它通过在运营商的骨干网络上建立隧道，实现对数据的加密和封装，确保数据在传输过程中的安全性和完整性。

宽带运营商将利用MPLS VPN技术的特点，构建一个跨越审计事务所总部及三个分支机构的虚拟专用网络。通过该网络，各分支机构将能够与总部进行安全、可靠的数据传输，确保业务的连续性和数据的完整性。

二、拓扑图与需求

1、拓扑图

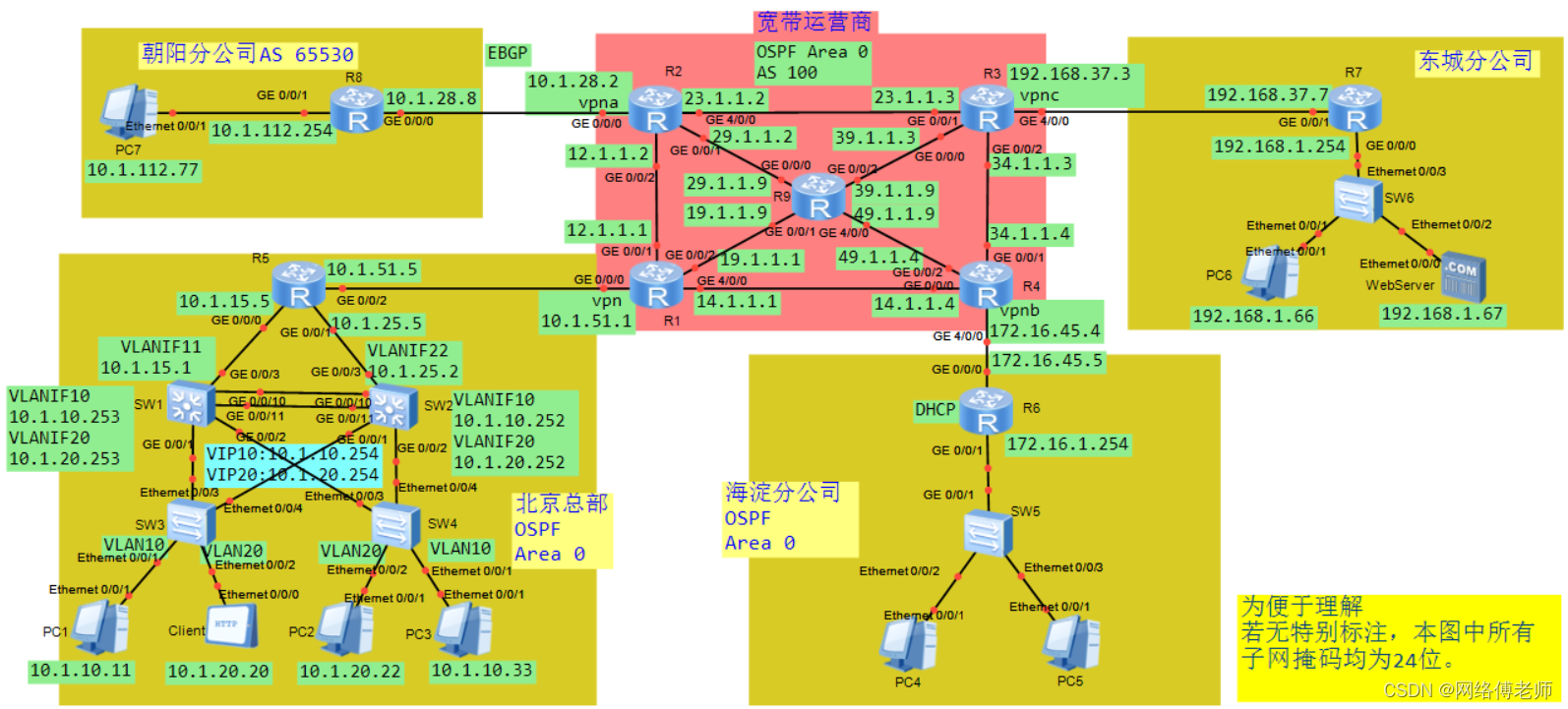

本拓扑分为5部分，核心是宽带运营商的网络，提供MPLS VPN服务，审计事务所总部和分支都是VPN用户站点。其中总部内部稍微展开，融进了常用的局域网技术，便于同学们学习。

本拓扑极具代表性，多个VPN用户站点内部路由协议各不相同，有OSPF、BGP和静态路由，充分说明MPLS VPN的灵活性和扩展性。

详细区域划分和IP规划详见拓扑图，就不再赘述了。

2、需求及实现思路

总公司内部网络

（1）配置VLAN、Trunk、Access和Eth-trunk

（2）配置生成树MSTP，使2台核心交换机分别为2个实例的根，并分配不同VLAN的流量给不同的生成树实例

（3）配置VRRP，使不同VLAN流量发往不同的核心交换机，实现负载分担和主备冗余

（4）配置OSPF，实现总公司内网各网段路由可达
分公司内部网络

（1）朝阳分公司路由器启用BGP

（2）海淀分公司路由器启用OSPF和DHCP

（3）东城分公司路由器配置静态路由；
宽带运营商内部网络

启用OSPF，实现运营商内部骨干设备互通；
宽带运营商配置MPLS VPN

（1）运营商各路由器启用MPLS LDP

（2）运营商RR与各PE之间建立MP-IBGP连接，并启用RR的BGP-VPNv4路由反射功能

（3）各PE路由器上配置VPN实例

（4）运营商配置路由引入；

三、实施步骤OBO（one by one）

1、配置VLAN、Trunk、Access和Eth-trunk

（1）SW3

<Huawei>system-view
Enter system view, return user view with Ctrl+Z.
[Huawei]undo info-center enable
Info: Information center is disabled.
[Huawei]sysname SW3
[SW3]vlan batch 10 20
Info: This operation may take a few seconds. Please wait for a moment...done.
[SW3]interface e0/0/1
[SW3-Ethernet0/0/1]port link-type access
[SW3-Ethernet0/0/1]port default vlan 10
[SW3-Ethernet0/0/1]quit
[SW3]interface e0/0/2
[SW3-Ethernet0/0/2]port link-type access
[SW3-Ethernet0/0/2]port default vlan 20
[SW3-Ethernet0/0/2]quit
[SW3]port-group group-member e0/0/3 e0/0/4
//小技巧：
//创建临时端口组，系统会自动到绑定的所有成员接口下执行相关命令行，完成以太网接口批量配置。
[SW3-port-group]port link-type trunk        //这条命令是手动敲进去的
[SW3-Ethernet0/0/3]port link-type trunk     //这条命令是系统自己敲进去的
[SW3-Ethernet0/0/4]port link-type trunk     //这条命令也是系统自己敲进去的
[SW3-port-group]port trunk allow-pass vlan all
[SW3-Ethernet0/0/3]port trunk allow-pass vlan all
[SW3-Ethernet0/0/4]port trunk allow-pass vlan all
[SW3-port-group]quit

（2）SW4

<Huawei>system-view
Enter system view, return user view with Ctrl+Z.
[Huawei]undo info-center enable
Info: Information center is disabled.
[Huawei]sysname SW4
[SW4]vlan batch 10 20
Info: This operation may take a few seconds. Please wait for a moment...done.
[SW4]interface e0/0/1
[SW4-Ethernet0/0/1]port link-type access
[SW4-Ethernet0/0/1]port default vlan 10
[SW4-Ethernet0/0/1]quit
[SW4]interface e0/0/2
[SW4-Ethernet0/0/2]port link-type access
[SW4-Ethernet0/0/2]port default vlan 20
[SW4-Ethernet0/0/2]quit
[SW4]port-group group-member e0/0/3 e0/0/4
[SW4-port-group]port link-type trunk
[SW4-Ethernet0/0/3]port link-type trunk
[SW4-Ethernet0/0/4]port link-type trunk
[SW4-port-group]port trunk allow-pass vlan all
[SW4-Ethernet0/0/3]port trunk allow-pass vlan all
[SW4-Ethernet0/0/4]port trunk allow-pass vlan all
[SW4-port-group]quit

（3）SW1

<Huawei>system-view
Enter system view, return user view with Ctrl+Z.
[Huawei]undo info-center enable
Info: Information center is disabled.
[Huawei]sysname SW1
[SW1]vlan batch 10 20 11
Info: This operation may take a few seconds. Please wait for a moment...done.
[SW1]port-group group-member g0/0/1 g0/0/2
[SW1-port-group]port link-type trunk
[SW1-GigabitEthernet0/0/1]port link-type trunk
[SW1-GigabitEthernet0/0/2]port link-type trunk
[SW1-port-group]port trunk allow-pass vlan all
[SW1-GigabitEthernet0/0/1]port trunk allow-pass vlan all
[SW1-GigabitEthernet0/0/2]port trunk allow-pass vlan all
[SW1-port-group]quit
[SW1]interface g0/0/3
[SW1-GigabitEthernet0/0/3]port link-type access
[SW1-GigabitEthernet0/0/3]port default vlan 11
[SW1-GigabitEthernet0/0/3]quit
[SW1]interface eth-trunk 1
[SW1-Eth-Trunk1]mode lacp-static   //eth-trunk相关知识可访问傅老师小知识库
[SW1-Eth-Trunk1]trunkport g0/0/10
Info: This operation may take a few seconds. Please wait for a moment...done.
[SW1-Eth-Trunk1]trunkport g0/0/11
Info: This operation may take a few seconds. Please wait for a moment...done.
[SW1-Eth-Trunk1]port link-type trunk
[SW1-Eth-Trunk1]port trunk allow-pass vlan all
[SW1-Eth-Trunk1]quit

（4）SW2

<Huawei>system-view
Enter system view, return user view with Ctrl+Z.
[Huawei]undo info-center enable
Info: Information center is disabled.
[Huawei]sysname SW2
[SW2]vlan batch 10 20 22
Info: This operation may take a few seconds. Please wait for a moment...done.
[SW2]port-group group-member g0/0/1 g0/0/2
[SW2-port-group]port link-type trunk
[SW2-GigabitEthernet0/0/1]port link-type trunk
[SW2-GigabitEthernet0/0/2]port link-type trunk
[SW2-port-group]port trunk allow-pass vlan all
[SW2-GigabitEthernet0/0/1]port trunk allow-pass vlan all
[SW2-GigabitEthernet0/0/2]port trunk allow-pass vlan all
[SW2-port-group]quit
[SW2]interface g0/0/3
[SW2-GigabitEthernet0/0/3]port link-type access
[SW2-GigabitEthernet0/0/3]port default vlan 22
[SW2-GigabitEthernet0/0/3]quit
[SW2]interface eth-trunk 1
[SW2-Eth-Trunk1]mode lacp-static
[SW2-Eth-Trunk1]trunkport g0/0/10
Info: This operation may take a few seconds. Please wait for a moment...done.
[SW2-Eth-Trunk1]trunkport g0/0/11
Info: This operation may take a few seconds. Please wait for a moment...done.
[SW2-Eth-Trunk1]port link-type trunk
[SW2-Eth-Trunk1]port trunk allow-pass vlan all
[SW2-Eth-Trunk1]quit

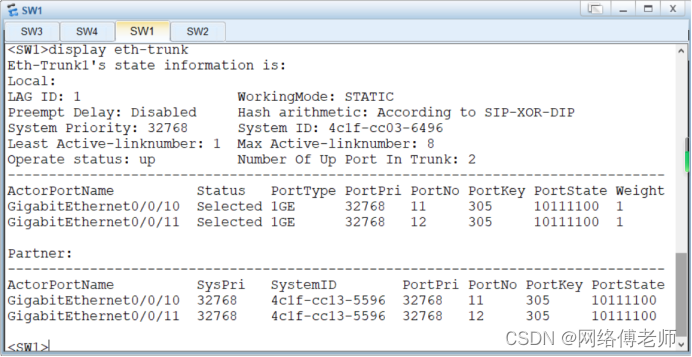

查看一下Eth-trunk的状态，正常。

2、配置MSTP生成树

（1）SW3

[SW3]stp region-configuration
[SW3-mst-region]instance 1 vlan 10
[SW3-mst-region]instance 2 vlan 20
[SW3-mst-region]active region-configuration
Info: This operation may take a few seconds. Please wait for a moment...done.
[SW3-mst-region]quit

（2）SW4

[SW4]stp region-configuration
[SW4-mst-region]instance 1 vlan 10
[SW4-mst-region]instance 2 vlan 20
[SW4-mst-region]active region-configuration
Info: This operation may take a few seconds. Please wait for a moment...done.
[SW4-mst-region]quit

（3）SW1

实例1的主，实例2的从

[SW1]stp region-configuration
[SW1-mst-region]instance 1 vlan 10
[SW1-mst-region]instance 2 vlan 20
[SW1-mst-region]active region-configuration
Info: This operation may take a few seconds. Please wait for a moment...done.
[SW1-mst-region]quit
[SW1]stp instance 1 root primary
[SW1]stp instance 2 root secondary
[SW1]quit

（4）SW2

实例2的主，实例1的从

[SW2]stp region-configuration
[SW2-mst-region]instance 1 vlan 10
[SW2-mst-region]instance 2 vlan 20
[SW2-mst-region]active region-configuration
Info: This operation may take a few seconds. Please wait for a moment...done.
[SW2-mst-region]quit
[SW2]stp instance 2 root primary
[SW2]stp instance 1 root secondary
[SW2]quit

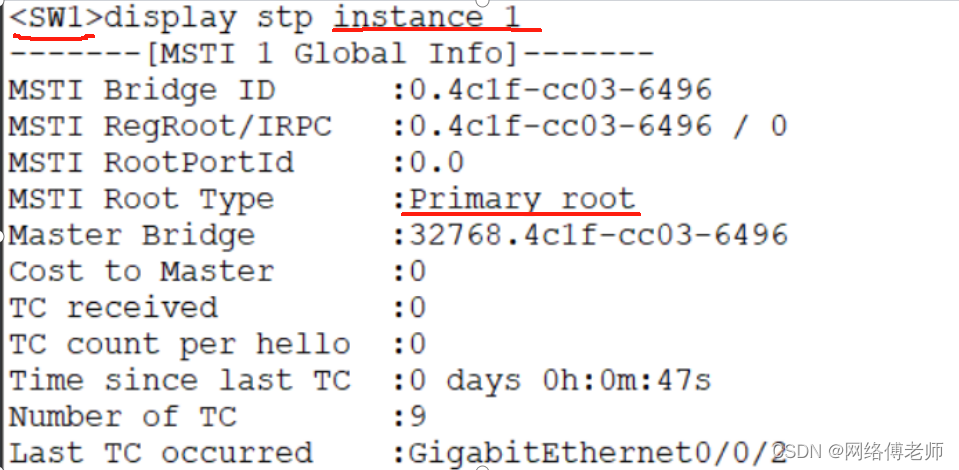

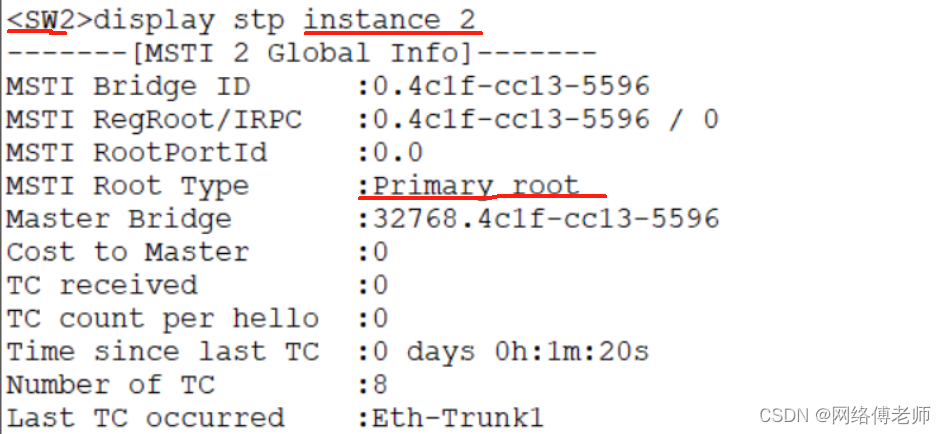

验证一下生成树

3、配置VRRP

（1）SW1

是VRID 10的主、VRID 20的备

[SW1]interface vlanif 10
[SW1-Vlanif10]ip address 10.1.10.253 24
[SW1-Vlanif10]vrrp vrid 10 virtual-ip 10.1.10.254
[SW1-Vlanif10]vrrp vrid 10 priority 120
[SW1-Vlanif10]quit
[SW1]interface vlanif 20
[SW1-Vlanif20]ip address 10.1.20.253 24
[SW1-Vlanif20]vrrp vrid 20 virtual-ip 10.1.20.254
[SW1-Vlanif20]quit
[SW1]interface vlanif 11
[SW1-Vlanif11]ip address 10.1.15.1 24
[SW1-Vlanif11]quit

（2）SW2

是VRID 10的备、VRID 20的主

[SW2]interface vlanif 10
[SW2-Vlanif10]ip address 10.1.10.252 24
[SW2-Vlanif10]vrrp vrid 10 virtual-ip 10.1.10.254
[SW2-Vlanif10]quit
[SW2]interface vlanif 20
[SW2-Vlanif20]ip address 10.1.20.252 24
[SW2-Vlanif20]vrrp vrid 20 virtual-ip 10.1.20.254
[SW2-Vlanif20]vrrp vrid 20 priority 120
[SW2-Vlanif20]quit
[SW2]interface vlanif 22
[SW2-Vlanif22]ip address 10.1.25.2 24
[SW2-Vlanif22]quit

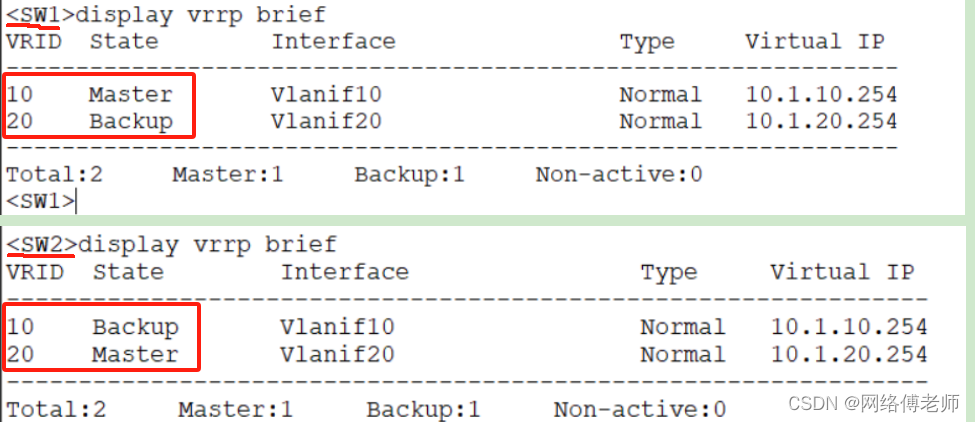

验证一下VRRP的状态

4、配置总公司OSPF

实现总公司内各网段路由可达。

（1）SW1

[SW1]ospf
[SW1-ospf-1]area 0
[SW1-ospf-1-area-0.0.0.0]network 10.1.15.0 0.0.0.255
[SW1-ospf-1-area-0.0.0.0]network 10.1.10.0 0.0.0.255
[SW1-ospf-1-area-0.0.0.0]network 10.1.20.0 0.0.0.255
[SW1-ospf-1-area-0.0.0.0]quit
[SW1-ospf-1]silent-interface vlanif 10
[SW1-ospf-1]silent-interface vlanif 20
//禁止接口收发OSPF报文，因此该接口上不会建立OSPF邻居关系。可提升设备性能、增强组网能力。
[SW1-ospf-1]quit

（2）SW2

[SW2]ospf
[SW2-ospf-1]area 0
[SW2-ospf-1-area-0.0.0.0]network 10.1.25.0 0.0.0.255
[SW2-ospf-1-area-0.0.0.0]network 10.1.10.0 0.0.0.255
[SW2-ospf-1-area-0.0.0.0]network 10.1.20.0 0.0.0.255
[SW2-ospf-1-area-0.0.0.0]quit
[SW2-ospf-1]silent-interface vlanif 10
[SW2-ospf-1]silent-interface vlanif 20
[SW2-ospf-1]quit

（3）R5

<Huawei>system-view
Enter system view, return user view with Ctrl+Z.
[Huawei]undo info-center enable
Info: Information center is disabled.
[Huawei]sysname R5
[R5]interface g0/0/2
[R5-GigabitEthernet0/0/2]ip address 10.1.51.5 24
[R5-GigabitEthernet0/0/2]quit
[R5]interface g0/0/0
[R5-GigabitEthernet0/0/0]ip address 10.1.15.5 24
[R5-GigabitEthernet0/0/0]quit
[R5]interface g0/0/1
[R5-GigabitEthernet0/0/1]ip address 10.1.25.5 24
[R5-GigabitEthernet0/0/1]quit
[R5]ospf
[R5-ospf-1]area 0
[R5-ospf-1-area-0.0.0.0]network 10.1.15.0 0.0.0.255
[R5-ospf-1-area-0.0.0.0]network 10.1.25.0 0.0.0.255
[R5-ospf-1-area-0.0.0.0]network 10.1.51.0 0.0.0.255
[R5-ospf-1-area-0.0.0.0]quit
[R5-ospf-1]quit

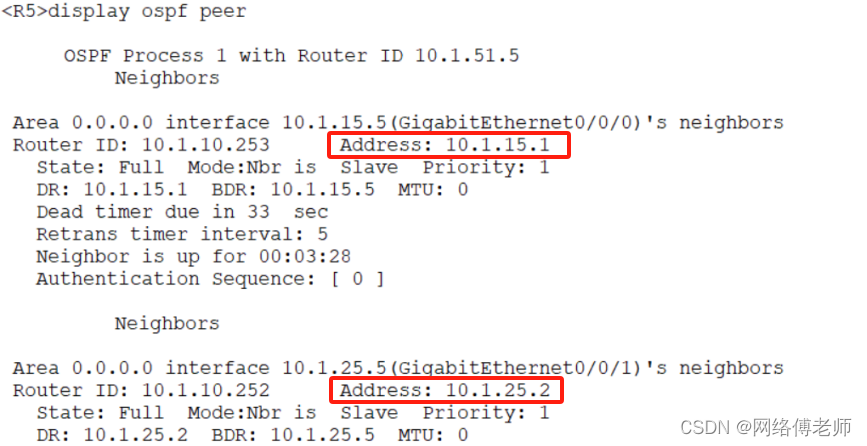

可看到R5的2个OSPF邻居分别是SW1和SW2

5、配置各分公司路由

（1）R8（朝阳BGP）

<Huawei>system-view
Enter system view, return user view with Ctrl+Z.
[Huawei]undo info-center enable
Info: Information center is disabled.
[Huawei]sysname R8
[R8]interface g0/0/1
[R8-GigabitEthernet0/0/1]ip address 10.1.112.254 24
[R8-GigabitEthernet0/0/1]quit
[R8]interface g0/0/0
[R8-GigabitEthernet0/0/0]ip address 10.1.28.8 24
[R8-GigabitEthernet0/0/0]quit
[R8]bgp 65530
[R8-bgp]peer 10.1.28.2 as 100    //指定对面的邻居以及AS号
[R8-bgp]network 10.1.112.0 24    //宣告自己的内部直连网段
[R8-bgp]quit

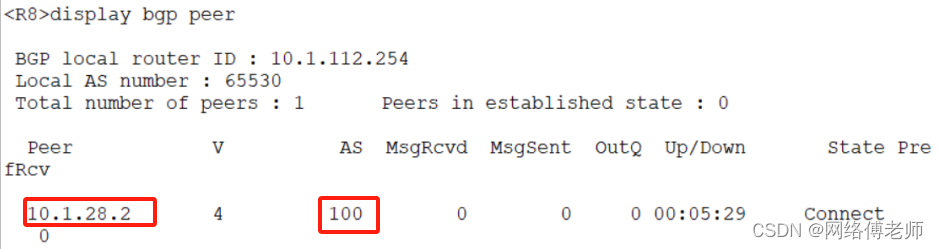

查看一下BGP邻居

（2）R6（海淀OSPF）

<Huawei>system-view
Enter system view, return user view with Ctrl+Z.
[Huawei]undo info-center enable
Info: Information center is disabled.
[Huawei]sysname R6
[R6]interface g0/0/0
[R6-GigabitEthernet0/0/0]ip address 172.16.45.5 24
[R6-GigabitEthernet0/0/0]quit
[R6]dhcp enable
Info: The operation may take a few seconds. Please wait for a moment.done.
[R6]interface g0/0/1
[R6-GigabitEthernet0/0/1]ip address 172.16.1.254 24
[R6-GigabitEthernet0/0/1]dhcp select interface
[R6-GigabitEthernet0/0/1]quit
[R6]ospf
[R6-ospf-1]area 0
[R6-ospf-1-area-0.0.0.0]network 172.16.1.0 0.0.0.255
[R6-ospf-1-area-0.0.0.0]network 172.16.45.0 0.0.0.255
[R6-ospf-1-area-0.0.0.0]quit
[R6-ospf-1]quit

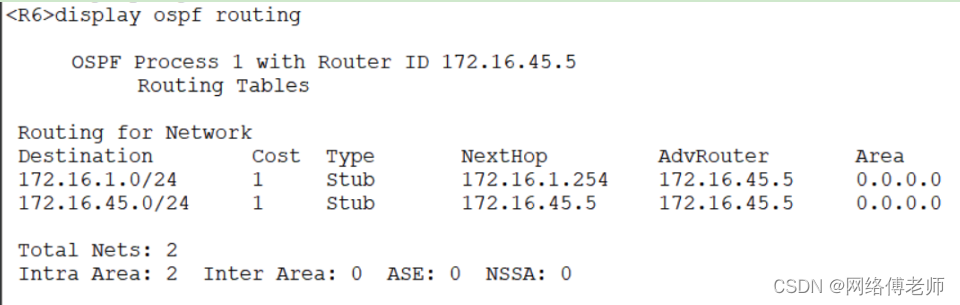

查看OSPF路由表，目前仅能看见自己的直连路由

查看DHCP状态，已经分配出去2个IP地址

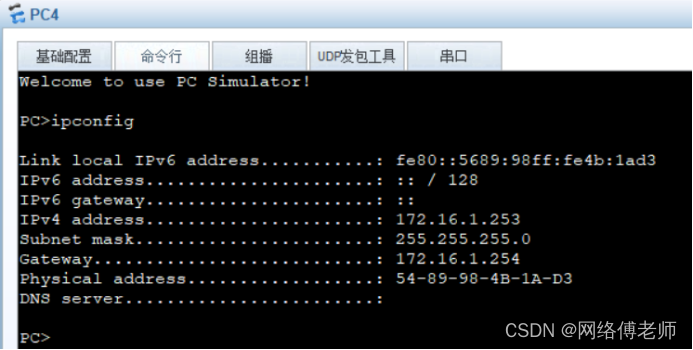

PC获取IP地址（以PC4为例）

（3）R7（东城静态路由）

<Huawei>system-view
Enter system view, return user view with Ctrl+Z.
[Huawei]undo info-center enable
Info: Information center is disabled.
[Huawei]sysname R7
[R7]interface g0/0/0
[R7-GigabitEthernet0/0/0]ip address 192.168.1.254 24
[R7-GigabitEthernet0/0/0]quit
[R7]interface g0/0/1
[R7-GigabitEthernet0/0/1]ip address 192.168.37.7 24
[R7-GigabitEthernet0/0/1]quit
[R7]ip route-static 0.0.0.0 0.0.0.0 192.168.37.3
[R7]quit

6、配置运营商主干网络（OSPF）

主干内部看似命令多，实际并不复杂，对照拓扑图配置IP、宣告网段即可。

（1）R2

<Huawei>system-view
Enter system view, return user view with Ctrl+Z.
[Huawei]undo info-center enable
Info: Information center is disabled.
[Huawei]sysname R2
[R2]interface g4/0/0
[R2-GigabitEthernet4/0/0]ip address 23.1.1.2 24
[R2-GigabitEthernet4/0/0]quit
[R2]interface g0/0/1
[R2-GigabitEthernet0/0/1]ip address 29.1.1.2 24
[R2-GigabitEthernet0/0/1]quit
[R2]interface g0/0/2
[R2-GigabitEthernet0/0/2]ip address 12.1.1.2 24
[R2-GigabitEthernet0/0/2]quit
[R2]interface loopback 0
[R2-LoopBack0]ip address 2.2.2.2 32
[R2-LoopBack0]quit
[R2]ospf 2 router-id 2.2.2.2
[R2-ospf-2]area 0
[R2-ospf-2-area-0.0.0.0]network 2.2.2.2 0.0.0.0
[R2-ospf-2-area-0.0.0.0]network 29.1.1.0 0.0.0.255
[R2-ospf-2-area-0.0.0.0]network 12.1.1.0 0.0.0.255
[R2-ospf-2-area-0.0.0.0]network 23.1.1.0 0.0.0.255
[R2-ospf-2-area-0.0.0.0]quit
[R2-ospf-2]quit

（2）R1

<Huawei>system-view
Enter system view, return user view with Ctrl+Z.
[Huawei]undo info-center enable
Info: Information center is disabled.
[Huawei]sysname R1
[R1]interface g0/0/1
[R1-GigabitEthernet0/0/1]ip address 12.1.1.1 24
[R1-GigabitEthernet0/0/1]quit
[R1]interface g0/0/2
[R1-GigabitEthernet0/0/2]ip address 19.1.1.1 24
[R1-GigabitEthernet0/0/2]quit
[R1]interface g4/0/0
[R1-GigabitEthernet4/0/0]ip address 14.1.1.1 24
[R1-GigabitEthernet4/0/0]quit
[R1]interface loopback 0
[R1-LoopBack0]ip address 1.1.1.1 32
[R1-LoopBack0]quit
[R1]ospf 2 router-id 1.1.1.1
[R1-ospf-2]area 0
[R1-ospf-2-area-0.0.0.0]network 1.1.1.1 0.0.0.0
[R1-ospf-2-area-0.0.0.0]network 12.1.1.0 0.0.0.255
[R1-ospf-2-area-0.0.0.0]network 19.1.1.0 0.0.0.255
[R1-ospf-2-area-0.0.0.0]network 14.1.1.0 0.0.0.255
[R1-ospf-2-area-0.0.0.0]quit
[R1-ospf-2]quit

（3）R9

<Huawei>system-view
Enter system view, return user view with Ctrl+Z.
[Huawei]undo info-center enable
Info: Information center is disabled.
[Huawei]sysname R9
[R9]interface g0/0/0
[R9-GigabitEthernet0/0/0]ip address 29.1.1.9 24
[R9-GigabitEthernet0/0/0]quit
[R9]interface g0/0/1
[R9-GigabitEthernet0/0/1]ip address 19.1.1.9 24
[R9-GigabitEthernet0/0/1]quit
[R9]interface g0/0/2
[R9-GigabitEthernet0/0/2]ip address 39.1.1.9 24
[R9-GigabitEthernet0/0/2]quit
[R9]interface g4/0/0
[R9-GigabitEthernet4/0/0]ip address 49.1.1.9 24
[R9-GigabitEthernet4/0/0]quit
[R9]interface loopback 0
[R9-LoopBack0]ip address 9.9.9.9 32
[R9-LoopBack0]quit
[R9]ospf 2 router-id 9.9.9.9
[R9-ospf-2]area 0
[R9-ospf-2-area-0.0.0.0]network 9.9.9.9 0.0.0.0
[R9-ospf-2-area-0.0.0.0]network 19.1.1.0 0.0.0.255
[R9-ospf-2-area-0.0.0.0]network 29.1.1.0 0.0.0.255
[R9-ospf-2-area-0.0.0.0]network 39.1.1.0 0.0.0.255
[R9-ospf-2-area-0.0.0.0]network 49.1.1.0 0.0.0.255
[R9-ospf-2-area-0.0.0.0]quit
[R9-ospf-2]quit

（4）R3

<Huawei>system-view
Enter system view, return user view with Ctrl+Z.
[Huawei]undo info-center enable
Info: Information center is disabled.
[Huawei]sysname R3
[R3]interface g0/0/1
[R3-GigabitEthernet0/0/1]ip address 23.1.1.3 24
[R3-GigabitEthernet0/0/1]quit
[R3]interface g0/0/0
[R3-GigabitEthernet0/0/0]ip address 39.1.1.3 24
[R3-GigabitEthernet0/0/0]quit
[R3]interface g0/0/2
[R3-GigabitEthernet0/0/2]ip address 34.1.1.3 24
[R3-GigabitEthernet0/0/2]quit
[R3]interface loopback 0
[R3-LoopBack0]ip address 3.3.3.3 32
[R3-LoopBack0]quit
[R3]ospf 2 router-id 3.3.3.3
[R3-ospf-2]area 0
[R3-ospf-2-area-0.0.0.0]network 3.3.3.3 0.0.0.0
[R3-ospf-2-area-0.0.0.0]network 23.1.1.0 0.0.0.255
[R3-ospf-2-area-0.0.0.0]network 34.1.1.0 0.0.0.255
[R3-ospf-2-area-0.0.0.0]network 39.1.1.0 0.0.0.255
[R3-ospf-2-area-0.0.0.0]quit
[R3-ospf-2]quit

（5）R4

<Huawei>system-view
Enter system view, return user view with Ctrl+Z.
[Huawei]undo info-center enable
Info: Information center is disabled.
[Huawei]sysname R4
[R4]interface g0/0/1
[R4-GigabitEthernet0/0/1]ip address 34.1.1.4 24
[R4-GigabitEthernet0/0/1]quit
[R4]interface g0/0/2
[R4-GigabitEthernet0/0/2]ip address 49.1.1.4 24
[R4-GigabitEthernet0/0/2]quit
[R4]interface g0/0/0
[R4-GigabitEthernet0/0/0]ip address 14.1.1.4 24
[R4-GigabitEthernet0/0/0]quit
[R4]interface loopback 0
[R4-LoopBack0]ip address 4.4.4.4 32
[R4-LoopBack0]quit
[R4]ospf 2 router-id 4.4.4.4
[R4-ospf-2]area 0
[R4-ospf-2-area-0.0.0.0]network 4.4.4.4 0.0.0.0
[R4-ospf-2-area-0.0.0.0]network 14.1.1.0 0.0.0.255
[R4-ospf-2-area-0.0.0.0]network 49.1.1.0 0.0.0.255
[R4-ospf-2-area-0.0.0.0]network 34.1.1.0 0.0.0.255
[R4-ospf-2-area-0.0.0.0]quit
[R4-ospf-2]quit

7、配置MPLS

（1）R2

[R2]mpls lsr-id 2.2.2.2
//LSR ID用来唯一标识一个LSR。部署MPLS时，必须首先配置LSR ID
//为了提高可靠性，推荐使用Loopback接口的地址
[R2]mpls
Info: Mpls starting, please wait... OK!
[R2-mpls]mpls ldp	   //启动全局LDP，以便建立LDP对等体
[R2-mpls-ldp]quit
[R2]interface g4/0/0
[R2-GigabitEthernet4/0/0]mpls    //启动接口的MPLS功能
[R2-GigabitEthernet4/0/0]mpls ldp    //启动接口的LDP
[R2-GigabitEthernet4/0/0]quit
[R2]interface g0/0/1
[R2-GigabitEthernet0/0/1]mpls
[R2-GigabitEthernet0/0/1]mpls ldp
[R2-GigabitEthernet0/0/1]quit
[R2]interface g0/0/2
[R2-GigabitEthernet0/0/2]mpls
[R2-GigabitEthernet0/0/2]mpls ldp
[R2-GigabitEthernet0/0/2]quit

（2）R1

[R1]mpls lsr-id 1.1.1.1
[R1]mpls
Info: Mpls starting, please wait... OK!
[R1-mpls]mpls ldp
[R1-mpls-ldp]quit
[R1]interface g4/0/0
[R1-GigabitEthernet4/0/0]mpls
[R1-GigabitEthernet4/0/0]mpls ldp
[R1-GigabitEthernet4/0/0]quit
[R1]interface g0/0/1
[R1-GigabitEthernet0/0/1]mpls
[R1-GigabitEthernet0/0/1]mpls ldp
[R1-GigabitEthernet0/0/1]quit
[R1]interface g0/0/2
[R1-GigabitEthernet0/0/2]mpls
[R1-GigabitEthernet0/0/2]mpls ldp
[R1-GigabitEthernet0/0/2]quit

（3）R9

[R9]mpls lsr-id 9.9.9.9
[R9]mpls
Info: Mpls starting, please wait... OK!
[R9-mpls]mpls ldp
[R9-mpls-ldp]quit
[R9]interface g0/0/0
[R9-GigabitEthernet0/0/0]mpls
[R9-GigabitEthernet0/0/0]mpls ldp
[R9-GigabitEthernet0/0/0]quit
[R9]interface g0/0/2
[R9-GigabitEthernet0/0/2]mpls
[R9-GigabitEthernet0/0/2]mpls ldp
[R9-GigabitEthernet0/0/2]quit
[R9]interface g0/0/1
[R9-GigabitEthernet0/0/1]mpls
[R9-GigabitEthernet0/0/1]mpls ldp
[R9-GigabitEthernet0/0/1]quit
[R9]interface g4/0/0
[R9-GigabitEthernet4/0/0]mpls
[R9-GigabitEthernet4/0/0]mpls ldp
[R9-GigabitEthernet4/0/0]quit

（4）R3

[R3]mpls lsr-id 3.3.3.3
[R3]mpls
Info: Mpls starting, please wait... OK!
[R3-mpls]mpls ldp
[R3-mpls-ldp]quit
[R3]interface g0/0/1
[R3-GigabitEthernet0/0/1]mpls
[R3-GigabitEthernet0/0/1]mpls ldp
[R3-GigabitEthernet0/0/1]quit
[R3]interface g0/0/2
[R3-GigabitEthernet0/0/2]mpls
[R3-GigabitEthernet0/0/2]mpls ldp
[R3-GigabitEthernet0/0/2]quit
[R3]interface g0/0/0
[R3-GigabitEthernet0/0/0]mpls
[R3-GigabitEthernet0/0/0]mpls ldp
[R3-GigabitEthernet0/0/0]quit

（5）R4

[R4]mpls lsr-id 4.4.4.4
[R4]mpls
Info: Mpls starting, please wait... OK!
[R4-mpls]mpls ldp
[R4-mpls-ldp]quit
[R4]interface g0/0/1
[R4-GigabitEthernet0/0/1]mpls
[R4-GigabitEthernet0/0/1]mpls ldp
[R4-GigabitEthernet0/0/1]quit
[R4]interface g0/0/2
[R4-GigabitEthernet0/0/2]mpls
[R4-GigabitEthernet0/0/2]mpls ldp
[R4-GigabitEthernet0/0/2]quit
[R4]interface g0/0/0
[R4-GigabitEthernet0/0/0]mpls
[R4-GigabitEthernet0/0/0]mpls ldp
[R4-GigabitEthernet0/0/0]quit

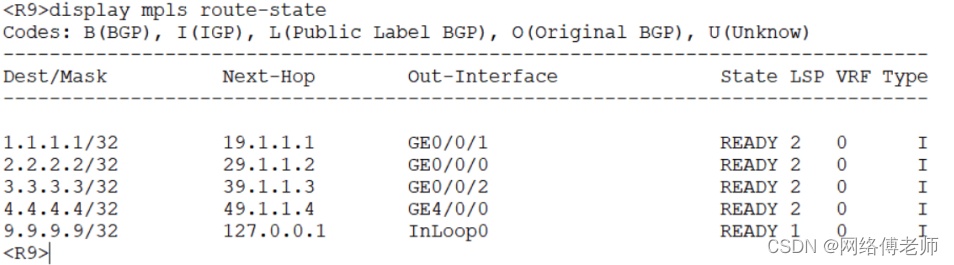

查看MPLS状态，以R9为例。

8、配置BGP

这部分R9是重点。

（1）R2

[R2]bgp 100
[R2-bgp]peer 9.9.9.9 as 100
//配置对等体R9，AS号为100
[R2-bgp]peer 9.9.9.9 connect-interface loopback 0
//指定发送BGP报文的源接口，这里用到Loopback，更可靠稳定
[R2-bgp]ipv4-family vpnv4    //进入BGP-VPNv4地址族视图
[R2-bgp-af-vpnv4]peer 9.9.9.9 enable    //启动与RR交换BGP的VPNv4路由
[R2-bgp-af-vpnv4]quit
[R2-bgp]quit

（2）R1

[R1]bgp 100
[R1-bgp]peer 9.9.9.9 as 100
[R1-bgp]peer 9.9.9.9 connect-interface loopback 0
[R1-bgp]ipv4-family vpnv4
[R1-bgp-af-vpnv4]peer 9.9.9.9 enable
[R1-bgp-af-vpnv4]quit
[R1-bgp]quit

（3）R3

[R3]bgp 100
[R3-bgp]peer 9.9.9.9 as 100
[R3-bgp]peer 9.9.9.9 connect-interface loopback 0
[R3-bgp]ipv4-family vpnv4
[R3-bgp-af-vpnv4]peer 9.9.9.9 enable
[R3-bgp-af-vpnv4]quit
[R3-bgp]quit

（4）R4

[R4]bgp 100
[R4-bgp]peer 9.9.9.9 as 100
[R4-bgp]peer 9.9.9.9 connect-interface loopback 0
[R4-bgp]ipv4-family vpnv4
[R4-bgp-af-vpnv4]peer 9.9.9.9 enable
[R4-bgp-af-vpnv4]quit
[R4-bgp]quit

（5）R9

注意：R9是个比较特殊的设备。除了要与其他路由器配置BGP对等体，还有2点要特别注意。

首先，R9要关闭VPN-Target属性。

在BGP/MPLS IP VPN组网中，VPN-Target属性用来对接收到的VPN路由或者标签块进行过滤，该属性默认开启。但RR或者ASBR又需要保存所有PE发来的VPN路由或者标签块，为解决这个问题，需要在RR或者ASBR上配置undo policy vpn-target命令，不对VPN路由或者标签块进行VPN-Target过滤。

其次，R9要配置为路由反射器。

PE间需要建立BGP对等体关系。但是当PE设备较多时，对等体关系的数目也会很多，会显著增加网络资源和CPU资源的消耗；解决方法是使用peer reflect-client命令将一台设备配置为路由反射器，并指定其他对等体作为路由反射器的客户端。这样一来，BGP对等体关系由复杂的“多对多”变为了“一对多”，大大减小了对网络资源和CPU资源的消耗。

[R9]bgp 100
[R9-bgp]peer 2.2.2.2 as 100
[R9-bgp]peer 2.2.2.2 connect-interface loopback 0
[R9-bgp]peer 3.3.3.3 as 100
[R9-bgp]peer 3.3.3.3 connect-interface loopback 0
[R9-bgp]peer 1.1.1.1 as 100
[R9-bgp]peer 1.1.1.1 connect-interface loopback 0
[R9-bgp]peer 4.4.4.4 as 100
[R9-bgp]peer 4.4.4.4 connect-interface loopback 0
[R9-bgp]ipv4-family vpnv4
[R9-bgp-af-vpnv4]undo policy vpn-target
//不对VPN路由或者标签块进行VPN-Target过滤。
[R9-bgp-af-vpnv4]peer 2.2.2.2 enable
[R9-bgp-af-vpnv4]peer 2.2.2.2 reflect-client
//R9为路由反射器，R2为客户端，以此建立对等体关系。
[R9-bgp-af-vpnv4]peer 3.3.3.3 enable
[R9-bgp-af-vpnv4]peer 3.3.3.3 reflect-client
//R9为路由反射器，R3为客户端，以此建立对等体关系。
[R9-bgp-af-vpnv4]peer 1.1.1.1 enable
[R9-bgp-af-vpnv4]peer 1.1.1.1 reflect-client
//R9为路由反射器，R1为客户端，以此建立对等体关系。
[R9-bgp-af-vpnv4]peer 4.4.4.4 enable
[R9-bgp-af-vpnv4]peer 4.4.4.4 reflect-client
//R9为路由反射器，R4为客户端，以此建立对等体关系。
[R9-bgp-af-vpnv4]quit
[R9-bgp]quit

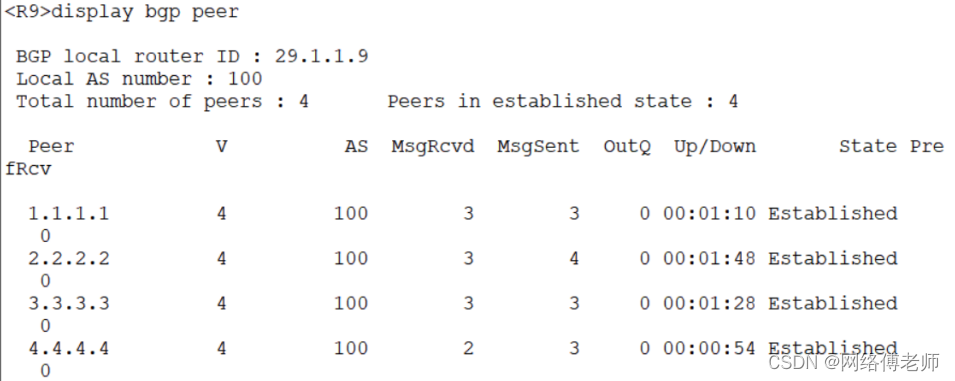

在R9查看一下BGP邻居们的状态，正常。

9、配置VPN

（1）R2

[R2]ip vpn-instance vpna    //创建VPN实例，实例名vpna
[R2-vpn-instance-vpna]route-distinguisher 1:1   //为VPN实例地址族配置路由标识RD
[R2-vpn-instance-vpna-af-ipv4]vpn-target 1:1
//在配置了VPN实例的PE设备上，都需要执行此命令为VPN实例相应地址族配置VPN Target属性，
//VPN Target可以控制VPN实例之间的路由学习。
 IVT Assignment result:
Info: VPN-Target assignment is successful.
 EVT Assignment result:
Info: VPN-Target assignment is successful.
[R2-vpn-instance-vpna-af-ipv4]quit
[R2-vpn-instance-vpna]quit
[R2]interface g0/0/0
[R2-GigabitEthernet0/0/0]ip binding vpn-instance vpna
//将接口与VPN实例绑定。绑定后，该接口将变为私网接口，可以配置私网地址、运行私网路由协议等。
Info: All IPv4 related configurations on this interface are removed!
Info: All IPv6 related configurations on this interface are removed!
[R2-GigabitEthernet0/0/0]ip address 10.1.28.2 24
[R2-GigabitEthernet0/0/0]quit
[R2]bgp 100
[R2-bgp]ipv4-family vpn-instance vpna
[R2-bgp-vpna]peer 10.1.28.8 as 65530
[R2-bgp-vpna]quit

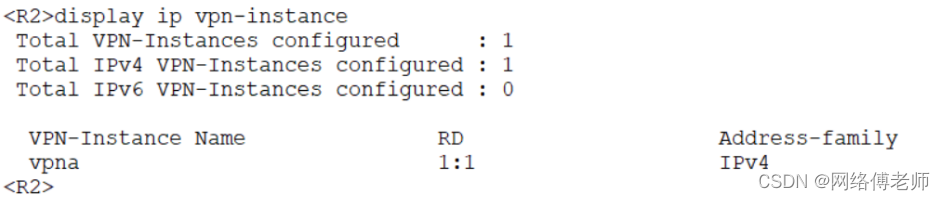

查看R2的VPN实例

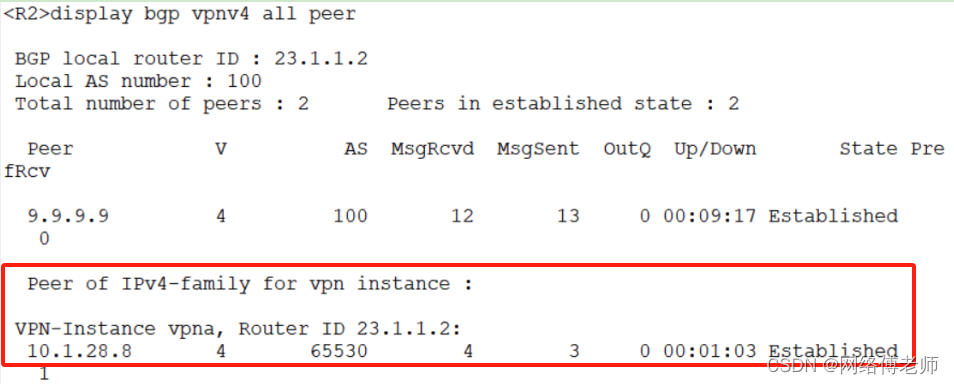

查看R2的BGP邻居，可以看到多了10.1.28.8，即朝阳分公司。

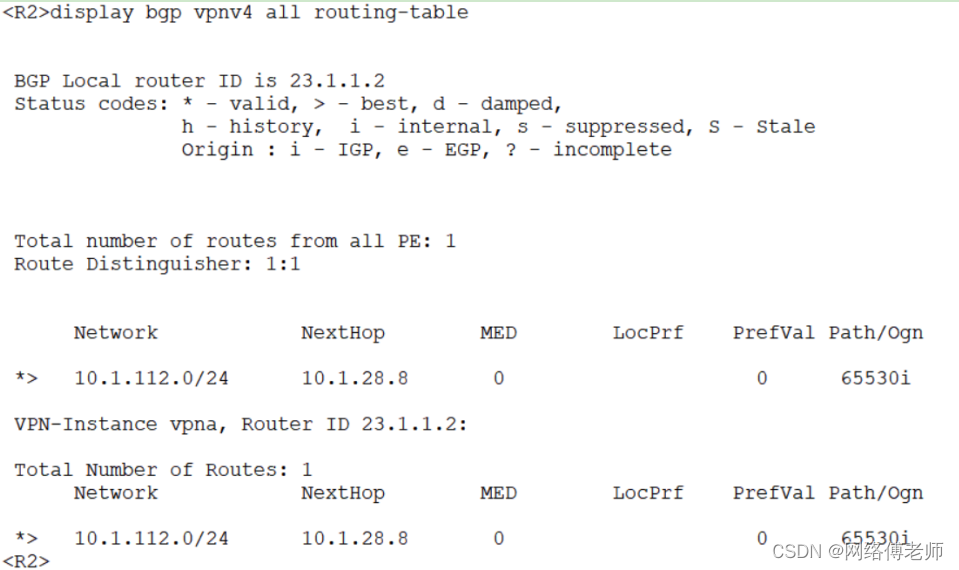

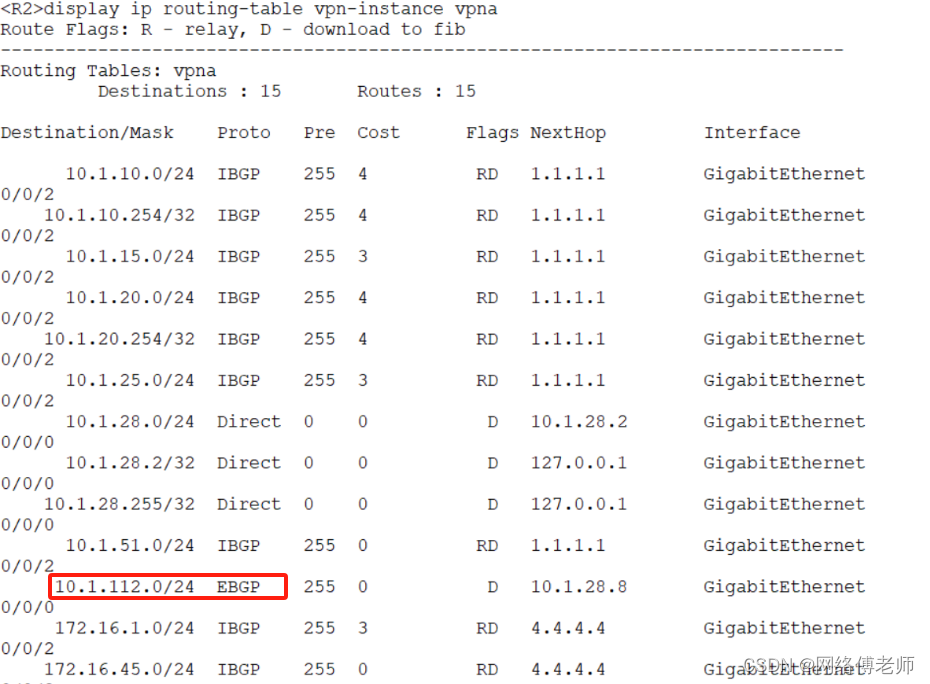

R2已经学到了朝阳分公司内部的路由

（2）R3

[R3]ip vpn-instance vpnc
[R3-vpn-instance-vpnc]route-distinguisher 2:1
[R3-vpn-instance-vpnc-af-ipv4]vpn-target 1:1
 IVT Assignment result:
Info: VPN-Target assignment is successful.
 EVT Assignment result:
Info: VPN-Target assignment is successful.
[R3-vpn-instance-vpnc-af-ipv4]quit
[R3-vpn-instance-vpnc]quit
[R3]interface g4/0/0
[R3-GigabitEthernet4/0/0]ip binding vpn-instance vpnc
Info: All IPv4 related configurations on this interface are removed!
Info: All IPv6 related configurations on this interface are removed!
[R3-GigabitEthernet4/0/0]ip address 192.168.37.3 24
[R3-GigabitEthernet4/0/0]quit
[R3]ip route-static vpn-instance vpnc 192.168.1.0 24 192.168.37.7
//为VPN实例配置静态路由（因为东城分公司内运行静态路由协议）
[R3]quit

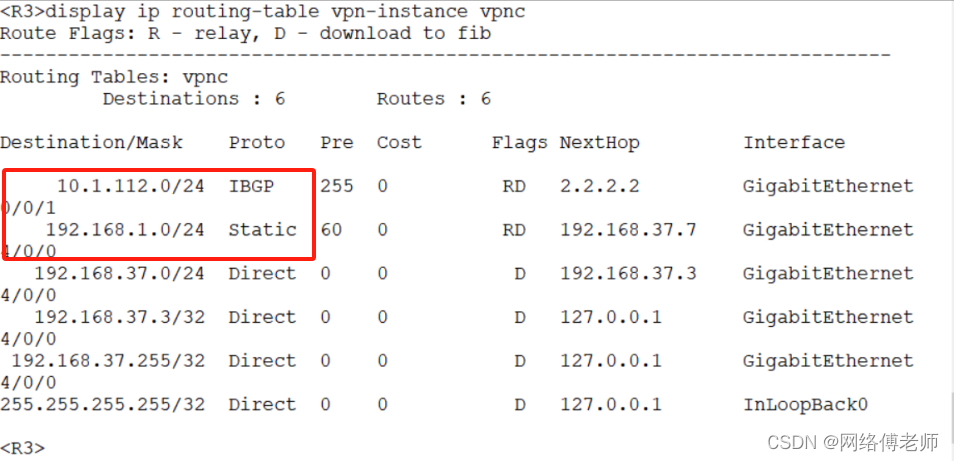

此时R3上可以看到来自朝阳的IBGP路由，还能看到东城的静态路由。

（3）R1

[R1]ip vpn-instance vpn
[R1-vpn-instance-vpn]route-distinguisher 3:1
[R1-vpn-instance-vpn-af-ipv4]vpn-target 1:1
 IVT Assignment result:
Info: VPN-Target assignment is successful.
 EVT Assignment result:
Info: VPN-Target assignment is successful.
[R1-vpn-instance-vpn-af-ipv4]quit
[R1-vpn-instance-vpn]quit
[R1]interface g0/0/0
[R1-GigabitEthernet0/0/0]ip binding vpn-instance vpn
Info: All IPv4 related configurations on this interface are removed!
Info: All IPv6 related configurations on this interface are removed!
[R1-GigabitEthernet0/0/0]ip address 10.1.51.1 24
[R1-GigabitEthernet0/0/0]quit
[R1]ospf 1 vpn-instance vpn
[R1-ospf-1]area 0
[R1-ospf-1-area-0.0.0.0]network 10.1.51.0 0.0.0.255
[R1-ospf-1-area-0.0.0.0]quit
[R1-ospf-1]quit

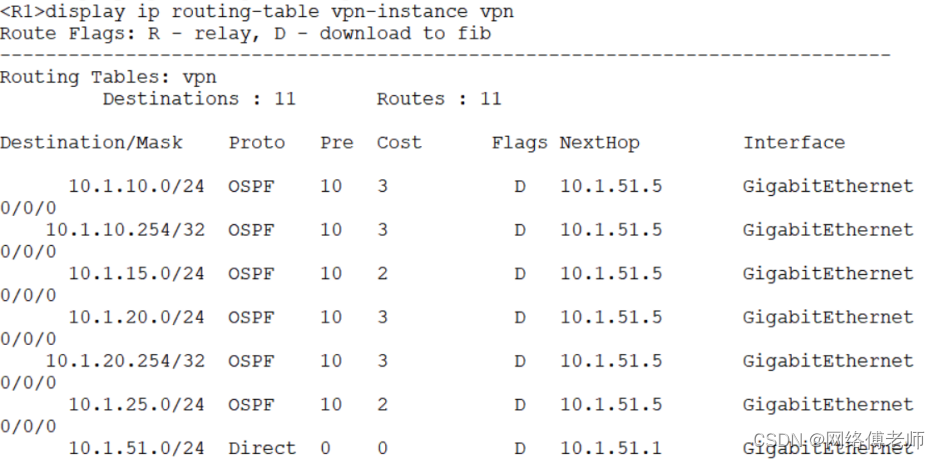

此时R1已经学习到总公司内部的路由。

（4）R4

[R4]ip vpn-instance vpnb
[R4-vpn-instance-vpnb]route-distinguisher 4:1
[R4-vpn-instance-vpnb-af-ipv4]vpn-target 1:1
 IVT Assignment result:
Info: VPN-Target assignment is successful.
 EVT Assignment result:
Info: VPN-Target assignment is successful.
[R4-vpn-instance-vpnb-af-ipv4]quit
[R4-vpn-instance-vpnb]quit
[R4]interface g4/0/0
[R4-GigabitEthernet4/0/0]ip binding vpn-instance vpnb
Info: All IPv4 related configurations on this interface are removed!
Info: All IPv6 related configurations on this interface are removed!
[R4-GigabitEthernet4/0/0]ip address 172.16.45.4 24
[R4-GigabitEthernet4/0/0]quit
[R4]ospf 1 vpn-instance vpnb
[R4-ospf-1]area 0
[R4-ospf-1-area-0.0.0.0]network 172.16.45.0 0.0.0.255
[R4-ospf-1-area-0.0.0.0]quit
[R4-ospf-1]quit

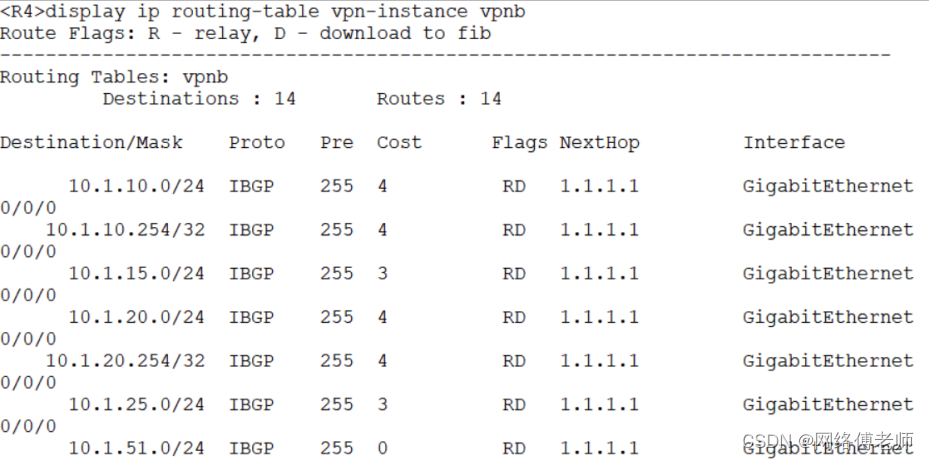

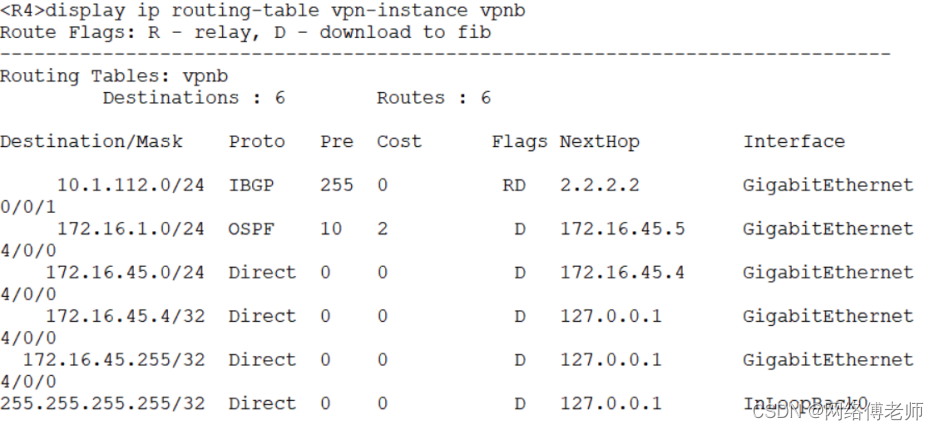

查看R4也已经学到了海淀的内部路由

10、配置路由引入

（1）R1

[R1]bgp 100
[R1-bgp]ipv4-family vpn-instance vpn
[R1-bgp-vpn]import-route ospf 1
[R1-bgp-vpn]quit
[R1-bgp]quit
[R1]ospf
[R1-ospf-1]import-route bgp
[R1-ospf-1]quit

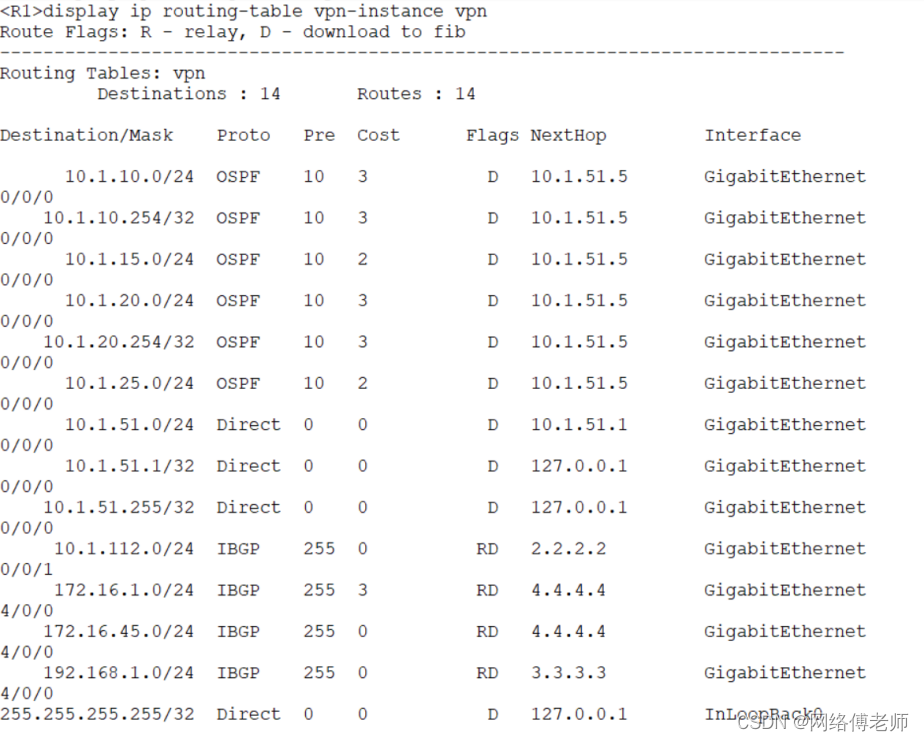

引入后，可以看到R1已经学到了各个区域的路由。

（2）R4

[R4]bgp 100
[R4-bgp]ipv4-family vpn-instance vpnb
[R4-bgp-vpnb]import-route ospf 1
[R4-bgp-vpnb]quit
[R4-bgp]quit
[R4]ospf
[R4-ospf-1]import-route bgp
[R4-ospf-1]quit

（3）R3

[R3]bgp 100
[R3-bgp]ipv4-family vpn-instance vpnc
[R3-bgp-vpnc]import-route static
[R3-bgp-vpnc]quit
[R3-bgp]quit

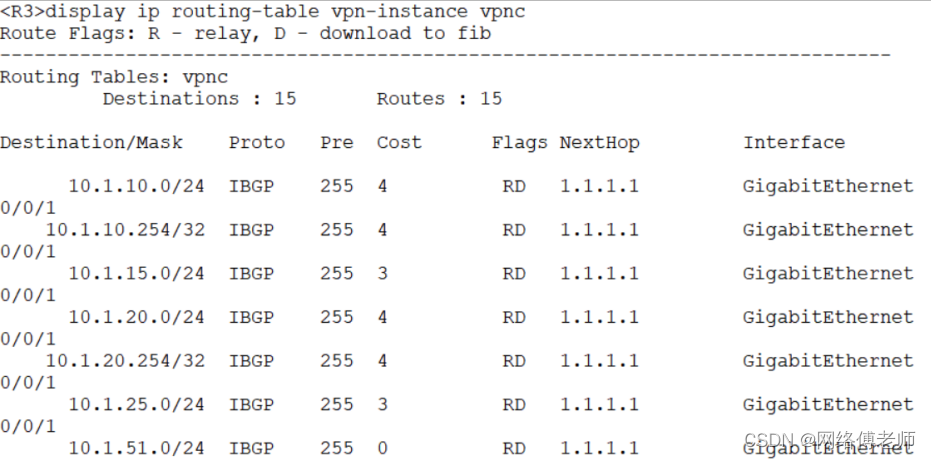

查看R2的vpna路由表，其中10.1.112.0/24为EBGP

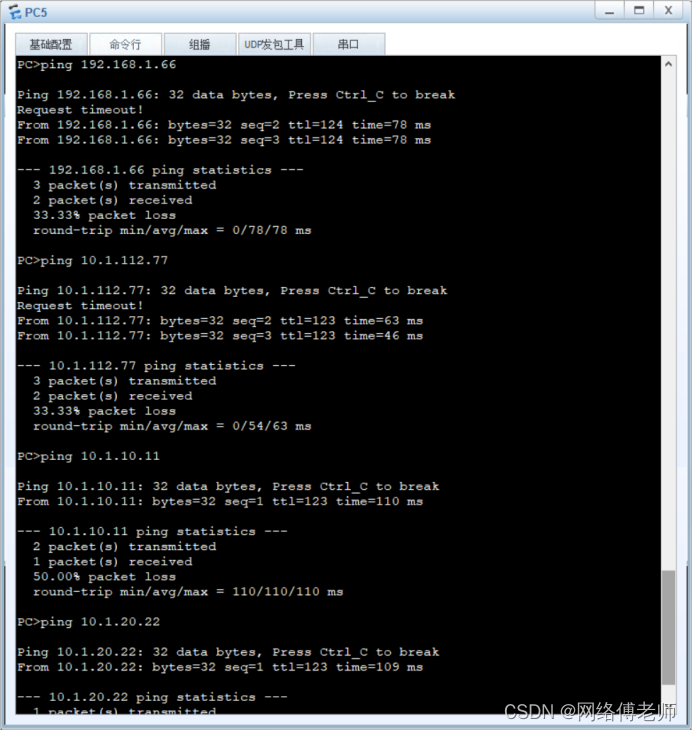

11、测试全网互通（以PC5为例）

至此，项目全部实现。各位同学试一下吧。

四、傅老师的微信名片

欢迎沟通交流：）
