Android 13 DexOpt七种触发流程解析
众所周知,DexOpt是安卓应用性能优化非常重要的手段,相当于将应用对虚拟机的多层调用直接转化成了arm机器码。Dex优化过和没优化过,效果千差万别。本文深入解析android系统DexOpt机制的触发流程。
1 DexOpt简介
1.1 简要原理

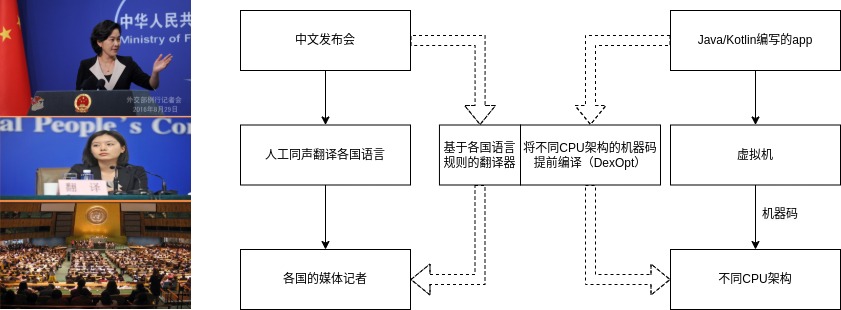

通俗来讲,相当于外交官开发布会(Java),此前是用人工同声翻译(JVM),转达到各个国家的媒体记者那,现在人类开发了同声翻译器(DexOpt),这个翻译会基于每个国家的语言文化的规则(profile)进行翻译成各国记者(各CPU架构)能快速听懂的语言(机器码)。
app经过DexOpt之后,运行在安卓虚拟机上,可以快速和底层硬件用机器码沟通,从而实现优化执行链路。
基本原理就是app存在大量的直接或者间接对系统framework层代码的调用,对于系统应用来说,其运行环境在编译期间是可以确定的,那么系统层的这些大量代码在设备上已经是尽可能的 .art 化了的,并且 frameworks image 和 frameworks code 是可以直接提供给oat中的cpmpiled method 直接调用和访问的,而不需要在程序启动的时候动态创建,这样无疑能很大程度提升程序运行速度。此外,oat 文件包含了不少对 dex 文件进行 preload 的数据,省去了大量内存开辟和赋值的指令。

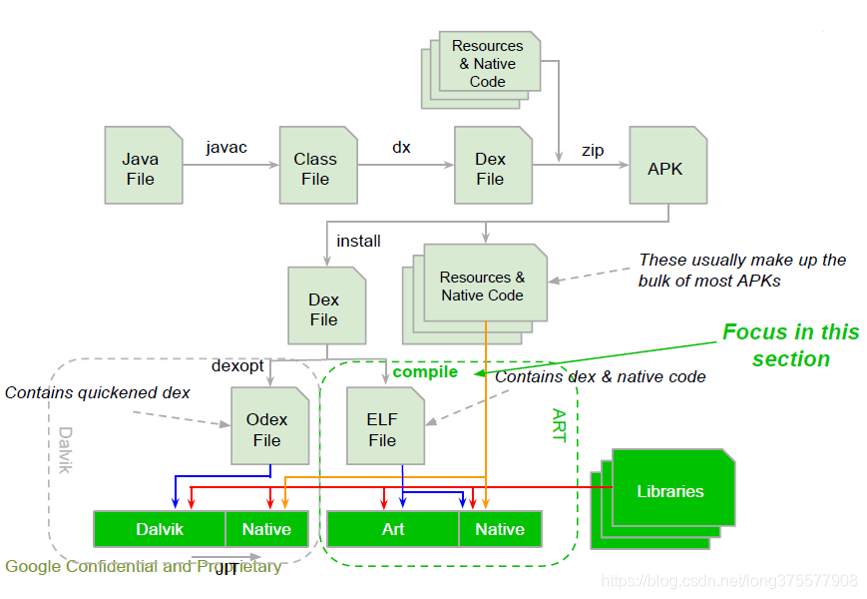

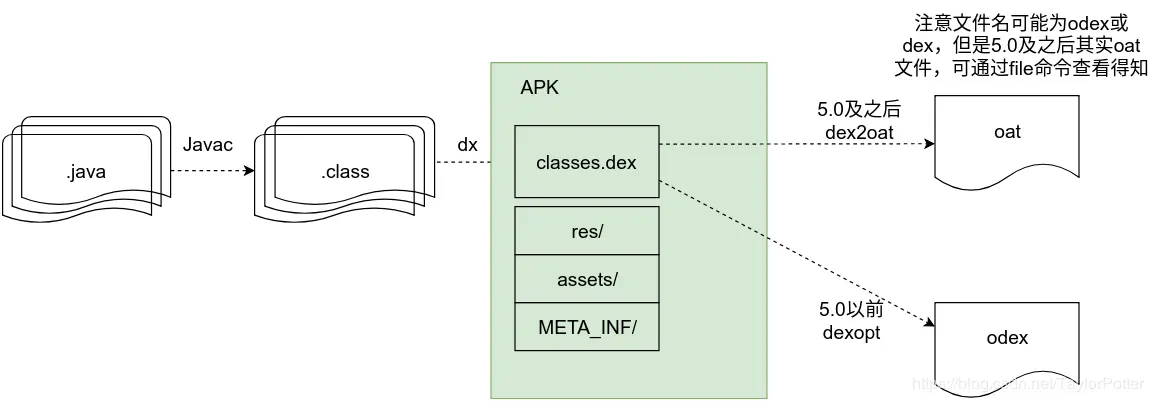

Android早期版本是Dalvik虚拟机,从Android 5.0 开始引入ART虚拟机。
Dalvik虚拟机:
dex files ----> dexopt ----> odex files
ART虚拟机:
dex files ----> dex2oat ----> oat files
由于早期称这个过程为dexopt, 后面称这个过程为dex2oat, 现在统称这个过程为DexOpt。
1.2 演变史
Android DexOpt的演变有3个大阶段:
-
Android 5.0之前,运行在Dalvik虚拟机上,Dalvik虚拟机会在执行dex文件前对dex文件做优化,依赖于JIT技术,生成可执行odex文件,保存到 data/dalvik-cache 目录,最后把Apk文件中的dex文件删除。
此时生成的odex文件后缀依然是dex ,它是一个dex文件,里面仍然是字节码,而不是本地机器码。
-
Android 5.0~Android 8.0,使用ART虚拟机,ART虚拟机使用AOT预编译生成oat文件。oat文件是ART虚拟机运行的文件,是ELF格式二进制文件。oat文件包含dex和编译的本地机器指令,因此比Android5.0之前的odex文件更大。
此时生成的oat文件后缀是odex ,它是一个oat文件,里面仍然是本地机器码,而不是字节码。 -
Android 8.0至今, dex2oat会直接生成两个oat文件 (即 vdex文件 和 odex文件 )。其中 odex 文件是从vdex 文件中提取了部分模块生成的一个新的可执行二进制码文件,odex 从vdex 中提取后,vdex 的大小就减少了。App在首次安装的时候,odex 文件就会生成在
/system/app/<packagename>/oat/
下。
在系统运行过程中,虚拟机将其 从/system/app
下 copy 到/data/dalvik-cache/
下。
Android 8 以后,将会生成以下文件:
.vdex
:包含一些可加快验证速度的其他元数据(有时还有 APK 的未压缩 DEX 代码)。.odex
:包含 APK 中已经过 AOT 编译的方法代码。.art (optional)
:包含 APK 中列出的某些字符串和类的 ART 内部表示,用于加快应用启动速度。
拿到Android13的实机上查询发现,特点如下:
-
系统编译阶段生成的优化文件:
/system/priv-app/ABC/ABC.apk /system/priv-app/ABC/oat/arm64/ABC.vdex /system/priv-app/ABC/oat/arm64/ABC.odex
-
空闲编译产生的优化文件:
./system/system_ext/priv-app/ABC/ABC.apk ./data/dalvik-cache/arm64/system@system_ext@priv-app@ABC@ABC.apk@classes.vdex ./data/dalvik-cache/arm64/system@system_ext@priv-app@ABC@ABC.apk@classes.art ./data/dalvik-cache/arm64/system@system_ext@priv-app@ABC@ABC.apk@classes.dex
-
系统编译生成的jar文件:
/system/framework/ABC.vdex /system/framework/arm64/ABC.art /system/framework/arm64/ABC.oat /system/framework/arm64/ABC.vdex
简约地理解如下:
-
vdex
是用来安装/启动快速验证的, -
art
是用来i阿快应用启动的, -
而上面的
odex / dex / oat
格式本质上都是ELF文件,是程序运行本身。
1.3 过滤器
ART 如何编译 DEX 代码还有个compile filter以参数的形式来决定:从 Android O 开始,有四个官方支持的过滤器:
- verify:只运行 DEX 代码验证。
- quicken:运行 DEX 代码验证,并优化一些 DEX 指令,以获得更好的解释器性能。
- speed-profile:运行 DEX 代码验证,并对配置文件中列出的方法进行 AOT 编译。
- speed:运行 DEX 代码验证,并对所有方法进行 AOT 编译。
verify 和quicken 他俩都没执行编译,之后代码执行需要跑解释器。而speed-profile 和 speed 都执行了编译,区别是speed-profile根据profile记录的热点函数来编译,属于部分编译,而speed属于全编。
执行效率上:
verify < quicken < speed-profile < speed
编译速度上:
verify > quicken > speed-profile > speed
理论上,生成的优化文件越大,编译耗时越长,优化越彻底,运行速度理应越快。
以下这些属性代表了,不同原因(Reason)做dexopt,将会使用不同的过滤器。
比如AB OTA升级,建议使用speed-profile
,因为OTA本身比较耗时,选择这种方式可以让升级后,性能快速提升。
比如OTA升级开机 或者首次开机,建议使用verify
,因为不能消耗太多时间在这上面,否则影响开机速度。
# getprop | grep pm.dexopt
[pm.dexopt.ab-ota]: [speed-profile]
[pm.dexopt.bg-dexopt]: [speed-profile]
[pm.dexopt.boot-after-ota]: [verify]
[pm.dexopt.cmdline]: [verify]
[pm.dexopt.first-boot]: [verify]
[pm.dexopt.inactive]: [verify]
[pm.dexopt.install]: [speed-profile]
[pm.dexopt.install-bulk]: [speed-profile]
[pm.dexopt.install-bulk-downgraded]: [verify]
[pm.dexopt.install-bulk-secondary]: [verify]
[pm.dexopt.install-bulk-secondary-downgraded]: [extract]
[pm.dexopt.install-fast]: [skip]
[pm.dexopt.post-boot]: [extract]
[pm.dexopt.shared]: [speed]
PKMS中的 dexopt 实现仅适用于 Android 13 及更低版本。
在 Android 14 中,它已被 ART 服务取代,并且将在下一个版本中从软件包管理系统中移除。

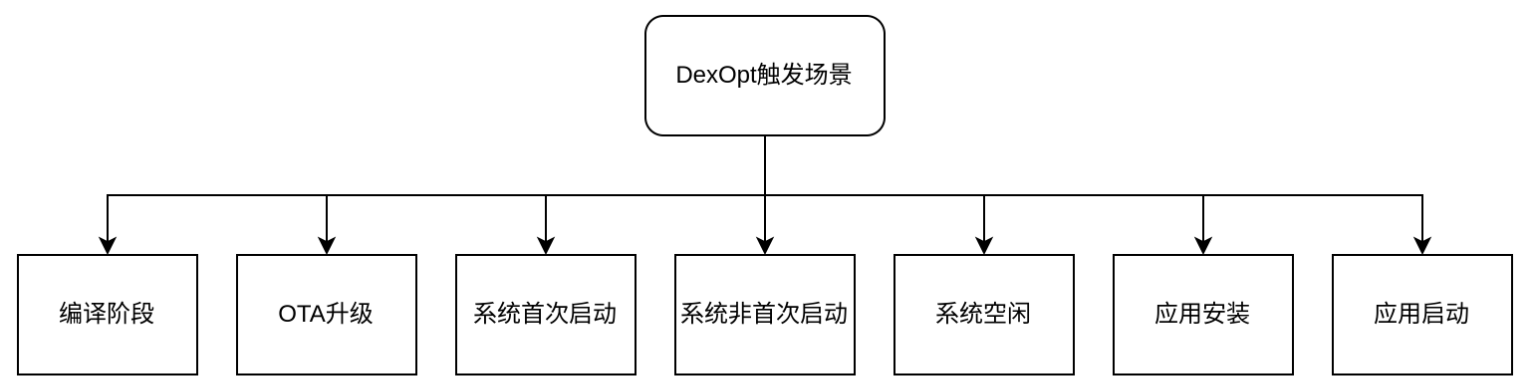

1.2 DexOpt触发条件
此外,还有使用adb命令手动触发,本质上属于系统空闲触发的流程。
2 DexOpt触发流程解析
2.1 编译阶段
这里讲的编译,指的是系统AOSP编译。
对系统应用(app prebuils)而言,是否编译阶段开启/关闭DexOpt,只需要在Android编译文件上配置即可。
Android.bp
android_app {
name: "xxxxx",
+ dex_preopt: {
+ enabled: false,
+ },
}
Android.mk
LOCAL_MODULE := xxxxx
+ LOCAL_DEX_PREOPT := false
如果是系统服务要开启DexOpt,配置方法稍有不同,本文不做研究。
如果系统应用配置了enable DexOpt, 则会在系统编译的时候,在apk原位置,生成oat路径,里面有odex和vdex文件(Android 13),这两个文件可能比apk源文件还大。
/system/priv-app/ABC/ABC.apk
/system/priv-app/ABC/oat/arm64/ABC.vdex
/system/priv-app/ABC/oat/arm64/ABC.odex
总结如下,
-
如果配置所有系统应用都开启DexOpt,则会增大系统分区,编译时间也会增长,但是开机后就优化好了,系统比较流畅。
思想:空间换时间
-
如果所有系统应用都关闭DexOpt,则也会在开机后空闲的时候进行DexOpt, 则会增加data分区大小,但系统分区要小很多。
思想:时间换空间
编译阶段是如何触发优化的?
具体的流程稍微有些复杂,挑关键的讲。
build/make/core/make.mk
include $(BUILD_SYSTEM)/dex_preopt.mk
dex_preopt.mk
include $(BUILD_SYSTEM)/dex_preopt_config.mk
dex_preopt_config.mk
,所有prebuilts默认是否enable, 可以通过ENABLE_PREOPT来配置。
# The default value for LOCAL_DEX_PREOPT
DEX_PREOPT_DEFAULT ?= $(ENABLE_PREOPT)
但这个只是其中一种方式。
build/make/core/java.mk
include $(BUILD_SYSTEM)/dex_preopt_odex_install.mk
dex_preopt_odex_install.mk
是控制是否编译dex的关键。
LOCAL_DEX_PREOPT最终是true还是false,由很多因素决定。
# Setting LOCAL_DEX_PREOPT based on WITH_DEXPREOPT, LOCAL_DEX_PREOPT, etc
LOCAL_DEX_PREOPT := $(strip $(LOCAL_DEX_PREOPT))
# 未定义则使用DEX_PREOPT_DEFAULT
ifndef LOCAL_DEX_PREOPT # LOCAL_DEX_PREOPT undefined
LOCAL_DEX_PREOPT := $(DEX_PREOPT_DEFAULT)
endif
# 只要是false,最终DEX_PREOPT_DEFAULT会被清空
ifeq (false,$(LOCAL_DEX_PREOPT))
LOCAL_DEX_PREOPT :=
endif
# DEX_PREOPT_DEFAULT被清除
# Disable preopt for tests.
ifneq (,$(filter $(LOCAL_MODULE_TAGS),tests))
LOCAL_DEX_PREOPT :=
endif
# DEX_PREOPT_DEFAULT被清除
# If we have product-specific config for this module?
ifneq (,$(filter $(LOCAL_MODULE),$(DEXPREOPT_DISABLED_MODULES)))
LOCAL_DEX_PREOPT :=
endif
# DEX_PREOPT_DEFAULT被清除
# Disable preopt for DISABLE_PREOPT
ifeq (true,$(DISABLE_PREOPT))
LOCAL_DEX_PREOPT :=
endif
# DEX_PREOPT_DEFAULT被清除
# Disable preopt if not WITH_DEXPREOPT
ifneq (true,$(WITH_DEXPREOPT))
LOCAL_DEX_PREOPT :=
endif
# DEX_PREOPT_DEFAULT被清除
ifdef LOCAL_UNINSTALLABLE_MODULE
LOCAL_DEX_PREOPT :=
endif
# DEX_PREOPT_DEFAULT被清除
# Disable preopt if the app contains no java code.
ifeq (,$(strip $(built_dex)$(my_prebuilt_src_file)$(LOCAL_SOONG_DEX_JAR)))
LOCAL_DEX_PREOPT :=
endif
DEX_PREOPT_DEFAULT只要被清除,就默认不做dex优化。
可以认为以上开关,基本都不会进去,DEX_PREOPT_DEFAULT不会被清除,只有人为调试需要去修改,才会清除LOCAL_DEX_PREOPT。
所以说大部分时候,prebuilts是否做dex优化,取决于在Android.bp / Android.mk 文件中的配置(LOCAL_DEX_PREOPT := true)。
那么LOCAL_DEX_PREOPT是怎么控制是否优化的动作?
# LOCAL_DEX_PREOPT为true,就会创建dexpreopt.config
# 有dexpreopt.config就会做dexopt了,这里很不其眼,但是是重要的分叉口。
ifdef LOCAL_DEX_PREOPT
ifeq (,$(filter PRESIGNED,$(LOCAL_CERTIFICATE)))
# Store uncompressed dex files preopted in /system
ifeq ($(BOARD_USES_SYSTEM_OTHER_ODEX),true)
ifeq ($(call install-on-system-other, $(my_module_path)),)
LOCAL_UNCOMPRESS_DEX := true
endif # install-on-system-other
else # BOARD_USES_SYSTEM_OTHER_ODEX
LOCAL_UNCOMPRESS_DEX := true
endif
endif
my_create_dexpreopt_config := true
endif
ifeq ($(my_create_dexpreopt_config), true)
# 创建dexpreopt.config的json文件
endif
还得组装一个编译脚本用来执行!dexpreopt.sh
my_dexpreopt_script := $(intermediates)/dexpreopt.sh
my_dexpreopt_zip := $(intermediates)/dexpreopt.zip
.KATI_RESTAT: $(my_dexpreopt_script)
$(my_dexpreopt_script): PRIVATE_MODULE := $(LOCAL_MODULE)
$(my_dexpreopt_script): PRIVATE_GLOBAL_SOONG_CONFIG := $(DEX_PREOPT_SOONG_CONFIG_FOR_MAKE)
$(my_dexpreopt_script): PRIVATE_GLOBAL_CONFIG := $(DEX_PREOPT_CONFIG_FOR_MAKE)
$(my_dexpreopt_script): PRIVATE_MODULE_CONFIG := $(my_dexpreopt_config)
$(my_dexpreopt_script): $(DEXPREOPT_GEN)
$(my_dexpreopt_script): $(my_dexpreopt_jar_copy)
$(my_dexpreopt_script): $(my_dexpreopt_config) $(DEX_PREOPT_SOONG_CONFIG_FOR_MAKE) $(DEX_PREOPT_CONFIG_FOR_MAKE)
@echo "$(PRIVATE_MODULE) dexpreopt gen"
$(DEXPREOPT_GEN) \
-global_soong $(PRIVATE_GLOBAL_SOONG_CONFIG) \
-global $(PRIVATE_GLOBAL_CONFIG) \
-module $(PRIVATE_MODULE_CONFIG) \
-dexpreopt_script $@ \
-out_dir $(OUT_DIR)
通过dexpreopt gen来生成dexpreopt.sh。
进一步探索dexpreopt gen
build/soong/dexpreopt$ tree -L 2
.
├── Android.bp
├── class_loader_context.go
├── class_loader_context_test.go
├── config.go
├── dexpreopt_gen
│ ├── Android.bp
│ └── dexpreopt_gen.go
├── dexpreopt.go
├── DEXPREOPT_IMPLEMENTATION.md
├── dexpreopt_test.go
├── OWNERS
└── testing.go
dexpreopt_gen又是调用dexpreopt.go来生成针对于当前应用的的dexpreopt.sh。
dexpreopt.go的关键函数dexpreoptCommand如下:
func dexpreoptCommand(ctx android.PathContext, globalSoong *GlobalSoongConfig, global *GlobalConfig,
module *ModuleConfig, rule *android.RuleBuilder, archIdx int, profile android.WritablePath,
appImage bool, generateDM bool) {
cmd := rule.Command().
Text(`ANDROID_LOG_TAGS="*:e"`).
Tool(globalSoong.Dex2oat).
Flag("--avoid-storing-invocation").
FlagWithOutput("--write-invocation-to=", invocationPath).ImplicitOutput(invocationPath).
Flag("--runtime-arg").FlagWithArg("-Xms", global.Dex2oatXms).
// ......
// 选择哪一种过滤器
if !android.PrefixInList(preoptFlags, "--compiler-filter=") {
var compilerFilter string
if systemServerJars.ContainsJar(module.Name) {
// Jars of system server, use the product option if it is set, speed otherwise.
if global.SystemServerCompilerFilter != "" {
compilerFilter = global.SystemServerCompilerFilter
} else {
compilerFilter = "speed"
}
} else if contains(global.SpeedApps, module.Name) || contains(global.SystemServerApps, module.Name) {
// Apps loaded into system server, and apps the product default to being compiled with the
// 'speed' compiler filter.
compilerFilter = "speed"
} else if profile != nil {
// For non system server jars, use speed-profile when we have a profile.
compilerFilter = "speed-profile"
} else if global.DefaultCompilerFilter != "" {
compilerFilter = global.DefaultCompilerFilter
} else {
compilerFilter = "quicken"
}
if module.EnforceUsesLibraries {
// If the verify_uses_libraries check failed (in this case status file contains a
// non-empty error message), then use "verify" compiler filter to avoid compiling any
// code (it would be rejected on device because of a class loader context mismatch).
cmd.Text("--compiler-filter=$(if test -s ").
Input(module.EnforceUsesLibrariesStatusFile).
Text(" ; then echo verify ; else echo " + compilerFilter + " ; fi)")
} else {
cmd.FlagWithArg("--compiler-filter=", compilerFilter)
}
}
到底是哪一种过滤器?
编译完成,在Android13查看某一个apk的编译dexpreopt.sh
。
#!/bin/bash
# ... ...
# 先检测是否存在某个文件,如果不存在,则选择quicken
--compiler-filter=$(if test -s out_sys/target/common/obj/APPS/SearchLauncherQuickStep_intermediates/enforce_uses_libraries.status ; then echo verify ; else echo quicken ; fi) --generate-mini-debug-info --compilation-reason=prebuilt
# ... ...
生成的shell脚本在:out_sys/target/product/mssi_t_64_cn/obj/APPS/ABC_intermediates/dexpreopt.sh
最终会调用dexpreopt.sh去调用dex2oat编译产生dex文件在out目录下,然后打包进image中。
最终发现Android13编译阶段使用的是quicken优化,为啥不选择speed或者speed-profile?前面不是讲了speed-profile性能优于quicken吗?
为了解答这个疑惑,我专门针对于某个系统应用分别做了好几种优化,然后对比。
$ md5sum dexpreopt*.zip
574eb0cfd2ae866f2d96040bd35e8510 dexpreopt_everythings.zip
cc7bbcff1dd679dd1a06ede4be1353af dexpreopt_quicken.zip
cc7bbcff1dd679dd1a06ede4be1353af dexpreopt_speed_profile.zip
78d3e0e7947a9d87747dcbea83e9bad2 dexpreopt_speed.zip
cc7bbcff1dd679dd1a06ede4be1353af dexpreopt_verify.zip
574eb0cfd2ae866f2d96040bd35e8510 dexpreopt.zip
$ du -sh dexpreopt*.zip
16M dexpreopt_everythings.zip
5.8M dexpreopt_quicken.zip
5.8M dexpreopt_speed_profile.zip
16M dexpreopt_speed.zip
5.8M dexpreopt_verify.zip
16M dexpreopt.zip
最终发现,在Android 13上面,
verify quicken speed-profile产生的文件竟然是一模一样的,elf dump出来信息也是一样的。
同样的操作,到Android 11上面去调查,
$ md5sum dexpreopt*.zip
14a51b30280102bea201e5b43a37c68a dexpreopt_quciken.zip
fa98f4ec18de0fa3e1ccb2ee160ed0dc dexpreopt_speed_profile.zip
3a7ea1665e3777fdb8bcd5b7170629ec dexpreopt_speed.zip
da4e5e795cd77901d84274995c45d95e dexpreopt_verify.zip
$ du -sh dexpreopt*.zip
2.8M dexpreopt_quciken.zip
2.9M dexpreopt_speed_profile.zip
7.1M dexpreopt_speed.zip
2.7M dexpreopt_verify.zip
verify quicken speed-profile 却是不一样的。
大胆猜测:
- 针对于系统应用,在不同平台verify quicken speed-profile 这些过滤器表现行为有差异,在Android11上面有细微差距,在Android 13上面已经是一样的。
- 针对于第三方应用怎样呢?可以自行研究。
总结编译阶段生成dex文件的方法:
- 编译阶段是通过main.mk等一系列include,加载dex_preopt_odex_install.mk
- dex_preopt_odex_install.mk会去打包config和产生dexpreopt.sh
- 而dexpreopt.sh的产生,依赖于dexpreopt_gen和dexpreopt_gen等go程序
- prebuilt编译完,恰好调用dexpreopt.sh去生成odex vdex等优化文件到out目录
- 系统image打包的时候,将dex优化文件一起打包。

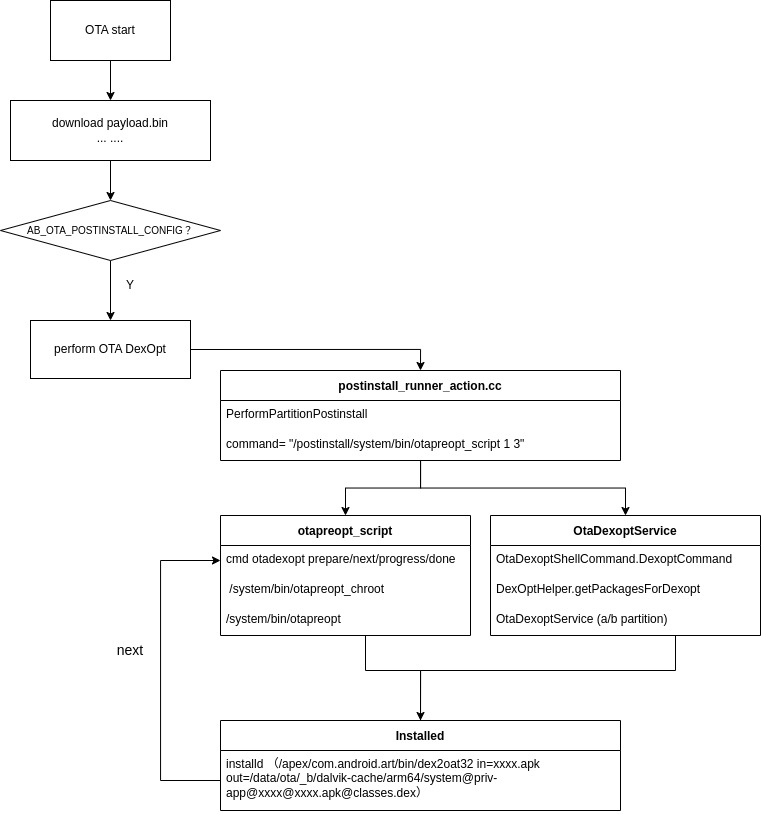

2.2 OTA升级
是否开启OTA升级阶段进行DexOpt, 取决于AB_OTA_POSTINSTALL_CONFIG
是否配置。
# This is an example post-install script. This script will be executed by the
# update_engine right after finishing writing all the partitions, but before
# marking the new slot as active. To enable running this program, insert these
# lines in your product's .mk file (without the # at the beginning):
# AB_OTA_POSTINSTALL_CONFIG += \
# RUN_POSTINSTALL_system=true \
# POSTINSTALL_PATH_system=bin/postinst_example \
# FILESYSTEM_TYPE_system=ext4 \
Android 13中:
# A/B OTA dexopt update_engine hookup
AB_OTA_POSTINSTALL_CONFIG += \
RUN_POSTINSTALL_system=true \
POSTINSTALL_PATH_system=system/bin/otapreopt_script \
POSTINSTALL_OPTIONAL_system=true
AB_OTA_POSTINSTALL_CONFIG += \
RUN_POSTINSTALL_vendor=true \
POSTINSTALL_PATH_vendor=bin/mtk_plpath_utils_ota \
POSTINSTALL_OPTIONAL_vendor=true
endif
配置这一系列环境变量AB_OTA_POSTINSTALL_CONFIG
之后,会在编译OTA的时候打包进入image,
在执行OTA升级时候,update_engine会判断是否存在partition.postinstall_path
,判断postinstall_path
是否为空,来决定是否做DexOpt。
发生在postinstall_runner_action.cc
的PerformPartitionPostinstall
函数
// Skip all the partitions that don't have a post-install step.
while (current_partition_ < install_plan_.partitions.size() &&
!install_plan_.partitions[current_partition_].run_postinstall) {
VLOG(1) << "Skipping post-install on partition "
<< install_plan_.partitions[current_partition_].name;
// Attempt to mount a device if it has postinstall script configured, even
// if we want to skip running postinstall script.
// This is because we've seen bugs like b/198787355 which is only triggered
// when you attempt to mount a device. If device fails to mount, it will
// likely fail to mount during boot anyway, so it's better to catch any
// issues earlier.
// It's possible that some of the partitions aren't mountable, but these
// partitions shouldn't have postinstall configured. Therefore we guard this
// logic with |postinstall_path.empty()|.
const auto& partition = install_plan_.partitions[current_partition_];
// 判断postinstall_path是否为空
if (!partition.postinstall_path.empty()) {
const auto mountable_device = partition.readonly_target_path;
if (!MountPartition(partition)) {
return CompletePostinstall(ErrorCode::kPostInstallMountError);
}
LogBuildInfoForPartition(fs_mount_dir_);
if (!utils::UnmountFilesystem(fs_mount_dir_)) {
return CompletePartitionPostinstall(
1, "Error unmounting the device " + mountable_device);
}
}
current_partition_++;
}
如果postinstall_path
不为空了,将会组装成脚本命令command。
// 将postinstall_path组装成abs_path
string abs_path =
base::FilePath(fs_mount_dir_).Append(postinstall_path).value();
if (!base::StartsWith(
abs_path, fs_mount_dir_, base::CompareCase::SENSITIVE)) {
LOG(ERROR) << "Invalid relative postinstall path: "
<< partition.postinstall_path;
return CompletePostinstall(ErrorCode::kPostinstallRunnerError);
}
LOG(INFO) << "Performing postinst (" << partition.postinstall_path << " at "
<< abs_path << ") installed on mountable device "
<< mountable_device;
// Logs the file format of the postinstall script we are about to run. This
// will help debug when the postinstall script doesn't match the architecture
// of our build.
LOG(INFO) << "Format file for new " << partition.postinstall_path
<< " is: " << utils::GetFileFormat(abs_path);
// Runs the postinstall script asynchronously to free up the main loop while
// it's running.
vector<string> command = {abs_path};
// 将参数叠加组装成command
#ifdef __ANDROID__
// In Brillo and Android, we pass the slot number and status fd.
command.push_back(std::to_string(install_plan_.target_slot));
command.push_back(std::to_string(kPostinstallStatusFd));
#else
// Chrome OS postinstall expects the target rootfs as the first parameter.
command.push_back(partition.target_path);
#endif // __ANDROID__
// 启动一个线程开始执行命令
current_command_ = Subprocess::Get().ExecFlags(
command,
Subprocess::kRedirectStderrToStdout,
{kPostinstallStatusFd},
base::Bind(&PostinstallRunnerAction::CompletePartitionPostinstall,
base::Unretained(this)));
// Subprocess::Exec should never return a negative process id.
CHECK_GE(current_command_, 0);
// The file descriptor number from the postinstall program's perspective where
// it can report status updates. This can be any number greater than 2 (stderr),
// but must be kept in sync with the "bin/postinst_progress" defined in the
// sample_images.sh file.
const int kPostinstallStatusFd = 3;
最终组装成的命令为:
"/postinstall/system/bin/otapreopt_script 1 3"
# 参数1 slot
TARGET_SLOT="$1"
# 参数2 进度文件描述符( > 2)
STATUS_FD="$2"
if [ "$TARGET_SLOT" = "0" ] ; then
TARGET_SLOT_SUFFIX="_a"
elif [ "$TARGET_SLOT" = "1" ] ; then
TARGET_SLOT_SUFFIX="_b"
else
echo "Unknown target slot $TARGET_SLOT"
exit 1
fi
PREPARE=$(cmd otadexopt prepare)
# Note: Ignore preparation failures. Step and done will fail and exit this.
# This is necessary to support suspends - the OTA service will keep
# the state around for us.
PROGRESS=$(cmd otadexopt progress)
print -u${STATUS_FD} "global_progress $PROGRESS"
i=0
while ((i<MAXIMUM_PACKAGES)) ; do
#更新DEXOPT_PARAMS,就是下一个包名
DEXOPT_PARAMS=$(cmd otadexopt next)
/system/bin/otapreopt_chroot $STATUS_FD $TARGET_SLOT_SUFFIX $DEXOPT_PARAMS >&- 2>&-
PROGRESS=$(cmd otadexopt progress)
print -u${STATUS_FD} "global_progress $PROGRESS"
DONE=$(cmd otadexopt done)
if [ "$DONE" = "OTA incomplete." ] ; then
sleep 1
i=$((i+1))
continue
fi
break
done
done
cmd otadexopt prepare
是准备所有要做的dexopt指令。
cmd otadexopt progress
是声明dexopt的进度。
cmd otadexopt next
是驱动执行dexopt的指令。
/system/bin/otapreopt_chroot $STATUS_FD $TARGET_SLOT_SUFFIX $DEXOPT_PARAMS >&- 2>&-
从列表里面挨个挨个取出DEXOPT_PARAMS
。
public static OtaDexoptService main(Context context,
PackageManagerService packageManagerService) {
OtaDexoptService ota = new OtaDexoptService(context, packageManagerService);
ServiceManager.addService("otadexopt", ota);
// ... ...
return ota;
}
OtaDexoptService
是这个服务载体。
otadexopt
使用命令传参数,会调用OtaDexoptShellCommand
(ShellCommand的子类)
@Override
public int onCommand(String cmd) {
if (cmd == null) {
return handleDefaultCommands(null);
}
final PrintWriter pw = getOutPrintWriter();
try {
switch(cmd) {
case "prepare":
return runOtaPrepare();
case "cleanup":
return runOtaCleanup();
case "done":
return runOtaDone();
case "step":
return runOtaStep();
case "next":
return runOtaNext();
case "progress":
return runOtaProgress();
default:
return handleDefaultCommands(cmd);
}
} catch (RemoteException e) {
pw.println("Remote exception: " + e);
}
return -1;
}
runOtaNext
最终会调用nextDexoptCommand
@Override
public synchronized String nextDexoptCommand() throws RemoteException {
if (mDexoptCommands == null) {
throw new IllegalStateException("dexoptNextPackage() called before prepare()");
}
if (mDexoptCommands.isEmpty()) {
return "(all done)";
}
//移除第0位,把第1位提前到列表顶端
String next = mDexoptCommands.remove(0);
if (getAvailableSpace() > 0) {
dexoptCommandCountExecuted++;
current_time = System.currentTimeMillis();
// 打印执行每个应用dexopt的时间消费
Log.d(TAG, "Next command: " + next + ", previous command took : " + (current_time - previous_time) + " ms");
previous_time = current_time;
return next;
} else {
if (DEBUG_DEXOPT) {
Log.w(TAG, "Not enough space for OTA dexopt, stopping with "
+ (mDexoptCommands.size() + 1) + " commands left.");
}
mDexoptCommands.clear();
return "(no free space)";
}
}
-
otapreopt_script
会遍历所有包名,调用otapreopt_chroot
传入包名 -
otapreopt_chroot
里面集成调用/system/bin/otapreopt
-
/system/bin/otapreopt
调用installd
的接口 -
installd
调用dex2oat32
来做DexOpt
比如,以ABC
应用为例:
06-08 12:01:49.680 D/OTADexopt( 1294): Next command: 10 dexopt /system/priv-app/ABC/ABC.apk 1000 com.xxxx.systemupdate arm64 -3 ! 6232 speed-profile ! PCL[]{} platform:privapp:targetSdkVersion=32 false 33 primary.prof ! ab-ota
06-08 12:01:50.438 V/installd(13071): Running /apex/com.android.art/bin/dex2oat32 in=ABC.apk out=/data/ota/_b/dalvik-cache/arm64/system@priv-app@ABC@ABC.apk@classes.dex
如何定制OTA做dex优化的应用列表?
应用列表来源:
public static final List<String> OTA_DEX_BLACK_LIST_OF_PACKAGES = List.of(
"com.google.android.youtube",
"com.google.android.apps.messaging",
"com.google.android.googlequicksearchbox",
"com.android.vending",
"com.google.android.gm",
"com.google.android.apps.maps",
"com.google.android.apps.photos",
"com.google.android.videos"
);
@Override
public synchronized void prepare() throws RemoteException {
final List<PackageStateInternal> important;
final List<PackageStateInternal> others;
Predicate<PackageStateInternal> isPlatformPackage = pkgSetting ->
PLATFORM_PACKAGE_NAME.equals(pkgSetting.getPkg().getPackageName());
// Important: the packages we need to run with ab-ota compiler-reason.
final Computer snapshot = mPackageManagerService.snapshotComputer();
final Collection<? extends PackageStateInternal> allPackageStates =
snapshot.getPackageStates().values();
// 通过DexOptHelper.getPackagesForDexopt方法,获取系统认为重要的包名important
important = DexOptHelper.getPackagesForDexopt(allPackageStates,mPackageManagerService,
DEBUG_DEXOPT);
// Remove Platform Package from A/B OTA b/160735835.
// 移除包名为android的包
important.removeIf(isPlatformPackage);
// MY Customizations: 移除在OTA_DEX_BLACK_LIST_OF_PACKAGES列表中的元素
// 这个列表是不算重要,但是做dex优化时间比较长的apk
if(DexOptHelper.isOptimizationDexCR()){
Predicate<PackageStateInternal> FilterPartialPackage = pkgSetting ->
OTA_DEX_BLACK_LIST_OF_PACKAGES.contains(pkgSetting.getPkg().getPackageName());
important.removeIf(FilterPartialPackage);
}
// 此时important包含了所有我们想要 “在OTA阶段去做dex优化“ 的包名列表
// Others: we should optimize this with the (first-)boot compiler-reason.
others = new ArrayList<>(allPackageStates);
others.removeAll(important);
others.removeIf(PackageManagerServiceUtils.REMOVE_IF_NULL_PKG);
others.removeIf(isPlatformPackage);
// 此时others包含了所有我们想要 “放在OTA升级后开机阶段去做dex优化“ 的包名列表
DexOptHelper.getPackagesForDexopt
是怎么界定重要的包名的?
public final static Predicate<PackageStateInternal> REMOVE_IF_NULL_PKG =
pkgSetting -> pkgSetting.getPkg() == null;
/***
输入:
pkgSettings:初始包名集合
packageManagerService:PKMS
debug: 是否打印包名
****/
public static List<PackageStateInternal> getPackagesForDexopt(
Collection<? extends PackageStateInternal> pkgSettings,
PackageManagerService packageManagerService,
boolean debug) {
List<PackageStateInternal> result = new LinkedList<>();
ArrayList<PackageStateInternal> remainingPkgSettings = new ArrayList<>(pkgSettings);
// First, remove all settings without available packages
// 从初始包名集合中,移除包名为空的process
remainingPkgSettings.removeIf(REMOVE_IF_NULL_PKG);
// 建立存储remainingPkgSettings长度的sortTemp
ArrayList<PackageStateInternal> sortTemp = new ArrayList<>(remainingPkgSettings.size());
final Computer snapshot = packageManagerService.snapshotComputer();
// MY Customizations
// Give priority to xxxx apps.
// 如果是以"com.xxxx"开头,将排在sortTemp的第1梯队
if (isOptimizationDexCR()) {
applyPackageFilter(snapshot, pkgSetting -> pkgSetting.getPkg().getPackageName().startsWith("com.xxxx"), result,
remainingPkgSettings, sortTemp, packageManagerService);
}
// Give priority to core apps.
// 如果是核心应用isCoreApp=true,将排在sortTemp的第2梯队
applyPackageFilter(snapshot, pkgSetting -> pkgSetting.getPkg().isCoreApp(), result,
remainingPkgSettings, sortTemp, packageManagerService);
// Give priority to system apps that listen for pre boot complete.
// 如果是监听ACTION_PRE_BOOT_COMPLETED广播的系统应用,将排在sortTemp的第3梯队
Intent intent = new Intent(Intent.ACTION_PRE_BOOT_COMPLETED);
final ArraySet<String> pkgNames = getPackageNamesForIntent(intent, UserHandle.USER_SYSTEM);
applyPackageFilter(snapshot, pkgSetting -> pkgNames.contains(pkgSetting.getPackageName()), result,
remainingPkgSettings, sortTemp, packageManagerService);
// Give priority to apps used by other apps.
// 如果是 这个应用被上面的核心应用使用过 并做了dex优化,将排在sortTemp的第4梯队
DexManager dexManager = packageManagerService.getDexManager();
applyPackageFilter(snapshot, pkgSetting ->
dexManager.getPackageUseInfoOrDefault(pkgSetting.getPackageName())
.isAnyCodePathUsedByOtherApps(),
result, remainingPkgSettings, sortTemp, packageManagerService);
// Filter out packages that aren't recently used, add all remaining apps.

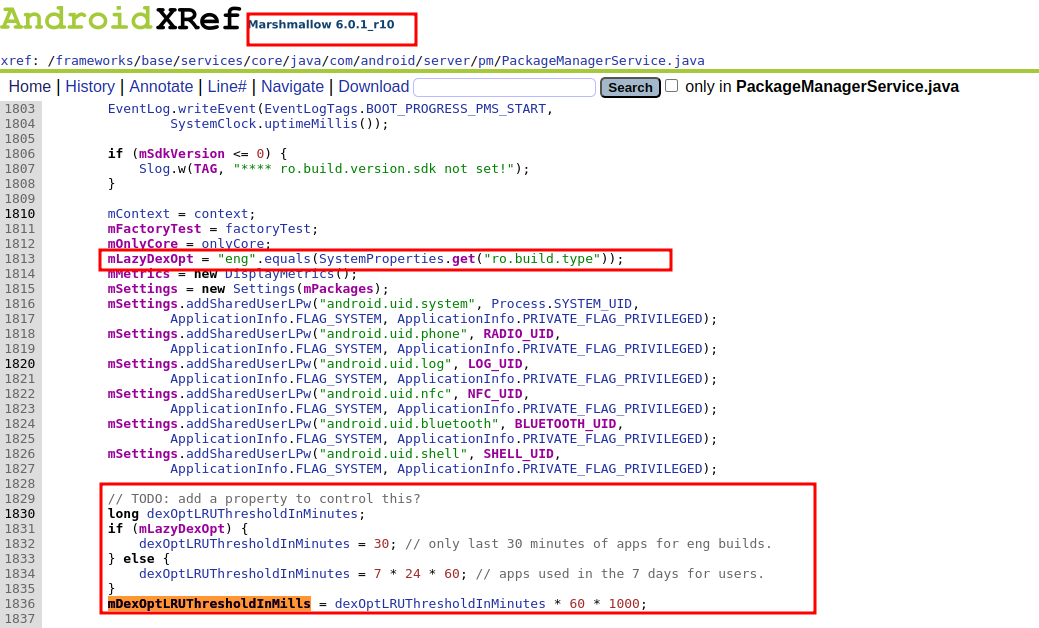

// TODO: add a property to control this?
// 移除最近没有被使用过的应用列表,,剩余的apk将排在sortTemp的第5梯队
Predicate<PackageStateInternal> remainingPredicate;
if (!remainingPkgSettings.isEmpty()
&& packageManagerService.isHistoricalPackageUsageAvailable()) {
if (debug) {
Log.i(TAG, "Looking at historical package use");
}
// Get the package that was used last.
PackageStateInternal lastUsed = Collections.max(remainingPkgSettings,
Comparator.comparingLong(
pkgSetting -> pkgSetting.getTransientState()
.getLatestForegroundPackageUseTimeInMills()));
if (debug) {
Log.i(TAG, "Taking package " + lastUsed.getPackageName()
+ " as reference in time use");
}
long estimatedPreviousSystemUseTime = lastUsed.getTransientState()
.getLatestForegroundPackageUseTimeInMills();
// Be defensive if for some reason package usage has bogus data.
if (estimatedPreviousSystemUseTime != 0) {
final long cutoffTime = estimatedPreviousSystemUseTime - SEVEN_DAYS_IN_MILLISECONDS;
remainingPredicate = pkgSetting -> pkgSetting.getTransientState()
.getLatestForegroundPackageUseTimeInMills() >= cutoffTime;
} else {
// No meaningful historical info. Take all.
remainingPredicate = pkgSetting -> true;
}
sortPackagesByUsageDate(remainingPkgSettings, packageManagerService);
} else {
// No historical info. Take all.
remainingPredicate = pkgSetting -> true;
}
applyPackageFilter(snapshot, remainingPredicate, result, remainingPkgSettings, sortTemp,
packageManagerService);
// 此时,根据包名的邮箱策略,已经将应用根据1-5梯队优先级,已经确立好了,存放在result
if (debug) {
splitLog(TAG, "Packages to be dexopted: " + packagesToString(result));
splitLog(TAG, "Packages skipped from dexopt: " + packagesToString(remainingPkgSettings));
}
return result;
}

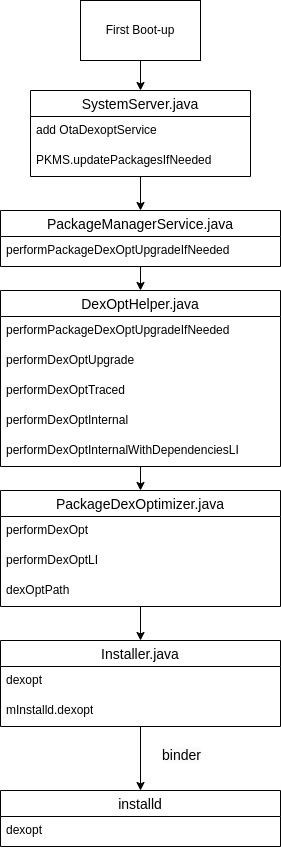

总结大致流程如下:
2.3 系统首次启动
开机启动的时候,SystemServer.java
要启动服务群
// Manages A/B OTA dexopting. This is a bootstrap service as we need it to rename
// A/B artifacts after boot, before anything else might touch/need them.
// Note: this isn't needed during decryption (we don't have /data anyways).
// 启动otadexopt服务
if (!mOnlyCore) {
boolean disableOtaDexopt = SystemProperties.getBoolean("config.disable_otadexopt",
false);
if (!disableOtaDexopt) {
t.traceBegin("StartOtaDexOptService");
try {
Watchdog.getInstance().pauseWatchingCurrentThread("moveab");
OtaDexoptService.main(mSystemContext, mPackageManagerService);
} catch (Throwable e) {
reportWtf("starting OtaDexOptService", e);
} finally {
Watchdog.getInstance().resumeWatchingCurrentThread("moveab");
t.traceEnd();
}
}
}
//.....
//调用PKMS的updatePackagesIfNeeded进行包更新
if (!mOnlyCore) {
t.traceBegin("UpdatePackagesIfNeeded");
try {
Watchdog.getInstance().pauseWatchingCurrentThread("dexopt");
mPackageManagerService.updatePackagesIfNeeded();
} catch (Throwable e) {
reportWtf("update packages", e);
} finally {
Watchdog.getInstance().resumeWatchingCurrentThread("dexopt");
}
t.traceEnd();
}
PackageManagerService.java
// 调用DexOptHelper的performPackageDexOptUpgradeIfNeeded
public void updatePackagesIfNeeded() {
mDexOptHelper.performPackageDexOptUpgradeIfNeeded();
}
非常重要的类:DexOptHelper.java
开机的时候必然调用performPackageDexOptUpgradeIfNeeded
方法。
@RequiresPermission(Manifest.permission.READ_DEVICE_CONFIG)
public void performPackageDexOptUpgradeIfNeeded() {
PackageManagerServiceUtils.enforceSystemOrRoot(
"Only the system can request package update");
// 由于SystemUI对于用户体验极其重要,所以不管如何,优先对其进行dexopt优化
// The default is "true".
if (!"false".equals(DeviceConfig.getProperty("runtime", "dexopt_system_ui_on_boot"))) {
// System UI is important to user experience, so we check it after a mainline update or
// an OTA. It may need to be re-compiled in these cases.
if (hasBcpApexesChanged() || mPm.isDeviceUpgrading()) {
checkAndDexOptSystemUi();
}
}
// causeUpgrade:判断是否是OTA升级上来执行的dex opt。 判断依据是两次的buildFingerprint不一样才触发
// We need to re-extract after an OTA.
/****
final VersionInfo ver = mSettings.getInternalVersion();
mIsUpgrade =!buildFingerprint.equals(ver.fingerprint);
****/
boolean causeUpgrade = mPm.isDeviceUpgrading();
// First boot or factory reset.
// Note: we also handle devices that are upgrading to N right now as if it is their
// first boot, as they do not have profile data.
// causeFirstBoot: 如果是第一次开机(刷完机/恢复出厂设置之后), 或者从Android N升级上来。
boolean causeFirstBoot = mPm.isFirstBoot() || mPm.isPreNUpgrade();
if (DEBUG_DEXOPT) {
Log.d(TAG, "causeFirstBoot =" + causeFirstBoot + ", causeUpgrade=" + causeUpgrade);
}
//既不是OTA升级上来的, 也不是第一次开机,则return
// 可以理解为,平时手动重启手机 就是这种情况。
if (!causeUpgrade && !causeFirstBoot) {
return;
}
// 接下来看看第一次开机重启是怎样的做dexopt的?
final Computer snapshot = mPm.snapshotComputer();
List<PackageStateInternal> pkgSettings =
getPackagesForDexopt(snapshot.getPackageStates().values(), mPm);
// MY Customizations
// 只过滤com.xxxx开头的包, 以及如下list特定包名
/****
public static final List<String> FIRST_BOOT_WHITELIST_OF_PACKAGES = List.of(
"com.android.systemui",
"com.google.android.gms",
"com.google.android.setupwizard",
"com.android.launcher3",
"com.android.settings"
);
****/
if(isOptimizationDexCR()){
Predicate<PackageStateInternal> fliterNonWhiteListPackage = pkgSetting ->
!pkgSetting.getPkg().getPackageName().startsWith("com.xxxx") && !FIRST_BOOT_WHITELIST_OF_PACKAGES.contains(pkgSetting.getPkg().getPackageName());
pkgSettings.removeIf(fliterNonWhiteListPackage);
}
List<AndroidPackage> pkgs = new ArrayList<>(pkgSettings.size());
for (int index = 0; index < pkgSettings.size(); index++) {
pkgs.add(pkgSettings.get(index).getPkg());
}
if (DEBUG_DEXOPT) {
for (int i = 0; i < pkgs.size(); i++) {
Log.d(TAG, "performDexOptUpgrade pkgs[" + i + "]=" + pkgs.get(i).getPackageName());
}
}
final long startTime = System.nanoTime();
// 调用performDexOptUpgrade
// 如果是Android N升级上来,需要弹出对话框,等待完成
// 第一次开机: REASON_FIRST_BOOT
// OTA升级上来开机: REASON_BOOT_AFTER_OTA
final int[] stats = performDexOptUpgrade(pkgs, mPm.isPreNUpgrade() /* showDialog */,
causeFirstBoot ? REASON_FIRST_BOOT : REASON_BOOT_AFTER_OTA,
false /* bootComplete */);
if (DEBUG_DEXOPT) {
Log.d(TAG, "performDexOptUpgrade return stats =" + Arrays.toString(stats));
}
// 统计总共做dex优化各指标和时间
final int elapsedTimeSeconds =
(int) TimeUnit.NANOSECONDS.toSeconds(System.nanoTime() - startTime);
final Computer newSnapshot = mPm.snapshotComputer();
MetricsLogger.histogram(mPm.mContext, "opt_dialog_num_dexopted", stats[0]);
MetricsLogger.histogram(mPm.mContext, "opt_dialog_num_skipped", stats[1]);
MetricsLogger.histogram(mPm.mContext, "opt_dialog_num_failed", stats[2]);
MetricsLogger.histogram(mPm.mContext, "opt_dialog_num_total",
getOptimizablePackages(newSnapshot).size());
MetricsLogger.histogram(mPm.mContext, "opt_dialog_time_s", elapsedTimeSeconds);
}
performDexOptUpgrade
也是非常重要的方法,分发DexOpt任务的
/**
* Performs dexopt on the set of packages in {@code packages} and returns an int array
* containing statistics about the invocation. The array consists of three elements,
* which are (in order) {@code numberOfPackagesOptimized}, {@code numberOfPackagesSkipped}
* and {@code numberOfPackagesFailed}.
*/
/**
pkgs: 需要做dex优化的包名列表
showDialog:如果是Android N升级上来,需要弹出对话框,并等待完成
compilationReason: 优化的理由,根据这个来选择用什么方式
bootComplete: 开机是否完成
**/
public int[] performDexOptUpgrade(List<AndroidPackage> pkgs, boolean showDialog,
final int compilationReason, boolean bootComplete) {
int numberOfPackagesVisited = 0;
int numberOfPackagesOptimized = 0;
int numberOfPackagesSkipped = 0;
int numberOfPackagesFailed = 0;
final int numberOfPackagesToDexopt = pkgs.size();
// 遍历所有包
for (AndroidPackage pkg : pkgs) {
numberOfPackagesVisited++;
boolean useProfileForDexopt = false;
// 再次从PKMS的角度 确认是否是:
// 1. 首次开机
// 2. 是否OTA升级上来的
// 3. 必要条件: 包是系统应用
if ((mPm.isFirstBoot() || mPm.isDeviceUpgrading()) && pkg.isSystem()) {
// Copy over initial preopt profiles since we won't get any JIT samples for methods
// that are already compiled.
File profileFile = new File(getPrebuildProfilePath(pkg));
// Copy profile if it exists.
// 做dexopt选择哪个profile?
if (profileFile.exists()) {
// ... ...
} else {
// ... ...
}
}
// 通过canOptimizePackage方法,部分应用不支持做dexopt的过滤掉
if (!mPm.mPackageDexOptimizer.canOptimizePackage(pkg)) {
if (DEBUG_DEXOPT) {
Log.i(TAG, "Skipping update of non-optimizable app " + pkg.getPackageName());
}
numberOfPackagesSkipped++;
continue;
}
if (DEBUG_DEXOPT) {
Log.i(TAG, "Updating app " + numberOfPackagesVisited + " of "
+ numberOfPackagesToDexopt + ": " + pkg.getPackageName());
}
//如果是Android N升级上来,需要弹出对话框,并等待完成
if (showDialog) {
try {
ActivityManager.getService().showBootMessage(
mPm.mContext.getResources().getString(R.string.android_upgrading_apk,
numberOfPackagesVisited, numberOfPackagesToDexopt), true);
} catch (RemoteException e) {
}
synchronized (mLock) {
mDexOptDialogShown = true;
}
}
// ... ...
// checkProfiles is false to avoid merging profiles during boot which
// might interfere with background compilation (b/28612421).
// Unfortunately this will also means that "pm.dexopt.boot=speed-profile" will
// behave differently than "pm.dexopt.bg-dexopt=speed-profile" but that's a
// trade-off worth doing to save boot time work.
int dexoptFlags = bootComplete ? DexoptOptions.DEXOPT_BOOT_COMPLETE : 0;
if (compilationReason == REASON_FIRST_BOOT) {
// TODO: This doesn't cover the upgrade case, we should check for this too.
dexoptFlags |= DexoptOptions.DEXOPT_INSTALL_WITH_DEX_METADATA_FILE;
}
// 进入下一个方法:performDexOptTraced
// 输入是 DexoptOptions, 这个类基本涵括了dexopt的信息
int primaryDexOptStatus = performDexOptTraced(new DexoptOptions(
pkg.getPackageName(),
pkgCompilationReason,
dexoptFlags));
switch (primaryDexOptStatus) {
case PackageDexOptimizer.DEX_OPT_PERFORMED:
numberOfPackagesOptimized++;
break;
case PackageDexOptimizer.DEX_OPT_SKIPPED:
numberOfPackagesSkipped++;
break;
case PackageDexOptimizer.DEX_OPT_CANCELLED:
// ignore this case
break;
case PackageDexOptimizer.DEX_OPT_FAILED:
numberOfPackagesFailed++;
break;
default:
Log.e(TAG, "Unexpected dexopt return code " + primaryDexOptStatus);
break;
}
}
return new int[]{numberOfPackagesOptimized, numberOfPackagesSkipped,
numberOfPackagesFailed};
}
performDexOptTraced
private int performDexOptTraced(DexoptOptions options) {
/// M: Add for Mtprof tool
mPm.sMtkSystemServerIns.addBootEvent("PMS:performDexOpt:" + options.getPackageName());
Trace.traceBegin(TRACE_TAG_PACKAGE_MANAGER, "dexopt");
try {
return performDexOptInternal(options);
} finally {
Trace.traceEnd(TRACE_TAG_PACKAGE_MANAGER);
}
}
performDexOptInternal
// Run dexopt on a given package. Returns true if dexopt did not fail, i.e.
// if the package can now be considered up to date for the given filter.
private int performDexOptInternal(DexoptOptions options) {
AndroidPackage p;
PackageSetting pkgSetting;
synchronized (mPm.mLock) {
p = mPm.mPackages.get(options.getPackageName());
pkgSetting = mPm.mSettings.getPackageLPr(options.getPackageName());
if (p == null || pkgSetting == null) {
// Package could not be found. Report failure.
return PackageDexOptimizer.DEX_OPT_FAILED;
}
mPm.getPackageUsage().maybeWriteAsync(mPm.mSettings.getPackagesLocked());
mPm.mCompilerStats.maybeWriteAsync();
}
final long callingId = Binder.clearCallingIdentity();
try {
return performDexOptInternalWithDependenciesLI(p, pkgSetting, options);
} finally {
Binder.restoreCallingIdentity(callingId);
}
}
performDexOptInternalWithDependenciesLI
private int performDexOptInternalWithDependenciesLI(AndroidPackage p,
@NonNull PackageStateInternal pkgSetting, DexoptOptions options) {
// System server gets a special path.
// 如果是android system server进程,直接使用dexoptSystemServer来做优化
if (PLATFORM_PACKAGE_NAME.equals(p.getPackageName())) {
return mPm.getDexManager().dexoptSystemServer(options);
}
// Select the dex optimizer based on the force parameter.
// Note: The force option is rarely used (cmdline input for testing, mostly), so it's OK to
// allocate an object here.
PackageDexOptimizer pdo = options.isForce()
? new PackageDexOptimizer.ForcedUpdatePackageDexOptimizer(mPm.mPackageDexOptimizer)
: mPm.mPackageDexOptimizer;
// Dexopt all dependencies first. Note: we ignore the return value and march on
// on errors.
// Note that we are going to call performDexOpt on those libraries as many times as
// they are referenced in packages. When we do a batch of performDexOpt (for example
// at boot, or background job), the passed 'targetCompilerFilter' stays the same,
// and the first package that uses the library will dexopt it. The
// others will see that the compiled code for the library is up to date.
Collection<SharedLibraryInfo> deps = SharedLibraryUtils.findSharedLibraries(pkgSetting);
final String[] instructionSets = getAppDexInstructionSets(
AndroidPackageUtils.getPrimaryCpuAbi(p, pkgSetting),
AndroidPackageUtils.getSecondaryCpuAbi(p, pkgSetting));
if (!deps.isEmpty()) {
DexoptOptions libraryOptions = new DexoptOptions(options.getPackageName(),
options.getCompilationReason(), options.getCompilerFilter(),
options.getSplitName(),
options.getFlags() | DexoptOptions.DEXOPT_AS_SHARED_LIBRARY);
for (SharedLibraryInfo info : deps) {
AndroidPackage depPackage = null;
PackageSetting depPackageSetting = null;
synchronized (mPm.mLock) {
depPackage = mPm.mPackages.get(info.getPackageName());
depPackageSetting = mPm.mSettings.getPackageLPr(info.getPackageName());
}
if (depPackage != null && depPackageSetting != null) {
// TODO: Analyze and investigate if we (should) profile libraries.
// 真正干活的方法:pdo.performDexOpt
pdo.performDexOpt(depPackage, depPackageSetting, instructionSets,
mPm.getOrCreateCompilerPackageStats(depPackage),
mPm.getDexManager().getPackageUseInfoOrDefault(
depPackage.getPackageName()), libraryOptions);
} else {
// TODO(ngeoffray): Support dexopting system shared libraries.
}
}
}
// 真正干活的方法:pdo.performDexOpt
return pdo.performDexOpt(p, pkgSetting, instructionSets,
mPm.getOrCreateCompilerPackageStats(p),
mPm.getDexManager().getPackageUseInfoOrDefault(p.getPackageName()), options);
}
PackageDexOptimizer.java
/**
* Performs dexopt on all code paths and libraries of the specified package for specified
* instruction sets.
*
* <p>Calls to {@link com.android.server.pm.Installer#dexopt} on {@link #mInstaller} are
* synchronized on {@link #mInstallLock}.
*/
/**
pkg: 包名
pkgSetting: 包设置信息
instructionSets: 这个决定是PrimaryCpuAbi还是SecondaryCpuAbi
packageUseInfo: 包使用信息
options: dexopt详细信息
*/
@DexOptResult
int performDexOpt(AndroidPackage pkg, @NonNull PackageStateInternal pkgSetting,
String[] instructionSets, CompilerStats.PackageStats packageStats,
PackageDexUsage.PackageUseInfo packageUseInfo, DexoptOptions options) {
if (PLATFORM_PACKAGE_NAME.equals(pkg.getPackageName())) {
throw new IllegalArgumentException("System server dexopting should be done via "
+ " DexManager and PackageDexOptimizer#dexoptSystemServerPath");
}
if (pkg.getUid() == -1) {
throw new IllegalArgumentException("Dexopt for " + pkg.getPackageName()
+ " has invalid uid.");
}
if (!canOptimizePackage(pkg)) {
return DEX_OPT_SKIPPED;
}
synchronized (mInstallLock) {
final long acquireTime = acquireWakeLockLI(pkg.getUid());
try {
return performDexOptLI(pkg, pkgSetting, instructionSets,
packageStats, packageUseInfo, options);
} finally {
releaseWakeLockLI(acquireTime);
}
}
}
performDexOptLI
/**
* Performs dexopt on all code paths of the given package.
* It assumes the install lock is held.
*/
@GuardedBy("mInstallLock")
@DexOptResult
private int performDexOptLI(AndroidPackage pkg, @NonNull PackageStateInternal pkgSetting,
String[] targetInstructionSets, CompilerStats.PackageStats packageStats,
PackageDexUsage.PackageUseInfo packageUseInfo, DexoptOptions options) {
// ... ...
// Get the dexopt flags after getRealCompilerFilter to make sure we get the correct
// flags.
final int dexoptFlags = getDexFlags(pkg, pkgSetting, compilerFilter,
useCloudProfile, options);
// ... ...
for (String dexCodeIsa : dexCodeInstructionSets) {
// 启动dexopt最后的类
int newResult = dexOptPath(pkg, pkgSetting, path, dexCodeIsa, compilerFilter,
profileAnalysisResult, classLoaderContexts[i], dexoptFlags, sharedGid,
packageStats, options.isDowngrade(), profileName, dexMetadataPath,
options.getCompilationReason());
// ... ...
if ((result != DEX_OPT_FAILED) && (newResult != DEX_OPT_SKIPPED)) {
result = newResult;
}
}
// ... ...
return result;
}
dexOptPath
/**
* Performs dexopt on the {@code path} belonging to the package {@code pkg}.
*
* @return
* DEX_OPT_FAILED if there was any exception during dexopt
* DEX_OPT_PERFORMED if dexopt was performed successfully on the given path.
* DEX_OPT_SKIPPED if the path does not need to be deopt-ed.
*/
@GuardedBy("mInstallLock")
@DexOptResult
private int dexOptPath(AndroidPackage pkg, @NonNull PackageStateInternal pkgSetting,
String path, String isa, String compilerFilter, int profileAnalysisResult,
String classLoaderContext, int dexoptFlags, int uid,
CompilerStats.PackageStats packageStats, boolean downgrade, String profileName,
String dexMetadataPath, int compilationReason) {
Log.i(TAG, "Running dexopt (dexoptNeeded=" + dexoptNeeded + ") on: " + path
+ " pkg=" + pkg.getPackageName() + " isa=" + isa
+ " dexoptFlags=" + printDexoptFlags(dexoptFlags)
+ " targetFilter=" + compilerFilter + " oatDir=" + oatDir
+ " classLoaderContext=" + classLoaderContext);
try {
long startTime = System.currentTimeMillis();
// TODO: Consider adding 2 different APIs for primary and secondary dexopt.
// installd only uses downgrade flag for secondary dex files and ignores it for
// primary dex files.
String seInfo = AndroidPackageUtils.getSeInfo(pkg, pkgSetting);
// 调用Installer的dexopt方法
boolean completed = getInstallerLI().dexopt(path, uid, pkg.getPackageName(), isa,
dexoptNeeded, oatDir, dexoptFlags, compilerFilter, pkg.getVolumeUuid(),
classLoaderContext, seInfo, /* downgrade= */ false ,
pkg.getTargetSdkVersion(), profileName, dexMetadataPath,
getAugmentedReasonName(compilationReason, dexMetadataPath != null));
if (packageStats != null) {
long endTime = System.currentTimeMillis();
packageStats.setCompileTime(path, (int)(endTime - startTime));
//@xxxx-begin [JAZZ_192285]
spentDexCompileTime += (endTime - startTime);
// 打印这个apk的dexopt时间
Log.d(TAG,"[dex2oat compiling time]: "+ pkg.getPackageName() + ":[" + (endTime - startTime)
+ " ms] , total:[" + spentDexCompileTime + " ms]");
//@xxxx-end [JAZZ_192285]
}
}
Installer.java
/**
* Runs dex optimization.
*
* @param apkPath Path of target APK
* @param uid UID of the package
* @param pkgName Name of the package
* @param instructionSet Target instruction set to run dex optimization.
* @param dexoptNeeded Necessary dex optimization for this request. Check
* {@link dalvik.system.DexFile#NO_DEXOPT_NEEDED},
* {@link dalvik.system.DexFile#DEX2OAT_FROM_SCRATCH},
* {@link dalvik.system.DexFile#DEX2OAT_FOR_BOOT_IMAGE}, and
* {@link dalvik.system.DexFile#DEX2OAT_FOR_FILTER}.
* @param outputPath Output path of generated dex optimization.
* @param dexFlags Check {@code DEXOPT_*} for allowed flags.
* @param compilerFilter Compiler filter like "verify", "speed-profile". Check
* {@code art/libartbase/base/compiler_filter.cc} for full list.
* @param volumeUuid UUID of the volume where the package data is stored. {@code null}
* represents internal storage.
* @param classLoaderContext This encodes the class loader chain (class loader type + class
* path) in a format compatible to dex2oat. Check
* {@code DexoptUtils.processContextForDexLoad} for further details.
* @param seInfo Selinux context to set for generated outputs.
* @param downgrade If set, allows downgrading {@code compilerFilter}. If downgrading is not
* allowed and requested {@code compilerFilter} is considered as downgrade,
* the request will be ignored.
* @param targetSdkVersion Target SDK version of the package.
* @param profileName Name of reference profile file.
* @param dexMetadataPath Specifies the location of dex metadata file.
* @param compilationReason Specifies the reason for the compilation like "install".
* @return {@code true} if {@code dexopt} is completed. {@code false} if it was cancelled.
*
* @throws InstallerException if {@code dexopt} fails.
*/
public boolean dexopt(String apkPath, int uid, String pkgName, String instructionSet,
int dexoptNeeded, @Nullable String outputPath, int dexFlags,
String compilerFilter, @Nullable String volumeUuid, @Nullable String classLoaderContext,
@Nullable String seInfo, boolean downgrade, int targetSdkVersion,
@Nullable String profileName, @Nullable String dexMetadataPath,
@Nullable String compilationReason) throws InstallerException {
//IBinder binder = ServiceManager.getService("installd");
return mInstalld.dexopt(apkPath, uid, pkgName, instructionSet, dexoptNeeded, outputPath,
dexFlags, compilerFilter, volumeUuid, classLoaderContext, seInfo, downgrade,
targetSdkVersion, profileName, dexMetadataPath, compilationReason);
}
Installer.java
通过Binder调用installd
installd
是著名的一个PKMS相关的native service, 里面有专门做DexOpt的入口
实质上还会调用了dex2oat去做实际的代码优化工作以及ART虚拟机。
这一层比较接近底层虚拟机的工作原理。如果感兴趣,可以执行研究。
总结:
- 决定是否是第一次开机/OTA升级上来的方法:
performPackageDexOptUpgradeIfNeeded
- 传入包list和过滤重要包的方法:
performPackageDexOptUpgradeIfNeeded
- 遍历包list的方法:
performDexOptUpgrade
- 从
performDexOptTraced
开始就是处理单独一个包的方法
2.4 系统非首次启动
从上一节可以看出,
- 首次启动: 调用
updatePackagesIfNeeded
会走完流程。 - 非首次启动:而非首次启动/OTA升级,则会直接return掉。
if (!causeUpgrade && !causeFirstBoot) {
return;
}
那么普通开机会做部分应用做dexopt优化吗?
先说一下Android 6.0的时候,开机会默认对热应用做dexopt,调用PKMS的performBootDexOpt
方法
private void startOtherServices() {
//...
mPackageManagerService.performBootDexOpt();
//...
}
有一个参数mDexOptLRUThresholdInMills
用于决定执行dex优化操作的时间阈,这个参数用于后续的PKMS.performBootDexOp
过程。
- 对于Eng版本,则只会对30分钟之内使用过的app执行dex优化;
- 对于非Eng版本,则会将用户最近一周内使用过的app执行dex优化;

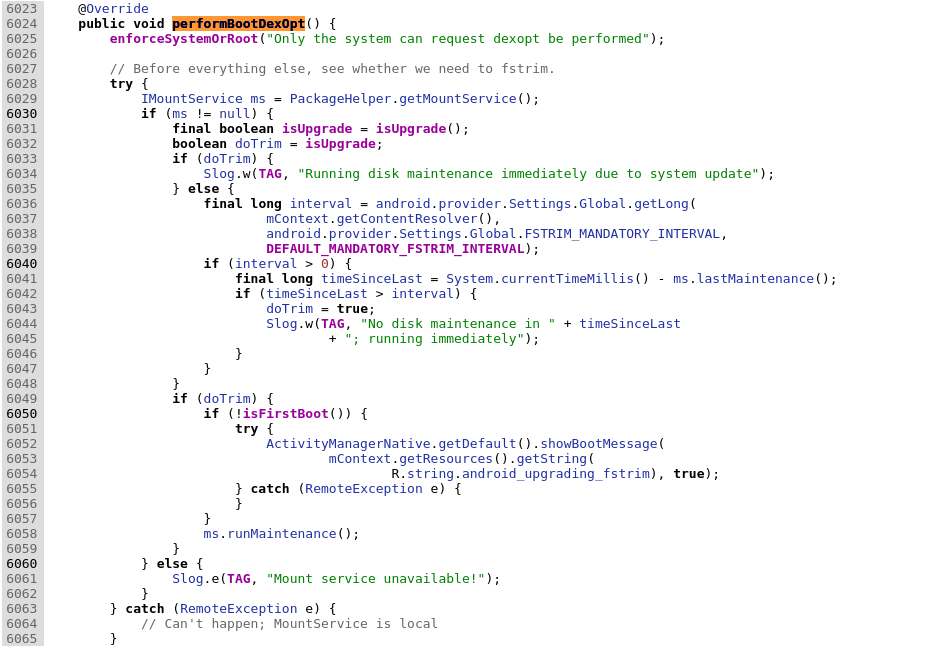

在Android 6.0版本中, performBootDexOpt
的作用主要有:
-
判断是否需要磁盘维护,这是通过
fstrim
命令完成的 -
调用 dexopt 优化核心应用、监听预启动完成的系统应用和近期使用的应用,包优化是通过调用
performBootDexOpt
函数的重载版本完成的
Android 7及以后的版本中,没有见到performBootDexOpt
了,应该是被评估删掉了。
至于为什么不选择在开机阶段做了?
我猜大概率是因为随着应用的升级,包越来越大,如果安装的应用多,每次开机都很慢,这个performBootDexOpt
的缺点就很大。
可以放在开机后,由BackgroundDexOptService
去做dexopt,这样就可以平衡开机时间和应用的性能表现。
所以,Android 10 - Android 12的代码中,只剩下磁盘数据修剪的操作了。
t.traceBegin("PerformFstrimIfNeeded");
try {
mPackageManagerService.performFstrimIfNeeded();
} catch (Throwable e) {
reportWtf("performing fstrim", e);
}
t.traceEnd();
public void performFstrimIfNeeded() {
// ...
final long interval = android.provider.Settings.Global.getLong(
mContext.getContentResolver(),
android.provider.Settings.Global.FSTRIM_MANDATORY_INTERVAL,
DEFAULT_MANDATORY_FSTRIM_INTERVAL);
if (interval > 0) {
final long timeSinceLast = System.currentTimeMillis() - sm.lastMaintenance();
if (timeSinceLast > interval) {
doTrim = true;
Slog.w(TAG, "No disk maintenance in " + timeSinceLast
+ "; running immediately");
}
}
if (doTrim) {
if (!isFirstBoot()) {
if (mDexOptHelper.isDexOptDialogShown()) {
try {
ActivityManager.getService().showBootMessage(
mContext.getResources().getString(
R.string.android_upgrading_fstrim), true);
} catch (RemoteException e) {
}
}
}
sm.runMaintenance();
}
// ...
}
总结
- Android 6的非首次开机做DexOpt的流程。
- Android 7 及以后不再非首次开机阶段做DexOpt了。
2.5 系统空闲
由于非首次开机阶段不再更新DexOpt,这个很影响开机速度,最终将这个工作移至开机后使用后台服务BackgroundDexOptService
来做,也是相对合理的。

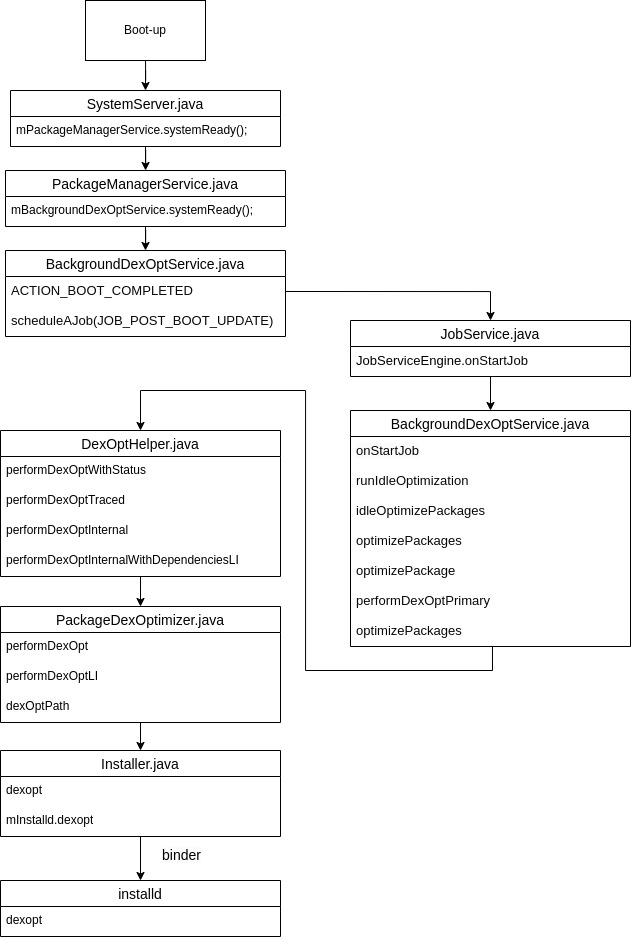

现在主要讲解一下BackgroundDexOptService
是如何在空闲状态做dex优化的。
首先,SystemServer
启动PackageManagerService
, 然后PKMS启动BackgroundDexOptService
。
PackageManagerService.java
final BackgroundDexOptService mBackgroundDexOptService;
... main(){
(i, pm) -> new BackgroundDexOptService(i.getContext(), i.getDexManager(), pm),
}
public void systemReady() {
mBackgroundDexOptService.systemReady();
}
调用BackgroundDexOptService.的systemReady
BackgroundDexOptService.java
/** Start scheduling job after boot completion */
public void systemReady() {
if (mInjector.isBackgroundDexOptDisabled()) {
return;
}
// 监听开机广播 Intent.ACTION_BOOT_COMPLETED
mInjector.getContext().registerReceiver(new BroadcastReceiver() {
@Override
public void onReceive(Context context, Intent intent) {
mInjector.getContext().unregisterReceiver(this);
// queue both job. JOB_IDLE_OPTIMIZE will not start until JOB_POST_BOOT_UPDATE is
// completed.
// 启动计划任务JOB_POST_BOOT_UPDATE : 开机后更新
scheduleAJob(JOB_POST_BOOT_UPDATE);
// 启动计划任务JOB_IDLE_OPTIMIZE : 空闲状态下更新
scheduleAJob(JOB_IDLE_OPTIMIZE);
// MY Customizations : 启动计划任务JOB_POST_BOOT_UPDATE_CR
if (isOptimizationDexCR()) {
scheduleAJobOneway(JOB_POST_BOOT_UPDATE_CR, DEX_OPT_AFTER_BOOT_DEALY_MS);
}
if (DEBUG) {
Slog.d(TAG, "BootBgDexopt scheduled");
}
}
}, new IntentFilter(Intent.ACTION_BOOT_COMPLETED));
}
private static final long IDLE_OPTIMIZATION_PERIOD = TimeUnit.DAYS.toMillis(1);
private void scheduleAJob(int jobId) {
JobScheduler js = mInjector.getJobScheduler();
JobInfo.Builder builder =
new JobInfo.Builder(jobId, sDexoptServiceName).setRequiresDeviceIdle(true);
// 如果是任务JOB_IDLE_OPTIMIZE,需要满足充电条件,并且设置每天检查一次
if (jobId == JOB_IDLE_OPTIMIZE) {
builder.setRequiresCharging(true).setPeriodic(IDLE_OPTIMIZATION_PERIOD);
}
js.schedule(builder.build());
}
简要总结一下,这些任务的触发条件
空闲判断 | 充电判断 | 触发时机 | |
---|---|---|---|
JOB_IDLE_OPTIMIZE | √ | √ | 1次/day |
JOB_POST_BOOT_UPDATE | √ | × | 开机后 |
JOB_POST_BOOT_UPDATE_CR | × | × | 开机后3min以内 |
以上是Android13的触发条件。
查看Android8~Android11的触发条件:
-
JOB_POST_BOOT_UPDATE
执行条件:开机一分钟内
-
JOB_IDLE_OPTIMIZE
执行条件:设备处于空闲,插入充电器,且每一天就检查一次
空闲判断 | 充电判断 | 触发时机 | |
---|---|---|---|
JOB_IDLE_OPTIMIZE | √ | √ | 1次/day |
JOB_POST_BOOT_UPDATE | × | × | 开机后1min以内 |
查看Android12的触发条件:
空闲判断 | 充电判断 | 触发时机 | |
---|---|---|---|
JOB_IDLE_OPTIMIZE | √ | √ | 1次/day |
JOB_POST_BOOT_UPDATE | × | × | 开机后10min-60min左右启动 |
从Android8 ~ Android13, 对于 JOB_IDLE_OPTIMIZE
的判断是没有特别大的区别。
但对于JOB_POST_BOOT_UPDATE
的判断和界定,就有2次变革:
Android11及以前的,只需要开机1min左右就立即做dexopt遍历 ;
Android12改为开机10min以后做dexopt遍历;
Android13和Android14改为开机后,识别到空闲就做dexopt遍历。
大概猜测,谷歌在Android12以前,已经意识到了。一开机做dexopt会一定程度影响到手机刚开机几分钟的性能/功耗。
所以在Android12把时间推后了,变成10分钟以后。
到了Android13干脆把时间这个变量去除了,判断是空闲即触发,实测要休眠后30分钟左右才触发。
我们接着查看,是怎么执行dexopt的。
定制核心回调onStartJob
:
/** For BackgroundDexOptJobService to dispatch onStartJob event */
/* package */ boolean onStartJob(BackgroundDexOptJobService job, JobParameters params) {
Slog.i(TAG, "onStartJob:" + params.getJobId());
boolean isPostBootUpdateJob = params.getJobId() == JOB_POST_BOOT_UPDATE;
boolean isPostBootUpdateJobDL = params.getJobId() == JOB_POST_BOOT_UPDATE_CR;
//mtk修改: 保存dalvik.vm.****属性原来的值
//mtk modify start
String dex2oat_threads = SystemProperties.get("dalvik.vm.background-dex2oat-threads");
String cpu_set = SystemProperties.get("dalvik.vm.background-dex2oat-cpu-set");
//mtk modify end
// NOTE: PackageManagerService.isStorageLow uses a different set of criteria from
// the checks above. This check is not "live" - the value is determined by a background
// restart with a period of ~1 minute.
PackageManagerService pm = mInjector.getPackageManagerService();
// 确保存储是否够
if (pm.isStorageLow()) {
Slog.w(TAG, "Low storage, skipping this run");
markPostBootUpdateCompleted(params);
return false;
}
//获取需要做dex优化的包名排序,又是调用DexOptHelper.getOptimizablePackages
List<String> pkgs = mDexOptHelper.getOptimizablePackages(pm.snapshotComputer());
if (pkgs.isEmpty()) {
Slog.i(TAG, "No packages to optimize");
markPostBootUpdateCompleted(params);
return false;
}
// 确保是否触发温控
mThermalStatusCutoff = mInjector.getDexOptThermalCutoff();
synchronized (mLock) {
if (mDexOptThread != null && mDexOptThread.isAlive()) {
// Other task is already running.
return false;
}
// 确保还没做,或者正在做其中一个
if (!isPostBootUpdateJob && !mFinishedPostBootUpdate && !isPostBootUpdateJobDL) {
// Post boot job not finished yet. Run post boot job first.
return false;
}
// mtk修改: 将做dex优化dalvik.vm.****属性值,在这个dexopt过程中修改为想要的值
//mtk modify start for idle dex2oat change cup-set and threads
if (!isPostBootUpdateJob || isPostBootUpdateJobDL) {
// 设置最大启用4个线程
SystemProperties.set("dalvik.vm.background-dex2oat-threads", "4");
// 设置跑在 0,1,2,3 核上
SystemProperties.set("dalvik.vm.background-dex2oat-cpu-set", "0,1,2,3");
Slog.i(TAG, "background-dex2oat-threads = " + SystemProperties.get("dalvik.vm.background-dex2oat-threads")
+ " background-dex2oat-cpu-set = " + SystemProperties.get("dalvik.vm.background-dex2oat-cpu-set"));
}
//mtk modify end
resetStatesForNewDexOptRunLocked(mInjector.createAndStartThread(
"BackgroundDexOptService_" + (isPostBootUpdateJob ? "PostBoot" : "Idle"),
() -> {
TimingsTraceAndSlog tr =
new TimingsTraceAndSlog(TAG, Trace.TRACE_TAG_PACKAGE_MANAGER);
tr.traceBegin("jobExecution");
boolean completed = false;
try {
//MY Customizations begin
/*completed = runIdleOptimization(
pm, pkgs, isPostBootUpdateJob);*/
if (isPostBootUpdateJobDL) {
// MY Customizations:弹出通知栏,提醒用户正在做dexopt,可能影响性能
startNotificationDuringDex();
// 同步调用runIdleOptimization真正干活的方法
completed = runIdleOptimization(
pm, pkgs, isPostBootUpdateJobDL);
// 等待结束,取消通知栏
cancelNotificationCompleted();
mInjector.getJobScheduler().cancel(JOB_POST_BOOT_UPDATE_CR);
if (DEBUG) {
Slog.i(TAG,"All DL boot-dexopt is completed, JOB_POST_BOOT_UPDATE_CR should be cancled!");
}
} else {
// 原生行为:
completed = runIdleOptimization(
pm, pkgs, isPostBootUpdateJob);
}
//MY Customizations end
} finally { // Those cleanup should be done always.
tr.traceEnd();
Slog.i(TAG,
"dexopt finishing. jobid:" + params.getJobId()
+ " completed:" + completed);
writeStatsLog(params);
if (isPostBootUpdateJob && !isPostBootUpdateJobDL) {
if (completed) {
markPostBootUpdateCompleted(params);
}
// Reschedule when cancelled
job.jobFinished(params, !completed);
} else {
//mtk 修改:执行完成之后,将dalvik.vm.****属性值改回来
//mtk modify start recover
SystemProperties.set("dalvik.vm.background-dex2oat-threads", dex2oat_threads);
SystemProperties.set("dalvik.vm.background-dex2oat-cpu-set", cpu_set);
//mtk modify end
// Periodic job
job.jobFinished(params, true);
}
markDexOptCompleted();
}
}));
}
return true;
}
mtk为什么要定制为绑定为小核运行?
主要是限制dexopt执行的cpu资源,不然可能导致系统卡顿。宁可时间长点,也不要影响用户体验。
创建dalvik.vm.****
属性,可以认为是谷歌提供给了厂商定制的性能的接口,毕竟这一块要结合平台cpu的能力而定。
从这份抓取的这个systrace来看,
以下紫色部分为dex2oat线程,在做dexopt的过程中,确实跑在小核。
接下来,查看下runIdleOptimization
的调用流程:
/**
* Returns whether we've successfully run the job. Note that it will return true even if some
* packages may have failed compiling.
*/
private boolean runIdleOptimization(
PackageManagerService pm, List<String> pkgs, boolean isPostBootUpdate) {
synchronized (mLock) {
mLastExecutionStartTimeMs = SystemClock.elapsedRealtime();
mLastExecutionDurationIncludingSleepMs = -1;
mLastExecutionStartUptimeMs = SystemClock.uptimeMillis();
mLastExecutionDurationMs = -1;
}
long lowStorageThreshold = getLowStorageThreshold();
//核心方法:idleOptimizePackages
int status = idleOptimizePackages(pm, pkgs, lowStorageThreshold, isPostBootUpdate);
//收集dexopt的详细信息
logStatus(status);
synchronized (mLock) {
mLastExecutionStatus = status;
mLastExecutionDurationIncludingSleepMs =
SystemClock.elapsedRealtime() - mLastExecutionStartTimeMs;
mLastExecutionDurationMs = SystemClock.uptimeMillis() - mLastExecutionStartUptimeMs;
}
return status == STATUS_OK || status == STATUS_DEX_OPT_FAILED;
}
idleOptimizePackages
@Status
private int idleOptimizePackages(PackageManagerService pm, List<String> pkgs,
long lowStorageThreshold, boolean isPostBootUpdate) {
ArraySet<String> updatedPackages = new ArraySet<>();
try {
// 如果空间不充足,不会针对没有使用过的应用做dexopt
// Only downgrade apps when space is low on device.
// Threshold is selected above the lowStorageThreshold so that we can pro-actively clean
// up disk before user hits the actual lowStorageThreshold.
long lowStorageThresholdForDowngrade =
LOW_THRESHOLD_MULTIPLIER_FOR_DOWNGRADE * lowStorageThreshold;
boolean shouldDowngrade = shouldDowngrade(lowStorageThresholdForDowngrade);
if (DEBUG) {
Slog.d(TAG, "Should Downgrade " + shouldDowngrade);
}
if (shouldDowngrade) {
final Computer snapshot = pm.snapshotComputer();
Set<String> unusedPackages =
snapshot.getUnusedPackages(mDowngradeUnusedAppsThresholdInMillis);
if (DEBUG) {
Slog.d(TAG, "Unsused Packages " + String.join(",", unusedPackages));
}
if (!unusedPackages.isEmpty()) {
}
pkgs = new ArrayList<>(pkgs);
// 移除未使用的Packages
pkgs.removeAll(unusedPackages);
}
}
// 核心方法:optimizePackages
return optimizePackages(pkgs, lowStorageThreshold, updatedPackages, isPostBootUpdate);
} finally {
// Always let the pinner service know about changes.
notifyPinService(updatedPackages);
// Only notify IORap the primary dex opt, because we don't want to
// invalidate traces unnecessary due to b/161633001 and that it's
// better to have a trace than no trace at all.
notifyPackagesUpdated(updatedPackages);
}
}
optimizePackages
@Status
private int optimizePackages(List<String> pkgs, long lowStorageThreshold,
ArraySet<String> updatedPackages, boolean isPostBootUpdate) {
boolean supportSecondaryDex = mInjector.supportSecondaryDex();
// ... ...
// Keep the error if there is any error from any package.
@Status int status = STATUS_OK;
// Other than cancellation, all packages will be processed even if an error happens
// in a package.
// 遍历updatedPackages
for (String pkg : pkgs) {
// Primary Apk : 常规场景
// Secondary Apk : 插件场景
@DexOptResult
int primaryResult = optimizePackage(pkg, true /* isForPrimaryDex */, isPostBootUpdate);
@DexOptResult
int secondaryResult =
optimizePackage(pkg, false /* isForPrimaryDex */, isPostBootUpdate);
}
return status;
}
optimizePackage
/**
*
* Optimize package if needed. Note that there can be no race between
* concurrent jobs because PackageDexOptimizer.performDexOpt is synchronized.
* @param pkg The package to be downgraded.
* @param isForPrimaryDex Apps can have several dex file, primary and secondary.
* @param isPostBootUpdate is post boot update or not.
* @return PackageDexOptimizer#DEX_OPT_*
*/
@DexOptResult
private int optimizePackage(String pkg, boolean isForPrimaryDex, boolean isPostBootUpdate) {
int reason = isPostBootUpdate ? PackageManagerService.REASON_POST_BOOT
: PackageManagerService.REASON_BACKGROUND_DEXOPT;
int dexoptFlags = DexoptOptions.DEXOPT_BOOT_COMPLETE;
// 针对非boot优化, 添加flag
if (!isPostBootUpdate) {
dexoptFlags |= DexoptOptions.DEXOPT_CHECK_FOR_PROFILES_UPDATES
| DexoptOptions.DEXOPT_IDLE_BACKGROUND_JOB;
}
// System server share the same code path as primary dex files.
// PackageManagerService will select the right optimization path for it.
if (isForPrimaryDex || PLATFORM_PACKAGE_NAME.equals(pkg)) {
// 系统应用大部分都是PrimaryDex, 调用performDexOptPrimary
return performDexOptPrimary(pkg, reason, dexoptFlags, isPostBootUpdate);
} else {
return performDexOptSecondary(pkg, reason, dexoptFlags, isPostBootUpdate);
}
}
performDexOptPrimary
private int performDexOptPrimary(String pkg, int reason, int dexoptFlags, boolean isPostBootUpdate) {
DexoptOptions dexoptOptions = new DexoptOptions(pkg, reason, dexoptFlags);
// MY Customizations: 如果是boot后空闲优化, 将默认使用speed-profile方式,而不是verify方式
if (isPostBootUpdate) {
dexoptOptions = new DexoptOptions(pkg, reason, SystemProperties.get("pm.dexopt.bg-dexopt", "speed-profile"), null, dexoptFlags);
}
DexoptOptions finalDexoptOptions = dexoptOptions;
// 最终使用回调执行DexOptHelper.performDexOptWithStatus
return trackPerformDexOpt(pkg, /*isForPrimaryDex=*/true,
() -> mDexOptHelper.performDexOptWithStatus(finalDexoptOptions));
}
DexOptHelper.java
/**
* Perform dexopt on the given package and return one of following result:
* {@link PackageDexOptimizer#DEX_OPT_SKIPPED}
* {@link PackageDexOptimizer#DEX_OPT_PERFORMED}
* {@link PackageDexOptimizer#DEX_OPT_CANCELLED}
* {@link PackageDexOptimizer#DEX_OPT_FAILED}
*/
@PackageDexOptimizer.DexOptResult
/* package */ int performDexOptWithStatus(DexoptOptions options) {
return performDexOptTraced(options);
}
private int performDexOptTraced(DexoptOptions options) {
/// M: Add for Mtprof tool
mPm.sMtkSystemServerIns.addBootEvent("PMS:performDexOpt:" + options.getPackageName());
Trace.traceBegin(TRACE_TAG_PACKAGE_MANAGER, "dexopt");
try {
// 最后调用到了performDexOptInternal, 和前面分析OTA升级做dex优化的方法是同一个了
return performDexOptInternal(options);
} finally {
Trace.traceEnd(TRACE_TAG_PACKAGE_MANAGER);
}
}
紧接着调用performDexOptInternalWithDependenciesLI
等一系列。
总结以上完整的流程:
2.6 应用安装
PKMS安装应用的流程比较长,本文不重点讲解此部分。
简要陈述安装流程就是,安装本质上是通过封装InstallParams
,然后给PKMS主线程发送Handler
消息进行安装,然后HandlerParams
处理消息,再回调InstallPackageHelper
接口进行安装。这个handler消息就是INIT_COPY。
PackageHandler.java
void doHandleMessage(Message msg) {
switch (msg.what) {
case INIT_COPY: {
HandlerParams params = (HandlerParams) msg.obj;
if (params != null) {
if (DEBUG_INSTALL) Slog.i(TAG, "init_copy: " + params);
Trace.asyncTraceEnd(TRACE_TAG_PACKAGE_MANAGER, "queueInstall",
System.identityHashCode(params));
Trace.traceBegin(TRACE_TAG_PACKAGE_MANAGER, "startCopy");
// 处理安装流程
params.startCopy();
Trace.traceEnd(TRACE_TAG_PACKAGE_MANAGER);
}
break;
}
// ......
case POST_INSTALL: {
// ......
// 处理安装完之后的流程
mInstallPackageHelper.handlePackagePostInstall(data.res, data.args, didRestore);
// ......
} break;
HandlerParams.java
final void startCopy() {
if (DEBUG_INSTALL) Slog.i(TAG, "startCopy " + mUser + ": " + this);
handleStartCopy();
handleReturnCode();
}
PKMS分为两个大阶段:
- 拷贝:
handleStartCopy()
- 装载:
handleReturnCode()
而DexOpt发生在装载阶段。
InstallParams.java
void handleReturnCode() {
processPendingInstall();
}
private void processPendingInstall() {
// ... ...
processInstallRequestsAsync(
res.mReturnCode == PackageManager.INSTALL_SUCCEEDED,
Collections.singletonList(new InstallRequest(args, res)));
}
private void processInstallRequestsAsync(boolean success,
List<InstallRequest> installRequests) {
mPm.mHandler.post(() -> {
mInstallPackageHelper.processInstallRequests(success, installRequests);
});
}
调用InstallPackageHelper.processInstallRequests
方法
InstallPackageHelper.java
public void processInstallRequests(boolean success, List<InstallRequest> installRequests) {
// ... ...
synchronized (mPm.mInstallLock) {
installPackagesTracedLI(apkInstallRequests);
}
// ... ...
}
@GuardedBy("mPm.mInstallLock")
private void installPackagesTracedLI(List<InstallRequest> requests) {
try {
Trace.traceBegin(TRACE_TAG_PACKAGE_MANAGER, "installPackages");
installPackagesLI(requests);
} finally {
Trace.traceEnd(TRACE_TAG_PACKAGE_MANAGER);
}
}
/**
* Installs one or more packages atomically. This operation is broken up into four phases:
* <ul>
* <li><b>Prepare</b>
* <br/>Analyzes any current install state, parses the package and does initial
* validation on it.</li>
* <li><b>Scan</b>
* <br/>Interrogates the parsed packages given the context collected in prepare.</li>
* <li><b>Reconcile</b>
* <br/>Validates scanned packages in the context of each other and the current system
* state to ensure that the install will be successful.
* <li><b>Commit</b>
* <br/>Commits all scanned packages and updates system state. This is the only place
* that system state may be modified in the install flow and all predictable errors
* must be determined before this phase.</li>
* </ul>
*
* Failure at any phase will result in a full failure to install all packages.
*/
@GuardedBy("mPm.mInstallLock")
private void installPackagesLI(List<InstallRequest> requests) {
//阶段1:prepare
prepareResult = preparePackageLI(request.mArgs, request.mInstallResult);
//阶段2:scan
final ScanResult result = scanPackageTracedLI(
prepareResult.mPackageToScan, prepareResult.mParseFlags,
prepareResult.mScanFlags, System.currentTimeMillis(),
request.mArgs.mUser, request.mArgs.mAbiOverride);
//阶段3:Reconcile
reconciledPackages = ReconcilePackageUtils.reconcilePackages(
reconcileRequest, mSharedLibraries,
mPm.mSettings.getKeySetManagerService(), mPm.mSettings);
//阶段4:Commit并安装
commitRequest = new CommitRequest(reconciledPackages,
mPm.mUserManager.getUserIds());
// Modify state for the given package setting
executePostCommitSteps(commitRequest);
}
做DexOpt主要就是在executePostCommitSteps
方法中做,
/**
* On successful install, executes remaining steps after commit completes and the package lock
* is released. These are typically more expensive or require calls to installd, which often
* locks on {@link com.android.server.pm.PackageManagerService.mLock}.
*/
private void executePostCommitSteps(CommitRequest commitRequest) {
// ... ...
//步骤1:prof文件写入
// Prepare the application profiles for the new code paths.
// This needs to be done before invoking dexopt so that any install-time profile
// can be used for optimizations.
mArtManagerService.prepareAppProfiles(pkg,
mPm.resolveUserIds(reconciledPkg.mInstallArgs.mUser.getIdentifier()),
/* updateReferenceProfileCnotallow= */ true);
//步骤2:dex优化,在开启baseline profile优化之后compilation-reasnotallow=install-dm
// Compute the compilation reason from the installation scenario.
final int compilationReason =
mDexManager.getCompilationReasonForInstallScenario(
reconciledPkg.mInstallArgs.mInstallScenario);
// ... ...
final int dexoptFlags = DexoptOptions.DEXOPT_BOOT_COMPLETE
| DexoptOptions.DEXOPT_INSTALL_WITH_DEX_METADATA_FILE
| (isBackupOrRestore ? DexoptOptions.DEXOPT_FOR_RESTORE : 0);
DexoptOptions dexoptOptions =
new DexoptOptions(packageName, compilationReason, dexoptFlags);
// Check whether we need to dexopt the app.
//
// NOTE: it is IMPORTANT to call dexopt:
// - after doRename which will sync the package data from AndroidPackage and
// its corresponding ApplicationInfo.
// - after installNewPackageLIF or replacePackageLIF which will update result with the
// uid of the application (pkg.applicationInfo.uid).
// This update happens in place!
//
// We only need to dexopt if the package meets ALL of the following conditions:
// 1) it is not an instant app or if it is then dexopt is enabled via gservices.
// 2) it is not debuggable.
// 3) it is not on Incremental File System.
//
// Note that we do not dexopt instant apps by default. dexopt can take some time to
// complete, so we skip this step during installation. Instead, we'll take extra time
// the first time the instant app starts. It's preferred to do it this way to provide
// continuous progress to the useur instead of mysteriously blocking somewhere in the
// middle of running an instant app. The default behaviour can be overridden
// via gservices.
//
// Furthermore, dexopt may be skipped, depending on the install scenario and current
// state of the device.
//
// TODO(b/174695087): instantApp and onIncremental should be removed and their install
// path moved to SCENARIO_FAST.
// 判断是否做dexopt,同时满足以下条件如下:
// 1. 不是带有instant flag的apk(谷歌推出的类似于微信小程序), 或者INSTANT_APP_DEXOPT_ENABLED被enabled
// 2. 应用不是调试版本
// 3. 不在差分文件系统中
final boolean performDexopt =
(!instantApp || android.provider.Settings.Global.getInt(
mContext.getContentResolver(),
android.provider.Settings.Global.INSTANT_APP_DEXOPT_ENABLED, 0) != 0)
&& !pkg.isDebuggable()
&& (!onIncremental)
&& dexoptOptions.isCompilationEnabled();
if (performDexopt) {
// ... ...
// 调用PackageDexOptimizer的performDexOpt方法,做dex优化
mPackageDexOptimizer.performDexOpt(pkg, realPkgSetting,
null /* instructionSets */,
mPm.getOrCreateCompilerPackageStats(pkg),
mDexManager.getPackageUseInfoOrDefault(packageName),
dexoptOptions);
Trace.traceEnd(TRACE_TAG_PACKAGE_MANAGER);
}
}
}
PackageDexOptimizer.performDexOpt
这个方法和上面的方法重叠了。
总结安装过程中的流程为:
2.7 应用启动
先说结论,
-
在Android 13已经移除了应用启动阶段去做dex优化的内容了,但是MTK平台还是有相关定制化的代码。
-
大概率还是启动应用阶段会做dex优化,会影响启动性能,所以Android高版本默认移除了。
从opengrok的代码来看,Android 6 / 7 /8.0版本有这个流程, Android 8.1就已经移除了。
在应用进程去创建一个Application的时候,会去attach创建,此时会先优化app。
private final boolean attachApplicationLocked(IApplicationThread thread,
int pid) {
// ... ...
ensurePackageDexOpt(app.instrumentationInfo != null
? app.instrumentationInfo.packageName
: app.info.packageName);
if (app.instrumentationClass != null) {
ensurePackageDexOpt(app.instrumentationClass.getPackageName());
}
// ... ...
}
在 attachApplicationLocked
阶段去执行pm.performDexOptIfNeeded
最终还是调用了 PackageDexOptimizer.java的performDexOpt
方法。
Android 13 MTK平台的代码中,还是找到了有做dex优化的动作。
ActivityManagerService.java
/// M: MTK AMS
public AmsExt mAmsExt = MtkSystemServiceFactory.getInstance().makeAmsExt();
public AmsExt makeAmsExt() {
return new AmsExt();
}
MtkSystemServiceFactory
会进行实例化MtkSystemServiceFactoryImpl
public class MtkSystemServiceFactoryImpl extends MtkSystemServiceFactory {
private static final String TAG = "MtkSystemServiceFactoryImpl";
// ... ...
private AmsExt mAmsExt = new AmsExtImpl();
// ... ...
}
好好看下AmsExtImpl.java
public AmsExtImpl() {
// ... ...
mDexOptExt = DexOptExtFactory.getInstance().makeDexOpExt();
// ... ...
}
// 应用刚启动的时候,就会调用mDexOptExt.onStartProcess
@Override
public void onStartProcess(String hostingType, String packageName) {
// ... ...
if(mDexOptExt != null){
mDexOptExt.onStartProcess(hostingType, packageName);
}
// ... ...
}
public DexOptExt makeDexOpExt() {
return new DexOptExt();
}
onStartProcess
什么时候才调用呢?
services/core/java/com/android/server/am/ProcessList.java
startProcessLocked(){
/// M: onStartProcess @{
mService.mAmsExt.onStartProcess(hostingRecord.getType(), app.info.packageName);
/// M: onStartProcess @}
}
来看DexOptExt
的实现类DexOptExtImpl.java
public class DexOptExtImpl extends DexOptExt {
private DexOptExtImpl() {
// ... ...
initHandlerAndStartHandlerThread();
}
private void initHandlerAndStartHandlerThread() {
mHandlerThread = new HandlerThread("DexOptExt");
mHandlerThread.start();
mDexoptExtHandler = new Handler(mHandlerThread.getLooper(), new DexOptExtHandler());
}
class DexOptExtHandler implements Handler.Callback{
@Override
public boolean handleMessage(Message msg) {
String pkg = (String)msg.obj;
switch(msg.what) {
case MSG_ON_PROCESS_START:
handleProcessStart(pkg);
break;
case MSG_DO_DEXOPT:
handleDoDexopt(msg);
break;
}
return true;
}
}
private void handleProcessStart(String pkg) {
//"install" means that the app have not been dexopt after installation
// 这里过滤只针对于使用 install 和 install-dm的方式安装的应用。
// 因为有界面的安装应用,是默认做过dexopt的。
if (!isDexoptReasonInstall(pkg))
return;
// ... ...
mDexoptExtHandler.sendMessageDelayed(msg, mTryDex2oatInterval);
}
private boolean isDexoptReasonInstall(String pkg) {
// ... ...
ArtManagerInternal artManager = LocalServices.getService(ArtManagerInternal.class);
int reason = artManager.getPackageOptimizationInfo(appInfo, abi, "fakeactivity").getCompilationReason();
/**
* private static final int TRON_COMPILATION_REASON_INSTALL = 4;
* private static final int TRON_COMPILATION_REASON_INSTALL_WITH_DM = 9;
* **/
Slog.d(TAG,pkg + " reason is " + reason + " abi is " + abi);
// in ArtManagerService.java: 4 is install,9 is install-dm
switch (reason) {
case 4:
case 9:
return true;
default:
break;
}
return false;
}
private void handleDoDexopt(Message msg) {
// 选择使用speed-profile方式优化
String targetCompilerFilter = COMPILERFILTER_SPEED_PROFILE;
// ... ...
// 调用PKMS的performDexOptWithStatusByOption -> performDexOptWithStatus -> performDexOptTraced -> performDexOptInternal -> performDexOptInternalWithDependenciesLI -> PackageDexOptimizer.performDexOpt
result = mPm.performDexOptWithStatusByOption(new DexoptOptions(pkg,
REASON_AGRESSIVE, targetCompilerFilter, null, flags));
// ... ...
}
}
可以大致推测MTK这个定制化代码是针对于采用“install”和"install-dm"这两种方式的应用,在启动应用时,默认执行DexOpt流程。
而用户普通安装应用,是会走进上一节所述的dexopt的。
/**
* Installation scenario providing the fastest “install button to launch" experience possible.
*/
public static final int INSTALL_SCENARIO_FAST = 1;
4和9 貌似是针对于那种快速安装的应用,在安装阶段跳过做DexOpt,在此不做过多详细的研究。
3 结语
最后罗嗦几句:
- DexOpt每个Android版本都有比较大的变更了,本文比较适用于Android 13,而Android 14对这一块还有更大的更新
- DexOpt的触发流程,整体来说流程还是比较清晰,难点在于怎么准备好去调用dex2oat
- DexOpt对于ART虚拟机运行的性能有很大提升, 核心还是在art虚拟机和dex2oat这块
- 随着高性能CPU时代的到来,DEX优化几乎默认都做。而Dex优化对于低端平台显示出来的差异就很明显
【更多干货分享】
- 微信公众号"Lucas-Den"(Lucas.D)
![](https://img-blog.csdnimg.cn/img_convert/1baaf28bf924095d7f0cf171b72ff2c6.png)
- 个人主页:@Lucas.D
- GitHub:@KingofHubGit
- CSDN:@Lucas.Deng
- 掘金:@LucasD
- 知乎:@Lucas.D
