SpringBootAdmin实践

http方式注册

1 服务端配置

pom配置

<parent>
   <groupId>org.springframework.boot</groupId>
    <artifactId>spring-boot-starter-parent</artifactId>
    <version>2.4.6</version>
    <relativePath/> <!-- lookup parent from repository -->
</parent>

 <dependencies>
    <dependency>
        <groupId>de.codecentric</groupId>
        <artifactId>spring-boot-admin-starter-server</artifactId>
        <version>2.4.0</version>
    </dependency>
    <dependency>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-starter-web</artifactId>
    </dependency>
    <dependency>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-starter-security</artifactId>
    </dependency>
</dependencies>

yml配置

server:
  port: 9006
spring:
  application:
    name: admin-server
  security:
    user:
      name: admin
      password: admin

启动类

@SpringBootApplication
@EnableAdminServer
public class SpringBootAdminApplication {

    public static void main(String[] args) {
        SpringApplication.run(SpringBootAdminApplication.class, args);
    }
}

WebSecurity配置类

@Configuration
public class SecurityConfig extends WebSecurityConfigurerAdapter {

    @Override
    protected void configure(HttpSecurity http) throws Exception {
        http.authorizeRequests()
        		//instances接口是客户端调用用于http注册使用的,不配置，http方式注册会不成功
                .antMatchers("/instances").permitAll()
                //不配置aassets目录，登录页的图片不显示
                .antMatchers("/assets/**").permitAll()
                .antMatchers( "/login" ).permitAll()
                .anyRequest().authenticated()
                .and().formLogin().loginPage("/login" )
                .and().csrf().disable();
    }
}

2 客户端配置

pom配置

<dependencies>
    <dependency>
        <groupId>de.codecentric</groupId>
        <artifactId>spring-boot-admin-starter-client</artifactId>
        <version>2.4.0</version>
    </dependency>
    <dependency>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-starter-web</artifactId>
    </dependency>
</dependencies>

yml配置

server:
  port: 9007

spring:
  application:
    name: admin-client
  boot:
    admin:
      client:
        url: http://localhost:9006
management:
  endpoints:
    web:
      exposure:
        include: '*'
  endpoint:
    health:
      show-details: ALWAYS

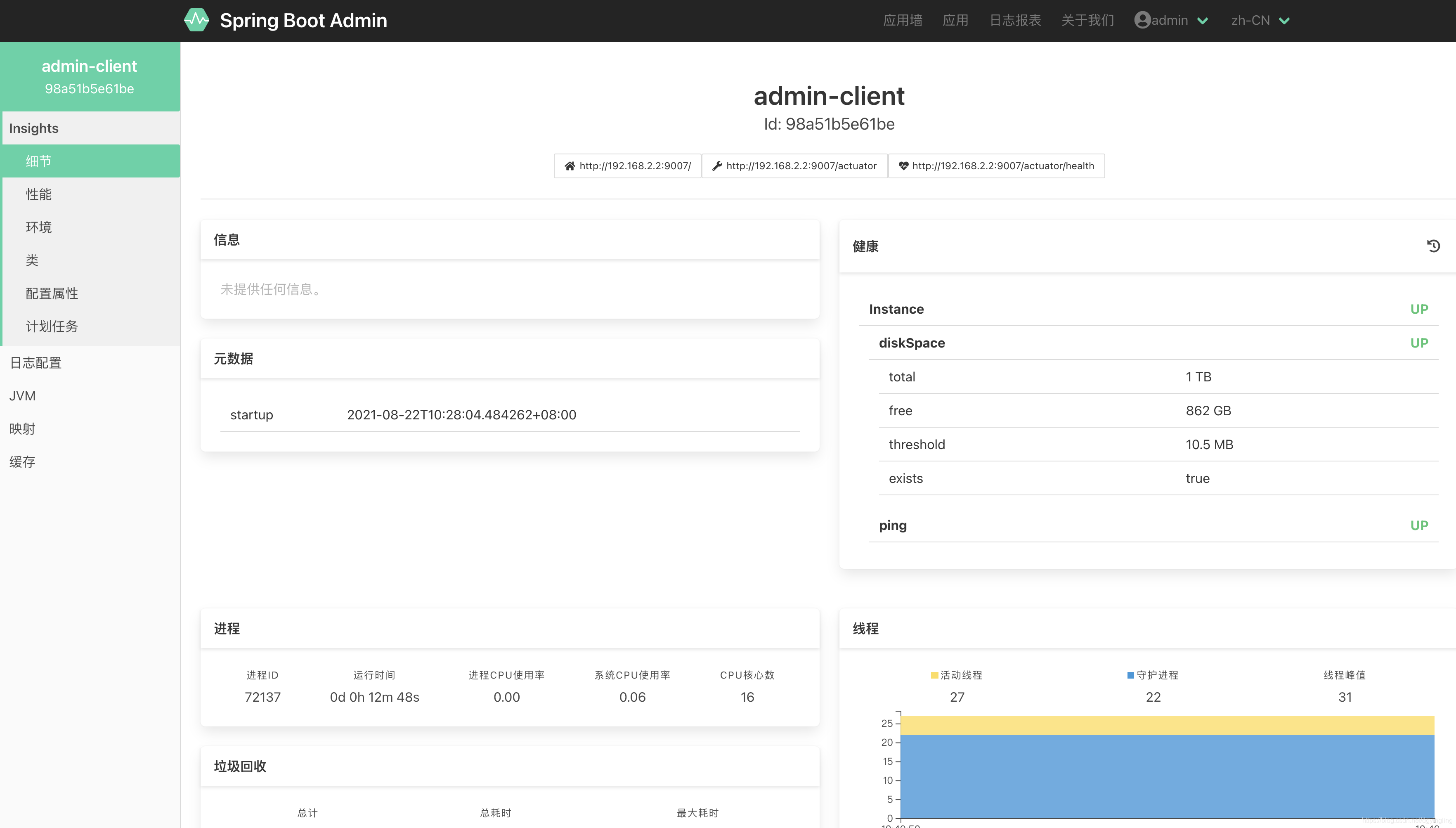

效果

3 服务掉线发送邮件

服务端增加配置
pom配置

<dependency>
   <groupId>org.springframework.boot</groupId>
    <artifactId>spring-boot-starter-mail</artifactId>
</dependency>

yml配置

spring:
 mail:
    host: smtp.qq.com
    username: 1539261793@qq.com
    password: xxxxxxxx
    port: 587
  boot:
    admin:
      notify:
        mail:
          to: 1539261793@qq.com
          #必须要有from
          from: 1539261793@qq.com

遇到问题: com.sun.mail.smtp.SMTPSendFailedException: 501 mail from address must be same as authorization user
原因: 没有指定spring.boot.admin.notify.mail.from

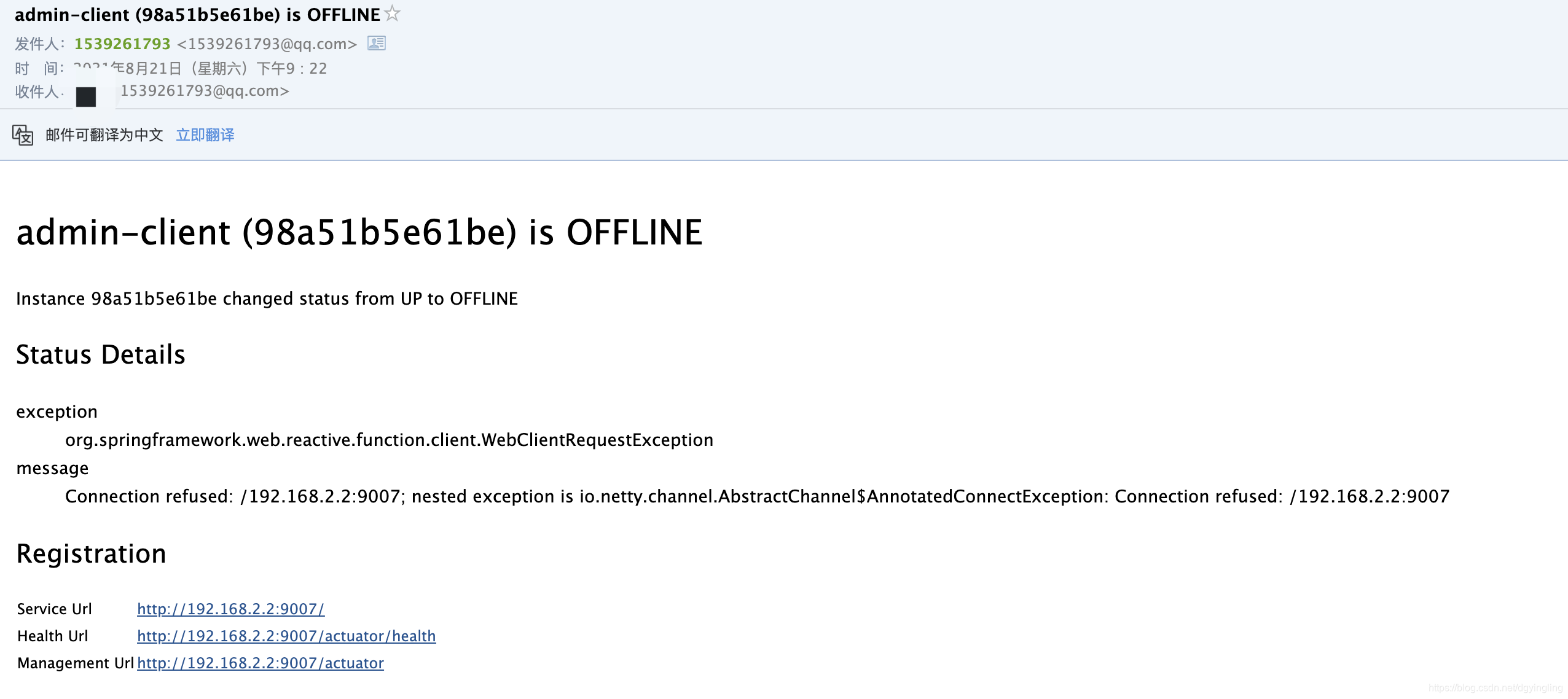

效果:
