Launcher也是一个普通的应用程序，只不过在主入口中加入<<Home Category>>属性，这样在开机启动后，就会首先找到这个应用，第一个加载。
<category android:name="android.intent.category.HOME" />
那分析Launcher的加载流程时，也可以按照一般的应用来分析就行了。
一、Application类的加载
如果应用继承了Application类，那么该应用启动时就会首先执行继承了Application的类的onCreate()方法，在Launcher3中就是LauncherApplication类了。
代码位置：launcher3\src\main\java\com\android\launcher3\LauncherApplication.java
public class LauncherApplication extends Application {
@Override
public void onCreate() {
super.onCreate();
LauncherAppState.setApplicationContext(this);
LauncherAppState.getInstance();
}
@Override
public void onTerminate() {
super.onTerminate();
LauncherAppState.getInstance().onTerminate();
}
}
可以看到，其主要工作是在LauncherAppState类里执行的：
1)设置Application的上下文，赋值给sContext，sContext是一个静态变量；
2)设置LauncherAppState实例，是一个单例模式，在创建对象时进行了各个变量的初始化以及广播的注册、数据变化观察者。
public static void setApplicationContext(Context context) {
if (sContext != null) {
Log.w(Launcher.TAG, "setApplicationContext called twice! old=" + sContext + " new=" + context);
}
sContext = context.getApplicationContext();
} private LauncherAppState() {
if (sContext == null) {
throw new IllegalStateException("LauncherAppState inited before app context set");
}
Log.v(Launcher.TAG, "LauncherAppState inited");
if (sContext.getResources().getBoolean(R.bool.debug_memory_enabled)) {
MemoryTracker.startTrackingMe(sContext, "L");
}
// set sIsScreenXLarge and mScreenDensity *before* creating icon cache
mIsScreenLarge = isScreenLarge(sContext.getResources());// 判断是否大屏幕
mScreenDensity = sContext.getResources().getDisplayMetrics().density;// 像素密度
recreateWidgetPreviewDb();// 小部件和快捷图标数据库操作对象
mIconCache = new IconCache(sContext);// 应用图标缓存对象
mAppFilter = AppFilter.loadByName(sContext.getString(R.string.app_filter_class));
mBuildInfo = BuildInfo.loadByName(sContext.getString(R.string.build_info_class));
mModel = new LauncherModel(this, mIconCache, mAppFilter);//初始化LauncherModel
final LauncherAppsCompat launcherApps = LauncherAppsCompat.getInstance(sContext);
launcherApps.addOnAppsChangedCallback(mModel);
// Register intent receivers
IntentFilter filter = new IntentFilter();
filter.addAction(Intent.ACTION_LOCALE_CHANGED);//Locale发生了变化，如中英文的切换
filter.addAction(Intent.ACTION_CONFIGURATION_CHANGED);//Configuration发生变化，如横竖屏切换
sContext.registerReceiver(mModel, filter);
filter = new IntentFilter();
filter.addAction(SearchManager.INTENT_GLOBAL_SEARCH_ACTIVITY_CHANGED);//搜索提供者发生了变化
sContext.registerReceiver(mModel, filter);
filter = new IntentFilter();
filter.addAction(SearchManager.INTENT_ACTION_SEARCHABLES_CHANGED);//搜索类别或者默认的发生了变化
sContext.registerReceiver(mModel, filter);
// Register for changes to the favorites
ContentResolver resolver = sContext.getContentResolver();
resolver.registerContentObserver(LauncherSettings.Favorites.CONTENT_URI, true,
mFavoritesObserver);// 观察桌面快捷方式是否发生变化
}
二、Launcher类
初始化完成之后就进入到主Activity--Launcher。
代码位置：launcher3\src\main\java\com\android\launcher3\Launcher.java
public class Launcher extends Activity
implements View.OnClickListener, OnLongClickListener, LauncherModel.Callbacks,
View.OnTouchListener, PageSwitchListener, LauncherProviderChangeListener { // LauncherCallbacks在LauncherExtension中实现，LauncherExtension继承于Launcher，是Launcher的扩展，
// 用来扩展Launcher的功能，但是目前没有启用，android:enabled="false"，涉及到相关的内容就不需要关注了。
if (mLauncherCallbacks != null) {
mLauncherCallbacks.preOnCreate();
} LauncherCallbacks在LauncherExtension中实现，LauncherExtension继承于Launcher，是Launcher的扩展，用来扩展Launcher的功能，但是目前没有启用(android:enabled="false")，涉及到相关的内容就直接忽略掉。
LauncherAppState.setApplicationContext(getApplicationContext());
LauncherAppState app = LauncherAppState.getInstance();
LauncherAppState.getLauncherProvider().setLauncherProviderChangeListener(this); @Override
public void onLauncherProviderChange() {
if (mLauncherCallbacks != null) {
mLauncherCallbacks.onLauncherProviderChange();
}
} // Lazy-initialize the dynamic grid
DeviceProfile grid = app.initDynamicGrid(this);
// the LauncherApplication should call this, but in case of Instrumentation it might not be present yet
mSharedPrefs = getSharedPreferences(LauncherAppState.getSharedPreferencesKey(),
Context.MODE_PRIVATE);// 初始化SharedPreference，文件名为com.android.launcher3.prefs
mIsSafeModeEnabled = getPackageManager().isSafeMode();// 是否是安全模式，关机启动Recovery Mode可以选择打开安全模式
mModel = app.setLauncher(this);// 获取LauncherModel对象，在LauncherAppState已经初始化
mIconCache = app.getIconCache();// 获取IconCache对象，在LauncherAppState已经初始化
mIconCache.flushInvalidIcons(grid);// 清除尺寸不符的icon缓存对象
mDragController = new DragController(this);// 初始化DragController对象，DragController用来处理拖拽操作
mInflater = getLayoutInflater();// 获取LayoutInflater
mStats = new Stats(this);
mAppWidgetManager = AppWidgetManagerCompat.getInstance(this);// 获取AppWidgetManager实例
mAppWidgetHost = new LauncherAppWidgetHost(this, APPWIDGET_HOST_ID);// LauncherAppWidgetHost，桌面插件宿主
mAppWidgetHost.startListening();// 开启LauncherAppWidgetHost的监听，以便发生变化时做出响应
// If we are getting an onCreate, we can actually preempt onResume and unset mPaused here,
// this also ensures that any synchronous binding below doesn't re-trigger another
// LauncherModel load.
mPaused = false; 还是一些初始化的工作，看注释就可以了。
checkForLocaleChange();// 检查Locale的变化 // 检查Locale是否发生变化，获取系统当前的Local和Launcher中保存的相比较，如果Locale、mcc、mnc中有一个发生了变化就认为Locale变化了
private void checkForLocaleChange() {
if (sLocaleConfiguration == null) {// 启动Launcher时sLocaleConfiguration肯定为null，先初始化，然后读取保存的值，赋值给sLocaleConfiguration，再回调checkForLocaleChange
new AsyncTask<Void, Void, LocaleConfiguration>() {
@Override
protected LocaleConfiguration doInBackground(Void... unused) {
LocaleConfiguration localeConfiguration = new LocaleConfiguration();
readConfiguration(Launcher.this, localeConfiguration);
return localeConfiguration;
}
@Override
protected void onPostExecute(LocaleConfiguration result) {
sLocaleConfiguration = result;
checkForLocaleChange(); // recursive, but now with a locale configuration
}
}.execute();
return;
}
final Configuration configuration = getResources().getConfiguration();// 读取系统当前的Configuration，里面保存了Locale、mcc、mnc
final String previousLocale = sLocaleConfiguration.locale;
final String locale = configuration.locale.toString();
final int previousMcc = sLocaleConfiguration.mcc;
final int mcc = configuration.mcc;
final int previousMnc = sLocaleConfiguration.mnc;
final int mnc = configuration.mnc;
boolean localeChanged = !locale.equals(previousLocale) || mcc != previousMcc || mnc != previousMnc;// 比较
if (localeChanged) {// 如果发生了变化，将新的值写入到launcher.preferences文件中
sLocaleConfiguration.locale = locale;
sLocaleConfiguration.mcc = mcc;
sLocaleConfiguration.mnc = mnc;
mIconCache.flush();
final LocaleConfiguration localeConfiguration = sLocaleConfiguration;
new AsyncTask<Void, Void, Void>() {
public Void doInBackground(Void ... args) {
writeConfiguration(Launcher.this, localeConfiguration);
return null;
}
}.executeOnExecutor(AsyncTask.THREAD_POOL_EXECUTOR, (Void) null);
}
}
private static class LocaleConfiguration {
public String locale;// 语言环境，如zh_CN
public int mcc = -1;// 移动国家码
public int mnc = -1;// 移动网络码
} readConfiguration和writeConfiguration时读文件和写文件，代码就不贴了。
回到onCreate中，
setContentView(R.layout.launcher); Launcher是一个Activity，当然也需要加载布局了，这里layout-land和layout-port中都有launcher.xml，是为了区分横竖屏切换的情况，一般手机屏幕比较小，Launcher固定竖屏，但是在平板中，是可以横竖屏切换的，这里我们只要看竖屏port目录下的就可以了。
setupViews();// 获取控件并初始化
grid.layout(this);// 放置布局中的各个控件
registerContentObservers();// 注册内容观察者，AppWidgetResetObserver，监听AppWidget是否重置，以便做出响应的处理
lockAllApps();// 空方法
mSavedState = savedInstanceState;
restoreState(mSavedState);// 从保存的状态恢复上面的代码片段也都有注释没啥说的，继续往下看，
// 调运startLoader方法加载app
if (!mRestoring) {// 判断是否正在恢复，如果第一次启动mSavedState为null，restoreState直接返回，mRestoring为false，然后执行大括号代码
if (DISABLE_SYNCHRONOUS_BINDING_CURRENT_PAGE) {
// If the user leaves launcher, then we should just load items asynchronously when
// they return.
mModel.startLoader(true, PagedView.INVALID_RESTORE_PAGE);
} else {
// We only load the page synchronously if the user rotates (or triggers a
// configuration change) while launcher is in the foreground
mModel.startLoader(true, mWorkspace.getRestorePage());
}
} 这一段代码是用来异步加载桌面的应用快捷图标、小部件和所有应用图标，是最重要的一步，待会儿单独分析其流程。 // For handling default keys
mDefaultKeySsb = new SpannableStringBuilder();
Selection.setSelection(mDefaultKeySsb, 0);
IntentFilter filter = new IntentFilter(Intent.ACTION_CLOSE_SYSTEM_DIALOGS);
registerReceiver(mCloseSystemDialogsReceiver, filter);
// On large interfaces, we want the screen to auto-rotate based on the current orientation
// 对大屏幕，希望Launcher可以横竖屏切换
unlockScreenOrientation(true);
if (mLauncherCallbacks != null) {
mLauncherCallbacks.onCreate(savedInstanceState);
if (mLauncherCallbacks.hasLauncherOverlay()) {
ViewStub stub = (ViewStub) findViewById(R.id.launcher_overlay_stub);
mLauncherOverlayContainer = (InsettableFrameLayout) stub.inflate();
mLauncherOverlay = mLauncherCallbacks.setLauncherOverlayView(
mLauncherOverlayContainer, mLauncherOverlayCallbacks);
mWorkspace.setLauncherOverlay(mLauncherOverlay);
}
}

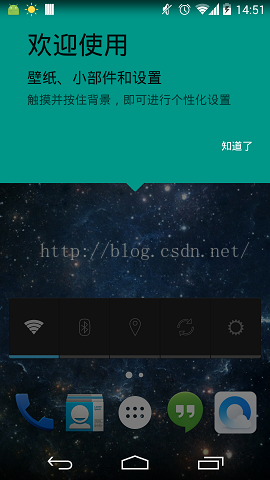

// 第一次启动时加载用户提示界面
if (shouldShowIntroScreen()) {
showIntroScreen();
} else {
showFirstRunActivity();
showFirstRunClings();
}
第一次启动时的提示界面，没啥说的，自己开发应用时可以借鉴下。
三、数据加载和展示
在Launcher的onCreate过程中会加载数据，我们将这个过程单独拎出来，startLoader在LauncherModel中实现， 代码位置：launcher3\src\main\java\com\android\launcher3\LauncherModel.java
public void startLoader(boolean isLaunching, int synchronousBindPage) {
startLoader(isLaunching, synchronousBindPage, LOADER_FLAG_NONE);
}
public void startLoader(boolean isLaunching, int synchronousBindPage, int loadFlags) {
synchronized (mLock) {// 将该代码块锁住，同时只能有一个线程执行它
if (DEBUG_LOADERS) {
Log.d(TAG, "startLoader isLaunching=" + isLaunching);
}
// Clear any deferred bind-runnables from the synchronized load process
// We must do this before any loading/binding is scheduled below.
// 清除延迟执行的绑定app的线程
synchronized (mDeferredBindRunnables) {
mDeferredBindRunnables.clear();
}
// Don't bother to start the thread if we know it's not going to do anything
if (mCallbacks != null && mCallbacks.get() != null) {// Callbacks在Launcher中实现
// If there is already one running, tell it to stop.
// also, don't downgrade isLaunching if we're already running
isLaunching = isLaunching || stopLoaderLocked();
mLoaderTask = new LoaderTask(mApp.getContext(), isLaunching, loadFlags);
if (synchronousBindPage != PagedView.INVALID_RESTORE_PAGE
&& mAllAppsLoaded && mWorkspaceLoaded) {// launcher不在前台运行 && 所有app已经加载 && workspace已经加载
mLoaderTask.runBindSynchronousPage(synchronousBindPage);
} else {
sWorkerThread.setPriority(Thread.NORM_PRIORITY);
sWorker.post(mLoaderTask);
}
}
}
} 执行到mLoaderTask执行块，直接看到LoaderTask的run方法，
public void run() {
boolean isUpgrade = false;
synchronized (mLock) {
mIsLoaderTaskRunning = true;
}
// Optimize for end-user experience: if the Launcher is up and // running with the
// All Apps interface in the foreground, load All Apps first. Otherwise, load the
// workspace first (default).
keep_running: {
// Elevate priority when Home launches for the first time to avoid
// starving at boot time. Staring at a blank home is not cool.
synchronized (mLock) {
if (DEBUG_LOADERS) Log.d(TAG, "Setting thread priority to " +
(mIsLaunching ? "DEFAULT" : "BACKGROUND"));
android.os.Process.setThreadPriority(mIsLaunching
? Process.THREAD_PRIORITY_DEFAULT : Process.THREAD_PRIORITY_BACKGROUND);
}
// 分两步执行：1.loading workspace 2.loading workspace
if (DEBUG_LOADERS) Log.d(TAG, "step 1: loading workspace");
isUpgrade = loadAndBindWorkspace();
if (mStopped) {
break keep_running;
}
// Whew! Hard work done. Slow us down, and wait until the UI thread has
// settled down.
synchronized (mLock) {
if (mIsLaunching) {
if (DEBUG_LOADERS) Log.d(TAG, "Setting thread priority to BACKGROUND");
android.os.Process.setThreadPriority(Process.THREAD_PRIORITY_BACKGROUND);
}
}
waitForIdle();// loading all apps之前等待
// second step
if (DEBUG_LOADERS) Log.d(TAG, "step 2: loading all apps");
loadAndBindAllApps();
// Restore the default thread priority after we are done loading items
synchronized (mLock) {
android.os.Process.setThreadPriority(Process.THREAD_PRIORITY_DEFAULT);
}
}
// Update the saved icons if necessary
if (DEBUG_LOADERS) Log.d(TAG, "Comparing loaded icons to database icons");
synchronized (sBgLock) {
for (Object key : sBgDbIconCache.keySet()) {
updateSavedIcon(mContext, (ShortcutInfo) key, sBgDbIconCache.get(key));
}
sBgDbIconCache.clear();
}
if (LauncherAppState.isDisableAllApps()) {
// Ensure that all the applications that are in the system are
// represented on the home screen.
if (!UPGRADE_USE_MORE_APPS_FOLDER || !isUpgrade) {
verifyApplications();
}
}
// Clear out this reference, otherwise we end up holding it until all of the
// callback runnables are done.
mContext = null;
synchronized (mLock) {
// If we are still the last one to be scheduled, remove ourselves.
if (mLoaderTask == this) {
mLoaderTask = null;
}
mIsLoaderTaskRunning = false;
}
}分两大步执行：
第一步：加载和绑定workspace--loadAndBindWorkspace
/** Returns whether this is an upgrade path */
private boolean loadAndBindWorkspace() {
mIsLoadingAndBindingWorkspace = true;
// Load the workspace
if (DEBUG_LOADERS) {
Log.d(TAG, "loadAndBindWorkspace mWorkspaceLoaded=" + mWorkspaceLoaded);
}
boolean isUpgradePath = false;
if (!mWorkspaceLoaded) {
isUpgradePath = loadWorkspace();
synchronized (LoaderTask.this) {
if (mStopped) {
return isUpgradePath;
}
mWorkspaceLoaded = true;
}
}
// Bind the workspace
bindWorkspace(-1, isUpgradePath);
return isUpgradePath;
} 并没有直接进行加载，只是对一些状态进行了更新和条件判断，loadWorkspace和bindWorkspace才是实际操作。
1.loadWorkspace（加载Workspace上要显示的数据）
loadWorkspace方法非常长，代码就不全部贴出了，但是执行步骤还是非常清晰的。1)初始化后面要用到的对象实例
final Context context = mContext;
final ContentResolver contentResolver = context.getContentResolver();// 用来保存加载数据后的一些信息
final PackageManager manager = context.getPackageManager();// 初始化PackageManager
final AppWidgetManager widgets = AppWidgetManager.getInstance(context);// 初始化AppWidgetManager
final boolean isSafeMode = manager.isSafeMode();// 是否安全模式启动
final LauncherAppsCompat launcherApps = LauncherAppsCompat.getInstance(context);
final boolean isSdCardReady = context.registerReceiver(null,
new IntentFilter(StartupReceiver.SYSTEM_READY)) != null;// SdCard是否就绪
LauncherAppState app = LauncherAppState.getInstance();
DeviceProfile grid = app.getDynamicGrid().getDeviceProfile();
int countX = (int) grid.numColumns;// workspace列数
int countY = (int) grid.numRows;// workspace行数2)加载默认配置
LauncherAppState.getLauncherProvider().loadDefaultFavoritesIfNecessary(); // 加载默认的配置,保存到数据库中
synchronized public void loadDefaultFavoritesIfNecessary() {
String spKey = LauncherAppState.getSharedPreferencesKey();
SharedPreferences sp = getContext().getSharedPreferences(spKey, Context.MODE_PRIVATE);
// 判断数据库是否未创建，
if (sp.getBoolean(EMPTY_DATABASE_CREATED, false)) {
Log.d(TAG, "loading default workspace");
AutoInstallsLayout loader = AutoInstallsLayout.get(getContext(),
mOpenHelper.mAppWidgetHost, mOpenHelper);
if (loader == null) {
final Partner partner = Partner.get(getContext().getPackageManager());
if (partner != null && partner.hasDefaultLayout()) {
final Resources partnerRes = partner.getResources();
int workspaceResId = partnerRes.getIdentifier(Partner.RES_DEFAULT_LAYOUT,
"xml", partner.getPackageName());
if (workspaceResId != 0) {
loader = new DefaultLayoutParser(getContext(), mOpenHelper.mAppWidgetHost,
mOpenHelper, partnerRes, workspaceResId);
}
}
}
final boolean usingExternallyProvidedLayout = loader != null;
if (loader == null) {
loader = getDefaultLayoutParser();
}
// Populate favorites table with initial favorites
if ((mOpenHelper.loadFavorites(mOpenHelper.getWritableDatabase(), loader) <= 0)
&& usingExternallyProvidedLayout) {
// Unable to load external layout. Cleanup and load the internal layout.
createEmptyDB();
mOpenHelper.loadFavorites(mOpenHelper.getWritableDatabase(),
getDefaultLayoutParser());
}
clearFlagEmptyDbCreated();
}
}如果数据库还没有创建，就会加载默认的配置(default_workspace_xxx.xml)，并保存到数据库中。
3)读取数据库，获取需要加载的应用快捷方式和AppWidget
整个读取的过程是在一个同步代码块中，在此之前我们先看几个重要的全局变量，
sBgWorkspaceItems--保存ItemInfo
sBgAppWidgets--保存AppWidget
sBgFolders--存放文件夹
sBgItemsIdMap--保存ItemInfo和其Id
sBgDbIconCache--应用图标
sBgWorkspaceScreens--保存Workspace
a)遍历cursor，读取每一个app信息，根据itemType不同类型，分类保存到刚才的几个变量中。分这几种类型：ITEM_TYPE_APPLICATION、ITEM_TYPE_SHORTCUT、ITEM_TYPE_SHORTCUT、ITEM_TYPE_APPWIDGET
b)读取完数据库之后，将需要移除和更新的item进行移除和更新；
c)读取workspace screen数据库信息，如果有未使用过的则将其从数据库中移除。
2.bindWorkspace
应用信息读取完之后，刚才的几个变量中就存储了该信息，然后将其绑定到workspace中去，这个过程也是很复杂的，我们一步一步来看。
1)不直接使用上面提到的几个全局变量，重新定义局部变量来处理
// Save a copy of all the bg-thread collections
// 不直接操作全局变量，将其赋值给局部变量
ArrayList<ItemInfo> workspaceItems = new ArrayList<ItemInfo>();
ArrayList<LauncherAppWidgetInfo> appWidgets = new ArrayList<LauncherAppWidgetInfo>();
HashMap<Long, FolderInfo> folders = new HashMap<Long, FolderInfo>();
HashMap<Long, ItemInfo> itemsIdMap = new HashMap<Long, ItemInfo>();
ArrayList<Long> orderedScreenIds = new ArrayList<Long>();
synchronized (sBgLock) {
workspaceItems.addAll(sBgWorkspaceItems);
appWidgets.addAll(sBgAppWidgets);
folders.putAll(sBgFolders);
itemsIdMap.putAll(sBgItemsIdMap);
orderedScreenIds.addAll(sBgWorkspaceScreens);
}
final boolean isLoadingSynchronously = synchronizeBindPage != PagedView.INVALID_RESTORE_PAGE;
int currScreen = isLoadingSynchronously ? synchronizeBindPage : oldCallbacks.getCurrentWorkspaceScreen();
if (currScreen >= orderedScreenIds.size()) {
// There may be no workspace screens (just hotseat items and an empty page).
currScreen = PagedView.INVALID_RESTORE_PAGE;
}
final int currentScreen = currScreen;// 当前screen
final long currentScreenId = currentScreen < 0 ? INVALID_SCREEN_ID : orderedScreenIds.get(currentScreen);// 当前screen id
// Load all the items that are on the current page first (and in the process, unbind
// all the existing workspace items before we call startBinding() below.
unbindWorkspaceItemsOnMainThread();// 先解除绑定2)根据item中的screenID将items分成当前screen和其他screen，并进行排序
// Separate the items that are on the current screen, and all the other remaining items
ArrayList<ItemInfo> currentWorkspaceItems = new ArrayList<ItemInfo>();// 存放当前workspace上的items
ArrayList<ItemInfo> otherWorkspaceItems = new ArrayList<ItemInfo>();// 存放除当前workspace之外的items
ArrayList<LauncherAppWidgetInfo> currentAppWidgets = new ArrayList<LauncherAppWidgetInfo>();// 存放当前workspace上的appwidgets
ArrayList<LauncherAppWidgetInfo> otherAppWidgets = new ArrayList<LauncherAppWidgetInfo>();// 存放除当前workspace之外的appwidgets
HashMap<Long, FolderInfo> currentFolders = new HashMap<Long, FolderInfo>();// 存放当前workspace上的folder
HashMap<Long, FolderInfo> otherFolders = new HashMap<Long, FolderInfo>();// 存放除当前workspace之外的folder
filterCurrentWorkspaceItems(currentScreenId, workspaceItems, currentWorkspaceItems, otherWorkspaceItems);// 过滤items，区分当前screen和其他screen上的items
filterCurrentAppWidgets(currentScreenId, appWidgets, currentAppWidgets, otherAppWidgets);// 同上
filterCurrentFolders(currentScreenId, itemsIdMap, folders, currentFolders, otherFolders);// 同上
sortWorkspaceItemsSpatially(currentWorkspaceItems);// 对workspace上的items进行排序，按照从上到下和从左到右的顺序
sortWorkspaceItemsSpatially(otherWorkspaceItems);// 同上3)runnable执行块，告诉workspace要开始绑定items了，startBinding方法在Launcher中实现，做一些清除工作
// Tell the workspace that we're about to start binding items
r = new Runnable() {
public void run() {
Callbacks callbacks = tryGetCallbacks(oldCallbacks);
if (callbacks != null) {
callbacks.startBinding();
}
}
};
runOnMainThread(r, MAIN_THREAD_BINDING_RUNNABLE); /**
* Refreshes the shortcuts shown on the workspace.
*
* Implementation of the method from LauncherModel.Callbacks.
*/
public void startBinding() {
setWorkspaceLoading(true);
// If we're starting binding all over again, clear any bind calls we'd postponed in
// the past (see waitUntilResume) -- we don't need them since we're starting binding
// from scratch again
mBindOnResumeCallbacks.clear();
// Clear the workspace because it's going to be rebound
mWorkspace.clearDropTargets();
mWorkspace.removeAllWorkspaceScreens();
mWidgetsToAdvance.clear();
if (mHotseat != null) {
mHotseat.resetLayout();
}
}4)绑定workspace screen
bindWorkspaceScreens(oldCallbacks, orderedScreenIds); private void bindWorkspaceScreens(final Callbacks oldCallbacks,
final ArrayList<Long> orderedScreens) {
final Runnable r = new Runnable() {
@Override
public void run() {
Callbacks callbacks = tryGetCallbacks(oldCallbacks);
if (callbacks != null) {
callbacks.bindScreens(orderedScreens);
}
}
};
runOnMainThread(r, MAIN_THREAD_BINDING_RUNNABLE);
} 有两个参数，一个是Callback对象，回调方法都在Launcher中实现，另一个是已经排序好的screen id，
代码位置：launcher3\src\main\java\com\android\launcher3\Launcher.java
@Override
public void bindScreens(ArrayList<Long> orderedScreenIds) {
bindAddScreens(orderedScreenIds);
// If there are no screens, we need to have an empty screen
// 如果没有需要添加screen，那我们就添加一个空白的screen
if (orderedScreenIds.size() == 0) {
mWorkspace.addExtraEmptyScreen();
}
// Create the custom content page (this call updates mDefaultScreen which calls
// setCurrentPage() so ensure that all pages are added before calling this).
if (hasCustomContentToLeft()) {
mWorkspace.createCustomContentContainer();
populateCustomContentContainer();
}
} @Override
public void bindAddScreens(ArrayList<Long> orderedScreenIds) {
// Log to disk
Launcher.addDumpLog(TAG, "11683562 - bindAddScreens()", true);
Launcher.addDumpLog(TAG, "11683562 - orderedScreenIds: " +
TextUtils.join(", ", orderedScreenIds), true);
int count = orderedScreenIds.size();
for (int i = 0; i < count; i++) {
mWorkspace.insertNewWorkspaceScreenBeforeEmptyScreen(orderedScreenIds.get(i));
}
} 通过for循环遍历，分别插入一个新的workspace screen，该方法在Workspace中实现，
代码位置：launcher3\src\main\java\com\android\launcher3\Workspace.java
public long insertNewWorkspaceScreenBeforeEmptyScreen(long screenId) {
// Find the index to insert this view into. If the empty screen exists, then
// insert it before that.
int insertIndex = mScreenOrder.indexOf(EXTRA_EMPTY_SCREEN_ID);
if (insertIndex < 0) {
insertIndex = mScreenOrder.size();
}
return insertNewWorkspaceScreen(screenId, insertIndex);
} // 插入一个新的workspace screen
public long insertNewWorkspaceScreen(long screenId, int insertIndex) {
// Log to disk
Launcher.addDumpLog(TAG, "11683562 - insertNewWorkspaceScreen(): " + screenId + " at index: " + insertIndex, true);
if (mWorkspaceScreens.containsKey(screenId)) {
throw new RuntimeException("Screen id " + screenId + " already exists!");
}
CellLayout newScreen = (CellLayout) mLauncher.getLayoutInflater().inflate(R.layout.workspace_screen, null);
newScreen.setOnLongClickListener(mLongClickListener);
newScreen.setOnClickListener(mLauncher);
newScreen.setSoundEffectsEnabled(false);
mWorkspaceScreens.put(screenId, newScreen);
mScreenOrder.add(insertIndex, screenId);
addView(newScreen, insertIndex);
return screenId;
} 其实就是创建一个CellLayout，然后添加到Workspace中。
5)Workspace绑定完成之后，就是将items、widgets和folders放到上面去
// Load items on the current page
bindWorkspaceItems(oldCallbacks, currentWorkspaceItems, currentAppWidgets, currentFolders, null);
if (isLoadingSynchronously) {
r = new Runnable() {
public void run() {
Callbacks callbacks = tryGetCallbacks(oldCallbacks);
if (callbacks != null && currentScreen != PagedView.INVALID_RESTORE_PAGE) {
callbacks.onPageBoundSynchronously(currentScreen);
}
}
};
runOnMainThread(r, MAIN_THREAD_BINDING_RUNNABLE);
}
// Load all the remaining pages (if we are loading synchronously, we want to defer this
// work until after the first render)
synchronized (mDeferredBindRunnables) {
mDeferredBindRunnables.clear();
}
bindWorkspaceItems(oldCallbacks, otherWorkspaceItems, otherAppWidgets, otherFolders,
(isLoadingSynchronously ? mDeferredBindRunnables : null));当前页和其它页分别加载，都是调运bindWorkspaceItems来实现的，看一下该方法的实现过程，
a)批量加载itmes
// Bind the workspace items
int N = workspaceItems.size();
for (int i = 0; i < N; i += ITEMS_CHUNK) {
final int start = i;
final int chunkSize = (i+ITEMS_CHUNK <= N) ? ITEMS_CHUNK : (N-i);// 批量绑定，批量大小为ITEMS_CHUNK，如果一共少于ITEMS_CHUNK，那就一次全部绑定
final Runnable r = new Runnable() {
@Override
public void run() {
Callbacks callbacks = tryGetCallbacks(oldCallbacks);
if (callbacks != null) {
callbacks.bindItems(workspaceItems, start, start+chunkSize,
false);
}
}
};
if (postOnMainThread) {
synchronized (deferredBindRunnables) {
deferredBindRunnables.add(r);
}
} else {
runOnMainThread(r, MAIN_THREAD_BINDING_RUNNABLE);
}
} 回调到Launcher的bindItems方法，
/**
* Bind the items start-end from the list.
*
* Implementation of the method from LauncherModel.Callbacks.
*/
public void bindItems(final ArrayList<ItemInfo> shortcuts, final int start, final int end,
final boolean forceAnimateIcons) {
Runnable r = new Runnable() {
public void run() {
bindItems(shortcuts, start, end, forceAnimateIcons);
}
};
if (waitUntilResume(r)) {// 当Launcher处于pause状态时，不进行绑定，待resume时再执行
return;
}
// Get the list of added shortcuts and intersect them with the set of shortcuts here
final AnimatorSet anim = LauncherAnimUtils.createAnimatorSet();
final Collection<Animator> bounceAnims = new ArrayList<Animator>();
final boolean animateIcons = forceAnimateIcons && canRunNewAppsAnimation();
Workspace workspace = mWorkspace;
long newShortcutsScreenId = -1;
for (int i = start; i < end; i++) {
final ItemInfo item = shortcuts.get(i);
// Short circuit if we are loading dock items for a configuration which has no dock
if (item.container == LauncherSettings.Favorites.CONTAINER_HOTSEAT &&
mHotseat == null) {// 如果绑定的item要放置在Hotseat，但是又没有配置Hotseat，直接跳过
continue;
}
// 根据item的类型，区分绑定
switch (item.itemType) {
case LauncherSettings.Favorites.ITEM_TYPE_APPLICATION:
case LauncherSettings.Favorites.ITEM_TYPE_SHORTCUT:// 快捷图标
ShortcutInfo info = (ShortcutInfo) item;
View shortcut = createShortcut(info);// 创建快捷图标视图
/*
* TODO: FIX collision case
*/
if (item.container == LauncherSettings.Favorites.CONTAINER_DESKTOP) {
CellLayout cl = mWorkspace.getScreenWithId(item.screenId);
if (cl != null && cl.isOccupied(item.cellX, item.cellY)) {// 判断item将要放置的位置是否被占据了
View v = cl.getChildAt(item.cellX, item.cellY);
Object tag = v.getTag();
String desc = "Collision while binding workspace item: " + item + ". Collides with " + tag;
if (LauncherAppState.isDogfoodBuild()) {
throw (new RuntimeException(desc));
} else {
Log.d(TAG, desc);
}
}
}
workspace.addInScreenFromBind(shortcut, item.container, item.screenId, item.cellX,
item.cellY, 1, 1);// 将快捷图标添加到Workspace screen的指定位置，占据一格
if (animateIcons) {
// Animate all the applications up now
shortcut.setAlpha(0f);
shortcut.setScaleX(0f);
shortcut.setScaleY(0f);
bounceAnims.add(createNewAppBounceAnimation(shortcut, i));
newShortcutsScreenId = item.screenId;
}
break;
case LauncherSettings.Favorites.ITEM_TYPE_FOLDER:// 文件夹
FolderIcon newFolder = FolderIcon.fromXml(R.layout.folder_icon, this,
(ViewGroup) workspace.getChildAt(workspace.getCurrentPage()),
(FolderInfo) item, mIconCache);// 创建文件夹图标
workspace.addInScreenFromBind(newFolder, item.container, item.screenId, item.cellX,
item.cellY, 1, 1);
break;
default:
throw new RuntimeException("Invalid Item Type");
}
}
if (animateIcons) {
// Animate to the correct page
if (newShortcutsScreenId > -1) {
long currentScreenId = mWorkspace.getScreenIdForPageIndex(mWorkspace.getNextPage());
final int newScreenIndex = mWorkspace.getPageIndexForScreenId(newShortcutsScreenId);
final Runnable startBounceAnimRunnable = new Runnable() {
public void run() {
anim.playTogether(bounceAnims);
anim.start();
}
};
if (newShortcutsScreenId != currentScreenId) {
// We post the animation slightly delayed to prevent slowdowns
// when we are loading right after we return to launcher.
mWorkspace.postDelayed(new Runnable() {
public void run() {
if (mWorkspace != null) {
mWorkspace.snapToPage(newScreenIndex);
mWorkspace.postDelayed(startBounceAnimRunnable,
NEW_APPS_ANIMATION_DELAY);
}
}
}, NEW_APPS_PAGE_MOVE_DELAY);
} else {
mWorkspace.postDelayed(startBounceAnimRunnable, NEW_APPS_ANIMATION_DELAY);
}
}
}
workspace.requestLayout();
} 根据item的类型，分别加载，首先获取item信息，创建快捷图标，然后将快捷图标放置到指定位置addInScreenFromBind，
// At bind time, we use the rank (screenId) to compute x and y for hotseat items.
// See implementation for parameter definition.
void addInScreenFromBind(View child, long container, long screenId, int x, int y,
int spanX, int spanY) {
addInScreen(child, container, screenId, x, y, spanX, spanY, false, true);
} /**
* Adds the specified child in the specified screen. The position and dimension of
* the child are defined by x, y, spanX and spanY.
*
* @param child The child to add in one of the workspace's screens.
* @param screenId The screen in which to add the child.
* @param x The X position of the child in the screen's grid.
* @param y The Y position of the child in the screen's grid.
* @param spanX The number of cells spanned horizontally by the child.
* @param spanY The number of cells spanned vertically by the child.
* @param insert When true, the child is inserted at the beginning of the children list.
* @param computeXYFromRank When true, we use the rank (stored in screenId) to compute
* the x and y position in which to place hotseat items. Otherwise
* we use the x and y position to compute the rank.
*/
void addInScreen(View child, long container, long screenId, int x, int y, int spanX, int spanY,
boolean insert, boolean computeXYFromRank) {
if (container == LauncherSettings.Favorites.CONTAINER_DESKTOP) {
if (getScreenWithId(screenId) == null) {
Log.e(TAG, "Skipping child, screenId " + screenId + " not found");
// DEBUGGING - Print out the stack trace to see where we are adding from
new Throwable().printStackTrace();
return;
}
}
if (screenId == EXTRA_EMPTY_SCREEN_ID) {
// This should never happen
throw new RuntimeException("Screen id should not be EXTRA_EMPTY_SCREEN_ID");
}
final CellLayout layout;// 先要获取快捷图标的父视图
if (container == LauncherSettings.Favorites.CONTAINER_HOTSEAT) {
layout = mLauncher.getHotseat().getLayout();
child.setOnKeyListener(new HotseatIconKeyEventListener());
// Hide folder title in the hotseat
if (child instanceof FolderIcon) {
((FolderIcon) child).setTextVisible(false);
}
if (computeXYFromRank) {
x = mLauncher.getHotseat().getCellXFromOrder((int) screenId);
y = mLauncher.getHotseat().getCellYFromOrder((int) screenId);
} else {
screenId = mLauncher.getHotseat().getOrderInHotseat(x, y);
}
} else {
// Show folder title if not in the hotseat
if (child instanceof FolderIcon) {
((FolderIcon) child).setTextVisible(true);
}
layout = getScreenWithId(screenId);
child.setOnKeyListener(new IconKeyEventListener());
}
ViewGroup.LayoutParams genericLp = child.getLayoutParams();
CellLayout.LayoutParams lp;// 设置布局参数
if (genericLp == null || !(genericLp instanceof CellLayout.LayoutParams)) {
lp = new CellLayout.LayoutParams(x, y, spanX, spanY);
} else {
lp = (CellLayout.LayoutParams) genericLp;
lp.cellX = x;
lp.cellY = y;
lp.cellHSpan = spanX;
lp.cellVSpan = spanY;
}
if (spanX < 0 && spanY < 0) {
lp.isLockedToGrid = false;
}
// Get the canonical child id to uniquely represent this view in this screen
ItemInfo info = (ItemInfo) child.getTag();
int childId = mLauncher.getViewIdForItem(info);
boolean markCellsAsOccupied = !(child instanceof Folder);// 添加快捷图标的时候，是否需要标记所占据的位置，除了folder外，都需要标记
if (!layout.addViewToCellLayout(child, insert ? 0 : -1, childId, lp, markCellsAsOccupied)) {
// TODO: This branch occurs when the workspace is adding views
// outside of the defined grid
// maybe we should be deleting these items from the LauncherModel?
Launcher.addDumpLog(TAG, "Failed to add to item at (" + lp.cellX + "," + lp.cellY + ") to CellLayout", true);
}
if (!(child instanceof Folder)) {
child.setHapticFeedbackEnabled(false);
child.setOnLongClickListener(mLongClickListener);
}
if (child instanceof DropTarget) {
mDragController.addDropTarget((DropTarget) child);// 添加拖拽对象
}
}先获取快捷图标的父视图，分Hotseat和Desktop;设置布局参数，确定快捷图标放置的位置;父视图将快捷图标添加到指定位置,
代码位置：launcher3\src\main\java\com\android\launcher3\CellLayout.java
public boolean addViewToCellLayout(View child, int index, int childId, LayoutParams params, boolean markCells) { final LayoutParams lp = params; // Hotseat icons - remove text if (child instanceof BubbleTextView) {// 如果是在Hotseat上的图标，将文字去除 BubbleTextView bubbleChild = (BubbleTextView) child; bubbleChild.setTextVisibility(!mIsHotseat); } child.setScaleX(getChildrenScale()); child.setScaleY(getChildrenScale()); // Generate an id for each view, this assumes we have at most 256x256 cells // per workspace screen if (lp.cellX >= 0 && lp.cellX <= mCountX - 1 && lp.cellY >= 0 && lp.cellY <= mCountY - 1) {// 判断位置是否合法 // If the horizontal or vertical span is set to -1, it is taken to // mean that it spans the extent of the CellLayout if (lp.cellHSpan < 0) lp.cellHSpan = mCountX; if (lp.cellVSpan < 0) lp.cellVSpan = mCountY; child.setId(childId); mShortcutsAndWidgets.addView(child, index, lp);// 最终放入指定位置 if (markCells) markCellsAsOccupiedForView(child);// 标记所占据的位置，除了folder外，都需要标记 return true; } return false; }最后设置触摸反馈和长安监听以及拖拽对象的添加。b)加载folder// Bind the folders if (!folders.isEmpty()) { final Runnable r = new Runnable() { public void run() { Callbacks callbacks = tryGetCallbacks(oldCallbacks); if (callbacks != null) { callbacks.bindFolders(folders); } } }; if (postOnMainThread) { synchronized (deferredBindRunnables) { deferredBindRunnables.add(r); } } else { runOnMainThread(r, MAIN_THREAD_BINDING_RUNNABLE); } }也是回调到Launcher的bindFolders方法./** * Implementation of the method from LauncherModel.Callbacks. */ public void bindFolders(final HashMap<Long, FolderInfo> folders) { Runnable r = new Runnable() { public void run() { bindFolders(folders); } }; if (waitUntilResume(r)) { return; } sFolders.clear(); sFolders.putAll(folders); }这样就结束了，将folders添加到sFolders的HaspMap中。可能有点奇怪，怎么没有像绑定Workspace items那样将其添加到父视图中？因为之前的过程已经添加过了，对于folder而言，它的快捷图标也是保存在workspaceItems中的，这里绑定folders只是获取folders的信息，用于对文件夹的操作，并不需要将其添加到父视图中。c)加载widget// Bind the widgets, one at a time N = appWidgets.size(); for (int i = 0; i < N; i++) { final LauncherAppWidgetInfo widget = appWidgets.get(i); final Runnable r = new Runnable() { public void run() { Callbacks callbacks = tryGetCallbacks(oldCallbacks); if (callbacks != null) { callbacks.bindAppWidget(widget); } } }; if (postOnMainThread) { deferredBindRunnables.add(r); } else { runOnMainThread(r, MAIN_THREAD_BINDING_RUNNABLE); } }回调到Launcher的bindAppWidget方法中去了，/** * Add the views for a widget to the workspace. * * Implementation of the method from LauncherModel.Callbacks. */ public void bindAppWidget(final LauncherAppWidgetInfo item) { Runnable r = new Runnable() { public void run() { bindAppWidget(item); } }; if (waitUntilResume(r)) { return; } final long start = DEBUG_WIDGETS ? SystemClock.uptimeMillis() : 0; if (DEBUG_WIDGETS) { Log.d(TAG, "bindAppWidget: " + item); } final Workspace workspace = mWorkspace; AppWidgetProviderInfo appWidgetInfo; if (!mIsSafeModeEnabled && ((item.restoreStatus & LauncherAppWidgetInfo.FLAG_PROVIDER_NOT_READY) == 0) && ((item.restoreStatus & LauncherAppWidgetInfo.FLAG_ID_NOT_VALID) != 0)) { appWidgetInfo = mModel.findAppWidgetProviderInfoWithComponent(this, item.providerName);// 获取AppWidgetProviderInfo if (appWidgetInfo == null) { if (DEBUG_WIDGETS) { Log.d(TAG, "Removing restored widget: id=" + item.appWidgetId + " belongs to component " + item.providerName + ", as the povider is null"); } LauncherModel.deleteItemFromDatabase(this, item);// 如果系统中找不到该AppWidget，将其从数据库中删除 return; } // Note: This assumes that the id remap broadcast is received before this step. // If that is not the case, the id remap will be ignored and user may see the // click to setup view. PendingAddWidgetInfo pendingInfo = new PendingAddWidgetInfo(appWidgetInfo, null, null);// 创建PendingAddWidgetInfo实例 pendingInfo.spanX = item.spanX; pendingInfo.spanY = item.spanY; pendingInfo.minSpanX = item.minSpanX; pendingInfo.minSpanY = item.minSpanY; Bundle options = AppsCustomizePagedView.getDefaultOptionsForWidget(this, pendingInfo);// 获取appwidget最大最小宽度、高度 int newWidgetId = mAppWidgetHost.allocateAppWidgetId();// 给AppWidget分配一个id boolean success = mAppWidgetManager.bindAppWidgetIdIfAllowed(newWidgetId, appWidgetInfo, options);// 用AppWidgetManager来绑定AppWidget // TODO consider showing a permission dialog when the widget is clicked. if (!success) {// 如果绑定失败了，删除刚刚分配的id，并将其从数据库中移除，不在继续执行 mAppWidgetHost.deleteAppWidgetId(newWidgetId); if (DEBUG_WIDGETS) { Log.d(TAG, "Removing restored widget: id=" + item.appWidgetId + " belongs to component " + item.providerName + ", as the launcher is unable to bing a new widget id"); } LauncherModel.deleteItemFromDatabase(this, item); return; } item.appWidgetId = newWidgetId; // If the widget has a configure activity, it is still needs to set it up, otherwise // the widget is ready to go. item.restoreStatus = (appWidgetInfo.configure == null) ? LauncherAppWidgetInfo.RESTORE_COMPLETED : LauncherAppWidgetInfo.FLAG_UI_NOT_READY; LauncherModel.updateItemInDatabase(this, item);// 更新AppWidget在数据库中的信息 } if (!mIsSafeModeEnabled && item.restoreStatus == LauncherAppWidgetInfo.RESTORE_COMPLETED) { final int appWidgetId = item.appWidgetId; appWidgetInfo = mAppWidgetManager.getAppWidgetInfo(appWidgetId); if (DEBUG_WIDGETS) { Log.d(TAG, "bindAppWidget: id=" + item.appWidgetId + " belongs to component " + appWidgetInfo.provider); } item.hostView = mAppWidgetHost.createView(this, appWidgetId, appWidgetInfo);// 创建AppWidget视图 } else { appWidgetInfo = null; PendingAppWidgetHostView view = new PendingAppWidgetHostView(this, item, mIsSafeModeEnabled); view.updateIcon(mIconCache); item.hostView = view; item.hostView.updateAppWidget(null); item.hostView.setOnClickListener(this); } item.hostView.setTag(item); item.onBindAppWidget(this); workspace.addInScreen(item.hostView, item.container, item.screenId, item.cellX, item.cellY, item.spanX, item.spanY, false);// 将AppWidget添加到Workspace的指定位置 addWidgetToAutoAdvanceIfNeeded(item.hostView, appWidgetInfo); workspace.requestLayout(); if (DEBUG_WIDGETS) { Log.d(TAG, "bound widget id="+item.appWidgetId+" in " + (SystemClock.uptimeMillis()-start) + "ms"); } }其做法跟添加items类似的，就不在赘述了。最后通知items的绑定完成，// Tell the workspace that we're done binding items r = new Runnable() { public void run() { Callbacks callbacks = tryGetCallbacks(oldCallbacks); if (callbacks != null) { callbacks.finishBindingItems(isUpgradePath); } // If we're profiling, ensure this is the last thing in the queue. if (DEBUG_LOADERS) { Log.d(TAG, "bound workspace in " + (SystemClock.uptimeMillis()-t) + "ms"); } mIsLoadingAndBindingWorkspace = false; } }; if (isLoadingSynchronously) { synchronized (mDeferredBindRunnables) { mDeferredBindRunnables.add(r); } } else { runOnMainThread(r, MAIN_THREAD_BINDING_RUNNABLE); }/** * Callback saying that there aren't any more items to bind. * * Implementation of the method from LauncherModel.Callbacks. */ public void finishBindingItems(final boolean upgradePath) { Runnable r = new Runnable() { public void run() { finishBindingItems(upgradePath); } }; if (waitUntilResume(r)) { return; } if (mSavedState != null) { if (!mWorkspace.hasFocus()) { mWorkspace.getChildAt(mWorkspace.getCurrentPage()).requestFocus(); } mSavedState = null; } mWorkspace.restoreInstanceStateForRemainingPages(); setWorkspaceLoading(false); // workspace已经加载结束了 sendLoadingCompleteBroadcastIfNecessary();// 第一次加载完成时会发送广播 // If we received the result of any pending adds while the loader was running (e.g. the // widget configuration forced an orientation change), process them now. if (sPendingAddItem != null) { final long screenId = completeAdd(sPendingAddItem); // TODO: this moves the user to the page where the pending item was added. Ideally, // the screen would be guaranteed to exist after bind, and the page would be set through // the workspace restore process. mWorkspace.post(new Runnable() { @Override public void run() { mWorkspace.snapToScreenId(screenId);// // 滑动指定的screenId的screen上 } }); sPendingAddItem = null; } if (upgradePath) { mWorkspace.getUniqueComponents(true, null); mIntentsOnWorkspaceFromUpgradePath = mWorkspace.getUniqueComponents(true, null); } PackageInstallerCompat.getInstance(this).onFinishBind(); if (mLauncherCallbacks != null) { mLauncherCallbacks.finishBindingItems(upgradePath); } }这样整个loadAndBindWorkspace过程就结束了，接着下一步。第二步：loadAndBindAllAppsprivate void loadAndBindAllApps() { if (DEBUG_LOADERS) { Log.d(TAG, "loadAndBindAllApps mAllAppsLoaded=" + mAllAppsLoaded); } if (!mAllAppsLoaded) {// 如果还没有加载，就加载所有APP，否则是需要绑定就行了 loadAllApps(); synchronized (LoaderTask.this) { if (mStopped) { return; } mAllAppsLoaded = true; } } else { onlyBindAllApps(); } }分了两种情况，如果所有app已经加载过了，就只需要绑定就行了，否则的话，加载所有app，第一次启动肯定是加载所有的，我们按照这种情况来分析。private void loadAllApps() { final long loadTime = DEBUG_LOADERS ? SystemClock.uptimeMillis() : 0; final Callbacks oldCallbacks = mCallbacks.get(); if (oldCallbacks == null) { // This launcher has exited and nobody bothered to tell us. Just bail. Log.w(TAG, "LoaderTask running with no launcher (loadAllApps)"); return; } final Intent mainIntent = new Intent(Intent.ACTION_MAIN, null); mainIntent.addCategory(Intent.CATEGORY_LAUNCHER); final List<UserHandleCompat> profiles = mUserManager.getUserProfiles(); // Clear the list of apps mBgAllAppsList.clear();// 清除所有app列表 SharedPreferences prefs = mContext.getSharedPreferences( LauncherAppState.getSharedPreferencesKey(), Context.MODE_PRIVATE); for (UserHandleCompat user : profiles) { // Query for the set of apps final long qiaTime = DEBUG_LOADERS ? SystemClock.uptimeMillis() : 0; List<LauncherActivityInfoCompat> apps = mLauncherApps.getActivityList(null, user);// 获取需要显示在Launcher上的activity列表 if (DEBUG_LOADERS) { Log.d(TAG, "getActivityList took " + (SystemClock.uptimeMillis()-qiaTime) + "ms for user " + user); Log.d(TAG, "getActivityList got " + apps.size() + " apps for user " + user); } // Fail if we don't have any apps // TODO: Fix this. Only fail for the current user. if (apps == null || apps.isEmpty()) {// 没有需要显示的，直接返回 return; } // Sort the applications by name final long sortTime = DEBUG_LOADERS ? SystemClock.uptimeMillis() : 0; Collections.sort(apps, new LauncherModel.ShortcutNameComparator(mLabelCache));// 排序 if (DEBUG_LOADERS) { Log.d(TAG, "sort took " + (SystemClock.uptimeMillis()-sortTime) + "ms"); } // Create the ApplicationInfos for (int i = 0; i < apps.size(); i++) { LauncherActivityInfoCompat app = apps.get(i); // This builds the icon bitmaps. mBgAllAppsList.add(new AppInfo(mContext, app, user, mIconCache, mLabelCache));// 创建应用图标对象，并添加到所有APP列表中 } if (ADD_MANAGED_PROFILE_SHORTCUTS && !user.equals(UserHandleCompat.myUserHandle())) { // Add shortcuts for packages which were installed while launcher was dead. String shortcutsSetKey = INSTALLED_SHORTCUTS_SET_PREFIX + mUserManager.getSerialNumberForUser(user); Set<String> packagesAdded = prefs.getStringSet(shortcutsSetKey, Collections.EMPTY_SET); HashSet<String> newPackageSet = new HashSet<String>(); for (LauncherActivityInfoCompat info : apps) { String packageName = info.getComponentName().getPackageName(); if (!packagesAdded.contains(packageName) && !newPackageSet.contains(packageName)) { InstallShortcutReceiver.queueInstallShortcut(info, mContext); } newPackageSet.add(packageName); } prefs.edit().putStringSet(shortcutsSetKey, newPackageSet).commit(); } } // Huh? Shouldn't this be inside the Runnable below? final ArrayList<AppInfo> added = mBgAllAppsList.added;// 获取自上次更新（notify()广播）后新增加的应用清单，如果是开机初次启动Launcher，那么added就是mBgAllAppsList mBgAllAppsList.added = new ArrayList<AppInfo>();// 将AllAppsList的added清空，不影响后续新增的app // Post callback on main thread mHandler.post(new Runnable() { public void run() { final long bindTime = SystemClock.uptimeMillis(); final Callbacks callbacks = tryGetCallbacks(oldCallbacks); if (callbacks != null) { callbacks.bindAllApplications(added); if (DEBUG_LOADERS) { Log.d(TAG, "bound " + added.size() + " apps in " + (SystemClock.uptimeMillis() - bindTime) + "ms"); } } else { Log.i(TAG, "not binding apps: no Launcher activity"); } } }); if (DEBUG_LOADERS) { Log.d(TAG, "Icons processed in " + (SystemClock.uptimeMillis() - loadTime) + "ms"); } } public void dumpState() { synchronized (sBgLock) { Log.d(TAG, "mLoaderTask.mContext=" + mContext); Log.d(TAG, "mLoaderTask.mIsLaunching=" + mIsLaunching); Log.d(TAG, "mLoaderTask.mStopped=" + mStopped); Log.d(TAG, "mLoaderTask.mLoadAndBindStepFinished=" + mLoadAndBindStepFinished); Log.d(TAG, "mItems size=" + sBgWorkspaceItems.size()); } } }1.获取需要显示到Launcher中的app列表，创建app图标2.绑定app--bindAllApplications/** * Add the icons for all apps. * * Implementation of the method from LauncherModel.Callbacks. */ public void bindAllApplications(final ArrayList<AppInfo> apps) { if (LauncherAppState.isDisableAllApps()) {// 判断是否禁用所有app,就是所有应用都显示在一级目录 if (mIntentsOnWorkspaceFromUpgradePath != null) { if (LauncherModel.UPGRADE_USE_MORE_APPS_FOLDER) { getHotseat().addAllAppsFolder(mIconCache, apps, mIntentsOnWorkspaceFromUpgradePath, Launcher.this, mWorkspace); } mIntentsOnWorkspaceFromUpgradePath = null; } if (mAppsCustomizeContent != null) { mAppsCustomizeContent.onPackagesUpdated( LauncherModel.getSortedWidgetsAndShortcuts(this)); } } else { if (mAppsCustomizeContent != null) { mAppsCustomizeContent.setApps(apps); mAppsCustomizeContent.onPackagesUpdated(LauncherModel.getSortedWidgetsAndShortcuts(this)); } } if (mLauncherCallbacks != null) { mLauncherCallbacks.bindAllApplications(apps); } }首先判断是否禁用所有app,就是所有应用都显示在桌面上，我们这里没有禁用所有app页面，直接到else代码块，// 设置需要显示的app，并排序，更新数据 public void setApps(ArrayList<AppInfo> list) { if (!LauncherAppState.isDisableAllApps()) { mApps = list; Collections.sort(mApps, LauncherModel.getAppNameComparator()); updatePageCountsAndInvalidateData(); } }我们跟一下updatePageCountsAndInvalidateData方法，看看到底怎么个过程，private void updatePageCountsAndInvalidateData() { if (mInBulkBind) { mNeedToUpdatePageCountsAndInvalidateData = true; } else { updatePageCounts(); invalidateOnDataChange(); mNeedToUpdatePageCountsAndInvalidateData = false; } }updatePageCounts是计算并更新需要的page数量，直接看invalidateOnDataChange方法，/** * We should call thise method whenever the core data changes (mApps, mWidgets) so that we can * appropriately determine when to invalidate the PagedView page data. In cases where the data * has yet to be set, we can requestLayout() and wait for onDataReady() to be called in the * next onMeasure() pass, which will trigger an invalidatePageData() itself. */ private void invalidateOnDataChange() { if (!isDataReady()) { // The next layout pass will trigger data-ready if both widgets and apps are set, so // request a layout to trigger the page data when ready. requestLayout(); } else { cancelAllTasks(); invalidatePageData(); } }protected void invalidatePageData() { invalidatePageData(-1, false); }protected void invalidatePageData(int currentPage, boolean immediateAndOnly) { if (!mIsDataReady) { return; } if (mContentIsRefreshable) { // Force all scrolling-related behavior to end forceFinishScroller(); // Update all the pages syncPages(); // We must force a measure after we've loaded the pages to update the content width and // to determine the full scroll width measure(MeasureSpec.makeMeasureSpec(getMeasuredWidth(), MeasureSpec.EXACTLY), MeasureSpec.makeMeasureSpec(getMeasuredHeight(), MeasureSpec.EXACTLY)); // Set a new page as the current page if necessary // 设置当前显示页 if (currentPage > -1) { setCurrentPage(Math.min(getPageCount() - 1, currentPage)); } // Mark each of the pages as dirty final int count = getChildCount(); mDirtyPageContent.clear(); for (int i = 0; i < count; ++i) { mDirtyPageContent.add(true); } // Load any pages that are necessary for the current window of views loadAssociatedPages(mCurrentPage, immediateAndOnly); requestLayout(); } if (isPageMoving()) { // If the page is moving, then snap it to the final position to ensure we don't get // stuck between pages snapToDestination(); } }这个方法是重点，也分了几步来执行，我们分步来看：1)syncPages是一个抽象方法，在AppsCustomizePagedView中实现，@Override public void syncPages() { disablePagedViewAnimations(); // 移除所有视图和任务 removeAllViews(); cancelAllTasks(); Context context = getContext(); if (mContentType == ContentType.Applications) { for (int i = 0; i < mNumAppsPages; ++i) { AppsCustomizeCellLayout layout = new AppsCustomizeCellLayout(context); setupPage(layout); addView(layout, new PagedView.LayoutParams(LayoutParams.MATCH_PARENT, LayoutParams.MATCH_PARENT)); } } else if (mContentType == ContentType.Widgets) { for (int j = 0; j < mNumWidgetPages; ++j) { PagedViewGridLayout layout = new PagedViewGridLayout(context, mWidgetCountX, mWidgetCountY); setupPage(layout); addView(layout, new PagedView.LayoutParams(LayoutParams.MATCH_PARENT, LayoutParams.MATCH_PARENT)); } } else { throw new RuntimeException("Invalid ContentType"); } enablePagedViewAnimations(); }app和widget来分别添加，我们这里只需了解如何添加app页面的，widget完全类似。a)生成AppsCustomizeCellLayout对象b)setupPage，设置page// 设置page的表格、背景色 private void setupPage(AppsCustomizeCellLayout layout) { layout.setGridSize(mCellCountX, mCellCountY);// 设置页面表格数 // Note: We force a measure here to get around the fact that when we do layout calculations // immediately after syncing, we don't have a proper width. That said, we already know the // expected page width, so we can actually optimize by hiding all the TextView-based // children that are expensive to measure, and let that happen naturally later. setVisibilityOnChildren(layout, View.GONE); int widthSpec = MeasureSpec.makeMeasureSpec(mContentWidth, MeasureSpec.AT_MOST); int heightSpec = MeasureSpec.makeMeasureSpec(mContentHeight, MeasureSpec.AT_MOST); layout.measure(widthSpec, heightSpec); // 设置page背景色 Drawable bg = getContext().getResources().getDrawable(R.drawable.quantum_panel); if (bg != null) { bg.setAlpha(mPageBackgroundsVisible ? 255: 0); layout.setBackground(bg); } setVisibilityOnChildren(layout, View.VISIBLE); }c)addView，将CellLayout添加到page中2)重新测量，设置当前页等// We must force a measure after we've loaded the pages to update the content width and // to determine the full scroll width measure(MeasureSpec.makeMeasureSpec(getMeasuredWidth(), MeasureSpec.EXACTLY), MeasureSpec.makeMeasureSpec(getMeasuredHeight(), MeasureSpec.EXACTLY)); // Set a new page as the current page if necessary // 设置当前显示页 if (currentPage > -1) { setCurrentPage(Math.min(getPageCount() - 1, currentPage)); }3)loadAssociatedPagesprotected void loadAssociatedPages(int page, boolean immediateAndOnly) { if (mContentIsRefreshable) { final int count = getChildCount(); if (page < count) { int lowerPageBound = getAssociatedLowerPageBound(page); int upperPageBound = getAssociatedUpperPageBound(page); if (DEBUG) Log.d(TAG, "loadAssociatedPages: " + lowerPageBound + "/" + upperPageBound); // First, clear any pages that should no longer be loaded for (int i = 0; i < count; ++i) { Page layout = (Page) getPageAt(i); if ((i < lowerPageBound) || (i > upperPageBound)) { if (layout.getPageChildCount() > 0) { layout.removeAllViewsOnPage(); } mDirtyPageContent.set(i, true); } } // Next, load any new pages for (int i = 0; i < count; ++i) { if ((i != page) && immediateAndOnly) { continue; } if (lowerPageBound <= i && i <= upperPageBound) { if (mDirtyPageContent.get(i)) { syncPageItems(i, (i == page) && immediateAndOnly); mDirtyPageContent.set(i, false); } } } } } }先清除不需要加载的pages，然后加载page及items--syncPageItems，也是一个抽象方法在AppsCustomizePagedView中实现，@Override public void syncPageItems(int page, boolean immediate) { if (mContentType == ContentType.Widgets) { syncWidgetPageItems(page, immediate); } else { syncAppsPageItems(page, immediate); } }// 添加items到page上 public void syncAppsPageItems(int page, boolean immediate) { // ensure that we have the right number of items on the pages final boolean isRtl = isLayoutRtl();// 是否从右向左排列，一般都是从左向右 int numCells = mCellCountX * mCellCountY;// 每页的格数，及可加载的app数量 int startIndex = page * numCells;// 开始位置 int endIndex = Math.min(startIndex + numCells, mApps.size());// 结束位置，如果不满页，就是app数量的总数 AppsCustomizeCellLayout layout = (AppsCustomizeCellLayout) getPageAt(page);// 根据page号获取AppsCustomizeCellLayout layout.removeAllViewsOnPage(); ArrayList<Object> items = new ArrayList<Object>(); ArrayList<Bitmap> images = new ArrayList<Bitmap>(); for (int i = startIndex; i < endIndex; ++i) {// 循环添加items AppInfo info = mApps.get(i); BubbleTextView icon = (BubbleTextView) mLayoutInflater.inflate(R.layout.apps_customize_application, layout, false); icon.applyFromApplicationInfo(info); icon.setOnClickListener(mLauncher); icon.setOnLongClickListener(this); icon.setOnTouchListener(this); icon.setOnKeyListener(this); icon.setOnFocusChangeListener(layout.mFocusHandlerView); // icon.setTextColor(Color.WHITE); // modify text color int index = i - startIndex; // 就算item所在表格位置 int x = index % mCellCountX; int y = index / mCellCountX; if (isRtl) { x = mCellCountX - x - 1; } layout.addViewToCellLayout(icon, -1, i, new CellLayout.LayoutParams(x,y, 1,1), false); items.add(info); images.add(info.iconBitmap); } enableHwLayersOnVisiblePages(); }代码中都有注释，比较好理解，先计算需要放置的位置，然后创建BubbleTextView实例，最后将其添加到page中。整个setApps的过程还是非常长的，最终目的就是将app显示到所有app列表中。接着会执行onPackagesUpdated，package的更新操作，就不再展开了。Widget也是类似的。这样加载allapp的过程就结束了。
902
被折叠的 条评论
为什么被折叠?
到【灌水乐园】发言
