1.背景
我们都很清楚java创建线程的方式:1.继承Thread 2.实现Runnable接口,但是在项目中,我们几乎从来不会这样使用,因为线程创建和销毁都很耗费系统资源(CPU、IO、内存等),那么问题来了,如果能有一种工具能在我们需要的时候(eg:前端页面请求、后端定时任务等)提供创建线程,当线程执行完成以后不进行销毁,直接被工具回收回去,进入闲置状态,等待被再次使用。这样的话,资源利用率就大大提高了,而jdk已经为我们考虑到了这些,jdk1.5开始出现了线程池,我们通过调用线程池中线程供我们使用,当使用完成以后,让线程池回收该线程。
2.线程池ThreadPoolExecutor
jdk1.5开始,jdk提供线程池ThreadPoolExecutor,下面我们来一起看看ThreadPoolExecutor
2.1 类图
- Executor 根接口,提供executor方法执行任务,如下
package java.util.concurrent;
public interface Executor {
void execute(Runnable command);
}
- ExecutorService 线程池接口,提供了线程池生命周期方法,继承自Executor接口
- ThreadPoolExecutor 线程池实现类,提供了线程池的维护操作等相关方法,继承自AbstractExecutorService,AbstractExecutorService实现了ExecutorService接口。
2.2 体系结构
java.util.concurrent.Executor:负责线程的使用和调度的根接口
|–ExecutorService 子接口: 线程池的主要接口
|–ThreadPoolExecutor:线程池的实现类
|–ScheduledExceutorService 子接口: 负责线程的调度
|–ScheduledThreadPoolExecutor :继承ThreadPoolExecutor,实现了ScheduledExecutorService
2.3 类构造函数和参数说明
这里参数含义请求参考方法注释(不会英文的程序员肯定是最low的)
/**
* Creates a new {@code ThreadPoolExecutor} with the given initial
* parameters.
*
* @param corePoolSize the number of threads to keep in the pool, even
* if they are idle, unless {@code allowCoreThreadTimeOut} is set
* @param maximumPoolSize the maximum number of threads to allow in the
* pool
* @param keepAliveTime when the number of threads is greater than
* the core, this is the maximum time that excess idle threads
* will wait for new tasks before terminating.
* @param unit the time unit for the {@code keepAliveTime} argument
* @param workQueue the queue to use for holding tasks before they are
* executed. This queue will hold only the {@code Runnable}
* tasks submitted by the {@code execute} method.
* @param threadFactory the factory to use when the executor
* creates a new thread
* @param handler the handler to use when execution is blocked
* because the thread bounds and queue capacities are reached
* @throws IllegalArgumentException if one of the following holds:<br>
* {@code corePoolSize < 0}<br>
* {@code keepAliveTime < 0}<br>
* {@code maximumPoolSize <= 0}<br>
* {@code maximumPoolSize < corePoolSize}
* @throws NullPointerException if {@code workQueue}
* or {@code threadFactory} or {@code handler} is null
*/
public ThreadPoolExecutor(int corePoolSize,
int maximumPoolSize,
long keepAliveTime,
TimeUnit unit,
BlockingQueue<Runnable> workQueue,
ThreadFactory threadFactory,
RejectedExecutionHandler handler) {
if (corePoolSize < 0 ||
maximumPoolSize <= 0 ||
maximumPoolSize < corePoolSize ||
keepAliveTime < 0)
throw new IllegalArgumentException();
if (workQueue == null || threadFactory == null || handler == null)
throw new NullPointerException();
this.acc = System.getSecurityManager() == null ?
null :
AccessController.getContext();
this.corePoolSize = corePoolSize;
this.maximumPoolSize = maximumPoolSize;
this.workQueue = workQueue;
this.keepAliveTime = unit.toNanos(keepAliveTime);
this.threadFactory = threadFactory;
this.handler = handler;
}
public ThreadPoolExecutor(int corePoolSize,
int maximumPoolSize,
long keepAliveTime,
TimeUnit unit,
BlockingQueue<Runnable> workQueue) {
this(corePoolSize, maximumPoolSize, keepAliveTime, unit, workQueue,
Executors.defaultThreadFactory(), defaultHandler);
}
/**
* The default rejected execution handler
*/
private static final RejectedExecutionHandler defaultHandler =
new AbortPolicy();
说明
- 默认线程工厂:Executors.defaultThreadFactory(),Executors工具类下一节介绍
- 线程池ThreadPoolExecutor参数RejectedExecutionHandler:当线程池已满,执行被阻塞,无法创建线程来执行任务的处理方式,默认:AbortPolicy。处理方式总共4种,如下:
- AbortPolicy:用于被拒绝任务的处理程序,它将抛出RejectedExecutionException
- CallerRunsPolicy:用于被拒绝任务的处理程序,它直接在execute方法的调用线程中运行被拒绝的任务。
- DiscardOldestPolicy:用于被拒绝任务的处理程序,它放弃最旧的未处理请求,然后重试execute。
- DiscardPolicy:用于被拒绝任务的处理程序,它后台丢弃被拒绝的任务。
2.4 线程池处理流程
当一个任务被提交到线程池时,执行以下步骤:
-
查看核心线程池是否已满,不满就创建一条线程执行任务,否则执行第二步。
-
查看任务队列是否已满,不满就将任务存储在任务队列中,否则执行第三步。
-
查看线程池是否已满(线程池线程梳理是否大于maximumPoolSize),不满就创建一条线程执行任务,否则就按照策略处理无法执行的任务。
3.创建线程池工具类Executors
我们当然可以项目通过构造方法创建线程池,jdk为了方便我们创建线程池,提供了工具类Executors,Executors创建常用4种线程池源码如下:
public static ExecutorService newFixedThreadPool(int nThreads) {
return new ThreadPoolExecutor(nThreads, nThreads,
0L, TimeUnit.MILLISECONDS,
new LinkedBlockingQueue<Runnable>());
}
public static ExecutorService newSingleThreadExecutor() {
return new FinalizableDelegatedExecutorService
(new ThreadPoolExecutor(1, 1,
0L, TimeUnit.MILLISECONDS,
new LinkedBlockingQueue<Runnable>()));
}
public static ExecutorService newCachedThreadPool() {
return new ThreadPoolExecutor(0, Integer.MAX_VALUE,
60L, TimeUnit.SECONDS,
new SynchronousQueue<Runnable>());
}
/**
* Creates a thread pool that can schedule commands to run after a
* given delay, or to execute periodically.
* @param corePoolSize the number of threads to keep in the pool,
* even if they are idle
* @return a newly created scheduled thread pool
* @throws IllegalArgumentException if {@code corePoolSize < 0}
*/
public static ScheduledExecutorService newScheduledThreadPool(int corePoolSize) {
return new ScheduledThreadPoolExecutor(corePoolSize);
}
3.1 说明
ExecutorService#newFixedThreadPool() : 创建固定大小的线程池
ExecutorService#newCachedThreadPool() : 缓存线程池,线程池的数量不固定,可以根据需求自动的更改数量。
ExecutorService#newSingleThreadExecutor() : 创建单个线程池。 线程池中只有一个线程
ScheduledExecutorService#newScheduledThreadPool() : 创建固定大小的线程,可以延迟或定时的执行任务
根据Executors.java的源码比较性能:
/**
* Creates a thread pool that reuses a fixed number of threads
* operating off a shared unbounded queue. At any point, at most
* {@code nThreads} threads will be active processing tasks.
* If additional tasks are submitted when all threads are active,
* they will wait in the queue until a thread is available.
* If any thread terminates due to a failure during execution
* prior to shutdown, a new one will take its place if needed to
* execute subsequent tasks. The threads in the pool will exist
* until it is explicitly {@link ExecutorService#shutdown shutdown}.
*
* @param nThreads the number of threads in the pool
* @return the newly created thread pool
* @throws IllegalArgumentException if {@code nThreads <= 0}
*/
public static ExecutorService newFixedThreadPool(int nThreads) {
return new ThreadPoolExecutor(nThreads, nThreads,
0L, TimeUnit.MILLISECONDS,
new LinkedBlockingQueue<Runnable>());
}
=> LinkedBlockingQueue.java构造方法
/**
* Creates a {@code LinkedBlockingQueue} with a capacity of
* {@link Integer#MAX_VALUE}.
*/
public LinkedBlockingQueue() {
this(Integer.MAX_VALUE);
}
/**
* Creates a {@code LinkedBlockingQueue} with the given (fixed) capacity.
*
* @param capacity the capacity of this queue
* @throws IllegalArgumentException if {@code capacity} is not greater
* than zero
*/
public LinkedBlockingQueue(int capacity) {
if (capacity <= 0) throw new IllegalArgumentException();
this.capacity = capacity;
last = head = new Node<E>(null);
}
=> 1)创建固定大小的线程池,核心线程数和最大线程数相等,且为指定大小
2)非核心线程数空闲超时时间为0L,意味着:一旦非核心线程数空闲不执行任务,立马回收
3)阻塞队列BlockingQueue为LinkedBlockingQueue,队列容量为Integer.MAX_VALUE
缺点:允许的请求队列长度为 Integer.MAX_VALUE,可能会堆积大量的请求,从而导致 OOM。
/**
* Creates an Executor that uses a single worker thread operating
* off an unbounded queue. (Note however that if this single
* thread terminates due to a failure during execution prior to
* shutdown, a new one will take its place if needed to execute
* subsequent tasks.) Tasks are guaranteed to execute
* sequentially, and no more than one task will be active at any
* given time. Unlike the otherwise equivalent
* {@code newFixedThreadPool(1)} the returned executor is
* guaranteed not to be reconfigurable to use additional threads.
*
* @return the newly created single-threaded Executor
*/
public static ExecutorService newSingleThreadExecutor() {
return new FinalizableDelegatedExecutorService
(new ThreadPoolExecutor(1, 1,
0L, TimeUnit.MILLISECONDS,
new LinkedBlockingQueue<Runnable>()));
}
=> 1)创建线程池核心线程数和最大线程数都为1
2)非核心线程数空闲超时时间为0L,意味着:一旦非核心线程数空闲不执行任务,立马回收
3)阻塞队列BlockingQueue实现为LinkedBlockingQueue,队列容量为Integer.MAX_VALUE
缺点:允许的请求队列长度为 Integer.MAX_VALUE,可能会堆积大量的请求,从而导致 OOM。
注意:跟newFixedThreadPool(1)是有区别的,返回线程池执行器不允许重新配置
/**
* Creates a thread pool that creates new threads as needed, but
* will reuse previously constructed threads when they are
* available. These pools will typically improve the performance
* of programs that execute many short-lived asynchronous tasks.
* Calls to {@code execute} will reuse previously constructed
* threads if available. If no existing thread is available, a new
* thread will be created and added to the pool. Threads that have
* not been used for sixty seconds are terminated and removed from
* the cache. Thus, a pool that remains idle for long enough will
* not consume any resources. Note that pools with similar
* properties but different details (for example, timeout parameters)
* may be created using {@link ThreadPoolExecutor} constructors.
*
* @return the newly created thread pool
*/
public static ExecutorService newCachedThreadPool() {
return new ThreadPoolExecutor(0, Integer.MAX_VALUE,
60L, TimeUnit.SECONDS,
new SynchronousQueue<Runnable>());
}
=> 1)核心线程数为0,最大线程数为Integer.VALUE
2)非核心线程数空闲超时时间为60L,意味着:一旦非核心线程数空闲不执行任务,立马回收
3)阻塞队列BlockingQueue采用SynchronousQueue,SynchronousQueue队列并没有内部容量,它仅仅起到一个新建进程的过渡作用,仅仅当另一个线程移除元素时,它才存储一个元素
缺点:允许的创建线程数量为 Integer.MAX_VALUE,可能会创建大量的线程,从而导致 OOM。
/**
* Creates a thread pool that can schedule commands to run after a
* given delay, or to execute periodically.
* @param corePoolSize the number of threads to keep in the pool,
* even if they are idle
* @return a newly created scheduled thread pool
* @throws IllegalArgumentException if {@code corePoolSize < 0}
*/
public static ScheduledExecutorService newScheduledThreadPool(int corePoolSize) {
return new ScheduledThreadPoolExecutor(corePoolSize);
}
==> ScheduledThreadPoolExecutor.java的构造方法
/**
* Creates a new {@code ScheduledThreadPoolExecutor} with the
* given core pool size.
*
* @param corePoolSize the number of threads to keep in the pool, even
* if they are idle, unless {@code allowCoreThreadTimeOut} is set
* @throws IllegalArgumentException if {@code corePoolSize < 0}
*/
public ScheduledThreadPoolExecutor(int corePoolSize) {
super(corePoolSize, Integer.MAX_VALUE, 0, NANOSECONDS,
new DelayedWorkQueue());
}
=> 1)核心线程数固定大小,最大线程数:Integer.MAX_VALUE
2)用来创建线程延迟或周期性执行定时任务
3)阻塞队列BlockingQueue采用DelayedWorkQueue,DelayedWorkQueue是特定的延迟队列,为了配合ThreadPoolExecutor的构造函数,需要实现BlockingQueue,初始容量大小:16
缺点:允许的创建线程数量为 Integer.MAX_VALUE,可能会创建大量的线程,从而导致 OOM。
3.2 阿里开发手册不推荐通过Executors创建线程池
阿里开发手册(华山版).pdf 链接 提取码: 82xk ,编程规约->并发处理,如下:
3.3 Executors方法运用
实际项目中,我们很少会自己通过new ThreadPoolExecutor方法创建线程池,通过我们会采用Spring对ThreadPoolExecutor封装的ThreadPoolTaskExecutor对其进行线程池的配置(在下一节做介绍)。这里以Executors提供的方法创建线程池编写测试方法,如下:
package com.wisely.highlight_springmvc4.thread.pool;
import java.util.concurrent.*;
public class ThreadPoolTest1 {
public static void main(String[] args) {
// Step1:创建固定大小的线程池
ExecutorService exec = Executors.newFixedThreadPool(10);
Callable<String> call = new Callable<String>() {
public String call() throws Exception {
//开始执行耗时操作
Thread.sleep(1000 * 2);
return "线程执行完成.";
}
};
try {
Future<String> future = exec.submit(call);
// 任务处理超时时间设为 1 秒
String obj = future.get(1000 * 1, TimeUnit.MILLISECONDS);
System.out.println("任务成功返回:" + obj);
} catch (TimeoutException ex) {
System.out.println("处理超时啦....");
ex.printStackTrace();
} catch (Exception e) {
System.out.println("处理失败.");
e.printStackTrace();
}
// 关闭线程池
exec.shutdown();
}
}
注意:
- Callable回调函数,Future#get(long timeout, TimeUnit unit)可以设置任务执行超时时间,可以结合分布式锁(redis+zookeeper实现的分布式锁)一起使用
4. Spring线程池封装ThreadPoolTaskExecutor
Spring对jdk线程池ThreadPoolExecutor进行了封装,封装类为ThreadPoolTaskExecutor

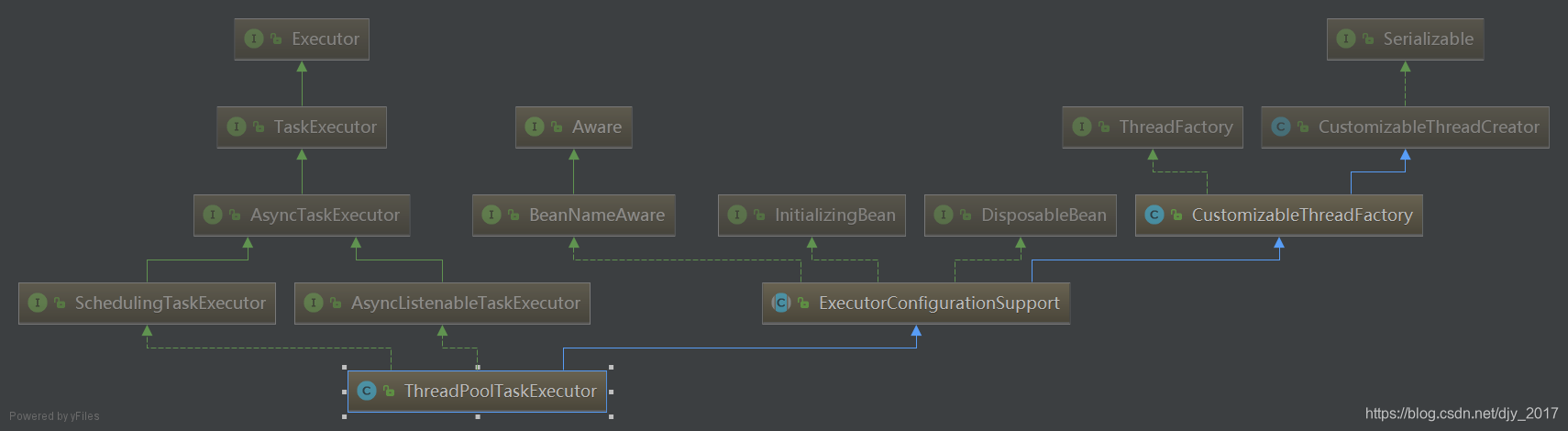

4.1 结构
public class ThreadPoolTaskExecutor extends ExecutorConfigurationSupport
implements AsyncListenableTaskExecutor, SchedulingTaskExecutor {
private final Object poolSizeMonitor = new Object();
private int corePoolSize = 1;
private int maxPoolSize = Integer.MAX_VALUE;
private int keepAliveSeconds = 60;
private int queueCapacity = Integer.MAX_VALUE;
private boolean allowCoreThreadTimeOut = false;
private ThreadPoolExecutor threadPoolExecutor;
为什么说Spring是对ThreadPoolExecutor进行了封装,对ThreadPoolTaskExecutor配置,就是对ThreadPoolTaskExecutor配置,我们先来看下ThreadPoolTaskExecutor容器初始化方法
4.2 类图
从类图中我们可以看到,ThreadPoolTaskExecutor继承了ExecutorConfigurationSupport,ThreadPoolTaskExecutor提供了初始化线程池方法initializeExecutor,继承了ExecutorConfigurationSupport方法afterPropertiesSet和initialize方法,容器初始化时会调用afterPropertiesSet方法如下:
ThreadPoolTaskExecutor.java
/**
* Note: This method exposes an {@link ExecutorService} to its base class
* but stores the actual {@link ThreadPoolExecutor} handle internally.
* Do not override this method for replacing the executor, rather just for
* decorating its {@code ExecutorService} handle or storing custom state.
*/
@Override
protected ExecutorService initializeExecutor(
ThreadFactory threadFactory, RejectedExecutionHandler rejectedExecutionHandler) {
BlockingQueue<Runnable> queue = createQueue(this.queueCapacity);
ThreadPoolExecutor executor;
if (this.taskDecorator != null) {
executor = new ThreadPoolExecutor(
this.corePoolSize, this.maxPoolSize, this.keepAliveSeconds, TimeUnit.SECONDS,
queue, threadFactory, rejectedExecutionHandler) {
@Override
public void execute(Runnable command) {
super.execute(taskDecorator.decorate(command));
}
};
}
else {
executor = new ThreadPoolExecutor(
this.corePoolSize, this.maxPoolSize, this.keepAliveSeconds, TimeUnit.SECONDS,
queue, threadFactory, rejectedExecutionHandler);
}
if (this.allowCoreThreadTimeOut) {
executor.allowCoreThreadTimeOut(true);
}
// 线程池初始化完成
this.threadPoolExecutor = executor;
return executor;
}
ExecutorConfigurationSupport.java
/**
* Calls {@code initialize()} after the container applied all property values.
* @see #initialize()
*/
@Override
public void afterPropertiesSet() {
initialize();
}
/**
* Set up the ExecutorService.
*/
public void initialize() {
if (logger.isInfoEnabled()) {
logger.info("Initializing ExecutorService " + (this.beanName != null ? " '" + this.beanName + "'" : ""));
}
if (!this.threadNamePrefixSet && this.beanName != null) {
setThreadNamePrefix(this.beanName + "-");
}
this.executor = initializeExecutor(this.threadFactory, this.rejectedExecutionHandler);
}
以上是Spring提供线程池封装类ThreadPoolTaskExecutor初始化线程池ThreadPoolExecutor过程,ThreadPoolTaskExecutor提供的方法都是对内置成员变量线程池ThreadPoolExecutor访问,这里以线程池核心线程数的方法做介绍,ThreadPoolTaskExecutor中corePoolSize的Getter和Setter方法如下:
/**
* Set the ThreadPoolExecutor's core pool size.
* Default is 1.
* <p><b>This setting can be modified at runtime, for example through JMX.</b>
*/
public void setCorePoolSize(int corePoolSize) {
synchronized (this.poolSizeMonitor) { // 线程池锁
this.corePoolSize = corePoolSize;
if (this.threadPoolExecutor != null) {
this.threadPoolExecutor.setCorePoolSize(corePoolSize);
}
}
}
/**
* Return the ThreadPoolExecutor's core pool size.
*/
public int getCorePoolSize() {
synchronized (this.poolSizeMonitor) {
return this.corePoolSize;
}
}
从上面方法,我们可以看到这里采用了代理模式,ThreadPoolTaskExecutor帮我们代理访问ThreadPoolExecutor,对ThreadPoolTaskExecutor访问就是对ThreadPoolExecutor的访问。
4.3 案例
1)线程池配置
这里以基于java配置为例(基于xml配置存在参数限制,配置信息不全)
package com.wisely.highlight_springmvc4.thread.pool;
import org.slf4j.Logger;
import org.slf4j.LoggerFactory;
import org.springframework.aop.interceptor.AsyncUncaughtExceptionHandler;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import org.springframework.scheduling.annotation.AsyncConfigurer;
import org.springframework.scheduling.annotation.EnableAsync;
import org.springframework.scheduling.concurrent.ThreadPoolTaskExecutor;
import java.lang.reflect.Method;
import java.util.concurrent.Executor;
import java.util.concurrent.ThreadPoolExecutor;
/**
* Created by dujiayong on 2020/3/1.
*/
@Configuration
@EnableAsync // 开启对异步任务支持
public class MyThreadPoolExecutor implements AsyncConfigurer{
private static final Logger log = LoggerFactory.getLogger(MyThreadPoolExecutor.class);
/**
* 实现AsyncConfigurer接口,重写getAsyncExecutor方法,自定义线程池
* 重写getAsyncUncaughtExceptionHandler,自定义异常处理类
* @return
*/
@Bean(name = "asyncExecutor")
@Override
public Executor getAsyncExecutor() {
ThreadPoolTaskExecutor asyncExecutor = new ThreadPoolTaskExecutor();
asyncExecutor.setCorePoolSize(5);
asyncExecutor.setMaxPoolSize(100);
asyncExecutor.setKeepAliveSeconds(60);
asyncExecutor.setQueueCapacity(100);
asyncExecutor.setThreadNamePrefix("asyncExecutor-custom-");
// 当pool已经达到max size的时候,如何处理新任务,不在新线程中执行,而是由调用者所在的线程执行
asyncExecutor.setRejectedExecutionHandler(new ThreadPoolExecutor.AbortPolicy());
return asyncExecutor;
}
/**
* 自定义线程池:ThreadPoolTaskExecutor,返回参数类型:ThreadPoolTaskExecutor
* @return
*/
@Bean(name = "threadPoolTaskExecutor")
public ThreadPoolTaskExecutor threadPoolTaskExecutor() {
ThreadPoolTaskExecutor executor = new ThreadPoolTaskExecutor();
executor.setCorePoolSize(10);
executor.setMaxPoolSize(100);
executor.setKeepAliveSeconds(60);
executor.setQueueCapacity(100);
executor.setThreadNamePrefix("MyThreadPoolExecutor-custom-");
// 当pool已经达到max size的时候,如何处理新任务,不在新线程中执行,而是由调用者所在的线程执行
executor.setRejectedExecutionHandler(new ThreadPoolExecutor.CallerRunsPolicy());
return executor;
}
@Override
public AsyncUncaughtExceptionHandler getAsyncUncaughtExceptionHandler() {
return new MyAsyncExceptionHandler();
}
/**
* 自定义异常处理类
*/
static class MyAsyncExceptionHandler implements AsyncUncaughtExceptionHandler {
@Override
public void handleUncaughtException(Throwable throwable, Method method, Object... objects) {
log.error("Exception message - " + throwable.getMessage());
log.error("Method name - " + method.getName());
for(Object param:objects){
log.error("Parameter value -" + param);
}
}
}
}
2)线程池使用
package com.wisely.highlight_springmvc4.web.threadpool;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.scheduling.concurrent.ThreadPoolTaskExecutor;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RestController;
/**
* Created by dujiayong on 2020/3/2.
*/
@RestController
@RequestMapping(value = "/threadPoolTest")
public class ThreadPoolTestController {
@Autowired
ThreadPoolTaskExecutor threadPoolTaskExecutor;
@RequestMapping(value = "/stat")
public String stat() {
for (int i = 0; i < 15; i++) {
threadPoolTaskExecutor.execute(() -> {
try {
Thread.sleep(1000 * 2);
System.out.println("当前时间:" + System.currentTimeMillis() + ",线程:" + Thread.currentThread().getName());
} catch (InterruptedException e) {
e.printStackTrace();
}
});
}
System.out.println("结束...,时间:" + System.currentTimeMillis());
return "success";
}
}
执行结果如下:
结束...,时间:1584235693194
当前时间:1584235695207,线程:MyThreadPoolExecutor-custom-1
当前时间:1584235695207,线程:MyThreadPoolExecutor-custom-3
当前时间:1584235695207,线程:MyThreadPoolExecutor-custom-2
当前时间:1584235695207,线程:MyThreadPoolExecutor-custom-4
当前时间:1584235695207,线程:MyThreadPoolExecutor-custom-5
当前时间:1584235695207,线程:MyThreadPoolExecutor-custom-6
当前时间:1584235695207,线程:MyThreadPoolExecutor-custom-10
当前时间:1584235695207,线程:MyThreadPoolExecutor-custom-8
当前时间:1584235695207,线程:MyThreadPoolExecutor-custom-7
当前时间:1584235695207,线程:MyThreadPoolExecutor-custom-9
当前时间:1584235697218,线程:MyThreadPoolExecutor-custom-1
当前时间:1584235697218,线程:MyThreadPoolExecutor-custom-3
当前时间:1584235697218,线程:MyThreadPoolExecutor-custom-2
当前时间:1584235697218,线程:MyThreadPoolExecutor-custom-5
当前时间:1584235697218,线程:MyThreadPoolExecutor-custom-4
由此可以ThreadPoolTaskExecutor有10个核心线程,15个并发任务,前10个由核心线程处理,另外5个对队列,等前10个任务执行完毕,核心线程再去执行任务队列中的任务。
完毕
