在PERC管理的RAID上运行一致性检查

参考戴尔官方论坛：https://www.dell.com/community/Systems-Management/Run-a-Consistency-Check-on-a-PERC-managed-RAID-without-OMSA/m-p/4767003
一、方法一

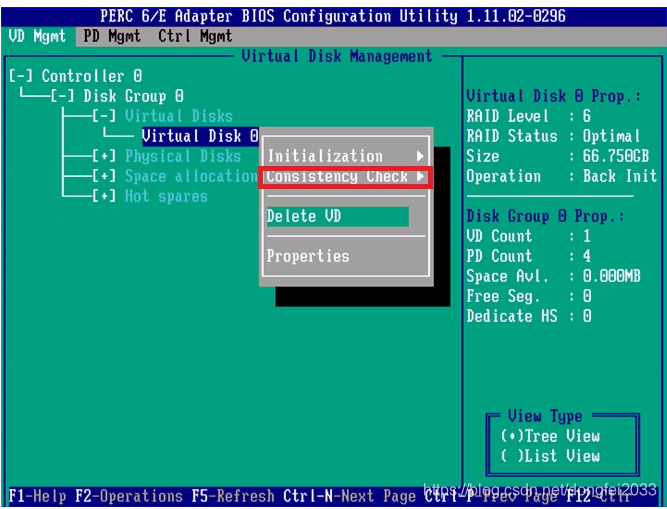

在bios设置里可以设置开启一致性主动检查

RAID卡有两种一致性检查方式

1. Patrol read
2. consistency check

[root@kvm_100_67_159_143 ~]# /opt/MegaRAID/MegaCli/MegaCli64 -AdpCcSched -Info -aALL

Adapter #0

Operation Mode: Concurrent

Execution Delay: 168

Next start time: 03/10/2018, 03:00:00

Current State: Stopped

Number of iterations: 94

Number of VD completed: 0

Excluded VDs          : None

Exit Code: 0x00



周期是7天 168小时的间隔，24*7=168

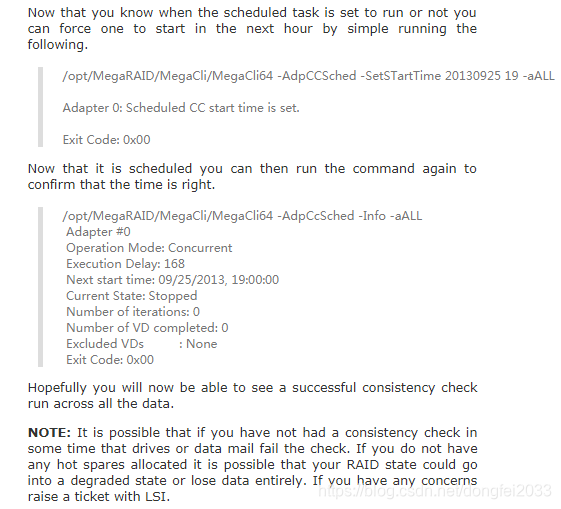

一致性检查可以主动触发发现，错误可以手动触发或者发起。例如定时发起检查。

/opt/MegaRAID/MegaCli/MegaCli64 -AdpSetTime `date +%Y%m%d` `date +%H:%M:%S` -aALL -NoLog

[root@kvm_100_91_167_90 ~]# /opt/MegaRAID/MegaCli/MegaCli64  -AdpGetTime -aALL

Adapter 0:

   Date: 03/13/2018

    Time: 11:23:51

Exit Code: 0x00

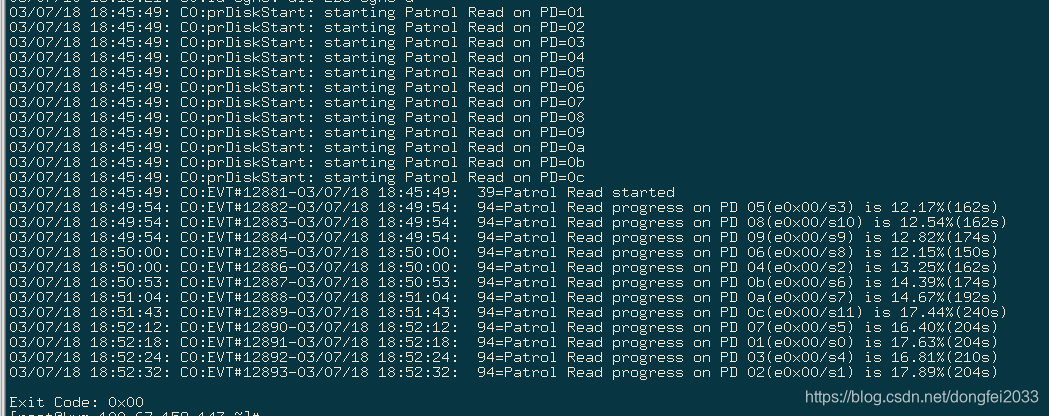

手动触发Patrol read 检查

SSD的机器可能不支持

/opt/MegaRAID/MegaCli/MegaCli64 -AdpPR -Start -aALL

/opt/MegaRAID/MegaCli/MegaCli64 -fwtermlog -dsply -aall



Patrol read

Tries to discover disk error before it is too late and data is lost.
(including hot spare connected to a controller.)

This process causes the drives to read the data by issuing "read-verify" commands. By using the "read-verify " command, the data from the drives is not transferred to the MegaRAID adapter unless an error is detected and reported by one or more drives included in the stripe.

If a single drive reports an error within the stripe, the read patrol function initiates read commands to all the other stripe unit drives and the data for this single failing stripe unit is recreated by the MegaRAID adapter from the remaining data and parity stripe units.

After recreating this data, the adapter then issues a write-verify command to the drive
