wxMathPlot





wxMathPlot

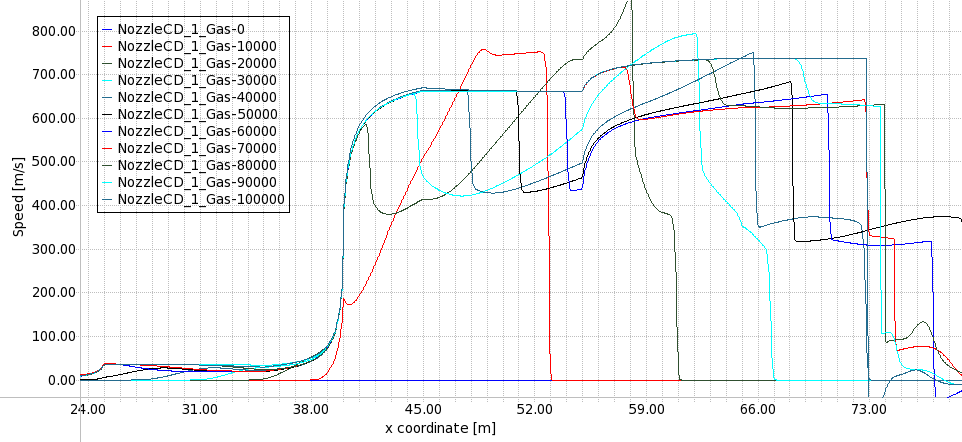

wxMathPlot is a library to add 2D scientific plot functionality to wxWidgets. It allows to embed inside your program a window for plotting scientific, statistical or mathematical data, with additions like legend or coordinate display in overlay.

wxMathPlot is distributed under the therms of the wxWindows License

wxMathPlot main features:

• Completely mouse-driven view control: pan, zoom, scroll, box positioning.
• Printing class.
• Screenshot saving of plot window(BMP, PNG and JPEG formats).
• Overlay movable boxes with legend or mouse coordinate display.
• Can set margins to avoid plots to cover axis labels.
• Flexible axis positioning
• A series of useful layer to directly plot data from STL vector, movable objects, covariance ellipse, bitmaps, etc.
• Multi-platform: runs everywhere wxWidgets does.

Current release: 0.1.2

Authors

From June 2007 the project is maintained by Davide Rondini <cdron77@users.sourceforge.net>, who carries on the original work by David Schalig <mrhill@users.sourceforge.net>.
Authors can be contacted via the wxMathPlot's homepage at https://sourceforge.net/projects/wxmathplot.
Contributors: Jose Luis Blanco, Val Greene.







帮助文档：http://wxmathplot.sourceforge.net/docs/index.html

屏幕截图：http://wxmathplot.sourceforge.net/screenshot.shtml
